1、Producer启动过程

org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#start(boolean)

    public void start(final boolean startFactory) throws MQClientException {
        switch (this.serviceState) {
            case CREATE_JUST:
                this.serviceState = ServiceState.START_FAILED;

                this.checkConfig();

                if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
                    this.defaultMQProducer.changeInstanceNameToPID();
                }

                this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);

                boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
                if (!registerOK) {
                    this.serviceState = ServiceState.CREATE_JUST;
                    throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
                        + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                        null);
                }

                this.topicPublishInfoTable.put(this.defaultMQProducer.getCreateTopicKey(), new TopicPublishInfo());

                if (startFactory) {
                    mQClientFactory.start();
                }

                log.info("the producer [{}] start OK. sendMessageWithVIPChannel={}", this.defaultMQProducer.getProducerGroup(),
                    this.defaultMQProducer.isSendMessageWithVIPChannel());
                this.serviceState = ServiceState.RUNNING;
                break;
            case RUNNING:
            case START_FAILED:
            case SHUTDOWN_ALREADY:
                throw new MQClientException("The producer service state not OK, maybe started once, "
                    + this.serviceState
                    + FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
                    null);
            default:
                break;
        }

一、检查producerGroup是否符合要求，并设置生产者的instanceName为进程ID。

group名称不能为CLIENT_INNER_PRODUCER

if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
	this.defaultMQProducer.changeInstanceNameToPID();
}

二、创建MQClientInstance实例。

clientId为ip+instance+(unitname)

this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);

三、将当前生产者加入MQClientInstance管理,便于进行发送请求等操作。

boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
if (!registerOK) {
    this.serviceState = ServiceState.CREATE_JUST;
    throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
                                + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                                null);
}

四、启动MQClientInstance.

    public void start() throws MQClientException {

        synchronized (this) {
            switch (this.serviceState) {
                case CREATE_JUST:
                    this.serviceState = ServiceState.START_FAILED;
                    // If not specified,looking address from name server
                    if (null == this.clientConfig.getNamesrvAddr()) {
                        this.mQClientAPIImpl.fetchNameServerAddr();
                    }
                    // Start request-response channel
                    this.mQClientAPIImpl.start();
                    // Start various schedule tasks
                    this.startScheduledTask();
                    // Start pull service
                    this.pullMessageService.start();
                    // Start rebalance service
                    this.rebalanceService.start();
                    // Start push service
                    this.defaultMQProducer.getDefaultMQProducerImpl().start(false);
                    log.info("the client factory [{}] start OK", this.clientId);
                    this.serviceState = ServiceState.RUNNING;
                    break;
                case START_FAILED:
                    throw new MQClientException("The Factory object[" + this.getClientId() + "] has been created before, and failed.", null);
                default:
                    break;
            }
        }
    }

2、消息发送配置流程

消息发送包括三部分，消息检验，消息路由和消息发送。
代码如下：org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#send(org.apache.rocketmq.common.message.Message, org.apache.rocketmq.client.producer.SendCallback)

    public SendResult send(
        Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        Validators.checkMessage(msg, this);
        msg.setTopic(withNamespace(msg.getTopic()));
        return this.defaultMQProducerImpl.send(msg);
    }

org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#send(org.apache.rocketmq.common.message.Message)
    /**
     * DEFAULT SYNC -------------------------------------------------------
     */
    public SendResult send(
        Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        return send(msg, this.defaultMQProducer.getSendMsgTimeout());
    }

    public SendResult send(Message msg,
        long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
    }

1、消息校验

消息校验校验topic名称是否合法，是否为内部使用的一些topic名称，消息体不能为空，消息体的长度不能超过4M等。
org.apache.rocketmq.client.Validators#checkMessage

    public static void checkMessage(Message msg, DefaultMQProducer defaultMQProducer)
        throws MQClientException {
        if (null == msg) {
            throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message is null");
        }
        // topic
        Validators.checkTopic(msg.getTopic());
        Validators.isNotAllowedSendTopic(msg.getTopic());

        // body
        if (null == msg.getBody()) {
            throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message body is null");
        }

        if (0 == msg.getBody().length) {
            throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message body length is zero");
        }

        if (msg.getBody().length > defaultMQProducer.getMaxMessageSize()) {
            throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL,
                "the message body size over max value, MAX: " + defaultMQProducer.getMaxMessageSize());
        }
    }

2、查询主题路由信息

发送消息之前，需要获取topic的路由信息，只有获取了路由信息后，producer才知道需要将消息发送给哪个broker。

tryToFindTopicPublishInfo


org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#tryToFindTopicPublishInfo

    private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
        TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
        if (null == topicPublishInfo || !topicPublishInfo.ok()) {
            this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
            this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
            topicPublishInfo = this.topicPublishInfoTable.get(topic);
        }

        if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
            return topicPublishInfo;
        } else {
            this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
            topicPublishInfo = this.topicPublishInfoTable.get(topic);
            return topicPublishInfo;
        }
    }

TopicPublishInfo首先从缓存中查询。如果TopicPublishInfo中包含了消息队列，则直接返回该路由方法，如果没有缓存或没有包含消息队列，则向NameServer查询该topic的路由信息。如果还是没找到，说明是第一次发送消息，并且broker端还没有创建对应的topic。这种情况下使用默认topic去查询，并将路由信息中的读写队列数量设置为默认返回的读写队列数量。

updateTopicRouteInfoFromNameServe

org.apache.rocketmq.client.impl.factory.MQClientInstance#updateTopicRouteInfoFromNameServer(java.lang.String, boolean, org.apache.rocketmq.client.producer.DefaultMQProducer)

    public boolean updateTopicRouteInfoFromNameServer(final String topic, boolean isDefault,
        DefaultMQProducer defaultMQProducer) {
        try {
            if (this.lockNamesrv.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
                try {
                    TopicRouteData topicRouteData;
                    if (isDefault && defaultMQProducer != null) {
                        topicRouteData = this.mQClientAPIImpl.getDefaultTopicRouteInfoFromNameServer(defaultMQProducer.getCreateTopicKey(),
                            1000 * 3);
                        if (topicRouteData != null) {
                            for (QueueData data : topicRouteData.getQueueDatas()) {
                                int queueNums = Math.min(defaultMQProducer.getDefaultTopicQueueNums(), data.getReadQueueNums());
                                data.setReadQueueNums(queueNums);
                                data.setWriteQueueNums(queueNums);
                            }
                        }
                    } else {
                        topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3);
                    }
                    if (topicRouteData != null) {
                        TopicRouteData old = this.topicRouteTable.get(topic);
                        boolean changed = topicRouteDataIsChange(old, topicRouteData);
                        if (!changed) {
                            changed = this.isNeedUpdateTopicRouteInfo(topic);
                        } else {
                            log.info("the topic[{}] route info changed, old[{}] ,new[{}]", topic, old, topicRouteData);
                        }

                        if (changed) {
                            TopicRouteData cloneTopicRouteData = topicRouteData.cloneTopicRouteData();

                            for (BrokerData bd : topicRouteData.getBrokerDatas()) {
                                this.brokerAddrTable.put(bd.getBrokerName(), bd.getBrokerAddrs());
                            }

                            // Update Pub info
                            {
                                TopicPublishInfo publishInfo = topicRouteData2TopicPublishInfo(topic, topicRouteData);
                                publishInfo.setHaveTopicRouterInfo(true);
                                Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
                                while (it.hasNext()) {
                                    Entry<String, MQProducerInner> entry = it.next();
                                    MQProducerInner impl = entry.getValue();
                                    if (impl != null) {
                                        impl.updateTopicPublishInfo(topic, publishInfo);
                                    }
                                }
                            }

                            // Update sub info
                            {
                                Set<MessageQueue> subscribeInfo = topicRouteData2TopicSubscribeInfo(topic, topicRouteData);
                                Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
                                while (it.hasNext()) {
                                    Entry<String, MQConsumerInner> entry = it.next();
                                    MQConsumerInner impl = entry.getValue();
                                    if (impl != null) {
                                        impl.updateTopicSubscribeInfo(topic, subscribeInfo);
                                    }
                                }
                            }
                            log.info("topicRouteTable.put. Topic = {}, TopicRouteData[{}]", topic, cloneTopicRouteData);
                            this.topicRouteTable.put(topic, cloneTopicRouteData);
                            return true;
                        }
                    } else {
                        log.warn("updateTopicRouteInfoFromNameServer, getTopicRouteInfoFromNameServer return null, Topic: {}", topic);
                    }
                } catch (MQClientException e) {
                    if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                        log.warn("updateTopicRouteInfoFromNameServer Exception", e);
                    }
                } catch (RemotingException e) {
                    log.error("updateTopicRouteInfoFromNameServer Exception", e);
                    throw new IllegalStateException(e);
                } finally {
                    this.lockNamesrv.unlock();
                }
            } else {
                log.warn("updateTopicRouteInfoFromNameServer tryLock timeout {}ms", LOCK_TIMEOUT_MILLIS);
            }
        } catch (InterruptedException e) {
            log.warn("updateTopicRouteInfoFromNameServer Exception", e);
        }

        return false;
    }

在拿到路由信息后，会与本地缓存中的路由信息进行比较，如果没有发生变化，直接返回false。如果发生了变化，则更新broker,producer，consumer信息。

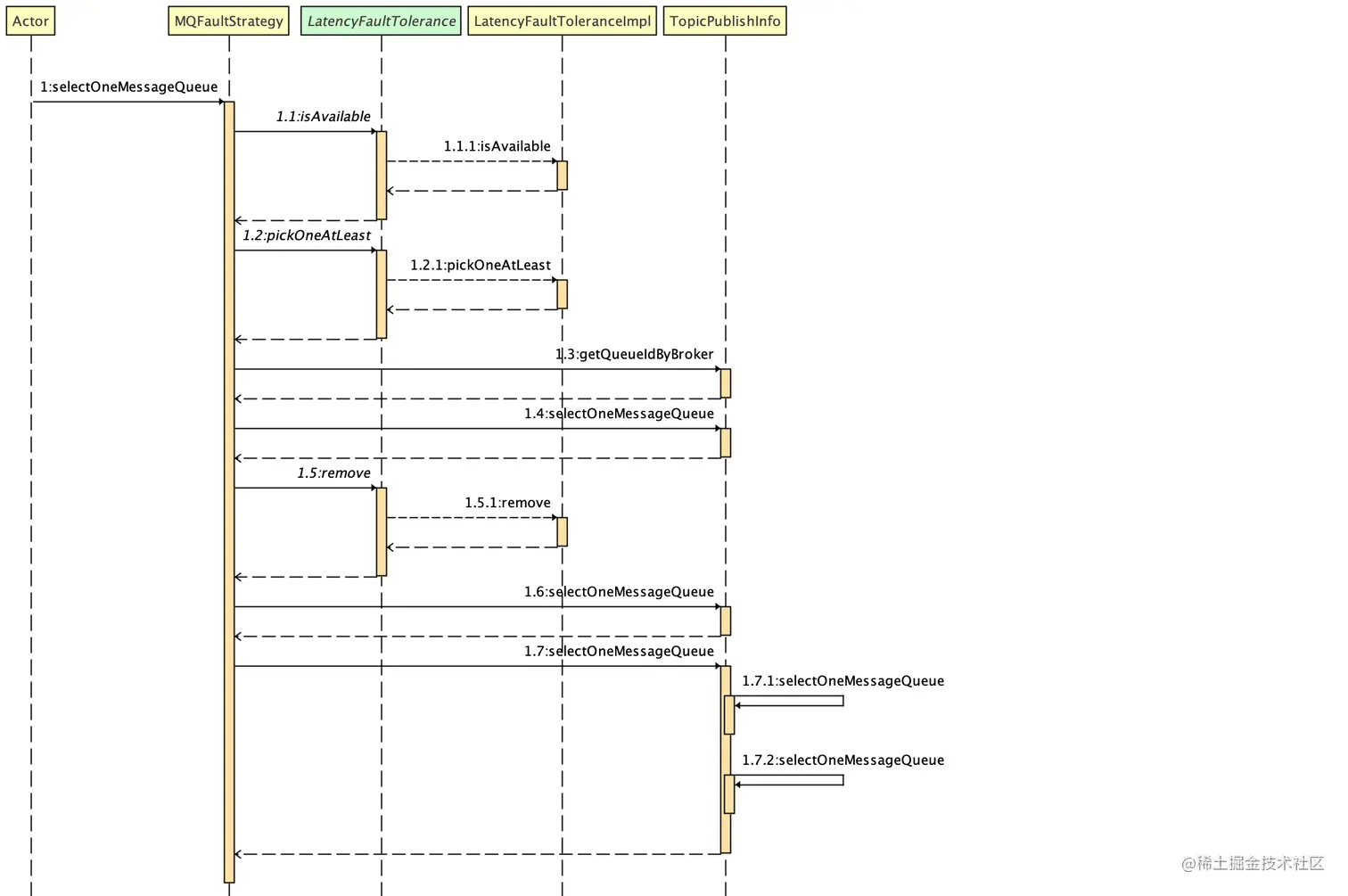

3、选择消息队列

当sendLatencyFaultEnable=true时，表示启动Broker故障延迟机制。该变量默认为false。
1、对消息队列进行轮询，获取一个消息队列。
2、判断消息队列是否可用，如果可用，并且null == lastBrokerName || mq.getBrokerName_().equals(_lastBrokerName，则直接返回。
3、如果不可用，则直接从latencyFaultTolerance随机返回一个broker，并选择该broker中的一个队列。

    public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
        if (this.sendLatencyFaultEnable) {
            try {
                int index = tpInfo.getSendWhichQueue().getAndIncrement();
                for (int i = 0; i < tpInfo.getMessageQueueList().size(); i++) {
                    int pos = Math.abs(index++) % tpInfo.getMessageQueueList().size();
                    if (pos < 0)
                        pos = 0;
                    MessageQueue mq = tpInfo.getMessageQueueList().get(pos);
                    if (latencyFaultTolerance.isAvailable(mq.getBrokerName())) {
                        if (null == lastBrokerName || mq.getBrokerName().equals(lastBrokerName))
                            return mq;
                    }
                }

                final String notBestBroker = latencyFaultTolerance.pickOneAtLeast();
                int writeQueueNums = tpInfo.getQueueIdByBroker(notBestBroker);
                if (writeQueueNums > 0) {
                    final MessageQueue mq = tpInfo.selectOneMessageQueue();
                    if (notBestBroker != null) {
                        mq.setBrokerName(notBestBroker);
                        mq.setQueueId(tpInfo.getSendWhichQueue().getAndIncrement() % writeQueueNums);
                    }
                    return mq;
                } else {
                    latencyFaultTolerance.remove(notBestBroker);
                }
            } catch (Exception e) {
                log.error("Error occurred when selecting message queue", e);
            }

            return tpInfo.selectOneMessageQueue();
        }

        return tpInfo.selectOneMessageQueue(lastBrokerName);
    }


Broker故障延迟机制

Broker故障延迟的接口为LatencyFaultTolerance

public interface LatencyFaultTolerance<T> {
    /**
     * 更新失败条目
     * @param name brokerName
     * @param currentLatency 消息发送故障延迟时间
     * @param notAvailableDuration 不可用持续时长，在这个时间内，Broker将被规避
     */
    void updateFaultItem(final T name, final long currentLatency, final long notAvailableDuration);

    /**
     * 判断Broker是否可用
     * @param name broker名称
     * @return
     */
    boolean isAvailable(final T name);

    /**
     * 移除Fault条目
     * @param name broker名称
     */
    void remove(final T name);

    /**
     * 尝试从规避的条目中选择一个可用的，如果没有找到，则返回null
     * @return
     */
    T pickOneAtLeast();
}

updateFaultItem原理

在发送完消息时，会调用org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#updateFaultItem更新信息。该方法有三个参数，第一个是broker的名称，第二个是本次消息发送的延迟时间currentLatency，第三个参数是是否隔离，true表示是使用默认30秒来计算故障规避时长。false表示使用本次消息发送延迟时间来计算规避时长。

规避时长计算规则为：从latencyMax数组尾部开始，找到第一个比latencyMax小的数组下标。根据下标从notAvailableDuration取出对应时间。
private long_[] latencyMax = {50L, 100L, 550L, 1000L, 2000L, 3000L, 15000L};
private long[] _notAvailableDuration = {0L, 0L, 30000L, 60000L, 120000L, 180000L, 600000L};

sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);

   public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
        this.mqFaultStrategy.updateFaultItem(brokerName, currentLatency, isolation);
    }

public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
    if (this.sendLatencyFaultEnable) {
        long duration = computeNotAvailableDuration(isolation ? 30000 : currentLatency);
        this.latencyFaultTolerance.updateFaultItem(brokerName, currentLatency, duration);
    }
}

    private long computeNotAvailableDuration(final long currentLatency) {
        for (int i = latencyMax.length - 1; i >= 0; i--) {
            if (currentLatency >= latencyMax[i])
                return this.notAvailableDuration[i];
        }

        return 0;
    }

    @Override
    public void updateFaultItem(final String name, final long currentLatency, final long notAvailableDuration) {
        FaultItem old = this.faultItemTable.get(name);
        if (null == old) {
            final FaultItem faultItem = new FaultItem(name);
            faultItem.setCurrentLatency(currentLatency);
            faultItem.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);

            old = this.faultItemTable.putIfAbsent(name, faultItem);
            if (old != null) {
                old.setCurrentLatency(currentLatency);
                old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
            }
        } else {
            old.setCurrentLatency(currentLatency);
            old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
        }
    }

4、发送消息

org.apache.rocketmq.client.impl.producer.DefaultMQProducerImpl#sendKernelImpl

第一步：获取borker地址。如果没有获取到，会通过NameServer获取路由信息，并从路由信息中获取Broker地址。

     String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        if (null == brokerAddr) {
            tryToFindTopicPublishInfo(mq.getTopic());
            brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        }

第二步：设置消息唯一ID，各种标志位，压缩标志，事务消息标志等。

//for MessageBatch,ID has been set in the generating process
if (!(msg instanceof MessageBatch)) {
    MessageClientIDSetter.setUniqID(msg);
}

boolean topicWithNamespace = false;
if (null != this.mQClientFactory.getClientConfig().getNamespace()) {
    msg.setInstanceId(this.mQClientFactory.getClientConfig().getNamespace());
    topicWithNamespace = true;
}

int sysFlag = 0;
boolean msgBodyCompressed = false;
if (this.tryToCompressMessage(msg)) {
    sysFlag |= MessageSysFlag.COMPRESSED_FLAG;
    msgBodyCompressed = true;
}

final String tranMsg = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (tranMsg != null && Boolean.parseBoolean(tranMsg)) {
    sysFlag |= MessageSysFlag.TRANSACTION_PREPARED_TYPE;
}

第三步：钩子函数处理


if (hasCheckForbiddenHook()) {
    CheckForbiddenContext checkForbiddenContext = new CheckForbiddenContext();
    checkForbiddenContext.setNameSrvAddr(this.defaultMQProducer.getNamesrvAddr());
    checkForbiddenContext.setGroup(this.defaultMQProducer.getProducerGroup());
    checkForbiddenContext.setCommunicationMode(communicationMode);
    checkForbiddenContext.setBrokerAddr(brokerAddr);
    checkForbiddenContext.setMessage(msg);
    checkForbiddenContext.setMq(mq);
    checkForbiddenContext.setUnitMode(this.isUnitMode());
    this.executeCheckForbiddenHook(checkForbiddenContext);
}

if (this.hasSendMessageHook()) {
    context = new SendMessageContext();
    context.setProducer(this);
    context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
    context.setCommunicationMode(communicationMode);
    context.setBornHost(this.defaultMQProducer.getClientIP());
    context.setBrokerAddr(brokerAddr);
    context.setMessage(msg);
    context.setMq(mq);
    context.setNamespace(this.defaultMQProducer.getNamespace());
    String isTrans = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
    if (isTrans != null && isTrans.equals("true")) {
        context.setMsgType(MessageType.Trans_Msg_Half);
    }

    if (msg.getProperty("__STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY_DELAY_TIME_LEVEL) != null) {
        context.setMsgType(MessageType.Delay_Msg);
    }
    this.executeSendMessageHookBefore(context);
}

第四步：构建消息请求发送包


SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
requestHeader.setTopic(msg.getTopic());
requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
requestHeader.setQueueId(mq.getQueueId());
requestHeader.setSysFlag(sysFlag);
requestHeader.setBornTimestamp(System.currentTimeMillis());
requestHeader.setFlag(msg.getFlag());
requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
requestHeader.setReconsumeTimes(0);
requestHeader.setUnitMode(this.isUnitMode());
requestHeader.setBatch(msg instanceof MessageBatch);
if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
    String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
    if (reconsumeTimes != null) {
        requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_RECONSUME_TIME);
    }

    String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
    if (maxReconsumeTimes != null) {
        requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_MAX_RECONSUME_TIMES);
    }
}

第五步：发送消息，支持异步，同步，单向。

SendResult sendResult = null;
switch (communicationMode) {
    case ASYNC:
        Message tmpMessage = msg;
        boolean messageCloned = false;
        if (msgBodyCompressed) {
            //If msg body was compressed, msgbody should be reset using prevBody.
            //Clone new message using commpressed message body and recover origin massage.
            //Fix bug:https://github.com/apache/rocketmq-externals/issues/66
            tmpMessage = MessageAccessor.cloneMessage(msg);
            messageCloned = true;
            msg.setBody(prevBody);
        }

        if (topicWithNamespace) {
            if (!messageCloned) {
                tmpMessage = MessageAccessor.cloneMessage(msg);
                messageCloned = true;
            }
            msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
        }

        long costTimeAsync = System.currentTimeMillis() - beginStartTime;
        if (timeout < costTimeAsync) {
            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
        }
        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
            brokerAddr,
            mq.getBrokerName(),
            tmpMessage,
            requestHeader,
            timeout - costTimeAsync,
            communicationMode,
            sendCallback,
            topicPublishInfo,
            this.mQClientFactory,
            this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
            context,
            this);
        break;
    case ONEWAY:
    case SYNC:
        long costTimeSync = System.currentTimeMillis() - beginStartTime;
        if (timeout < costTimeSync) {
            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
        }
        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
            brokerAddr,
            mq.getBrokerName(),
            msg,
            requestHeader,
            timeout - costTimeSync,
            communicationMode,
            context,
            this);
        break;
    default:
        assert false;
        break;
}

第六步：执行消息发送钩子函数，执行after逻辑

if (this.hasSendMessageHook()) {
    context.setSendResult(sendResult);
    this.executeSendMessageHookAfter(context);
}





avatar
文章
阅读
粉丝
