Vue 源码阅读第一步-深度解读响应式原理

MVVM 模式 (view viewModel model)

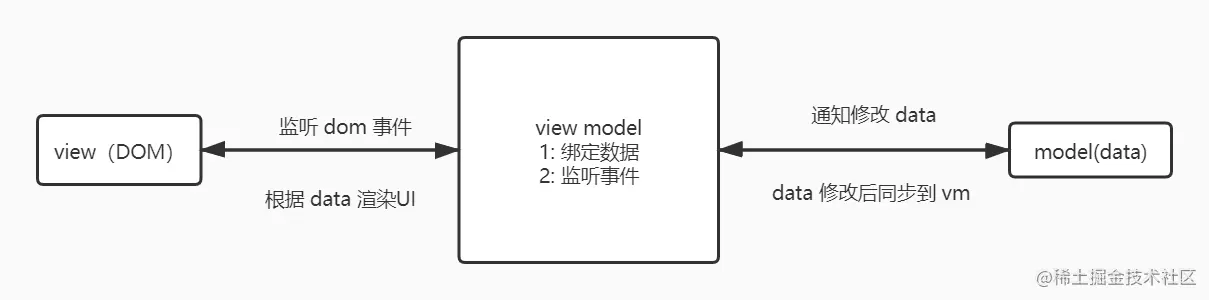

vue 是一个基于 MVVM 模式实现的渐进式框架。 mvvm

view 是视图层(DOM), model 是数据层(data)。 viewModel 充当了一个中间角色,它能够根据绑定的 model 数据渲染 view 视图, 同时也能监听视图层的事件来改变 model 的数据从而更新视图变化。

数据绑定原理

实现 viewModel 能够随时接受到 model 的变化, vue(v2 版本)的核心 api 是 Object.defineProperty。 这个方法他能定义对象属性的 get set 方法从而达到对对象数据的监听。


function defineReactive(obj, key, val) {
  Object.defineProperty(obj, key, {
    get() {
      console.log('get: ', key);
      return val
    },

    set(newVal){
      if(newVal !== val) {
        console.log(`set: ${key}`, newVal);
        val = newVal
      }
    }
  })
}

const obj = {
  a: 1
}

defineReactive(obj, 'a', 1)

obj.a =2
obj.a

// 'set a 2'
// 'get a'
复制代码

将上面的代码改造为函数,接收一个对象,并监听他所有属性的 get set 方法

function observer(obj) {
  Object.keys(obj).forEach(key => {
    defineReactive(obj, key, obj[key])
  })
}
复制代码

数据嵌套监听

上述的 definedReactive 只能监听到对象属性为基本类型的情况, 如果某个属性又为一个对象,就监听不到数据了。

  const obj = {
    a: {
      b: 'b'
    }
  }

  observer(obj)

  obj.a.b

  // get a  由于监听不到嵌套的对象 这里只能输出 a 而不会输出 b
复制代码

改造的方式也很简单, 在 observer 方法中添加对非对象的逻辑判断,然后在 defineReactive 执行的时候,先执行一次 observer 方法,这样就可以迭代完成对象属性的监听了。

function defineReactive(obj, key, val) {
  observer(val)
  Object.defineProperty(obj, key, {
    get() {
      console.log('get: ', key);
      return val
    },

    set(newVal){
      if(newVal !== val) {
        console.log(`set: ${key}`, newVal);
        val = newVal
      }
    }
  })
}

function observer(obj) {
  if(typeof obj !== 'object' || obj === null) {
    return
  }else {
    Object.keys(obj).forEach(key => {
      defineReactive(obj, key, obj[key])
    })
  }
}

const obj = {
  a: {
    b: {
      c: 1
    }
  }
}

observer(obj)
obj.a.b

// 由于做了深度监听 会分别输出 a b 的 get 日志
// get:  a
// get:  b

复制代码

改写对象的属性为对象

当设置对象的某一个属性为新的对象时, observer 也不会监听到这个新对象中属性的 get set


const obj = {
  a: 1
}
observer(obj)

obj.a = {
  b: 1
}

obj.a.b

// 这时只能监听到 a 的获取而无法监听 b 的获取
// set a {b: 1}
// get: a
复制代码

改造方法: 只需要在每次监听 set 的时候, observer 一下新的值就可以了

function defineReactive(obj, key, val) {
  observer(val)
  Object.defineProperty(obj, key, {
    get() {
      console.log('get: ', key);
      return val
    },

    set(newVal){
      if(newVal !== val) {
        console.log(`set: ${key}`, newVal);
        observer(newVal)
        val = newVal
      }
    }
  })
}
复制代码

给对象添加新的属性

当给对象添加一个新的属性时, 由于在调用 observer 的时候还没有该属性,所以也无法完成对新属性的监听

const obj = {}
observer(obj)
obj.a = 1
obj.a

// 无任何输出
复制代码

Vue 中解决这种问题的方法也比较简单——使用单独 set 函数, 将新增的属性执行一次 defineReactive

function set(obj, key, val) {
  defineReactive(obj, key, val)
}

const obj = {}
observer(obj)

set(obj, 'a', 1)
obj.a

// get: a

复制代码

监听数组变化监听

实现数组监听需要以下步骤

  1. 找到数组原型,并备份

  2. 在备份的原型上覆盖那些能够改变数组的方法,添加监听动作

  3. 将备份的原型赋值给数组实例上。

数组上面会引起数据变化的方法有 7 个: push shift unshift pop reverse split sort

// 第一步 找到数组原型,并备份
const originProto = Array.prototype
const arrProto = Object.create(originProto)

// 第二步 在备份的原型上覆盖那些能够改变数组的方法,添加监听动作
const arrMethods = ['push', 'pop', 'shift', 'unshift', 'sort', 'reverse', 'splice']
arrMethods.forEach(method => {
  arrProto[method] = function(){
    // 添加监听
    console.log(`数组执行 ${method} 操作`)

    // 执行原操作  因为原操作会返回数据 这里需要 return
    return originProto[method].apply(this, arguments)
  }
})

// 第三步 将备份的原型赋值给数组实例上。
function observer(obj) {
  if(typeof obj !== 'object' || obj === null) {
    return
  }
  if(Array.isArray(obj)) {
    // 原本 obj.__proto__ = Array.prototype  这里改写为了 arrProto
    obj.__proto__ = arrProto
  }else {
    Object.keys(obj).forEach(key => {
      defineReactive(obj, key, obj[key])
    })
  }
}


const obj = []
obj.push(1)

// 数组执行 push 操作
复制代码

查看以上完整代码

数据响应原理

实现了数据绑定后, 就可以在数据发生变化的时候更新 dom

更新整个 dom

我们可以声明一个 class 类, 其构造器接收一个对象,在构造器中实现对这个对象属性进行监听的行为。

function observe (obj) {
  // ...
}

class Vue {
  constructor(options) {
    this.$data = options.data

    observe(this.data)
  }
}
复制代码
<div id="app"></div>

<script>
  const vm = new Vue({
    el: '#app',
    data: {
      msg: new Date()
    }
  })

  setInterval(() => {
    vm.$data.msg = new Date()
  }, 1000)

</script>
复制代码

这样每秒钟都触发 defineReactive 函数中 console.log('set: ', newVal)

当实现了对数据的绑定后,就可以在数据发生变化时更新页面了。

function defineReactive(obj, key, val) {
  observer(val)
  Object.defineProperty(obj, key, {
    get() {
      console.log('get: ', key);
      return val
    },

    set(newVal){
      if(newVal !== val) {
        console.log(`set: ${key}`, newVal);
        observer(newVal)
        val = newVal
        // 这里添加了操作 dom 的操作
+       update(newVal)
      }
    }
  })
}

function update(newVal) {
  const app = document.getElementById('app')
  app.innerHTML = newVal
}
复制代码

Compile 编译器和初始化渲染

上面的代码有两个很明显的问题:

  1. 只有数据发生改变时,才进行 update 操作,没有进行初始渲染。
  2. 直接替换了整个根节点,应该只针对绑定了数据的 dom 进行更新。

为了解决这两个问题,需要单独声明一个 Compile 类在 Vue 实例生成时和实例数据发生改变时进行数据渲染。

为了解决第二个问题,先看一下在 vue 中绑定数据的常见形式:

  1. 元素节点中插值
<div>{{msg}}</div>
复制代码
  1. 元素节点中使用 v-html 插值
<div v-html="{{msh}}"></div>
复制代码
  1. 文本节点中插值
{{msg}}
复制代码

现根据上面三种绑定数据的方式,在 Compile 中实现数据的替换。

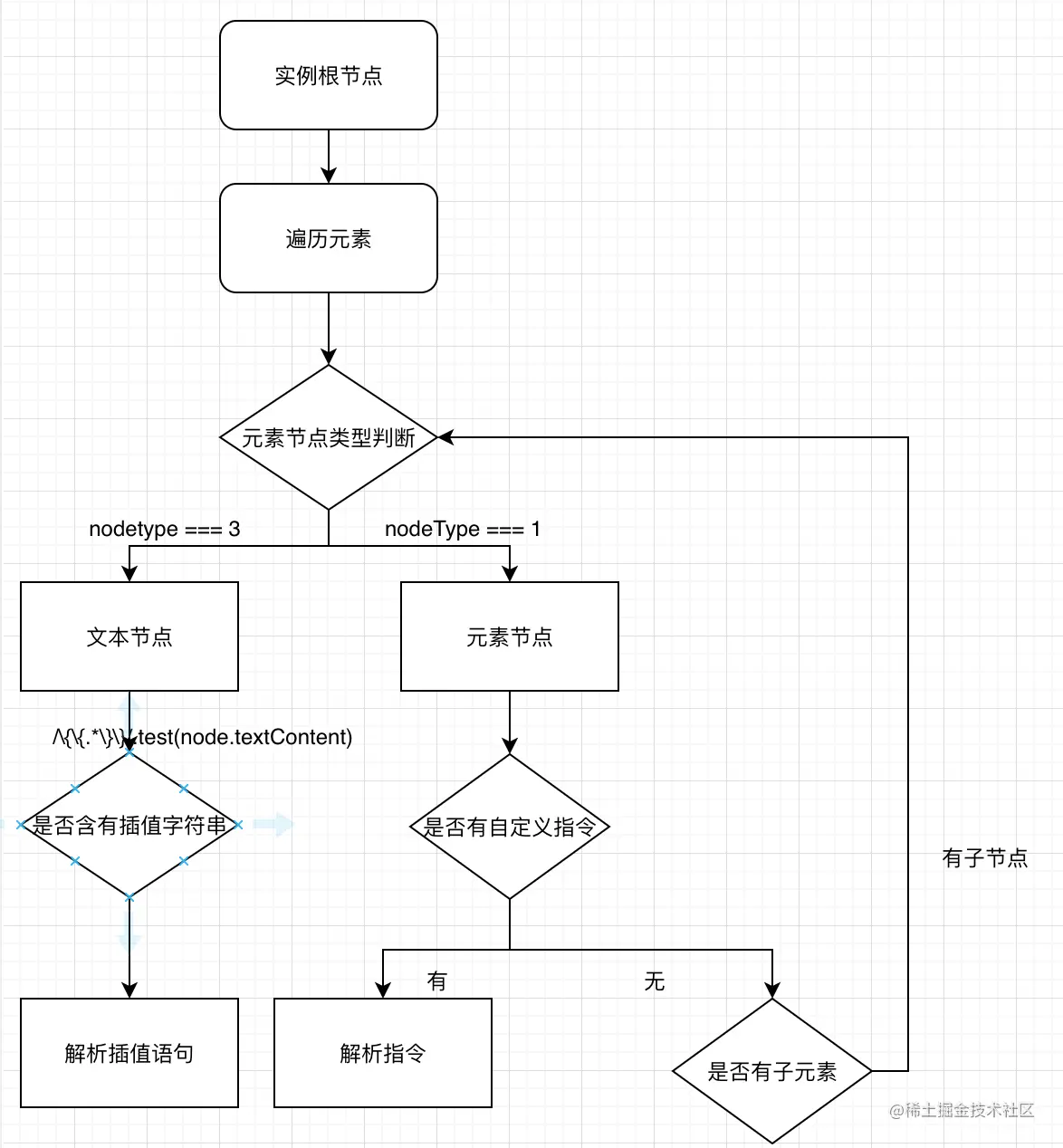

Compile 实现步骤

Compile 实现步骤

class Compile {
    //  el 参数, 用来指定后面的渲染工作在哪里进行
    //  vm 参数, 当匹配到 DOM 中绑定的数据 key 后, 根据 vm[key] 渲染 DOM
  constructor(el, vm) {
    this._el = document.querySelector(el)
    this._vm = vm

    if(this._el) {
      this.compile(this._el)
    }

  }

  compile(el) {
    const children = el.childNodes
    console.log(children)

    Array.from(children).forEach(child => {
      // 元素节点
      if(child.nodeType === 1) {
        console.log('编译元素节点')
        // 如果包含子节点需要先 迭代 子元素
        if(child.hasChildNodes()) {
          console.log('编译元素子节点', child)
          this.compile(child)
        }else {
          let nodeAttrs = child.attributes
          // 查找 v-html 绑定的情况
          if(Array.from(nodeAttrs).findIndex(attr => attr.name === 'v-html') > -1) {
            console.log('编译 v-html 元素' )
            child.textContent = this._vm[child.getAttribute('v-html')]
          }
        }
      }
      // 文本节点 (这里会存在由于换行导致的空节点) 使用正则匹配到 含有 {{xxx}} 绑定的节点
      else if(child.nodeType === 3 && /\{\{(.*)\}\}/.test(child.textContent)) {
        console.log('编译文本节点', RegExp.$1, this._vm)
        child.textContent = this._vm[RegExp.$1]
      }

    })
  }
}
复制代码

Compile 的构造函数中, el 用来标识后面的渲染更新在哪个 dom 元素下, vm 用来当匹配到了 dom 中绑定的数据 key 后, 根据 vm[key] 的方式将数据插入到 DOM 中。

compile 方法根据上面讲的三种绑定数据的方式,分别进行了插值的逻辑。 这里需要注意的是: 以插值形式绑定的数据,当前所在的节点类型只可能为文本节点。

将 compile 在 Vue 实例化的时候执行一次,这样就可以完成初始化渲染绑定数据的 DOM 了。

class Vue {
  constructor(options) {
    this.$data = options.data
    this.$el = options.el

    observe(this.$data)
    this.proxy('$data')

    new Compile(this.$el, this.$data)
  }

  // 代理函数 用来将 this.$data this.methods 里面的属性直接代理到 this 上面去
  proxy(prop) {
    Object.keys(this[prop]).forEach(key => {
      Object.defineProperty(this, key, {
        get() {
          return this[prop][key]
        },
        set(val) {
          this[prop][key] = val
        }
      })
    })
  }
}

复制代码
<div id="app">
  {{time}}
</div>

<script>
  const vm = new Vue({
    el: '#app',
    data: {
      time: new Date()
    }
  })

</script>
复制代码

数据变化时更新 DOM

在看数据变化更新 DOM 前,先看一下什么是依赖和依赖收集

依赖 & 依赖收集

视图中会用到 data 中某个 key, 这称为 依赖, 为了维护所有的这些依赖, 需要有一个 Watcher 收集这些依赖并维护, 这个过程叫做 依赖收集。依赖收集后, 每一个 watcher 实例对应一次 key 的使用, 当 key 对应的值发生变化时, 更新 dom. 除此外, 由于同一个 key 可能在视图中出现多次, 需要抽象出来一个 Dep 来管理每一个 key, 当 key 发生变化时, 通知所有使用到这个 keyWatcher 更新视图。

<div>{{foo}}</div>
<div>{{bar}}</div>
<div>{{bar}}</div>

<script>
  new Vue({
    data: {
      foo: 'foo',
      bar: 'bar'
    }
  })
</script>
复制代码

如代码所示, 共有 3 个 Watcher (3 次使用到了 data 中的属性), 2 个 Dep(视图中使用到了 2 个 data 中的属性)

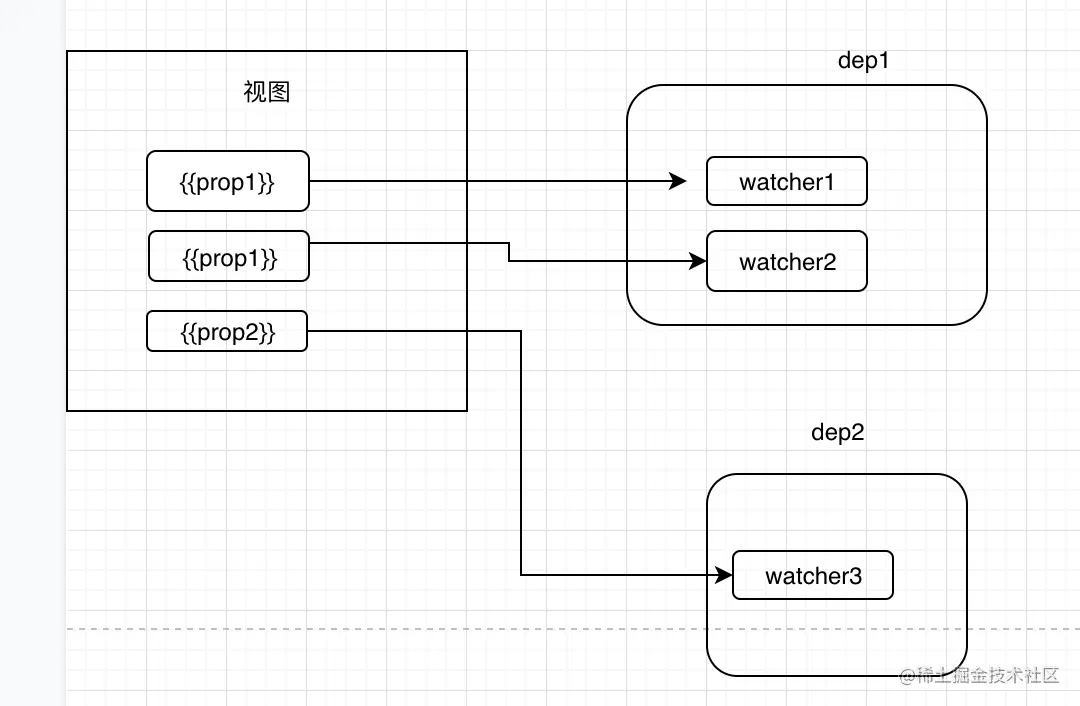

视图&Watcher&Dep 之间的关系

Vue 的视图响应

Vue 的视图响应基于依赖收集而实现。

实现思路:

  1. definedReactive 时为每个属性创建一个 Dep
  2. 初始化视图读取数据时创建一个 Watcher
  3. 由于初始化渲染触发 getter 方法, 便将 Watcher 添加到 Dep
  4. 当数据发生改变触发 setter 方法时, 通知对应的 Dep 更新它管理的所有 Watcher

1. definedReactive 时为每个属性创建一个 Dep

按照上面 Vue 视图响应步骤, 当渲染时触发监听数据的 getter 方法时, 创建一个 Dep 的实例用来使用该 key 的所有 Watcher

class Dep {
  constructor() {
    this.watchers = []
  }

  add(watcher) {
    this.wathcers.push(watcher)
  }

  notify(){
    this.watchers.forEach(watcher => {
      watcher.update()
    })
  }
}

function defineReactive(obj, key, val) {
  observer(val)
  const dep = new Dep()
  Object.defineProperty(obj, key, {
    get() {
      // TODO: dep 添加 watcher 实例
    },

    set(newVal) {
      // ...
    },
  })
}
复制代码
  1. 在 Dep 的构造函数中,声明了一个 wachters 数组用来存放所有使用同一个 key 的 watcher
  2. Dep 中的 add 方法用来添加 watcher
  3. Dep 中的 notify 方法在当数据发生变化的时候, 执行所有管辖的 watcher 实例执行 update 方法, 即更新视图。
  4. defineReactive 中为每个需要监听的 key 生成一个 Dep 实例。
  5. getter 时,调用 dep.add 方法, 这一步下面完成。

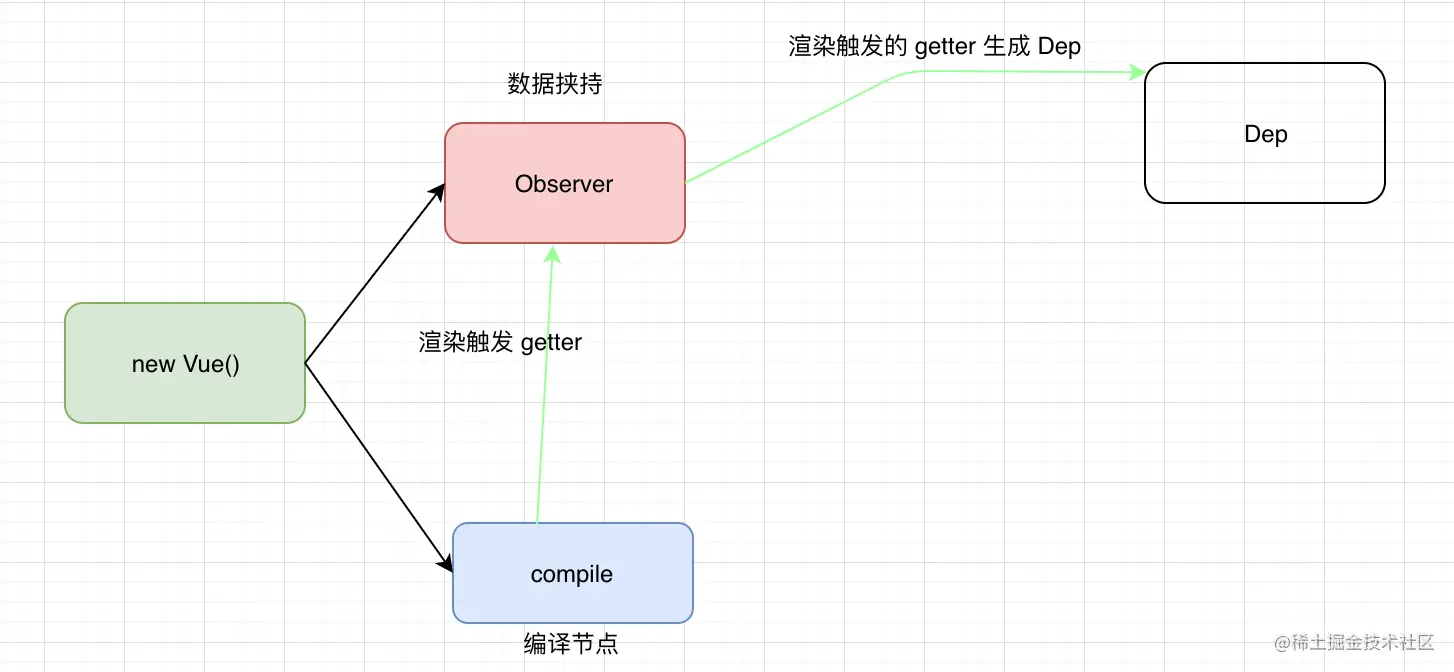

这样 compile observer Dep 之间就发生了联系。

compile observer Watcher

2. 初始化视图读取数据时创建一个 Watcher

先创建一个 Watcher

Watcher 负责依赖收集的工作,就需要知道从哪个实例收集, 收集 key 是什么, 数据更新时如何更新页面。所以构造函数里面就需要接受这些参数。 除此,他还应该有个 update 方法专门处理页面更新的操作。

class Watcher {
  constructor(vm, key, fn){
    this.vm = vm
    this.key = key
    this.fn = fn
  }

  update() {}
}
复制代码

Watcher 创建后, 就需要在初始化 compile 过程, 每一次使用数据中的 key 值的时候创建一个 Watcher 实例。这里回到 Compile 类中。 实现步骤:

  1. 创建一个 _update() 方法,用于生成 Watcher 实例
class Compile {
  _update() {
    // todo: 每一次使用到 key 时, 创建一个 watcher 实例
    new Watcher()
  }
}
复制代码
  1. 由于数据绑定发生在 compile 方法中, 那就需要在 compile 使用到数据时调用 _update 方法。
class Compile {
    constructor(el, vm) {
      this._el = document.querySelector(el)
      this._vm = vm

      if (this._el) {
        this.compile(this._el)
      }
    }

    compile(el) {
    const children = el.childNodes

    Array.from(children).forEach((child) => {
      if (child.nodeType === 1) {
        if (child.hasChildNodes()) {
          this.compile(child)
        } else {
          let nodeAttrs = child.attributes
          if (
            Array.from(nodeAttrs).findIndex((attr) => attr.name === "v-html") >
            -1
          ) {
            // 调用 update 的时机
            this.compileHtml(child, child.getAttribute("v-html"))
          }
        }
      }
      else if (child.nodeType === 3 && /\{\{(.*)\}\}/.test(child.textContent)) {
        // 调用 update 的时机
        this.compileText(child, RegExp.$1)

      }
    })
  }

    // 编译 v-html
  compileHtml(node, key) {
    this.update(node, key, "html")
  }

  // 编译 {{xx}}
  compileText(node, key) {
    this.update(node, key, "text")
  }

  htmlUpdate(node, val) {
    node.innerHTML = val
  }

  textUpdate(node, val) {
    node.textContent = val
  }

  update(node, key, method) {
    const fn =  this[method + "Update"]
    // 更新数据
    fn && fn(node, this._vm[key])

    // 生成 watcher 实例
    new Watcher(this._vm, key, val => {
      fn && fn(node, val)
    })
  }
}
复制代码

上面的代码中:

  1. 将有关插值语句的更新和 指令语句(v-html)的更新分别提取成一个单独的函数。
  2. _update 方法统一负责更新函数的调用并生成 Watcher 实例
  3. _update 方法生生成 Watcher 实例的时候除了传递了 vm key 外, 还传递了一个更新函数, 这使得 Watcher 功能更加单一, 他只需要在数据更新的时候调用一次这个更新函数就可以, 至于更新怎么实现,compile 的时候就已经确定了。

更新 Watcher

class Watcher {
  constructor(vm, key, fn){
    this.vm = vm
    this.key = key
    this.fn = fn
  }

  update() {
    this.fn.call(this.vm, this.vm[this.key])
  }
}
复制代码

先看一下经过上面的步骤后,代码实现了什么。

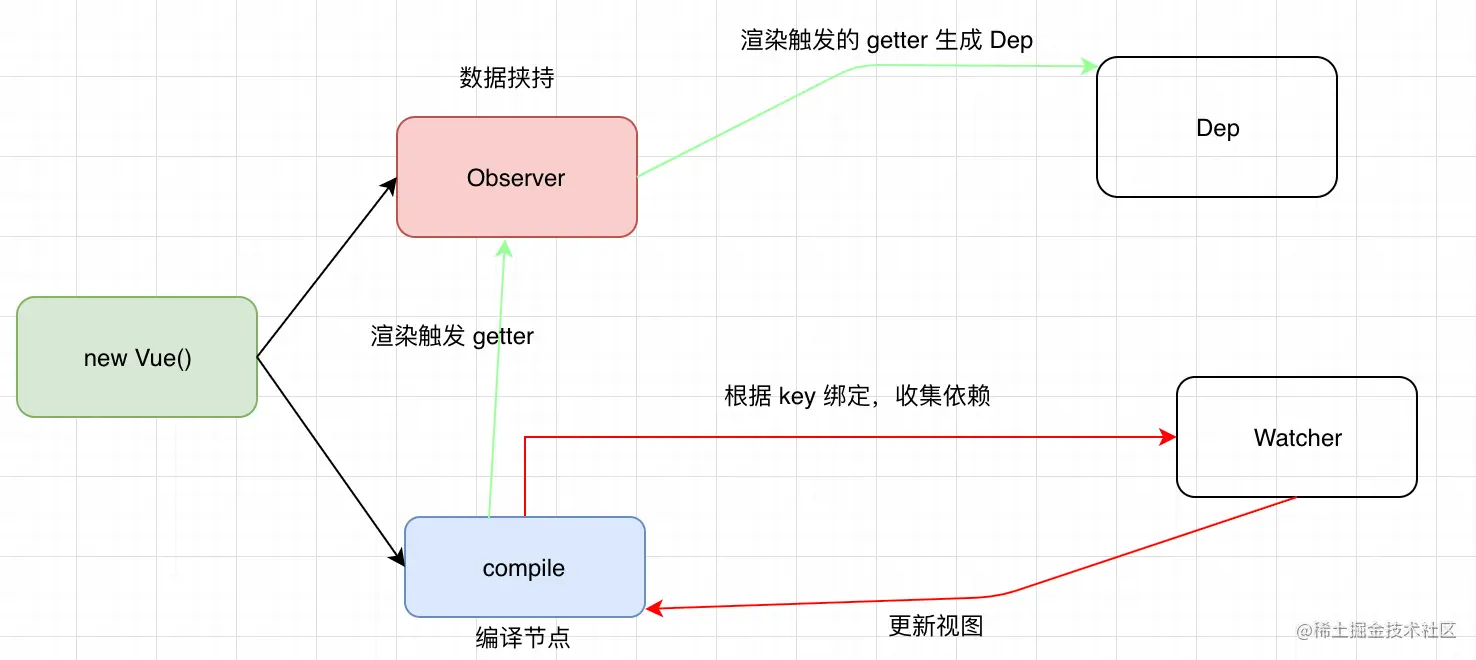

compile & watcher 的关系

在生成 Vue 实例的时候, 进行 compile, 在 compile 过程中将使用到的依赖收集到 Watcher中,并告诉 Watcher 如何更新视图。

3. 初始化渲染触发 getter 方法, 将 Watcher 添加到 Dep

在Vue 的视图响应第一步中, Compile 识别出依赖的时候触发了 defineReactivesetter 方法并生成了 Watcher 的实例。 我们需要在这个过程之后将 watcherdep 进行关联。步骤如下:

  1. 生成 Watcher 实例的时候将 Dep.target 指向该 wachter 实例。
  2. 再次触发一次 defineReactive 中对象 key 的 getter 方法。
  3. getter 方法中调用 dep.add 方法并传入 Dep.target。(由于第一步将 Dep.target 手动指向了该 Watcher 的实例, dep.add 添加的将是 watcher 实例)。
  4. 在执行完 getter 方法后,再在 Watcher 中将 Dep.target 设置为 null
class Watcher {
  constructor(vm, key, fn) {
    this.vm = vm
    this.key = key
    this.fn = fn
    Dep.target = this
    // 再次触发一下 get 方法, 这时候的逻辑会进入 getter 方法中
    this.vm[key]
    // 在执行完 getter 方法后,再将 Dep.target 设置为 null
    Dep.target = null
  }
}


function defineReactive(obj, key, val) {
  observer(val)
  const dep = new Dep()
  Object.defineProperty(obj, key, {
    get() {
      // 如果发现了 Dep.target 就将 Dep.target 加入到 Dep 中
      Dep.target && dep.add(Dep.target)
      return val
    },

    set(newVal) {
      if (newVal !== val) {
        observer(newVal)
        val = newVal
      }
    },
  })
}
复制代码

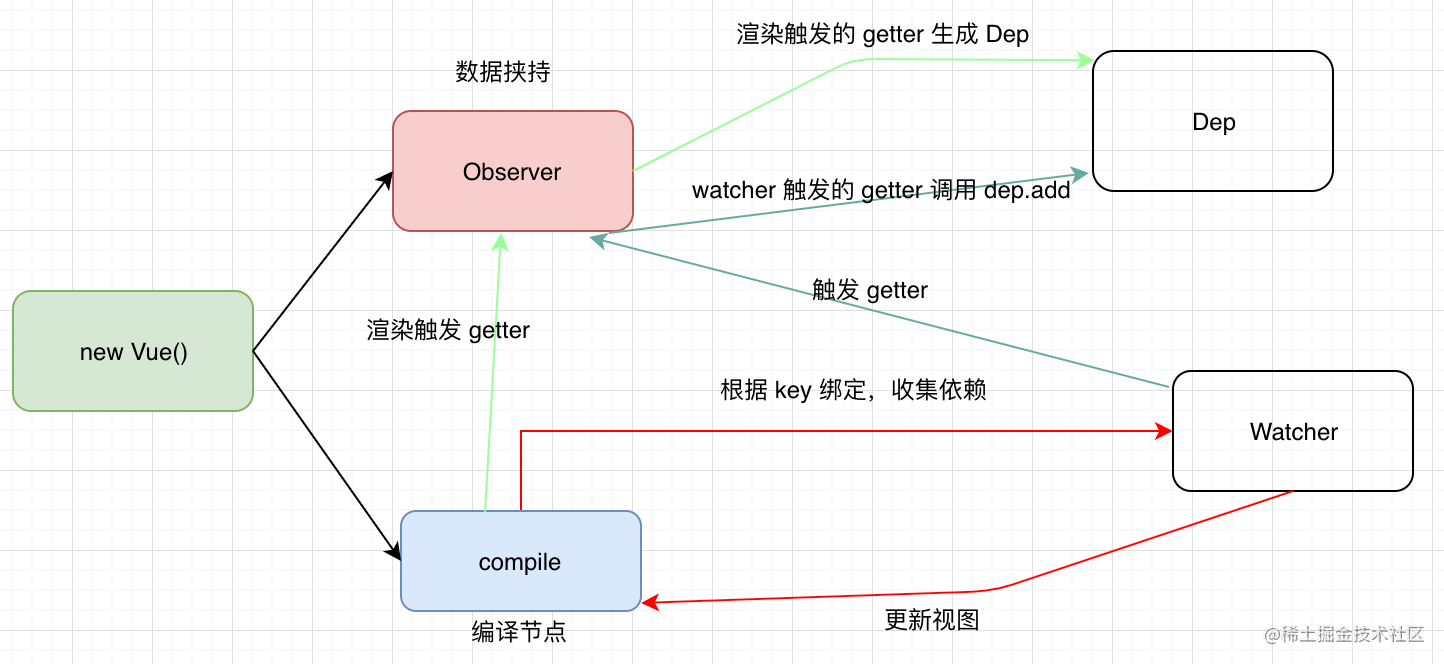

这样 compile observer Watcher Dep 之间就变成了下图关系。

4. 当数据发生改变触发 setter 方法时, 通知对应的 Dep 更新它管理的所有 Watcher

这一步比较简单,只需要在 setter 方法中调用 dep.notify() 方法, 该 dep 下的所有 watcher 就会调用自身的 update 方法,从而更新视图。

function defineReactive(obj, key, val) {
  observer(val)
  const dep = new Dep()
  Object.defineProperty(obj, key, {
    get() {
      // 如果发现了 Dep.target 就将 Dep.target 加入到 Dep 中
      Dep.target && dep.add(Dep.target)
      return val
    },

    set(newVal) {
      if (newVal !== val) {
        observer(newVal)
        val = newVal
        dep.notify()
      }
    },
  })
}
复制代码

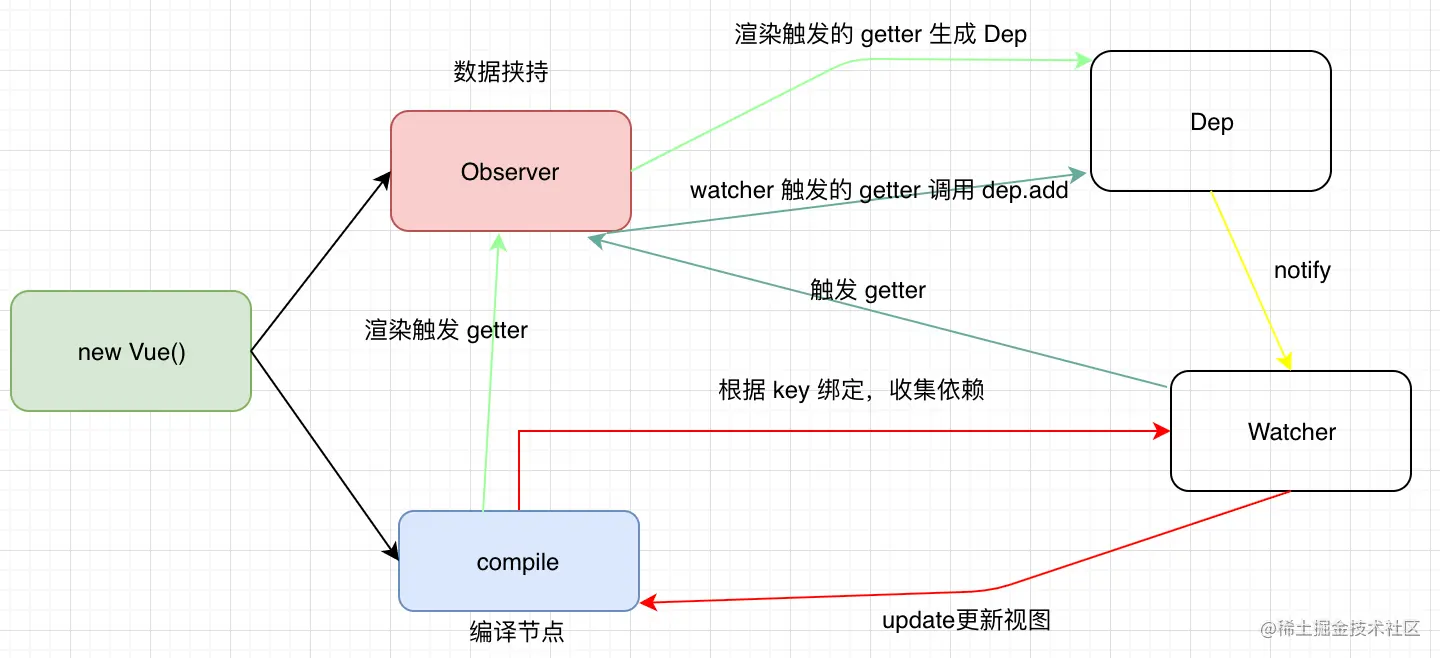

最后 compile observer Watcher Dep 之间就形成闭环了。

总结

  1. new Vue 后, 会分别初始化 Observer实例 (数据挟持)和 Compile实例 (编译子节点并初始化渲染)。
  2. 在 Compile 实例化时,不仅完成了初始化渲染,还会触发 getter 事件和实例化 watcher。
  • getter 触发时,生成该 key 的 Dep 实例。
  • watcher 实例化时(依赖收集),会再次调用 getter 方法将 watcher 实例添加到 dep 的 watchers 中。除此外, watcher 实例化还确定了该依赖的 dom 更新策略, 并存放在自身的 update 方法中。
  1. 当数据发生变化时, 触发 setter 方法, 这时会触发该 key 的 dep 实例中的 notify 方法, notify 方法通过遍历所有已经收集来的 watcher 并调用 watcher 的 update 方法达到更新页面的效果.

Vue 的事件响应

Compile 类中, compile 方法解析了 v-html、插值表达式。 除此外还可以在这个过程中解析元素节点上绑定的 @xxx="handleXxx" 这样的事件并监听。

实现步骤:

  1. 解析 @xxx="handleXxx", 并得到需要监听的事件 xxx 和需要执行执行的事件 handleXxx
  2. 含有事件监听属性声明的元素调用 addEventListener 监听 xxx 方法。
  compile(el) {
    const children = el.childNodes

    Array.from(children).forEach(child => {
      // 元素节点
      if (child.nodeType === 1) {
        // 如果包含子节点需要先 迭代 子元素
        if (child.hasChildNodes()) {
          this.compile(child)
        }
        let nodeAttrs = child.attributes
        // 查找 v-html 绑定的情况
        if (
          Array.from(nodeAttrs).findIndex(attr => attr.name === 'v-html') > -1
        ) {
          this.compileHtml(child, child.getAttribute('v-html'))
        }
        // 事件处理 @xx = "onXx"
+       const eventArrs = Array.from(nodeAttrs).filter(attr =>
+          attr.name.startsWith('@')
+        )

+        eventArrs.forEach(attr => {
+          // 拿到 xx
+          const eventName = attr.name.substring(1)
+          // 拿到 onXx
+          const eventValue = child.getAttribute(attr.name)
+          console.log(this._vm)
+          // 监听调用 methods 中定义的方法
+          child.addEventListener(
+            eventName,
+            this._vm.$options.methods[eventValue].bind(this._vm)
+          )
+        })
      }
      // 文本节点 (这里会存在由于换行导致的空节点) 使用正则匹配到 含有 {{xxx}} 绑定的节点
      else if (child.nodeType === 3 && /\{\{(.*)\}\}/.test(child.textContent)) {
        this.compileText(child, RegExp.$1)
      }
    })
  }
复制代码

需要注意的是:

// 监听调用 methods 中定义的方法
child.addEventListener(
  eventName,
  this._vm.$options.methods[eventValue].bind(this._vm)
)
复制代码

addEventListener 需要执行的事件需要使用 bind 绑定一下 this_vm(当前的实例对象),这是为了使定义在 methods 对象中的事件始终能够正确的使用 this 调用该实例中的属性。

查看完整代码

分类:
前端
标签:
