Tomcat访问(access)日志配置

原文地址 Tomcat访问(access)日志配置

在 tomcat 的 access 中打印出请求的情况可以帮助我们分析问题，通常比较关注的有访问 IP、线程号、访问 url、返回状态码、访问时间、持续时间。

最近在跟一个图片请求超时的问题，需要在项目的 access log 中增加请求的响应时间参数。正好学习一下 tomcat access log 中参数的配置。

最好的还是官方文档，以下摘自 tomcat7 文档。

Introduction

The Access Log Valve creates log files in the same format as those created by standard web servers.
These logs can later be analyzed by standard log analysis tools to track page hit counts, user session activity, and so on.
This Valve uses self-contained logic to write its log files, which can be automatically rolled over at midnight each day.
(The essential requirement for access logging is to handle a large continuous stream of data with low overhead.
This Valve does not use Apache Commons Logging, thus avoiding additional overhead and potentially complex configuration).

This Valve may be associated with any Catalina container (Context, Host, or Engine), and will record ALL requests processed by that container.

Some requests may be handled by Tomcat before they are passed to a container. These include redirects from /foo to /foo/ and the rejection of invalid requests.
Where Tomcat can identify the Context that would have handled the request, the request/response will be logged in the AccessLog(s) associated Context, Host and Engine.
 Where Tomcat cannot identify the Context that would have handled the request, e.g. in cases where the URL is invalid, Tomcat will look first in the Engine,
then the default Host for the Engine and finally the ROOT (or default) Context for the default Host for an AccessLog implementation.
Tomcat will use the first AccessLog implementation found to log those requests that are rejected before they are passed to a container.

The output file will be placed in the directory given by the directory attribute. The name of the file is composed by concatenation of the configured prefix, timestamp and suffix.
The format of the timestamp in the file name can be set using the fileDateFormat attribute. This timestamp will be omitted if the file rotation is switched off by setting rotatable to false.

Warning: If multiple AccessLogValve instances are used, they should be configured to use different output files.

If sendfile is used, the response bytes will be written asynchronously in a separate thread and the access log valve will not know how many bytes were actually written.
In this case, the number of bytes that was passed to the sendfile thread for writing will be recorded in the access log valve.

Attributes

The Access Log Valve supports the following configuration attributes:

Values for the pattern attribute are made up of literal text strings, combined with pattern identifiers prefixed by the "%" character to cause replacement by the corresponding variable value from the current request and response. The following pattern codes are supported:

%a - Remote IP address
%A - Local IP address
%b - Bytes sent, excluding HTTP headers, or '-' if zero
%B - Bytes sent, excluding HTTP headers
%h - Remote host name (or IP address if enableLookups for the connector is false)
%H - Request protocol
%l - Remote logical username from identd (always returns '-')
%m - Request method (GET, POST, etc.)
%p - Local port on which this request was received. See also %{xxx}p below.
%q - Query string (prepended with a '?' if it exists)
%r - First line of the request (method and request URI)
%s - HTTP status code of the response
%S - User session ID
%t - Date and time, in Common Log Format
%u - Remote user that was authenticated (if any), else '-'
%U - Requested URL path
%v - Local server name
%D - Time taken to process the request, in millis
%T - Time taken to process the request, in seconds
%F - Time taken to commit the response, in millis
%I - Current request thread name (can compare later with stacktraces)

There is also support to write information incoming or outgoing headers, cookies, session or request attributes and special timestamp formats. It is modeled after the Apache HTTP Server log configuration syntax. Each of them can be used multiple times with different xxx keys:

%{xxx}i write value of incoming header with name xxx
%{xxx}o write value of outgoing header with name xxx
%{xxx}c write value of cookie with name xxx
%{xxx}r write value of ServletRequest attribute with name xxx
%{xxx}s write value of HttpSession attribute with name xxx
%{xxx}p write local (server) port (xxx==local) or remote (client) port (xxx=remote)
%{xxx}t write timestamp at the end of the request formatted using the enhanced SimpleDateFormat pattern xxx

一、配置与说明

1. 配置的位置

tomcat 访问日志格式配置，在 conf/server.xml 里 Host 标签下加上

<Host
        unpackWARs="true" autoDeploy="true">
    <Valve class
        prefix="access." suffix=".log"
        pattern="%a %h %l %u %t "%r" %s %b "%{Referer}i" "%{User-Agent}i" "%{QunarGlobal}c" %{X-Forwarded-For}i"
        resolveHosts="false"/>
</Host>

我们在日志文件中将看到如下文本：

211.157.146.222 211.157.146.222 - - \[14/Jul/2018:12:34:42 +0800\] "GET /web-base/item/10 HTTP/1.1" 200 251 "-" "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko)
Chrome/67.0.3396.99 Safari/537.36" "-" -

二、配置打印 POST 参数

另外 %r 参数能打印出请求的 url 和 get 参数。如果 url 指定访问方式是 post,post 的参数是打印不出来的。当需要打印 post 参数，该怎么办？

大家注意到我开篇举例 Valve 配置里的 %{postdata}r。没错，这个 combined 格式的 patterrn 可以实现。但是只在 valve 里配置这个东东还不够。因为 postdata 使我们自定义的参数名。需要在 request 中设置这个值。下面附上设置 postdata 到 request 中的代码。

import java.io.IOException;
import java.util.Enumeration;

import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public final class PostDataDumperFilter implements Filter {

    Logger logger = LoggerFactory.getLogger(getClass());

    private FilterConfig filterConfig = null;

    public void destroy() {
        this.filterConfig = null;
    }

    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
            throws IOException, ServletException {
        if (filterConfig == null)
            return;

        Enumeration<String> names = request.getParameterNames();
        StringBuilder output = new StringBuilder();
        while (names.hasMoreElements()) {
            String name = (String) names.nextElement();
            output.append(name).append("=");
            String values\[\] = request.getParameterValues(name);
            for (int i = 0; i < values.length; i++) {
                if (i > 0) {
                    output.append("' ");
                }

                output.append(values\[i\]);
            }
            if (names.hasMoreElements())
                output.append("&");
        }
        request.setAttribute("postdata", output);
        logger.debug("postdata: " + output);
        chain.doFilter(request, response);
    }

    public void init(FilterConfig filterConfig) throws ServletException {
        this.filterConfig = filterConfig;
    }
}

在 web.xml 中添加配置该 filter:

<filter>
    <filter-name>post-data-dumper-filter</filter-name>
    <filter-class>com.xiaoxiliu.PostDataDumperFilter</filter-class>
</filter>
<filter-mapping>
    <filter-name>post-data-dumper-filter</filter-name>
    <url-pattern>/\*</url-pattern>
</filter-mapping>

三、查询访问最耗时的接口

这就要用到万能的 awk 了 我们的日志倒数第二列显示的访问时间。

<Valve class
               prefix="localhost\_access\_log." suffix=".txt"
               pattern="%h %l %u %t "%r" \[%{postdata}r\] %s %{Referer}i %{User-Agent}i %T %b" />

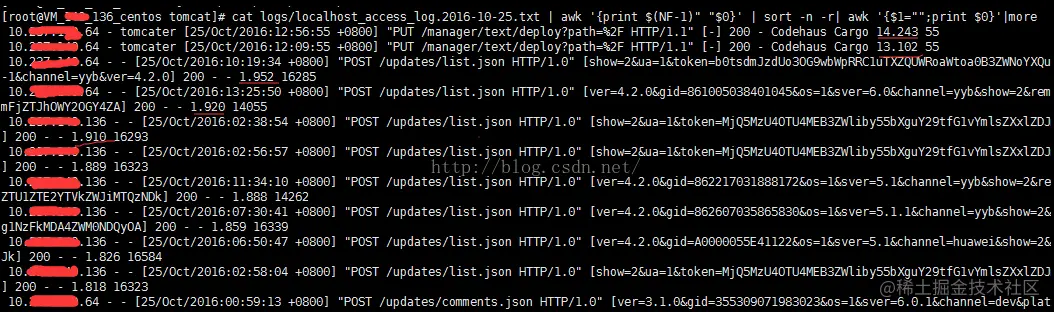

cat logs/localhost_access_log.2016-10-25.txt | awk '{print $(NF−1)""$0}'| sort -n -r| awk'{$1\="";print$ 0}'  按照倒数第二列由大到小显示接口以及访问时间。这样我们就能找出那些借口耗时较大，然后对其进行优化，提高用户体验。
