概要
本篇文章主要介绍了 CSS 的几种经典布局以及它们之间的区别:
- 行布局
- 列布局
- 圣杯布局
- 双飞翼布局
本篇文章不涉及 CSS3 新特性实现布局的方式。

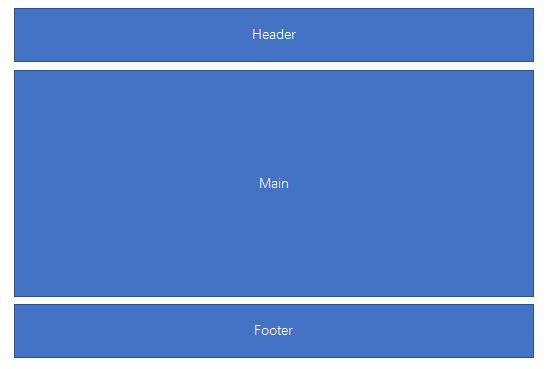

行布局
经典的行布局,就是页面的结构(头、主体内容、尾)都是一行行排列下来的,常用于网站首页,如 Layui 的首页 。
- DOM
<header class="header">Header</header>
<main class="main">Main</main>
<footer class="footer">Footer</footer>
- CSS
.header,
.main,
.footer {
/* 水平居中 */
margin: 0 auto;
/* 宽度自适应 */
width: 80%;
min-width: 1200px;
text-align: center;
color: #fff;
}
/* 头 */
.header {
/* 头部固定 */
position: fixed;
right: 0;
left: 0;
height: 60px;
line-height: 60px;
background-color: blue;
z-index: 1;
}
/* 主体内容 */
.main {
position: relative;
top: 60px;
padding-top: 60px;
height: 800px;
line-height: 800px;
background-color: orange;
}
/* 尾 */
.footer {
position: relative;
height: 100px;
line-height: 100px;
background-color: gray;
}
列布局
经典的列布局,就是页面内容按照多列划分。
- DOM
<div class="left">Left</div>
<div class="main">Main</div>
<div class="right">Right</div>
- CSS
.left {
float: left;
width: 20%;
height: 100px;
background-color: blue;
}
.main {
float: left;
width: 60%;
height: 100px;
background-color: orange;
}
.right {
float: right;
width: 20%;
height: 100px;
background-color: blue;
}
圣杯布局
圣杯布局是由国外的 Kevin Cornell 提出的一个布局模型概念,实现了三列布局,两边定宽,中间宽度自适应,且中间栏要在浏览器中优先展示渲染的需求。
实现思路:
- 将左、中、右栏目包裹在父容器中,给父容器设置左右与左、右栏目相同宽度的
padding
,为左、右栏目预留空间; - 为实现中间栏在浏览器中优先展示渲染,将中间栏的 DOM 写在最前面;
- 为左、中、右栏目设置浮动和相对定位
position: relative
(用于将左、右栏目移动出父容器内容区); - 中间栏目采用
width: 100%
实现自适应; - 左、右栏目利用
margin
与left/right
移动到相应位置。
- DOM
<!-- 父容器 -->
<div class="wrapper">
<!-- 中间栏在前 -->
<div class="main">Main</div>
<div class="left">Left</div>
<div class="right">Right</div>
</div>
- CSS
.wrapper {
/* 为左右栏目预留空间 */
padding: 0 220px;
}
.left,
.main,
.right {
float: left;
position: relative;
}
.left,
.right {
width: 220px;
height: 100px;
}
.main {
width: 100%; /* 宽度自适应 */
height: 100px;
}
.left {
margin-left: -100%; /* 移动到父容器最左边 */
left: -220px; /* 移出父容器内容区,窗口靠左 */
}
.right {
margin-left: -220px; /* 移动到父容器最右边 */
right: -220px; /* 移出父容器内容区,窗口靠右 */
}
双飞翼布局
双飞翼布局是针对圣杯布局改良后得出的,去掉了相对布局,只需要浮动和负边距。它们解决的是同样的问题。并且都可以兼容几乎所有的浏览器(IE6+,现代浏览器)。
实现思路:
- 只将中间栏目包裹在父容器中,给中间栏父容器设置
width: 100%
实现自适应; - 为实现中间栏在浏览器中优先展示渲染,将中间栏的 DOM 写在最前面;
- 为左、中、右栏目设置浮动;
- 中间栏目利用
margin
为左、右栏目预留等宽度的空间; - 左、右栏目利用
margin
移动到相应位置。
- DOM
<!-- 父容器 -->
<div class="main">
<div class="inner-main">Main</div>
</div>
<div class="left">Left</div>
<div class="right">Right</div>
- CSS
.main {
width: 100%;
}
.inner-main {
margin: 0 220px;
height: 100px;
}
.left,
.main,
.right {
float: left;
}
.left,
.right {
width: 220px;
height: 100px;
}
.left {
margin-left: -100%;
}
.right {
margin-left: -220px;
}
如果只需要兼容 IE8+,那么可以使用
box-sizing: border-box
来改进双飞翼布局, 不需要引入额外的辅助元素来包裹中间栏。代码这里就不写了哦 ~
