这里，我们通过Snabbdom学习VirtualDom基本思想

使用parcel创建项目

初始化

mkdir snabbdom-demo
cd snabbdom-demo
npm install -g parcel-bundler
npm init -y
# package.json
...
"scripts": {
    "dev": "parcel index.html --open",
    "build": "parcel build index.html"
}
...

导入Snabbdom

const snabbdom = require('snabbdom');  // commonjs
const { h, thunk, init } from 'snabbdom';   // es6
扩展内容：CommonJS和ES6模块的区别
简单使用
var { h, init } = require('snabbdom');
// 1. hello world
const patch = init([])
// 2. div 设置
// const vnode = h('div#container.cls', 'Hello World');
let vnode = h('div#container.cls', [
  h('h1', 'Hello'),
  h('p', '我是P')
])
let app = document.getElementById('app');
// 3. patch
let oldVnode = patch(app, vnode);
// 4. 更新
setTimeout(() => {
  vnode = h('div#container.cls', [
    h('h1', 'Hi'),
    h('p', '我还是P')
  ]);
  oldVnode = patch(oldVnode, vnode);
}, 1500);
清空节点：
  • 创建注释节点
oldVnode = patch(oldVnode, h('!'));

模块

  • Snabbdom核心库不能处理元素属性、样式、事件，需要使用模块进行处理
  • 常用模块
    • attributes
      • 设置DOM元素的属性，设置setAttribute()
      • 处理布尔类型的属性
    • props
      • 与attributes类似，设置DOM元素的属性element[attr]=value
      • 不处理布尔类型的属性
    • class
      • 切换类样式
      • 给元素设置样式使用sel选择器
    • dataset
      • 设置data-*自定义属性
    • eventlisteners
      • 注册和移除事件
    • style
      • 设置行内样式，支持动画
      • 增加delayed/remove/destroy属性
import { h, init } from 'snabbdom';
// 导入模块
import style from 'snabbdom/modules/style';
import eventlisteners from 'snabbdom/modules/eventlisteners';
// 注册模块
const patch = init([style, eventlisteners]);
// 使用
let vnode = h('div', {
  style: {
    backgroundColor: 'red'
  },
  on: {
    click: eventHandler
  }
}, [
  h('h1', 'Hello~'),
  h('p', '我是p')
])
function eventHandler() {
  console.log('click me');
}
let app = document.getElementById('app');
patch(app, vnode);

Snabbdom 源码解析

目录结构

├── src
│   ├── h.ts
│   ├── helpers
│   │   └── attachto.ts
│   ├── hooks.ts                    ## 钩子函数
│   ├── htmldomapi.ts               ## dom操作相关
│   ├── is.ts
│   ├── modules    ## 模块
│   │   ├── attributes.ts
│   │   ├── class.ts
│   │   ├── dataset.ts
│   │   ├── eventlisteners.ts
│   │   ├── hero.ts
│   │   ├── module.ts
│   │   ├── props.ts
│   │   └── style.ts
│   ├── snabbdom.bundle.ts           ## 入口文件
│   ├── snabbdom.ts                  ## 主要文件，导出init,h,thunk函数
│   ├── thunk.ts
│   ├── tovnode.ts                   ## Dom转化成vnode
│   └── vnode.ts

Snabbdom核心

  • 使用h函数创建javascript对象(VNode)描述真是DOM
  • init()设置模块，创建patch()
  • patch()比较新旧Vnode
  • 把变化的内容更新到真实DOM树上

h函数

Vue中的h函数

new Vue({
  router,
  store,
  render: h => h(App)
}).$mount('#app');
  • h()函数用来创建VNode
h函数的重载

h函数导出重载

// 定义重载形式
export function h(sel: string): VNode;
export function h(sel: string, data: VNodeData): VNode;
export function h(sel: string, children: VNodeChildren): VNode;
export function h(sel: string, data: VNodeData, children: VNodeChildren): VNode;
// 具体重载实现
export function h(sel: any, b?: any, c?: any): VNode {
  var data: VNodeData = {}, children: any, text: any, i: number;
  // 处理参数，实现重载机制
  if (c !== undefined) {
    // 处理3个参数的情况
    // sel、data、children/text
    data = b;
    // c为数组，存储到children中
    if (is.array(c)) { children = c; }
    // 这里c为字符串或数字
    else if (is.primitive(c)) { text = c; }
    // c为VNode
    else if (c && c.sel) { children = [c]; }
  } else if (b !== undefined) {
    // 处理2个参数的情况
    // b为数组，存储到children中
    if (is.array(b)) { children = b; }
    // b为数字或字符串
    else if (is.primitive(b)) { text = b; }
    // b为vnode
    else if (b && b.sel) { children = [b]; }
    // b为VNodeData
    else { data = b; }
  }
  // 判断children是否有值
  if (children !== undefined) {
    // 遍历
    for (i = 0; i < children.length; ++i) {
      // 判断是字符串或者数字，则使用vnode函数创建文本节点
      if (is.primitive(children[i])) children[i] = vnode(undefined, undefined, undefined, children[i], undefined);
    }
  }
  // 判断如果是svg，则使用addNS添加命名空间
  if (
    sel[0] === 's' && sel[1] === 'v' && sel[2] === 'g' &&
    (sel.length === 3 || sel[3] === '.' || sel[3] === '#')
  ) {
    addNS(data, children, sel);
  }
  // 循环调用vnode函数创建虚拟节点
  return vnode(sel, data, children, text, undefined);
};
export default h;

vode函数

import {Hooks} from './hooks';
import {AttachData} from './helpers/attachto'
import {VNodeStyle} from './modules/style'
import {On} from './modules/eventlisteners'
import {Attrs} from './modules/attributes'
import {Classes} from './modules/class'
import {Props} from './modules/props'
import {Dataset} from './modules/dataset'
import {Hero} from './modules/hero'

export type Key = string | number;
// VNode接口，约束VNode对象需要包含的属性
export interface VNode {
  // 选择器
  sel: string | undefined;
  // 节点所需数据
  data: VNodeData | undefined;
  // 子节点，和text互斥
  children: Array<VNode | string> | undefined;
  // 记录vnode对应的真是dom
  elm: Node | undefined;
  // 标签内容，和children互斥
  text: string | undefined;
  // 节点key，优化用
  key: Key | undefined;
}

export interface VNodeData {
  props?: Props;
  attrs?: Attrs;
  class?: Classes;
  style?: VNodeStyle;
  dataset?: Dataset;
  on?: On;
  hero?: Hero;
  attachData?: AttachData;
  hook?: Hooks;
  key?: Key;
  ns?: string; // for SVGs
  fn?: () => VNode; // for thunks
  args?: Array<any>; // for thunks
  [key: string]: any; // for any other 3rd party module
}
// 返回VNode类型的对象，描述节点
export function vnode(sel: string | undefined,
                      data: any | undefined,
                      children: Array<VNode | string> | undefined,
                      text: string | undefined,
                      elm: Element | Text | undefined): VNode {
  let key = data === undefined ? undefined : data.key;
  return {sel, data, children, text, elm, key};
}

export default vnode;

VNode渲染真是Dom

  • patch(oldVNode, newVNode)
  • 打补丁，把新节点中变化的内容渲染到真实DOM，返回新节点作为下次处理的旧节点
  • 对比新旧VNode是否是相同节点（sel和key相同)
  • 如果不是相同节点，删除之前的内容，重新渲染
  • 如果是相同节点，再判断新的VNode是否有text，如果有且和之前text不同，则直接更新文本内容
  • 如果新的VNode有children，使用diff算法判断子节点是否有变化
  • diff过程只进行同层比较

init函数

export function init(modules: Array<Partial<Module>>, domApi?: DOMAPI) {
  let i: number, j: number, cbs = ({} as ModuleHooks);

  const api: DOMAPI = domApi !== undefined ? domApi : htmlDomApi;

  for (i = 0; i < hooks.length; ++i) {
    cbs[hooks[i]] = [];
    for (j = 0; j < modules.length; ++j) {
      const hook = modules[j][hooks[i]];
      if (hook !== undefined) {
        (cbs[hooks[i]] as Array<any>).push(hook);
      }
    }
  }

  function emptyNodeAt(elm: Element) {
    const id = elm.id ? '#' + elm.id : '';
    const c = elm.className ? '.' + elm.className.split(' ').join('.') : '';
    return vnode(api.tagName(elm).toLowerCase() + id + c, {}, [], undefined, elm);
  }

  function createRmCb(childElm: Node, listeners: number) {
    return function rmCb() {
      if (--listeners === 0) {
        const parent = api.parentNode(childElm);
        api.removeChild(parent, childElm);
      }
    };
  }

  function createElm(vnode: VNode, insertedVnodeQueue: VNodeQueue): Node {
    let i: any, data = vnode.data;
    if (data !== undefined) {
      if (isDef(i = data.hook) && isDef(i = i.init)) {
        i(vnode);
        data = vnode.data;
      }
    }
    let children = vnode.children, sel = vnode.sel;
    if (sel === '!') {
      if (isUndef(vnode.text)) {
        vnode.text = '';
      }
      vnode.elm = api.createComment(vnode.text as string);
    } else if (sel !== undefined) {
      // Parse selector
      const hashIdx = sel.indexOf('#');
      const dotIdx = sel.indexOf('.', hashIdx);
      const hash = hashIdx > 0 ? hashIdx : sel.length;
      const dot = dotIdx > 0 ? dotIdx : sel.length;
      const tag = hashIdx !== -1 || dotIdx !== -1 ? sel.slice(0, Math.min(hash, dot)) : sel;
      const elm = vnode.elm = isDef(data) && isDef(i = (data as VNodeData).ns) ? api.createElementNS(i, tag)
                                                                               : api.createElement(tag);
      if (hash < dot) elm.setAttribute('id', sel.slice(hash + 1, dot));
      if (dotIdx > 0) elm.setAttribute('class', sel.slice(dot + 1).replace(/\./g, ' '));
      for (i = 0; i < cbs.create.length; ++i) cbs.create[i](emptyNode, vnode);
      if (is.array(children)) {
        for (i = 0; i < children.length; ++i) {
          const ch = children[i];
          if (ch != null) {
            api.appendChild(elm, createElm(ch as VNode, insertedVnodeQueue));
          }
        }
      } else if (is.primitive(vnode.text)) {
        api.appendChild(elm, api.createTextNode(vnode.text));
      }
      i = (vnode.data as VNodeData).hook; // Reuse variable
      if (isDef(i)) {
        if (i.create) i.create(emptyNode, vnode);
        if (i.insert) insertedVnodeQueue.push(vnode);
      }
    } else {
      vnode.elm = api.createTextNode(vnode.text as string);
    }
    return vnode.elm;
  }

  function addVnodes(parentElm: Node,
                     before: Node | null,
                     vnodes: Array<VNode>,
                     startIdx: number,
                     endIdx: number,
                     insertedVnodeQueue: VNodeQueue) {
    for (; startIdx <= endIdx; ++startIdx) {
      const ch = vnodes[startIdx];
      if (ch != null) {
        api.insertBefore(parentElm, createElm(ch, insertedVnodeQueue), before);
      }
    }
  }

  function invokeDestroyHook(vnode: VNode) {
    let i: any, j: number, data = vnode.data;
    if (data !== undefined) {
      if (isDef(i = data.hook) && isDef(i = i.destroy)) i(vnode);
      for (i = 0; i < cbs.destroy.length; ++i) cbs.destroy[i](vnode);
      if (vnode.children !== undefined) {
        for (j = 0; j < vnode.children.length; ++j) {
          i = vnode.children[j];
          if (i != null && typeof i !== "string") {
            invokeDestroyHook(i);
          }
        }
      }
    }
  }

  function removeVnodes(parentElm: Node,
                        vnodes: Array<VNode>,
                        startIdx: number,
                        endIdx: number): void {
    for (; startIdx <= endIdx; ++startIdx) {
      let i: any, listeners: number, rm: () => void, ch = vnodes[startIdx];
      if (ch != null) {
        if (isDef(ch.sel)) {
          invokeDestroyHook(ch);
          listeners = cbs.remove.length + 1;
          rm = createRmCb(ch.elm as Node, listeners);
          for (i = 0; i < cbs.remove.length; ++i) cbs.remove[i](ch, rm);
          if (isDef(i = ch.data) && isDef(i = i.hook) && isDef(i = i.remove)) {
            i(ch, rm);
          } else {
            rm();
          }
        } else { // Text node
          api.removeChild(parentElm, ch.elm as Node);
        }
      }
    }
  }

  function updateChildren(parentElm: Node,
                          oldCh: Array<VNode>,
                          newCh: Array<VNode>,
                          insertedVnodeQueue: VNodeQueue) {
    let oldStartIdx = 0, newStartIdx = 0;
    let oldEndIdx = oldCh.length - 1;
    let oldStartVnode = oldCh[0];
    let oldEndVnode = oldCh[oldEndIdx];
    let newEndIdx = newCh.length - 1;
    let newStartVnode = newCh[0];
    let newEndVnode = newCh[newEndIdx];
    let oldKeyToIdx: any;
    let idxInOld: number;
    let elmToMove: VNode;
    let before: any;

    while (oldStartIdx <= oldEndIdx && newStartIdx <= newEndIdx) {
      if (oldStartVnode == null) {
        oldStartVnode = oldCh[++oldStartIdx]; // Vnode might have been moved left
      } else if (oldEndVnode == null) {
        oldEndVnode = oldCh[--oldEndIdx];
      } else if (newStartVnode == null) {
        newStartVnode = newCh[++newStartIdx];
      } else if (newEndVnode == null) {
        newEndVnode = newCh[--newEndIdx];
      } else if (sameVnode(oldStartVnode, newStartVnode)) {
        patchVnode(oldStartVnode, newStartVnode, insertedVnodeQueue);
        oldStartVnode = oldCh[++oldStartIdx];
        newStartVnode = newCh[++newStartIdx];
      } else if (sameVnode(oldEndVnode, newEndVnode)) {
        patchVnode(oldEndVnode, newEndVnode, insertedVnodeQueue);
        oldEndVnode = oldCh[--oldEndIdx];
        newEndVnode = newCh[--newEndIdx];
      } else if (sameVnode(oldStartVnode, newEndVnode)) { // Vnode moved right
        patchVnode(oldStartVnode, newEndVnode, insertedVnodeQueue);
        api.insertBefore(parentElm, oldStartVnode.elm as Node, api.nextSibling(oldEndVnode.elm as Node));
        oldStartVnode = oldCh[++oldStartIdx];
        newEndVnode = newCh[--newEndIdx];
      } else if (sameVnode(oldEndVnode, newStartVnode)) { // Vnode moved left
        patchVnode(oldEndVnode, newStartVnode, insertedVnodeQueue);
        api.insertBefore(parentElm, oldEndVnode.elm as Node, oldStartVnode.elm as Node);
        oldEndVnode = oldCh[--oldEndIdx];
        newStartVnode = newCh[++newStartIdx];
      } else {
        if (oldKeyToIdx === undefined) {
          oldKeyToIdx = createKeyToOldIdx(oldCh, oldStartIdx, oldEndIdx);
        }
        idxInOld = oldKeyToIdx[newStartVnode.key as string];
        if (isUndef(idxInOld)) { // New element
          api.insertBefore(parentElm, createElm(newStartVnode, insertedVnodeQueue), oldStartVnode.elm as Node);
          newStartVnode = newCh[++newStartIdx];
        } else {
          elmToMove = oldCh[idxInOld];
          if (elmToMove.sel !== newStartVnode.sel) {
            api.insertBefore(parentElm, createElm(newStartVnode, insertedVnodeQueue), oldStartVnode.elm as Node);
          } else {
            patchVnode(elmToMove, newStartVnode, insertedVnodeQueue);
            oldCh[idxInOld] = undefined as any;
            api.insertBefore(parentElm, (elmToMove.elm as Node), oldStartVnode.elm as Node);
          }
          newStartVnode = newCh[++newStartIdx];
        }
      }
    }
    if (oldStartIdx <= oldEndIdx || newStartIdx <= newEndIdx) {
      if (oldStartIdx > oldEndIdx) {
        before = newCh[newEndIdx+1] == null ? null : newCh[newEndIdx+1].elm;
        addVnodes(parentElm, before, newCh, newStartIdx, newEndIdx, insertedVnodeQueue);
      } else {
        removeVnodes(parentElm, oldCh, oldStartIdx, oldEndIdx);
      }
    }
  }

  function patchVnode(oldVnode: VNode, vnode: VNode, insertedVnodeQueue: VNodeQueue) {
    let i: any, hook: any;
    if (isDef(i = vnode.data) && isDef(hook = i.hook) && isDef(i = hook.prepatch)) {
      i(oldVnode, vnode);
    }
    const elm = vnode.elm = (oldVnode.elm as Node);
    let oldCh = oldVnode.children;
    let ch = vnode.children;
    if (oldVnode === vnode) return;
    if (vnode.data !== undefined) {
      for (i = 0; i < cbs.update.length; ++i) cbs.update[i](oldVnode, vnode);
      i = vnode.data.hook;
      if (isDef(i) && isDef(i = i.update)) i(oldVnode, vnode);
    }
    if (isUndef(vnode.text)) {
      if (isDef(oldCh) && isDef(ch)) {
        if (oldCh !== ch) updateChildren(elm, oldCh as Array<VNode>, ch as Array<VNode>, insertedVnodeQueue);
      } else if (isDef(ch)) {
        if (isDef(oldVnode.text)) api.setTextContent(elm, '');
        addVnodes(elm, null, ch as Array<VNode>, 0, (ch as Array<VNode>).length - 1, insertedVnodeQueue);
      } else if (isDef(oldCh)) {
        removeVnodes(elm, oldCh as Array<VNode>, 0, (oldCh as Array<VNode>).length - 1);
      } else if (isDef(oldVnode.text)) {
        api.setTextContent(elm, '');
      }
    } else if (oldVnode.text !== vnode.text) {
      if (isDef(oldCh)) {
        removeVnodes(elm, oldCh as Array<VNode>, 0, (oldCh as Array<VNode>).length - 1);
      }
      api.setTextContent(elm, vnode.text as string);
    }
    if (isDef(hook) && isDef(i = hook.postpatch)) {
      i(oldVnode, vnode);
    }
  }

  return function patch(oldVnode: VNode | Element, vnode: VNode): VNode {
    let i: number, elm: Node, parent: Node;
    const insertedVnodeQueue: VNodeQueue = [];
    for (i = 0; i < cbs.pre.length; ++i) cbs.pre[i]();

    if (!isVnode(oldVnode)) {
      oldVnode = emptyNodeAt(oldVnode);
    }

    if (sameVnode(oldVnode, vnode)) {
      patchVnode(oldVnode, vnode, insertedVnodeQueue);
    } else {
      elm = oldVnode.elm as Node;
      parent = api.parentNode(elm);

      createElm(vnode, insertedVnodeQueue);

      if (parent !== null) {
        api.insertBefore(parent, vnode.elm as Node, api.nextSibling(elm));
        removeVnodes(parent, [oldVnode], 0, 0);
      }
    }

    for (i = 0; i < insertedVnodeQueue.length; ++i) {
      (((insertedVnodeQueue[i].data as VNodeData).hook as Hooks).insert as any)(insertedVnodeQueue[i]);
    }
    for (i = 0; i < cbs.post.length; ++i) cbs.post[i]();
    return vnode;
  };
}
  • 入参：modules为模块数组，domApi为封装的DOM操作对象
  • 返回patch函数，一个函数内部返回另外一个函数为高阶函数，形成闭包，可以访问到外部函数的成员，patch函数可以访问到modules和domApi
  • 初始化钩子函数，遍历modules，保存到module的钩子函数到cbs中

path函数

  • 首先遍历执行cbs.pre钩子函数
  • 判断，如果oldVnode不是VNode，则使用emptyNodeAt转成VNode
    • 如果有sel属性，则是VNode
    • emptyNodeAt方法
    function emptyNodeAt(elm: Element) {
  const id = elm.id ? '#' + elm.id : '';
  const c = elm.className ? '.' + elm.className.split(' ').join('.') : '';
  return vnode(api.tagName(elm).toLowerCase() + id + c, {}, [], undefined, elm);
}
  • 判断两个虚拟节点是否相同
    • sameVnode方法
    function sameVnode(vnode1: VNode, vnode2: VNode): boolean {
  return vnode1.key === vnode2.key && vnode1.sel === vnode2.sel;
}
    • 如果相同，则获取差异，更新到DOM上
    • 如果不同，则使用vnode创建相应的DOM
      • 获取旧节点DOM元素
      • 获取旧节点的父节点
      • 使用新的vnode创建元素
      • 如果父节点存在，则插入新DOM节点，移出就DOM节点
  • 对于新插入的节点，执行insert钩子函数
  • 遍历，执行post钩子函数
  • 返回新的vnode

createElm函数

  function createElm(vnode: VNode, insertedVnodeQueue: VNodeQueue): Node {
    let i: any, data = vnode.data;
    if (data !== undefined) {
      if (isDef(i = data.hook) && isDef(i = i.init)) {
        i(vnode);
        data = vnode.data;
      }
    }
    let children = vnode.children, sel = vnode.sel;
    if (sel === '!') {
      if (isUndef(vnode.text)) {
        vnode.text = '';
      }
      vnode.elm = api.createComment(vnode.text as string);
    } else if (sel !== undefined) {
      // Parse selector
      const hashIdx = sel.indexOf('#');
      const dotIdx = sel.indexOf('.', hashIdx);
      const hash = hashIdx > 0 ? hashIdx : sel.length;
      const dot = dotIdx > 0 ? dotIdx : sel.length;
      const tag = hashIdx !== -1 || dotIdx !== -1 ? sel.slice(0, Math.min(hash, dot)) : sel;
      const elm = vnode.elm = isDef(data) && isDef(i = (data as VNodeData).ns) ? api.createElementNS(i, tag)
                                                                               : api.createElement(tag);
      if (hash < dot) elm.setAttribute('id', sel.slice(hash + 1, dot));
      if (dotIdx > 0) elm.setAttribute('class', sel.slice(dot + 1).replace(/\./g, ' '));
      for (i = 0; i < cbs.create.length; ++i) cbs.create[i](emptyNode, vnode);
      if (is.array(children)) {
        for (i = 0; i < children.length; ++i) {
          const ch = children[i];
          if (ch != null) {
            api.appendChild(elm, createElm(ch as VNode, insertedVnodeQueue));
          }
        }
      } else if (is.primitive(vnode.text)) {
        api.appendChild(elm, api.createTextNode(vnode.text));
      }
      i = (vnode.data as VNodeData).hook; // Reuse variable
      if (isDef(i)) {
        if (i.create) i.create(emptyNode, vnode);
        if (i.insert) insertedVnodeQueue.push(vnode);
      }
    } else {
      vnode.elm = api.createTextNode(vnode.text as string);
    }
    return vnode.elm;
  }
  • 判断vnode.data不为空，且定义了init钩子函数，则执行init钩子函数
  • 判断vnode.sel是否为!
    • 如果是，则创建注释节点
    • 不是且不为空，创建DOM元素。
      • 使用createElement或者createElementNS创建真实DOM元素
      • 设置id，class样式等
      • 遍历children，递归调用createElm，并添加到DOM上
    • 否则，vnode.sel为空，则使用createTextNode创建文本节点

addNodes、removeNodes函数

  • 批量添加、删除节点
  function removeVnodes(parentElm: Node,
                        vnodes: Array<VNode>,
                        startIdx: number,
                        endIdx: number): void {
    for (; startIdx <= endIdx; ++startIdx) {
      let i: any, listeners: number, rm: () => void, ch = vnodes[startIdx];
      if (ch != null) {
        if (isDef(ch.sel)) {
          invokeDestroyHook(ch);
          listeners = cbs.remove.length + 1;
          rm = createRmCb(ch.elm as Node, listeners);
          for (i = 0; i < cbs.remove.length; ++i) cbs.remove[i](ch, rm);
          if (isDef(i = ch.data) && isDef(i = i.hook) && isDef(i = i.remove)) {
            i(ch, rm);
          } else {
            rm();
          }
        } else { // Text node
          api.removeChild(parentElm, ch.elm as Node);
        }
      }
    }
  }
  • 遍历vnodes，判断节点不为null
    • 如果节点不存在sel，则证明是文本节点，直接执行removeChild移除
    • 否则，执行destroy钩子函数，
      • 利用createRmCb生成删除节点的函数rm
      function createRmCb(childElm: Node, listeners: number) {
  return function rmCb() {
    if (--listeners === 0) {
      const parent = api.parentNode(childElm);
      api.removeChild(parent, childElm);
    }
  };
}
      • 当listeners为0时，才执行移出节点，防止多次调用

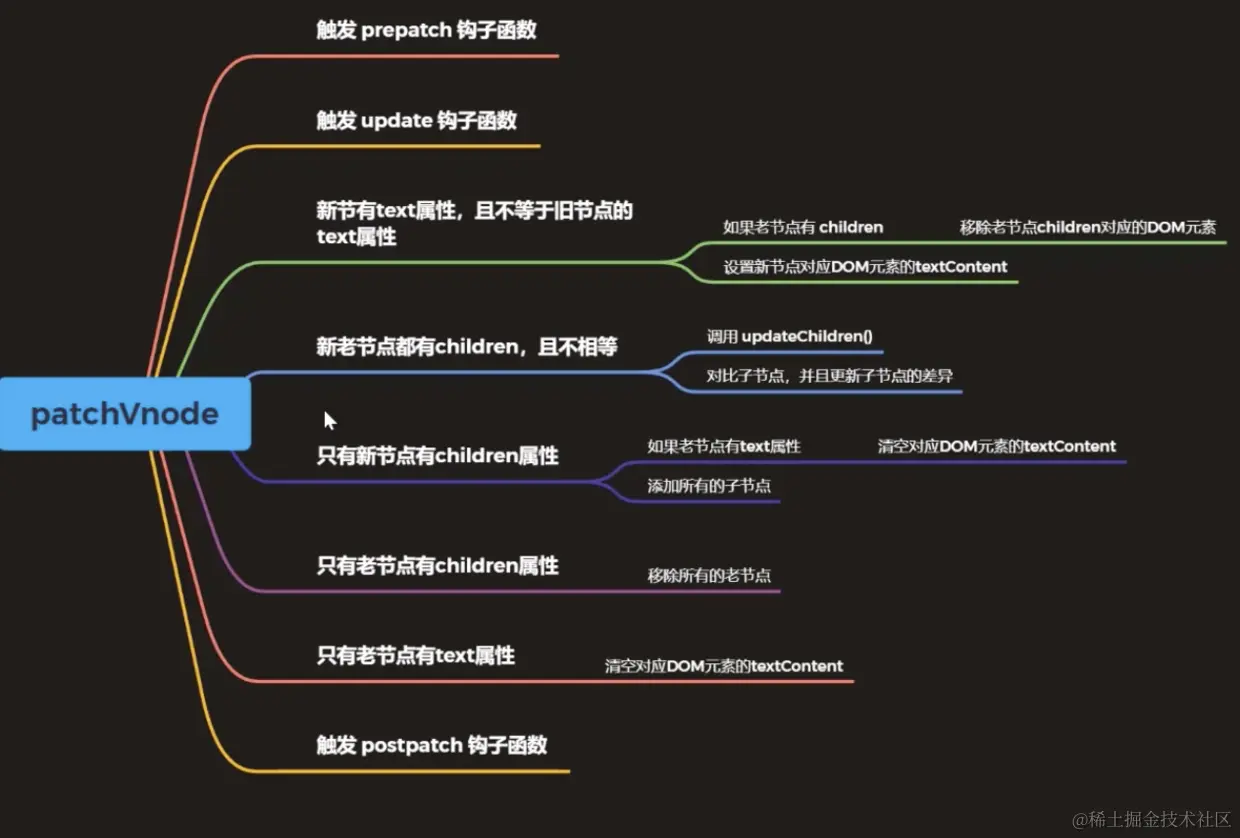

patchVnode

  function patchVnode(oldVnode: VNode, vnode: VNode, insertedVnodeQueue: VNodeQueue) {
    let i: any, hook: any;
    if (isDef(i = vnode.data) && isDef(hook = i.hook) && isDef(i = hook.prepatch)) {
      i(oldVnode, vnode);
    }
    const elm = vnode.elm = (oldVnode.elm as Node);
    let oldCh = oldVnode.children;
    let ch = vnode.children;
    if (oldVnode === vnode) return;
    if (vnode.data !== undefined) {
      for (i = 0; i < cbs.update.length; ++i) cbs.update[i](oldVnode, vnode);
      i = vnode.data.hook;
      if (isDef(i) && isDef(i = i.update)) i(oldVnode, vnode);
    }
    if (isUndef(vnode.text)) {
      if (isDef(oldCh) && isDef(ch)) {
        if (oldCh !== ch) updateChildren(elm, oldCh as Array<VNode>, ch as Array<VNode>, insertedVnodeQueue);
      } else if (isDef(ch)) {
        if (isDef(oldVnode.text)) api.setTextContent(elm, '');
        addVnodes(elm, null, ch as Array<VNode>, 0, (ch as Array<VNode>).length - 1, insertedVnodeQueue);
      } else if (isDef(oldCh)) {
        removeVnodes(elm, oldCh as Array<VNode>, 0, (oldCh as Array<VNode>).length - 1);
      } else if (isDef(oldVnode.text)) {
        api.setTextContent(elm, '');
      }
    } else if (oldVnode.text !== vnode.text) {
      if (isDef(oldCh)) {
        removeVnodes(elm, oldCh as Array<VNode>, 0, (oldCh as Array<VNode>).length - 1);
      }
      api.setTextContent(elm, vnode.text as string);
    }
    if (isDef(hook) && isDef(i = hook.postpatch)) {
      i(oldVnode, vnode);
    }
  }

avatar
文章
阅读
粉丝
