腾讯地图api官网: lbs.qq.com/
我这里选择的是3Dsdk

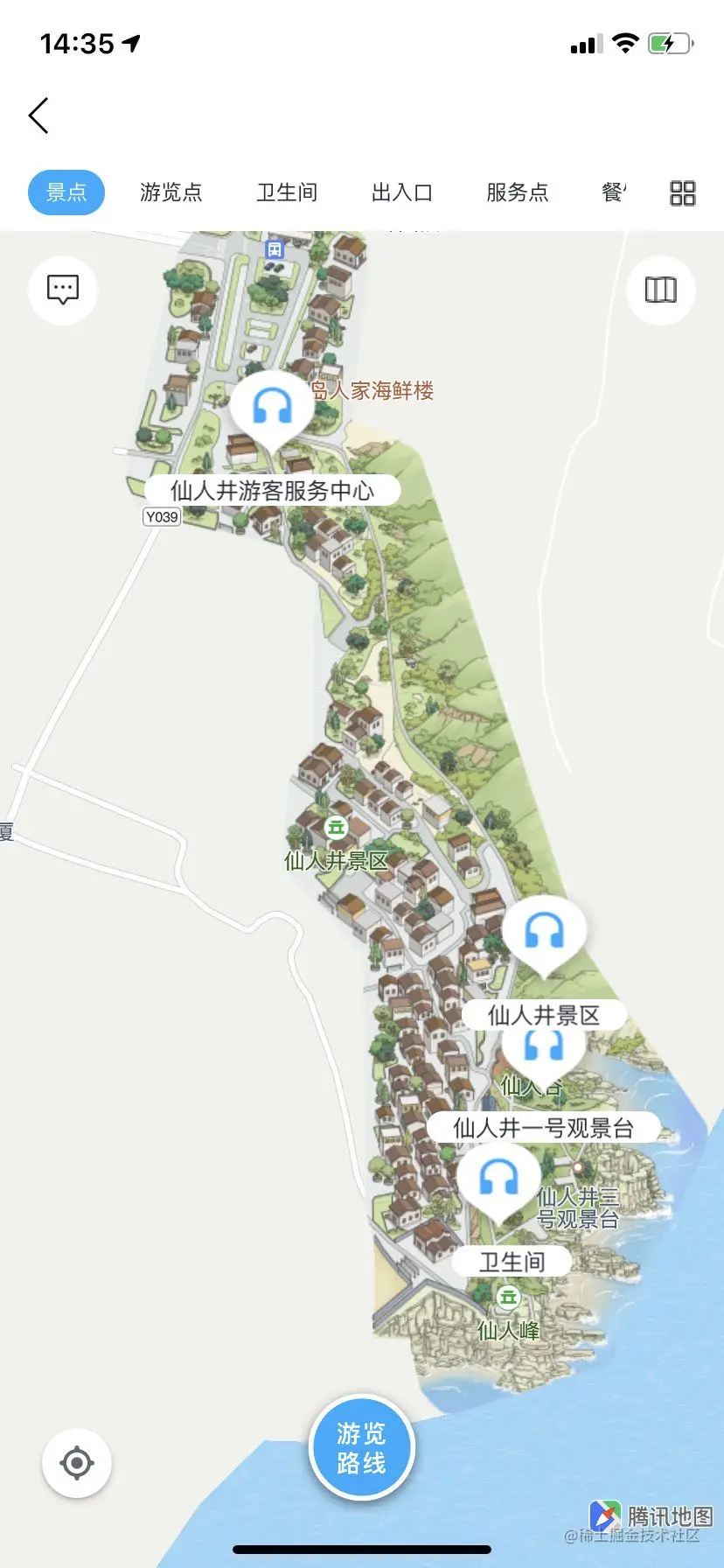

项目的一个效果大致如果
1.1 这个个性话图层是需要上传一些项目图层的图片（手绘地图）：lbs.qq.com/mobile/iOSM…
//创建自定义图层类
QCustomLayer *testlayer = [[QCustomLayer alloc] init];
testlayer.layerID = TenxunMapLayerID;
// 将自定义图层添加到地图上
[self.mapView addCustomLayer:testlayer];
TenxunMapLayerID 这个可以询问上传个性话图层的同事要。
1.2 地图常用到的代理方法
#pragma mark - QMapViewDelegate
//获取开始定位的状态
- (void)mapViewWillStartLocatingUser:(QMapView *)mapView {
YMLog(@"%@",mapView);
}
//获取停止定位的状态
- (void)mapViewDidStopLocatingUser:(QMapView *)mapView {
YMLog(@"%@",mapView);
}
//刷新位置 如果这块不关闭的话，会一直调用这个代理函数
- (void)mapView:(QMapView *)mapView didUpdateUserLocation:(QUserLocation *)userLocation updatingLocation:(BOOL)updatingLocation { [self.mapView setShowsUserLocation:NO]; //用户当前的经纬度 longitude = [NSNumber numberWithDouble:userLocation.location.coordinate.longitude]; latitude = [NSNumber numberWithDouble:userLocation.location.coordinate.latitude];
QCoordinateSpan span = QCoordinateSpanMake(0.1, 0.1);
QCoordinateRegion regin = QCoordinateRegionMake(userLocation.location.coordinate,span);
[self.mapView setRegion:regin animated:YES];
//添加大头针
QPointAnnotation *annotation = [[QPointAnnotation alloc] init];
annotation.title = @"你当前的位置";
[annotation setCoordinate:userLocation.location.coordinate];
[self.mapView addAnnotation:annotation];
}
注：自定义大头针其实类似于tableviewcell的一个自定义，如2.1
//marker的render
- (QAnnotationView *)mapView:(QMapView *)mapView viewForAnnotation:(id<QAnnotation>)annotation{
if ([annotation isKindOfClass:[DNPointAnnotation class]]) {
static NSString *pointReuseIndetifier = @"pointReuseIndetifier";
DNAnnotationView *render = (DNAnnotationView *)[mapView dequeueReusableAnnotationViewWithIdentifier:pointReuseIndetifier];
if (render == nil) {
render = [[DNAnnotationView alloc] initWithAnnotation:annotation reuseIdentifier:pointReuseIndetifier];
}
DNPointAnnotation *pAnnotation = (DNPointAnnotation *)annotation;
render.imgUrl = pAnnotation.image;
render.titleStr = pAnnotation.facilities;
return render;
}
return nil;
}
//选中大头针的方法
- (void)mapView:(QMapView *)mapView didSelectAnnotationView:(QAnnotationView *)view {
if ([view.annotation isKindOfClass:[QAnnotationView class]]) {
view.image = [UIImage imageNamed:@"图片marker2x"];
}}
//取消大头针的方法
- (void)mapView:(QMapView *)mapView didDeselectAnnotationView:(QAnnotationView *)view {
if ([view.annotation isKindOfClass:[QAnnotationView class]]) {
view.image = [UIImage imageNamed:@"anchor point"];
}}
2.1 自定义大头针，继承QAnnotationView
根据业务需求添加自定义参数传入数据
@interface DNAnnotationView : QAnnotationView
/** 图片 */
@property (nonatomic, copy) NSString *imgUrl;
/** 标题 */
@property (nonatomic, copy) NSString *titleStr;
@end
.m文件的逻辑（未封装）
#import "DNAnnotationView.h"
#import "YMStringSize.h"
@interface DNAnnotationView ()
/** 容器 */
@property (nonatomic, weak) UIView *contentV;
/** 图片 */
@property (nonatomic, weak) UIImageView *img;
/** 下标题 */
@property (nonatomic, weak) UILabel *titleL;
@end
@implementation DNAnnotationView
- (instancetype)initWithAnnotation:(id<QAnnotation>)annotation reuseIdentifier:(NSString *)reuseIdentifier {
if (self = [super initWithAnnotation:annotation reuseIdentifier:reuseIdentifier]) {
[self initSubViews];
}
return self;
}
- (void)initSubViews {
/** 容器 */
UIView *contentV = [[UIView alloc] init];
contentV.backgroundColor = [UIColor clearColor];
[self addSubview:contentV];
self.contentV = contentV;
/** 图片 */
UIImageView *img = [[UIImageView alloc] init];
img.frame = CGRectMake(0, 0, 64, 60);
[self.contentV addSubview:img];
self.img = img;
/** 下标题 */
UILabel *titleL = [[UILabel alloc] init];
titleL.textColor = [YMColor color292C33];
titleL.font = LabelFontRegular(13);
titleL.textAlignment = NSTextAlignmentCenter;
titleL.backgroundColor = [UIColor whiteColor];
[self.contentV addSubview:titleL];
self.titleL = titleL;
}
- (void)setImgUrl:(NSString *)imgUrl {
_imgUrl = imgUrl;
self.img.image = [UIImage imageNamed:imgUrl];
}
- (void)setTitleStr:(NSString *)titleStr {
_titleStr = titleStr;
/** 下标题 */
CGSize titleSize = [YMStringSize ym_sizeWithText:titleStr font:LabelFontRegular(13) maxW:SCREEN_WIDTH];
CGFloat titleY = CGRectGetMaxY(self.img.frame) + 5;
self.titleL.ym_x = 5;
self.titleL.ym_y = titleY;
self.titleL.ym_height = titleSize.height;
self.titleL.ym_width = titleSize.width + 30;
self.titleL.layer.cornerRadius = titleSize.height * 0.5;
self.titleL.layer.masksToBounds = YES;
if (titleSize.width > self.img.ym_width) {
self.contentV.ym_width = titleSize.width;
self.img.ym_centerX = self.titleL.ym_centerX;
} else {
self.contentV.ym_width = self.img.ym_width;
}
self.titleL.text = titleStr;
CGFloat wide = self.contentV.ym_width;
CGFloat height = self.titleL.ym_bottom;
self.frame = CGRectMake(0, 0, wide, height);
}
@end
3.1 项目上常用的的方法
如：地图上定位N个大头针
1.如果是2Dsdk的话用循环添加大头针到地图上
for (NSInteger i = 0; i < self.datasource.count; i++) {
DNHandDrawnMapModel *model = self.datasource[i];
CLLocationCoordinate2D coordinate;
coordinate.latitude = [model.latitude doubleValue];
coordinate.longitude = [model.longitude doubleValue];
//这里是自定义大头针
DNPointAnnotation *annotation = [[DNPointAnnotation alloc] initWithCoordinate:coordinate];
annotation.image = @"解说";
annotation.name = model.name;
annotation.address = model.address;
annotation.phone = model.phone;
annotation.facilities = model.name;
[self.mapView addAnnotation:annotation];
//设置跟随到第一个大头针的位置
if (i == 0) {
self.mapView.centerCoordinate = annotation.coordinate; //跟随到指定位置
}
}
2.如果是3Dsdk的话用循环添加大头针到地图上
// 点标注坐标
CLLocationCoordinate2D coordinates[4];
coordinates[0] = CLLocationCoordinate2DMake(40.041554,116.271508);
coordinates[1] = CLLocationCoordinate2DMake(40.041652,116.274619);
coordinates[2] = CLLocationCoordinate2DMake(40.03863,116.271787);
coordinates[3] = CLLocationCoordinate2DMake(40.038745,116.275134);
// 计算最小外接区域
QCoordinateRegion region = QBoundingCoordinateRegionWithCoordinates(coordinates, 4);
// 更新可见region
[self.mapView setRegion:region edgePadding:UIEdgeInsetsZero animated:YES];
注意：使用腾讯地图api如果遇到比较难解决的问题可以在控制台->个人中心->我的工单，创建工单请求技术支持，但是收到的答复可能会比较晚。
