Flume 日志采集、聚合和传输

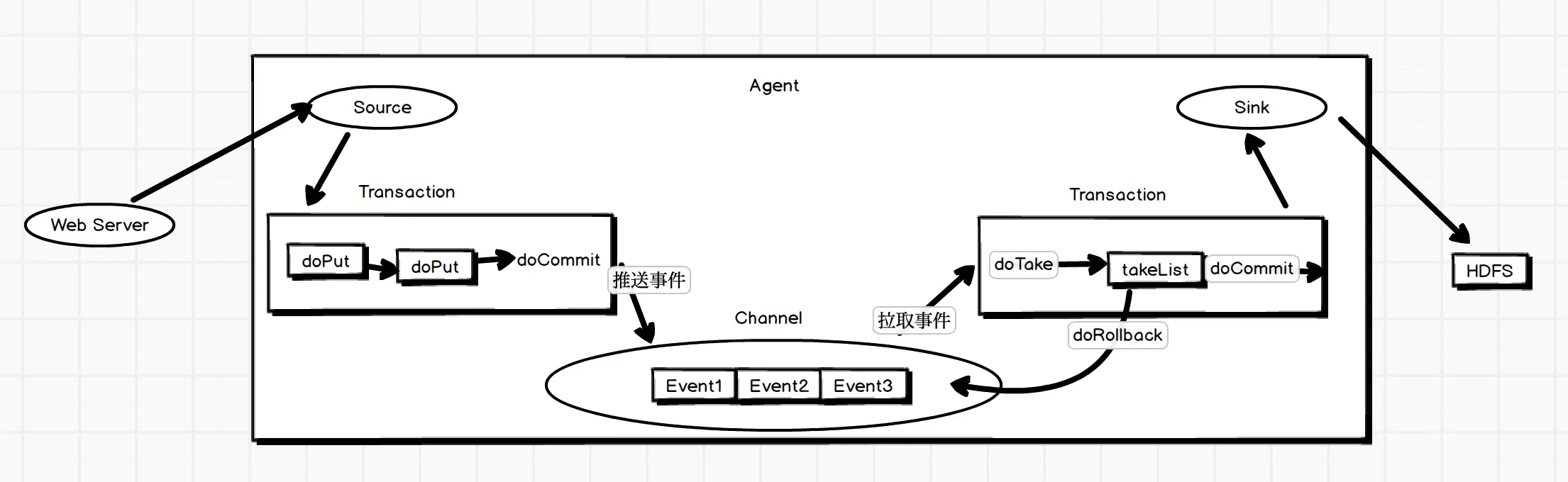

Flume事务

Put事务流程

doPut：将批量数据写入临时缓冲区
doCommit：检查channel内存队列是否足够合并
doRollback:channel：内存队列空间不足，回滚数据

Take事务

doTake：将数据拉取到临时缓冲区takeList，并将数据发送到HDFS
doCommit：如果数据全部发送成功，则清除临时缓冲区takeList
doRollback：数据发送过程中如果出现异常，rollback将临时缓冲区takeList中的数据归还给channel内存队列

Flume Agent 内部原理

channelSelector：选出Event要发往哪个Channel。有两种类型：Replicating(复制，default)和Multiplexing(多路复用)。Replicating会将source来的数据发往所有channel，Multiplexing选择发往那些Channel。
SinkProcessor：DefaultSinkProcessor对应单个Sink，LoadBalancingSinkProcessor和FailoverSinkProcessor对应的是Sink Group，LoadBalancingSinkProcessor可以实现负载均衡，FailOverSinkProcessor可以实现故障转移功能。
MemoryChannel/FileChannel/KafkaChannel

Flume 拓扑结构

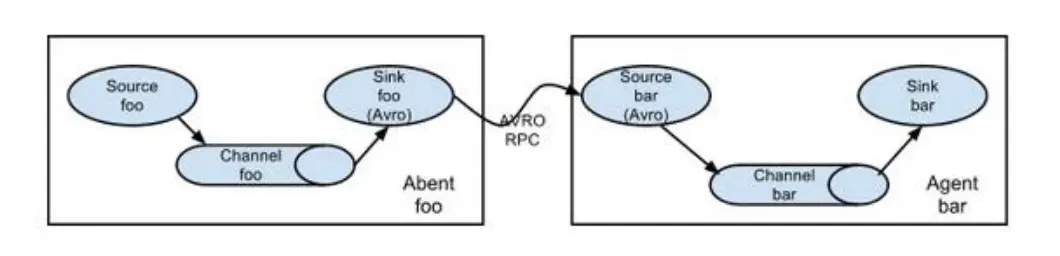

简单串联

复制和多路复用

# 将数据流发送给所有channel
a1.sources.r1.selector.type = replicating

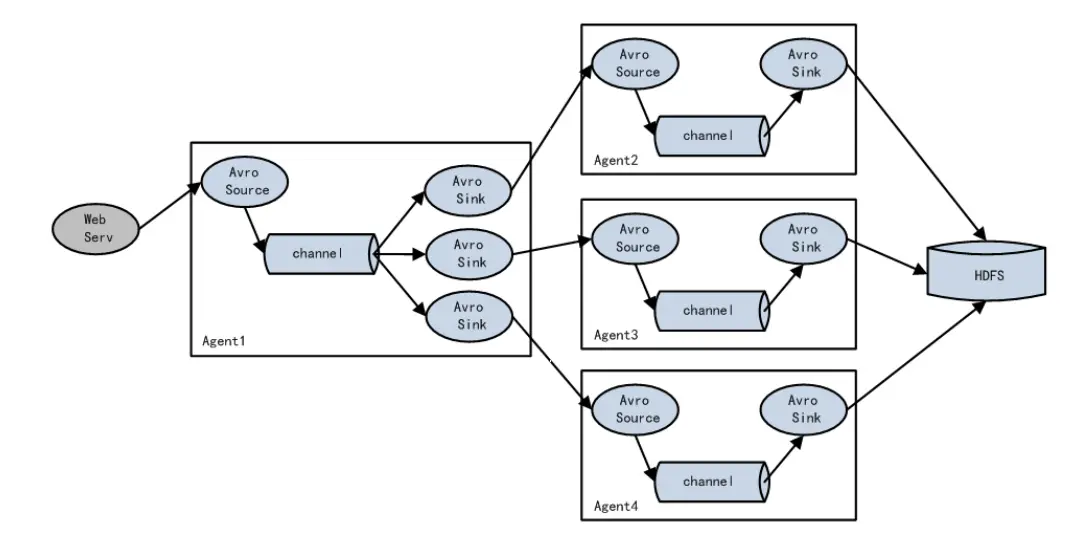

负载均衡和故障转移

a1.sinkgroups.g1.processor.type = failover
a1.sinkgroups.g1.processor.priority.k1 = 5
a1.sinkgroups.g1.processor.priority.k2 = 10
a1.sinkgroups.g1.processor.maxpenalty = 10000

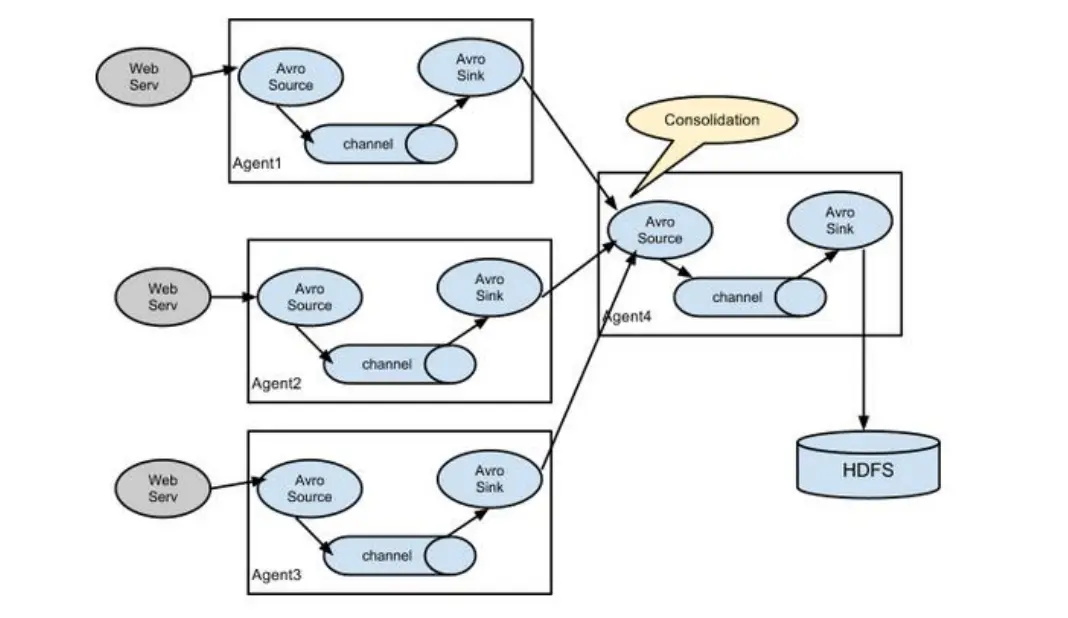

聚合

Flume 简单实现

a1.sources = r1
a1.sinks = k1
a1.channels = c1

a1.sources.r1.type = TAILDIR
a1.sources.r1.positionFile = /opt/module/flume/tail_dir.json
a1.sources.r1.filegroups = f1
a1.sources.r1.filegroups.f1 = /opt/module/flume/files/file.*

a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.type = hdfs://hadoop102:9000/flume/upload/%Y%m%d/%H
# 上传文件前缀
a1.sinks.k1.hdfs.filePrefix = upload-
# 是否按照时间滚动文件
a1.sinks.k1.hdfs.roud = True
# 多少时间创建一个新的文件夹
a1.sinks.k1.hdfs.roundValue = 1
# 重新定义时间单位
a1.sinks.k1.hdfs.roundUnit = hour
# 是否使用本地时间戳
a1.sinks.k1.hdfs.userLocalTimeStamp = true
# 积攒多少个Event才Flush到HDFS一次
a1.sinks.k1.hdfs.batchSize = 100
# 设置文件类型，可支持压缩
a1.sinks.k1.hdfs.fileType = DataStream
# 多久生产一个文件
a1.sinks.k1.hdfs.rollInterval = 60
# 设置每个文件的滚动大小，128M
a1.sinks.k1.hdfs.rollSize = 134217700
# 文件的滚动与Event的数量无关
a1.sinks.k1.hdfs.rollCount = 0

a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

a1.sources.r1.channels = c1
a1.sources.k1.channel = c1

Exec Source适用于监控一个实时追加的文件，但不能保证数据不丢失；Spooldir Source能够保证数据不丢失，且能够实现断点续传，但延迟高，不能实时监控；Taildir Source既能实现断点续传，又可以保证数据不丢失，还能实时监控。

Taildir Source维护了一个Json格式的Position File，会定期往Position File中更新每个文件读取到的最新位置。

自定义Interceptor

import org.apache.flume.Context
import org.apache.flume.Event
import org.apache.flume.interceptor.Interceptor

import java.util.List

public class CustomInterceptor implements Interceptor {
    @Override
    public void initialize() {

    }

    @Override
    public Event intercept(Event event) {
        byte[] body = event.getBody();
        if (body[]0)
    }

    public Event intercept(Event event) {
        byte[] body = event.getBody();
        if (body[0] < 'z' && body[0] > 'a') {
            event.getHeaders().put("type", "letter");
        } else if (body[0] > '0' && body[0] < '9') {
            event.getHeaders().put("type", "number");
        }
        return event;
    }

    @Override
    public List<Event> intercept(List<Event> events) {
        for (Event event : events) {
            intercept(event);
        }
        return events;
    }

    @Override
    public void close() {

    }

    public static class Builder implements Interceptor.Builder {

        @Override
        public Interceptor build() {
            return new CustomInterceptor();
        }

        @Override
        public void configure(Context context) {

        }
    }
}

flume配置文件

a1.sources.r1.interceptors = i1
a1.sources.r1.interceptors.i1.type = com.arkmu.flume.interceptor.CustomInterceptor$Builder
a1.sources.r1.selector.type = multiplexing
a1.sources.r1.selector.header = type
a1.sources.r1.selector.mapping.letter = c1
a1.sources.r1.selector.mapping.number = c2

自定义Source

import org.apache.flume.Context;
import org.apache.flume.EventDeliveryException;
import org.apache.flume.PollableSource;
import org.apache.flume.conf.Configurable;
import org.apache.flume.event.SimpleEvent;
import org.apache.flume.source.AbstractSource;

import java.util.HasMap

public class MySource extends AbstractSource implements Configurable, PollableSource {

    private Long delay;
    private String Field;

    @Override
    public void configure(Context context) {
        delay = context.getLong("delay");
        field = context.getString("field", "Hello!"):
    }

    @Override
    public Status process() throws EventDeliveryException {
        try {
            HashMap<String, String> headerMap = new HashMap<>();
            SimpleEvent event = new SimpleEvent();
            for (int i = 0; i < 5; i++) {
                event.setHeaders(headerMap);
                event.setBody((field + i).getBytes());
                getChannelProcessor().processEvent(event);
                Thread.sleep(delay);
            }
        } catch (Exception e) {
            e.printStackTrace();
            return Status.BackOFF;
        }
        return Status.READY;
    }

    @Override
    public long getBackOffSleepIcrement() {
        return 0;
    }

    @Override
    public long getMaxBackOffSleepInterval() {
        return 0;
    }
}

自定义Sink

import org.apache.flume.*;
import org.apache.flume.conf.Configurable;
import org.apache.flume.sink.AbstractSink;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class MySink extends AbstractSink implements Configurable {
    private static final Logger LOG = LoggerFactory.getLogger(AbstractSink.class);

    private String prefix;
    private String suffix;

    @Override
    public Status process() throws EventDeliveryException {
        // 声明返回值状态
        Status status;
        // 获取当前Sink绑定的channel
        Channel ch = getChannel();
        // 获取事务
        Transaction txn = ch.getTransaction();
        // 声明事件
        Event event;
        // 开启事务
        txn.begin();

        // 读取channel中的事件，知道读取事件循环结束
        while(true) {
            event = ch.take();
            if (event != null) {
                break;
            }
        }

        try {
            LOG.info(prefix + new String(event.getBody()) + suffix);

            txn.commit();
            status = Status.READY;
        } catch (Execption e) {
            // 遇到异常，回滚事务
            txn.rollback();
            status = STATUS.BACKOFF;
        } finally {
            txn.close()
        }

        return status;
    }

    @Override
    public void configure(Context context) {
        // 读取配置文件内容，有默认值
        prefix = context.getString("prefix", "hello:");
        // 读取配置文件内容，无默认值
        suffix = context.getString("suffix");
    }
}

Flume监控

sudo yum -y install httpd php
sudo yum -y install rrdtool perl-rrdtool rrdtool-devel
sudo yun -y install apr-devel

// 安装ganglia
sudo rpm -Uvh http://dl.fedoraproject.org/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm
sudo yum -y install ganglia-gmetad
sudo yum -y install ganglia-web
sudo yum -y install ganglia-gmond

sudo vim /etc/httpd/conf.d/ganglia.conf
Allow from all

sudo vim /etc/ganglia/gmetad.conf
data_source "hadoop102" 192.168.9.102

sudo vim /etc/ganglia/gmond.conf
name = "hadoop102"
host = 192.168.9.102
bind = 192.168.9.102

sudo vim /etc/selinux/config
SELINUX=disabled    # 需重启生效，或（sudo setenforce 0）

// 启动
sudo service httpd start
sudo service gmetad start
sudo service gmond start

http://192.168.9.102/ganglia

修改/opt/module/flume/conf/flume-env.sh
JAVA_OPTS="-Dflume.monitoring.type=ganglia
-Dflume.monitoring.hosts=192.168.9.102:8649
-Xms100m
-Xmx200m"

启动flume
bin/flume-ng agent \
--conf conf/ \
--name a1 \
--conf-file job/flume-netcat-logger.conf
-Dflume.root.logger==INFO,console \
-Dflume.monitoring.type=ganglia \
-Dflume.monitoring.hosts=192.168.9.102:8649

Flume调优

增加Source个数（使用TailDir Source是增加FileGroups个数）增大Source读取数据的能力；batchSize决定Source单次批量运输到Channel的event条数，适当调大batchSize可以提高Source搬运Event到Channel时的性能。
memoryChannel性能优于FileChannel，但是当Agent进程意外挂掉会丢失数据。使用fileChannel是配置多个不同盘下的目录可以提高性能。Capacity参数决定Channel可容纳的最大event条数，transactionCapacity参数决定Source往channel里面写的最大event条数和每次Sink从channel里面读取的最大event条数。trasactionCapacity需要大于Source和Sink的batchSize参数。
增加Sink个数可以增加Sink消费能力，但不是越多越好。增大batchSize可以增加Sink的单次拉取量。
