在 SwiftUI 中构建服务端驱动的 UI 组件

在不提交给 Apple 审核的情况下即时修改应用

本文将讨论使用可重用 UIComponents 组件来实现服务端驱动的 UI,以及如何创建通用垂直列表视图。最后将简要讨论如何使用 UI 组件实现不同的需求。

什么是服务端驱动的 UI ?

  • 它是一种架构,其中约定应用程序中 UI 视图在屏幕上的渲染是由服务器决定的。
  • 应用程序和服务器之间存在协议。该协议的基础是让服务器可以控制应用程序的 UI。

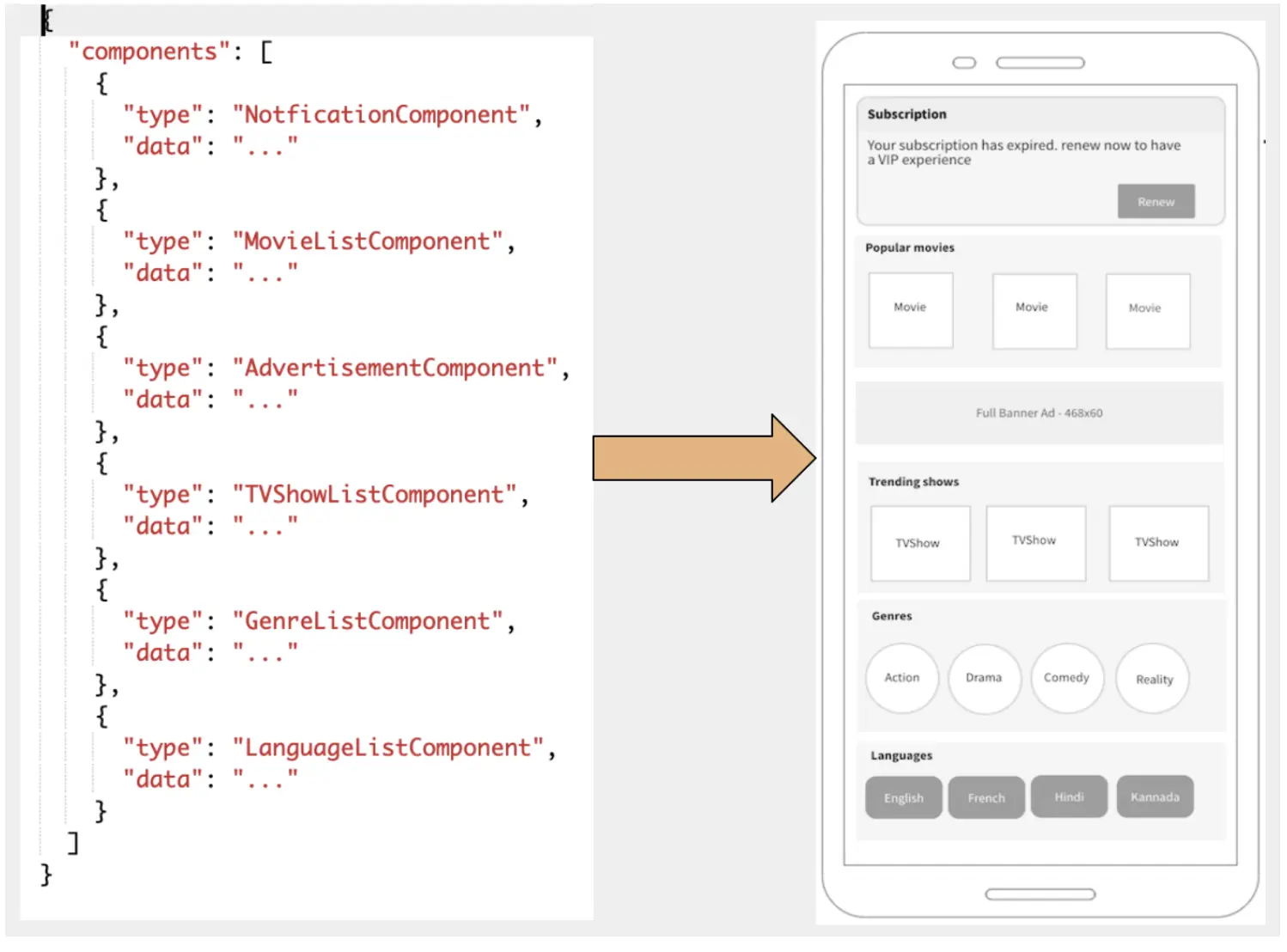

协议是什么?—— 服务器定义的组件列表。对于服务器上定义的每个组件,我们在应用程序(UIComponent)中都有一个相应的 UI 实现。比如像 Hotstar 这样的娱乐应用,其协议定义如下。左边是服务器中的组件,右边是相应的 UI 组件。

运行 —— 屏幕上没有像 storyboard 一样预定义的布局。取而代之的是一个普通的列表视图,它会根据服务器的响应,在垂直方向上渲染多个不同的视图。为了实现这一点,我们必须创建独立并且在整个应用中可重用的视图。我们将这些可重用的视图称为 UIComponent

协议 —— 对于每个服务端的组件,我们有与之对应的 UIComponent。

SwiftUI

SwiftUI 是一个用声明式编程来设计屏幕布局的 UI 框架。

struct NotificationView: View {

    let notificationMessage: String

    var body: some View {
        Text(notificationMessage)
    }
}

在 SwiftUI 中实现服务端驱动的 UI

它分为三个步骤。

  1. 定义独立的 UIComponents。
  2. 根据 API 响应结果构建 UIComponents。
  3. 在屏幕上渲染 UIComponents。

1. 定义独立的 UIComponents

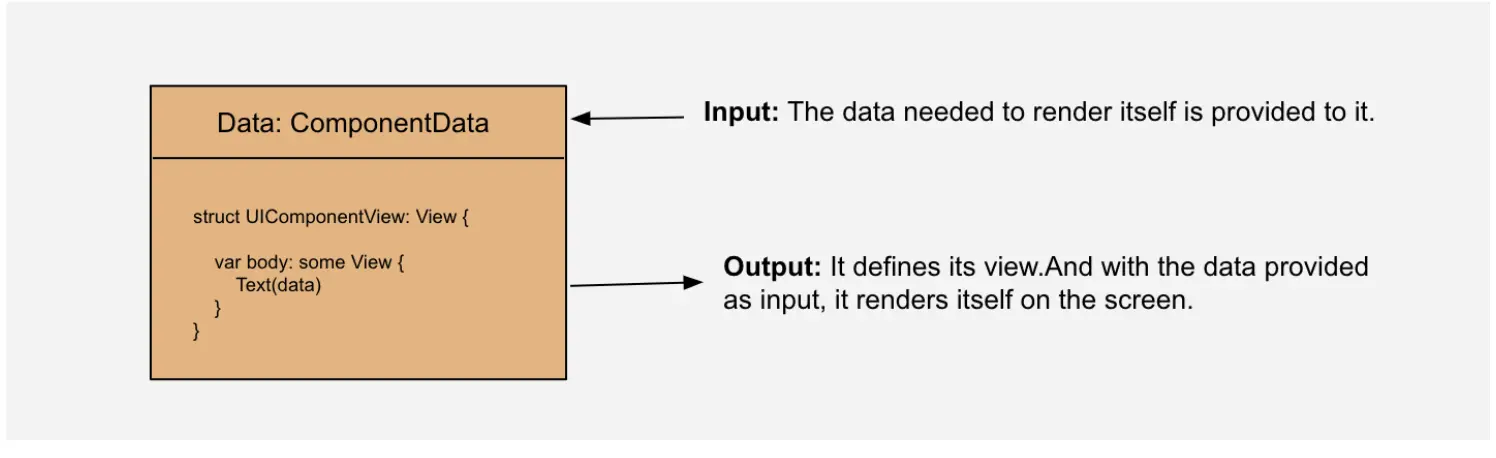

输入:首先,要使 UIComponent 能够渲染,应为其提供数据。

输出:UIComponent 中定义的 UI。当屏幕渲染时,它根据提供的数据(输入)进行渲染。

UIComponent 实现

protocol UIComponent {
    var uniqueId: String  { get }
    func render() -> AnyView
}
  • 所有 UI 视图都必须遵守 UIComponent 协议。
  • 由于组件是在通用垂直列表中渲染的,所以每个 UIComponent 必须有一个独立的标识。uniqueId 属性用于实现标识的功能。
  • 我们在 render() 方法中定义组件的 UI。调用这个方法时会在屏幕上渲染组件。现在我们来看一下 NotificationComponent 的实现。
struct NotificationComponent: UIComponent {
    var uniqueId: String

    // The data required for rendering is passed as a dependency
    let uiModel: NotificationUIModel

    // Defines the View for the Component
    func render() -> AnyView {
        NotificationView(uiModel: uiModel).toAny()
    }
}

// Contains the properties required for rendering the Notification View
struct NotificationUIModel {
    let header: String
    let message: String
    let actionText: String
}

// Notification view takes the NotificationUIModel as a dependency
struct NotificationView: View {
    let uiModel: NotificationUIModel
    var body: some View {
        VStack {
            Text(uiModel.header)
            Text(uiModel.message)
            Button(action: {}) {
                Text(uiModel.actionText)
            }
        }
    }
}
  • NotificationUIModel 是组件渲染所需的数据。这是 UIComponent 的输入。
  • NotificationView 是一个 SwiftUI 视图,用于定义组件的 UI。它以 NotificationUIModel 作为依赖。当屏幕渲染时,此视图是 UIComponent 的输出。

2. 根据 API 响应结果构建 UIComponents

 class HomePageController: ObservableObject {

    let repository: Repository
    @Published var uiComponents: [UIComponent] = []

    ..
    ..

    func loadPage() {
        val response = repository.getHomePageResult()
        response.forEach { serverComponent in
          let uiComponent = parseToUIComponent(serverComponent)
          uiComponents.append(uiComponent)
        }
    }
}

func parseToUIComponent(serverComponent: ServerComponent) -> UIComponent {
  var uiComponent: UIComponent

  if serverComponent.type == "NotificationComponent" {
    uiComponent = NotificationComponent(serverComponent.data, serverComponent.id)
  }
  else if serverComponent.type == "GenreListComponent" {
    uiComponent = GenreListComponent(serverComponent.data, serverComponent.id)
  }
  ...
  ...
  return uiComponent
}
  • HomePageController 从存储库加载服务器组件并将其转换为 UIComponents。
  • uiComponent 属性负责保存 UIComponents 的列表。我们用 @Published 属性包装使其转化为可观察的对象。其值的任何更改都将发布到 Observer(View)。这样可以使 视图 与应用程序状态保持同步。

3. 在屏幕上渲染 UIComponents

这是最后一部分。屏幕的唯一职责是渲染 UIComponents。它订阅了可观察的 uiComponents。每当 uiComponents 的值更改时,就会通知 HomePage,然后更新其 UI。通用的 ListView 用于展示 UIComponent。

struct HomePageView: View {

    @ObservedObject var controller: HomePageViewModel

    var body: some View {

        ScrollView(.vertical) {
            VStack {
                ForEach(controller.uiComponents, id: \.uniqueId) { uiComponent in
                    uiComponent.render()
                }
            }
        }
        .onAppear(perform: {
            self.controller.loadPage()
        })

    }
}

通用的 VStackVStack 内部所有的 UIComponent 都在垂直方向上展示。因为 UIComponent 是唯一可识别的,所以我们可以使用 ForEach 进行渲染。

所有遵守 UIComponent 协议的组件都必须返回通用类型,因此 render() 方法返回的类型是 AnyView。以下是 View 的扩展,用于将其转换为 AnyView

extension View {
    func toAny() -> AnyView {
        return AnyView(self)
    }
}

结论

我们学习了如何使用 UIComponent 来使服务器控制应用程序的 UI。其实 UIComponents 还可以实现更多功能。

现在我们考虑没有服务器端驱动时界面的情况。这种情况下,UI 片段在整个应用程序中使用很多次。这会导致视图和视图逻辑的重复。因此,最好将界面定义为有意义的,可重用的组件。

这种方式可以让控制层/业务层定义和构造 UI 组件。另外,业务层也可以承担控制 UI 的责任。

你可以在 GitHub 上找到这个项目

您还可以阅读在 Android 中使用 Jetpack Compose 创建基于组件的架构这篇文章,它详细解释了 UI 组件原理。文中使用的是 Jetpack compose —— Android 中声明式的 UI 框架,因此这篇文章的内容也不难理解。
