背景:项目已经迭代了了两个版本,在下一个版本中要加入引导页的功能
引导图的显示放在什么地方比较好
- 放在
appDelegate
中创建tabBer
的方法中进行判断,如果为第一启动就跳到引导页GuideViewController
,但是个人不太喜欢在appDelegate
中做过多的操作因此放弃 - 放在
TabBarController
的-viewDidLoad
方法中,判断为第一次启动后,显示GuideViewController
GuideViewController
如何展示更加优雅
纯属个人愚见
个人十分推崇使用 UIWindow
来展示 GuideViewController
代码如下
- (void)showGuideView {
if (!self.guideWindow) {
self.guideWindow = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
GuideCollectionViewController *guideVC = [[GuideCollectionViewController alloc] initWithNibName:@"GuideCollectionViewController" bundle:[NSBundle mainBundle]];
guideVC.imageArray = @[[UIImage imageNamed:@"p1"],[UIImage imageNamed:@"p2"],[UIImage imageNamed:@"p3"],[UIImage imageNamed:@"p4"],[UIImage imageNamed:@"p5"]];
__weak typeof(self)weakSelf = self;
guideVC.dismissAction = ^{
//这里展示完成后 的操作,如 1.更改本地保存的数据为非第一次启动 2.继续走以前没有引导页时的逻辑 等
[weakSelf finishShowGuideView];
};
[self.guideWindow setRootViewController:guideVC];
}
[self.guideWindow makeKeyAndVisible];
}
- (void)finishShowGuideView {
[UIView animateWithDuration:0.5 animations:^{
self.guideWindow.alpha = 0.0;
} completion:^(BOOL finished) {
self.guideWindow.hidden = YES;
//必须置为 `nil`
self.guideWindow.rootViewController = nil;
//非必须操作 但是实际上这个`window`只是用一次因此释放掉最好
self.guideWindow = nil;
}];
//更改保存数据为非第一次启动 具体代码略
//走原本没有引导页时的逻辑,和判断为非第一启动同样的操作 代码略
}
备注:iOS 7.0之后必须引用UIWindow
对象后,UIWindow
对象调用-makeKeyAndVisible
方法才能使 window
正常显示
上面的废话终于说完了,来讨论下使用
UICollectionView
来做引导页时的坑 😱

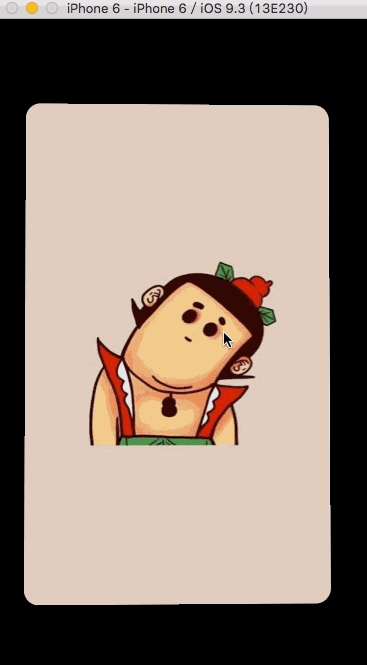

先上第一个版本的 GuideViewController
的展示效果
怎么没有PageControl
?🤔 ,这也是一个坑,我用的是UICollectionViewController
并且是xib
文件创建视图结果悲剧了,UICollectionViewController
默认view
就是UiCollectionView
不能通过直接拖拽加约束的方式添加UIPageControl
因此后面我改用了UIViewController
上布局UICollectionView
的做法
背景不是我们项目的启动图,好吧加上背景为启动图的代码
static NSString * const reuseIdentifier = @"GuideCollectionViewCellID";
- (void)viewDidLoad {
[super viewDidLoad];
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = NO;
[self.collectionView registerNib:[UINib nibWithNibName:@"GuideCollectionViewCell" bundle:[NSBundle mainBundle]] forCellWithReuseIdentifier:reuseIdentifier];
[self showLaunchImageView];
}
- (void)showLaunchImageView {
UIImage *lanuchImage = nil;
if (iphone5x_4_0) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-700-568h"];
}else if (iphone6_4_7) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-800-667h"];
}else if (iphone6Plus_5_5) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-800-Portrait-736h"];
}else {
lanuchImage = [UIImage imageNamed:@"LaunchImage-700"];
}
UIImageView *lanuchImageView = [[UIImageView alloc] initWithFrame:[UIScreen mainScreen].bounds];
// lanuchImageView.image = lanuchImage;
lanuchImageView.image = [UIImage imageNamed:@"bg"];
[self.collectionView setBackgroundView:lanuchImageView];
}

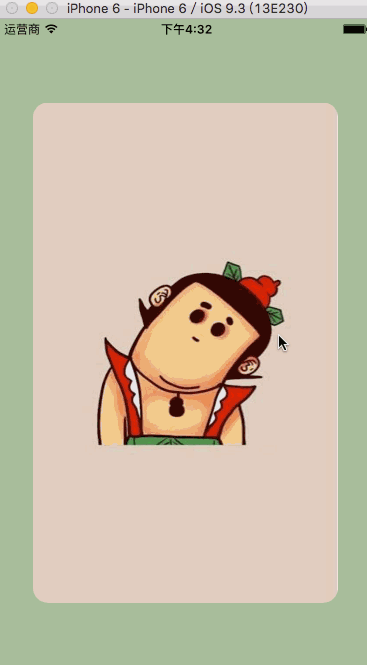

来让我们再来看一下,运行的效果
😦😵😫😖😱
是不是完全蒙了,别怕赶紧点进- setBackgroundView:
看看官方的说明
@property (nonatomic, strong, nullable) UIView *backgroundView; // will be automatically resized to track the size of the collection view and placed behind all cells and supplementary views.
然而,😳似乎也看不出什么!🙃好吧,还好我们还有一招(以前的文章中说过的),看图说话
时间到

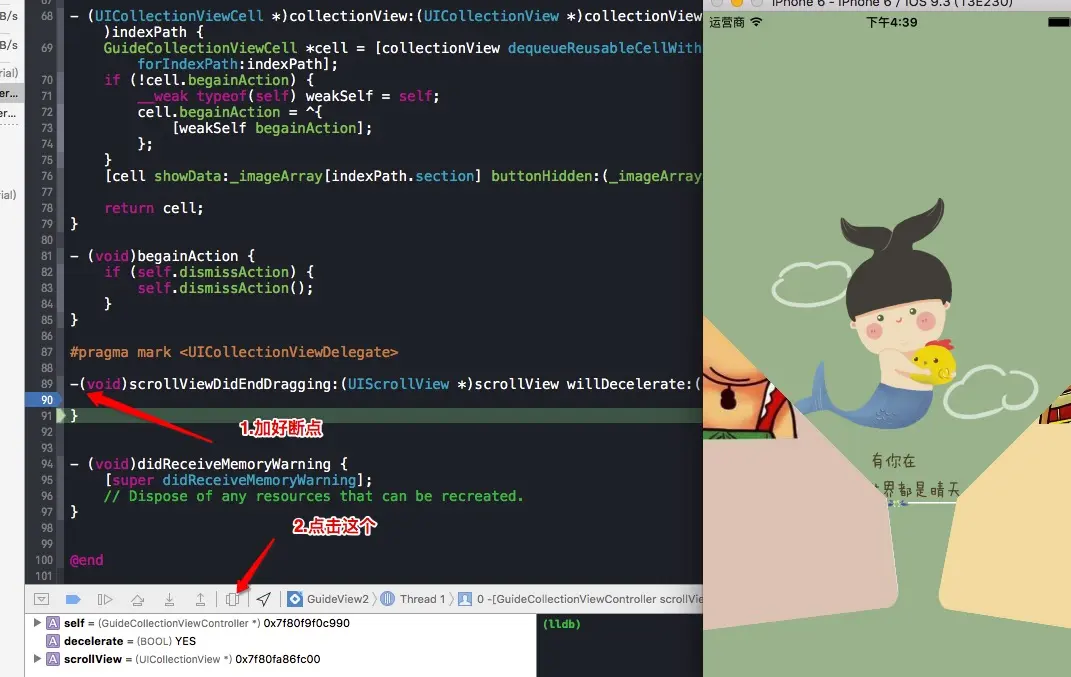

步骤1

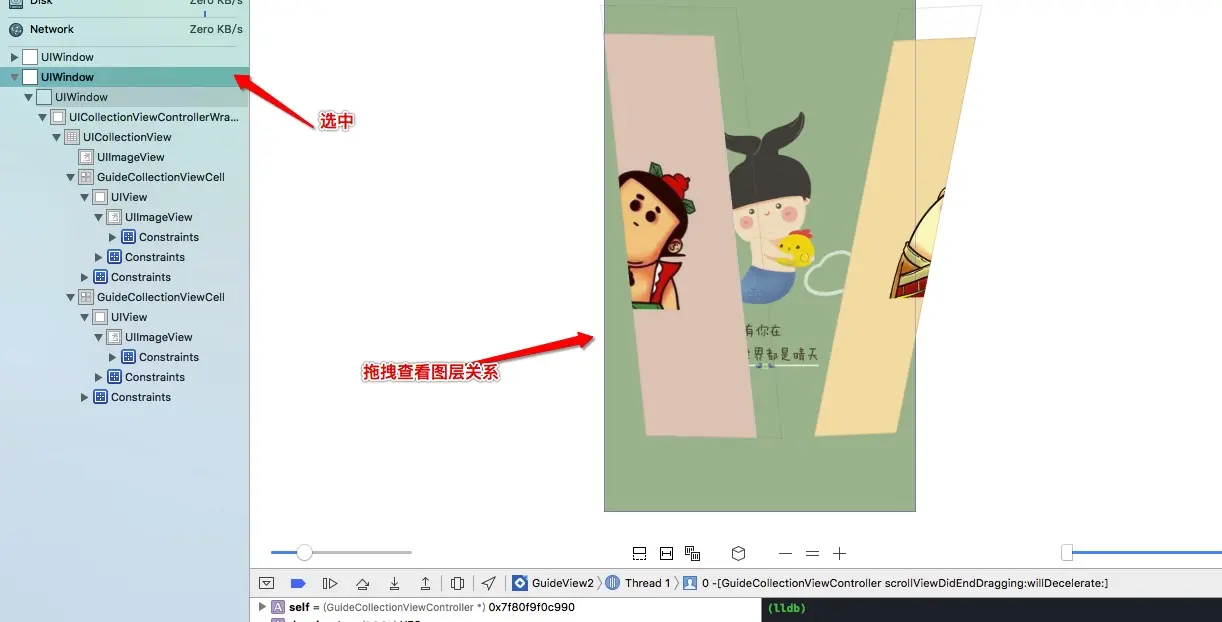

步骤2

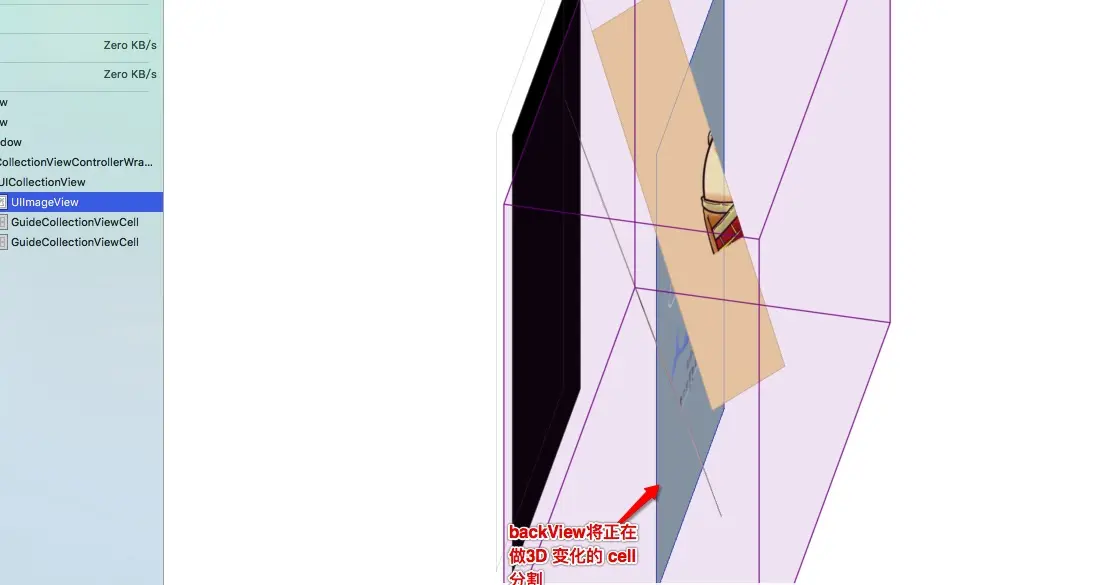

步骤3
ok~🙂找到 BUG 产生的原因,由于对 cell
做了 CATransform3D
变换,因此造成的 cell
被 backgroundView
分割造成的,现在解决它
- (void)showLaunchImageView {
UIImage *lanuchImage = nil;
if (iphone5x_4_0) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-700-568h"];
}else if (iphone6_4_7) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-800-667h"];
}else if (iphone6Plus_5_5) {
lanuchImage = [UIImage imageNamed:@"LaunchImage-800-Portrait-736h"];
}else {
lanuchImage = [UIImage imageNamed:@"LaunchImage-700"];
}
UIImageView *lanuchImageView = [[UIImageView alloc] initWithFrame:[UIScreen mainScreen].bounds];
// lanuchImageView.image = lanuchImage;
CATransform3D t = CATransform3DIdentity;
//注意`z`值可以根据你对`cell`做`3D`变化的偏转角度和`cell`的`size`来计算出来的,也可以给一个(绝对值)足够大的值,这个 demo 中给 '-212' 是最合适的
t = CATransform3DTranslate(t, 0, 0, -150);
lanuchImageView.layer.transform = t;
lanuchImageView.image = [UIImage imageNamed:@"bg"];
[self.collectionView setBackgroundView:lanuchImageView];
}

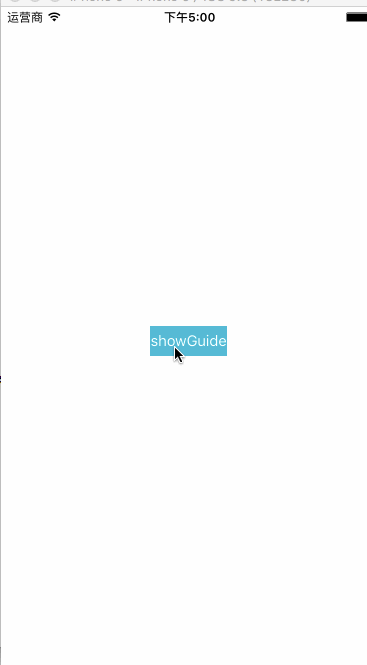

来再看一下效果
最后改UICollectionViewController
为用UIViewcontroller
布局UICollectionView
来实现就可以添加UIPagecontrol
了
参考
iOS-Core-Animation-Advanced-Techniques -- 关于 CATransform3D
请详细阅读 iOS-Core-Animation-Advanced-Techniques/5-变换/变换.md
