背景

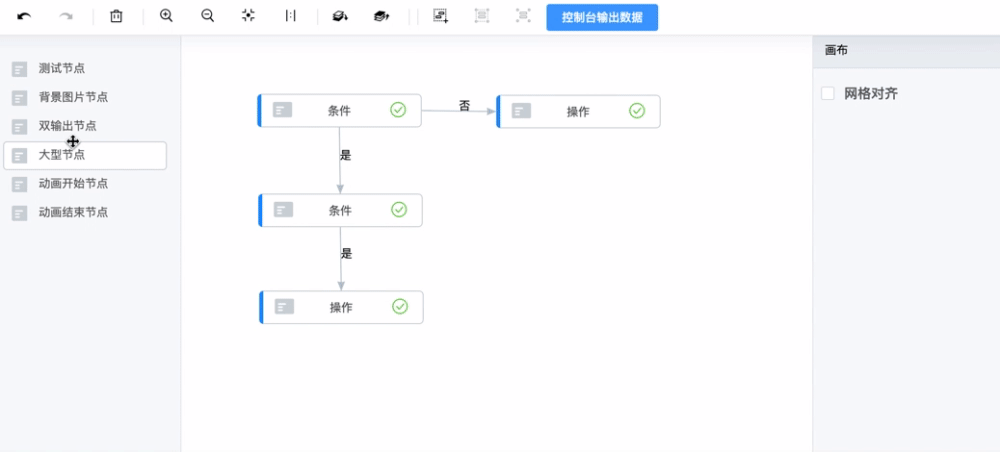

要用JS写出一个流程图 如图所示
添加功能
于是借鉴了项目vue-g6-editor
GitHub链接为：github.com/caoyu48/vue…
线上访问地址为：http://62.234.69.136/
g6官方API文档：antv-g6.gitee.io/zh/docs/man…
设置上下左右四个方向设置输入输出点
位置：src/components/itemPanel/item.vue文件中的data.list
{
name: "双输入双输出节点",
label: "双输入双输出节点",
size: "170*34",
type: "node",
x: 0,
y: 0,
shape: "customNode",
color: "#1890ff",
inPoints: [[0.5, 0], [0, 0.5]],
outPoints: [[1, 0.5], [0.5,1]]
},
位置：src/components/Flow/customNode.js中
if (cfg.inPoints) {
for (let i = 0; i < cfg.inPoints.length; i++) {
let x,
y = 0;
if (cfg.inPoints[i][0] === 0) {
y = 0;
x = width * cfg.inPoints[i][1];
} else if((cfg.inPoints[i][0] === 1)) {
y = height;
x = width * cfg.inPoints[i][1];
} else if((cfg.inPoints[i][1] === 0)){
x = 0,
y = height * cfg.inPoints[i][0];
} else if((cfg.inPoints[i][1] === 1)){
x = height,
y = height * cfg.inPoints[i][0];
}
x = width * cfg.inPoints[i][1];
const id = 'circle' + uniqueId()
group.addShape("circle", {
attrs: {
id: 'circle' + uniqueId(),
parent: id,
x: x + offsetX,
y: y + offsetY,
r: 10,
isInPointOut: true,
fill: "#1890ff",
opacity: 0
}
});
group.addShape("circle", {
attrs: {
id: id,
x: x + offsetX,
y: y + offsetY,
r: 3,
isInPoint: true,
fill: "#fff",
stroke: "#1890ff",
opacity: 0
}
});
}
}
if (cfg.outPoints) {
for (let i = 0; i < cfg.outPoints.length; i++) {
let x,y
//0为顶 1为底
if (cfg.outPoints[i][0] === 0) {
y = 0;
x = width * cfg.outPoints[i][1];
} else if((cfg.outPoints[i][0] === 1)) {
y = height;
x = width * cfg.outPoints[i][1];
} else if((cfg.outPoints[i][1] === 0)){
x = 0,
y = height * cfg.outPoints[i][0];
} else if((cfg.outPoints[i][1] === 1)){
x = height,
y = height * cfg.outPoints[i][0];
}
x = width * cfg.outPoints[i][1];
const id = 'circle' + uniqueId()
group.addShape("circle", {
attrs: {
id: 'circle' + uniqueId(),
parent: id,
x: x + offsetX,
y: y + offsetY,
r: 10,
isOutPointOut: true,
fill: "#1890ff",
opacity: 0//默認0 需要時改成0.3
}
});
group.addShape("circle", {
attrs: {
id: id,
x: x + offsetX,
y: y + offsetY,
r: 3,
isOutPoint: true,
fill: "#fff",
stroke: "#1890ff",
opacity: 0
}
});
}
}
给连线加上文字
位置 src/components/DetailPanel/index.vue
<div v-if="status === 'edge-selected'" id="edge_detailpannel" class="pannel">
<div class="pannel-title">连线</div>
<div class="block-container">
<el-col :span="8">内容</el-col>
<el-col :span="16">
<el-input v-model="edge.label" @change="handleChange" />
</el-col>
<el-col :span="8">文字颜色</el-col>
<el-col :span="16">
<el-color-picker v-model="textColor" @change="handleChangeColor" />
</el-col>
</div>
</div>
data() {
return {
status: "canvas-selected",
showGrid: false,
page: {},
graph: {},
item: {},
node: {},
    //【我添加的】
edge:{},
grid: null,
//【我添加的】
textColor: 'rgba(19, 206, 102, 0.8)'
};
},
methods: {
bindEvent() {
let self = this;
eventBus.$on("afterAddPage", page => {
self.page = page;
self.graph = self.page.graph;
eventBus.$on("nodeselectchange", item => {
if (item.select === true && item.target.getType() === "node") {
self.status = "node-selected";
self.item = item.target;
self.node = item.target.getModel();
} else if (item.select === true && item.target.getType() === "edge") {
self.status = "edge-selected";
self.item = item.target;
self.edge = item.target.getModel();
} else {
self.status = "canvas-selected";
self.item = null;
self.node = null;
}
});
});
},
handleChangeName(e) {
const model = {
label: e
};
this.graph.update(this.item, model);
},
changeGridState(value) {
if (value) {
this.grid = new Grid();
this.graph.addPlugin(this.grid);
} else {
this.graph.removePlugin(this.grid);
}
},
handleChange(e) {
const model = {
label: e
};
this.graph.update(this.item, model);
},
handleChangeColor(e) {
const model = {
textColor: e
};
this.graph.update(this.item, model);
}
}
位置src/components/Flow/customEdge.js 加入
G6.registerEdge('customEdge', {
draw(cfg, group) {
这里
}
if (cfg.label) {
group.addShape('text', {
attrs: {
id: 'edgeText' + uniqueId(),
x: end.x - (end.x - start.x) / 2,
y: end.y - (end.y - start.y) / 2,
text: cfg.label,
fill: cfg.textColor ? cfg.textColor : '#000000'
}
})
}
bug修改
位置：src/behavior/keyboard.js
onKeyDown(e) {
const code = e.keyCode || e.which;
switch (code) {
case this.deleteKeyCode:
case this.backKeyCode:
// eventBus.$emit('deleteItem') 注释此行
break
}
},

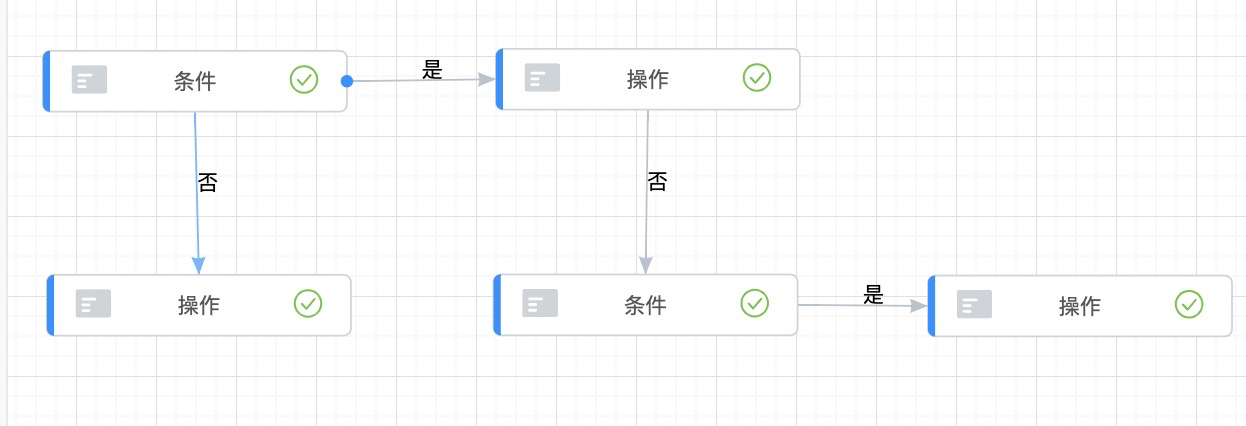

demo图
