Android开发:试一下另类的主题色无缝切换方案——Databinding下实现控件皮肤无缝切换

1,718 阅读4分钟

目前仅作为探讨尝试方案,未经足够的测试进行校验,慎用!!

无缝切换主题色

这个功能一直都是Android的开发经常遇到的。我逛的最多的B站App就是一个很好地例子,他们的皮肤切换是无缝的,那我们自己能不能自己也来搞一个,当然是可以的,虽然有重复造轮子,但是我们还是需要不断锻炼自己的开发水平,尝试不同的方案。
Github可以找到一个不错的皮肤切换库:Android-Skin-Loader
基于LayoutInflaterFactory的皮肤切换,涉及到LayoutInflater 里setFactory(LayoutInflater.Factory factory)和setFactory2(LayoutInflater.Factory2 factory) 的知识点,这里不展开。
看完这个库的源码我想了个问题,我能不能另外开辟一条简单的路去走呢,这时候捡起了手中的Databinding。 所以本文章是基于Databinding下进行的,受限于框架使用,所以相比于Android-Skin-Loader,我建议使用Android-Skin-Loader因为它更加灵活
本文章提到的方案有限制了,特别是不支持Databinding的项目,诸如在旧项目上迭代的不适用本方案,不喜欢Databinding框架的同学也不太适用,因为有很多模板代码,而且是用Kotlin进行开发的,如果不想因为尝试该方案而项目引入额外的Kotlin也不适用。

先介绍

本库的测试环境是基于我一个玩安卓项目进行的:github.com/ShowMeThe/M…
本库地址,可单独拷贝skinlib的内容:github.com/ShowMeThe/S…

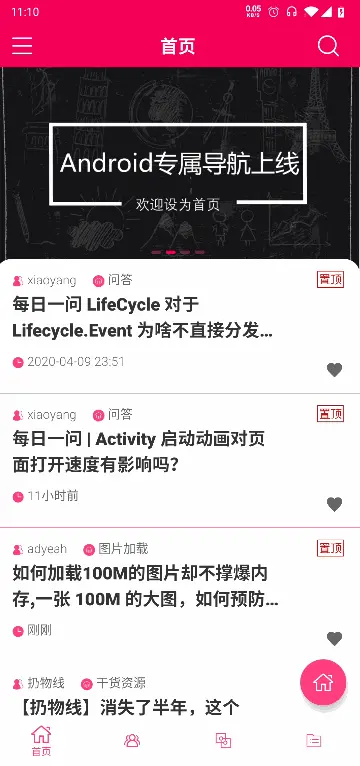

Gif如下:


在Application初始化

val themes_name = arrayListOf("BlueTheme","RedTheme","PurpleTheme","OrangeTheme","YellowTheme")
      SkinManager.init(this).addStyle(
            themes_name[0] to R.style.MaterialTheme_Blue,
            themes_name[1] to R.style.MaterialTheme_Red,
            themes_name[2] to R.style.MaterialTheme_Purple)
            .build()
    SkinManager.getInstant().setOnStyleChangeListener {
           //主题切换的监听

        }
//设置当前主题,不设置会默认拿了addStyle里面的第一个index,即index是0那个设置
SkinManager.currentStyle =  ""

分别配置主题的名字Key和对应的Value,Value是Style里面对应的资源

 <style name="MaterialTheme.Blue">
         <item name="theme_text_color">@color/colorAccent</item>
         <item name="theme_viewGroup_backgroundColor">@color/colorAccent</item>
         <item name="theme_viewGroup_background">@drawable/shape_drawer_head_bg</item>
         <item name="theme_button_rippleColor">@color/color_5f4fc3f7</item>
         <item name="theme_button_iconTint">@color/colorAccent</item>
         <item name="theme_button_textColor">@color/colorAccent</item>
         <item name="theme_button_strokeColor">@color/colorAccent</item>
         <item name="theme_bottom_navigation_iconTint">@color/colorAccent</item>
         <item name="theme_bottom_navigation_textColor">@color/colorAccent</item>
         <item name="theme_imageView_tint">@color/colorAccent</item>
         <item name="theme_card_strokeColor">@color/colorAccent</item>
         <item name="theme_floating_backgroundColor">@color/colorAccent</item>
         <item name="theme_edit_cursorDrawable">@drawable/shape_blue_cursor</item>
         <item name="theme_inputLayout_boxColor">@color/colorAccent</item>
         <item name="theme_inputLayout_hintColor">@color/colorAccent</item>
         <item name="theme_edit_highlightColor">@color/colorAccent</item>
    </style>

同时增加对Json的解析,因为不是所有的主题都要写在style,可能遇到需要后台下载解析的情况

 val json = AssetFile.getJson(this,"orange.json")
 val colorEntity = json.fromJson<ColorEntity>()

其中getJson方法如下:

        fun getJson(context: Context, fileName: String): String {
            val stringBuilder = StringBuilder()
            try {
                val assetManager = context.assets
                val bf = BufferedReader(InputStreamReader(assetManager.open(fileName)))
                var line: String
                bf.use {
                    while (true) {
                        line = bf.readLine() ?:break
                        stringBuilder.append(line)
                    }
                }

            } catch (e: IOException) {
                e.printStackTrace()
            }
            return stringBuilder.toString()
        }

fromJson方法入下

inline fun <reified T> String?.fromJson(): T? {
    if (isNullOrEmpty()) { //判断空和null
        return null
    }
    return try {
        val clazz = T::class.java
        gson.fromJson(this, clazz) //Gson解析
    } catch (e: JsonSyntaxException) {
        e.printStackTrace()
        null
    }
}

这两个方法各位可以自己写,我这里提供参考而已 由于当时写的时候,路开窄了而且不想引入太多额外的库,对Widget判断是直接采用包名的提取,所以只支持AndroidX和官方那个MaterialDesign的Widget库 于是添加了一个自定义插件的方法IPlugin,举SwipeRefreshLayout这个Widget作为例子:

class RefreshPlugin : IPlugin<SwipeRefreshLayout> {
 //对应style的
    override fun individuate(view: SwipeRefreshLayout, attrName: String) {
        when (attrName) {
            themes_name[0] -> view.setColorSchemeResources(R.color.colorAccent)
            themes_name[1] -> view.setColorSchemeResources(R.color.color_304ffe)
            themes_name[2] -> view.setColorSchemeResources(R.color.color_6200ea)
        }
    }

// 对应Json参数,colors对应Json中colorObjects字段
    override fun individuate(
        view: SwipeRefreshLayout,
        attrName: String,
        colors: ArrayList<String>?
    ) {

        }
    }
}

这个Json对应

{
  "theme_viewGroup_background": "FBC02D",
  "theme_viewGroup_backgroundColor": "FBC02D",
  "theme_card_strokeColor": "FBC02D",
  "theme_text_color": "FBC02D",
  "theme_button_textColor": "FBC02D",
  "theme_button_rippleColor": "2cFDD835",
  "theme_button_iconTint": "FBC02D",
  "theme_button_strokeColor": "FBC02D",
  "theme_bottom_navigation_iconTint": "FBC02D",
  "theme_bottom_navigation_textColor": "FBC02D",
  "theme_imageView_tint": "FBC02D",
  "theme_floating_backgroundColor": "FBC02D",
  "theme_edit_cursorDrawable": "FBC02D",
  "theme_edit_highlightColor": "FBC02D",
  "theme_inputLayout_boxColor": "FBC02D",
  "theme_inputLayout_hintColor": "FBC02D",
  "colorObjects": [
    "FBC02D",
    "2cFDD835"
  ]
}

总结

该库基于Kotlin + DataBinding下可以在布局文件xml里使用 @BindAdapter 的注释的拓展函数,再利用对应的key去遍历寻找不同类型view的对应设置属性,由于存在大量遍历,会有性能问题,总体上性能是个缺陷,而且如果项目存在大量的自定义布局或者大量的图片的画,很难进行这种纯色的替换,所以这里只是做一个小小尝试,毕竟要尝试嘛!不尝试,怎么知道结果呢
