el-upload配合vue-cropper实现上传图片前裁剪

6,303 阅读2分钟

需求背景

上传一个封面图,在上传之前需要对图片进行裁剪,上传裁剪之后的图片,类似微信的上传头像。

技术方案

上传肯定是用element的 el-upload 组件实现上传,非常方便,各种钩子函数。

裁剪一开始找的 cropper 看着功能到是非常齐全,api也比较丰富,基本是符合预期的需求的。但是此库是基于jq 的,在vue项目中有点难用。于是就找到了 vue-cropper 支持组件化的方式,只需要传入相应的配置参数就可以使用,还有一个非常方便的地方是 官网 提供了在线调试页面,更改配置就可以看到效果,配置好之后再把代码复制到项目中,也是相当的方便。

封装组件

上传文件的组件:uploadImg.vue

<template>
  <div :class="$options.name">
    <el-upload
      v-show="!resultImg"
      class="upload-el"
      accept="image/*"
      ref="fileUpload"
      name="pic"
      :action="action"
      :data="uploadData"
      :on-change="selectChange"
      :show-file-list="false"
      :auto-upload="false"
      :http-request="httpRequest">
      <div>
        <span
          class="icon upload-icon" />
        <el-button>选择图片</el-button>
      </div>
      <div
        slot="tip"
        class="el-upload__tip">
        图片大小不超过5M,推荐图片尺寸宽高比9:16
      </div>
    </el-upload>
    <figure
      v-show="resultImg"
      class="result-img">
      <img
        :src="resultImg">
      <el-button
        @click="updateCropper">重新上传</el-button>
    </figure>
    <cropper
      v-if="showCropper"
      :dialog-visible="showCropper"
      :cropper-img="cropperImg"
      @update-cropper="updateCropper"
      @colse-dialog="closeDialog"
      @upload-img="uploadImg" />
  </div>
</template>

<script>
import Cropper from './cropper.vue';
import { baseAxios } from '@common/axios';
import { loading } from '@common';
export default {
  name: 'UploadImg',
  components: {
    Cropper
  },
  data () {
    return {
      uploadData: { // 上传需要的额外参数
        siteId: 1,
        source: 1
      },
      action: '/mvod-aliyun/material/uplod/pic', // 上传地址,必填
      cropperImg: '', // 需要裁剪的图片
      showCropper: false, // 是否显示裁剪框
      uploadFile: '', // 裁剪后的文件
      resultImg: '' // 上传成功,后台返回的路径
    };
  },
  methods: {
    // submit 之后会触发此方法
    httpRequest (request) {
      const { action, data, filename } = request;
      // 新建formDate对象
      let formData = new FormData();
      for (let key in data) {
        formData.append(key, data[key]);
      }
      // 文件单独push,第三个参数指定上传的文件名
      formData.append(filename, this.uploadFile, data.fileName);
      loading.start(); // 上传中的loading
      baseAxios({
        headers: {
          contentType: 'multipart/form-data' // 需要指定上传的方式
        },
        url: action,
        method: 'post',
        data: formData,
        timeout: 200000000 // 防止文件过大超时
      }).then(({ data: resp }) => {
        loading.close();
        const { code, data, msg } = resp || {};
        if (code === 0) {
          this.$message.success('图片上传成功');
          this.resultImg = data; // 上传成功后展示的图片
        } else {
          this.$message.error(msg || '网络错误');
        }
      }).catch(err => {
        loading.close();
        console.log(err);
      });
    },
    // 选择文件
    selectChange (file) {
      const { raw } = file;
      this.openCropper(raw);
    },
    /**
     * @param {file} 上传的文件
     */
    openCropper (file) {
      var files = file;
      let isLt5M = files.size > (5 << 20);
      if (isLt5M) {
        this.$message.error('请上传5M内的图片');
        return false;
      }
      var reader = new FileReader();
      reader.onload = e => {
        let data;
        if (typeof e.target.result === 'object') {
          // 把Array Buffer转化为blob 如果是base64不需要
          data = window.URL.createObjectURL(new Blob([e.target.result]));
        } else {
          data = e.target.result;
        }
        this.cropperImg = data;
      };
      // 转化为base64
      // reader.readAsDataURL(file)
      // 转化为blob
      reader.readAsArrayBuffer(files);
      this.showCropper = true;
    },
    // 上传图片
    uploadImg (file) {
      this.uploadFile = file;
      this.$refs.fileUpload.submit();
    },
    // 更新图片
    updateCropper () {
      this.$refs.fileUpload.$children[0].$el.click();
    },
    // 关闭窗口
    closeDialog () {
      this.showCropper = false;
    }
  }
};
</script>

<style lang="scss" scoped>
.UploadImg {
  .video-image {
    display: flex;
    figure {
      width: 100px;
      img {
        width: 100%;
        display: block;
      }
    }
  }
}
</style>

封装裁剪组件 cropper.vue

<template>
  <div :class="$options.name">
    <el-dialog
      :visible.sync="dialogVisible"
      width="600px"
      :before-close="handleClose">
      <div
        class="cropper-container">
        <div class="cropper-el">
          <vue-cropper
            ref="cropper"
            :img="cropperImg"
            :output-size="option.size"
            :output-type="option.outputType"
            :info="true"
            :full="option.full"
            :can-move="option.canMove"
            :can-move-box="option.canMoveBox"
            :fixed-box="option.fixedBox"
            :original="option.original"
            :auto-crop="option.autoCrop"
            :auto-crop-width="option.autoCropWidth"
            :auto-crop-height="option.autoCropHeight"
            :center-box="option.centerBox"
            :high="option.high"
            :info-true="option.infoTrue"
            @realTime="realTime"
            :enlarge="option.enlarge"
            :fixed="option.fixed"
            :fixed-number="option.fixedNumber"
          />
        </div>
        <!-- 预览 -->
        <div
          class="prive-el">
          <div
            class="prive-style"
            :style="{'width': '150px', 'height': '266px', 'overflow': 'hidden', 'margin': '0 25px', 'display':'flex', 'align-items' : 'center'}">
            <div
              class="preview"
              :style="previews.div">
              <img
                :src="previews.url"
                :style="previews.img">
            </div>
          </div>
          <el-button
            @click="uploadBth"
            v-if="option.img">重新上传</el-button>
        </div>
      </div>
      <span
        slot="footer"
        class="dialog-footer">
        <el-button
          @click="handleClose">取 消</el-button>
        <el-button
          type="primary"
          @click="saveImg">确 定</el-button>
      </span>
    </el-dialog>
  </div>
</template>

<script>
import { VueCropper } from 'vue-cropper';
export default {
  name: 'Cropper',
  components: {
    VueCropper
  },
  props: {
    dialogVisible: {
      type: Boolean,
      default: false
    },
    imgType: {
      type: String,
      default: 'blob'
    },
    cropperImg: {
      type: String,
      default: ''
    }
  },
  data () {
    return {
      previews: {},
      option: {
        img: '', // 裁剪图片的地址
        size: 1, // 裁剪生成图片的质量
        full: false, // 是否输出原图比例的截图 默认false
        outputType: 'png', // 裁剪生成图片的格式 默认jpg
        canMove: false, // 上传图片是否可以移动
        fixedBox: false, // 固定截图框大小 不允许改变
        original: false, // 上传图片按照原始比例渲染
        canMoveBox: true, // 截图框能否拖动
        autoCrop: true, // 是否默认生成截图框
        // 只有自动截图开启 宽度高度才生效
        autoCropWidth: 200, // 默认生成截图框宽度
        autoCropHeight: 150, // 默认生成截图框高度
        centerBox: true, // 截图框是否被限制在图片里面
        high: false, // 是否按照设备的dpr 输出等比例图片
        enlarge: 1, // 图片根据截图框输出比例倍数
        mode: 'contain', // 图片默认渲染方式
        maxImgSize: 2000, // 限制图片最大宽度和高度
        limitMinSize: [100, 120], // 更新裁剪框最小属性
        infoTrue: false, // true 为展示真实输出图片宽高 false 展示看到的截图框宽高
        fixed: true, // 是否开启截图框宽高固定比例  (默认:true)
        fixedNumber: [9, 16] // 截图框的宽高比例
      }
    };
  },
  methods: {
    // 裁剪时触发的方法,用于实时预览
    realTime (data) {
      this.previews = data;
    },
    // 重新上传
    uploadBth () {
      this.$emit('update-cropper');
    },
    // 取消关闭弹框
    handleClose () {
      this.$emit('colse-dialog', false);
    },
    // 获取裁剪之后的图片,默认blob,也可以获取base64的图片
    saveImg () {
      if (this.imgType === 'blob') {
        this.$refs.cropper.getCropBlob(data => {
          this.$emit('upload-img', data);
        });
      } else {
        this.$refs.cropper.getCropData(data => {
          this.uploadFile = data;
          this.$emit('upload-img', data);
        });
      }
    }
  }
};
</script>

<style lang="scss" scoped>
.Cropper {
  .cropper-el {
    height: 300px;
    width: 300px;
  }
  .cropper-container {
    display: flex;
    justify-content: space-between;
    .prive-el {
      height: 164px;
      width: 94px;
      flex: 1;
      text-align: center;
      .prive-style {
        margin: 0 auto;
        flex: 1;
        -webkit-flex: 1;
        display: flex;
        display: -webkit-flex;
        justify-content: center;
        -webkit-justify-content: center;
        overflow: hidden;
        background: #ededed;
        margin-left: 40px;
      }
      .preview {
        overflow: hidden;
      }
      .el-button {
        margin-top: 20px;
      }
    }
  }
}
</style>

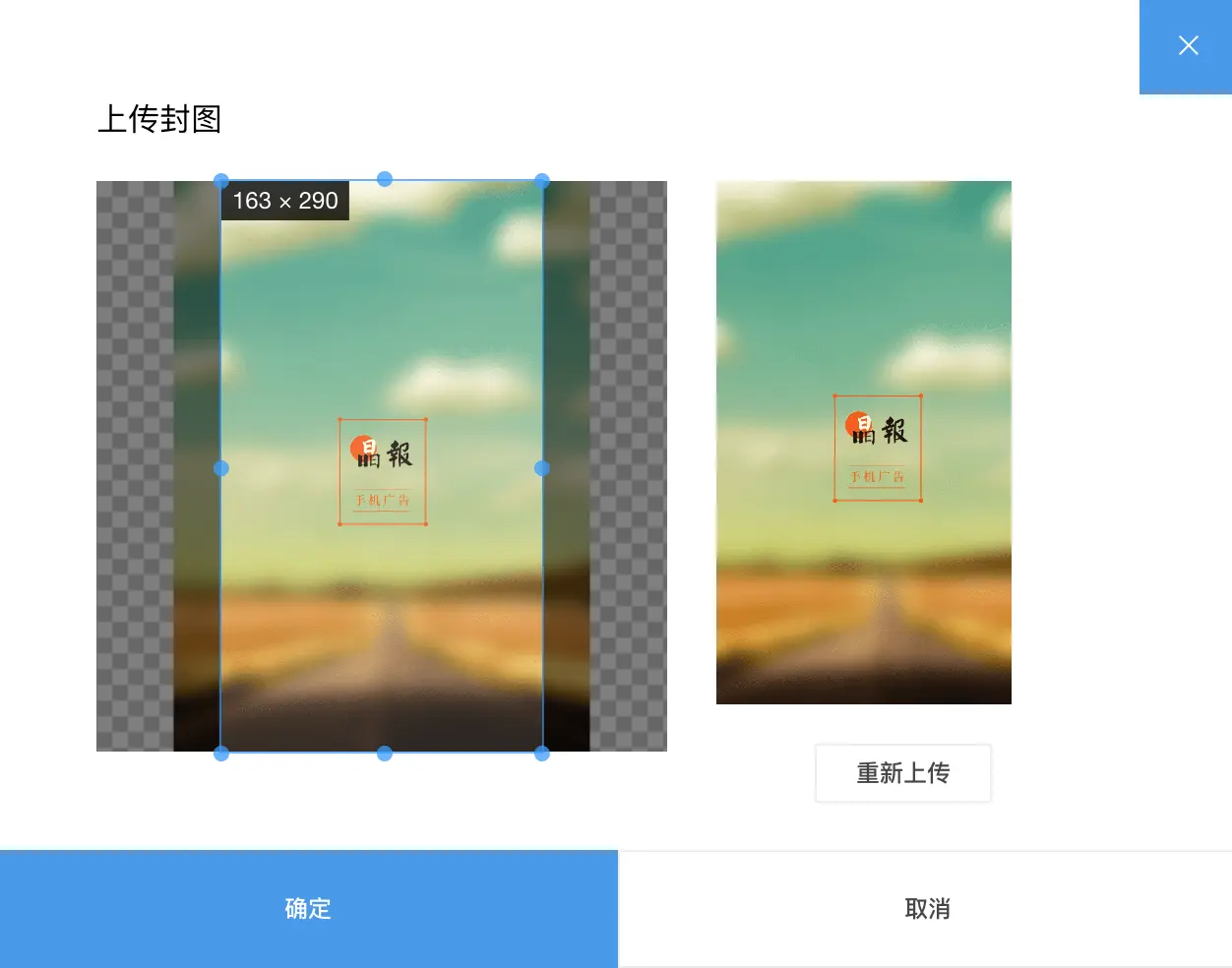

效果截图

问题总结

问题一、如何阻止upload上传完之后就上传?

  将el-upload 的 auto-upload 设置为 false即可

问题二、如何将获取到文件传给vue-cropper?

  vue-cropper 可以接受一个 blob,此时需要 new FileReader(),参考 MDN

问题三、el-upload 选择完文件后不能更改,如何上传裁剪之后的图片?

  此问题在网上查到两种思路:

    1. 使用 this.$refs.fileUpload.$children[0].post(files) 方法可以更改上传的文件,调用此方法就会自动触发文件上,不用在调用submit,但是el-upload内部会报个错,file.status is not defined,并且不会触发before-upload和onsuccess,无法拿到上传之后的结果,具体原因没细查。

    2. 使用自定义上传,点击上传时直接调用submit 方法,这时会自动触发http-request中的自定义方法,可以拿到file中的所有属性,在函数里面使用 axios 自定义上传参数和文件。此方法比较好控制,本文也是采用的次方法进行上传。

完整代码

github.com/Shenjieping…

参考

官方example源代码: github.com/xyxiao001/v…

掘金:Vue+element-ui图片上传剪裁组件
