elasticsearch 1.7升级到7.x全攻略

2,809 阅读11分钟

es 5.3升级至es 5.5.x(小版本升级)

安装es 5.3

通过这个网址可以下载安装指定的es版本,首先安装es5.3.0,然后再升级到5.5.3

www.elastic.co/cn/download…

接下来请跟着执行如下命令

# 选择目录
cd /opt
# 下载文件
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-5.3.0.zip
# 解压缩
unzip elasticsearch-5.3.0.zip
# 复制配置文件到外部
cp elasticsearch-5.3.0/config/ ./temp/config

执行vi ./temp/config/elasticsearch.yml编辑内容如下

# 创建文件夹
mkdir -P /var/data/elasticsearch
mkdir -P /var/log/elasticsearch
# 数据目录
path.data: /var/data/elasticsearch
# 日志目录
path.logs: /var/log/elasticsearch

elasticsearch启动需要以elasticsearch用户启动,所以需要创建名为elasticsearch的用户

# 创建elasticsearch用户
adduser elasticsearch
passwd elasticsearch
# 切换为elasticsearch用户
su elasticsearch

# 改变文件的拥有者为elasticsearch
chown -R elasticsearch /opt/elasticsearch-5.3.0
chown -R elasticsearch /var/log/elasticsearch
chown -R elasticsearch /var/data/elasticsearch
chown -R elasticsearch /opt/temp/config

进入elasticsearch的bin目录,执行./elasticsearch -d -Epath.conf=/opt/temp/config-Epath.conf指定了复制在外部的配置文件来启动elasticsearch

查看启动日志tail -f /var/log/elasticsearch/my-application.log观察是否启动成功。

执行curl -XGET 'http://localhost:9200/_cat/nodes?v'查看es节点状态

# 插入一条数据
curl -XPUT 'http://localhost:9200/forum/article/1?pretty' -d '
{
  "title": "first article",
  "content": "this is my first article"
}'
# 查看数据
curl -XGET 'http://localhost:9200/forum/article/1?pretty'

升级安装es 5.5.3

安装es 5.5.3

cd /opt
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-5.5.0.zip
unzip elasticsearch-5.5.0.zip

此时解压的文件名为elasticsearch-5.5.0, 可以执行mv elasticsearch-5.5.0 elasticsearch-5.3.0覆盖掉es5.3, 也可以不执行,直接使用。这里我们不执行,留下原版本。

准备工作

  1. 停止一个node之后,这个node上的shard全都不可用了,此时shard allocation机制会等待一分钟,然后开始shard recovery(分片回复)过程,也就是将丢失掉的primary shard(主分片)的replica shard(副本分片)提升为primary shard(主分片),同时创建更多的replica shard满足副本数量,但是这个过程会导致大量的IO操作,是没有必要的。因此在开始升级一个node,以及关闭这个node之前,先禁止shard allocation机制。执行如下命令:
    curl -XPUT 'http://localhost:9200/_cluster/settings?pretty' -d '
    {
      "persistent": {
        "cluster.routing.allocation.enable": "none"
      }
    }'

  2. 停止非核心业务的写入操作,以及执行一次flush操作。可以在升级期间继续写入数据,但是如果在升级期间一直写入数据的话,可能会导致重启节点的时候,shard recovery的时间变长,因为很多数据都是translog里面,没有flush到磁盘上去。如果我们暂时停止数据的写入,而且还进行一次flush操作,把数据都刷入磁盘中,这样在node重启的时候,几乎没有什么数据要从translog中恢复的,重启速度会很快,因为shard recovery过程会很快。用下面这行命令执行flush:POST _flush/synced。但是flush操作是尽量执行的,有可能会执行失败,如果有大量的index写入操作的话。所以可能需要多次执行flush,直到它执行成功。
    curl -XPOST 'http://localhost:9200/_flush/synced?pretty'

  3. 如果你安装了一些插件,或者是自己设置过jvm.options文件的话,需要先将/usr/local/elasticsearch/plugins拷贝出来,作为一个备份,jvm.options也拷贝出来 将老的es安装目录删除,然后将最新版本的es解压缩,而且要确保我们绝对不会覆盖config、data、log等目录,否则就会导致我们丢失数据、日志、配置文件还有安装好的插件。
  4. 可以将备份的plugins目录拷贝回最新解压开来的es安装目录中,包括你的jvm.options,也自己去官网,找到各个plugin的git地址,git地址上,都有每个plugin version跟es version之间的对应关系。要检查一下所有的plugin是否跟要升级的es版本是兼容的,如果不兼容,那么需要先用elasticsearch-plugin脚本重新安装最新版本的plugin。

关闭旧的es5.3服务

# 查询es的进程ID
ps -ef | grep Elasticsearch
# 停掉当前运行的es5.3进程
kill [PID]

开始升级

# 改变文件的拥有者为elasticsearch
chown -R elasticsearch /opt/elasticsearch-5.5.0

cd elasticsearch-5.5.0/bin

# -Epath.conf 指定了原5.3.0复制到外部的配置
# -Enetwork.host=0.0.0.0 表示允许任何来源访问, 也可以在elasticsearch.yml中设置
./elasticsearch -d  -Epath.conf=/opt/temp/config -Enetwork.host=0.0.0.0

# 如下方式启动可以指定JVM堆大小
ES_JAVA_OPTS="-Xms2g -Xmx2g" ./elasticsearch -d  -Epath.conf=/opt/temp/config -Enetwork.host=0.0.0.0

# 查看es启动日志
tail -f /var/log/elasticsearch/my-application.log

# 在node上重新启用shard allocation
curl -XPUT 'http://localhost:9200/_cluster/settings?pretty' -d '
{
  "persistent": {
    "cluster.routing.allocation.enable": "all"
  }
}'

等待node完成shard recover过程 我们要等待cluster完成shard allocation过程,可以通过下面的命令查看进度:GET _cat/health。一定要等待cluster的status从yellow变成green才可以。green就意味着所有的primary shard和replica shard都可以用了。 curl -XGET 'http://localhost:9200/_cat/health?pretty'

在rolling upgrade期间,primary shard如果分配给了一个更新版本的node,是一定不会将其replica复制给较旧的版本的node的,因为较新的版本的数据格式跟较旧的版本是不兼容的。但是如果不允许将replica shard复制给其他node的话,比如说此时集群中只有一个最新版本的node,那么有些replica shard就会是unassgied状态,此时cluster status就会保持为yellow。此时,就可以继续升级其他的node,一旦其他node变成了最新版本,那么就会进行replica shard的复制,然后cluster status会变成green。

如果没有进行过flush操作的shard是需要一些时间去恢复的,因为要从translog中恢复一些数据出来。可以通过下面的命令来查看恢复的进度:GET _cat/recovery

升级完成启动成功后,执行如下命令查看数据是否存在

curl -XGET 'http://localhost:9200/forum/article/1?pretty'

升级成功!数据迁移成功!

运行报错解决方案

启动elasticsearch报错解决
ElasticSearch JVM配置
elasticsearch的安装及常见问题解决、配置文件的介绍

es 2.4.3升级至es 5.5.x(跨版本升级)

提示
es只能使用上一个大版本创建的索引。举例来说,es 5.x可以使用es 2.x中的索引,但是不能使用es 1.x中的索引。 es 5.x如果使用过于陈旧版本的索引去启动,就会启动失败

安装es2.4.3

cd /opt
wget https://download.elastic.co/elasticsearch/release/org/elasticsearch/distribution/zip/elasticsearch/2.4.3/elasticsearch-2.4.3.zip
unzip elasticsearch-2.4.3.zip
./elasticsearch-2.4.3/bin -d -Epath.conf=/opt/temp/config

接下来的操作同上一章相似,这里不再赘述。

es 1.7.4升级至es 5.5.x(跨多版本升级)

同上文的章节一下,先安装es1.7.4,如果已经安装过其他版本的es了,可以直接卸载,这里不支持降级,因为高版本的索引数据低版本是不支持的。为了以防万一,建议备份数据。

安装es 1.7.4

cd /opt
wget https://download.elastic.co/elasticsearch/elasticsearch/elasticsearch-1.7.4.zip
unzip elasticsearch-1.7.4.zip

# 切换为elasticsearch用户
su elasticsearch

# 更改文件所属者
chown -R elasticsearch elasticsearch-1.7.4

# 启动elasticsearch-1.7.4
cd elasticsearch-1.7.4
./bin/elasticsearch -d

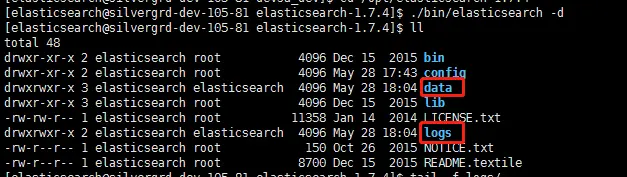

这里为了省事,就不把配置copy一份到外面了, 启动成功后自动在当前的elasticsearch 目录中生成了data、logs文件夹

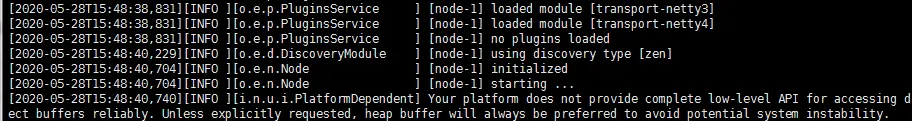

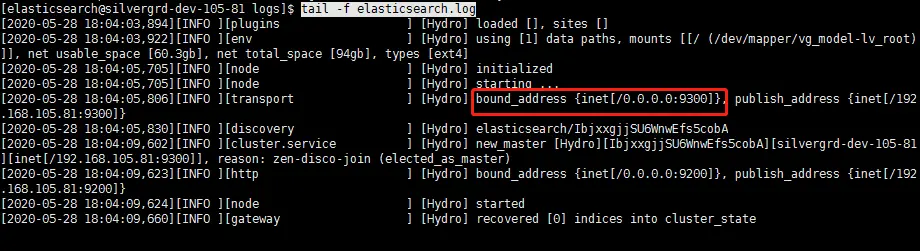

查看启动日志tail -f ./logs/elasticsearch.log发现启动成功,这里的0.0.0.0是允许任何来源访问

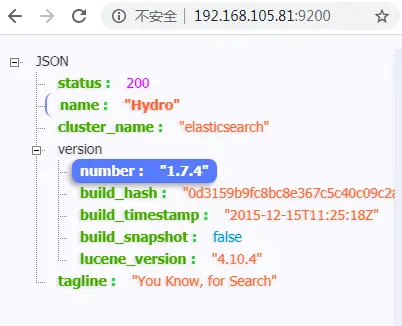

通过浏览器查看9200端口地址,也是可以看到成功。

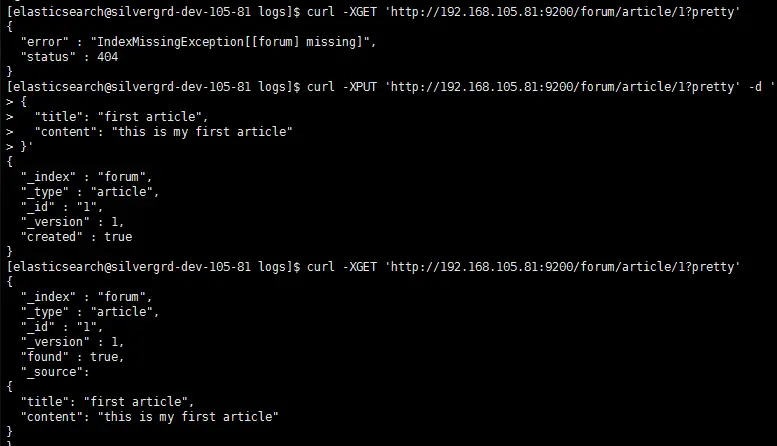

插入测试数据

# 插入数据
curl -XPUT 'http://192.168.105.81:9200/forum/article/1?pretty' -d '
{
  "title": "first article",
  "content": "this is my first article"
}'
# 查看数据
curl -XGET 'http://192.168.105.81:9200/forum/article/1?pretty'

安装启动elasticsearch-5.5.3

cd /opt/
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-5.5.0.zip
unzip elasticsearch-5.5.0.zip
cd elasticsearch-5.5.3

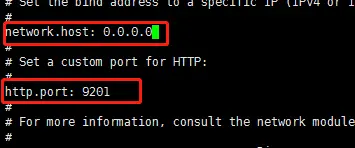

修改es5.5.3的配置文件内容,如下图所示:vi ./config/elasticsearch.yml

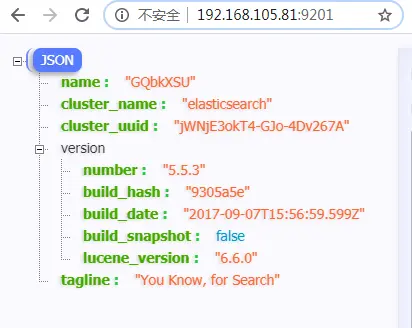

启动es5.5.3 ./bin/elasticsearch,如图说是,9201端口的es正是5.5.3版本的elasticsearch

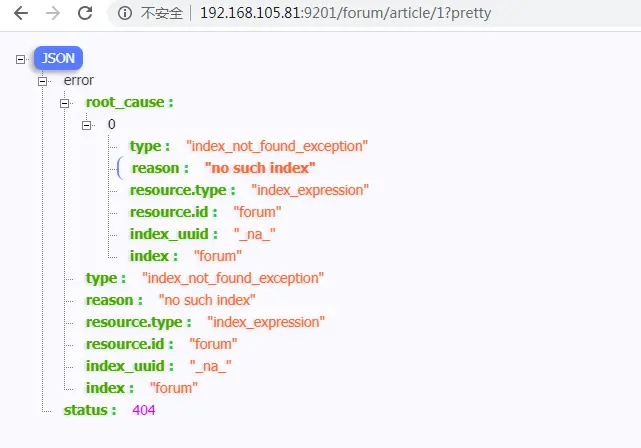

查询es5.5.3中的数据, http://192.168.105.81:9201/forum/article/1?pretty 发现并没有之前在1.7中插入的forum索引数据。

es1.7数据迁移至es5.5.3

准备工作

禁止es1.7的shard allocation机制。执行如下命令:

curl -XPUT 'http://localhost:9200/_cluster/settings?pretty' -d '
{
  "persistent": {
    "cluster.routing.allocation.enable": "none"
  }
}'

在es1.7执行一次flush数据写入操作,所以可能需要多次执行flush,直到它执行成功。

curl -XPOST 'http://localhost:9200/_flush/synced?pretty'

如有需要备份plugins插件和jvm.options

不要覆盖config、data、log等目录

开始迁移

remote host必须显示配置在elasticsearch.yml中的白名单中,使用reindex.remote.whitelist属性

reindex.remote.whitelist: ["127.0.0.1:9200","localhost:9200"]

reindex过程中会使用的默认的on-heap buffer最大大小是100mb,如果要迁移的数据量很大,需要将batch size设置的很小,这样每次同步的数据就很少,使用size参数。还可以设置socket_timeout和connect_timeout,比如下面:

# 设置了batchSize和timeout的reindex
curl -XPOST 'http://localhost:9201/_reindex?pretty' -d '
{
  "source": {
    "remote": {
      "host": "http://localhost:9200",
      "socket_timeout": "1m",
      "connect_timeout": "10s"
    },
    "index": "source",
    "size": 10,
    "query": {
      "match": {
        "test": "data"
      }
    }
  },
  "dest": {
    "index": "dest"
  }
}'

# 使用默认设置进行reindex
curl -XPOST 'http://localhost:9201/_reindex?pretty' -d '
{
  "source": {
    "remote": {
      "host": "http://127.0.0.1:9200"
    },
    "index": "forum"
  },
  "dest": {
    "index": "forum"
  }
}'

更多reindex技巧请参考=> elasticsearch 基础 —— ReIndex

es 2.4.6升级至es 7.5.x(跨多版本升级)

安装es7.5.0

为了方便,就不再修改elasticsearch.yml,使用默认的设置。有需要可以使用参考原有线上配置或自定义想要的配置进行修改

cd /opt
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.5.0-linux-x86_64.tar.gz
tar -zvxf elasticsearch-7.5.0-linux-x86_64.tar.gz
cd elasticsearch-7.5.0
./bin/elasticsearch

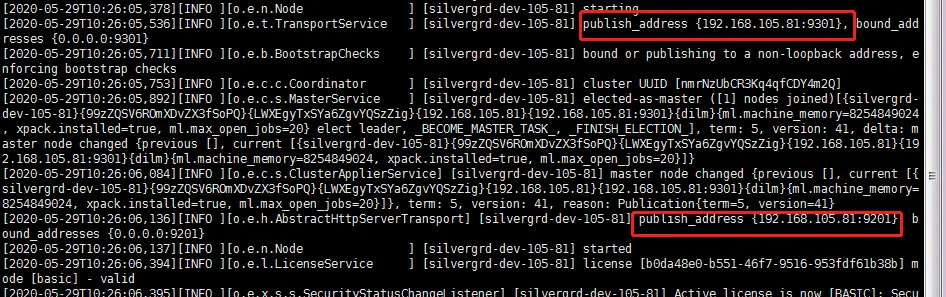

启动成功~

准备工作

禁止es1.7的shard allocation机制。执行如下命令:

curl -XPUT 'http://localhost:9200/_cluster/settings?pretty' -d '
{
  "persistent": {
    "cluster.routing.allocation.enable": "none"
  }
}'

在es1.7执行一次flush数据写入操作,所以可能需要多次执行flush,直到它执行成功。

curl -XPOST 'http://localhost:9200/_flush/synced?pretty'

如有需要备份plugins插件和jvm.options

不要覆盖config、data、log等目录

数据迁移

同es1.7数据迁移至es5.5.3一样,都是使用reindex

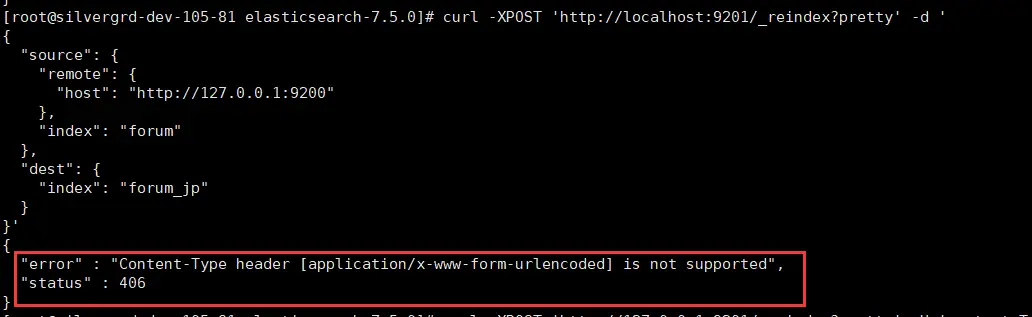

发现同样的命令使用报错,es7.5.x需要指定请求head

# 前台方式执行
curl -XPOST 'http://127.0.0.1:9201/_reindex?pretty' -H 'content-Type:application/json' -d '
{
  "source": {
    "remote": {
      "host": "http://127.0.0.1:9200"
    },
    "index": "forum",
    "type": "article"
  },
  "dest": {
    "index": "forum_jp1"
  }
}'

# 后台方式执行,返回taskId
curl -XPOST 'http://127.0.0.1:9201/_reindex?pretty&wait_for_completion=false' -H 'content-Type:application/json' -d '
{
  "source": {
    "remote": {
      "host": "http://127.0.0.1:9200"
    },
    "index": "forum",
    "type": "article"
  },
  "dest": {
    "index": "forum_jp1"
  }
}'

# 查看所有task
curl -XGET 'http://127.0.0.1:9201/_tasks?detailed=true&actions=*reindex'
# 使用taskId查看指定task详情
curl -XGET 'http://127.0.0.1:9201/_tasks/99zZQSV6ROmXDvZX3fSoPQ:491?pretty'

更多Task API内容请参考=>Elasticsearch Task management API

reindex返回参数说明

{
  "took" : 639,    // 执行全过程使用的毫秒数
  "updated": 0,    // 成功修改的条数
  "created": 123,  // 成功创建的条数
  "batches": 1,    // 批处理的个数
  "version_conflicts": 2, // 版本冲突个数
  "retries": {     // 重试机制
    "bulk": 0,     // 重试的批个数
    "search": 0    // 重试的查询个数
  }
  "throttled_millis": 0, // 由于设置requests_per_second参数而sleep的毫秒数
  "failures" : [ ]  // 失败的数据
}

报错解决方案

[1]: max number of threads [2048] for user [elasticsearch] is too low, increase to at least [4096]

切换到root用户,进入limits.d目录下修改配置文件。 vi /etc/security/limits.d/90-nproc.conf 修改如下内容为: soft nproc 4096 或者指定用户 elasticsearch soft nproc 4096

[2]: system call filters failed to install; check the logs and fix your configuration or disable system call filters at your own risk

原因: 这是在因为Centos6不支持SecComp,而ES5.2.0默认bootstrap.system_call_filter为true进行检测,所以导致检测失败,失败后直接导致ES不能启动。 解决: 在elasticsearch.yml中配置bootstrap.system_call_filter为false,注意要在Memory下面: bootstrap.memory_lock: false bootstrap.system_call_filter: false

[3]: the default discovery settings are unsuitable for production use; at least one of [discovery.seed_hosts, discovery.seed_providers, cluster.initial_master_nodes] must be configured

修改 elasticsearch.yml 取消注释保留一个节点 cluster.initial_master_nodes: ["node-1"] 这个的话,这里的node-1是上面一个默认的记得打开就可以了 重启 正常

扩展总结

如何让reindex更快

在新版本的es中先创建新的索引,手动设置合适的mapping和setting,将refresh_interval设置为-1,并且设置number_of_replica为0,主要是为了更快的reindex。reindex完成后再设置成原es的setting,如number_of_shardsnumber_of_replicas

官方参考手册

Upgrade Elasticsearch

集群怎么升级

滚动升级策略,集群,集群里面有多个节点,一个节点一个节点的重启和升级

如果是大版本之间的升级,集群重启策略,要先将整个集群全部停掉,如果采取滚动升级策略的话,可能导致说,一个集群内,有些节点是es 5.5,有些节点是es 2.4.3,这样的话是可能会有问题的

升级的过程,其实是跟之前的一模一样的

es在进行重大版本升级的时候,一般都需要采取full cluster restart的策略,重启整个集群来进行升级。rolling upgrade在重大版本升级的时候是不合适的。

没有启用shard allocation会怎么样

shard allocation会将replica shard分配给data node。此时可以恢复index和search操作,不过最好还是等待replica shard全部分配完之后,再去恢复读写操作。

如何知道集群升级没问题

我们可以通过下面的api来监控这个过程, 如果_cat/health中的status列变成了green,那么所有的primary和replica shard都被成功分配了

GET _cat/health
GET _cat/recovery

不想reindex-from-remote怎么办?

还有一种方式reindex in place,就是用elasticsearch migration plugin去做reindex。更多内容参考=>Reindex in place

reindex后数据查询不到

直接刷新可执行 POST /indexName/_refresh

refresh操作可以通过API设置:

POST /index/_settings
{"refresh_interval": "10s"}

当我们进行大规模的创建索引操作的时候,最好将将refresh关闭。

POST /index/_settings
{"refresh_interval": "-1"}

es默认的refresh间隔时间是1s,这也是为什么ES可以进行近乎实时的搜索。

参考=>ES中Refresh和Flush的区别
