keep-alive 组件是什么?
<keep-alive>
是 Vue
的内置组件,用来包裹组件,达到缓存组件实例的作用~
Vue
官方文档中提到:
<keep-alive>
是一个抽象组件:它自身不会渲染一个DOM
元素,也不会出现在组件的父组件链中。- 当组件在
<keep-alive>
内被切换,它的activated
和deactivated
这两个生命周期钩子函数将会被对应执行。
keep-alive 组件原理

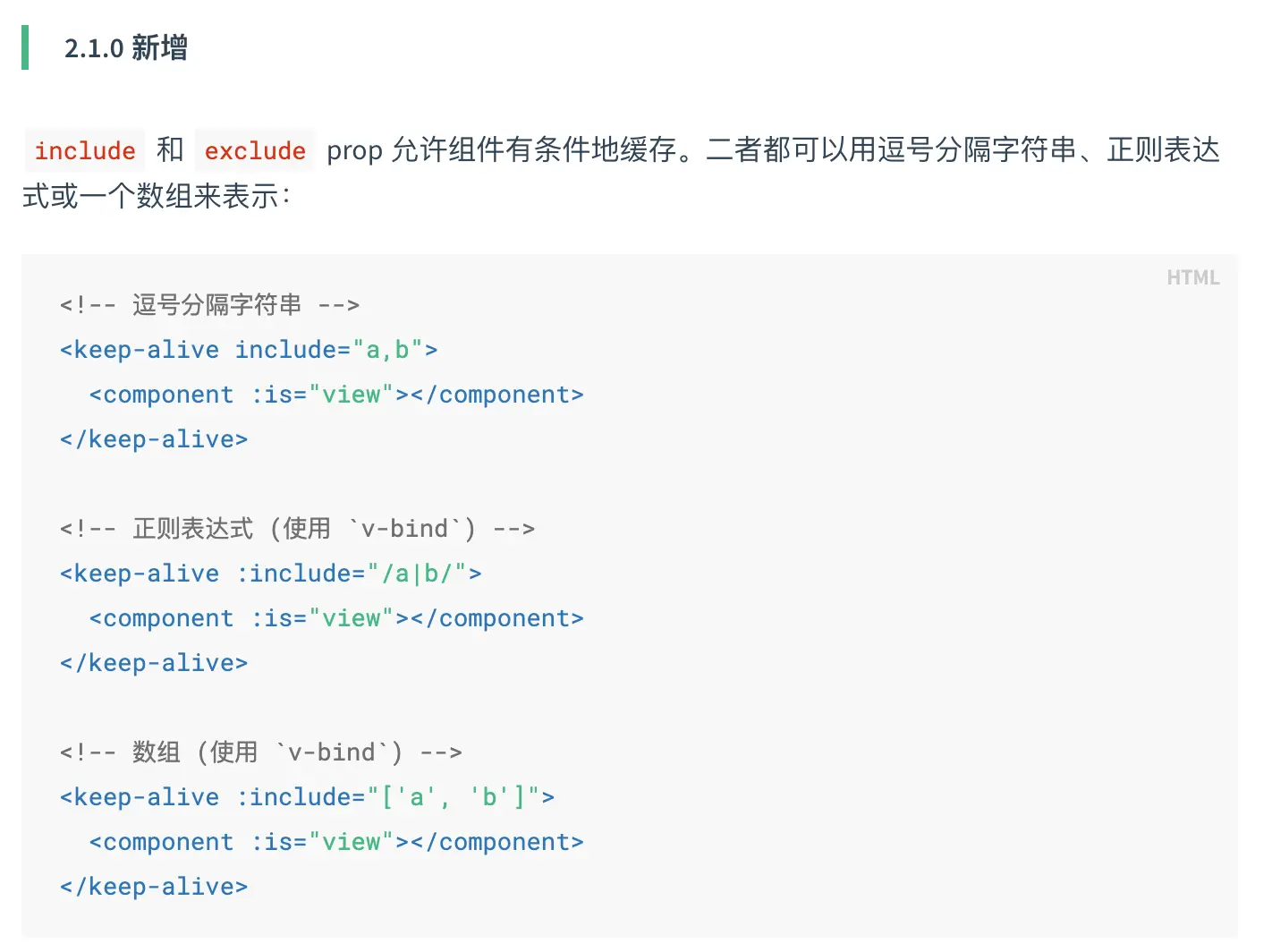

匹配和过滤
include
- 字符串或正则表达式。只有名称匹配的组件会被缓存。exclude
- 字符串或正则表达式。任何名称匹配的组件都不会被缓存。
初始化
created
阶段会初始化两个变量,分别为cache
和keys
。mounted
阶段会对include
和exclude
变量的值做监测。
created () {
this.cache = Object.create(null)
this.keys = []
},
mounted () {
this.$watch('include', val => {
pruneCache(this, name => matches(val, name))
})
this.$watch('exclude', val => {
pruneCache(this, name => !matches(val, name))
})
},
可以看到,如果 include
或者 exclude
的值发生变化,就会触发 pruneCache
函数,不过筛选的条件需要根据 matches
函数的返回值来决定,所以我们先来看看它👇。
过滤条件
function matches (pattern: string | RegExp | Array<string>, name: string): boolean {
if (Array.isArray(pattern)) {
return pattern.indexOf(name) > -1
} else if (typeof pattern === 'string') {
return pattern.split(',').indexOf(name) > -1
} else if (isRegExp(pattern)) {
return pattern.test(name)
}
/* istanbul ignore next */
return false
}
可以看到,pattern
可以有三种取值,分别为:
string
RegExp
Array<string>
之后判断 name
是不是在 pattern
指定的值/范围内,最后再根据结果返回 true
或者 false
。
缓存剔除
无论是 include
还是 exclude
,他们的值都不是一成不变的,每当过滤条件改变,都需要从已有的缓存中「剔除」不符合条件的 key
。
function pruneCache (keepAliveInstance: any, filter: Function) {
const { cache, keys, _vnode } = keepAliveInstance
for (const key in cache) {
const cachedNode: ?VNode = cache[key]
if (cachedNode) {
const name: ?string = getComponentName(cachedNode.componentOptions)
if (name && !filter(name)) {
pruneCacheEntry(cache, key, keys, _vnode)
}
}
}
}
可以看到这里又调用了 pruneCacheEntry
来「剔除」不符合缓存条件的 key
👇
function pruneCacheEntry (
cache: VNodeCache,
key: string,
keys: Array<string>,
current?: VNode
) {
const cached = cache[key]
if (cached && (!current || cached.tag !== current.tag)) {
cached.componentInstance.$destroy()
}
cache[key] = null
remove(keys, key)
}
这里有个细节:
// 如果当前的 vnode 为空,或者 cached 和 current 不是同一个节点
// 就把调用 $destroy 把 cached 销毁
if (cached && (!current || cached.tag !== current.tag)) {
cached.componentInstance.$destroy()
}
渲染时剔除
上面我们讨论的是过滤条件的变化情况,如果没变化呢?
其实 <keep-alive>
组件也会在每次渲染的时候都过滤一次组件,保证缓存的组件都已经通过过滤条件👇
render () {
...
if (
// not included
(include && (!name || !matches(include, name))) ||
// excluded
(exclude && name && matches(exclude, name))
) {
return vnode
}
...
}
缓存淘汰策略

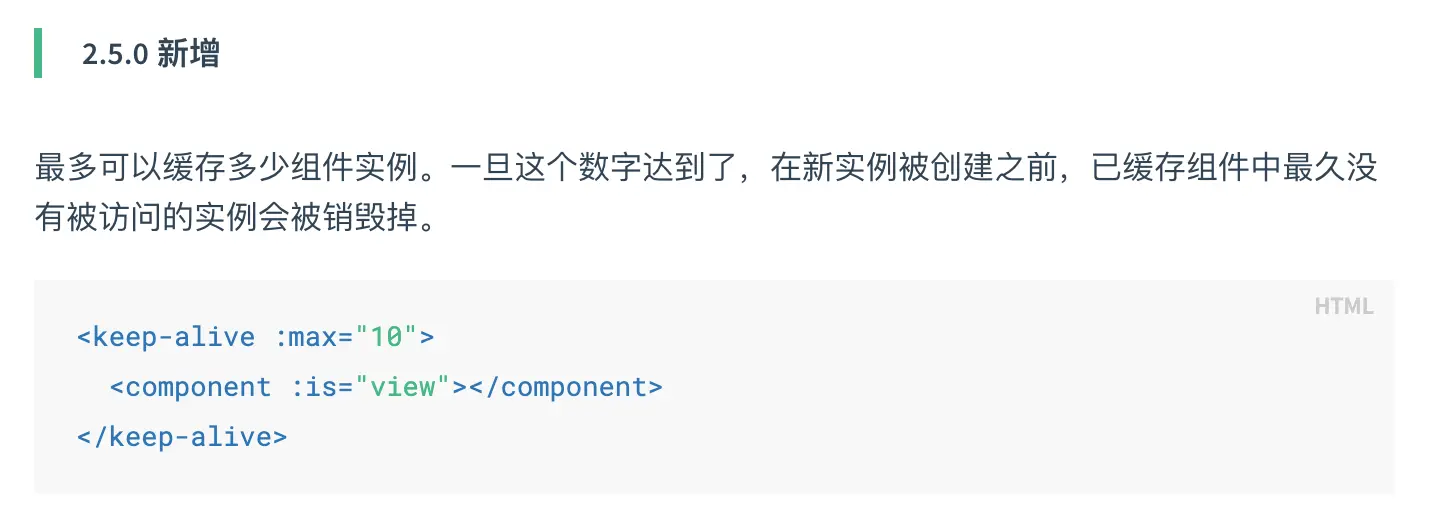

除了上面说到的两个参数,<keep-alive>
组件还能传一个参数:max
文档中提到一个实例销毁规则:缓存最近访问的实例,销毁缓存中最久没有被访问的实例。其实这是一种缓存淘汰策略 —— LRU 算法。
更加详细的规则:
- 在缓存上限达到之前,不考虑销毁实例
- 对于最新访问的数据,淘汰的优先级是最低的
- 对于最不常访问的数据,淘汰的优先级是最高的
这意味着我们需要两种数据结构来表达这个算法,其中一种数据结构来存储缓存,另外一种用来存储并表示缓存访问的新旧程度。
Vue 2.x 与 Vue 3.x 中实现的异同
Vue 2.x 用 cache
来存储缓存,用 keys
来存储缓存中访问的新旧程度,其中 cache
为对象,keys
为数组。
const { cache, keys } = this
const key: ?string = vnode.key == null
// same constructor may get registered as different local components
// so cid alone is not enough (#3269)
? componentOptions.Ctor.cid + (componentOptions.tag ? `::${componentOptions.tag}` : '')
: vnode.key
if (cache[key]) {
vnode.componentInstance = cache[key].componentInstance
// make current key freshest
remove(keys, key)
keys.push(key)
} else {
cache[key] = vnode
keys.push(key)
// prune oldest entry
if (this.max && keys.length > parseInt(this.max)) {
pruneCacheEntry(cache, keys[0], keys, this._vnode)
}
}
然而, Vue 3.0 里中采用的依然是 LRU 算法,不过用到的 cache
和 keys
的作用跟 2.0 没有区别,但是数据结构却变了,其中:
cache
是用Map
创建的keys
使用Set
创建的
const key = vnode.key == null ? comp : vnode.key
const cachedVNode = cache.get(key)
// clone vnode if it's reused because we are going to mutate it
if (vnode.el) {
vnode = cloneVNode(vnode)
}
cache.set(key, vnode)
if (cachedVNode) {
// copy over mounted state
vnode.el = cachedVNode.el
vnode.component = cachedVNode.component
if (vnode.transition) {
// recursively update transition hooks on subTree
setTransitionHooks(vnode, vnode.transition!)
}
// avoid vnode being mounted as fresh
vnode.shapeFlag |= ShapeFlags.COMPONENT_KEPT_ALIVE
// make this key the freshest
keys.delete(key)
keys.add(key)
} else {
keys.add(key)
// prune oldest entry
if (max && keys.size > parseInt(max as string, 10)) {
pruneCacheEntry(Array.from(keys)[0])
}
}
显然,在时间复杂度上 Vue 3.x 要更优,因为 Set
删除某个 key
只需要 的时间复杂度,而数组删除某个 key
却要耗费 时间复杂度。
不过,即使是 Vue 3.x 的写法也还是有点问题的,比如这一段👇
pruneCacheEntry(Array.from(keys)[0])
会先将 keys
转成数组再取第一项,复杂度一下子就高了,这里可能是考虑到代码量和可读性上的问题,对性能做了取舍,毕竟缓存大量组件的情况也是比较少见~
扩展 —— 常见的 LRU 算法实现
LRU 算法在实现逻辑的同时,需要满足以下两点:
- 删除、添加缓存的时间复杂度为
- 查找缓存的时间复杂度为
其中双向循环链表可以满足条件 1,哈希表可以满足条件 2。基于此我们可以用哈希表 + 双向循环链表相结合的写法来实现 LRU 算法。以下是实现的代码,基于 LeetCode 上的一道题目:LRU 缓存机制,感兴趣的同学不妨看完之后在上面写写看。
哈希表 + 双向循环链表 实现 LRU 算法
/**
* @param {number} capacity
*/
const LRUCache = function (capacity) {
this.map = new Map()
this.doubleLinkList = new DoubleLinkList()
this.maxCapacity = capacity
this.currCapacity = 0
};
/**
* @param {number} val
* @param {string} key
*/
const Node = function (val, key) {
this.val = val
this.key = key
this.next = null
this.prev = null
}
const DoubleLinkList = function () {
this.head = null
this.tail = null
}
/**
* @param {Node} node
* 添加节点
*/
DoubleLinkList.prototype.addNode = function (node) {
if (!this.head) {
this.head = node
this.tail = node
this.head.next = this.tail
this.head.prev = this.tail
this.tail.next = this.head
this.tail.prev = this.head
} else {
const next = this.head
this.head = node
this.head.next = next
this.head.prev = this.tail
this.tail.next = this.head
next.prev = this.head
}
}
/**
* @param {Node} node
* @return {void}
* 删除双向链表中的节点
*/
DoubleLinkList.prototype.deleteNode = function (node) {
const prev = node.prev
const next = node.next
prev.next = next
next.prev = prev
// 对头尾节点做特殊判断
if (this.head === node) {
this.head = next
}
if (this.tail === node) {
this.tail = prev
}
}
/**
* @param {number} key
* @return {number}
*/
LRUCache.prototype.get = function(key) {
const { map, doubleLinkList } = this
// 访问一个 key 的同时,先将它删除,然后再将它置于双向链表的顶部
if (map.has(key)) {
const node = map.get(key)
doubleLinkList.deleteNode(node)
doubleLinkList.addNode(node)
return node.val
}
return -1
};
/**
* @param {number} key
* @param {number} value
* @return {void}
*/
LRUCache.prototype.put = function(key, value) {
const { map, doubleLinkList } = this
// 如果已经存在这个 key 了
// 那么只要改 key 对应的值
// 然后将 key 对应的节点放到双向链表的头部即可
if (map.has(key)) {
// 先在 map 中找到他
const node = map.get(key)
// 然后将它删掉
doubleLinkList.deleteNode(node)
// 改掉值
node.val = value
// 之后加入到链表头部
doubleLinkList.addNode(node)
map.set(key, node)
} else {
const node = new Node(value, key)
// 如果之前没有这个 key 且缓存已满
if (this.currCapacity === this.maxCapacity) {
// 先将尾巴节点删除
map.delete(doubleLinkList.tail.key)
doubleLinkList.deleteNode(doubleLinkList.tail)
// 然后将新的 key 加入链表和 map
doubleLinkList.addNode(node)
map.set(key, node)
} else {
// 反之缓存没有满
// 直接新的 key 加入链表和 map 即可
doubleLinkList.addNode(node)
map.set(key, node)
// 缓存容量自增
this.currCapacity++
}
}
};
