遇到的问题
笔者需要部署一个 etcd 集群,并非使用 goreman 工具部署的伪集群。为了与真实环境对等,需要用到三台机器,然而笔者手上只有一台主机,Centos 系统,配置为 8G 双核。由此想到在单机 Centos 再启动虚拟机的想法。
环境准备
vagrant 的使用需要结合 VirtualBox,我们我们准备这两个软件的安装源,以及用到的 centos7 镜像:
#virtualbox
https://www.virtualbox.org/wiki/Linux_Downloads
#vagrant
https://www.vagrantup.com/downloads.html
#centos7.box
http://cloud.centos.org/centos/7/vagrant/x86_64/images/
笔者下载的是最新的版本,官网的下载速度实在慢(有需要可以联系笔者获取下载好的安装包),文件如下:
$ ls
CentOS-7-x86_64-Vagrant-2002_01.VirtualBox.box VirtualBox-6.1-6.1.6_137129_el7-1.x86_64.rpm vagrant_2.2.7_x86_64.rpm
安装
$ yum -y localinstall VirtualBox-6.1-6.1.6_137129_el7-1.x86_64.rpm vagrant_2.2.7_x86_64.rpm
如上的命令,即安装好 vagrant 和 VirtualBox。
初始化

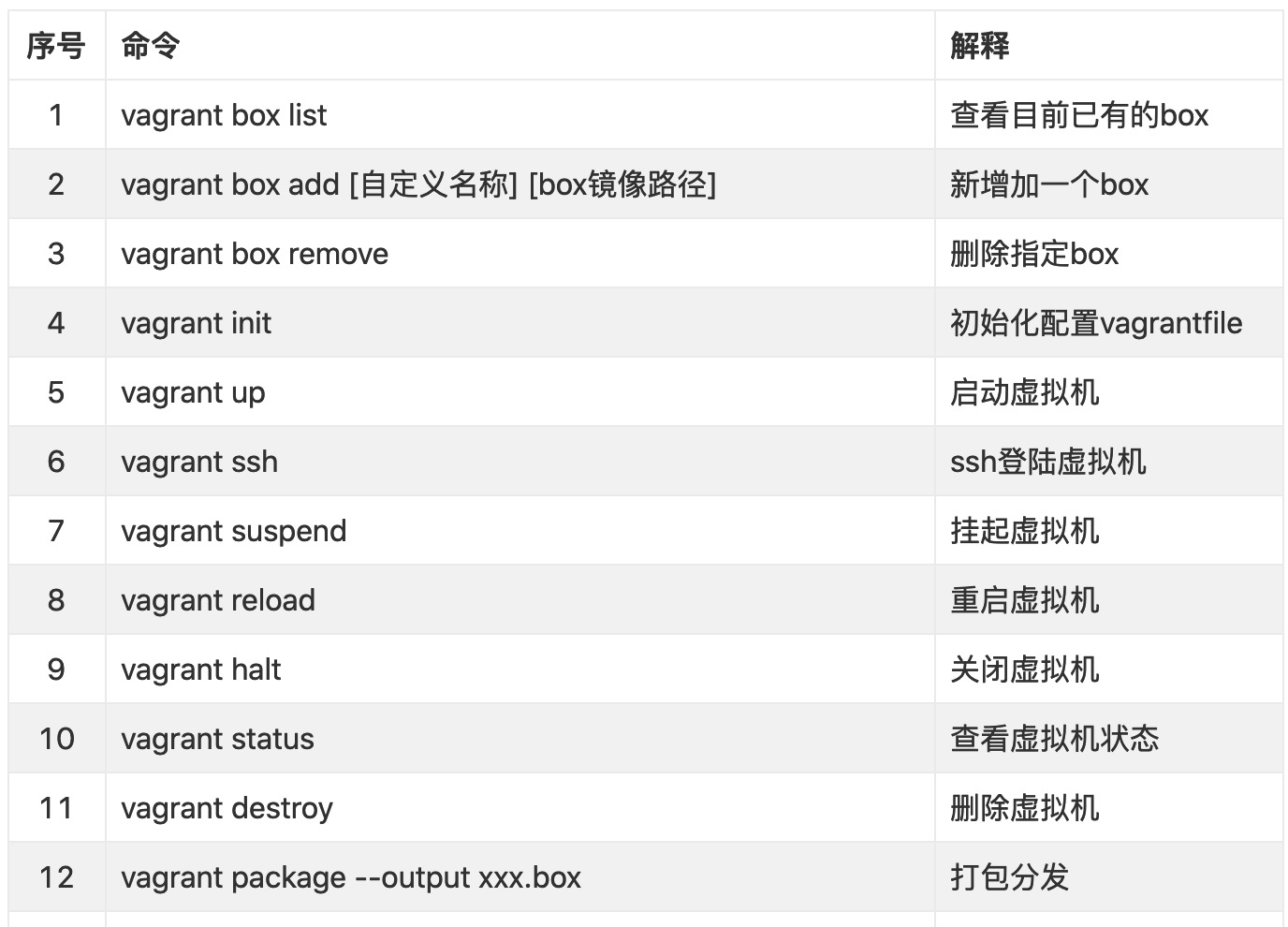

vagrant 的常用命令如下,用于管理boxes的命令,比如添加、删除等等。此命令的功能主要通过以下子命令完成:
#添加box文件,就是我们刚刚下载的镜像文件,添加后可以到处使用。
vagrant box add CentOS-7-x86_64-Vagrant-2002_01.VirtualBox.box --name centos7
#创建配置文件
vagrant init centos7
初始化的步骤,会生成一个 Vagrantfile,即配置文件。
$ vagrant init centos7
A `Vagrantfile` has been placed in this directory. You are now
ready to `vagrant up` your first virtual environment! Please read
the comments in the Vagrantfile as well as documentation on
`vagrantup.com` for more information on using Vagrant.
Vagrantfile 配置
常用的配置如下所示:
- config.vm.box:该名称是再使用 vagrant init 中后面跟的名字
- config.vm.hostname:配置虚拟机主机名
- config.vm.network:这是配置虚拟机网络,由于比较复杂,我们其后单独讨论
- config.vm.synced_folder:除了默认的目录绑定外,还可以手动指定绑定
- config.ssh.username:默认的用户是vagrant,从官方下载的box往往使用的是这个用户名。如果是自定制的box,所使用的用户名可能会有所不同,通过这个配置设定所用的用户名。
- config.vm.provision:我们可以通过这个配置在虚拟机第一次启动的时候进行一些安装配置
还有更详细的配置,参见:www.vagrantup.com/docs/vagran…
Vagrant.configure("2") do |config|
config.vm.box = "centos7"
config.vm.network "public_network", ip: "192.168.0.5"
config.vm.provider "virtualbox" do |vb|
# Display the VirtualBox GUI when booting the machine
vb.gui = false
# Customize the amount of memory on the VM:
vb.memory = "1024"
end
end
可以看到,配置比较简单,使用桥接的方式指定了网络,设置关闭 gui,并限制内存为 1GB。
启动
$ vagrant up
The provider 'virtualbox' that was requested to back the machine
'default' is reporting that it isn't usable on this system. The
reason is shown below:
VirtualBox is complaining that the kernel module is not loaded. Please
run `VBoxManage --version` or open the VirtualBox GUI to see the error
message which should contain instructions on how to fix this error.
参考,virtualbox-is-complaining-that-the-kernel-module-is-not-loaded。原因是 vagrant 依赖 kernel-devel gcc make perl, 启动 kernel-devel ,最好按照 vagrant 的提示进行安装和正在使用内核版本一直的库。
通过uname查看内核版本:
$ uname -a
Linux aoho 3.10.0-1062.1.2.el7.x86_64 #1 SMP Mon Sep 30 14:19:46 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux
因此我们需要安装相应的包:
kernel-devel-3.10.0-1062.1.2.el7.x86_64.rpm
在官网下载了对应的包,并安装。启动 vagrant:
#启动虚拟机
vagrant up
#进入虚拟机
vagrant ssh
大功告成!
