使用 Web Crypto API 打造“密码学家的工具箱”

1,816 阅读8分钟

一、密码学家的工具箱

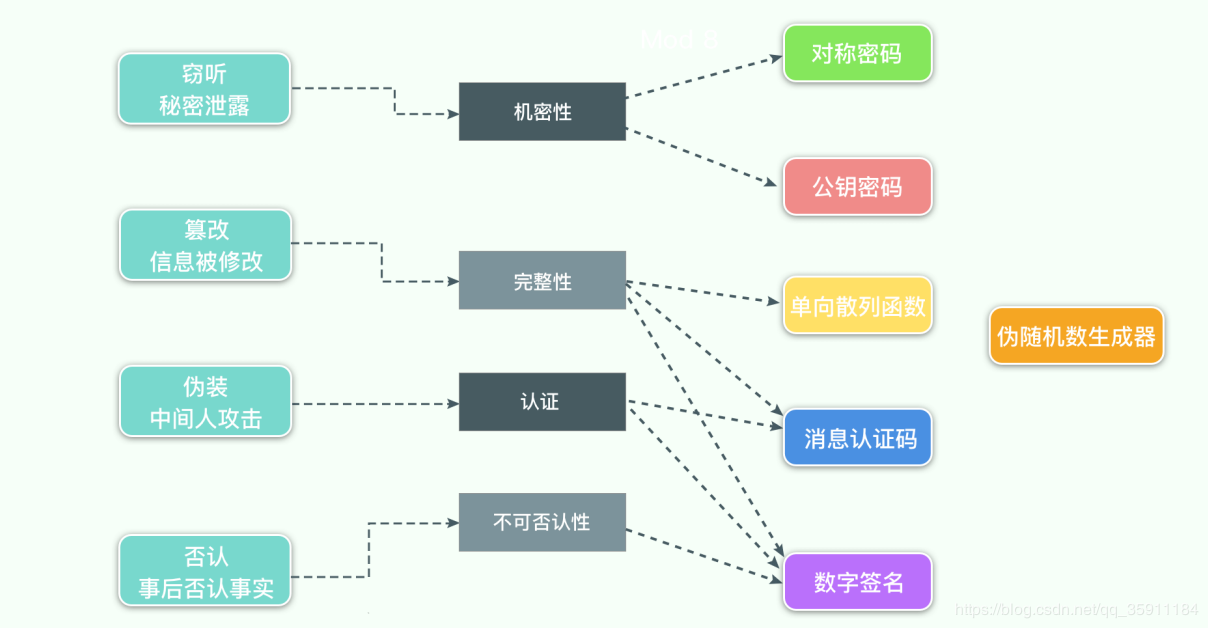

在密码学中,有一个著名的说法,叫“密码学家的工具箱”,指的是密码学中常用的6种技术:对称密码、公钥密码、单向散列函数、消息认证码、数字签名、伪随机数生成器。它们在信息安全中发挥着重要的作用,我们可以用下图来表示各项技术与其解决的问题之间的关系:

密码学家的工具箱

随着近些年来Web标准的突飞猛进,新增的Web Crypto API,就很好地实现了上述几种技术,它提供了常用算法的加密/解密/签名/验证/摘要/key生成/协商等操作,并统一采用Promise来处理异步逻辑,为密码学在Web端的实现,提供了较为标准的支持。

今天我们就来尝试下,使用Web Crypto API简单实现一个“密码学家的工具箱”

二、开工之前

1.浏览器兼容性

由于是新特性,我们需要先查看下浏览器兼容性,来决定是否使用,如下图:

浏览器兼容性

2个值得留意的问题是:

  • 需要IE11及以上才支持
  • 由于是安全相关的API,Chrome要求在HTTPS下才能使用

如果我们需要兼容旧版浏览器,还可以尝试下polyfill/shim: webcrypto-shimwebcrypto-liner

2.检测客户端浏览器是否支持

如下代码可以帮助我们检测当前浏览器是否存在crypto全局对象,因为大部分方法,都在crypto.subtle下:

var crypto = window.crypto || window.msCrypto; // for IE 11

if (crypto.subtle){
	...
} else {
  console.log("Unable to create window.crypto object");
}

当然如果你对Web Crypto API或者密码学已经有所了解,需要查看某些密码算法在当前浏览器的支持情况,这里有一个Live Table可以满足你的要求。

三、开始打造

1.伪随机数生成器

伪随机数在密码技术的很多场景中都会被用到,比如生成密钥(用于对称加密或消息认证码)、生成初始向量、生成盐等。

API语法:

cryptoObj.getRandomValues(typedArray);

说明:

由于密码操作的对象本质上是比特序列,所以Web Crypto API传入的消息数据通常会是ArrayBuffer,比如这里的参数是一个TypedArray,该参数会被符合密码学要求的随机值填充

示例:

var array = new Uint32Array(10);
window.crypto.getRandomValues(array);
console.log(array); // [1894854709, 484538754, 1141990970, 1112093908, 2934866807, 2755048609, 2706065410, 344867006, 2460161930, 4126202407]

2.单向散列函数

又称为单向哈希函数、杂凑函数,可以把任意长度的输入消息,转变成固定长度的输出(散列值)。单向,指的是无法根据散列值,反推输入的消息。常见的有SHA-256、SHA-512等

API语法:

const digest = crypto.subtle.digest(algorithm, data);

说明:

当前支持的算法:

  • SHA-1(不推荐)
  • SHA-256
  • SHA-384
  • SHA-512

示例:

const text = 'An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.';

async function digestMessage(message) {
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  const hash = await crypto.subtle.digest('SHA-256', data);
  return hash;
}

const digestBuffer = await digestMessage(text);
console.log(digestBuffer.byteLength); // 32

3.消息认证码

消息认证码可以用来确保消息的完整性,并提供认证,需要配合共享密钥和特定算法来实现,最终会输出固定长度的MAC值。

HMAC是一种使用单向散列函数来构造消息认证码的方法,开头的H就是Hash的意思,在Web Crypto API中可以通过crypto.subtle.sign()和verify()方法实现

语法:

const signature = crypto.subtle.sign(algorithm, key, data);

const result = crypto.subtle.verify(algorithm, key, mac, data);

说明:

通过传入"HMAC"字符串或者{ "name": "HMAC" },来使用HMAC;key为共享密钥,可以事先生成或导入;mac为散列值;data为ArrayBuffer或ArrayBuffer视图对象

示例:

const text = "An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.";

async function getMac(message, key){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  return await crypto.subtle.sign("HMAC", key, data);
}

async function verifyMac(message, key, mac){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  return await crypto.subtle.verify("HMAC", key, mac, data);
}

async function generateKey() {
  return await crypto.subtle.generateKey(
    {
      name: "HMAC",
      hash: { name: "SHA-256" } //可以是 "SHA-1", "SHA-256", "SHA-384", 或 "SHA-512"
    },
    true, // 是否可提取,比如用于导入导出
    ["sign", "verify"] // 用途
  );
}

const key = await generateKey();
const mac = await getMac(text, key);
console.log(mac.byteLength); // 32

const result = await verifyMac(text, key, mac);
console.log(result); // true

4.对称加密

也称为共享密钥加密,即加密与解密使用相同的密钥,加解密效率高,但存在密钥配送的问题,常见的如DES、AES等。可以通过crypto.subtle.encrypt()和decrypt()方法实现,这里以AES-GCM为例:

语法:

const result = crypto.subtle.encrypt(algorithm, key, data);

const result = crypto.subtle.decrypt(algorithm, key, data);

说明:

当前支持的对称加密算法:

  • AES-CBC
  • AES-CTR
  • AES-GCM

key为共享密钥,可以事先生成或导入;data为ArrayBuffer或ArrayBuffer视图对象

示例:

const text = "An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.";
let iv;

async function encryptMessage(message, key){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  iv = crypto.getRandomValues(new Uint8Array(12));// 推荐12字节
  return await crypto.subtle.encrypt(
    {
      name: "AES-GCM",
      iv,
      tagLength: 128, //可选,默认128,还可以是32, 64, 96, 104, 112, 120
    },
    key,
    data
  );
}

async function decryptMessage(cipherText, iv, key){
  const result = await crypto.subtle.decrypt(
    {
      name: "AES-GCM",
      iv,
      tagLength: 128
    },
    key,
    cipherText
  );
  const decoder = new TextDecoder();
  return decoder.decode(result);
}

async function generateKey() {
  return await crypto.subtle.generateKey(
    {
      name: "AES-GCM",
      length: 256, //可以是128, 192, 256, 但Chrome当前不支持192
    },
    true,
    ["encrypt", "decrypt"]
  );
}

const key = await generateKey();
const cipherText = await encryptMessage(text, key);
const plainText = await decryptMessage(cipherText, iv, key);
console.log(plainText); // An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.

5.非对称加密

又称公钥加密,使用前需要生成一对公私密钥对,用公钥加密的消息,只能用私钥解密。它解决了密钥配送的问题,通常会配合对称加密一起使用,常用的如RSA。我们依旧可以通过crypto.subtle.encrypt()和decrypt()方法实现

语法:

const result = crypto.subtle.encrypt(algorithm, publicKey, data);

const result = crypto.subtle.decrypt(algorithm, privateKey, data);

说明:

当前支持的非对称加密算法:

  • RSA-OAEP

publicKey/privateKey为公私密钥;data为ArrayBuffer或ArrayBuffer视图对象

示例:

const text = "An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.";

async function encryptMessage(message, publicKey){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  return await crypto.subtle.encrypt(
      {
        name: "RSA-OAEP",
      },
      publicKey,
      data
    );
}

async function decryptMessage(cipherText, privateKey){
  const result = await crypto.subtle.decrypt(
    {
      name: "RSA-OAEP"
    },
    privateKey,
    cipherText
  );
  const decoder = new TextDecoder();
  return decoder.decode(result);
}

async function generateKeyPair() {
  return await crypto.subtle.generateKey(
    {
      name: "RSA-OAEP",
      modulusLength: 2048, //密钥长度,可以是1024, 2048, 4096,建议2048以上
      publicExponent: new Uint8Array([0x01, 0x00, 0x01]), // 公共指数e,一般用65537
      hash: "SHA-256", //可以是"SHA-1", "SHA-256", "SHA-384", "SHA-512"
    },
    true,
    ["encrypt", "decrypt"]
  );
}

const keyPair = await generateKeyPair();
const cipherText = await encryptMessage(text, keyPair.publicKey);
const plainText = await decryptMessage(cipherText, keyPair.privateKey);
console.log(plainText); // An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.

6.数字签名

消息认证码的局限性在于不能防否认,因为它使用了共享密钥,而配合公钥加密,数字签名就可以解决这个问题,流程如下图:

我们可以通过crypto.subtle.sign()和verify()方法实现

语法:

const signature = crypto.subtle.sign(algorithm, privateKey, data);

const result = crypto.subtle.verify(algorithm, publicKey, signature, data);

说明:

当前支持的签名算法:

  • RSASSA-PKCS1-v1_5
  • RSA-PSS
  • ECDSA

publicKey/privateKey为公私密钥;data为ArrayBuffer或ArrayBuffer视图对象

示例:

const text = "An obscure body in the S-K System, your majesty. The inhabitants refer to it as the planet Earth.";

async function signMessage(message, privateKey){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  return await crypto.subtle.sign(
      {
        name: "RSA-PSS",
        saltLength: 32,
      },
      privateKey,
      data
    );
}

async function verifyMessage(message, signature, publicKey){
  const encoder = new TextEncoder();
  const data = encoder.encode(message);
  return await crypto.subtle.verify(
    {
      name: "RSA-PSS",
      saltLength: 32,
    },
    publicKey,
    signature,
    data
  );
}

async function generateKeyPair() {
  return await crypto.subtle.generateKey(
    {
      name: "RSA-PSS",
      modulusLength: 2048, //密钥长度,可以是1024, 2048, 4096,建议2048以上
      publicExponent: new Uint8Array([0x01, 0x00, 0x01]), // 公共指数e,一般用65537
      hash: "SHA-256", //可以是"SHA-1", "SHA-256", "SHA-384", "SHA-512"
    },
    true,
    ["sign", "verify"]
  );
}

const keyPair = await generateKeyPair();
const signature = await signMessage(text, keyPair.privateKey);
const result = await verifyMessage(text, signature, keyPair.publicKey);
console.log(result); // true

四、完工收尾

通过Web Crypto API,我们简单实现了“密码学家的工具箱”,从示例代码中,我们会发现绝大部分的接口都是window.crypto.subtle的方法,方法的输入均为ArrayBuffer,返回则是Promise对象。

由于Web加密标准还在演进中,各浏览器对标准的支持各不相同,大家还是需要根据实际项目需求来取舍。除了文中谈到的,Web Crypto API还有一些其他方法,感兴趣的同学可以从MDN了解更多。

由于文章中涉及的知识点较多,本人阅读材料有限,行文中难免疏漏,还望大家不吝指正。

参考文章:

Web Crypto API - MDN

Web Cryptography API Examples

Examples - MDN

Web Crypto API简介

W3C Recommendation
