前言

在日常的Vue项目开发过程中,为了让项目更好的维护一般都会使用模块化开发的方式进行。也就是每个组件维护独立的templatescriptstyle。今天主要介绍一下使用 <style scoped>为什么在页面渲染完后样式之间并不会造成污染。

示例

搭建一个简单的Vue项目测试一下:

给个目录结构吧,代码并不是我们讲解的重点,如果需要源码测试的话后续我放到github上去。

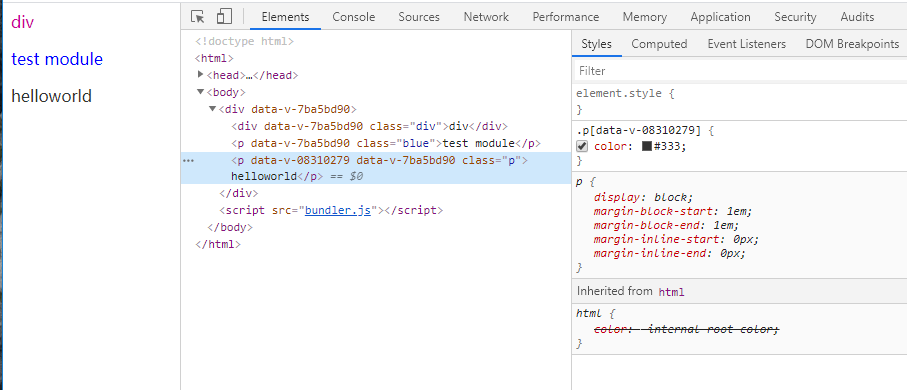

终端执行npx webpack输出dist目录,我们在浏览器打开index.html调试一下看看现象:

  1. 每个组件都会拥有一个[data-v-hash:8]插入HTML标签,子组件标签上也具体父组件[data-v-hash:8];
  2. 如果style标签加了scoped属性,里面的选择器都会变成(Attribute Selector) [data-v-hash:8];
  3. 如果子组件选择器跟父组件选择器完全一样,那么就会出现子组件样式被父组件覆盖,因为子组件会优先于父组件mounted,有兴趣可以测试一下哦。

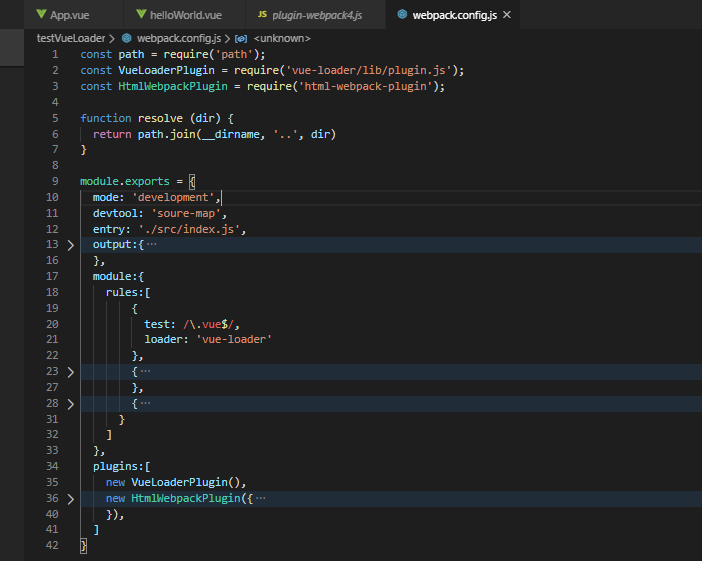

webpack.config.js配置

我们先看看在webpack.config.js中的配置:

vue-loader工作流

以下就是vue-loader工作大致的处理流程:

开启node调试模式进行查看阅读,package.json中配置如下:

"scripts": {
    "debug": "node --inspect-brk ./node_modules/webpack/bin/webpack.js"
 },

VueLoaderPlugin

先从入口文件lib/index.js开始分析,因为我的Webpack是4.x版本,所以VueLoaderPlugin = require('./plugin-webpack4'),重点来看看这个lib/plugin-webpack4.js文件:

const qs = require('querystring')
const RuleSet = require('webpack/lib/RuleSet')

const id = 'vue-loader-plugin'
const NS = 'vue-loader'
// 很明显这就是一个webpack插件写法
class VueLoaderPlugin {
  apply (compiler) {
    if (compiler.hooks) {
      // 编译创建之后,执行插件
      compiler.hooks.compilation.tap(id, compilation => {
        const normalModuleLoader = compilation.hooks.normalModuleLoader
        normalModuleLoader.tap(id, loaderContext => {
          loaderContext[NS] = true
        })
      })
    } else {
      // webpack < 4
      compiler.plugin('compilation', compilation => {
        compilation.plugin('normal-module-loader', loaderContext => {
          loaderContext[NS] = true
        })
      })
    }

    // webpack.config.js 中配置好的 module.rules
    const rawRules = compiler.options.module.rules
    // 对 rawRules 做 normlized
    const { rules } = new RuleSet(rawRules)

    // 从 rawRules 中检查是否有规则去匹配 .vue 或 .vue.html
    let vueRuleIndex = rawRules.findIndex(createMatcher(`foo.vue`))
    if (vueRuleIndex < 0) {
      vueRuleIndex = rawRules.findIndex(createMatcher(`foo.vue.html`))
    }
    const vueRule = rules[vueRuleIndex]
    if (!vueRule) {
      throw new Error(
        `[VueLoaderPlugin Error] No matching rule for .vue files found.\n` +
        `Make sure there is at least one root-level rule that matches .vue or .vue.html files.`
      )
    }
    if (vueRule.oneOf) {
      throw new Error(
        `[VueLoaderPlugin Error] vue-loader 15 currently does not support vue rules with oneOf.`
      )
    }

    // 检查 normlized rawRules 中 .vue 规则中是否具有 vue-loader
    const vueUse = vueRule.use
    const vueLoaderUseIndex = vueUse.findIndex(u => {
      return /^vue-loader|(\/|\\|@)vue-loader/.test(u.loader)
    })

    if (vueLoaderUseIndex < 0) {
      throw new Error(
        `[VueLoaderPlugin Error] No matching use for vue-loader is found.\n` +
        `Make sure the rule matching .vue files include vue-loader in its use.`
      )
    }

    // make sure vue-loader options has a known ident so that we can share
    // options by reference in the template-loader by using a ref query like
    // template-loader??vue-loader-options
    const vueLoaderUse = vueUse[vueLoaderUseIndex]
    vueLoaderUse.ident = 'vue-loader-options'
    vueLoaderUse.options = vueLoaderUse.options || {}

    // 过滤出 .vue 规则,其他规则调用 cloneRule 方法重写了 resource 和 resourceQuery 配置
    // 用于编译vue文件后匹配依赖路径 query 中需要的loader
    const clonedRules = rules
      .filter(r => r !== vueRule)
      .map(cloneRule)

    // 加入全局 pitcher-loader,路径query有vue字段就给loader添加pitch方法
    const pitcher = {
      loader: require.resolve('./loaders/pitcher'),
      resourceQuery: query => {
        const parsed = qs.parse(query.slice(1))
        return parsed.vue != null
      },
      options: {
        cacheDirectory: vueLoaderUse.options.cacheDirectory,
        cacheIdentifier: vueLoaderUse.options.cacheIdentifier
      }
    }

    // 修改原始的 module.rules 配置
    compiler.options.module.rules = [
      pitcher,
      ...clonedRules,
      ...rules
    ]
  }
}

以上大概就是VueLoaderPlugin所做的事情。也就是说VueLoaderPlugin主要就是修改module.rules的配置。总的来说就是对vue单文件编写做的一个扩展(比如我们可以写less文件,在vue style中也可以写less)

vue-loader

继续来看看vue-loader是如何操作.vue文件的,目前只关心style部分,逻辑在lib/index.js

vue文件解析

// 很明显这就是一个loader写法
module.exports = function (source) {
    const loaderContext = this
    // ...
    const {
        target,
        request, // 请求资源路径
        minimize,
        sourceMap,
        rootContext, // 根路径
        resourcePath, // vue文件的路径
        resourceQuery // vue文件的路径 query 参数
      } = loaderContext
    // ...

    // 解析 vue 文件,descriptor 是AST抽象语法树的描述
    const descriptor = parse({
        source,
        compiler: options.compiler || loadTemplateCompiler(loaderContext),
        filename,
        sourceRoot,
        needMap: sourceMap
    })
    /**
    *
    */
    // hash(文件路径 + 开发环境 ?文件内容 : "")生成 id
    const id = hash(
        isProduction
          ? (shortFilePath + '\n' + source)
          : shortFilePath
    )
    // descriptor.styles 解析后是否具有 attrs: {scoped: true}
    const hasScoped = descriptor.styles.some(s => s.scoped)
    /**
    *
    */
    let stylesCode = ``
    if (descriptor.styles.length) {
        // 最终生成一个import依赖请求
        stylesCode = genStylesCode(
            loaderContext,
            descriptor.styles,
            id,
            resourcePath,
            stringifyRequest,
            needsHotReload,
            isServer || isShadow // needs explicit injection?
        )
    }
}

可以看到解析完vue文件的结果大概就是这样的:

依赖解析

vue文件解析完之后template,script,style等都有个依赖的路径,后续可以通过配置的loader进行解析了,因为我们已经在VuePluginLoader中修改了module.rules的配置,而且依赖的路径中query中都拥有vue字段,所以会先走到pitcher-loader,现在来分析lib/loaders/pitcher.js中的逻辑:

/**
 *
*/
module.exports = code => code

module.exports.pitch = function (remainingRequest) {
    const options = loaderUtils.getOptions(this)
    const { cacheDirectory, cacheIdentifier } = options
    const query = qs.parse(this.resourceQuery.slice(1))

    let loaders = this.loaders
    if (query.type) {
        if (/\.vue$/.test(this.resourcePath)) {
            // 过滤eslint-loader
            loaders = loaders.filter(l => !isESLintLoader(l))
        } else {
            loaders = dedupeESLintLoader(loaders)
        }
    }
    // 过滤pitcher-loader
    loaders = loaders.filter(isPitcher)

    const genRequest = loaders => {
        const seen = new Map()
        const loaderStrings = []

        loaders.forEach(loader => {
          const identifier = typeof loader === 'string'
            ? loader
            : (loader.path + loader.query)
          const request = typeof loader === 'string' ? loader : loader.request
          if (!seen.has(identifier)) {
            seen.set(identifier, true)
            // loader.request contains both the resolved loader path and its options
            // query (e.g. ??ref-0)
            loaderStrings.push(request)
          }
        })

        return loaderUtils.stringifyRequest(this, '-!' + [
          ...loaderStrings,
          this.resourcePath + this.resourceQuery
        ].join('!'))
    }


    if (query.type === `style`) {
        const cssLoaderIndex = loaders.findIndex(isCSSLoader)
        // 调整loader执行顺序
        if (cssLoaderIndex > -1) {
            const afterLoaders = loaders.slice(0, cssLoaderIndex + 1)
            const beforeLoaders = loaders.slice(cssLoaderIndex + 1)
            const request = genRequest([
                ...afterLoaders, // [style-loader,css-loader]
                stylePostLoaderPath, // style-post-loader
                ...beforeLoaders // [vue-loader]
            ])
            return `import mod from ${request}; export default mod; export * from ${request}`
        }
   }
   /**
   *
   */
   const request = genRequest(loaders)
   return `import mod from ${request}; export default mod; export * from ${request}`
}

可以看到解析带scoped属性的style的结果大概就是这样的:

新的依赖解析

分析{tyep:style}的处理流程顺序:

  • vue-loader、style-post-loader、css-loader、style-loader。

处理资源的时候先走的是vue-loader,这时vue-loader中的处理逻辑与第一次解析vue文件不一样了:

const incomingQuery = qs.parse(rawQuery)
// 拥有{type:style}
if (incomingQuery.type) {
    return selectBlock(
      descriptor,
      loaderContext,
      incomingQuery,
      !!options.appendExtension
    )
 }


 // lib/select.js
 module.exports = function selectBlock (
  descriptor,
  loaderContext,
  query,
  appendExtension
) {
   // ...
  if (query.type === `style` && query.index != null) {
    const style = descriptor.styles[query.index]
    if (appendExtension) {
      loaderContext.resourcePath += '.' + (style.lang || 'css')
    }
    loaderContext.callback(
      null,
      style.content,
      style.map
    )
    return
  }

可以看到vue-loader处理完后返回的就是style.content,也就是style标签下的内容,然后交给后续的loader继续处理

再来看一下style-post-loader是如何生成data-v-hash:8的,逻辑主要在lib/loaders/stylePostLoaders.js中:

const qs = require('querystring')
const { compileStyle } = require('@vue/component-compiler-utils')

module.exports = function (source, inMap) {
  const query = qs.parse(this.resourceQuery.slice(1))
  const { code, map, errors } = compileStyle({
    source,
    filename: this.resourcePath,
    id: `data-v-${query.id}`,
    map: inMap,
    scoped: !!query.scoped,
    trim: true
  })

  if (errors.length) {
    this.callback(errors[0])
  } else {
    this.callback(null, code, map)
  }
}

处理最终返回的code是这样的:

总结

css scoped的形成流程大概就是这个样子,并没有涉及到@vue/component-compiler-utils解析的篇幅。这篇文章也是本人第一次读vue-loader边学边记录的过程,可能会有不对的地方,希望各位大佬能够指出。
