嵌套滑动通用解决方案--NestedScrollingParent2

4,057

之前写过一篇嵌套滑动--NestedScroll-项目实例(淘宝首页缺陷),及CoordinatorLayout 和 AppbarLayout 联动原理,比较了淘宝和京东首页的滑动效果,分析了效果呈现差别的原因,给出了大致的解决方案。 当时没有给出demo,只有代码片段,可能导致阅读起来不很清晰,所以这篇就专门再来详细分析相关知识,给出通用的嵌套滑动的解决方案,且附上GitHub的Demo。

代码Github地址,欢迎star和issue

一、问题及解决方案

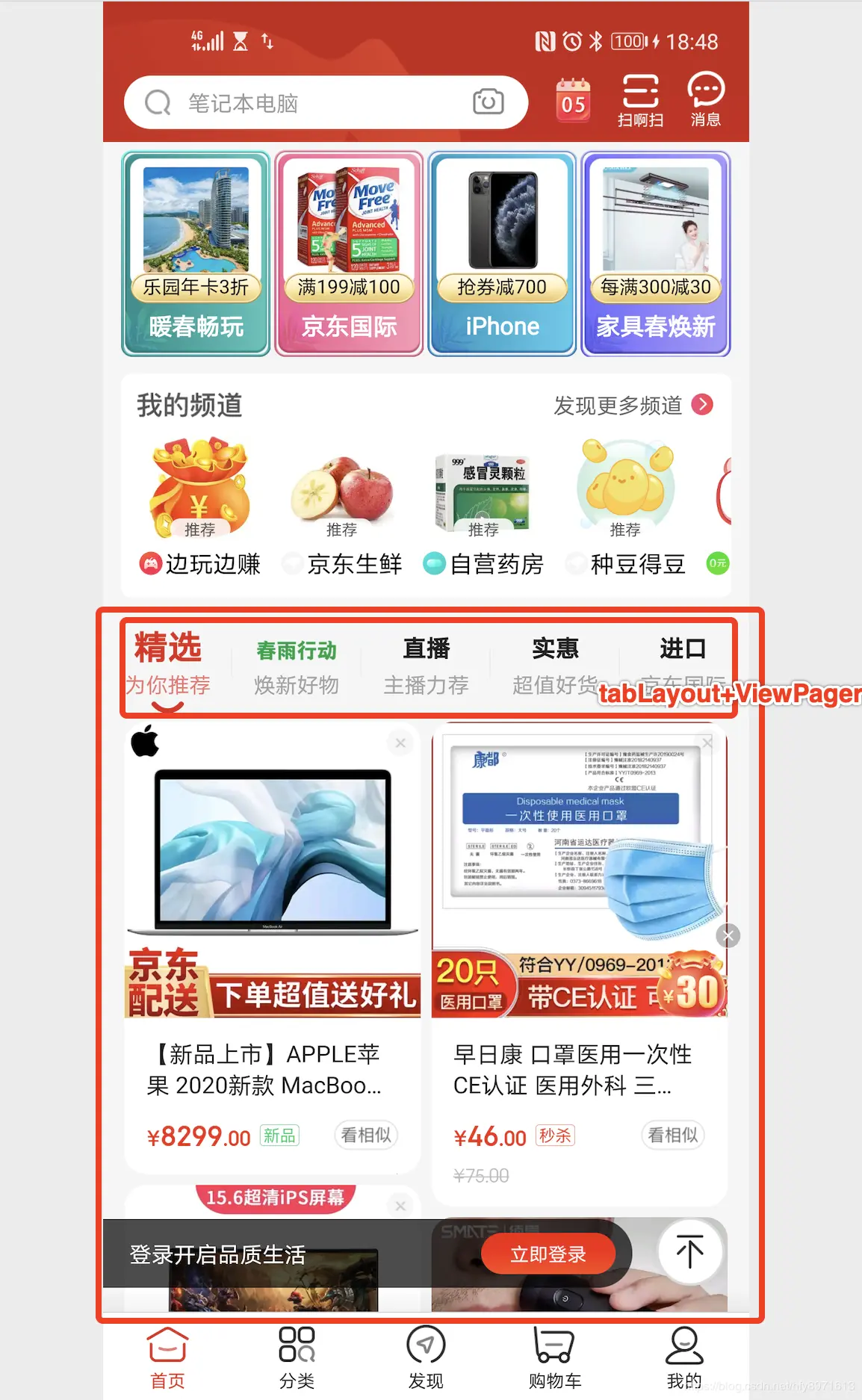

先来看一张图:

京东首页
这是京东的首页,忽略顶部和顶部,大致理解视图结构就是:最外层为多布局的RecyclerView,最后一个item是tabLayout+ViewPager,ViewPager的每个fragment内也是RecyclerView。这是电商App首页常用的布局方式。

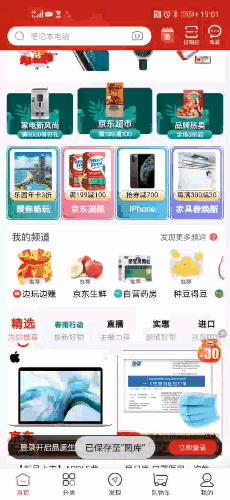

再来看下滑动起来的效果图:

在这里插入图片描述
可见,在向上滑动页面时,当tabLayout滑动到顶部时,外层RecyclerView停止滑动,此时tabLayout即为吸顶状态,接着会 滑动ViewPager中的内层RecyclerView。向下滑动时,如果tabLayout是吸顶状态,那么会先滑动内层RecyclerView,然后再滑外层RecyclerView。

那么,如果我们 直接 按上述布局结构来实现,会是京东这种效果吗?答案是否定的,效果如下?

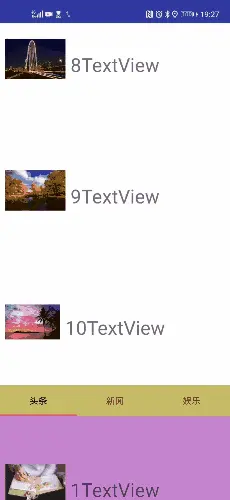

按分析的view结构直接实现
可见,在tabLayout是吸顶状态,无法继续滑动内层RecyclerView(抬起手指继续滑也不行)。 (点击查看相关代码

那么该咋办呢?根据滑动冲突的相关知识,我们知道一定是外层RecyclerView拦截了触摸事件,内层RecyclerView无法获取事件,就无法滑动了。那么是否可以在tabLayout吸顶时,外层不要拦截事件,从而内层RecyclerView获取事件进而滑动呢?

这是可行的,但是在tabLayout滑动到顶部后,必须抬起手指,重新滑动,内层RecyclerView才能继续滑动。 这是为啥呢?开头提到的博客中有说明:

从view事件分发机制 我们知道,当parent View拦截事件后,那同一事件序列的事件会直接都给parent处理,子view不会接受事件了。所以按照正常处理滑动冲突的思路处理--当tab没到顶部时,parent拦截事件,tab到顶部时 parent就不拦截事件,但是由于手指没抬起来,所以这一事件序列还是继续给parent,不会到内部RecyclerView,所以商品流就不会滑动了。

解决方案只能是嵌套滑动布局了。代码如下:

<?xml version="1.0" encoding="utf-8"?>
<com.hfy.demo01.module.home.touchevent.view.NestedScrollingParent2LayoutImpl3 xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/nested_scrolling_parent2_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/recyclerView_parent"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</com.hfy.demo01.module.home.toucheve

看到我们把外层RecyclerView的根布局换成了NestedScrollingParent2LayoutImpl3,运行后发现确实解决了上述问题,滑动效果同京东一致。 那NestedScrollingParent2LayoutImpl3这是啥呢?NestedScrollingParent2LayoutImpl3是继承NestedScrollingParent2的LinearLayout,用于处理上述嵌套滑动带来的问题。

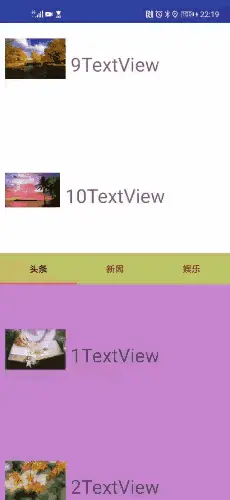

效果如下:

在这里插入图片描述

如果不关心原理及实现,到这了就结束了,因为NestedScrollingParent2LayoutImpl3就可以解决以上问题。

二、NestedScrollingParent2LayoutImpl3的实现原理

2.1 先来回顾下嵌套滑动机制。

如果还不了解嵌套滑动以及NestedScrollingParent2,建议先阅读此篇博客自定义View事件之进阶篇(一)-NestedScrolling(嵌套滑动)机制,再接着往下阅读。

NestedScrolling(嵌套滑动)机制,简单说来就是:产生嵌套滑动的子view,在滑动前,先询问 嵌套滑动对应的父view 是否优先处理 事件、以及消费多少事件,然后把消费后剩余的部分 继续给到 子view。 可以理解为一个事件序列分发两次。产生嵌套滑动的子view要实现接口NestedScrollingChild2、父view要实现接口NestedScrollingParent2。

常用的RecyclerView就是实现了NestedScrollingChild2,而NestedScrollView则是既实现了NestedScrollingChild2又实现了NestedScrollingParent2。

通常我们要自行手动处理的就是RecyclerView作为嵌套滑动子view的情况。NestedScrollView一般直接作为根布局用来解决嵌套滑动。

2.2 再来看看NestedScrollView嵌套RecyclerView

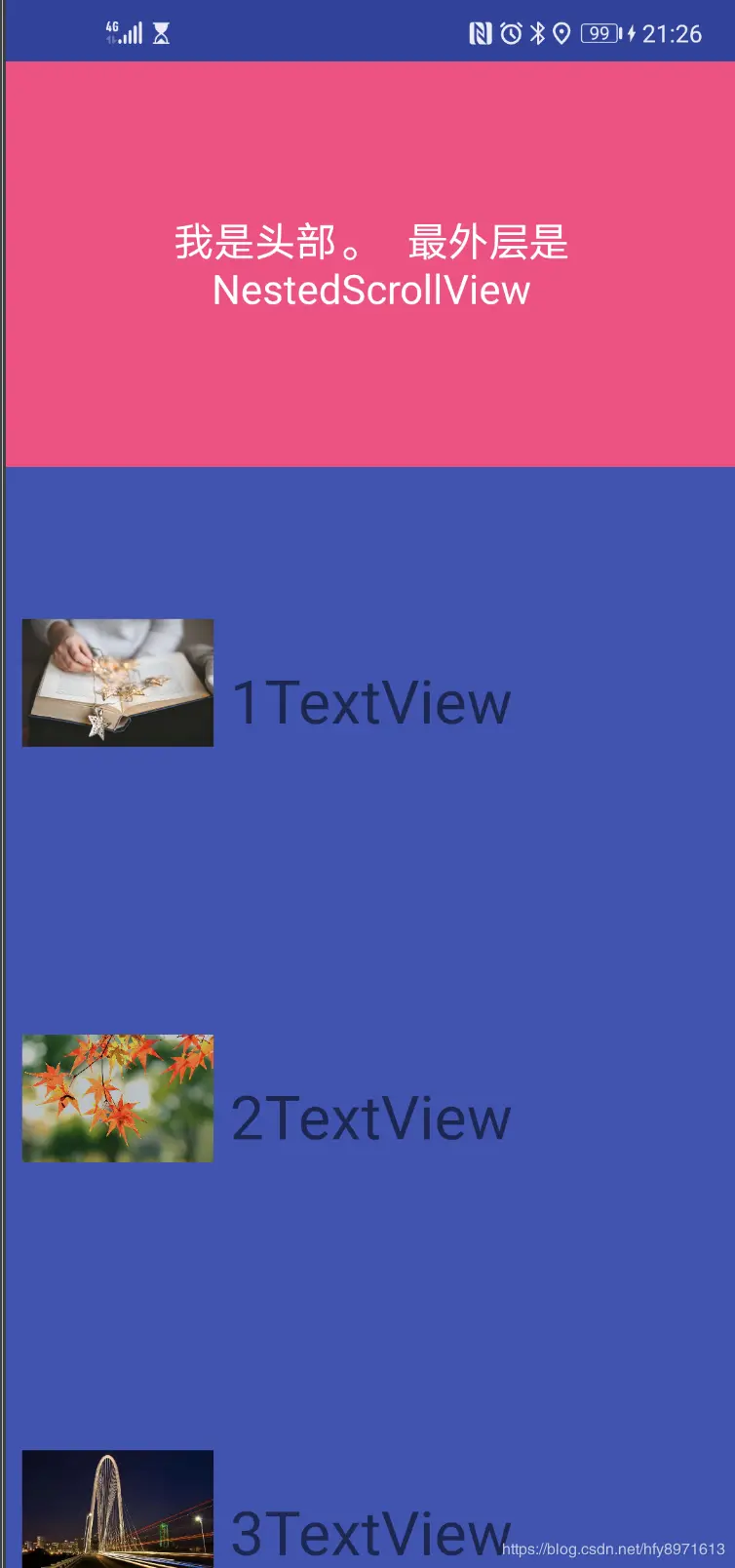

关于NestedScrollView嵌套RecyclerView的情况,即头部和列表可以一起滑动。如下图:

NestedScrollView嵌套RecyclerView
参考这篇实名反对《阿里巴巴Android开发手册》中NestedScrollView嵌套RecyclerView的用法。从此篇文章分析结论得知,NestedScrollView嵌套RecyclerView虽然可以实现效果,但是RecyclerView会瞬间加载所有item,RecyclerView失去的view回收的特性。 作者最后建议使用RecyclerView多布局。 但其实在真实应用中,可能 头部 和 列表 的数据来自不同的接口,当列表的数据请求失败时要展示缺省图,但头部还是会展示。这时头部和列表 分开实现 是比较好的选择。

这里给出解决方案:

<?xml version="1.0" encoding="utf-8"?>
<com.hfy.demo01.module.home.touchevent.view.NestedScrollingParent2LayoutImpl2 xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <TextView
        android:id="@+id/tv_head"
        android:layout_width="match_parent"
        android:layout_height="200dp"
        android:background="@color/colorAccent"
        android:gravity="center"
        android:padding="15dp"
        android:text="我是头部。 最外层是NestedScrollingParent2LayoutImpl2"
        android:textColor="#fff"
        android:textSize="20dp" />

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/recyclerView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@color/design_default_color_primary" />

</com.hfy.demo01.module.home.touchevent.view.NestedScrollingParent2LayoutImpl2>

NestedScrollingParent2LayoutImpl2同样是实现了NestedScrollingParent2。

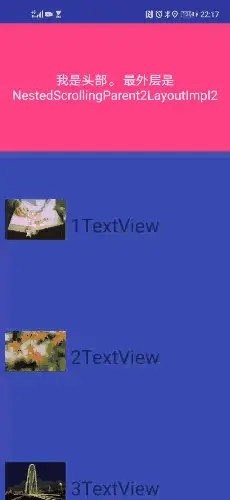

效果如下,可见滑动流畅,临界处不用抬起手指重新滑,且查看日志不是一次加载完item。

在这里插入图片描述

先看下NestedScrollingParent2LayoutImpl2的实现,要简单一些,接着再看NestedScrollingParent2LayoutImpl3实现原理,整体思路是一致的。

/**
 * 处理 header + recyclerView
 * Description:NestedScrolling2机制下的嵌套滑动,实现NestedScrollingParent2接口下,处理fling效果的区别
 *
 */
public class NestedScrollingParent2LayoutImpl2 extends NestedScrollingParent2Layout implements NestedScrollingParent2 {


    private View mTopView;
    private View mRecylerVIew;

    private int mTopViewHeight;


    public NestedScrollingParent2LayoutImpl2(Context context) {
        this(context, null);
    }

    public NestedScrollingParent2LayoutImpl2(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public NestedScrollingParent2LayoutImpl2(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        setOrientation(VERTICAL);
    }


    @Override
    public boolean onStartNestedScroll(@NonNull View child, @NonNull View target, int axes, int type) {
        return (axes & ViewCompat.SCROLL_AXIS_VERTICAL) != 0;
    }


    /**
     * 在嵌套滑动的子View未滑动之前,判断父view是否优先与子view处理(也就是父view可以先消耗,然后给子view消耗)
     *
     * @param target   具体嵌套滑动的那个子类
     * @param dx       水平方向嵌套滑动的子View想要变化的距离
     * @param dy       垂直方向嵌套滑动的子View想要变化的距离 dy<0向下滑动 dy>0 向上滑动
     * @param consumed 这个参数要我们在实现这个函数的时候指定,回头告诉子View当前父View消耗的距离
     *                 consumed[0] 水平消耗的距离,consumed[1] 垂直消耗的距离 好让子view做出相应的调整
     * @param type     滑动类型,ViewCompat.TYPE_NON_TOUCH fling效果,ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onNestedPreScroll(@NonNull View target, int dx, int dy, @NonNull int[] consumed, int type) {
        //这里不管手势滚动还是fling都处理
        boolean hideTop = dy > 0 && getScrollY() < mTopViewHeight;
        boolean showTop = dy < 0 && getScrollY() >= 0 && !target.canScrollVertically(-1);
        if (hideTop || showTop) {
            scrollBy(0, dy);
            consumed[1] = dy;
        }
    }


    @Override
    public void onNestedScroll(@NonNull View target, int dxConsumed, int dyConsumed, int dxUnconsumed, int dyUnconsumed, int type) {
        //当子控件处理完后,交给父控件进行处理。
        if (dyUnconsumed < 0) {
            //表示已经向下滑动到头
            scrollBy(0, dyUnconsumed);
        }
    }

    @Override
    public boolean onNestedPreFling(@NonNull View target, float velocityX, float velocityY) {
        return false;
    }


    @Override
    public boolean onNestedFling(@NonNull View target, float velocityX, float velocityY, boolean consumed) {
        return false;
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);

        //这里修改mRecylerVIew的高度为屏幕高度,否则底部会出现空白。(因为scrollTo方法是滑动子view,就把mRecylerVIew滑上去了)
        ViewGroup.LayoutParams layoutParams = mRecylerVIew.getLayoutParams();
        layoutParams.height = getMeasuredHeight();
        mRecylerVIew.setLayoutParams(layoutParams);
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }

    @Override
    protected void onFinishInflate() {
        super.onFinishInflate();
        mTopView = findViewById(R.id.tv_head);
        mRecylerVIew = findViewById(R.id.recyclerView);
        if (!(mRecylerVIew instanceof RecyclerView)) {
            throw new RuntimeException("id RecyclerView should be RecyclerView!");
        }
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        mTopViewHeight = mTopView.getMeasuredHeight();
    }

    @Override
    public void scrollTo(int x, int y) {
        if (y < 0) {
            y = 0;
        }
        if (y > mTopViewHeight) {
            y = mTopViewHeight;
        }
        super.scrollTo(x, y);
    }

}

主要就是再onNestedPreScroll中对临界处做了处理:滑动RecyclerView时先滑动根布局,使得头部隐藏或显示,然后再交给RecyclerView滑动。

2.3 NestedScrollingParent2LayoutImpl3的实现原理

代码如下

/**
 * 处理RecyclerView 套viewPager, viewPager内的fragment中 也有RecyclerView,处理外层、内层 RecyclerView的嵌套滑动问题
 * 类似淘宝、京东首页
 *
 */
public class NestedScrollingParent2LayoutImpl3 extends NestedScrollingParent2Layout {

    private final String TAG = this.getClass().getSimpleName();

    private RecyclerView mParentRecyclerView;


    private RecyclerView mChildRecyclerView;

    private View mLastItemView;


    public NestedScrollingParent2LayoutImpl3(Context context) {
        super(context);
    }

    public NestedScrollingParent2LayoutImpl3(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    public NestedScrollingParent2LayoutImpl3(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        setOrientation(VERTICAL);
    }


    /**
     * 有嵌套滑动到来了,判断父view是否接受嵌套滑动
     *
     * @param child            嵌套滑动对应的父类的子类(因为嵌套滑动对于的父View不一定是一级就能找到的,可能挑了两级父View的父View,child的辈分>=target)
     * @param target           具体嵌套滑动的那个子类
     * @param nestedScrollAxes 支持嵌套滚动轴。水平方向,垂直方向,或者不指定
     * @param type             滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public boolean onStartNestedScroll(@NonNull View child, @NonNull View target, int nestedScrollAxes, int type) {
        //自己处理逻辑
        //这里处理是接受 竖向的 嵌套滑动
        return nestedScrollAxes == ViewCompat.SCROLL_AXIS_VERTICAL;
    }

    /**
     * 在嵌套滑动的子View未滑动之前,判断父view是否优先与子view处理(也就是父view可以先消耗,然后给子view消耗)
     *
     * @param target   具体嵌套滑动的那个子类,就是手指滑的那个 产生嵌套滑动的view
     * @param dx       水平方向嵌套滑动的子View想要变化的距离
     * @param dy       垂直方向嵌套滑动的子View想要变化的距离 dy<0向下滑动 dy>0 向上滑动
     * @param consumed 这个参数要我们在实现这个函数的时候指定,回头告诉子View当前父View消耗的距离
     *                 consumed[0] 水平消耗的距离,consumed[1] 垂直消耗的距离 好让子view做出相应的调整
     * @param type     滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onNestedPreScroll(@NonNull View target, int dx, int dy, @NonNull int[] consumed, int type) {
        //自己处理逻辑

        if (mLastItemView == null) {
            return;
        }

        int lastItemTop = mLastItemView.getTop();

        if (target == mParentRecyclerView) {
            handleParentRecyclerViewScroll(lastItemTop, dy, consumed);
        } else if (target == mChildRecyclerView) {
            handleChildRecyclerViewScroll(lastItemTop, dy, consumed);
        }
    }

    /**
     * 滑动外层RecyclerView时,的处理
     *
     * @param lastItemTop tab到屏幕顶部的距离,是0就代表到顶了
     * @param dy          目标滑动距离, dy>0 代表向上滑
     * @param consumed
     */
    private void handleParentRecyclerViewScroll(int lastItemTop, int dy, int[] consumed) {
        //tab上边没到顶
        if (lastItemTop != 0) {
            if (dy > 0) {
                //向上滑
                if (lastItemTop > dy) {
                    //tab的top>想要滑动的dy,就让外部RecyclerView自行处理
                } else {
                    //tab的top<=想要滑动的dy,先滑外部RecyclerView,滑距离为lastItemTop,刚好到顶;剩下的就滑内层了。
                    consumed[1] = dy;
                    mParentRecyclerView.scrollBy(0, lastItemTop);
                    mChildRecyclerView.scrollBy(0, dy - lastItemTop);
                }
            } else {
                //向下滑,就让外部RecyclerView自行处理
            }
        } else {
            //tab上边到顶了
            if (dy > 0){
                //向上,内层直接消费掉
                mChildRecyclerView.scrollBy(0, dy);
                consumed[1] = dy;
            }else {
                int childScrolledY = mChildRecyclerView.computeVerticalScrollOffset();
                if (childScrolledY > Math.abs(dy)) {
                    //内层已滚动的距离,大于想要滚动的距离,内层直接消费掉
                    mChildRecyclerView.scrollBy(0, dy);
                    consumed[1] = dy;
                }else {
                    //内层已滚动的距离,小于想要滚动的距离,那么内层消费一部分,到顶后,剩的还给外层自行滑动
                    mChildRecyclerView.scrollBy(0, -(Math.abs(dy)-childScrolledY));
                    consumed[1] = -(Math.abs(dy)-childScrolledY);
                }
            }
        }

    }

    /**
     * 滑动内层RecyclerView时,的处理
     *
     * @param lastItemTop tab到屏幕顶部的距离,是0就代表到顶了
     * @param dy
     * @param consumed
     */
    private void handleChildRecyclerViewScroll(int lastItemTop, int dy, int[] consumed) {
        //tab上边没到顶
        if (lastItemTop != 0) {
            if (dy > 0) {
                //向上滑
                if (lastItemTop > dy) {
                    //tab的top>想要滑动的dy,外层直接消耗掉
                    mParentRecyclerView.scrollBy(0, dy);
                    consumed[1] = dy;
                } else {
                    //tab的top<=想要滑动的dy,先滑外层,消耗距离为lastItemTop,刚好到顶;剩下的就滑内层了。
                    mParentRecyclerView.scrollBy(0, lastItemTop);
                    consumed[1] = dy - lastItemTop;
                }
            } else {
                //向下滑,外层直接消耗
                mParentRecyclerView.scrollBy(0, dy);
                consumed[1] = dy;
            }
        }else {
            //tab上边到顶了
            if (dy > 0){
                //向上,内层自行处理
            }else {
                int childScrolledY = mChildRecyclerView.computeVerticalScrollOffset();
                if (childScrolledY > Math.abs(dy)) {
                    //内层已滚动的距离,大于想要滚动的距离,内层自行处理
                }else {
                    //内层已滚动的距离,小于想要滚动的距离,那么内层消费一部分,到顶后,剩的外层滑动
                    mChildRecyclerView.scrollBy(0, -childScrolledY);
                    mParentRecyclerView.scrollBy(0, -(Math.abs(dy)-childScrolledY));
                    consumed[1] = dy;
                }
            }
        }
    }


    @Override
    protected void onFinishInflate() {
        super.onFinishInflate();

        //直接获取外层RecyclerView
        mParentRecyclerView = getRecyclerView(this);
        Log.i(TAG, "onFinishInflate: mParentRecyclerView=" + mParentRecyclerView);

        //关于内层RecyclerView:此时还获取不到ViewPager内fragment的RecyclerView,需要在加载ViewPager后 fragment可见时 传入
    }

    private RecyclerView getRecyclerView(ViewGroup viewGroup) {
        int childCount = viewGroup.getChildCount();
        for (int i = 0; i < childCount; i++) {
            View childAt = getChildAt(i);
            if (childAt instanceof RecyclerView) {
                if (mParentRecyclerView == null) {
                    return (RecyclerView) childAt;
                }
            }
        }
        return null;
    }

    /**
     * 传入内部RecyclerView
     *
     * @param childRecyclerView
     */
    public void setChildRecyclerView(RecyclerView childRecyclerView) {
        mChildRecyclerView = childRecyclerView;
    }


    /**
     * 外层RecyclerView的最后一个item,即:tab + viewPager
     * 用于判断 滑动 临界位置
     *
     * @param lastItemView
     */
    public void setLastItem(View lastItemView) {
        mLastItemView = lastItemView;
    }
}

NestedScrollingParent2LayoutImpl3 继承自 NestedScrollingParent2Layout。NestedScrollingParent2Layout是继承自 LinearLayout implements 并实现了NestedScrollingParent2,主要处理了通用的方法实现。

/**
 * Description:  通用 滑动嵌套处理布局,用于处理含有{@link androidx.recyclerview.widget.RecyclerView}的嵌套套滑动
 */
public class NestedScrollingParent2Layout extends LinearLayout implements NestedScrollingParent2 {


    private NestedScrollingParentHelper mNestedScrollingParentHelper = new NestedScrollingParentHelper(this);

    public NestedScrollingParent2Layout(Context context) {
        super(context);
    }

    public NestedScrollingParent2Layout(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
    }

    public NestedScrollingParent2Layout(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    /**
     * 有嵌套滑动到来了,判断父view是否接受嵌套滑动
     *
     * @param child            嵌套滑动对应的父类的子类(因为嵌套滑动对于的父View不一定是一级就能找到的,可能挑了两级父View的父View,child的辈分>=target)
     * @param target           具体嵌套滑动的那个子类
     * @param nestedScrollAxes 支持嵌套滚动轴。水平方向,垂直方向,或者不指定
     * @param type             滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public boolean onStartNestedScroll(@NonNull View child, @NonNull View target, int nestedScrollAxes, int type) {
        //自己处理逻辑
        return true;
    }

    /**
     * 当父view接受嵌套滑动,当onStartNestedScroll方法返回true该方法会调用
     *
     * @param type 滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onNestedScrollAccepted(@NonNull View child, @NonNull View target, int axes, int type) {
        mNestedScrollingParentHelper.onNestedScrollAccepted(child, target, axes, type);
    }

    /**
     * 在嵌套滑动的子View未滑动之前,判断父view是否优先与子view处理(也就是父view可以先消耗,然后给子view消耗)
     *
     * @param target   具体嵌套滑动的那个子类
     * @param dx       水平方向嵌套滑动的子View想要变化的距离
     * @param dy       垂直方向嵌套滑动的子View想要变化的距离 dy<0向下滑动 dy>0 向上滑动
     * @param consumed 这个参数要我们在实现这个函数的时候指定,回头告诉子View当前父View消耗的距离
     *                 consumed[0] 水平消耗的距离,consumed[1] 垂直消耗的距离 好让子view做出相应的调整
     * @param type     滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onNestedPreScroll(@NonNull View target, int dx, int dy, @NonNull int[] consumed, int type) {
        //自己处理逻辑
    }

    /**
     * 嵌套滑动的子View在滑动之后,判断父view是否继续处理(也就是父消耗一定距离后,子再消耗,最后判断父消耗不)
     *
     * @param target       具体嵌套滑动的那个子类
     * @param dxConsumed   水平方向嵌套滑动的子View滑动的距离(消耗的距离)
     * @param dyConsumed   垂直方向嵌套滑动的子View滑动的距离(消耗的距离)
     * @param dxUnconsumed 水平方向嵌套滑动的子View未滑动的距离(未消耗的距离)
     * @param dyUnconsumed 垂直方向嵌套滑动的子View未滑动的距离(未消耗的距离)
     * @param type         滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onNestedScroll(@NonNull View target, int dxConsumed, int dyConsumed, int dxUnconsumed, int dyUnconsumed, int type) {
        //自己处理逻辑
    }

    /**
     * 嵌套滑动结束
     *
     * @param type 滑动类型,ViewCompat.TYPE_NON_TOUCH fling 效果ViewCompat.TYPE_TOUCH 手势滑动
     */
    @Override
    public void onStopNestedScroll(@NonNull View child, int type) {
        mNestedScrollingParentHelper.onStopNestedScroll(child, type);
    }

    @Override
    public boolean onNestedPreFling(@NonNull View target, float velocityX, float velocityY) {
        //自己判断是否处理
        return false;
    }

    @Override
    public boolean onNestedFling(@NonNull View target, float velocityX, float velocityY, boolean consumed) {
        //自己处理逻辑
        return false;
    }


    @Override
    public int getNestedScrollAxes() {
        return mNestedScrollingParentHelper.getNestedScrollAxes();
    }

}

实现原理主要在onNestedPreScroll方法,即嵌套滑动的子view滑动前,询问对应的父view是否优先处理,以及处理多少。

所以无论滑动外城RecyclerView还是内层RecyclerView,都会询问NestedScrollingParent2LayoutImpl3,即都会走到onNestedPreScroll方法。然后根据tabLayout的位置以及滑动的方向,决定是滑动外层RecyclerView还是滑内层,以及滑动多少。相当于一个事假序列分发了两次,避免了常规事件分发 父view拦截后子view无法处理的问题。

onNestedPreScroll中的具体处理,请看代码,有详细注释。要结合滑动实际情况去理解,便于遇到其他情况也能同样处理。

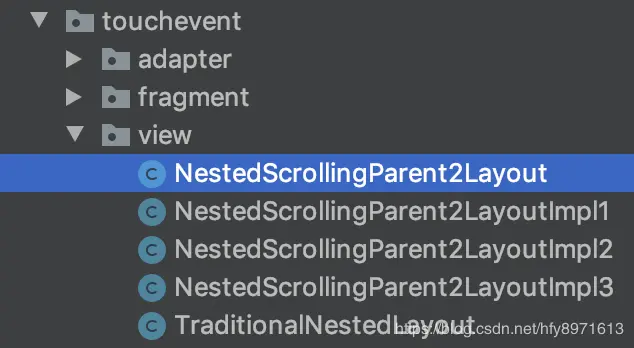

这里列出已经实现的处理三种嵌套滑动的方案

  • NestedScrollingParent2LayoutImpl1:处理 header + tab + viewPager + recyclerView
  • NestedScrollingParent2LayoutImpl2: 处理 header + recyclerView
  • NestedScrollingParent2LayoutImpl3:处理RecyclerView 套viewPager, viewPager内的fragment中 也有RecyclerView,处理外层、内层 RecyclerView的嵌套滑动问题,类似淘宝、京东首页。

在这里插入图片描述

代码Github地址,欢迎star和issue ,有帮助的话Star一波吧。

.

欢迎关注公众号

胡飞洋
