iOS Tip： 设置 View 的 cornerRadius 和 shadow

想使一个 View 的 cornerRadius 生效，需要设置 targetView.layer.masksToBounds = true 或者 targetView.clipsToBounds = true （其实是同一个东西，表示超出 view 外面的内容是否绘制，默认是 false）

想使一个 View 的 shadow 阴影效果生效，需要设置 targetView.layer.masksToBounds = false。

所以在同一个 view 里面设置 cornerRadius 和 shadow 就冲突了。

阴影不生效

设置不是都生效的代码所示：

    private func shadowAndCornerNotWork() {
        let rect = CGRect(x: 100, y: 200, width: 200, height: 200)
        let cornerRadius: CGFloat = 20

        let imageView = UIImageView(frame: rect)
        imageView.image = UIImage(named: "img1") // 设置内容

        // cornerRadius ... 起左右
        imageView.layer.cornerRadius = cornerRadius
        imageView.layer.masksToBounds = true // 使内容的 cornerRadius 有效

        // shadow ... 不起左右
        imageView.layer.shadowOpacity = 0.7
        imageView.layer.shadowRadius = 20
        imageView.layer.shadowColor = UIColor.red.cgColor
        imageView.layer.shadowOffset = CGSize(width: 0, height: 0)

        view.addSubview(imageView)
    }

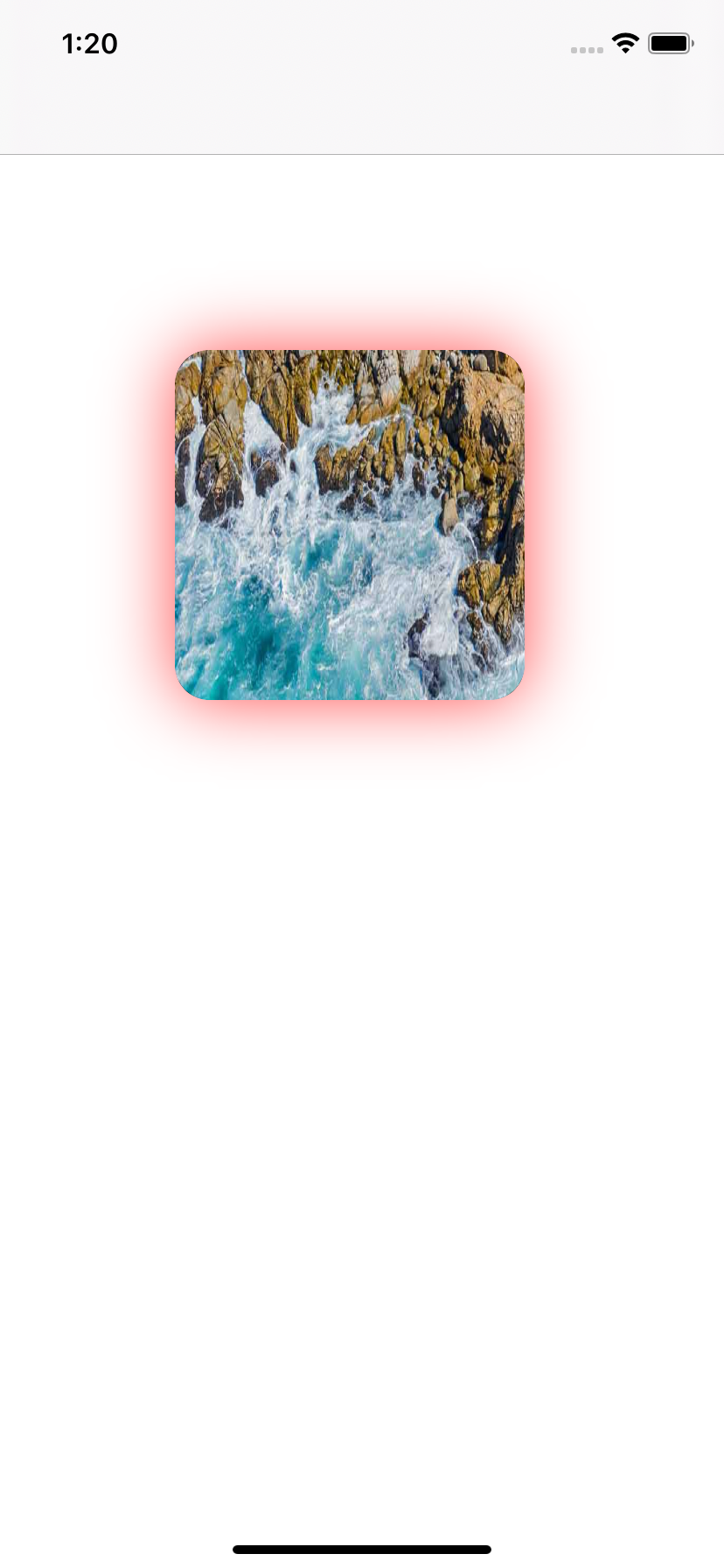

cornerRadius 和 shadow 都生效 1 (规则圆角)

解决办法其实很简单，设置2个 view。

• 一个 view 显示内容，设置 cornerRadius
• 一个 view 显示 shadow

    private func shadowAndCornerEfficient() {
        let rect = CGRect(x: 100, y: 200, width: 200, height: 200)
        let cornerRadius: CGFloat = 40

        // 不会离屏渲染
        let shadowView = UIView(frame: rect)

        shadowView.layer.shadowOpacity = 0.7
        shadowView.layer.shadowRadius = cornerRadius
        shadowView.layer.shadowColor = UIColor.red.cgColor
        shadowView.layer.shadowOffset = CGSize(width: 0, height: 0)

        let path0 = UIBezierPath(roundedRect: shadowView.bounds, byRoundingCorners: .allCorners, cornerRadii: CGSize(width: cornerRadius, height: cornerRadius)).cgPath
        shadowView.layer.shadowPath = path0 // 不会离屏渲染

        // 不会离屏渲染
        let cornerImageView = UIImageView(frame: rect)
        cornerImageView.image = UIImage(named: "img1")
        cornerImageView.layer.cornerRadius = cornerRadius
        cornerImageView.layer.masksToBounds = true

        // 3 Add
        view.addSubview(shadowView)
        view.addSubview(cornerImageView)
    }

（可以通过打开模拟器的 Debug -> Color off-screen Rendered 查看。离屏渲染会导致额外的开销，如果很多 view 都开了离屏渲染会导致屏幕卡顿现象）

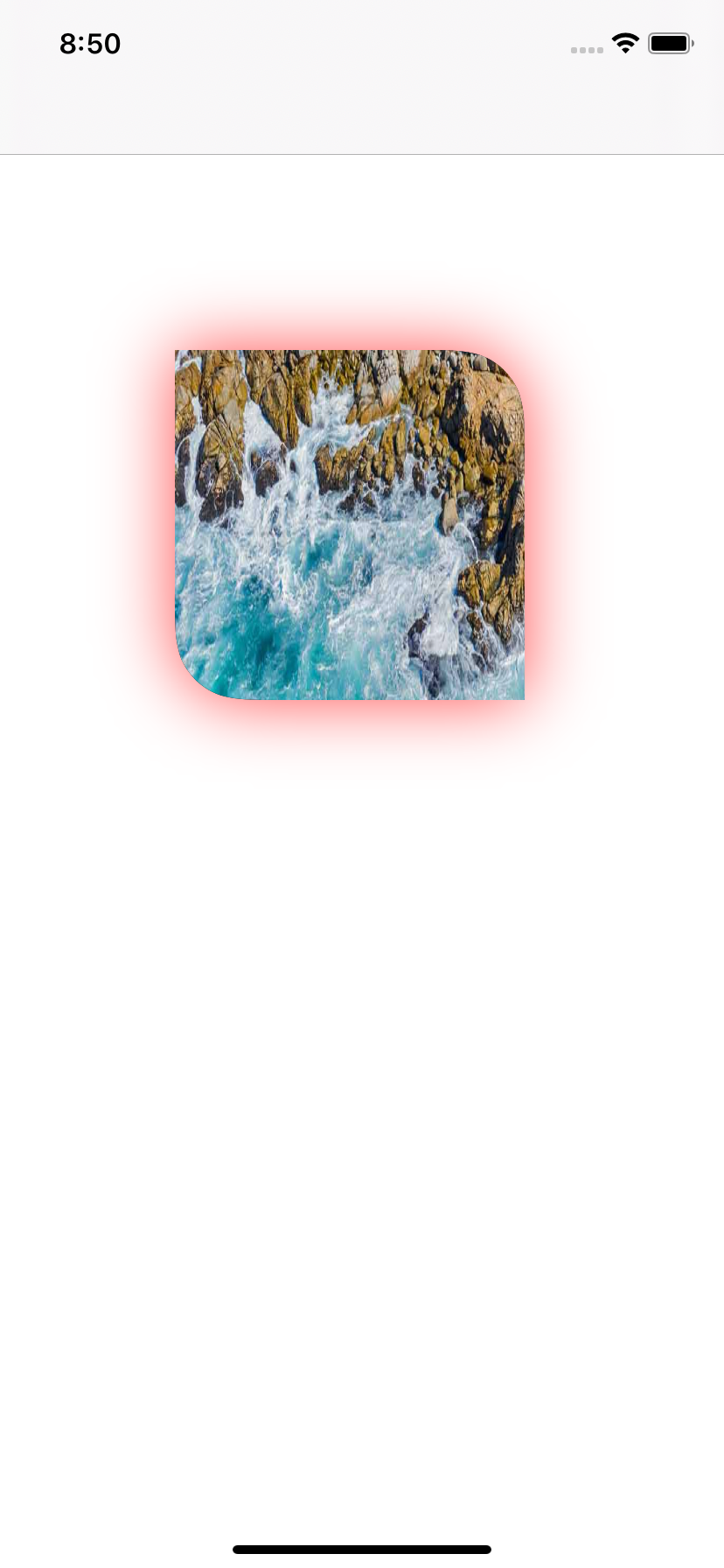

cornerRadius 和 shadow 都生效 2 (不规则圆角)

    func shadowAndCornerNotEfficient() {
        let rect = CGRect(x: 100, y: 200, width: 200, height: 200)
        let cornerRadius: CGFloat = 40

        // 1 shadowView
        // 不会离屏渲染
        let shadowView = UIView(frame: rect)

        shadowView.layer.shadowOpacity = 0.7
        shadowView.layer.shadowRadius = cornerRadius
        shadowView.layer.shadowColor = UIColor.red.cgColor
        shadowView.layer.shadowOffset = CGSize(width: 0, height: 0)

        let path0 = UIBezierPath(roundedRect: shadowView.bounds, byRoundingCorners: [.topRight, .bottomLeft], cornerRadii: CGSize(width: cornerRadius, height: cornerRadius)).cgPath
        shadowView.layer.shadowPath = path0 // 不会离屏渲染

        // 2 cornerRadius
        let cornerView = UIView(frame: rect)
        let cornerLayer = CAShapeLayer()

        let path1 = UIBezierPath(roundedRect: cornerView.bounds, byRoundingCorners: [.topRight, .bottomLeft], cornerRadii: CGSize(width: cornerRadius, height: cornerRadius)).cgPath
        cornerLayer.path = path1

        cornerView.layer.mask = cornerLayer // 离屏渲染
        cornerView.layer.contents = UIImage(named: "img1")?.cgImage

        // 3 Add
        view.addSubview(shadowView)
        view.addSubview(cornerView)
    }
