解决FFmpeg获取aac音频文件duration不准

Mr_xkHuang
4,966 阅读9分钟

这个问题是这样产生的，一同事反应会随机出现ijk获取到的aac文件的duration不准，发来一看，确实不准，在AE或者系统mediaplayer中得到的都是8.4秒（准确时间是MtkAACExtractor: ADTS: duration = 8448000 us），ijk得到的是9.3秒，在播放的时候，在8秒的时候流就结束了，放到编译的ffmpeg中，一看也是9.3秒。

1.分析问题

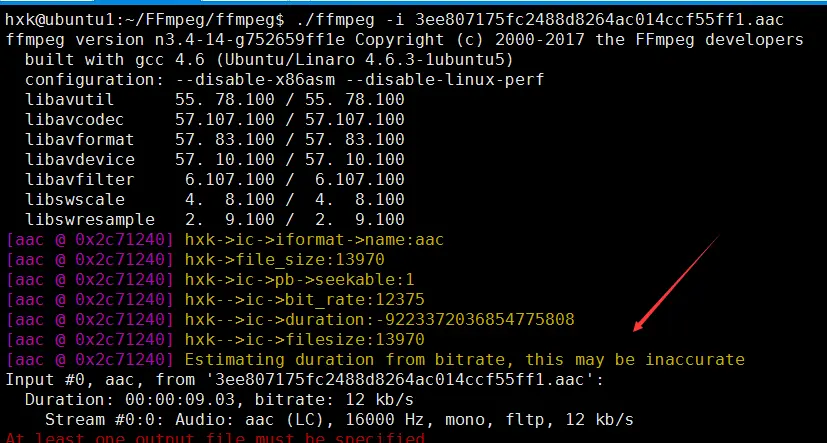

下面开始分析这个问题，命令行看下这个文件，ffmpeg中获取到的确实是9.3秒


仔细看下红色箭头所指，这个意思是获取到的duration是根据比特率计算的，可能不准确。这种获取音视频info有问题的我们一般可以从avformat_find_stream_info函数开始分析。

这里直接从log开始看，waring出现出现在utils.c/libavformat下

static void estimate_timings_from_bit_rate(AVFormatContext *ic)
{
    int64_t filesize, duration;
    int i, show_warning = 0;
    AVStream *st;

	av_log(ic, AV_LOG_WARNING,
				   "hxk-->ic->bit_rate:%lld\n",ic->bit_rate);
	//这里从log可以看到，bitrate也没获取到，bitrate = 0
    /* if bit_rate is already set, we believe it */
    if (ic->bit_rate <= 0) {
        int64_t bit_rate = 0;
        for (i = 0; i < ic->nb_streams; i++) {
            st = ic->streams[i];

            if (st->codecpar->bit_rate <= 0 && st->internal->avctx->bit_rate > 0)
                st->codecpar->bit_rate = st->internal->avctx->bit_rate;
            if (st->codecpar->bit_rate > 0) {
                if (INT64_MAX - st->codecpar->bit_rate < bit_rate) {
                    bit_rate = 0;
                    break;
                }
                bit_rate += st->codecpar->bit_rate;
            } else if (st->codecpar->codec_type == AVMEDIA_TYPE_VIDEO && st->codec_info_nb_frames > 1) {
                // If we have a videostream with packets but without a bitrate
                // then consider the sum not known
                bit_rate = 0;
                break;
            }
        }
        //这里算出来一个bitrate
        ic->bit_rate = bit_rate;
		av_log(ic, AV_LOG_WARNING,
				   "hxk-->ic->bit_rate:%lld\n",ic->bit_rate);
    }
    //从log中可以看到，这里的duration也是0

    /* if duration is already set, we believe it */
	av_log(ic, AV_LOG_WARNING,
               "hxk-->ic->duration:%lld\n",ic->duration);
    if (ic->duration == AV_NOPTS_VALUE &&
        ic->bit_rate != 0) {
        filesize = ic->pb ? avio_size(ic->pb) : 0;
		av_log(ic, AV_LOG_WARNING,
               "hxk-->ic->filesize:%lld\n",filesize);
        if (filesize > ic->internal->data_offset) {
            filesize -= ic->internal->data_offset;
            for (i = 0; i < ic->nb_streams; i++) {
                st      = ic->streams[i];
                if (   st->time_base.num <= INT64_MAX / ic->bit_rate
                    && st->duration == AV_NOPTS_VALUE) {
                    //这里根据文件字节*8 /比特率来计算duration，这里cbr这样计算可以计算，但是如果vbr（码率动态）的话就有问题了
                    duration = av_rescale(8 * filesize, st->time_base.den,
                                          ic->bit_rate *
                                          (int64_t) st->time_base.num);
                //获取到的duration就不准确了
                    st->duration = duration;
                    show_warning = 1;
                }
            }
        }
    }
    if (show_warning)
        av_log(ic, AV_LOG_WARNING,
               "Estimating duration from bitrate, this may be inaccurate\n");
}

调用上面这个函数的地方是utils.c/libavofrmat：

static void estimate_timings(AVFormatContext *ic, int64_t old_offset)
{
    int64_t file_size;

    /* get the file size, if possible */
    if (ic->iformat->flags & AVFMT_NOFILE) {
        file_size = 0;
    } else {
        file_size = avio_size(ic->pb);
        file_size = FFMAX(0, file_size);
    }
	av_log(ic, AV_LOG_WARNING, "hxk->ic->iformat->name:%s\n", ic->iformat->name);
	av_log(ic, AV_LOG_WARNING, "hxk->file_size:%lld\n", file_size);
	av_log(ic, AV_LOG_WARNING, "hxk->ic->pb->seekable:%d\n", ic->pb->seekable);

    if ((!strcmp(ic->iformat->name, "mpeg") ||
         !strcmp(ic->iformat->name, "mpegts")) &&
        file_size && (ic->pb->seekable & AVIO_SEEKABLE_NORMAL)) {
        /* get accurate estimate from the PTSes */
        estimate_timings_from_pts(ic, old_offset);
        ic->duration_estimation_method = AVFMT_DURATION_FROM_PTS;
    } else if (has_duration(ic)) {
    //如果在demuxer中获取到duration了
        /* at least one component has timings - we use them for all
         * the components */
        fill_all_stream_timings(ic);
        ic->duration_estimation_method = AVFMT_DURATION_FROM_STREAM;
    } else {
    //这个文件没有获取到duration，所以走的是这里
        /* less precise: use bitrate info */
        estimate_timings_from_bit_rate(ic);
        ic->duration_estimation_method = AVFMT_DURATION_FROM_BITRATE;
    }
    update_stream_timings(ic);

    {
        int i;
        AVStream av_unused *st;
        for (i = 0; i < ic->nb_streams; i++) {
            st = ic->streams[i];
            av_log(ic, AV_LOG_TRACE, "stream %d: start_time: %0.3f duration: %0.3f\n", i,
                   (double) st->start_time * av_q2d(st->time_base),
                   (double) st->duration   * av_q2d(st->time_base));
        }
        av_log(ic, AV_LOG_TRACE,
                "format: start_time: %0.3f duration: %0.3f bitrate=%"PRId64" kb/s\n",
                (double) ic->start_time / AV_TIME_BASE,
                (double) ic->duration   / AV_TIME_BASE,
                (int64_t)ic->bit_rate / 1000);
    }
}

调用上面这个方法是在avformat_find_stream_info/utils.c/libavformat函数中。

2.解决问题

原因已经知道了，那么可以如何解决这个问题呢？ aac的duration可以如何获取呢？ 我们看下android系统中libstagefright框架中aacextractore的实现

AACExtractor.cpp/libstagefrgiht

AACExtractor::AACExtractor(
        const sp<DataSource> &source, const sp<AMessage> &_meta)
    : mDataSource(source),
      mInitCheck(NO_INIT),
      mFrameDurationUs(0) {
    sp<AMessage> meta = _meta;

    if (meta == NULL) {
        String8 mimeType;
        float confidence;
        sp<AMessage> _meta;

        if (!SniffAAC(mDataSource, &mimeType, &confidence, &meta)) {
            return;
        }
    }

    int64_t offset;
    CHECK(meta->findInt64("offset", &offset));

    uint8_t profile, sf_index, channel, header[2];
    if (mDataSource->readAt(offset + 2, &header, 2) < 2) {
        return;
    }
//获取profile
    profile = (header[0] >> 6) & 0x3;
//获取采样索引
    sf_index = (header[0] >> 2) & 0xf;
//获取采样率
    uint32_t sr = get_sample_rate(sf_index);
    if (sr == 0) {
        return;
    }
//通道
    channel = (header[0] & 0x1) << 2 | (header[1] >> 6);

    mMeta = MakeAACCodecSpecificData(profile, sf_index, channel);

    off64_t streamSize, numFrames = 0;
    size_t frameSize = 0;
    int64_t duration = 0;
//获取文件大小
    if (mDataSource->getSize(&streamSize) == OK) {
         while (offset < streamSize) {
         //获取adts每一帧大小
            if ((frameSize = getAdtsFrameLength(source, offset, NULL)) == 0) {
                return;
            }

            mOffsetVector.push(offset);

            offset += frameSize;//偏移加加
            numFrames ++;//计算帧数目
        }
//***************重点看下这里，这里在下面分析aac文件格式的时候会讲解细致一点*************
        // Round up and get the duration
        mFrameDurationUs = (1024 * 1000000ll + (sr - 1)) / sr;
        duration = numFrames * mFrameDurationUs;//总帧数x一个AAC音频帧的播放时间
        mMeta->setInt64(kKeyDuration, duration);
    }

    mInitCheck = OK;
}

我们再看下getAdtsFrameLength/AACExtractor.cpp/libstagefrgiht函数，这个函数其实就是根据adts头来计算出每一个framesize的大小的

static size_t getAdtsFrameLength(const sp<DataSource> &source, off64_t offset, size_t* headerSize) {
//CRC
    const size_t kAdtsHeaderLengthNoCrc = 7;
    const size_t kAdtsHeaderLengthWithCrc = 9;

    size_t frameSize = 0;
//同步字
    uint8_t syncword[2];
    if (source->readAt(offset, &syncword, 2) != 2) {
        return 0;
    }
    if ((syncword[0] != 0xff) || ((syncword[1] & 0xf6) != 0xf0)) {
        return 0;
    }
//0没有crc，1有crc
    uint8_t protectionAbsent;

    if (source->readAt(offset + 1, &protectionAbsent, 1) < 1) {
        return 0;
    }
    protectionAbsent &= 0x1;

    uint8_t header[3];
    if (source->readAt(offset + 3, &header, 3) < 3) {
        return 0;
    }
//获取framesize的大小
    frameSize = (header[0] & 0x3) << 11 | header[1] << 3 | header[2] >> 5;

    // protectionAbsent is 0 if there is CRC
    size_t headSize = protectionAbsent ? kAdtsHeaderLengthNoCrc : kAdtsHeaderLengthWithCrc;
    if (headSize > frameSize) {
        return 0;
    }
    if (headerSize != NULL) {
        *headerSize = headSize;
    }

    return frameSize;
}

上面的实现原理就是根据一个AAC原始帧包含一段时间内1024个采样及相关数据。一个AAC音频帧的播放时间=一个AAC帧对应的采样样本的个数/采样率。所以aac音频文件总时间t=总帧数x一个AAC音频帧的播放时间

下面看一下aac的demuxer，在aacdec.c/libavformat下，发现里面连对aidf头的处理都没有，这个先不管了。

AAC格式：

下面我们先简单看下aac的格式：

详细的AAC格式参考下这篇文章吧，实在懒得写。

AAC文件格式与音频文件时长计算

解决问题

下面我们看下ffmpeg中这个格式的demuxer，这个文件封装格式raw ADTS AAC，下面我们看下aacdec.c/libavformat

修改aacdec.c文件，新加函数

//add by hxk
//获取adts frame的帧长
static int getAdtsFrameLength(AVFormatContext *s,int64_t offset,int* headerSize)
{
	int64_t filesize, position = avio_tell(s->pb);
    filesize = avio_size(s->pb);
	//av_log(NULL, AV_LOG_WARNING, "hxk->getAdtsFrameLength.filesize:%d\n",filesize);
    const int kAdtsHeaderLengthNoCrc = 7;
    const int kAdtsHeaderLengthWithCrc = 9;
    int frameSize = 0;
    uint8_t syncword[2];
	avio_seek(s->pb, offset, SEEK_SET);
	//读取同步字
    if(avio_read(s->pb,&syncword, 2)!= 2){
		return 0;
	}
    if ((syncword[0] != 0xff) || ((syncword[1] & 0xf6) != 0xf0)) {
        return 0;
    }
	uint8_t protectionAbsent;
	avio_seek(s->pb, offset+1, SEEK_SET);
	//读取protectionAbsent
    if (avio_read(s->pb, &protectionAbsent, 1) < 1) {
        return 0;
    }
    protectionAbsent &= 0x1;
    uint8_t header[3];
//读取header
	avio_seek(s->pb, offset+3, SEEK_SET);
    if (avio_read(s->pb, &header, 3) < 3) {
        return 0;
    }

    //获取framesize
    frameSize = (header[0] & 0x3) << 11 | header[1] << 3 | header[2] >> 5;
    // protectionAbsent is 0 if there is CRC
    int headSize = protectionAbsent ? kAdtsHeaderLengthNoCrc : kAdtsHeaderLengthWithCrc;
    if (headSize > frameSize) {
        return 0;
    }
    if (headerSize != NULL) {
        *headerSize = headSize;
    }
    return frameSize;
}
//根据采样率下标获取采样率
static uint32_t get_sample_rate(const uint8_t sf_index)
{
    static const uint32_t sample_rates[] =
    {
        96000, 88200, 64000, 48000, 44100, 32000,
        24000, 22050, 16000, 12000, 11025, 8000
    };

    if (sf_index < sizeof(sample_rates) / sizeof(sample_rates[0])) {
        return sample_rates[sf_index];
    }

    return 0;
}

//add end

修改adts_aac_read_header函数

static int adts_aac_read_header(AVFormatContext *s)
{
	av_log(NULL, AV_LOG_WARNING, "hxk->adts_aac_read_header!\n");

    AVStream *st;
    uint16_t state;

    st = avformat_new_stream(s, NULL);
    if (!st)
        return AVERROR(ENOMEM);

    st->codecpar->codec_type = AVMEDIA_TYPE_AUDIO;
    st->codecpar->codec_id   = s->iformat->raw_codec_id;
    st->need_parsing         = AVSTREAM_PARSE_FULL_RAW;
    ff_id3v1_read(s);
    if ((s->pb->seekable & AVIO_SEEKABLE_NORMAL) &&
        !av_dict_get(s->metadata, "", NULL, AV_DICT_IGNORE_SUFFIX)) {
        int64_t cur = avio_tell(s->pb);
        ff_ape_parse_tag(s);
        avio_seek(s->pb, cur, SEEK_SET);
    }

    // skip data until the first ADTS frame is found
    state = avio_r8(s->pb);
    while (!avio_feof(s->pb) && avio_tell(s->pb) < s->probesize) {
        state = (state << 8) | avio_r8(s->pb);
        if ((state >> 4) != 0xFFF)
            continue;
        avio_seek(s->pb, -2, SEEK_CUR);
        break;
    }
    if ((state >> 4) != 0xFFF)
        return AVERROR_INVALIDDATA;

    // LCM of all possible ADTS sample rates
 //   avpriv_set_pts_info(st, 64, 1, 28224000);
//add by hxk
#if  1
        //句柄指回起点
		avio_seek(s->pb, 0, SEEK_SET);
		uint8_t profile, sf_index, channel, header[2];
		//文件指针移动到文件起点前2个字节
		avio_seek(s->pb, 2, SEEK_SET);
		if (avio_read(s->pb,&header, 2) < 2) {
			av_log(NULL, AV_LOG_ERROR, "avio_read header error!\n");
			return 0;
		}
		int64_t offset = 0;
		//获取profile
		profile = (header[0] >> 6) & 0x3;
		st->codecpar->profile = profile;
		//av_log(NULL, AV_LOG_WARNING, "hxk->profile:%d!\n",profile);
		sf_index = (header[0] >> 2) & 0xf;
		//获取采样率
		uint32_t sr = get_sample_rate(sf_index);
		//av_log(NULL, AV_LOG_WARNING, "hxk->samplerate:%d!\n",sr);
		if (sr == 0) {
			av_log(NULL, AV_LOG_ERROR, "avio_read read sampletare error!\n");
			return 0;
		}
		//赋值给codec参数
		st->codecpar->sample_rate = sr;
		//获取通道
		channel = (header[0] & 0x1) << 2 | (header[1] >> 6);
		if (channel == 0) {
			av_log(NULL, AV_LOG_ERROR, "adts_aac_read_header read channel error!\n");
			return 0;
		}
	    //赋值给codec 参数
		st->codecpar->channels = channel;
		//av_log(NULL, AV_LOG_WARNING, "hxk->channel:%d!\n",channel);
		sf_index = (header[0] >> 2) & 0xf;
		int frameSize = 0;
		int64_t mFrameDurationUs = 0;
		int64_t duration = 0;
		//采样率赋值给codec
		st->codecpar->sample_rate = sr;
		int64_t streamSize, numFrames = 0;
	    avpriv_set_pts_info(st, 64, 1, st->codecpar->sample_rate);
	    //获取文件大小
		streamSize =  avio_size(s->pb);
	//	av_log(NULL, AV_LOG_WARNING, "hxk->streamSize:%d!\n",streamSize);
		if (streamSize > 0) {
			while (offset < streamSize) {
				if ((frameSize = getAdtsFrameLength(s, offset, NULL)) == 0) {
					  return 0;
				}
				offset += frameSize;//偏移加加
				numFrames ++;//帧数加加，获取总帧数
			//	av_log(NULL, AV_LOG_WARNING, "hxk->frameSize:%d!\n",frameSize);
			}
		//	av_log(NULL, AV_LOG_WARNING, "hxk->numFrames:%lld!\n",numFrames);
			// Round up and get the duration，计算每一帧时间
			mFrameDurationUs = (1024 * 1000000ll + (sr - 1)) / sr;
			duration = numFrames * mFrameDurationUs;//us
			//时间基转换avstream的，us单位(AV_TIME_BASE_Q)转avstream的时间基
			duration = av_rescale_q(duration,AV_TIME_BASE_Q, st->time_base);
			st->duration = duration;
		//	av_log(NULL, AV_LOG_WARNING, "hxk->duration:%d!\n",duration);
		}

#endif
//add end

    return 0;
}

这样在demuxer中就获得了duration，在上面的estimate_timings函数中就直接走has_duration这个判断了，得到的duration也是比较准确的了。

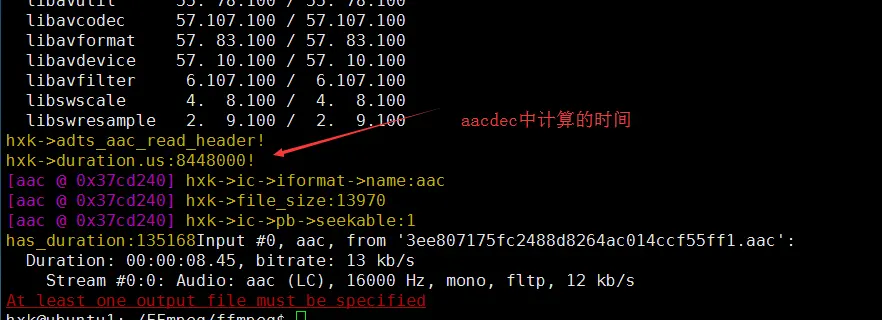

运行一下修改后的代码，从下图可以看到时间已经改变了，和android中MtkAACExtractor获取的duration是一样的了。


后续

正满心欢喜解决了问题后，把改动的代码移植到ijk上的时候，发现不能播放，没报任何错误，文件info读取都是正确的，seek一下的时候报了这么一行错误

IJKMEDIA: /storage/emulated/0/3ee807175fc2488d8264ac014ccf55ff.aac: error while seeking

原来忘记把句柄置回去了 修改如下：

static int adts_aac_read_header(AVFormatContext *s)
{
    AVStream *st;
    uint16_t state;

    st = avformat_new_stream(s, NULL);
    if (!st)
        return AVERROR(ENOMEM);

    st->codecpar->codec_type = AVMEDIA_TYPE_AUDIO;
    st->codecpar->codec_id   = s->iformat->raw_codec_id;
    st->need_parsing         = AVSTREAM_PARSE_FULL_RAW;

    ff_id3v1_read(s);
    if ((s->pb->seekable & AVIO_SEEKABLE_NORMAL) &&
        !av_dict_get(s->metadata, "", NULL, AV_DICT_IGNORE_SUFFIX)) {
        int64_t cur = avio_tell(s->pb);
        ff_ape_parse_tag(s);
        avio_seek(s->pb, cur, SEEK_SET);
    }

    // skip data until the first ADTS frame is found
    state = avio_r8(s->pb);
    while (!avio_feof(s->pb) && avio_tell(s->pb) < s->probesize) {
        state = (state << 8) | avio_r8(s->pb);
        if ((state >> 4) != 0xFFF)
            continue;
        avio_seek(s->pb, -2, SEEK_CUR);
        break;
    }
    if ((state >> 4) != 0xFFF)
        return AVERROR_INVALIDDATA;

    // LCM of all possible ADTS sample rates
   // avpriv_set_pts_info(st, 64, 1, 28224000);
	//add by hxk
#if  1

			avio_seek(s->pb, 0, SEEK_SET);
			uint8_t profile, sf_index, channel, header[2];
			avio_seek(s->pb, 2, SEEK_SET);
			if (avio_read(s->pb,&header, 2) < 2) {
				av_log(NULL, AV_LOG_ERROR, "avio_read header error!\n");
				return 0;
			}
			int64_t offset = 0;
			profile = (header[0] >> 6) & 0x3;
			st->codecpar->profile = profile;
			sf_index = (header[0] >> 2) & 0xf;
			uint32_t sr = get_sample_rate(sf_index);
			if (sr == 0) {
				av_log(NULL, AV_LOG_ERROR, "adts_aac_read_header read sampletare error!\n");
				return 0;
			}
			st->codecpar->sample_rate = sr;
			channel = (header[0] & 0x1) << 2 | (header[1] >> 6);
			if(channel == 0) {
				av_log(NULL, AV_LOG_ERROR, "adts_aac_read_header read channel error!\n");
				return 0;
			}
			st->codecpar->channels = channel;
			sf_index = (header[0] >> 2) & 0xf;
			int frameSize = 0;
			int64_t mFrameDurationUs = 0;
			int64_t duration = 0;
			st->codecpar->sample_rate = sr;
			int64_t streamSize, numFrames = 0;
			avpriv_set_pts_info(st, 64, 1, st->codecpar->sample_rate);
			streamSize =  avio_size(s->pb);
			//av_log(NULL, AV_LOG_WARNING, "hxk->streamSize:%d!\n",streamSize);
			if (streamSize > 0) {
				while (offset < streamSize) {
					if ((frameSize = getAdtsFrameLength(s, offset, NULL)) == 0) {
						  return 0;
					}
					offset += frameSize;
					numFrames ++;
				//av_log(NULL, AV_LOG_WARNING, "hxk->frameSize:%d!\n",frameSize);
				}
				// av_log(NULL, AV_LOG_WARNING, "hxk->numFrames:%lld!\n",numFrames);
				// Round up and get the duration
				mFrameDurationUs = (1024 * 1000000ll + (sr - 1)) / sr;
				duration = numFrames * mFrameDurationUs;//us
				duration = av_rescale_q(duration,AV_TIME_BASE_Q, st->time_base);
				st->duration = duration;
				//av_log(NULL, AV_LOG_WARNING, "hxk->duration:%d!\n",duration);
			}
			//置回句柄
			avio_seek(s->pb, 0, SEEK_SET);

#endif
	//add end

    return 0;
}

嗯，可以获取正确的时间来正常播放了。

avatar
文章
阅读
粉丝
相关推荐
ffmpeg使用指南
2.5k阅读
 ·
7点赞
FFmpeg技术详解
2.6k阅读
 ·
12点赞
FFmpeg编程录制音频（Mac OS）
1.0k阅读
 ·
1点赞
Nodejs 第十六章（ffmpeg）
3.3k阅读
 ·
50点赞
FFmpeg常见命令行（三）：FFmpeg转码
1.5k阅读
 ·
9点赞
07-📝音视频技术核心知识|AAC编码【AAC编码器解码器、编译FFmpeg、AAC编码实战、AAC解码实战】
1.3k阅读
 ·
3点赞
OpenAI Whisper + FFmpeg + TTS：动态实现跨语言视频音频翻译
5.3k阅读
 ·
25点赞
ffmpeg 入门与疑问
2.0k阅读
 ·
28点赞
FFmpeg编译与集成
2.1k阅读
 ·
4点赞
配合ffmpeg接口获取视频音频媒体的详细信息
1.8k阅读
 ·
3点赞

友情链接：
