###背景,开发需求中iOS动画我们可能或多或少的会遇到一些,但是不管是动画的复杂性(其实也并不是很复杂)还是自己的其他一些原因,一直没有尝试学习,感觉这是非常不可取的,因此,忙完手上的工作后,这一周的时间自己慢慢的学习了一下动画的一些内容,并和大家一起分享一下自己比较疑惑的一些地方。
demo查看
1关于CALayer的一些属性

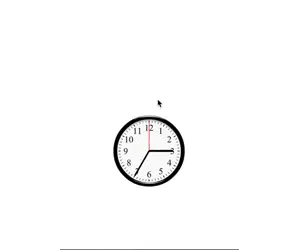

效果:
####CALayer Overview
CALayer类在概念上和UIView类似,同样也是一些被层级关系树管理的矩形块,同样也可以包含一些内容(像图片,文本或者背景色),管理子图层的位置。它们有一些方法和属性用来做动画和变换。和UIView 最大的不同是CALayer不处理用户的交互。
对一些简单的需求来说,我们确实没必要处理CALayer,因为苹果已经通过UIView 的高级API间接地使得动画变得很简单。但是这种简单会不可避免地带来一些灵活.上的缺陷。如果你略微想在底层做一些改变,或者使用一些苹果没有在UIView 上实现的接口功能,这时除了介入Core Animation底层之外别无选择。
我们已经证实了图层不能像视图那样处理触摸事件,那么他能做哪些视图不能做的呢?这里有一些UIView没有暴露出来的CALayer的功能: ●阴影,圆角,带颜色的边框
●3D变换
●非矩形范围
●透明遮罩
●多级非线性动画
CALayer 属性(个人理解)
contents layer的内容,id类型。但是必须的是CGImage类型,否则得到的图层是空白的。
//一下两种都可以(可以直接写,xcode会提示)
clockLayer.contents = (__bridge id _Nullable)([UIImage imageNamed:@"clock"].CGImage);
clockLayer.contents = (id)([UIImage imageNamed:@"clock"].CGImage);
-
position 类似于UIView的center(默认情况下,在图形默认的中心)
-
anchorPoint (锚点) 决定于positon的位置,我们可以通过anchorPoint决定position的位置。它的范围是(0,0)~ (1,1)
。如下图 -

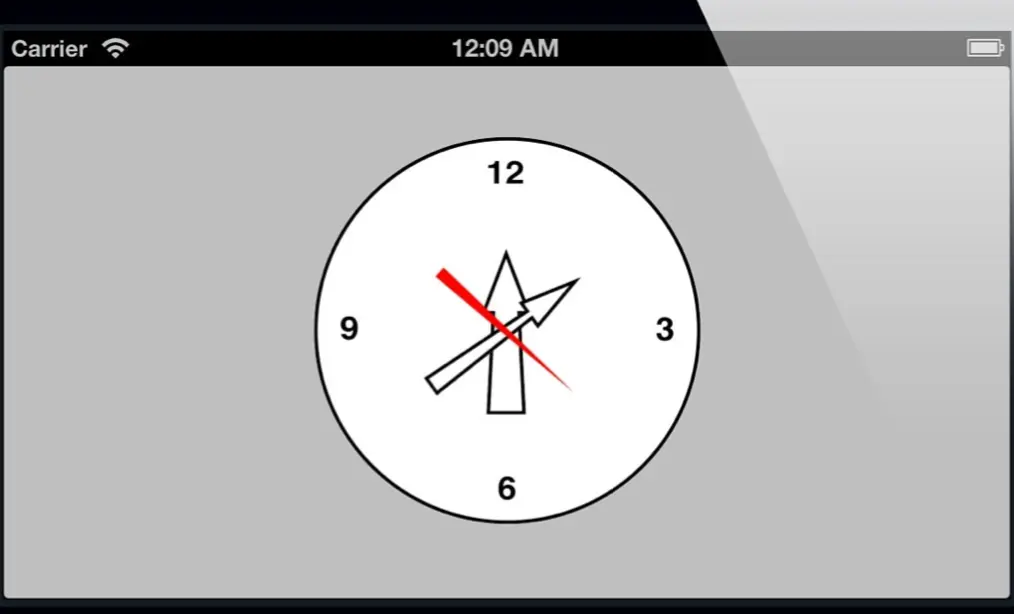

在上面的钟表,我们就修改了它的anchorPoint。试想如果我们不去修改它的anchorPoint,那么他就会变成这个样子,
-
部分代码如下(CGPointMake设为(0.5,0)或(0.5,1)效果是相同的 ,大家可以自己修改看一下)
UIView *hourHandView = [[UIView alloc]init];
hourHandView.backgroundColor = [UIColor blackColor];
hourHandView.bounds = CGRectMake(0, 0, 4, 50);
hourHandView.center = self.view.center;
hourHandView.layer.anchorPoint = CGPointMake(0.5, 1);
[self.view addSubview:hourHandView];
self.hourHandView = hourHandView;
Animation(图片来自网络)
CABasicAnimation

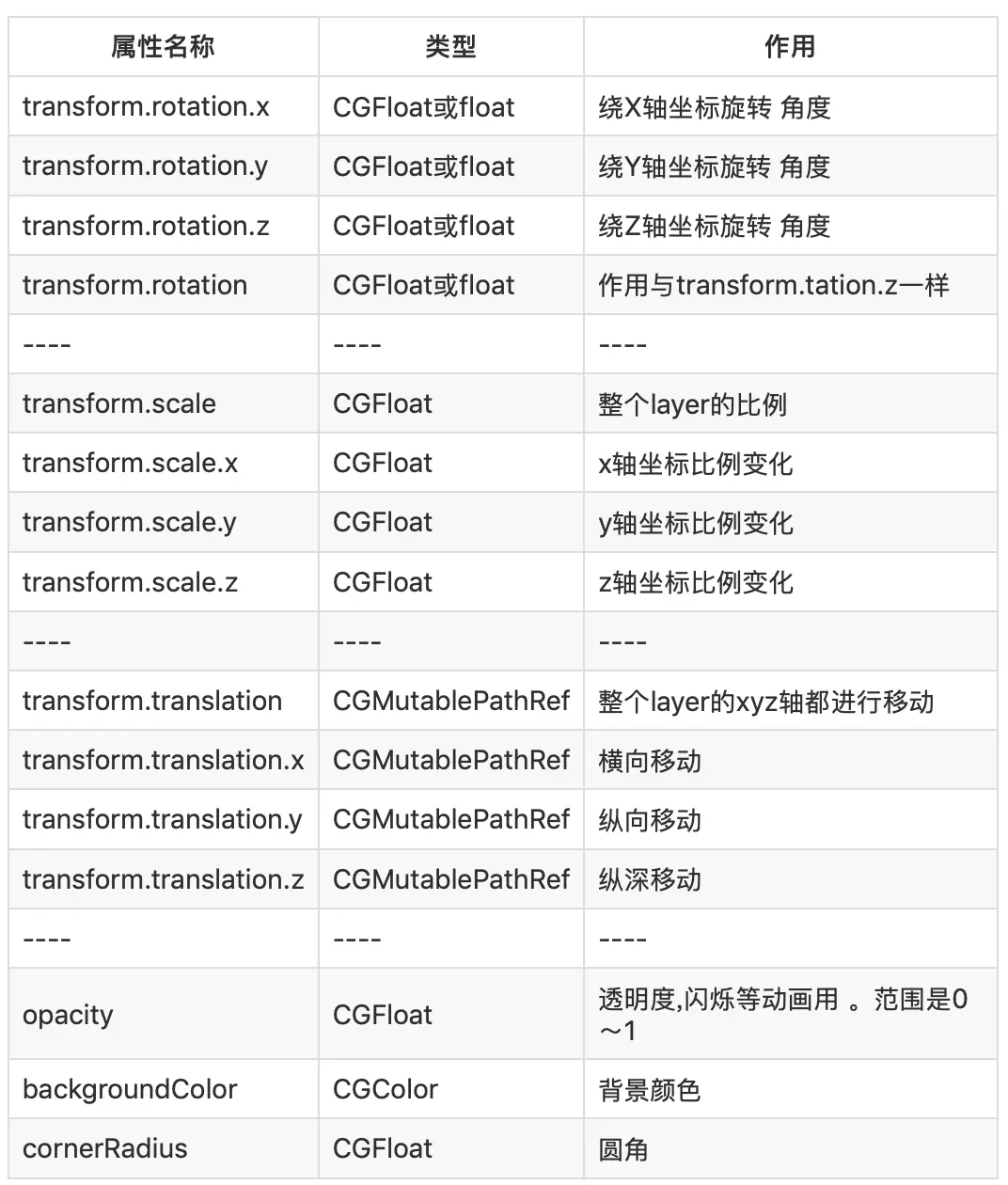

- An object that provides basic, single-keyframe animation capabilities for a layer property. 继承自 CAPropertyAnimation。我们可通过keyPath设置动画的一些属性。常用的keyPath(不用记,用到的时候自己看一下就好了)
- fromValue 初始状态 比如
basicAnimation.fromValue = [NSValue valueWithCGPoint:CGPointMake(0, 0)];
表示初始位置。 - toValue 结束状态 比如
basicAnimation.toValue = [NSValue valueWithCGPoint:CGPointMake(300, 300)];
表示结束位置。 CABasicAnimation算是CAKeyFrameAnimation的 特殊情况,即不考虑中间变换过程,只考虑起始点与目标点就可以了
CAKeyframeAnimation关键帧动画
- 通过两种方式来实现动画
@property(nullable, copy) NSArray *values;
和@property(nullable) CGPathRef path;
@property(nullable, copy) NSArray<NSNumber *> *keyTimes;
该 属性是一个数组,假设用以指定每个子路径(AB,BC,CD)的时间。如果你没有显式地对keyTimes进行设置,则系统会默认每条子路径的时间 为:ti=duration/(5-1),即每条子路径的duration相等,都为duration的1\4。当然,我们也可以传个数组让物体快慢结 合。例如,你可以传入{0.0, 0.1,0.6,0.7,1.0},其中首尾必须分别是0和1,因此tAB=0.1-0, tCB=0.6-0.1, tDC=0.7-0.6, tED=1-0.7.....@property(nullable, copy) NSArray<CAMediaTimingFunction *> *timingFunctions;
用以指定时间函数,类似于运动的加速度

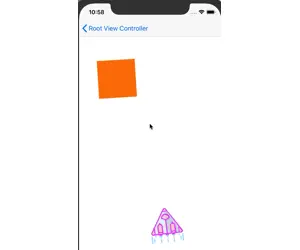

gif部分代码
//values
-(void)animationWithValues
{
CALayer *orangeLayer = [CALayer layer];
orangeLayer.bounds = CGRectMake(0, 0, 100, 100);
orangeLayer.position = CGPointMake(100, 200);
orangeLayer.backgroundColor = [UIColor orangeColor].CGColor;
[self.view.layer addSublayer:orangeLayer];
self.orangeLayer = orangeLayer;
CAKeyframeAnimation *keyframeAni = [CAKeyframeAnimation animationWithKeyPath:@"transform.rotation.z"];
keyframeAni.values = @[@(-M_PI_4 / 5),@(M_PI_4 / 5),@(-M_PI_4 / 5)];
keyframeAni.duration = 10;
keyframeAni.repeatCount = CGFLOAT_MAX;
[self.orangeLayer addAnimation:keyframeAni forKey:@"rotation"];
}
//path
-(void)animationWithPath
{
CALayer *planeLayer = [CALayer layer];
planeLayer.bounds = CGRectMake(0, 0, 100, 100);
planeLayer.contents = (__bridge id _Nullable)([UIImage imageNamed:@"plane"].CGImage);
[self.view.layer addSublayer:planeLayer];
self.planLayer = planeLayer;
//shake
CAKeyframeAnimation *shakeAni = [CAKeyframeAnimation animationWithKeyPath:@"transform.rotation"];
shakeAni.values = @[@(-M_PI_4 / 5),@(M_PI_4 / 5),@(-M_PI_4 / 5)];
shakeAni.duration = 0.25;
shakeAni.repeatCount = CGFLOAT_MAX;//无限循环
//oval path
CAKeyframeAnimation *keyframePlaneAni = [CAKeyframeAnimation animationWithKeyPath:@"position"];
UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:CGRectMake(100, 100, 200, 500)];
keyframePlaneAni.path = path.CGPath;
keyframePlaneAni.duration = 3;
keyframePlaneAni.repeatCount = CGFLOAT_MAX;
keyframePlaneAni.calculationMode = kCAAnimationCubic;
[self.planLayer addAnimation:keyframePlaneAni forKey:nil];
[self.planLayer addAnimation:shakeAni forKey:nil];
}
CAShapeLayer Overview
- A layer that draws a cubic Bezier spline in its coordinate space.(在坐标系内绘制贝塞尔曲线)
@property CGFloat strokeStart; strokeEnd
部分绘制开始值和结束值。(可以通过修改此值,处理类似实现进度条的动画)@property(nullable) CGPathRef path;
描绘的路径@property(nullable) CGColorRef fillColor;
填充路径的颜色@property(copy) CAShapeLayerFillRule fillRule;
填充路径的规则,它的值有两种,非零和奇偶。默认非零。@property(nullable) CGColorRef strokeColor;
描边颜色。- 继承自
CALayer
,一般和UIBezierPath
配合使用。(使用的频率比较高) - 其他属性请看文档

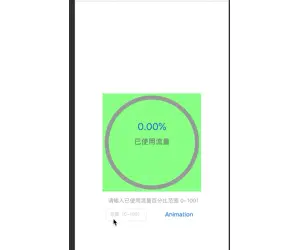

进度条部分代码
- (IBAction)animationClick:(UIButton *)sender {
if (self.timer) {
[self.timer fire];
}
else {
self.timer = [NSTimer scheduledTimerWithTimeInterval:0.04 target:self selector:@selector(progressShowNumber) userInfo:nil repeats:YES];
}
}
-(void)progressShowNumber
{
if ([self getExpectValue] > self.progressValue) {
self.progressValue += 1;
self.circleProgressLayer.strokeEnd = self.progressValue /100.0;
CGFloat end = self.circleProgressLayer.strokeEnd;
self.progressLabel.text = [NSString stringWithFormat:@"%.1f%@",end * 100,@"%"];
if ([self getExpectValue] == self.progressValue) {
[self.timer invalidate];
self.progressValue = [self getExpectValue];
self.timer = nil;
}
}
else if ([self getExpectValue] < self.progressValue) {
self.progressValue -= 1;
self.circleProgressLayer.strokeEnd = self.progressValue / 100.0;
CGFloat end = self.circleProgressLayer.strokeEnd;
self.progressLabel.text = [NSString stringWithFormat:@"%.1f%@",end * 100,@"%"];
if ([self getExpectValue] == self.progressValue) {
[self.timer invalidate];
self.progressValue = [self getExpectValue];
self.timer = nil;
}
}
}
-(CAShapeLayer *)circleProgressLayer
{
if (!_circleProgressLayer) {
_circleProgressLayer = [CAShapeLayer layer];
_circleProgressLayer.bounds = CGRectMake(0, 0, 240, 240);
_circleProgressLayer.position = CGPointMake(240/2, 240/2);
UIBezierPath *path = [UIBezierPath bezierPathWithArcCenter:CGPointMake(240/2, 240/2) radius:240/2-10 startAngle:0 endAngle:M_PI * 2 clockwise:YES];
_circleProgressLayer.strokeStart = 0;
_circleProgressLayer.strokeEnd = 1;
_circleProgressLayer.path = path.CGPath;
_circleProgressLayer.lineWidth = 10;
_circleProgressLayer.strokeColor = [UIColor redColor].CGColor;
_circleProgressLayer.fillColor = [UIColor clearColor].CGColor;
}
return _circleProgressLayer;
}

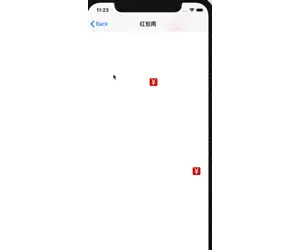

CAEmitterLayer,CAEmitterCell
CAEmitterLayer
@property(nullable, copy) NSArray<CAEmitterCell *> *emitterCells; // 用来装粒子的数组
@property float birthRate; // 粒子产生系数,默认1.0
@property float lifetime; // 粒子的生命周期系数, 默认1.0
@property CGPoint emitterPosition; // 决定了粒子发射形状的中心点
@property CGFloat emitterZPosition;
@property CGSize emitterSize; // 发射源的尺寸大小
@property CGFloat emitterDepth;
@property(copy) NSString *emitterShape; // 发射源的形状
@property(copy) NSString *emitterMode; // 发射模式
@property(copy) NSString *renderMode; // 渲染模式
@property BOOL preservesDepth;
@property float velocity; // 粒子速度系数, 默认1.0
@property float scale; // 粒子的缩放比例系数, 默认1.0
@property float spin; // 粒子的自旋转速度系数, 默认1.0
@property unsigned int seed; // 随机数发生器
@property(nullable, copy) NSString *name; // 粒子名字, 默认为nil(但是可以利用name,通过keyPath设置其一些属性)
@property(getter=isEnabled) BOOL enabled;
@property float birthRate; // 粒子的产生率,默认0
@property float lifetime; // 粒子的生命周期,以秒为单位。默认0
@property float lifetimeRange; // 粒子的生命周期的范围,以秒为单位。默认0
@property CGFloat emissionLatitude;// 指定纬度,纬度角代表了在x-z轴平面坐标系中与x轴之间的夹角,默认0:
@property CGFloat emissionLongitude; // 指定经度,经度角代表了在x-y轴平面坐标系中与x轴之间的夹角,默认0:
@property CGFloat emissionRange; //发射角度范围,默认0,以锥形分布开的发射角度。角度用弧度制。粒子均匀分布在这个锥形范围内;
@property CGFloat velocity; // 速度和速度范围,两者默认0
@property CGFloat velocityRange;
@property CGFloat xAcceleration; // x,y,z方向上的加速度分量,三者默认都是0
@property CGFloat yAcceleration;
@property CGFloat zAcceleration;
@property CGFloat scale; // 缩放比例, 默认是1
@property CGFloat scaleRange; // 缩放比例范围,默认是0
@property CGFloat scaleSpeed; // 在生命周期内的缩放速度,默认是0
@property CGFloat spin; // 粒子的平均旋转速度,默认是0
@property CGFloat spinRange; // 自旋转角度范围,弧度制,默认是0
@property(nullable) CGColorRef color; // 粒子的颜色,默认白色
@property float redRange; // 粒子颜色red,green,blue,alpha能改变的范围,默认0
@property float greenRange;
@property float blueRange;
@property float alphaRange;
@property float redSpeed; // 粒子颜色red,green,blue,alpha在生命周期内的改变速度,默认都是0
@property float greenSpeed;
@property float blueSpeed;
@property float alphaSpeed;
@property(nullable, strong) id contents; // 粒子的内容,为CGImageRef的对象
@property CGRect contentsRect;
@property CGFloat contentsScale;
@property(copy) NSString *minificationFilter;
@property(copy) NSString *magnificationFilter;
@property float minificationFilterBias;
@property(nullable, copy) NSArray<CAEmitterCell *> *emitterCells; // 粒子里面的粒子
@property(nullable, copy) NSDictionary *style;
这里重点讲一下关于emissionLongitude的理解:
emissionLongitude是指在xy坐标系中垂直方向与x轴之间的夹角。但是这个坐标系的和velocity(速度)的正负值是有关系的!!(希望由此研究的简友提出宝贵建议),当velocity值为正值时,那么他的坐标系是这样的

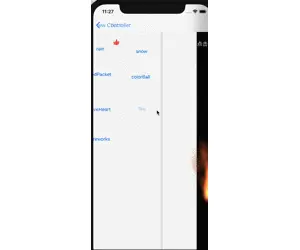

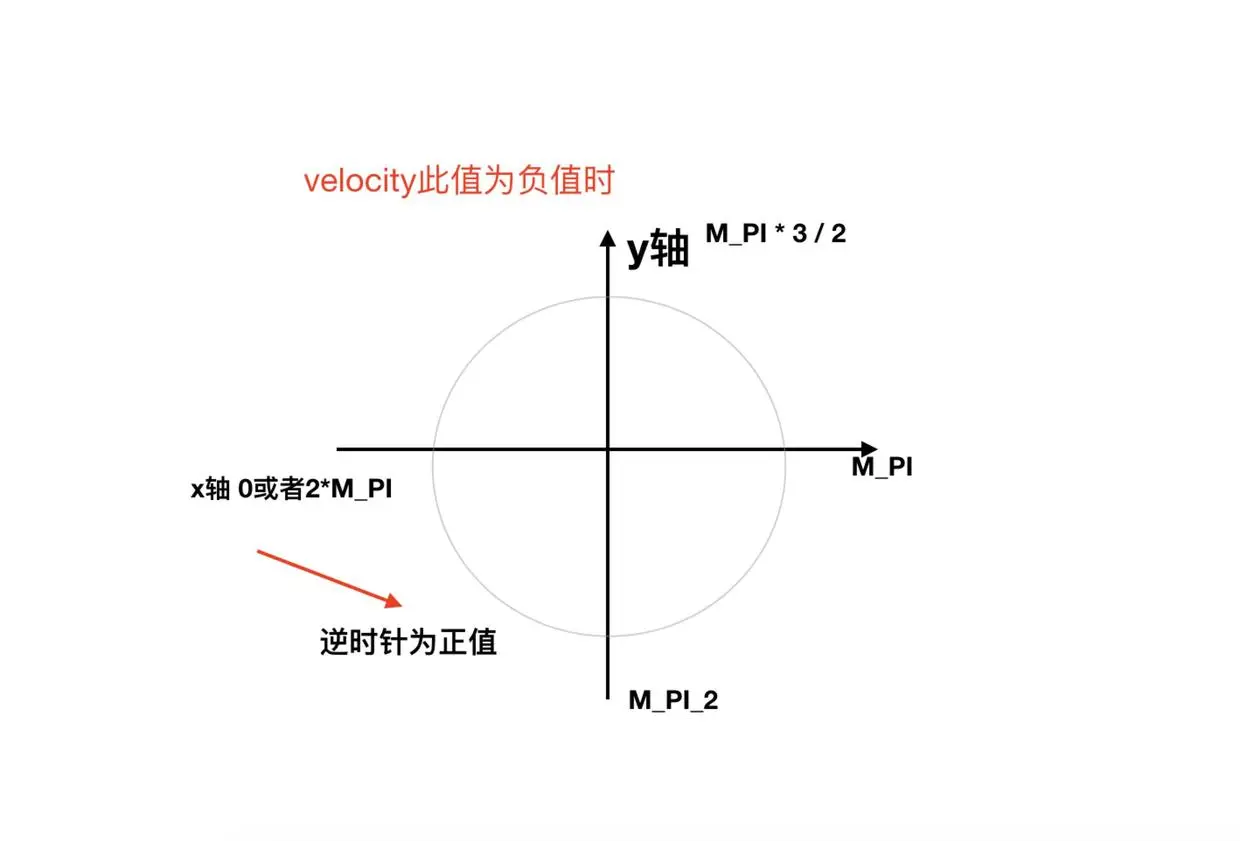

当velocity值为负值时,他的坐标系是这样的,各位看官老爷可以在demo的 如下代码修改看一下变化,欢迎大家一起交流~~
///"LoveHeartViewController.h"
heartCell.velocity = -120.f;
heartCell.velocityRange = 60.f;
heartCell.yAcceleration = 20.f;
heartCell.emissionLongitude = M_PI_2;
heartCell.emissionRange = M_PI_2 * 0.55;
/*
heartCell.velocity = -120.f;
heartCell.velocityRange = 60.f;
heartCell.yAcceleration = 20.f;
heartCell.emissionLongitude = 0;
heartCell.emissionLongitude = M_PI;
heartCell.emissionRange = M_PI_2 * 0.55;
*/
