macOS下编写C++代码IDE,可以选择Visual Studio Code或Xcode,推荐使用Xcode,因为使用Visual Studio Code编写C++的前提是,需要安装Xcode。此外Visual Studio Community for Mac不支持C++编程。
本文系统环境:macOS 10.15 Catalina
Visual Studio Code
Visual Studio Code简称VS Code。

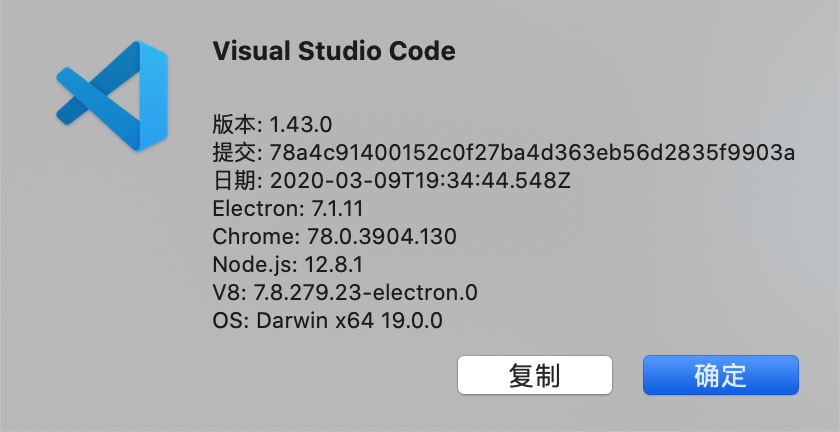

- VS Code下载点击这里。截止到2020年3月9日,VS Code版本为1.43.0。

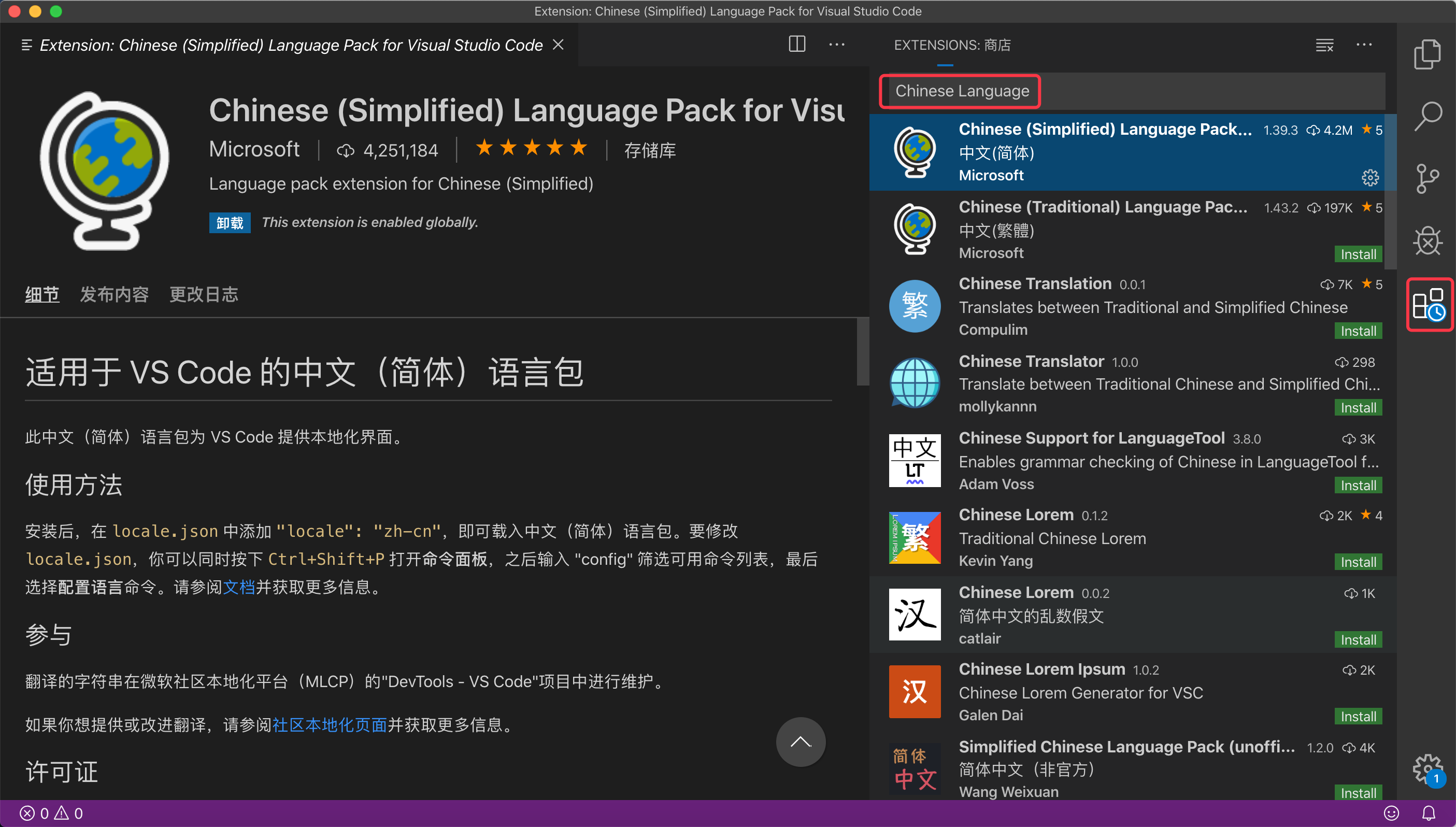

- VS Code汉化包可在VS Code商店里搜索:Chinese (Simplified) Language Pack for Visual Studio Code

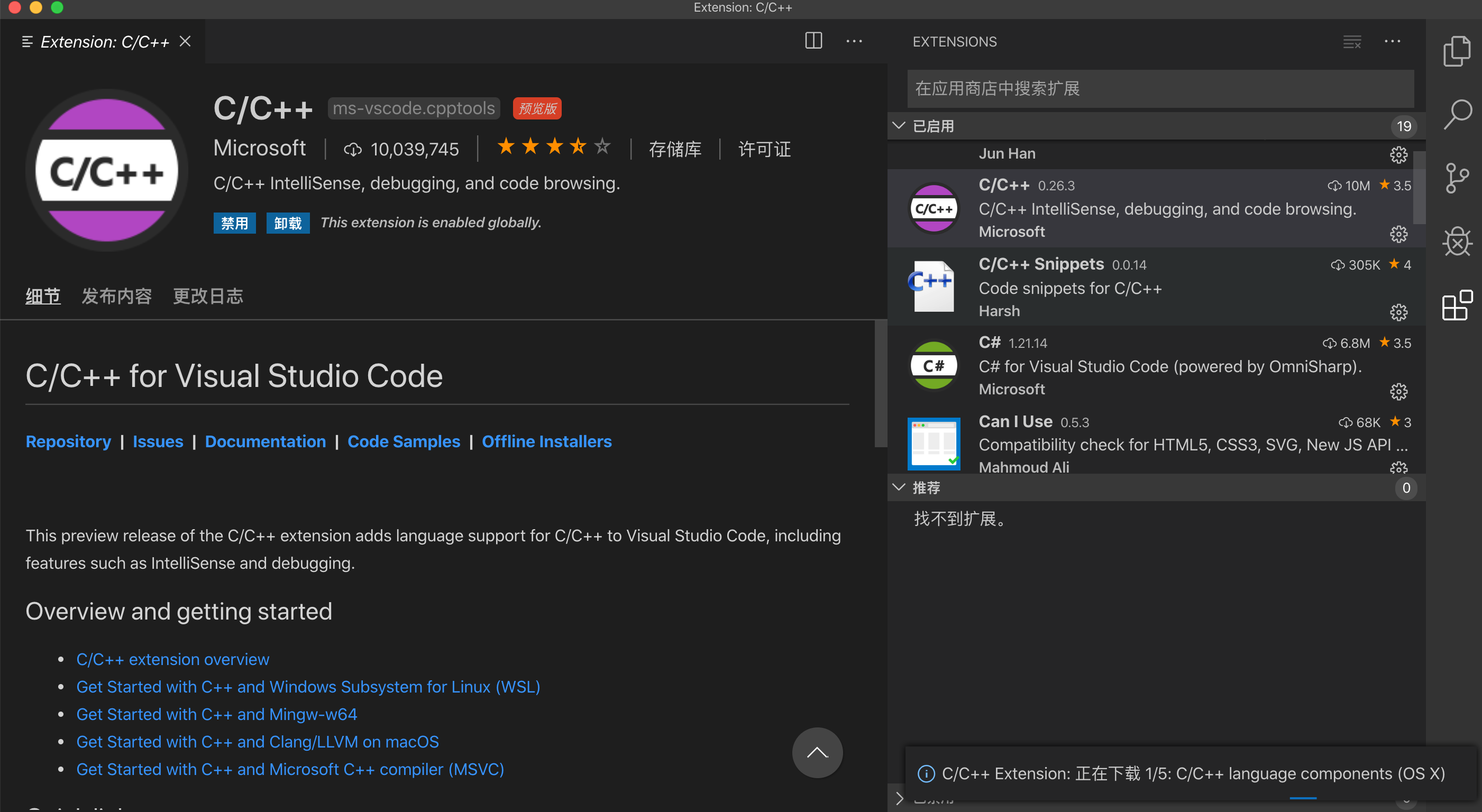

- 在VSCode商店里安装C/C++扩展。

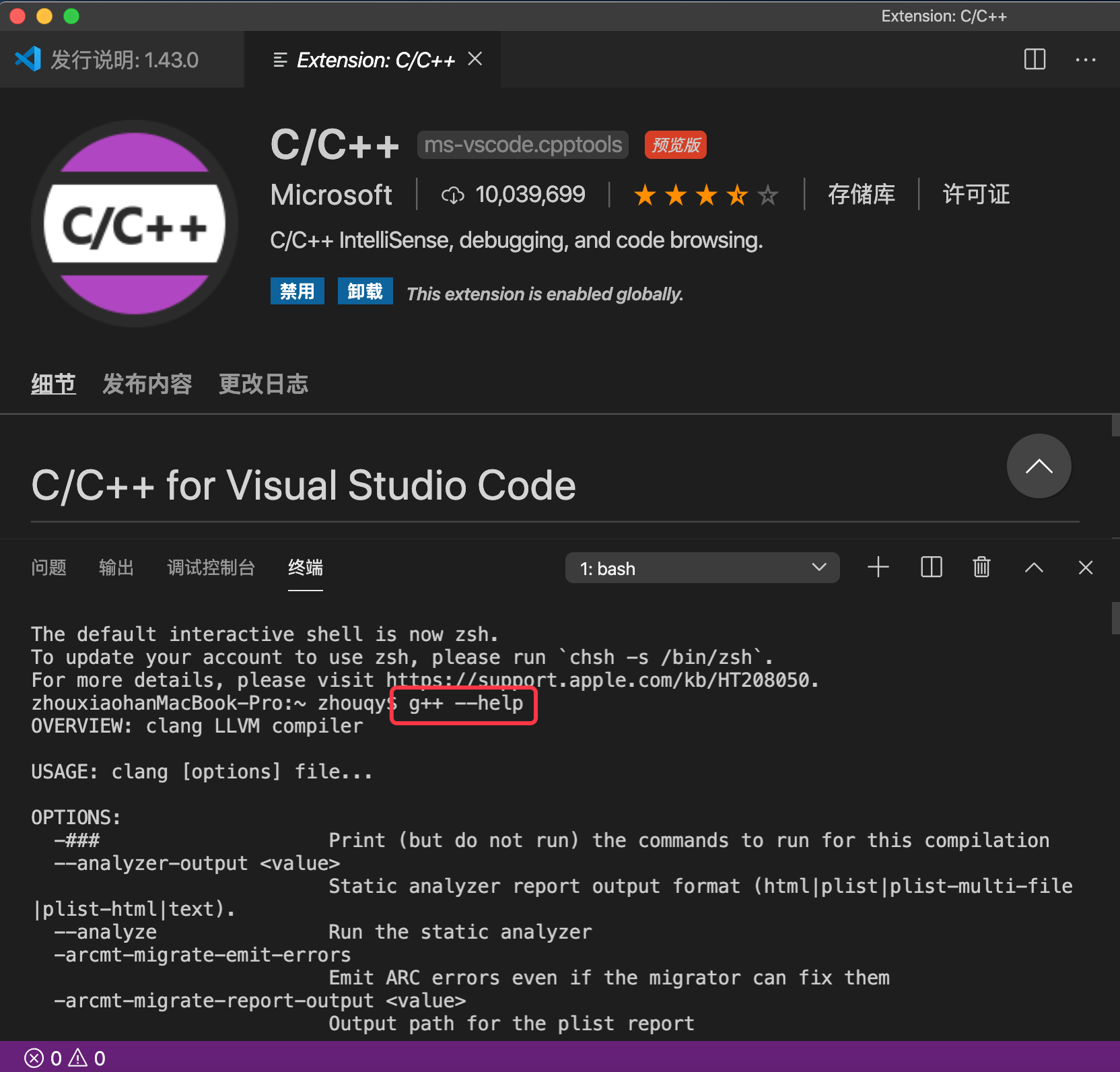

VS Code的C/C++扩展不包括C++编译器或调试器,需要在macOS先安装Clang for Xcode,Xcode可以在App Store里安装。在VS Code终端里执行:g++ --help
-
将VS Code加入到系统PATH环境变量中,下图在VS Code主菜单查看->命令面板...里打开:
-

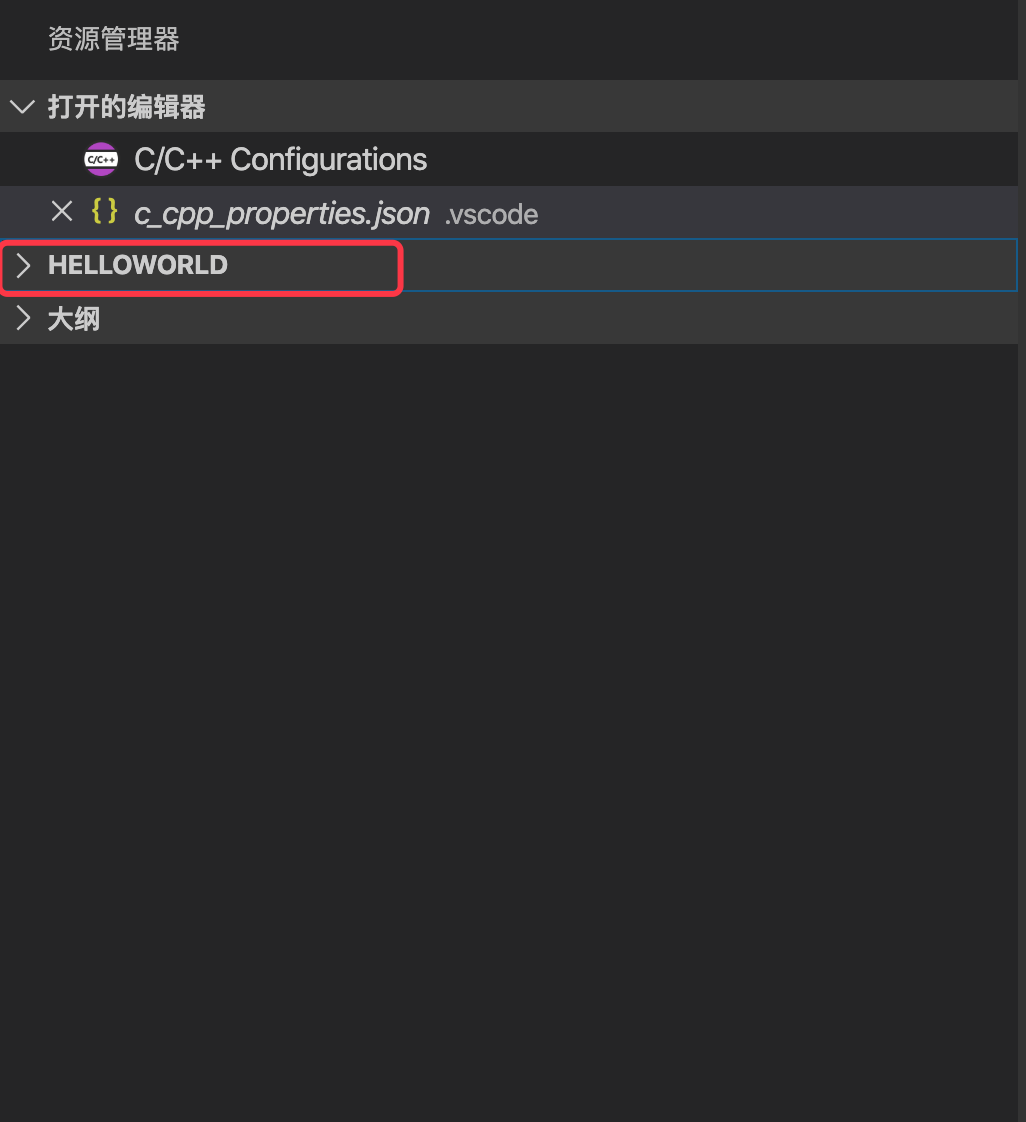

新建一个空文件夹,如hellworld,在VS Code里以工作区方式打开:
-
在命令面板里选择C/C++:编辑配置(UI),会自动生成c_cpp_properties.json文件。
c_cpp_properties.json文件类似如下:
{
"configurations": [
{
"name": "Mac",
"includePath": [
"${workspaceFolder}/**"
],
"defines": [],
"macFrameworkPath": [
"/Applications/Xcode.app/Contents/Developer/Platforms/MacOSX.platform/Developer/SDKs/MacOSX.sdk/System/Library/Frameworks"
],
"compilerPath": "/usr/bin/clang",
"cStandard": "c11",
"cppStandard": "c++17",
"intelliSenseMode": "clang-x64"
}
],
"version": 4
}

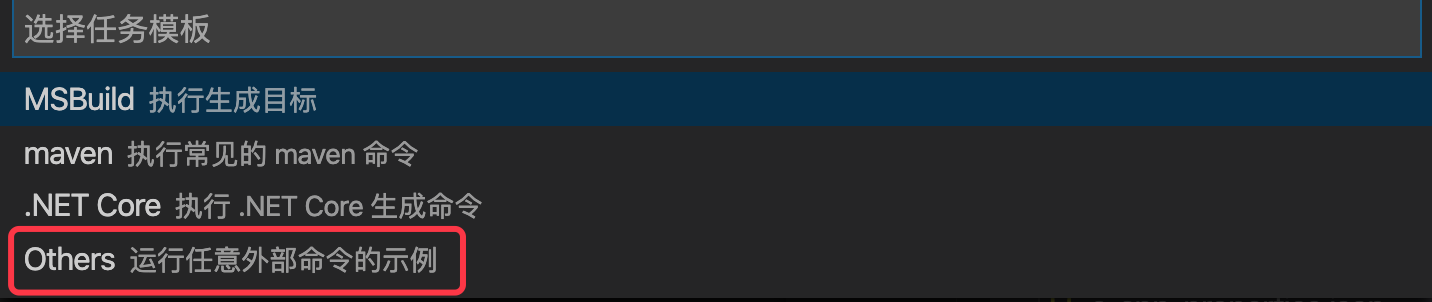

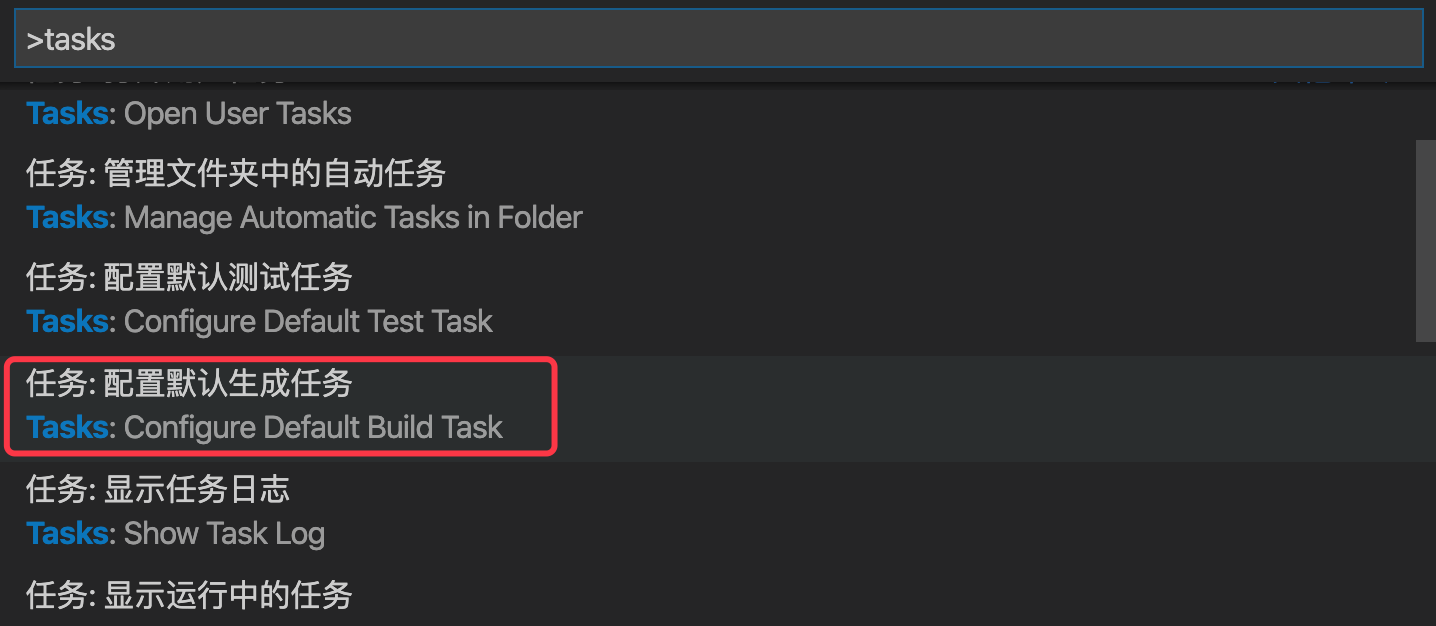

- 在命令面板里选择任务:配置默认生成任务->Others运行任意外部命令的示例,会自动生成task.json文件。
默认生成的task.json文件如下:
{
// See https://go.microsoft.com/fwlink/?LinkId=733558
// for the documentation about the tasks.json format
"version": "2.0.0",
"tasks": [
{
"label": "echo",
"type": "shell",
"command": "echo Hello"
}
]
}
使用以下内容替换task.json文件:
{
"version": "2.0.0",
"tasks": [
{
"label": "Build with Clang",
"type": "shell",
"command": "clang++",
"args": [
"-std=c++17",
"-stdlib=libc++",
"helloworld.cpp",
"-o",
"helloworld.out",
"--debug"
],
"group": {
"kind": "build",
"isDefault": true
}
}
]
}

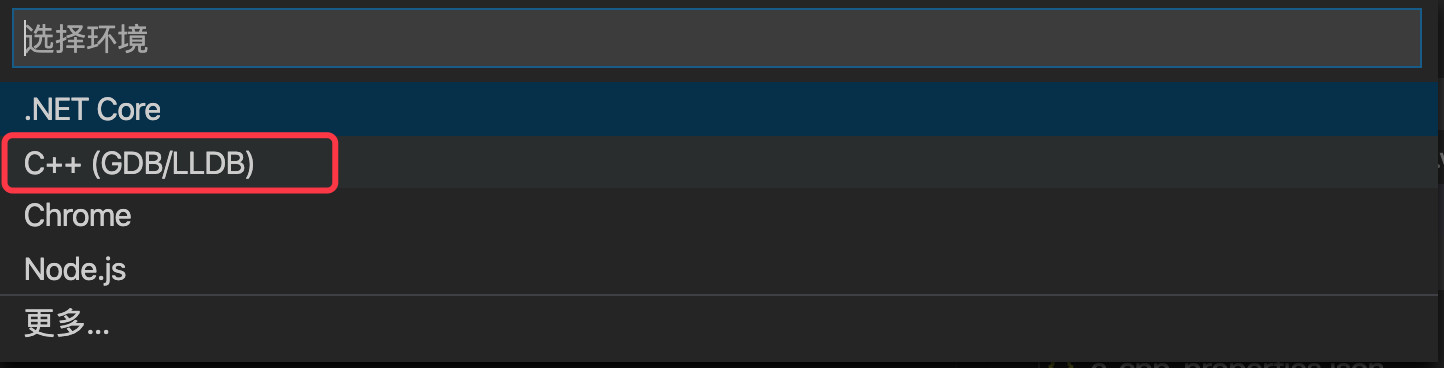

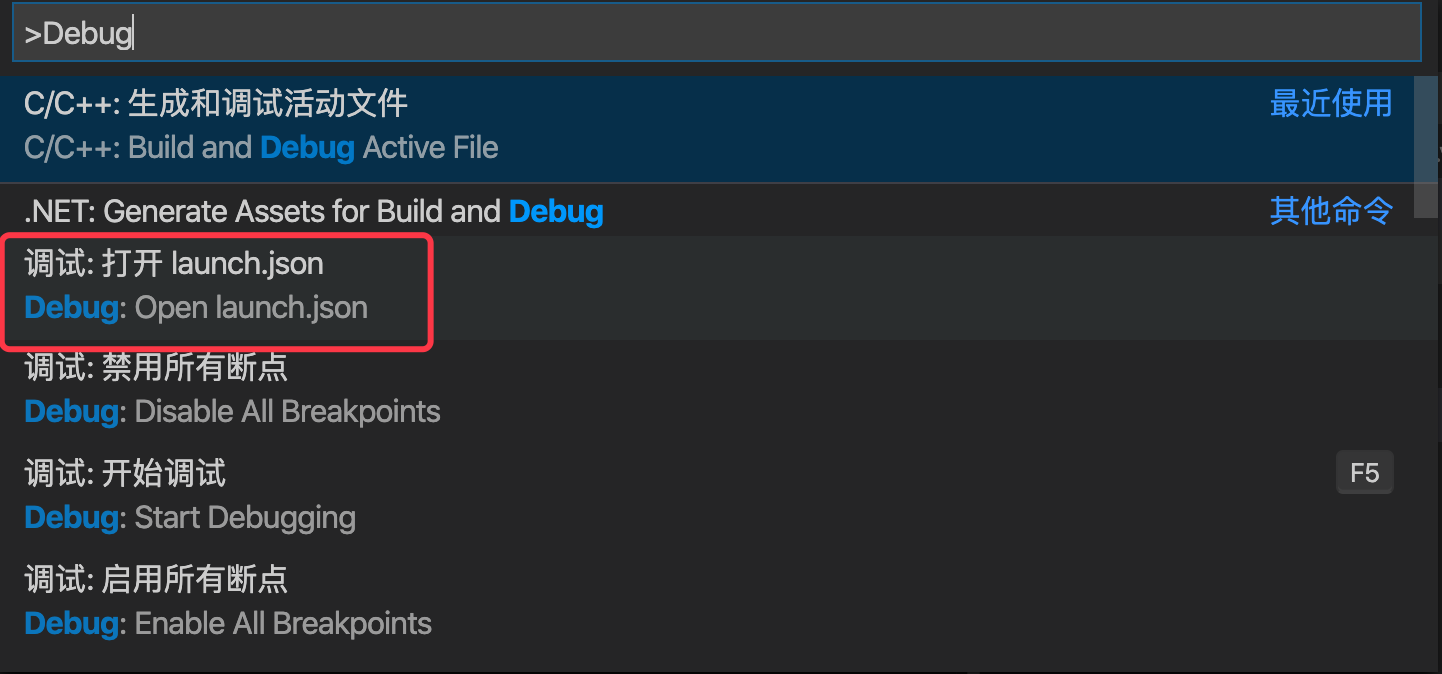

- 在命令面板里选择调试:打开launch.json->C++(GDB/LLDB),会自动生成launch.json文件。
默认生成的launch.json文件如下:
{
// 使用 IntelliSense 了解相关属性。
// 悬停以查看现有属性的描述。
// 欲了解更多信息,请访问: https://go.microsoft.com/fwlink/?linkid=830387
"version": "0.2.0",
"configurations": [
{
"name": "(lldb) 启动",
"type": "cppdbg",
"request": "launch",
"program": "输入程序名称,例如 ${workspaceFolder}/a.out",
"args": [],
"stopAtEntry": false,
"cwd": "${workspaceFolder}",
"environment": [],
"externalConsole": false,
"MIMode": "lldb"
}
]
}
将
"program": "输入程序名称,例如 ${workspaceFolder}/a.out",
替换为:
"program": "${workspaceFolder}/helloworld.out",
跟task.json文件内的hellowrold.out一致。
- 添加一个C++源文件helloworld.cpp,示例代码如下:
#include <iostream>
int main() {
std::cout << "Hello cpp";
return 0;
}

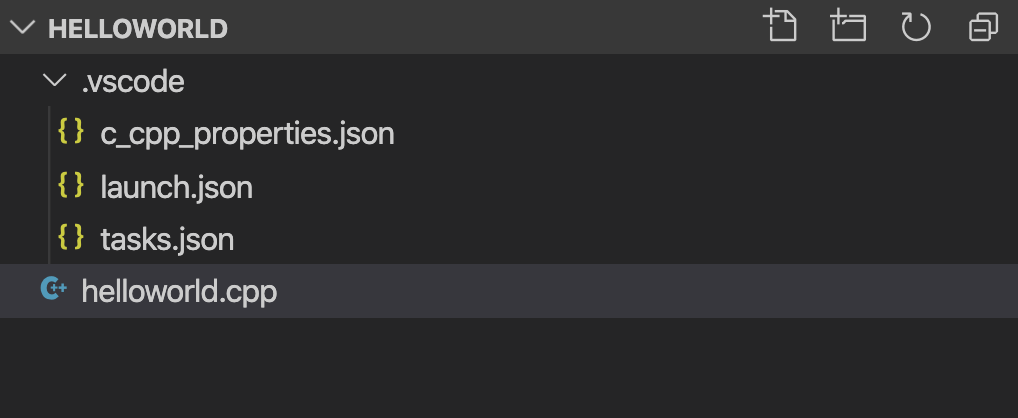

此时工作区目录结构如下,注意helloworld.cpp的位置跟.vscode位置是同一级的:

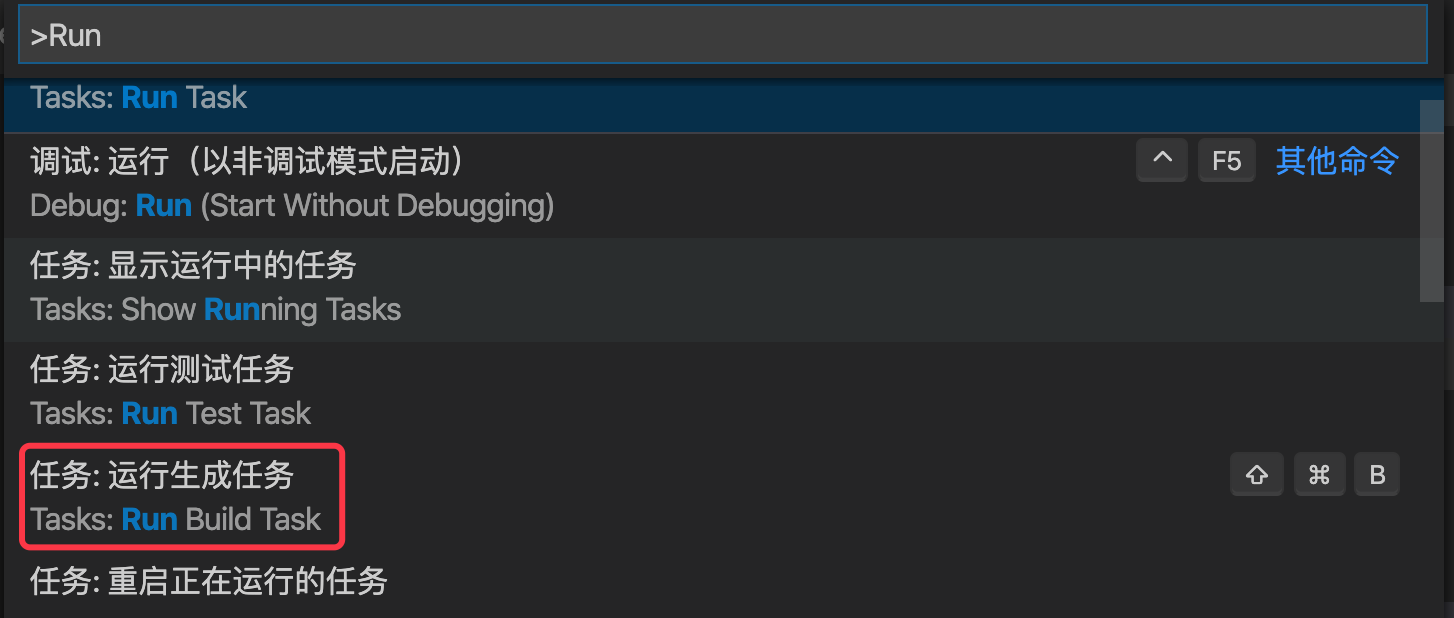

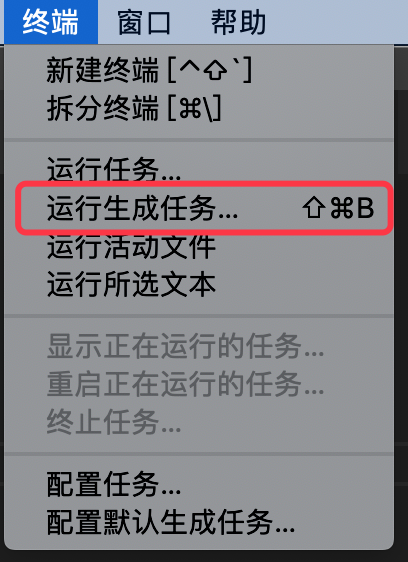

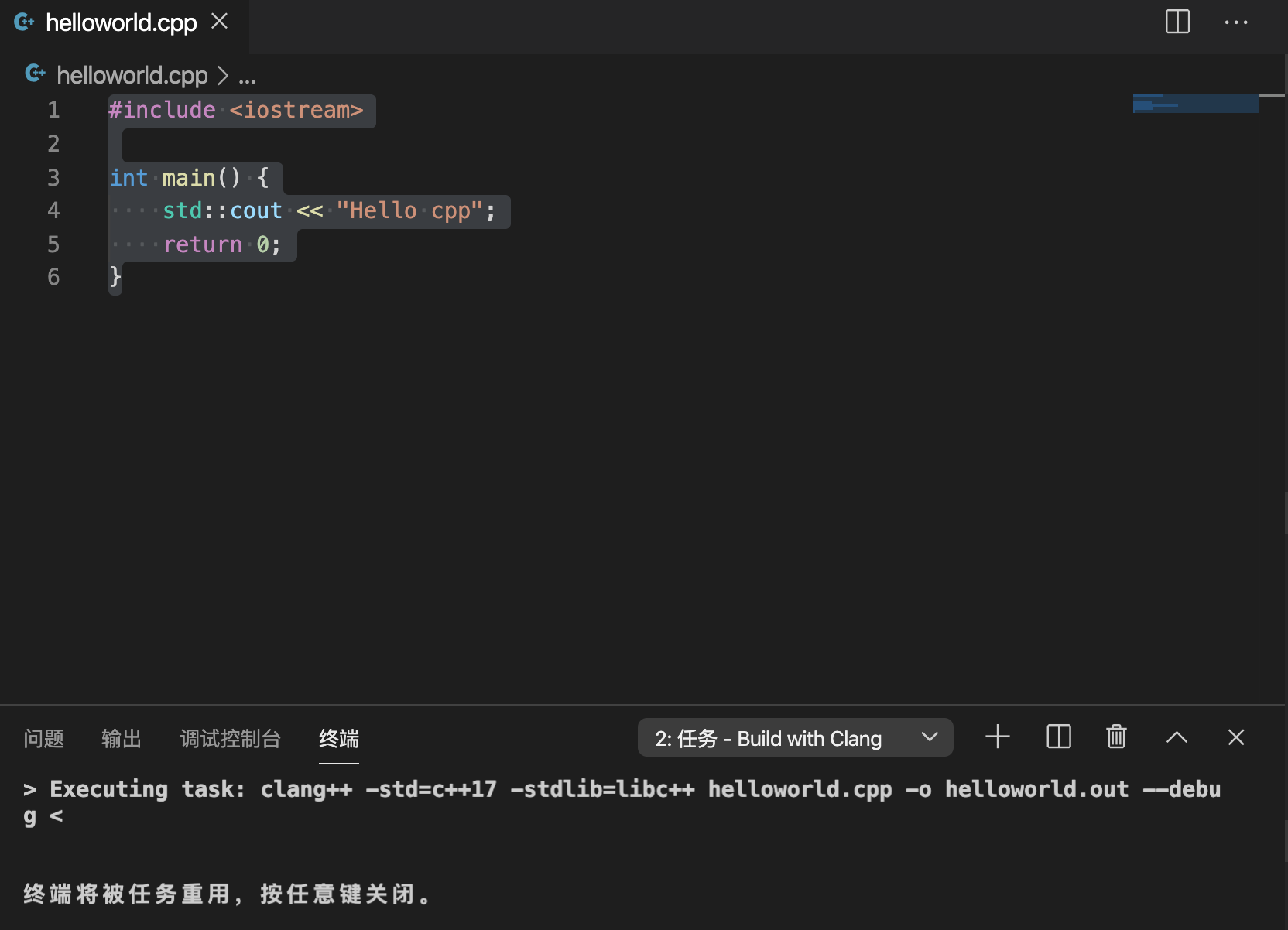

- 在命令面板里选择任务:运行生成任务,或按下快捷组合键⇧⌘B,或选择终端->运行生成任务...,编译运行程序:
- 启用调试程序:
如果显示以下问题: Warning: Debuggee TargetArchitecture not detected, assuming x86_64,可以在launch.json里增加下面的配置:
"targetArchitecture": "x86_64"
最后的运行结果为:
-
c_cpp_properties.json tasks.json launch.json这3个文件可以复制到其他工作区重复使用,只需要把对应的cpp和out文件名替换即可。
Xcode

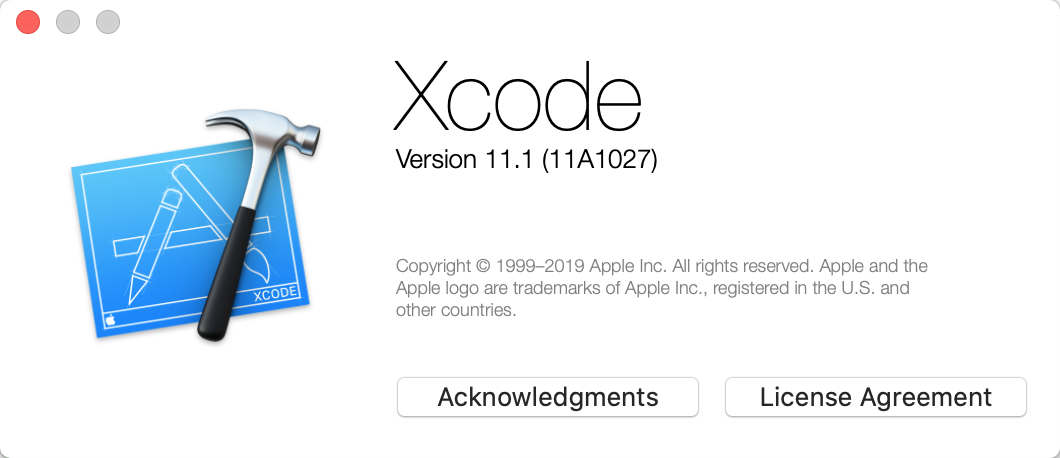

Xcode版本信息如下:

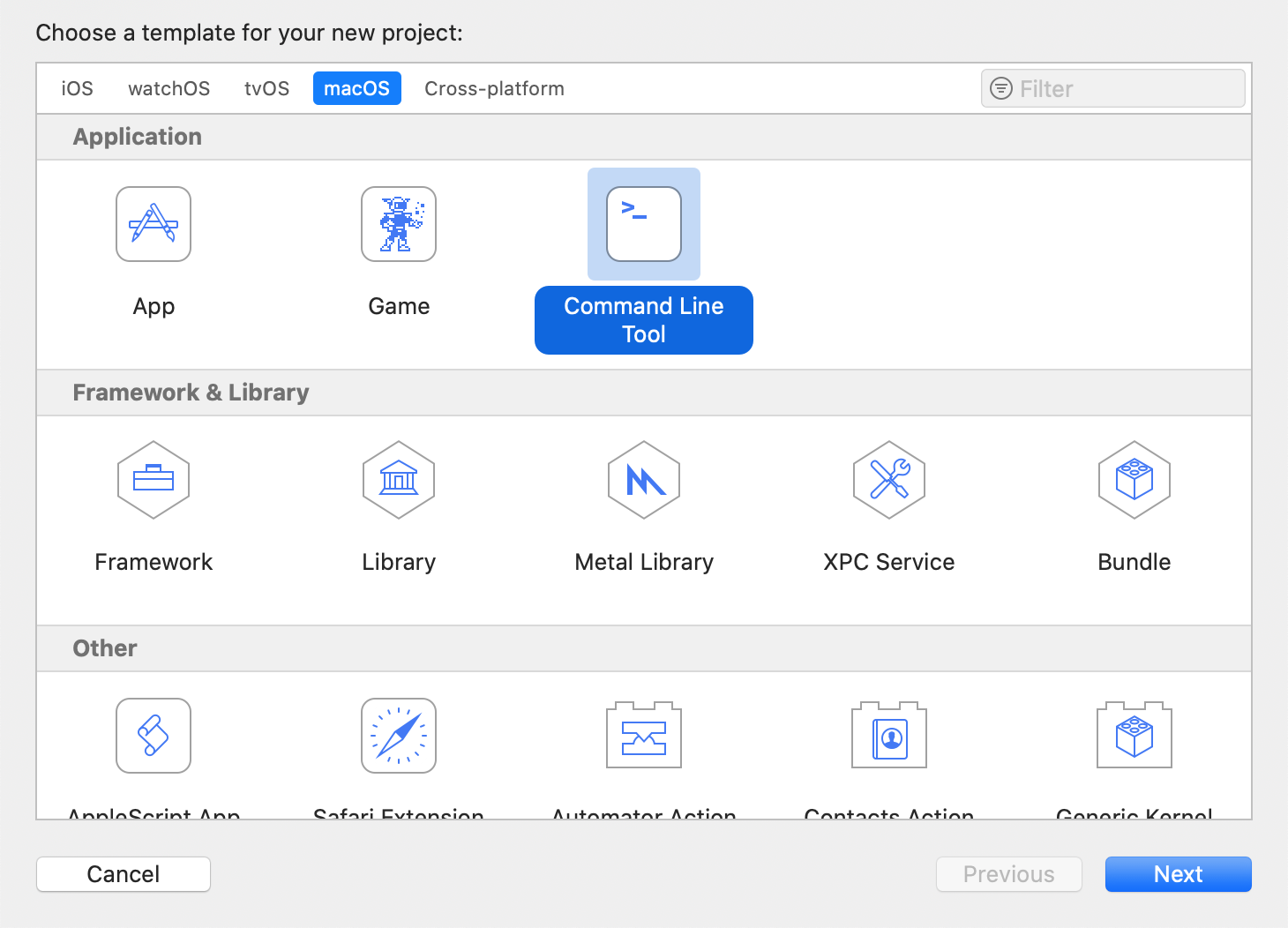

File->New->Project 选择macOS下的Command Line Tool项目模板类型:

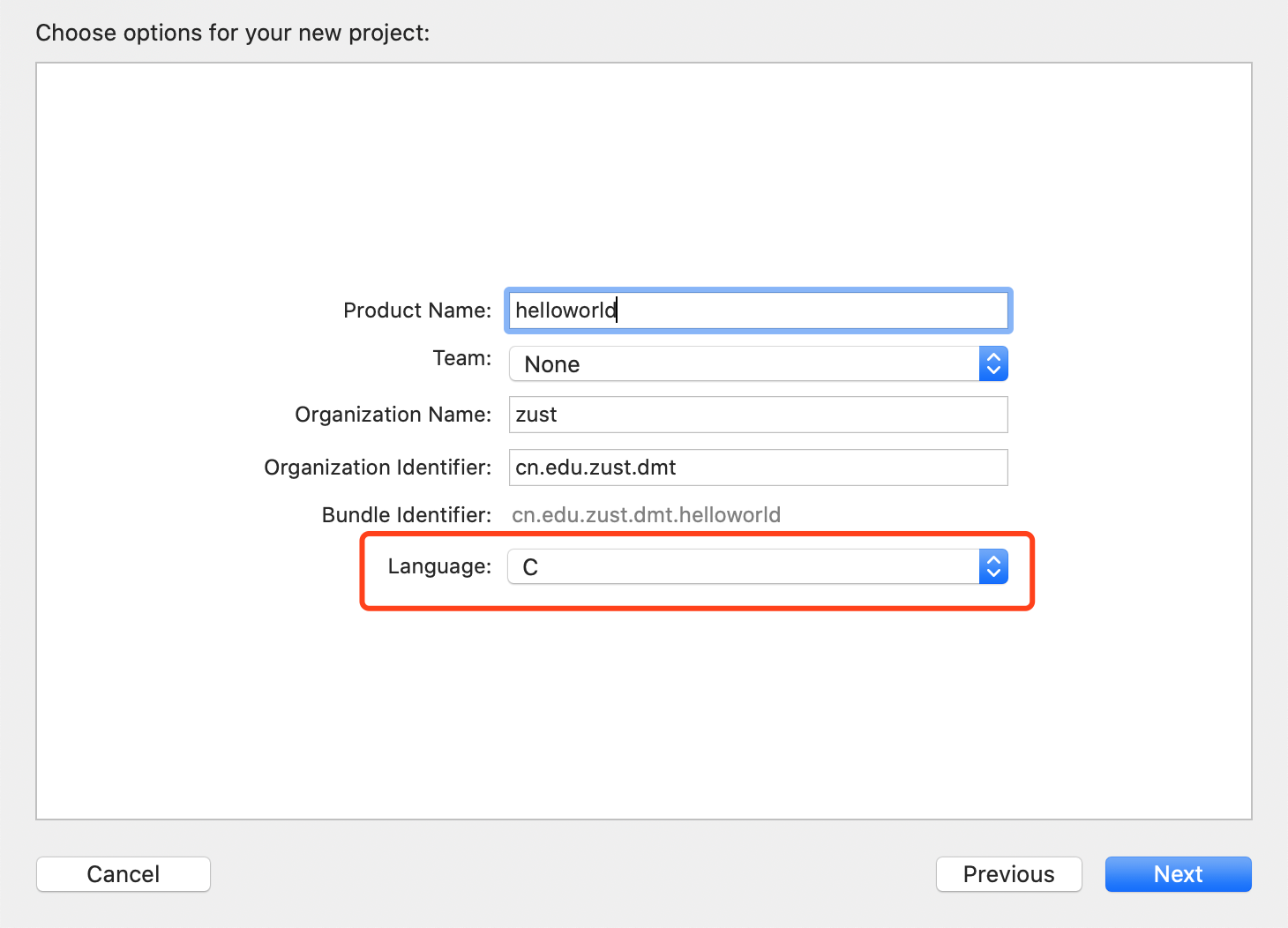

Language为C或C++,下图选择C:

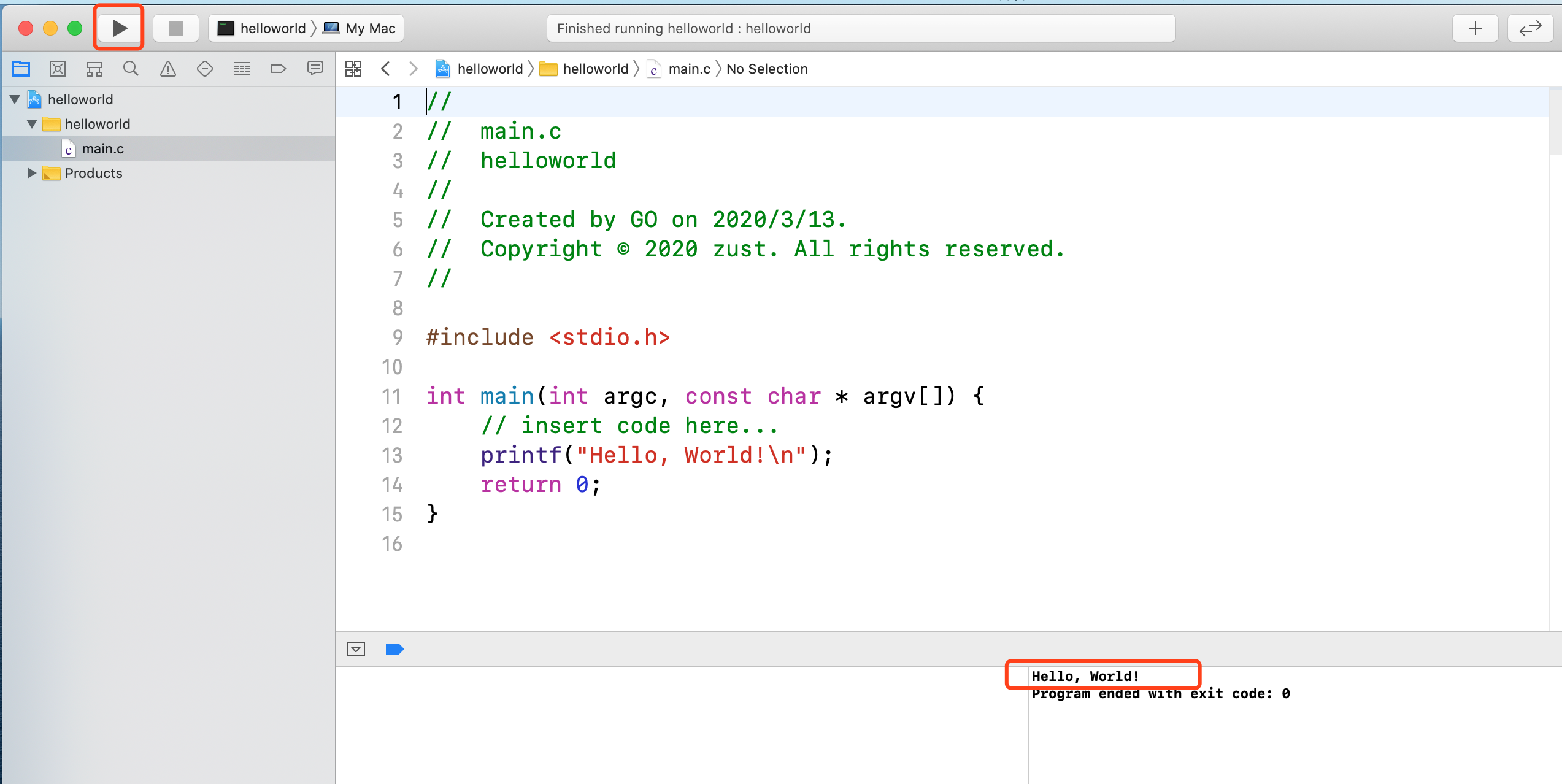

选择C,默认生成main.c文件,点击左上方运行按钮Run结果如下:

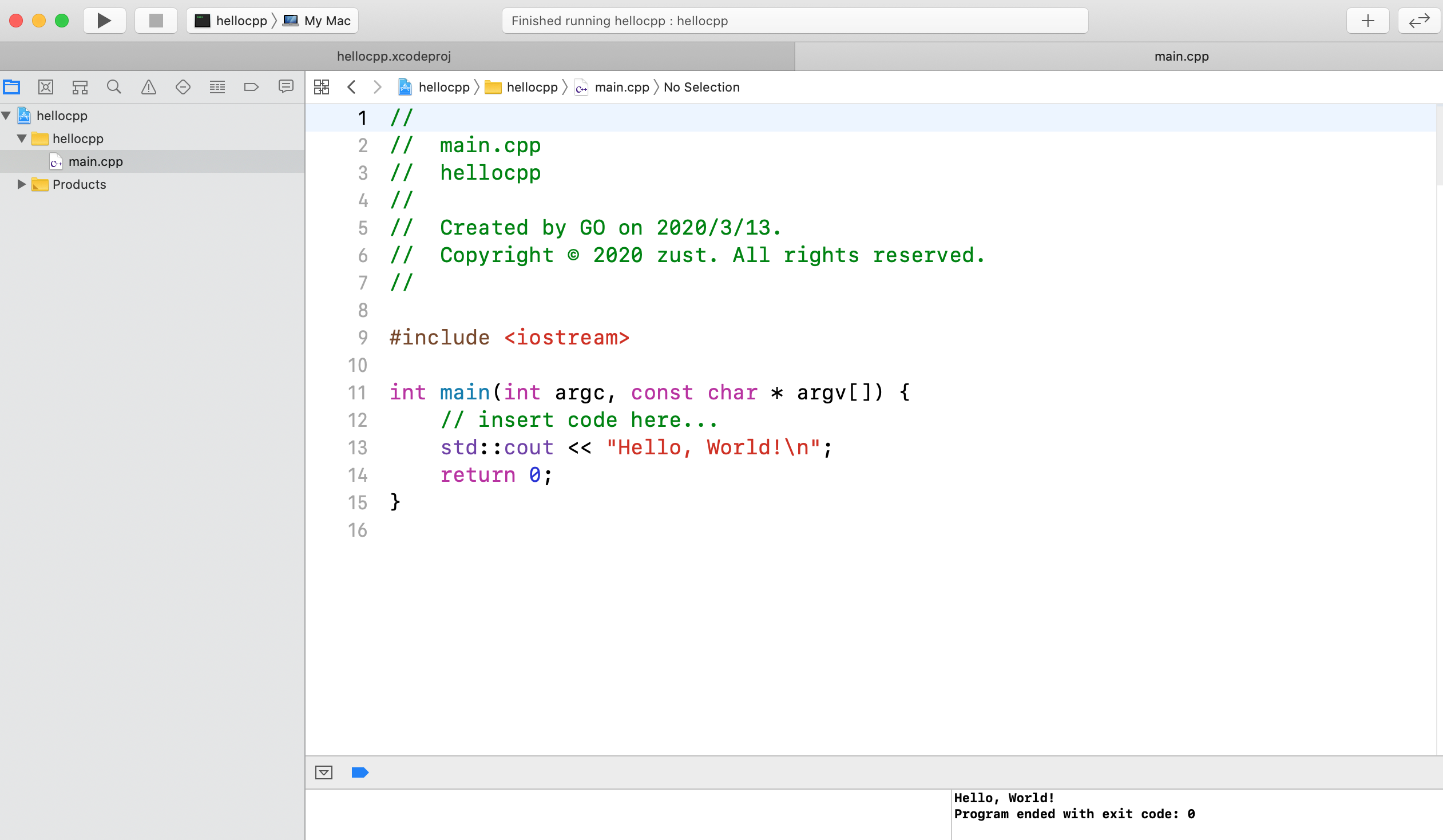

选择C++,默认生成main.cpp文件,点击左上方运行按钮Run结果如下:
常见问题
- 问题:*** is not a valid command
