Android指纹识别浅析

只要功夫深 铁杵磨成针

反手就是一个项目地址

看着很多应用支持指纹识别心里痒痒,咱也整一个~

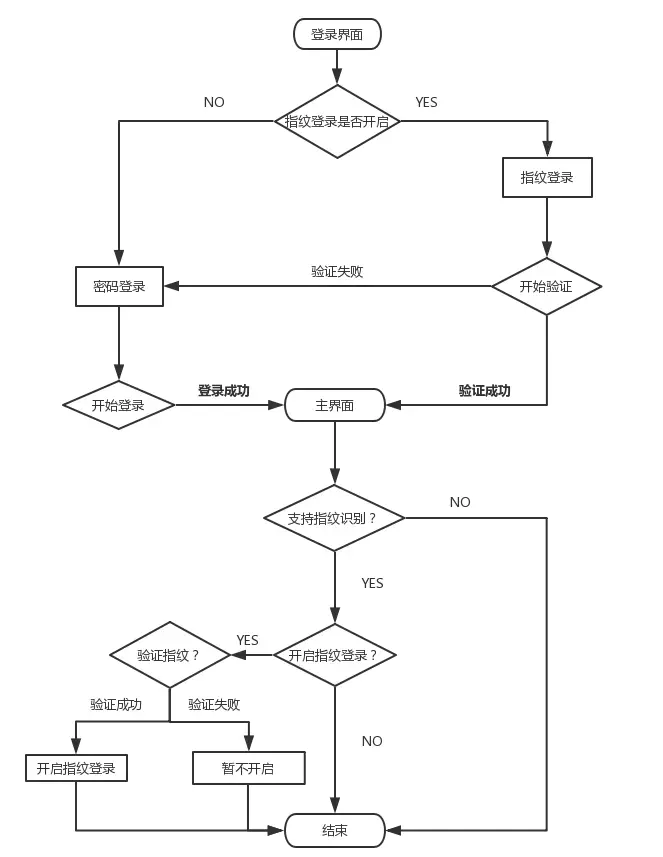

暂时能够想到的流程

流程思路启发于支付宝

登陆界面判断是否开启 指纹登录进入主界面可设置是否开启指纹登录

流程差不多了,该去官网瞟一瞟文档了~

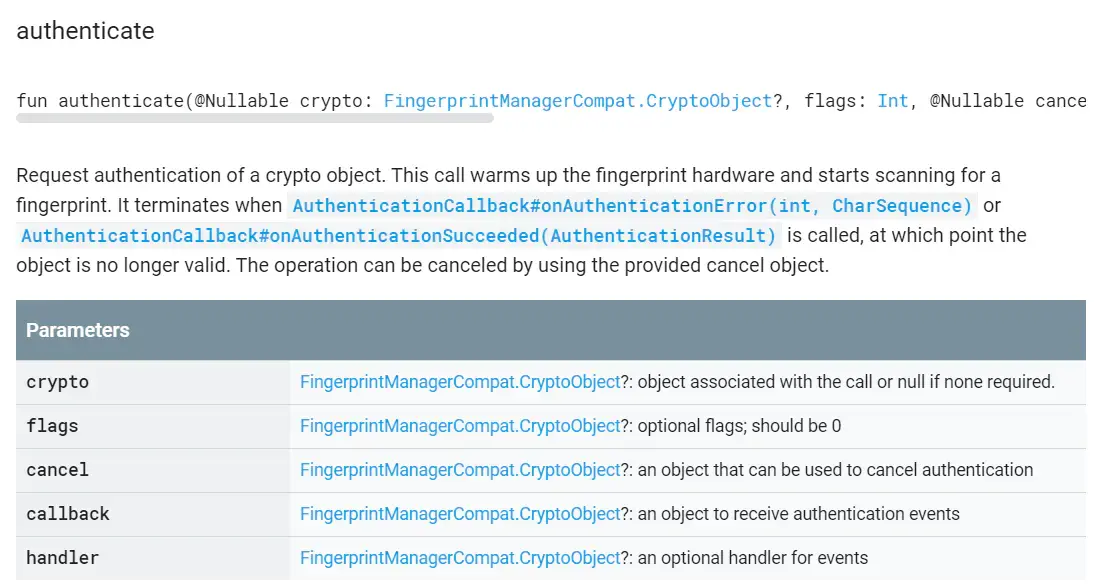

指纹识别类的关键方法 authenticate

这个方法为核心方法 用于拉起指纹识别

flags Int 可选标志 传0即可

handler Handler 可以直接传NULL

crypto FingerprintManagerCompat.CryptoObject? 密码对象的包装类

callback FingerprintManagerCompat.AuthenticationCallback 验证结果的回调

cancel CancellationSignal 取消操作并向取消监听器发出信号 用于取消指纹识别时

创建密封类

创建密匙时 使用AES + CBC + PADDING_PKCS7进行加密

class CipherHelper {
    private var _keystore : KeyStore
    init {
        _keystore = KeyStore.getInstance(KEYSTORE_NAME)
        _keystore.load(null)
    }
   companion object{
       const val KEY_NAME = "MyCipherHelper"
       const val KEYSTORE_NAME = "AndroidKeyStore"
       const val KEY_ALGORITHM = KeyProperties.KEY_ALGORITHM_AES
       const val BLOCK_MODE = KeyProperties.BLOCK_MODE_CBC
       const val ENCRYPTION_PADDING = KeyProperties.ENCRYPTION_PADDING_PKCS7
       const val TRANSFORMATION = "$KEY_ALGORITHM/$BLOCK_MODE/$ENCRYPTION_PADDING"
    }
    fun createCipher(retry : Boolean) : Cipher{
        val key = GetKey()
        val cipher = Cipher.getInstance(TRANSFORMATION)
        try {
            cipher.init(Cipher.ENCRYPT_MODE or Cipher.DECRYPT_MODE,key)
        }catch (e : KeyPermanentlyInvalidatedException){
           _keystore.deleteEntry(KEY_NAME)
           if(retry){
                createCipher(false)
            }else{
               Exception("Could not create the cipher for fingerprint authentication.",e)
            }
       }
      return cipher
    }
   private fun GetKey() : Key {
       if(!_keystore.isKeyEntry(KEY_NAME)){
           CreateKey()
        }
       return _keystore.getKey(KEY_NAME,null)
    }
   private fun CreateKey(){
       val keyGenerator = KeyGenerator.getInstance(KEY_ALGORITHM, KEYSTORE_NAME)
        val keyGenParameterSpec = KeyGenParameterSpec.Builder(KEY_NAME,
           KeyProperties.PURPOSE_ENCRYPT or KeyProperties.PURPOSE_DECRYPT)
           .setBlockModes(BLOCK_MODE)
           .setEncryptionPaddings(ENCRYPTION_PADDING)
           .setUserAuthenticationRequired(true)
           .build()
        keyGenerator.init(keyGenParameterSpec)
        keyGenerator.generateKey()
    }
}

用于验证的弹窗

话不多说 搞快搞快~

class FingerprintVerifyDialog(context: Activity): Dialog(context, R.style.TransparentDialogStyle) {
    private lateinit var onClickListener : OnClickListener
    private var tipText : TextView
    private var cancelBtn : TextView
    init {
        setContentView(R.layout.finger_verify_dialog)
        setCanceledOnTouchOutside(false)
        tipText = findViewById(R.id.finger_verify_tip)
        cancelBtn = findViewById(R.id.cancel_finger_verify_btn)
        cancelBtn.setOnClickListener { onClickListener.onCancel()
            this.dismiss()
         }
       windowAnim()
   }
   override fun onBackPressed() {
        super.onBackPressed()
        onClickListener.onDismiss()
    }
   fun setOnClickListener(onClickListener: OnClickListener) : FingerprintVerifyDialog{
        this.onClickListener = onClickListener
        return this
    }
    fun setTipText(tip : String,color : Int){
        tipText.text = tip
        tipText.setTextColor(color)
    }
    interface OnClickListener{
        fun onCancel()
        fun onDismiss()
    }
    private fun windowAnim() {
        val window = window!! //得到对话框
        window.setWindowAnimations(R.style.dialogWindowAnim) //设置窗口弹出动画
        window.setType(WindowManager.LayoutParams.TYPE_APPLICATION_PANEL)
        window.setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN)
        window.setLayout(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT)
    }
}

本地SP存储记录

做一个sharedPreferences的扩展类,并通过委托来访问

class MyPreference<T>(private val name : String, private val default : T) {
    private val sharedPreferences : SharedPreferences
            by lazy { MyApplication.instance.applicationContext.getSharedPreferences(Constans.SHARE_PREFERENCE_NAME,Context.MODE_PRIVATE)}
    operator fun getValue(thisRef : Any?,property : KProperty<*>) : T = getSharedPreferences(name,default)
    operator fun setValue(thisRef: Any?,property: KProperty<*>,value: T) = putSharedPreferences(name,value)
    private fun putSharedPreferences(name : String,value : T)  = with(sharedPreferences.edit()){
        when(value){
            is Int -> putInt(name,value)
            is String -> putString(name,value)
            is Float -> putFloat(name,value)
            is Long -> putLong(name,value)
            is Boolean -> putBoolean(name,value)
            else -> throw IllegalArgumentException("SharedPreference can't be save this type")
        }.apply()
    }
    private fun getSharedPreferences(name : String,default: T) : T = with(sharedPreferences){
        val res : Any = when(default){
            is Int -> getInt(name,default)
            is Boolean -> getBoolean(name,default)
            is String -> getString(name,default)!!
            is Float -> getFloat(name,default)
            is Long -> getLong(name,default)
            else -> throw IllegalArgumentException("SharedPreference can't be get this type")
        }
        return res as T
    }
}
object DelegatesExt {
    fun <T> myPreferences(name : String,default : T) = MyPreference(name,default)
}
class Constans{
    companion object{
        const val SHARE_PREFERENCE_NAME = "MySharePreference"
        const val OPEN_FINGERPRINT_LOGIN = "open_fingerprint_login"
    }
}

用于回调的监听接口

interface FingerprintCallback {
    /**
    * @description 无指纹硬件或硬件不可用
    */
    fun onHwUnavailable()
    /**
    * @description 未添加指纹
    */
    fun onNoneEnrolled()
   /**
    * @description 验证成功
    */
    fun onSucceeded()
    /**
    * @description 验证失败
    */
   fun onFailed()
    /**
    * @description 取消验证
    */
    fun onCancel()
}

指纹识别扩展类

提前初始初始化加密类 封装指纹验证方法 开始指纹验证

添加监听 对验证结果回调处理 判断设备是否支持指纹识别

class FingerprintImpl {
    private lateinit var context: Activity
    private lateinit var fingerprintCallback: FingerprintCallback //验证回调
    lateinit var fingerprintVerifyDialog: FingerprintVerifyDialog //验证弹窗
    private lateinit var cancellationSignal : CancellationSignal
    companion object{
        private lateinit var cryptoObject : CryptoObject
        val instance by lazy {
            try {
                cryptoObject = CryptoObject(CipherHelper().createCipher(true))
            }catch (e : Exception){
                e.printStackTrace()
            }
            FingerprintImpl()
        }
    }
    /**
    * @description 初始化并调用指纹验证
    */
    fun authenticate(context : Activity,callback: FingerprintCallback){
        this.context = context
        this.fingerprintCallback = callback
        cancellationSignal = CancellationSignal()
        fingerprintVerifyDialog = FingerprintVerifyDialog(context).setOnClickListener(onClickListener)
        cancellationSignal.setOnCancelListener { fingerprintVerifyDialog.dismiss() }
        from(context).authenticate(cryptoObject,0,cancellationSignal,authenticationCallback,null)
        fingerprintVerifyDialog.show()
    }
   fun canAuthenticate(context: Context,fingerprintCallback: FingerprintCallback) : Boolean{
        if(!from(context).isHardwareDetected){ //是否支持指纹识别
            fingerprintCallback.onHwUnavailable()
            return false
        }
        if(!from(context).hasEnrolledFingerprints()){ //是否已经添加指纹
            fingerprintCallback.onNoneEnrolled()
            return false
        }
        return true
    }
}

最后封装

只需传入回调处理就可以直接使用

class FingerprintManager(private var context: Activity,
    private var callback: FingerprintCallback) {
    //是否支持指纹识别
    var isSupportFingerLogin : Boolean = false
    private var fingerprintImpl : FingerprintImpl = FingerprintImpl.instance
    init {
        isSupportFingerLogin = fingerprintImpl.canAuthenticate(context,callback)
    }
   /**
    * @description 开始指纹识别
    */
   fun autherticate(){
       fingerprintImpl.authenticate(context,callback)
    }
}

大事告成了!!!

最后感谢大家的浏览 有什么问题可以留言交流
