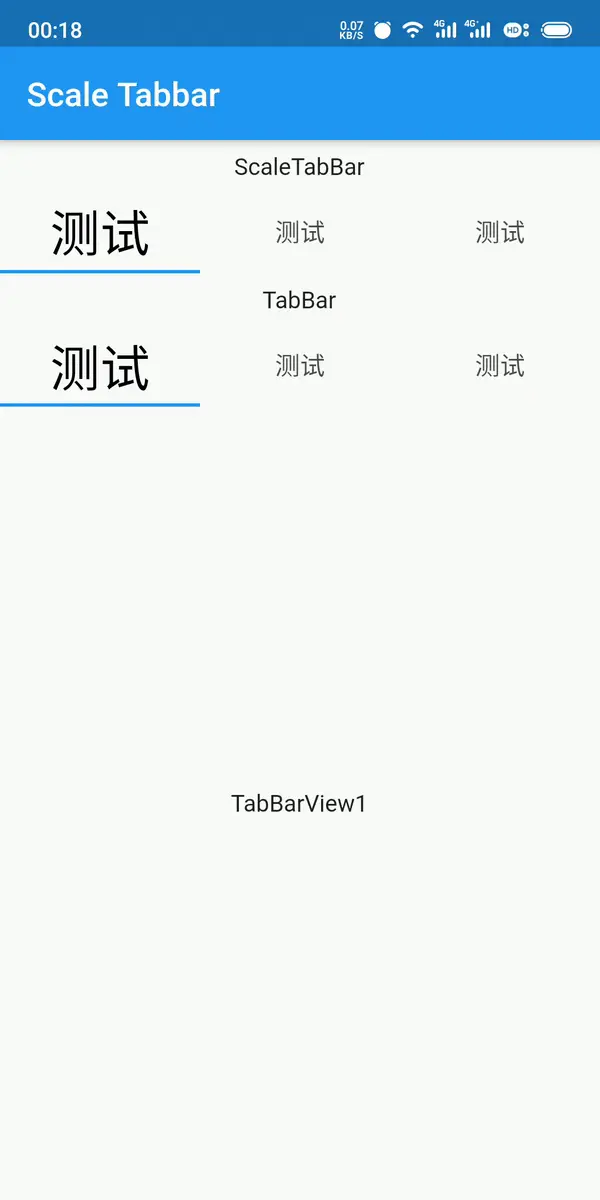

效果对比
上方的文本过度更平滑,文字没有瑟瑟发抖实现过程
拷贝
官方源码进行分析,顺藤摸瓜,删除一些代码排除干扰:
TabBarIndicatorSize
Tab
TabBarView
_TabBarViewState
TabPageSelectorIndicator
TabPageSelector
在 tabs.dart
中找到了TabBar的实现方法:
///TabBar
class TabBar extends StatefulWidget implements PreferredSizeWidget {
...
}
1.修复文字抖动
文字的样式变换是绑定在TabController上的,官方的策略是每次位置变动重新渲染文字样式,但是Flutter的文本尺寸变化并不是平滑过渡的:
class _TabStyle extends AnimatedWidget {
...
@override
Widget build(BuildContext context) {
...
///计算文本样式插值
final TextStyle textStyle = selected
? TextStyle.lerp(defaultStyle, defaultUnselectedStyle, animation.value)
: TextStyle.lerp(defaultUnselectedStyle, defaultStyle, animation.value);
return DefaultTextStyle(
///构建文本样式(问题就出在这里)
style: textStyle.copyWith(color: color),
child: IconTheme.merge(
data: IconThemeData(
size: 24.0,
color: color,
),
child: child,
),
);
}
}
解决思路
- 禁用文本尺寸变化
- 用scale实现Tab内容的缩放效果
///根据前后字体大小计算缩放倍率
final double _magnification =
labelStyle.fontSize / unselectedLabelStyle.fontSize;
final double _scale = selected
? lerpDouble(_magnification, 1, animation.value)
: lerpDouble(1, _magnification, animation.value);
return DefaultTextStyle(
style: textStyle.copyWith(
color: color,
///钉死文字大小
fontSize: unselectedLabelStyle.fontSize,
),
child: IconTheme.merge(
data: IconThemeData(
size: 24.0,
color: color,
),
///添加一个缩放外壳
child: Transform.scale(
scale: _scale,
child: child,
),
),
);
这样我们就得到了一个切换相对平滑的TabBar
2.自定义点击水波纹
TabBar的点击是用 InkWell
实现的:
///_TabBarState
class _TabBarState extends State<ScaleTabBar> {
...
@override
Widget build(BuildContext context) {
...
for (int index = 0; index < tabCount; index += 1) {
///生成tabs的时候嵌套了一层InkWell
wrappedTabs[index] = InkWell(
...
);
}
}
}
实现思路
- 给TabBar添加水波纹相关的属性
- 引用属性
///TabBar
class TabBar extends StatefulWidget implements PreferredSizeWidget {
...
const TabBar({
...
this.splashColor = Colors.transparent,
this.highlightColor = Colors.transparent,
this.borderRadius = const BorderRadius.all(Radius.circular(0)),
...
})
...
///波纹颜色 , 默认为 [Colors.transparent]
final Color splashColor;
///高亮颜色 , 默认为 [Colors.transparent]
final Color highlightColor;
///波纹的圆角大小 , 默认为 0
final BorderRadius borderRadius;
}
///_TabBarState
class _TabBarState extends State<TabBar> {
...
@override
Widget build(BuildContext context) {
...
for (int index = 0; index < tabCount; index += 1) {
wrappedTabs[index] = InkWell(
...
///波纹样式相关属性
splashColor: widget.splashColor,
highlightColor: widget.highlightColor,
borderRadius: widget.borderRadius,
);
}
}
}
因为设置了默认颜色为 Colors.transparent
, 所以默认情况下点击tab不会出现水波纹,需要的时候可自定义,更多效果可自行添加
3.添加更多点击事件
此处以添加双击为例,先来看看自带的onTap是怎么实现的
///TabBar
class TabBar extends StatefulWidget implements PreferredSizeWidget {
const TabBar({
...
this.onTap,
})
...
///点击回调
final ValueChanged<int> onTap;
}
///_TabBarState
class _TabBarState extends State<TabBar> {
...
///onTap的具体实现
void _handleTap(int index) {
assert(index >= 0 && index < widget.tabs.length);
///跳转tab
_controller.animateTo(index);
if (widget.onTap != null) {
///不为空则触发
widget.onTap(index);
}
}
@override
Widget build(BuildContext context) {
...
for (int index = 0; index < tabCount; index += 1) {
///生成tabs的时候嵌套了一层InkWell
wrappedTabs[index] = InkWell(
...
///点击事件
onTap: () {
_handleTap(index);
},
);
}
}
}
很简单,依葫芦画瓢就行了:
///TabBar
class TabBar extends StatefulWidget implements PreferredSizeWidget {
const TabBar({
...
this.onDoubleTap,
})
...
///双击事件,仅在选中tab生效
final ValueChanged<int> onDoubleTap;
}
///_TabBarState
class _TabBarState extends State<TabBar> {
...
///onDoubleTap的具体实现
void _handleDoubleTap(int index) {
assert(index >= 0 && index < widget.tabs.length);
if (widget.onDoubleTap != null && _currentIndex == index) {
///当为选中tab时才能触发双击事件
widget.onDoubleTap(index);
}
}
@override
Widget build(BuildContext context) {
...
for (int index = 0; index < tabCount; index += 1) {
wrappedTabs[index] = InkWell(
...
///添加双击事件
///注意:有延时的事件会影响onTap的触发速度 , 不建议使用
///触发前判断一下 , 如果为null则不设置回调 , 消除对onTap的影响
onDoubleTap: widget.onDoubleTap == null ? null : () => _handleDoubleTap(index),
);
}
}
}
萌新一枚,没有常写文章,欢迎指出问题或错误
修改后的代码封装为了 ScaleTabBar
控件,已上传Github,使用方法与官方完全一致,希望能帮到你。
