❝在学习和使用
❞jetpack
组件时,总是被其 gradle 依赖搞的晕头转向,故在此整理jetpack
主要组件的依赖,及传递关系
jetpcak
组件源码地址- 查询
jetpcak
组件 版本: Google's Maven Repository - 查看依赖树:在项目根目录下执行
./gradlew :app:dependencies
「可直接跳过后续内容前往最后一节查看总结」
关于 androidx
下 fragment/activity
的变化,可查看该文, 【译】AdroidX下使用Activity和Fragment的变化
Appcompat
引入
dependencies {
def appcompat_version = "1.1.0"
implementation "androidx.appcompat:appcompat:$appcompat_version"
// For loading and tinting drawables on older versions of the platform
implementation "androidx.appcompat:appcompat-resources:$appcompat_version"
}

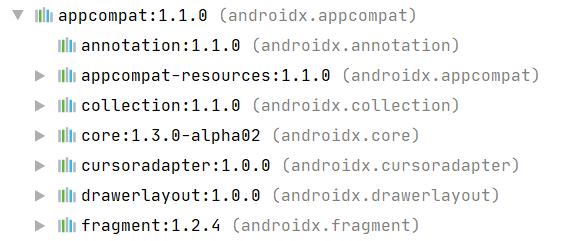

依赖树

传递依赖
androidx.annotation:annotation:1.1.0
androidx.core:core:1.1.0
androidx.cursoradapter:cursoradapter:1.0.0
androidx.fragment:fragment:1.1.0
androidx.appcompat:appcompat-resources:1.1.0
androidx.drawerlayout:drawerlayout:1.0.0
androidx.collection:collection:1.0.0
❝「
❞appcompat
中默认引入了fragment
库,如果想使用更新版本的fragment
库,可以单独引用」
❝ ❞
Fragment
引入
dependencies {
def fragment_version = "1.2.2"
// Java language implementation
implementation "androidx.fragment:fragment:$fragment_version"
// Kotlin
implementation "androidx.fragment:fragment-ktx:$fragment_version"
// Testing Fragments in Isolation
implementation "androidx.fragment:fragment-testing:$fragment_version"
}
❝⚠️ Note: The Kotlin dependant libraries of this version (fragment-ktx,fragment-testing) target Java 8 programming language bytecode. Please read Use Java 8 language features to learn how to use it in your project.
❞

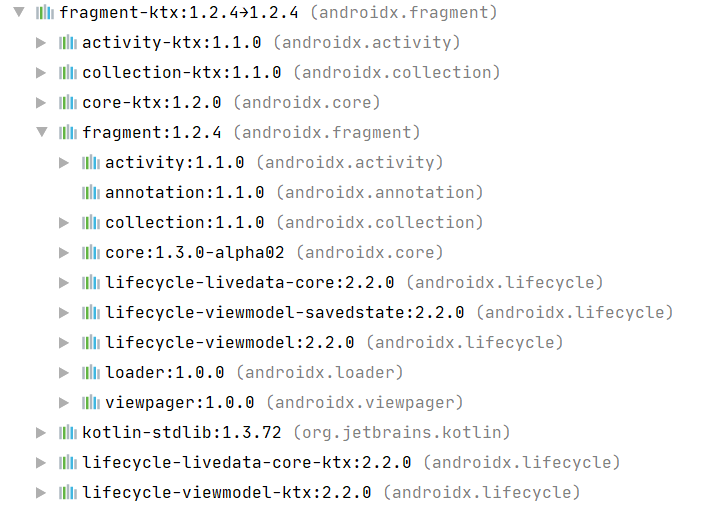

依赖树

传递依赖
org.jetbrains.kotlin:kotlin-stdlib:1.3.50
androidx.activity:activity-ktx:1.1.0
androidx.core:core-ktx:1.1.0
androidx.collection:collection-ktx:1.1.0
androidx.lifecycle:lifecycle-livedata-core-ktx:2.2.0
androidx.lifecycle:lifecycle-viewmodel-ktx:2.2.0
❝「
❞fragment
库默认引入了activity
core-ktx
lifecycle-livedata-core-ktx
lifecycle-viewmodel-ktx
库」
Activity
引入
dependencies {
def activity_version = "1.1.0"
// Java language implementation
implementation "androidx.activity:activity:$activity_version"
// Kotlin
implementation "androidx.activity:activity-ktx:$activity_version"
}
❝⚠️ Note: The Kotlin dependant libraries of this version (activity-ktx) target Java 8 programming language bytecode. Please read Use Java 8 language features to learn how to use it in your project.
❞

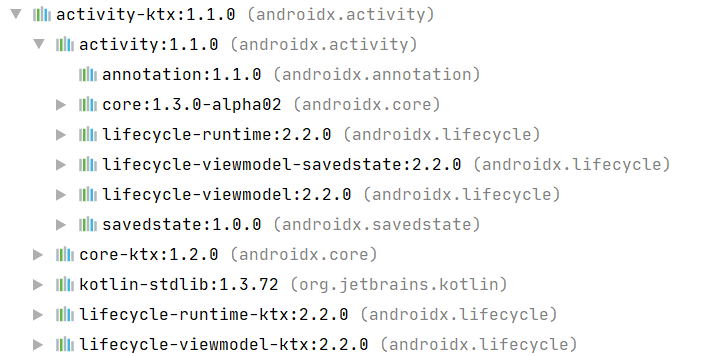

依赖树

依赖传递
org.jetbrains.kotlin:kotlin-stdlib:1.3.50
androidx.core:core-ktx:1.1.0
androidx.lifecycle:lifecycle-runtime-ktx:2.2.0
androidx.lifecycle:lifecycle-viewmodel-ktx:2.2.0
❝ ❞
Core
引入
dependencies {
def core_version = "1.2.0"
// Java language implementation
implementation "androidx.core:core:$core_version"
// Kotlin
implementation "androidx.core:core-ktx:$core_version"
// To use RoleManagerCompat
implementation "androidx.core:core-role:1.0.0-alpha01"
}

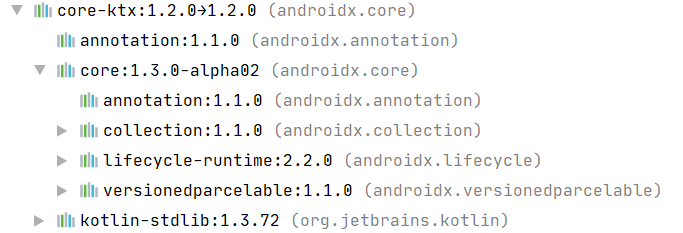

依赖树

Lifecycle
引入
dependencies {
def lifecycle_version = "2.2.0"
def arch_version = "2.1.0"
// ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"
// LiveData
implementation "androidx.lifecycle:lifecycle-livedata-ktx:$lifecycle_version"
// Lifecycles only (without ViewModel or LiveData)
implementation "androidx.lifecycle:lifecycle-runtime-ktx:$lifecycle_version"
// Saved state module for ViewModel
implementation "androidx.lifecycle:lifecycle-viewmodel-savedstate:$lifecycle_version"
// Annotation processor
kapt "androidx.lifecycle:lifecycle-compiler:$lifecycle_version"
// alternately - if using Java8, use the following instead of lifecycle-compiler
implementation "androidx.lifecycle:lifecycle-common-java8:$lifecycle_version"
// optional - helpers for implementing LifecycleOwner in a Service
implementation "androidx.lifecycle:lifecycle-service:$lifecycle_version"
// optional - ProcessLifecycleOwner provides a lifecycle for the whole application process
implementation "androidx.lifecycle:lifecycle-process:$lifecycle_version"
// optional - ReactiveStreams support for LiveData
implementation "androidx.lifecycle:lifecycle-reactivestreams-ktx:$lifecycle_version"
// optional - Test helpers for LiveData
testImplementation "androidx.arch.core:core-testing:$arch_version"
}
❝❞
- ⚠️ 「
lifecycle-extensions
已废弃,如果使用LifecycleService
请依赖lifecycle-service
;如果使用ProcessLifecycleOwner
请依赖lifecycle-process
。lifecycle-extensionsl
不会有2.3.0版本」- 「2.1.0 后
ViewModelProviders.of()
被废弃。您可以在FragmentActivity
或者Fragment
使用ViewModelProvider(ViewModelStoreOwner)
构造器来实现相同的功能。(Fragment
库 1.2.0以上)」
依赖树


Navigation
引入
dependencies {
def nav_version = "2.3.0-alpha02"
// Java language implementation
implementation "androidx.navigation:navigation-fragment:$nav_version"
implementation "androidx.navigation:navigation-ui:$nav_version"
// Kotlin
implementation "androidx.navigation:navigation-fragment-ktx:$nav_version"
implementation "androidx.navigation:navigation-ui-ktx:$nav_version"
// Dynamic Feature Module Support
implementation "androidx.navigation:navigation-dynamic-features-fragment:$nav_version"
// Testing Navigation
androidTestImplementation "androidx.navigation:navigation-testing:$nav_version"
}
依赖树


Paging
引入
dependencies {
def paging_version = "2.1.1"
implementation "androidx.paging:paging-runtime:$paging_version" // For Kotlin use paging-runtime-ktx
// alternatively - without Android dependencies for testing
testImplementation "androidx.paging:paging-common:$paging_version" // For Kotlin use paging-common-ktx
// optional - RxJava support
implementation "androidx.paging:paging-rxjava2:$paging_version" // For Kotlin use paging-rxjava2-ktx
}
依赖树

Room
引入
dependencies {
def room_version = "2.2.4"
implementation "androidx.room:room-runtime:$room_version"
annotationProcessor "androidx.room:room-compiler:$room_version" // For Kotlin use kapt instead of annotationProcessor
// optional - Kotlin Extensions and Coroutines support for Room
implementation "androidx.room:room-ktx:$room_version"
// optional - RxJava support for Room
implementation "androidx.room:room-rxjava2:$room_version"
// optional - Guava support for Room, including Optional and ListenableFuture
implementation "androidx.room:room-guava:$room_version"
// Test helpers
testImplementation "androidx.room:room-testing:$room_version"
}
❝⚠️ Note: For Kotlin-based apps, make sure you use kapt instead of annotationProcessor. You should also add the kotlin-kapt plugin.
❞
依赖树

总结
版本说明
❝❞
androidx
库遵循严格的语义版本控制。版本字符串(例如 1.0.1-beta02)包含三个数字,分别代表 major 级别、minor 级别和问题修复级别。预发布版本也有一个后缀,用于指定预发布阶段(Alpha 版、Beta 版、候选版本)和版本号(01、02 等)。
库的每个版本都要经历三个预发布阶段,才能成为稳定版本。各预发布阶段的标准如下:
「Alpha 版」
- Alpha 版功能稳定,但功能可能不完整。
- 在版本处于 Alpha 版状态时,可以添加、移除或更改 API。
「Beta 版」
- Beta 版功能稳定,并且具有功能完整的 API Surface。 它们可以投入实际使用,但可能包含错误。
- Beta 版无法使用实验性编译器功能(例如 @UseExperimental)。
- 其他库的依赖项必须为 Beta 版、RC 版或稳定版。不允许使用 Alpha 版依赖项。
「候选版本 (RC)」
- 候选版本是未来的稳定版。
- 此版本可能包含在最后一刻提供的重要修复。
- 此版本的 API Surface 无法更改。
- 其他库的依赖项只能是 RC 版或稳定版。
一个库可以同时具有多个版本。每个版本都具有不同的发布阶段。例如,虽然 androidx.activity 的稳定版可以是 1.0.0,但也可能还有 1.1.0-beta02 版本以及 2.0.0-alpha01 版本。
kotlin 协程的使用
❝❞
ViewModel
LiveData
Activity
Fragment
Service
等均可使用协程
- 对于
ViewModelScope
,请使用androidx.lifecycle:lifecycle-viewmodel-ktx:2.1.0-beta01
或更高版本。 - 对于
LifecycleScope
,请使用androidx.lifecycle:lifecycle-runtime-ktx:2.2.0-alpha01
或更高版本。 - 对于
liveData
,请使用androidx.lifecycle:lifecycle-livedata-ktx:2.2.0-alpha01
或更高版本。
class MyViewModel: ViewModel() {
init {
viewModelScope.launch {
// Coroutine that will be canceled when the ViewModel is cleared.
}
}
}
class MyFragment : Fragment() {
override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
super.onViewCreated(view, savedInstanceState)
viewLifecycleOwner.lifecycleScope.launch {
val params = TextViewCompat.getTextMetricsParams(textView)
val precomputedText = withContext(Dispatchers.Default) {
PrecomputedTextCompat.create(longTextContent, params)
}
TextViewCompat.setPrecomputedText(textView, precomputedText)
}
}
}
val user: LiveData<User> = liveData {
val data = database.loadUser() // loadUser is a suspend function.
emit(data)
}
依赖关系
带有
-ktx
的库拥有kotlin
的特性,有很多常用的扩展函数带有
-ktx
的库依赖 java 版本, 带有-ktx
和 java 版本各自单独使用即可appcompat
库包含fragmnet
,fragment
包含activity
,当你引入androidx
appcompat
库便可以使用androidx
fragment
和androidx
activity
受限于
appcompat
稳定版的更新速度,您可以选择单独使用androidx
fragment
/activity
AppCompatActivity
继承自FragmentActivity
,AppCompatActivity
可以直接使用fragment
DataBinding
ViewBinding
依赖于android build gradle
插件 ,无需引入其他依赖androidx
fragment
/activity
下均依赖的ViewModel
和LiveData
,您可以直接使用使用
ViewModel
和LiveData
完整功能需要单独引入,它们都是lifecycle
大家族下的lifecycle-extensions
已废弃,不要使用它了如果想使用实现
LifecycleOwner
的Service
,需要引入lifecycle-service
