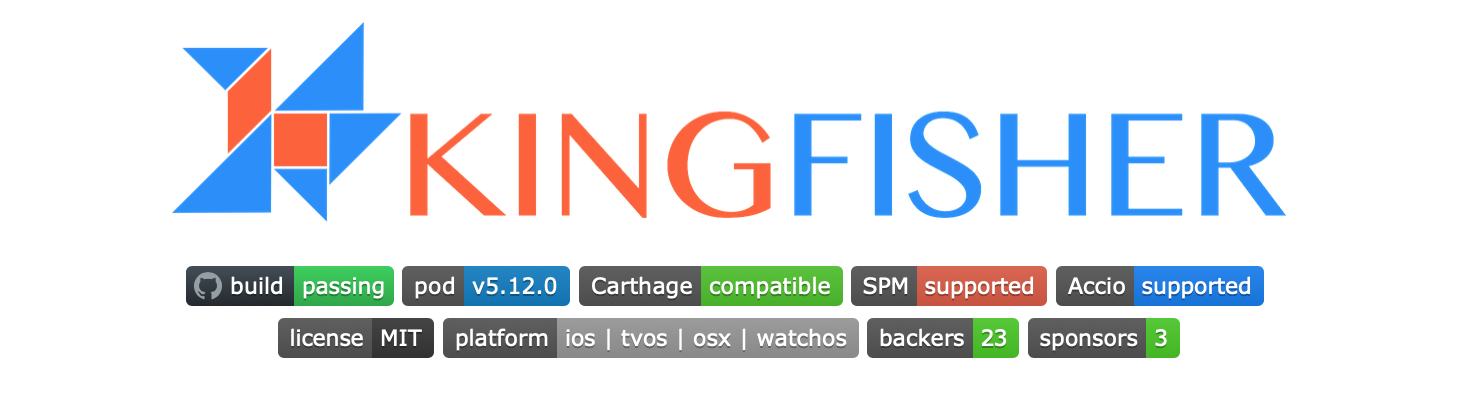

经常逛 GitHub 的同学会发现,很多优秀的开源框架里都会出现这样的小徽标。

它的实现其实非常简单,借助一些小工具即可,比如:shield.io、Badgen、Open Source Badges、Version Badge、FOR THE BADGE 等。这里推荐最经典全面的 shield.io。
静态徽标
一个简单的静态徽标链接的标准格式为:
https://img.shields.io/badge/${label}-${message}-${color}.svg
label 表示徽标左半部分信息,可选填,message 表示徽标右半部分信息,color 表示徽标右半部分的背景颜色。.svg
可以省略。
如果徽标里的文字包含 -
,需要写成 --
,比如:
那么
// 加上 .svg

// 省略 .svg

[](https://blog.fiteen.top)
color
关于 color,你可以直接填入颜色英文,比如:
也可以用这些特殊词汇来代替颜色:
或者直接通过十六进制颜色码,比如:
样式
目前支持五种徽标样式,具体实现就是在 svg 路径后面拼接参数。flat
是默认样式。
?style=plastic
?style=flat
?style=flat-square
?style=for-the-badge
?style=social
除此之外,还有一些 query string 参数:
label
- 覆盖原有的 label 文本内容。labelColor
或labelA
- 覆盖原有的 label 背景颜色,默认颜色是grey
。注意这里不能用特殊词汇表示颜色。logo
- 可以插入以下名称之一的徽标(bitcoin、dependabot、discord、gitlab、npm、paypal、serverfault、stackexchange、superuser、telegram、travis)或简单图标。使用简单图标站点上显示的名称来引用简单图标。如果名称中包含空格,用短划线-
代替(例如:?logo=visual-studio-code
) 。或者插入自定义徽标 logo 图像(高度≥14px)。logoColor
- 设置徽标 logo 的颜色。logoWidth
- 设置徽标 logo 的水平宽度。link
- 指定徽标左/右侧部分的点击操作,格式为:?link=${label-url}&link=${message-url}
。color
或colorB
- 覆盖原有的 message 背景颜色。cacheSeconds
- 设置 HTTP 缓存生存期(规则适用于根据每个徽章推断默认值,低于默认值的任何指定值都将被忽略)。还支持传统名称“ maxAge”。
动态徽标
动态徽标是指会随着项目状态变化,自动更新状态的徽标。GitHub 项目中常用的动态徽标有:
build 状态
-
Travis(.org):
https://travis-ci.org/:user/:repo
-
Travis(.org)branch:
https://travis-ci.org/:user/:repo/:branch
-
GitHub Workflow Status:
/github/workflow/build/:user/:repo/:workflow
-
GitHub Workflow Status (branch):
https://github.com/:user/:repo/workflows/build/badge.svg?branch=${branch}
例如 AFNetworking 的 build 状态为:

[](https://travis-ci.org/AFNetworking/AFNetworking)
而 Kingfisher-master 分支的 build 状态为:

[](https://github.com/onevcat/Kingfisher/actions?query=workflow%3Abuild)
要知道项目在其它平台的持续集成状态,具体参照 shields.io - build
许可协议
-
Cocoapods:
/cocoapods/l/:spec
-
GitHub:
/github/license/:user/:repo
-
NPM:
/npm/l/:packageName
比如 Kingfisher 许可协议支持 Cocoapods 和 GitHub 两种写法:
debug 的许可协议为
// Kingfisher Cocoapods License:
[](https://raw.githubusercontent.com/onevcat/Kingfisher/master/LICENSE)
// Kingfisher GitHub License
[](https://raw.githubusercontent.com/onevcat/Kingfisher/master/LICENSE)
// debug NPM Licese
[](https://github.com/visionmedia/debug/blob/master/LICENSE)
要知道项目在其他平台的许可协议,具体参照 shields-license。
平台&版本支持
-
Cocoapods Platform:
/cocoapods/p/:repo
-
Cocoapods Compatible:
/cocoapods/v/:repo
比如 Kingfisher 当前支持的平台有:
pod 版本号为:
// Platform Support

// Version Support

要知道相关的其它信息,具体参照 shields.io - platform & version support
代码测试覆盖率
针对不同的代码测试平台,有不同的获取方法,例如:
-
Codecov:
https://codecov.io/github/:user/:repo/coverage.svg?token=${token}
-
Codecov Branch:
https://codecov.io/github/:user/:repo/coverage.svg?branch=${branch}&token=${token}
以 AFNetworking-master 分支为例:

[](https://codecov.io/github/AFNetworking/AFNetworking?branch=master)
要知道项目在其它平台的测试覆盖率,具体参照 shields.io - coverage。
项目信息
-
GitHub Followers:
/github/followers/:user?label=Follow
-
GitHub Forks:
/github/forks/:user/:repo?label=Fork
-
GitHub Stars:
/github/stars/:user/:repo?style=social
-
GitHub Watchers:
/github/watchers/:user/:repo?label=Watch
// Followers

// Forks

// Stars

// Watchers

下载量
-
GitHub All Releases:
/github/downloads/:user/:repo/total
-
GitHub Releases:
/github/downloads/:user/:repo/:tag/total
以 PicGo 为例:
// 总下载量

// v1.7.1 的下载量

其他
当然,可支持动态的徽标还有很多,本文就不一一列举,有兴趣的可以直接在官网查询。
