vue-router实现原理及两种模式分析

4,602 阅读6分钟

之前用Vue开发单页应用,发现不管路由怎么变化,浏览器地址栏总是会有一个'#'号。


当时检查自己的代码,没有发现请求的地址带'#',当时也很纳闷,但是由于没有影响页面的渲染以及向后台发送请求,当时也没有在意。最近看了一下vue-router的实现原理,才逐渐揭开了这个谜题。

vue-router 的两种方式(浏览器环境下)

1. Hash (对应HashHistory)

hash(“#”)符号的本来作用是加在URL中指示网页中的位置:

http://www.example.com/index.html#print

#符号本身以及它后面的字符称之为hash(也就是我之前为什么地址栏都会有一个‘#’),可通过window.location.hash属性读取。它具有如下特点:

  1. hash虽然出现在URL中,但不会被包括在HTTP请求中。它是用来指导浏览器动作的,对服务器端完全无用,因此,改变hash不会重新加载页面

2.可以为hash的改变添加监听事件:

window.addEventListener("hashchange", funcRef, false)
  1. 每一次改变hash(window.location.hash),都会在浏览器的访问历史中增加一个记录

利用hash的以上特点,就可以来实现前端路由“更新视图但不重新请求页面”的功能了。

2. History (对应HTML5History)

History接口是浏览器历史记录栈提供的接口,通过back(), forward(), go()等方法,我们可以读取浏览器历史记录栈的信息,进行各种跳转操作。

从HTML5开始,History interface提供了两个新的方法:pushState(), replaceState()使得我们可以对浏览器历史记录栈进行修改:

window.history.pushState(stateObject, title, URL)
window.history.replaceState(stateObject, title, URL)

stateObject: 当浏览器跳转到新的状态时,将触发popState事件,该事件将携带这个stateObject参数的副本 title: 所添加记录的标题 URL: 所添加记录的URL

这两个方法有个共同的特点:当调用他们修改浏览器历史记录栈后,虽然当前URL改变了,但浏览器不会刷新页面,这就为单页应用前端路由“更新视图但不重新请求页面”提供了基础。 浏览器历史记录可以看作一个「栈」。栈是一种后进先出的结构,可以把它想象成一摞盘子,用户每点开一个新网页,都会在上面加一个新盘子,叫「入栈」。用户每次点击「后退」按钮都会取走最上面的那个盘子,叫做「出栈」。而每次浏览器显示的自然是最顶端的盘子的内容。

vue-router 的作用

vue-router的作用就是通过改变URL,在不重新请求页面的情况下,更新页面视图。简单的说就是,虽然地址栏的地址改变了,但是并不是一个全新的页面,而是之前的页面某些部分进行了修改。

export default new Router({
  // mode: 'history', //后端支持可开
  routes: constantRouterMap
})

这是Vue项目中常见的一段初始化vue-router的代码,之前没仔细研究过vue-router,不知道还有一个mode属性,后来看了相关文章后了解到,mode属性用来指定vue-router使用哪一种模式。在没有指定mode的值,则使用hash模式。

源码分析

首先看一下vue-router的构造函数

constructor (options: RouterOptions = {}) {
    this.app = null
    this.apps = []
    this.options = options
    this.beforeHooks = []
    this.resolveHooks = []
    this.afterHooks = []
    this.matcher = createMatcher(options.routes || [], this)

    let mode = options.mode || 'hash'
    this.fallback = mode === 'history' && !supportsPushState && options.fallback !== false
    if (this.fallback) {
      mode = 'hash'
    }
    if (!inBrowser) {
      mode = 'abstract'
    }
    this.mode = mode

    switch (mode) {
      case 'history':
        this.history = new HTML5History(this, options.base)
        break
      case 'hash':
        this.history = new HashHistory(this, options.base, this.fallback)
        break
      case 'abstract':   //非浏览器环境下
        this.history = new AbstractHistory(this, options.base)
        break
      default:
        if (process.env.NODE_ENV !== 'production') {
          assert(false, `invalid mode: ${mode}`)
        }
    }
  }

主要是先获取mode的值,如果mode的值为history但是浏览器不支持history模式,那么就强制设置mode值为hash。如果支持则为history。接下来,根据mode的值,来选择vue-router使用哪种模式。

case 'history':
        this.history = new HTML5History(this, options.base)
        break
case 'hash':
        this.history = new HashHistory(this, options.base, this.fallback)
        break

这样就有了两种模式。确定好了vue-router使用哪种模式后,就到了init。 先来看看router 的 init 方法就干了哪些事情,在 src/index.js

init (app: any /* Vue component instance */) {
// ....
    const history = this.history

    if (history instanceof HTML5History) {
      history.transitionTo(history.getCurrentLocation())
    } else if (history instanceof HashHistory) {
      const setupHashListener = () => {
        history.setupListeners()
      }
      history.transitionTo(
        history.getCurrentLocation(),
        setupHashListener,
        setupHashListener
      )
    }

    history.listen(route => {
      this.apps.forEach((app) => {
        app._route = route
      })
    })
  }
// ....
// VueRouter类暴露的以下方法实际是调用具体history对象的方法
  push (location: RawLocation, onComplete?: Function, onAbort?: Function) {
    this.history.push(location, onComplete, onAbort)
  }

  replace (location: RawLocation, onComplete?: Function, onAbort?: Function) {
    this.history.replace(location, onComplete, onAbort)
  }
}

如果是HTML5History,则执行

history.transitionTo(history.getCurrentLocation())

如果是Hash模式,则执行

const setupHashListener = () => {
        history.setupListeners()
      }
      history.transitionTo(
        history.getCurrentLocation(),
        setupHashListener,
        setupHashListener
      )

可以看出,两种模式都执行了transitionTo( )函数。 接下来看一下两种模式分别是怎么执行的,首先看一下Hash模式

HashHistory.push()

我们来看HashHistory中的push()方法:

push (location: RawLocation, onComplete?: Function, onAbort?: Function) {
  this.transitionTo(location, route => {
    pushHash(route.fullPath)
    onComplete && onComplete(route)
  }, onAbort)
}

function pushHash (path) {
  window.location.hash = path
}

transitionTo()方法是父类中定义的是用来处理路由变化中的基础逻辑的,push()方法最主要的是对window的hash进行了直接赋值:

window.location.hash = route.fullPath hash的改变会自动添加到浏览器的访问历史记录中。

那么视图的更新是怎么实现的呢,我们来看父类History中transitionTo()方法的这么一段:

transitionTo (location: RawLocation, onComplete?: Function, onAbort?: Function) {
  // 调用 match 得到匹配的 route 对象
  const route = this.router.match(location, this.current)
  this.confirmTransition(route, () => {
    this.updateRoute(route)
    ...
  })
}
updateRoute (route: Route) {
  this.cb && this.cb(route)
}
listen (cb: Function) {
  this.cb = cb
}

可以看到,当路由变化时,调用了History中的this.cb方法,而this.cb方法是通过History.listen(cb)进行设置的。回到VueRouter类定义中,找到了在init()方法中对其进行了设置:

init (app: any /* Vue component instance */) {

  this.apps.push(app)

  history.listen(route => {
    this.apps.forEach((app) => {
      app._route = route
    })
  })
}

代码中的app指的是Vue的实例,._route本不是本身的组件中定义的内置属性,而是在Vue.use(Router)加载vue-router插件的时候,通过Vue.mixin()方法,全局注册一个混合,影响注册之后所有创建的每个 Vue 实例,该混合在beforeCreate钩子中通过Vue.util.defineReactive()定义了响应式的_route。所谓响应式属性,即当_route值改变时,会自动调用Vue实例的render()方法,更新视图。vm.render()是根据当前的_route的path,name等属性,来将路由对应的组件渲染到. 所以总结下来,从路由改变到视图的更新流程如下:

this.$router.push(path)
 -->
HashHistory.push()
-->
History.transitionTo()
-->
const  route = this.router.match(location, this.current)会进行地址匹配,得到一个对应当前地址的route(路由信息对象)
-->
History.updateRoute(route)
 -->
 app._route=route (Vue实例的_route改变)   由于_route属性是采用vue的数据劫持,当_route的值改变时,会执行响应的render( )
-- >
vm.render()   具体是在<router-view></router-view> 中render
 -->
window.location.hash = route.fullpath (浏览器地址栏显示新的路由的path)

HashHistory.replace()

说完了HashHistory.push(),该说HashHistory.replace()了。

replace (location: RawLocation, onComplete?: Function, onAbort?: Function) {
  this.transitionTo(location, route => {
    replaceHash(route.fullPath)
    onComplete && onComplete(route)
  }, onAbort)
}

function replaceHash (path) {
  const i = window.location.href.indexOf('#')
  window.location.replace(
    window.location.href.slice(0, i >= 0 ? i : 0) + '#' + path
  )
}

可以看出来,HashHistory.replace它与push()的实现结构上基本相似,不同点在于它不是直接对window.location.hash进行赋值,而是调用window.location.replace方法将路由进行替换。这样不会将新路由添加到浏览器访问历史的栈顶,而是替换掉当前的路由。

监听地址栏

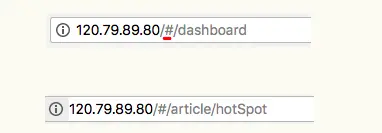

可以看出来,上面的过程都是在代码内部进行路由的改变的,比如项目中常见的this.$router.push(), 等方法。然后将浏览器的地址栏置为新的hash值。那么如果直接在地址栏中输入URL从而改变路由呢,例如

我将dashboadr删除,然后置为article/hotSpot,然后回车,vue又是如何处理的呢?

setupListeners () {
  window.addEventListener('hashchange', () => {
    if (!ensureSlash()) {
      return
    }
    this.transitionTo(getHash(), route => {
      replaceHash(route.fullPath)
    })
  })
}

该方法设置监听了浏览器事件hashchange,调用的函数为replaceHash,即在浏览器地址栏中直接输入路由相当于代码调用了replace()方法.后面的步骤自然与HashHistory.replace()相同,一样实现页面渲染。

HTML5History

HTML5History模式的vue-router 代码结构以及更新视图的逻辑与hash模式基本类似,和HashHistory的步骤基本一致,只是HashHistory的push和replace()变成了HTML5History.pushState()和HTML5History.replaceState()

在HTML5History中添加对修改浏览器地址栏URL的监听是直接在构造函数中执行的,对HTML5History的popstate 事件进行监听:

constructor (router: Router, base: ?string) {

  window.addEventListener('popstate', e => {
    const current = this.current
    this.transitionTo(getLocation(this.base), route => {
      if (expectScroll) {
        handleScroll(router, route, current, true)
      }
    })
  })
}

以上就是vue-router hash模式与history模式不同模式下处理逻辑的分析了。

两种模式比较

hash模式 会在浏览器的URL中加入'#',而HTM5History就没有'#'号,URL和正常的URL一样。 另外: history.pushState()相比于直接修改hash主要有以下优势:

  1. pushState设置的新URL可以是与当前URL同源的任意URL;而hash只可修改#后面的部分,故只可设置与当前同文档的URL
  2. pushState设置的新URL可以与当前URL一模一样,这样也会把记录添加到栈中;而hash设置的新值必须与原来不一样才会触发记录添加到栈中
  3. pushState通过stateObject可以添加任意类型的数据到记录中;而hash只可添加短字符串
  4. pushState可额外设置title属性供后续使用
