OC：深入探究 block

主要分析了block在持有__block、__weak、__strong修饰的对象时，block结构发生的变化。

以及block对持有变量的引用计数造成的具体影响。

思考：

@implementation TestCode
- (void)testFunc {
    @weakify(self)
    self.block111 = ^{
        @strongify(self);
        dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(2.0 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
            if (self) {
                printf("\n\nstrongPerson1 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));
            }else{
                printf("self Retain Count = 0 \n");
            }
        });
    };
}

- (void)dealloc {
    printf("\n");
    printf("✅ 【dealloc】 Retain Count = 0");
}
@end


@implementation ViewController
- (void)viewDidLoad {
    [super viewDidLoad];
    TestCode *t = [[TestCode alloc]init];
    [t testFunc];

    if (t.block111) {
        t.block111();
    }
}
@end

注意: 以下block111是self所持有的block

如果在block111 中对 NSMutableArray *arrayM 进行增删元素, arrayM是否需要用__block修饰？
在block111 中对weakSelf进行 __strong typeof(weakSelf) strongSelf = weakSelf 修饰
- 如果block一直不调用，那么self是否可以正常销毁？
- 当运行到__strong typeof(weakSelf) strongSelf = weakSelf的下一行时，self引用计数最少是多少？

一：基本介绍

定义

Block 是带有自动变量(局部变量)的匿名函数，是 C 语言的扩充功能，其本质是一个OC对象。

作为属性

@property (nonatomic,copy) void(^block)(void);
作为参数

- (void) getDataWithBlock:(id(^)(id parameter))block;
作为返回值(masonry)

- (MASConstraint * (^)(id))equalTo

结构

- (void)testFunc {
    self.block111 = ^{
        printf("block测试代码");
    };
    self.block111();
}

把OC代码转成c++代码

clang -x objective-c -rewrite-objc -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator.sdk -fobjc-arc -fobjc-runtime=macosx-10.13 xxxxxx.m

static void _I_TestCode_testFunc(TestCode * self, SEL _cmd) {
    /// self.block = &__TestCode__testFunc_block_impl_0(A,B)
    ((void (*)(id, SEL, void (^ _Nonnull)()))(void *)objc_msgSend)
     ((id)self, sel_registerName("setBlock111:"),
      (
       (void (*)())&__TestCode__testFunc_block_impl_0
        (
         (void *)__TestCode__testFunc_block_func_0,// 参数1
         &__TestCode__testFunc_block_desc_0_DATA// 参数2__TestCode__testFunc_block_desc_0,
        )
       )
     );

    ((void (*(*)(id, SEL))())(void *)objc_msgSend)((id)self, sel_registerName("block111"))();
}

上段代码的基本意思是

self.block = &__TestCode__testFunc_block_impl_0(A,B)
1. A: __TestCode__testFunc_block_func_0
2. B: __TestCode__testFunc_block_desc_0_DATA

1. TestCodetestFunc_block_impl_0

struct __TestCode__testFunc_block_impl_0 {

  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  __TestCode__testFunc_block_impl_0(void *fp, struct __TestCode__testFunc_block_desc_0 *desc, int flags=0) {
    impl.isa = &_NSConcreteStackBlock;
    impl.Flags = flags;
    impl.FuncPtr = fp;
    Desc = desc;
  }
};

命名规律：__类名__方法名_block_impl_层级

上述代码中可以看出block 被编译成了__TestCode__testFunc_block_impl_0结构体

其内部有一个同名的构造函数__TestCode__testFunc_block_impl_0
两个属性
1. __block_impl impl
2. __TestCode__testFunc_block_desc_0* Desc

2. __block_impl

struct __block_impl {
  void *isa;// 指向了&_NSConcreteStackBlock
  int Flags;
  int Reserved;
  void *FuncPtr; // 用于方法的储存本质是一个 __TestCode__testFunc_block_func_0 c函数
};

可以发现__block_impl结构体内部就有一个isa指针。因此可以证明block本质上就是一个oc对象。

__block_impl结构体中isa指针存储着&_NSConcreteStackBlock地址，可以暂时理解为其类对象地址，block就是_NSConcreteStackBlock类型的。

看到isa就会联想到之前在objc_class结构体，因此我们的block本质上也是一个对象【而且是个类对象】我们知道实例对象->类对象->元类构成了isa链中的一条，而这个__block_impl结构体占据的是中间类对象的位置

这里的isa指针会指向元类，这里的元类主要是为了说明这个块的存储区域

__TestCode__testFunc_block_func_0

static void __TestCode__testFunc_block_func_0(struct __TestCode__testFunc_block_impl_0 *__cself) {
        printf("block测试代码");
}

__TestCode__testFunc_block_func_0 中存放的是block中的代码

3. TestCodetestFunc_block_desc_0

static struct __TestCode__testFunc_block_desc_0 {
  size_t reserved;
  size_t Block_size;
} __TestCode__testFunc_block_desc_0_DATA = { 0, sizeof(struct __TestCode__testFunc_block_impl_0)};

主要是存储了block的大小

4. 同名的构造函数`TestCodetestFunc_block_impl_0(void fp, struct TestCodetestFunc_block_desc_0 desc, int flags=0)`

__TestCode__testFunc_block_impl_0
    (void *fp, struct __TestCode__testFunc_block_desc_0 *desc, int flags=0)
    {
        impl.isa = &_NSConcreteStackBlock;
        impl.Flags = flags;
        impl.FuncPtr = fp;
        Desc = desc;
    }

同名函数主要对两个属性进行了赋值

void *fp 就是 (void *)__TestCode__testFunc_block_func_0__
__ struct __TestCode__testFunc_block_desc_0 *desc 就是 &__TestCode__testFunc_block_desc_0_DATA

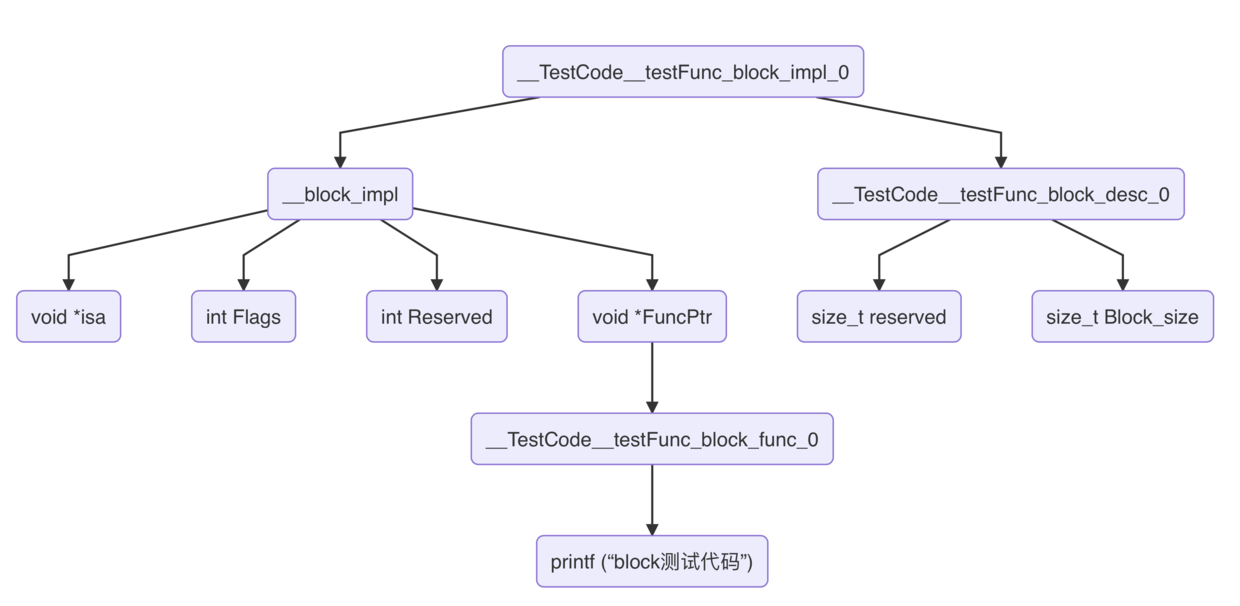

5. 结构图

二：持有变量时block的结构

以上分析的是 block 不持有任何外部变量，但是当block持有外部变量的时候，就会额外生成一些东西。

持有基本数据类型

持有的基本数据类型分为是否用__block修饰，如下，a 用__block修饰，b没有。

- (void)testFunc {
    __block NSInteger a = 0;
    NSInteger b = 0;
    self.block111 = ^{
        a = 12 + b;
        printf("block测试代码");
    };
    self.block111();
}

思考

a用__block修饰后可以修改，必然a从值传递，变成了地址传递。

__blok把a封装成了什么结构？
结构a的值到底存在哪里？
结构a是怎么管理内存的？

要回答上述问题，我们需要查看- (void)testFunc{}编译的源码：

编译后:

static void _I_TestCode_testFunc(TestCode * self, SEL _cmd) {
	// 结构体 a 的生成  (__block NSInteger a = 0;)
    __attribute__((__blocks__(byref))) __Block_byref_a_0 a =
    {
        (void*)0, // isa
        (__Block_byref_a_0 *)&a,// a地址的传递
        0,// flags
        sizeof(__Block_byref_a_0),// size
        0// a的值
    };

    NSInteger b = 0;

    ((void (*)(id, SEL, void (^ _Nonnull)()))(void *)objc_msgSend)
    ((id)self, sel_registerName("setBlock111:"),

     /// 初始化__TestCode__testFunc_block_impl_0结构体
     ((void (*)())&__TestCode__testFunc_block_impl_0
      (
       (void *)__TestCode__testFunc_block_func_0,
       &__TestCode__testFunc_block_desc_0_DATA,

       b,//值传递b
       (__Block_byref_a_0 *)&a,//把结构体（对象）a的地址传了进去

       570425344
       ))
     );

    ((void (*(*)(id, SEL))())(void *)objc_msgSend)((id)self, sel_registerName("block111"))();
}

1. __Block_byref_a_0

struct __Block_byref_a_0 {
  void *__isa;
__Block_byref_a_0 *__forwarding;
 int __flags;
 int __size;
 NSInteger a;
};

// 结构体 a 的生成
    __attribute__((__blocks__(byref))) __Block_byref_a_0 a =
    {
        (void*)0, // isa
        (__Block_byref_a_0 *)&a,// a地址的传递
        0,// flags
        sizeof(__Block_byref_a_0),// size
        0// a的值
    };

用了__block修饰的a，生成了一个用__attribute__ 修饰的 __Block_byref_a_0类型的结构体。
结构体内部有一个isa指针,说明__Block_byref_a_0其本质也是一个OC对象

2. TestCodetestFunc_block_impl_0结构体

struct __TestCode__testFunc_block_impl_0 {

  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  NSInteger b;
  __Block_byref_a_0 *a; // by ref

  // 同名的构造函数
  __TestCode__testFunc_block_impl_0
    (

     void *fp,
     struct __TestCode__testFunc_block_desc_0 *desc,
     NSInteger _b,
     __Block_byref_a_0 *_a,
     int flags=0

     ) : b(_b), a(_a->__forwarding) { ... }
};

生成了新的属性:

NSInteger b
- _b就是栈区的b
- b 值传递
__Block_byref_a_0 *a
- 由于赋值到__TestCode__testFunc_block_impl_0时，传递的是栈区的__Block_byref_a_0 a的地址,所以 _a == &a。
- 因为_a->__forwarding就是&_a因此__TestCode__testFunc_block_impl_0结构体中的a指向的就是栈中的a

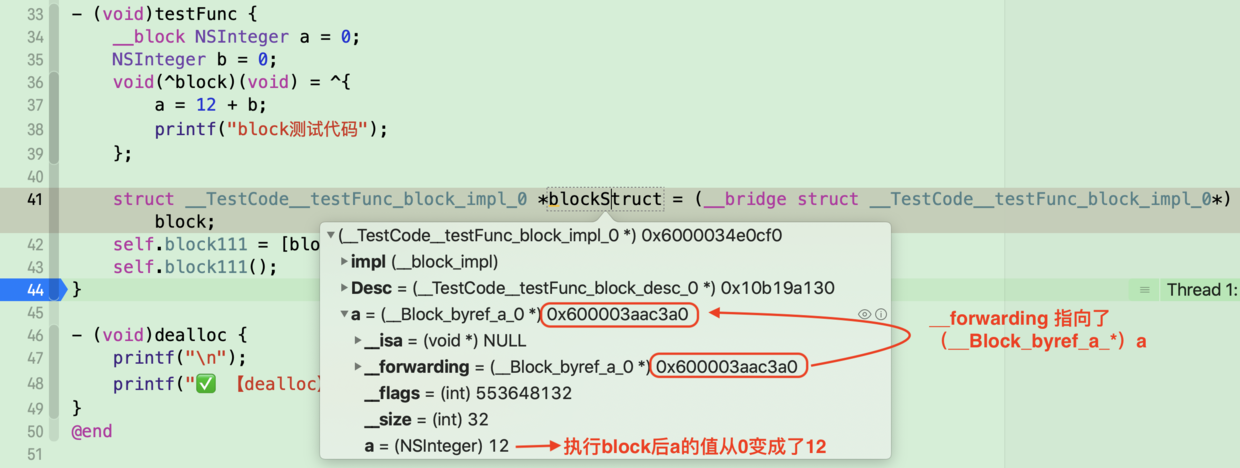

小结论:

block中的b和外部的b,只是值传递，因此即便外部修改了b的值，也不会对block的b产生影响。
__block a;把a包装成了一个结构体,而block内部属性__Block_byref_a_0 *a就是栈区结构体a的地址
此时， block没有copy操作，所以block存在栈区，结构体a也存在栈区

3. TestCodetestFunc_block_desc_0


static struct __TestCode__testFunc_block_desc_0 {
  size_t reserved;
  size_t Block_size;
   //copy 函数
  void (*copy)(
    struct __TestCode__testFunc_block_impl_0*,
    struct __TestCode__testFunc_block_impl_0*
  );
  // dispose 函数
  void (*dispose)(struct __TestCode__testFunc_block_impl_0*);

} __TestCode__testFunc_block_desc_0_DATA =
																	{ 0,// reserved
                                   sizeof(struct __TestCode__testFunc_block_impl_0), //size
                                   __TestCode__testFunc_block_copy_0,//copy
                                   __TestCode__testFunc_block_dispose_0//dispose
                                   };

生成了 copy dispose 函数

a. TestCodetestFunc_block_copy_0

block被拷贝到堆区的时候调用
实现函数是 _Block_object_assign，它根据对象的 flags 来判断是否需要拷贝，或者只是赋值。

// copy
static void __TestCode__testFunc_block_copy_0(struct __TestCode__testFunc_block_impl_0*dst, struct __TestCode__testFunc_block_impl_0*src){
  _Block_object_assign(
                        (void*)&dst->a,
			(void*)src->a,
			8/*BLOCK_FIELD_IS_BYREF*/
                        );
}

_Block_object_assign

函数实现在 runtime.c 里

/**
_Block_object_assign参数flag相关
				// 是一个对象
        BLOCK_FIELD_IS_OBJECT   =  3,
        // 是一个block
        BLOCK_FIELD_IS_BLOCK    =  7,
        // 被__block修饰的变量
        BLOCK_FIELD_IS_BYREF    =  8,
        // 被__weak修饰的变量，只能被辅助copy函数使用
        BLOCK_FIELD_IS_WEAK     = 16,
        // block辅助函数调用（告诉内部实现不要进行retain或者copy）
        BLOCK_BYREF_CALLER      = 128
**/

void _Block_object_assign(void *destAddr, const void *object, const int flags) {

  // BLOCK_BYREF_CALLER block辅助函数调用（告诉内部实现不要进行retain或者copy）
    if ((flags & BLOCK_BYREF_CALLER) == BLOCK_BYREF_CALLER) {

      //BLOCK_FIELD_IS_WEAK 被__weak修饰的变量，只能被辅助copy函数使用
        if ((flags & BLOCK_FIELD_IS_WEAK) == BLOCK_FIELD_IS_WEAK) {
            _Block_assign_weak(object, destAddr);
        }
        else {
            _Block_assign((void *)object, destAddr);
        }
    }

  // 被__block修饰的变量
    else if ((flags & BLOCK_FIELD_IS_BYREF) == BLOCK_FIELD_IS_BYREF)  {
      ///最终走到这边
        _Block_byref_assign_copy(destAddr, object, flags);
    }

  // 是一个block
    else if ((flags & BLOCK_FIELD_IS_BLOCK) == BLOCK_FIELD_IS_BLOCK) {
        _Block_assign(_Block_copy_internal(object, flags), destAddr);
    }

  // 是一个对象
    else if ((flags & BLOCK_FIELD_IS_OBJECT) == BLOCK_FIELD_IS_OBJECT) {
        _Block_retain_object(object);
        _Block_assign((void *)object, destAddr);
    }
}

/*
Block_private.h
https://opensource.apple.com/source/libclosure/libclosure-73/Block_private.h
*/
 enum {
        BLOCK_DEALLOCATING =      (0x0001),  // runtime
        BLOCK_REFCOUNT_MASK =     (0xfffe),  // runtime
        BLOCK_NEEDS_FREE =        (1 << 24), // runtime
        BLOCK_HAS_COPY_DISPOSE =  (1 << 25), // compiler
        BLOCK_HAS_CTOR =          (1 << 26), // compiler: helpers have C++ code
        BLOCK_IS_GC =             (1 << 27), // runtime
        BLOCK_IS_GLOBAL =         (1 << 28), // compiler
        BLOCK_USE_STRET =         (1 << 29), // compiler: undefined if !BLOCK_HAS_SIGNATURE
        BLOCK_HAS_SIGNATURE  =    (1 << 30), // compiler
        BLOCK_HAS_EXTENDED_LAYOUT=(1 << 31)  // compiler
    };

struct Block_byref {
    void *isa;
    struct Block_byref *forwarding;
    int flags; /* refcount; */
    int size;
};


/** runtime.c
http://llvm.org/svn/llvm-project/compiler-rt/trunk/lib/BlocksRuntime/runtime.c
*/
static void *_Block_copy_class = _NSConcreteMallocBlock;
static void *_Block_copy_finalizing_class = _NSConcreteMallocBlock;
static int _Block_copy_flag = BLOCK_NEEDS_FREE;
static int _Byref_flag_initial_value = BLOCK_NEEDS_FREE | 2;

static void _Block_byref_assign_copy(void *dest, const void *arg, const int flags) {

  	struct Block_byref **destp = (struct Block_byref **)dest;
    struct Block_byref *src = (struct Block_byref *)arg;

		//不需要做任何操作
    if (src->forwarding->flags & BLOCK_IS_GC) {
    }

		// 需要copy到堆区 并且需要操作引用计数
    else if ((src->forwarding->flags & BLOCK_REFCOUNT_MASK) == 0) {
        // src points to stack
        bool isWeak = ((flags & (BLOCK_FIELD_IS_BYREF|BLOCK_FIELD_IS_WEAK)) == (BLOCK_FIELD_IS_BYREF|BLOCK_FIELD_IS_WEAK));
        // if its weak ask for an object (only matters under GC)
        struct Block_byref *copy = (struct Block_byref *)_Block_allocator(src->size, false, isWeak);
        copy->flags = src->flags | _Byref_flag_initial_value; // non-GC one for caller, one for stack
        copy->forwarding = copy; // patch heap copy to point to itself (skip write-barrier)
        src->forwarding = copy;  // patch stack to point to heap copy
        copy->size = src->size;
        if (isWeak) {
            copy->isa = &_NSConcreteWeakBlockVariable;  // mark isa field so it gets weak scanning
        }
        if (src->flags & BLOCK_HAS_COPY_DISPOSE) {
            // Trust copy helper to copy everything of interest
            // If more than one field shows up in a byref block this is wrong XXX
            copy->byref_keep = src->byref_keep;
            copy->byref_destroy = src->byref_destroy;
            (*src->byref_keep)(copy, src);
        }
        else {
            // just bits.  Blast 'em using _Block_memmove in case they're __strong
            _Block_memmove(
                (void *)&copy->byref_keep,
                (void *)&src->byref_keep,
                src->size - sizeof(struct Block_byref_header));
        }
    }
    // 已经复制到堆、只操作引用计数
    else if ((src->forwarding->flags & BLOCK_NEEDS_FREE) == BLOCK_NEEDS_FREE) {
        latching_incr_int(&src->forwarding->flags);
    }
    // assign byref data block pointer into new Block
  	// 其实进行了 *destp = src->forwarding 操作，把栈区的a，变成了 Block_byref *copy
    _Block_assign(src->forwarding, (void **)destp);
}

static void (*_Block_assign)(void *value, void **destptr) = _Block_assign_default;

static void _Block_assign_default(void *value, void **destptr) {
    *destptr = value;
}

省略后的代码


struct Block_byref {
    void *isa;
    struct Block_byref *forwarding;
    int flags; /* refcount; */
    int size;
};

static void _Block_byref_assign_copy(void *dest, const void *arg, const int flags) {
    ...
    struct Block_byref *copy = (struct Block_byref *)_Block_allocator(src->size, false, isWeak);
    copy->flags = src->flags | _Byref_flag_initial_value; // non-GC one for caller, one for stack
    // 堆中拷贝的forwarding指向它自己
    copy->forwarding = copy; // patch heap copy to point to itself (skip write-barrier)
    // 栈中的forwarding指向堆中的新对象
    src->forwarding = copy;  // patch stack to point to heap copy
    copy->size = src->size;
    ...
     // 其实进行了 *destp = src->forwarding 操作，把栈区的a，变成了 Block_byref *copy
    _Block_assign(src->forwarding, (void **)destp);
}

可以看到，Block_byref 和 __Block_byref_a_0 的前4个成员类型相同，可以互相转化。

b. TestCodetestFunc_block_dispose_0

// dispose
static void __TestCode__testFunc_block_dispose_0(struct __TestCode__testFunc_block_impl_0*src){
_Block_object_dispose((void*)src->a, 8/*BLOCK_FIELD_IS_BYREF*/);
}

_Block_object_dispose

void _Block_object_dispose(const void *object, const int flags) {
    //printf("_Block_object_dispose(%p, %x)\n", object, flags);
    if (flags & BLOCK_FIELD_IS_BYREF)  {
      // 释放 __block 修饰的变量
        _Block_byref_release(object);
    }
    else if ((flags & (BLOCK_FIELD_IS_BLOCK|BLOCK_BYREF_CALLER)) == BLOCK_FIELD_IS_BLOCK) {
				// 释放block 引用的 block
        _Block_destroy(object);
    }
    else if ((flags & (BLOCK_FIELD_IS_WEAK|BLOCK_FIELD_IS_BLOCK|BLOCK_BYREF_CALLER)) == BLOCK_FIELD_IS_OBJECT) {
        // 释放block 引用的对象
        _Block_release_object(object);
    }
}

static void _Block_byref_release(const void *arg) {
    struct Block_byref *shared_struct = (struct Block_byref *)arg;
    int refcount;

    shared_struct = shared_struct->forwarding;

    if ((shared_struct->flags & BLOCK_NEEDS_FREE) == 0) {
        return; // stack or GC or global
    }
    refcount = shared_struct->flags & BLOCK_REFCOUNT_MASK;
    if (refcount <= 0) {
        printf("_Block_byref_release: Block byref data structure at %p underflowed\n", arg);
    }
    else if ((latching_decr_int(&shared_struct->flags) & BLOCK_REFCOUNT_MASK) == 0) {
        if (shared_struct->flags & BLOCK_HAS_COPY_DISPOSE) {
            (*shared_struct->byref_destroy)(shared_struct);
        }
        _Block_deallocator((struct Block_layout *)shared_struct);
    }
}

static void (*_Block_deallocator)(const void *) = (void (*)(const void *))free;

static int latching_decr_int(int *where) {
    while (1) {
        int old_value = *(volatile int *)where;
        if ((old_value & BLOCK_REFCOUNT_MASK) == BLOCK_REFCOUNT_MASK) {
            return BLOCK_REFCOUNT_MASK;
        }
        if ((old_value & BLOCK_REFCOUNT_MASK) == 0) {
            return 0;
        }
        if (OSAtomicCompareAndSwapInt(old_value, old_value-1, (volatile int *)where)) {
            return old_value-1;
        }
    }
}

被__block修饰的变量，释放时要用 latching_decr_int函数减引用计数，直到计数为0，就释放该对象；

而普通的对象、block，就直接释放销毁。

小结：

生成了copy despose函数。
copy 调用时机：
1. 当block进行copy操作的时候就会自动调用__TestCode__testFunc_block_desc_0内部的__TestCode__testFunc_block_copy_0函数，__TestCode__testFunc_block_copy_0函数内部会调用_Block_object_assign函数。
2. _Block_object_assign内部是根据传递的flags类型来对a进行copy、retain操作
despose 调用时机：
1. 当block从堆中移除时就会自动调用__TestCode__testFunc_block_desc_0中__TestCode__testFunc_block_dispose_0函数，__TestCode__testFunc_block_dispose_0函数内部会调用_Block_object_dispose函数。
2. _Block_object_dispose会对 a做释放操作，类似于release。

4. TestCodetestFunc_block_func_0

__TestCode__testFunc_block_func_0是__block_impl结构体中存储的block代码

static void __TestCode__testFunc_block_func_0(struct __TestCode__testFunc_block_impl_0 *__cself) {

  __Block_byref_a_0 *a = __cself->a; // bound by ref
  NSInteger b = __cself->b; // bound by copy

  (a->__forwarding->a) = 12 + b;
   printf("block测试代码");
}

__cself就是我们定义的block

a->__forwarding其实修改的就是我们堆区的(Block_byref) copy (注意在ARC下我们的block会自动copy)

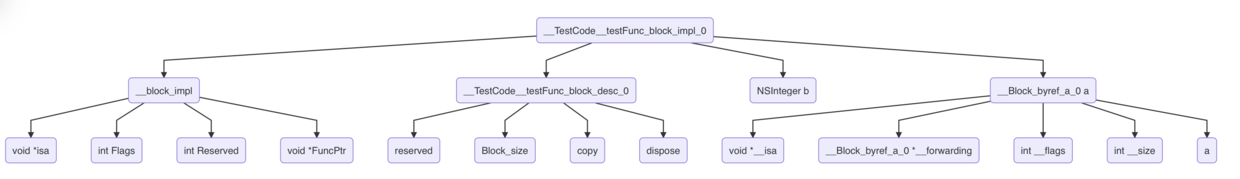

下图在TestCode.m中自定义了结构体：

struct __Block_byref_a_0 {
    void *__isa;
    struct __Block_byref_a_0 *__forwarding;
    int __flags;
    int __size;
    NSInteger a;
};
struct __block_impl {
    void *isa;// 指向了&_NSConcreteStackBlock
    int Flags;
    int Reserved;
    void *FuncPtr; // 用于方法的储存本质是一个 __TestCode__testFunc_block_func_0 c函数
};
struct __TestCode__testFunc_block_impl_0 {

    struct __block_impl impl;
    struct __TestCode__testFunc_block_desc_0* Desc;
    struct __Block_byref_a_0 *a; // by ref
};

5. 结构图

__block NSInteger a = 0;
NSInteger b = 0;
self.block111 = ^{
	a = 12 + b;
	printf("block测试代码");
};

持有对象类型

对象类型的引用分为三种情况：

用 __block 修饰
用__strong 修饰（@strongify）
用__weak 修饰（@weakify）

⚠️注意下面的代码产生了循环引用，随后会做详细的分析

- (void)testFunc {

    __weak typeof(self)weakSelf = self;
    __block TestCode *blockSelf = weakSelf;

    self.block111 = ^{
        __strong typeof(weakSelf)strongSelf = weakSelf;
        void(^block222)(void) = ^{
            blockSelf = strongSelf;
            printf("\nblock测试代码\n");
        };
        block222();
    };

    self.block111();
}

编译上述代码：

static void _I_TestCode_testFunc(TestCode * self, SEL _cmd) {

    __attribute__((objc_ownership(weak))) typeof(self)weakSelf = self;
    __attribute__((__blocks__(byref))) __Block_byref_blockSelf_0 blockSelf =
    {
        (void*)0,
        (__Block_byref_blockSelf_0 *)&blockSelf,
        33554432,
        sizeof(__Block_byref_blockSelf_0),
        __Block_byref_id_object_copy_131,
        __Block_byref_id_object_dispose_131,
        weakSelf
    };

    // 创建 __TestCode__testFunc_block_impl_1
    ((void (*)(id, SEL, void (^ _Nonnull)()))(void *)objc_msgSend)((id)self, sel_registerName("setBlock111:"), ((void (*)())&__TestCode__testFunc_block_impl_1
     (//参数：
      (void *)__TestCode__testFunc_block_func_1,
      &__TestCode__testFunc_block_desc_1_DATA,
      weakSelf,
      (__Block_byref_blockSelf_0 *)&blockSelf,
      570425344)
      ));

    ((void (*(*)(id, SEL))())(void *)objc_msgSend)((id)self, sel_registerName("block111"))();
}

1. __Block_byref_blockSelf_0

struct __Block_byref_blockSelf_0 {
  //【值为：0】[8个字节]
  void *__isa;
  //【值为&blockSelf】,[8个字节]
__Block_byref_blockSelf_0 *__forwarding;

 int __flags;//【值为33554432】,[4个字节]
 int __size;//【值为sizeof(__Block_byref_blockSelf_0)】,[4个字节]

  //【__Block_byref_id_object_copy_131】[8个字节]
 void (*__Block_byref_id_object_copy)(void*, void*);
  //【__Block_byref_id_object_dispose_131】,[8个字节]
 void (*__Block_byref_id_object_dispose)(void*);

 TestCode *__strong blockSelf;//【weakSelf】[8个字节]
};
/// 共48个字节

self使用__block修饰后，blockPerson 被包装成了一个与__Block_byref_a_0相似的结构体

只是比__Block_byref_a_0多了两个函数：

__Block_byref_id_object_copy值为__Block_byref_id_object_copy_131
__Block_byref_id_object_dispose值为__Block_byref_id_object_dispose_131

⚠️值得注意的是blockSelf用了__strong修饰，因此产生了循环引用！需要改成__block typeof(weakSelf)blockSelf = weakSelf; 下面会有详细解释

__Block_byref_id_object_copy_131 与 __Block_byref_id_object_dispose_131

static void __Block_byref_id_object_copy_131(void *dst, void *src) {
 _Block_object_assign((char*)dst + 40, *(void * ) ((char)src + 40), 131);
}
static void __Block_byref_id_object_dispose_131(void *src) {
 _Block_object_dispose(*(void * *) ((char*)src + 40), 131);
}

内部调用函数为_Block_object_assign

dst与src就是blockSelf即__Block_byref_blockSelf_0结构体指针

因__Block_byref_blockSelf_0共48个字节，所以(char*)dst + 40 与(char)src + 40，找到的就是TestCode *__strong blockSelf

最后的flags传递的是131 = 3|128 即： BLOCK_FIELD_IS_OBJECT|BLOCK_FIELD_IS_CALLER

调用时机：block执行copy操作，后面会详细分析。

2. TestCodetestFunc_block_impl_1

struct __TestCode__testFunc_block_impl_1 {
  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_1* Desc;

  TestCode *const __weak weakSelf;
  __Block_byref_blockSelf_0 *blockSelf; // by ref

  __TestCode__testFunc_block_impl_1(
                                    void *fp,
                                    struct __TestCode__testFunc_block_desc_1 *desc,
                                    TestCode *const __weak _weakSelf,
                                    __Block_byref_blockSelf_0 *_blockSelf,
                                    int flags=0
                                    ) : weakSelf(_weakSelf), blockSelf(_blockSelf->__forwarding) {
    impl.isa = &_NSConcreteStackBlock;
    impl.Flags = flags;
    impl.FuncPtr = fp;
    Desc = desc;
  }
};

生成了两个成员变量：Person *__weak weakPerson;、__Block_byref_blockPerson_0 *blockPerson;

**a. __block_impl impl **

结构没有任何变化

flags: 570425344表示BLOCK_HAS_COPY_DISPOSE | BLOCK_HAS_DESCRIPTOR，即（1<<25 | 1<<29）
FuncPtr: __TestCode__testFunc_block_func_1

3. TestCodetestFunc_block_desc_1

结构没有任何变化

desc:结构体__TestCode__testFunc_block_desc_1_DATA

static struct __TestCode__testFunc_block_desc_1 {
  size_t reserved;
  size_t Block_size;
  void (*copy)(struct __TestCode__testFunc_block_impl_1*, struct __TestCode__testFunc_block_impl_1*);
  void (*dispose)(struct __TestCode__testFunc_block_impl_1*);
} __TestCode__testFunc_block_desc_1_DATA = {
    0,
    sizeof(struct __TestCode__testFunc_block_impl_1),
    __TestCode__testFunc_block_copy_1,
    __TestCode__testFunc_block_dispose_1
};

值得注意的是：copy、dispose的实现函数

// copy 函数
static void __TestCode__testFunc_block_copy_1(struct __TestCode__testFunc_block_impl_1*dst, struct __TestCode__testFunc_block_impl_1*src)
{
    _Block_object_assign((void*)&dst->weakSelf, (void*)src->weakSelf, 3/*BLOCK_FIELD_IS_OBJECT*/);
    _Block_object_assign((void*)&dst->blockSelf, (void*)src->blockSelf, 8/*BLOCK_FIELD_IS_BYREF*/);
}

// dispose 函数
static void __TestCode__testFunc_block_dispose_1(struct __TestCode__testFunc_block_impl_1*src)
{
    _Block_object_dispose((void*)src->weakSelf, 3/*BLOCK_FIELD_IS_OBJECT*/);
    _Block_object_dispose((void*)src->blockSelf, 8/*BLOCK_FIELD_IS_BYREF*/);
}

a. 对`weakSelf` 的 `_Block_object_assign`操作

void _Block_object_assign(void *destAddr, const void *object, const int flags) {

  // BLOCK_BYREF_CALLER block辅助函数调用（告诉内部实现不要进行retain或者copy）
    if ((flags & BLOCK_BYREF_CALLER) == BLOCK_BYREF_CALLER) { ... }
  // 被__block修饰的变量
    else if ((flags & BLOCK_FIELD_IS_BYREF) == BLOCK_FIELD_IS_BYREF)  { ... }
  // 是一个block
    else if ((flags & BLOCK_FIELD_IS_BLOCK) == BLOCK_FIELD_IS_BLOCK) { ... }

  // 是一个对象
    else if ((flags & BLOCK_FIELD_IS_OBJECT) == BLOCK_FIELD_IS_OBJECT) {
        _Block_retain_object(object);
        _Block_assign((void *)object, destAddr);
    }
}

即直接对对象进行一个_Block_retain_object操作

但是发现在ARC下_Block_retain_object函数并没有给对象的引用计数+1。

static void (*_Block_retain_object)(const void *ptr) = _Block_retain_object_default;
static void _Block_retain_object_default(const void *ptr) {
    if (!ptr) return;
}

b. 对`blockSelf`的`_Block_object_assign`操作

最终会调用到_Block_byref_assign_copy函数

static void _Block_byref_assign_copy(void *dest, const void *arg, const int flags) {

  	struct Block_byref **destp = (struct Block_byref **)dest;
    struct Block_byref *src = (struct Block_byref *)arg;

		//不需要做任何操作
    if (src->forwarding->flags & BLOCK_IS_GC) {
    }

		// 需要copy到堆区 并且需要操作引用计数
    else if ((src->forwarding->flags & BLOCK_REFCOUNT_MASK) == 0) {
        bool isWeak = ((flags & (BLOCK_FIELD_IS_BYREF|BLOCK_FIELD_IS_WEAK)) == (BLOCK_FIELD_IS_BYREF|BLOCK_FIELD_IS_WEAK));

        struct Block_byref *copy = (struct Block_byref *)_Block_allocator(src->size, false, isWeak);
        copy->flags = src->flags | _Byref_flag_initial_value;
        copy->forwarding = copy;
        src->forwarding = copy;
        copy->size = src->size;

        if (isWeak) {
            copy->isa = &_NSConcreteWeakBlockVariable;
        }
        if (src->flags & BLOCK_HAS_COPY_DISPOSE) {
          /// 调用 __Block_byref_blockSelf_0 中的 __Block_byref_id_object_copy 函数
					/// 执行byref的byref_keep函数(即assign函数，只是会加上BLOCK_BYREF_CALLER标志)，管理捕获的对象内存
            copy->byref_keep = src->byref_keep;
            copy->byref_destroy = src->byref_destroy;
            (*src->byref_keep)(copy, src);
        }
        else { ... }
    }
    // 已经复制到堆、只操作引用计数
    else if ((src->forwarding->flags & BLOCK_NEEDS_FREE) == BLOCK_NEEDS_FREE) { ... }
    _Block_assign(src->forwarding, (void **)destp);
}

值得注意的是在Block_private.h找到了这个结构：

struct Block_byref {
    void *isa;
    struct Block_byref *forwarding;
    volatile int32_t flags; // contains ref count
    uint32_t size;
};

struct Block_byref_2 {
    // requires BLOCK_BYREF_HAS_COPY_DISPOSE
    BlockByrefKeepFunction byref_keep;
    BlockByrefDestroyFunction byref_destroy;
};

struct Block_byref_3 {
    // requires BLOCK_BYREF_LAYOUT_EXTENDED
    const char *layout;
};

其实byref_keep就是blockSelf中的__Block_byref_id_object_copy也就是函数__Block_byref_id_object_copy_131

所以其调用为

static void __Block_byref_id_object_copy_131(void *dst, void *src) {
 _Block_object_assign((char*)dst + 40, *(void * ) ((char)src + 40), 131);
}
  // 译为
static void __Block_byref_id_object_copy_131(__Block_byref_blockSelf_0 *dst, __Block_byref_blockSelf_0 *src) {
 _Block_object_assign(
   dst->blockSelf,
   *(void * )(src->blockSelf),
   BLOCK_FIELD_IS_OBJECT|BLOCK_FIELD_IS_CALLER
 );
}

继续看_Block_object_assign

void _Block_object_assign(void *destAddr, const void *object, const int flags) {

  // BLOCK_BYREF_CALLER block辅助函数调用（告诉内部实现不要进行retain或者copy）
    if ((flags & BLOCK_BYREF_CALLER) == BLOCK_BYREF_CALLER) {
      //BLOCK_FIELD_IS_WEAK 被__weak修饰的变量，只能被辅助copy函数使用
        if ((flags & BLOCK_FIELD_IS_WEAK) == BLOCK_FIELD_IS_WEAK) {
            _Block_assign_weak(object, destAddr);
        }
        else {
            _Block_assign((void *)object, destAddr);
        }
    }
    else if ((flags & BLOCK_FIELD_IS_BYREF) == BLOCK_FIELD_IS_BYREF)  { ... }
    else if ((flags & BLOCK_FIELD_IS_BLOCK) == BLOCK_FIELD_IS_BLOCK) { ... }
    else if ((flags & BLOCK_FIELD_IS_OBJECT) == BLOCK_FIELD_IS_OBJECT) { ... }
}
static void (*_Block_assign)(void *value, void **destptr) = _Block_assign_default;

static void _Block_assign_default(void *value, void **destptr) {
    *destptr = value;
}

运行了_Block_assign函数，把栈区的__Block_byref_blockSelf_0 blockSelf赋值成了Block_byref copy

c. 对`weakSelf` 的 `dispose`操作

static void __TestCode__testFunc_block_dispose_1(struct __TestCode__testFunc_block_impl_1*src)
{
  _Block_object_dispose(
    (void*)src->self,
    3/*BLOCK_FIELD_IS_OBJECT*/
  );
  _Block_object_dispose(
    (void*)src->blockSelf,
    8/*BLOCK_FIELD_IS_BYREF*/
  );
}

void _Block_object_dispose(const void *object, const int flags) {
    if (flags & BLOCK_FIELD_IS_BYREF)  { ... }
    else if ((flags & (BLOCK_FIELD_IS_BLOCK|BLOCK_BYREF_CALLER)) == BLOCK_FIELD_IS_BLOCK) {...}
    else if ((flags & (BLOCK_FIELD_IS_WEAK|BLOCK_FIELD_IS_BLOCK|BLOCK_BYREF_CALLER)) == BLOCK_FIELD_IS_OBJECT) {
        // 释放block 引用的对象
        _Block_release_object(object);
    }
}
static void (*_Block_release_object)(const void *ptr) = _Block_release_object_default;
static void _Block_release_object_default(const void *ptr) {
    if (!ptr) return;
}

可以看到：最终会调用到_Block_release_object,内部也是没对引用计数进行操作。

d. 对`blockSelf` 的 `dispose`操作

其最终走到了_Block_byref_release函数：

static void _Block_byref_release(const void *arg) {
    struct Block_byref *shared_struct = (struct Block_byref *)arg;
    int refcount;
    shared_struct = shared_struct->forwarding;
    if ((shared_struct->flags & BLOCK_NEEDS_FREE) == 0) {
        return;
    }
    refcount = shared_struct->flags & BLOCK_REFCOUNT_MASK;
    if (refcount <= 0) {  }
    else if ((latching_decr_int(&shared_struct->flags) & BLOCK_REFCOUNT_MASK) == 0) {
	/// 主要调用了
        if (shared_struct->flags & BLOCK_HAS_COPY_DISPOSE) {
            (*shared_struct->byref_destroy)(shared_struct);
        }
        _Block_deallocator((struct Block_layout *)shared_struct);
    }
}

其中__block_release函数内部主要是调用了(*shared_struct->byref_destroy)(shared_struct)

也就是 __Block_byref_blockSelf_0 *blockSelf 中的__Block_byref_id_object_dispose_131函数

static void __Block_byref_id_object_dispose_131(void *src) {
	 _Block_object_dispose(*(void * *) ((char*)src + 40), 131);
}

///译为：
static void __Block_byref_id_object_dispose_131(__Block_byref_blockSelf_0 *src) {

  _Block_object_dispose
   (
     *(void * *) (src->blockSelf),
     BLOCK_FIELD_IS_OBJECT|BLOCK_FIELD_IS_CALLER
   );
}

e. TestCodetestFunc_block_func_1

查看__TestCode__testFunc_block_func_1，函数中是如何创建第二层block222的

{
  __strong typeof(weakSelf)strongSelf = weakSelf;
        void(^block222)(void) = ^{
            blockSelf = strongSelf;
            printf("\nblock测试代码\n");
        };
        block222();
}

static void __TestCode__testFunc_block_func_1(struct __TestCode__testFunc_block_impl_1 *__cself) {

    __Block_byref_blockSelf_0 *blockSelf = __cself->blockSelf; // bound by ref
    TestCode *const __weak weakSelf = __cself->weakSelf; // bound by copy

    ///__strong typeof(weakSelf)strongSelf = weakSelf;
    __attribute__((objc_ownership(strong))) typeof(weakSelf)strongSelf = weakSelf;

    /// 创建block222 即：__TestCode__testFunc_block_impl_0结构体
    void(*block222)(void) = ((void (*)())&__TestCode__testFunc_block_impl_0((void *)__TestCode__testFunc_block_func_0,&__TestCode__testFunc_block_desc_0_DATA,strongSelf,(__Block_byref_blockSelf_0 *)blockSelf,570425344));

    /// 调用: block222()
    ((void (*)(__block_impl *))((__block_impl *)block222)->FuncPtr)((__block_impl *)block222);
}

其中block222是一个__TestCode__testFunc_block_impl_0结构体

4. TestCodetestFunc_block_impl_0

struct __TestCode__testFunc_block_impl_0 {
  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  TestCode *const __strong strongSelf;
  __Block_byref_blockSelf_0 *blockSelf; // by ref

  __TestCode__testFunc_block_impl_0(
                                    void *fp,
                                    struct __TestCode__testFunc_block_desc_0 *desc,
                                    TestCode *const __strong _strongSelf,
                                    __Block_byref_blockSelf_0 *_blockSelf,
                                    int flags=0
                                    ) : strongSelf(_strongSelf), blockSelf(_blockSelf->__forwarding) {
    impl.isa = &_NSConcreteStackBlock;
    impl.Flags = flags;
    impl.FuncPtr = fp;
    Desc = desc;
  }
};

其结构和__TestCode__testFunc_block_impl_1结构相似。

只不过blockSelf就是上层block（即：block111）中的 blockSelf

值得注意的是这边有个TestCode *const __strong strongSelf;

剩下的结构与之前分析的结构大同小异：

static void __TestCode__testFunc_block_func_0(struct __TestCode__testFunc_block_impl_0 *__cself) {
  __Block_byref_blockSelf_0 *blockSelf = __cself->blockSelf; // bound by ref
  TestCode *const __strong strongSelf = __cself->strongSelf; // bound by copy

            (blockSelf->__forwarding->blockSelf) = strongSelf;
            printf("\nblock测试代码\n");
        }
static void __TestCode__testFunc_block_copy_0(struct __TestCode__testFunc_block_impl_0*dst, struct __TestCode__testFunc_block_impl_0*src) {_Block_object_assign((void*)&dst->blockSelf, (void*)src->blockSelf, 8/*BLOCK_FIELD_IS_BYREF*/);_Block_object_assign((void*)&dst->strongSelf, (void*)src->strongSelf, 3/*BLOCK_FIELD_IS_OBJECT*/);}

static void __TestCode__testFunc_block_dispose_0(struct __TestCode__testFunc_block_impl_0*src) {_Block_object_dispose((void*)src->blockSelf, 8/*BLOCK_FIELD_IS_BYREF*/);_Block_object_dispose((void*)src->strongSelf, 3/*BLOCK_FIELD_IS_OBJECT*/);}

static struct __TestCode__testFunc_block_desc_0 {
  size_t reserved;
  size_t Block_size;
  void (*copy)(struct __TestCode__testFunc_block_impl_0*, struct __TestCode__testFunc_block_impl_0*);
  void (*dispose)(struct __TestCode__testFunc_block_impl_0*);
} __TestCode__testFunc_block_desc_0_DATA = { 0, sizeof(struct __TestCode__testFunc_block_impl_0), __TestCode__testFunc_block_copy_0, __TestCode__testFunc_block_dispose_0};

三：持有变量引用计数操作：

既然在ARC 下copy、dispose函数都没有对引用计数做修改，那么什么时候会对引用计数进行操作?

通过对持有变量的分析、可以总结出以下特点

1. 用strong 与 weak修饰

- (void)testFunc {
    printf("\n Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __weak typeof (self)weakSelf1 = self;
    printf("\n 【__weak typeof (self)weakSelf】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __weak TestCode *weakSelf2 = self;
    printf("\n 【__weak TestCode *weakSelf2】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __strong typeof(self)strongSelf1 = self;
    printf("\n 【__strong typeof(self)strongSelf1】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __strong TestCode *strongSelf2 = self;
    printf("\n 【__strong TestCode *strongSelf2】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    self.block111 = ^{
        [weakSelf1 class];
        [weakSelf2 class];
        [strongSelf1 class];
        [strongSelf2 class];
    };
}

/** log:
 Retain Count = 1
 【__weak typeof (self)weakSelf】 Retain Count = 1
 【__weak TestCode *weakSelf2】 Retain Count = 1
 【__strong typeof(self)strongSelf1】 Retain Count = 2
 【__strong TestCode *strongSelf2】 Retain Count = 3
*/

编译后的代码：

static void _I_TestCode_testFunc(TestCode * self, SEL _cmd) {
    printf("...");

	  __attribute__((objc_ownership(weak))) typeof (self)weakSelf1 = self;
    __attribute__((objc_ownership(weak))) TestCode *weakSelf2 = self;

    __attribute__((objc_ownership(strong))) typeof(self)strongSelf1 = self;
    __attribute__((objc_ownership(strong))) TestCode *strongSelf2 = self;

    ((void (*)(id, SEL, void (^ _Nonnull)()))(void *)objc_msgSend)((id)self, sel_registerName("setBlock111:"), ((void (*)())&__TestCode__testFunc_block_impl_0((void *)__TestCode__testFunc_block_func_0, &__TestCode__testFunc_block_desc_0_DATA, strongSelf1, strongSelf2, 570425344)));
}


struct __TestCode__testFunc_block_impl_0 {
  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  TestCode *const __weak weakSelf1;
  TestCode *__weak weakSelf2;

  __strong typeof (self) strongSelf1;
  TestCode *__strong strongSelf2;

  // 同名构造函数
  __TestCode__testFunc_block_impl_0(...){ ... }
};

__weak

__weak TestCode *weakSelf1 = self与__weak typeof(self)weakSelf2 = self

最终都调用了__attribute__((objc_ownership(weak)))

而且__TestCode__testFunc_block_impl_0中对weakSelf1和weakSelf2都是弱引用
__strong

__strong typeof(self)strongSelf1 = self与__strong TestCode *strongSelf2 = self

最终都调用了__attribute__((objc_ownership(strong)))

而且__TestCode__testFunc_block_impl_0中对strongSelf1和strongSelf2都是强引用

2. 用`__block`修饰的对象

用__block修饰的对象分成两种写法

__block TestCode *blockSelf = weakSelf
__block typeof(weakSelf)blockSelf2 = weakSelf


- (void)testFunc {
    printf("\n Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __weak typeof(self)weakSelf = self;

    __block TestCode *blockSelf1 = weakSelf;
    printf("\n 【__block TestCode *blockSelf1 = weakSelf】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    __block typeof(weakSelf)blockSelf2 = weakSelf;
    printf("\n 【__block typeof(weakSelf)blockSelf2 = weakSelf】 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));

    self.block111 = ^{
        [blockSelf1 class];
        [blockSelf2 class];
    };
}

/**log:
 Retain Count = 1
 【__block TestCode *blockSelf1 = weakSelf】 Retain Count = 2
 【__block typeof(weakSelf)blockSelf2 = weakSelf】 Retain Count = 2
*/

编译上述代码：

struct __TestCode__testFunc_block_impl_0 {

  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  __Block_byref_blockSelf1_0 *blockSelf1; // by ref
  __Block_byref_blockSelf2_1 *blockSelf2; // by ref

    // 同名构造函数
  __TestCode__testFunc_block_impl_0(...)  { ...  }
};

struct __Block_byref_blockSelf1_0 {
  void *__isa;
__Block_byref_blockSelf1_0 *__forwarding;
 int __flags;
 int __size;
 void (*__Block_byref_id_object_copy)(void*, void*);
 void (*__Block_byref_id_object_dispose)(void*);
 TestCode *__strong blockSelf1;
};

struct __Block_byref_blockSelf2_1 {
  void *__isa;
__Block_byref_blockSelf2_1 *__forwarding;
 int __flags;
 int __size;
 void (*__Block_byref_id_object_copy)(void*, void*);
 void (*__Block_byref_id_object_dispose)(void*);
 typeof (weakSelf) blockSelf2;
};

在__TestCode__testFunc_block_impl_0中生成了两个成员变量

__block TestCode *blockSelf = weakSelf

TestCode *__strong blockSelf1;对self进行了强引用，从而self引用计数+1,从而产生循环引用。
__block typeof(weakSelf)blockSelf2 = weakSelf;

typeof (weakSelf) blockSelf2 对self的引用为弱引用，引用计数没有+1操作。

3. 补充：

在当前作用域中，对self的retainCount加1，退出作用域后减一
1. __block typeof(self)blockSelf = self;
2. __block NSObject *blockSelf = self;
3. __strong typeof (self)strongSelf = self;
4. __strong NSObject *strongSelf = self;
对self的retainCount不作操作
1. __weak typeof(self)weakSelf = self;
2. __weak NSObject *weakSelf = self;

注意 :

用这些修饰语句对对象的引用计数只在当前作用域有效。让block产生循环引用的关键在于

__TestCode__testFunc_block_impl_0 block结构体中对对象是否是强引用。

思考答案

@implementation TestCode
- (void)testFunc {
    @weakify(self)
    self.block111 = ^{
        @strongify(self);
        dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(2.0 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
            if (self) {
                printf("\n\nstrongPerson1 Retain Count = %ld",CFGetRetainCount((__bridge CFTypeRef)(self)));
            }else{
                printf("self Retain Count = 0 \n");
            }
        });
    };
}

- (void)dealloc {
    printf("\n");
    printf("✅ 【dealloc】 Retain Count = 0");
}
@end

编译后代码：

/// block111结构体
struct __TestCode__testFunc_block_impl_1 {
  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_1* Desc;

  TestCode *const __weak self_weak_;// 若引用

  __TestCode__testFunc_block_impl_1(void *fp, struct __TestCode__testFunc_block_desc_1 *desc, TestCode *const __weak _self_weak_, int flags=0) : self_weak_(_self_weak_) {
    impl.isa = &_NSConcreteStackBlock;
    impl.Flags = flags;
    impl.FuncPtr = fp;
    Desc = desc;
  }
};

///block111中储存的代码
static void __TestCode__testFunc_block_func_1(struct __TestCode__testFunc_block_impl_1 *__cself) {
  TestCode *const __weak self_weak_ = __cself->self_weak_; // bound by copy

        try {} catch (...) {}
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wshadow"
 __attribute__((objc_ownership(strong))) __typeof__(self) self = self_weak_;
#pragma clang diagnostic pop
;
        dispatch_after(dispatch_time((0ull), (int64_t)(2.0 * 1000000000ull)), dispatch_get_main_queue(), ((void (*)())&__TestCode__testFunc_block_impl_0((void *)__TestCode__testFunc_block_func_0, &__TestCode__testFunc_block_desc_0_DATA, self, 570425344)));
    }


/// block222结构体
struct __TestCode__testFunc_block_impl_0 {

  struct __block_impl impl;
  struct __TestCode__testFunc_block_desc_0* Desc;

  __strong typeof (self) self;/// 强引用

  __TestCode__testFunc_block_impl_0(void *fp, struct __TestCode__testFunc_block_desc_0 *desc, __strong typeof (self) _self, int flags=0) : self(_self) {
    impl.isa = &_NSConcreteStackBlock;
    impl.Flags = flags;
    impl.FuncPtr = fp;
    Desc = desc;
  }
};

**注意：**以下block111是self所持有的block

如果在block111 中对 NSMutableArray *arrayM 进行增删元素, arrayM是否需要用__block修饰？

答：不需要，因为并没有修改arrayM指针所指向的地址
在block111 中对weakSelf进行 __strong typeof(weakSelf) strongSelf = weakSelf 修饰
- 如果block一直不调用，那么self是否可以正常销毁？

  答：可以销毁

  因为block调用的时候，才会创建__TestCode__testFunc_block_impl_0

  使得__TestCode__testFunc_block_impl_0内部对self进行了强引用

  从而只要__TestCode__testFunc_block_impl_0不销毁，self就无法销毁
- 当运行到__strong typeof(weakSelf) strongSelf = weakSelf的下一行时，self引用计数最少是多少？

  答：最少是2

  但是出了__strong typeof(weakSelf) strongSelf = weakSelf的作用域，self的引用计数就会自动减1

参考文章

如果有不对的地方欢迎来喷~

邮箱：15076299703@163.com

OC：深入探究 block

思考：

一：基本介绍

定义

结构

1. __TestCode__testFunc_block_impl_0

2. __block_impl

3. __TestCode__testFunc_block_desc_0

4. 同名的构造函数__TestCode__testFunc_block_impl_0(void *fp, struct __TestCode__testFunc_block_desc_0 *desc, int flags=0)

5. 结构图

二：持有变量时block的结构

持有基本数据类型

1. __Block_byref_a_0

2. __TestCode__testFunc_block_impl_0结构体

3. __TestCode__testFunc_block_desc_0

a. __TestCode__testFunc_block_copy_0

_Block_object_assign

b. __TestCode__testFunc_block_dispose_0

_Block_object_dispose

4. __TestCode__testFunc_block_func_0

5. 结构图

持有对象类型

1. __Block_byref_blockSelf_0

2. __TestCode__testFunc_block_impl_1

3. __TestCode__testFunc_block_desc_1

a. 对weakSelf 的 _Block_object_assign操作

b. 对blockSelf的_Block_object_assign操作

c. 对weakSelf 的 dispose操作

d. 对blockSelf 的 dispose操作

e. __TestCode__testFunc_block_func_1

4. __TestCode__testFunc_block_impl_0

三：持有变量引用计数操作：

1. 用__strong 与 __weak修饰

2. 用__block修饰的对象

3. 补充：

思考答案

参考文章

1. TestCodetestFunc_block_impl_0

3. TestCodetestFunc_block_desc_0

4. 同名的构造函数`TestCodetestFunc_block_impl_0(void fp, struct TestCodetestFunc_block_desc_0 desc, int flags=0)`

2. TestCodetestFunc_block_impl_0结构体

3. TestCodetestFunc_block_desc_0

a. TestCodetestFunc_block_copy_0

b. TestCodetestFunc_block_dispose_0

4. TestCodetestFunc_block_func_0

2. TestCodetestFunc_block_impl_1

3. TestCodetestFunc_block_desc_1

a. 对`weakSelf` 的 `_Block_object_assign`操作

b. 对`blockSelf`的`_Block_object_assign`操作

c. 对`weakSelf` 的 `dispose`操作

d. 对`blockSelf` 的 `dispose`操作

e. TestCodetestFunc_block_func_1

4. TestCodetestFunc_block_impl_0

1. 用strong 与 weak修饰

2. 用`__block`修饰的对象
