Eureka源码学习之Eureka-server启动初始化

·  阅读 333

先从github上github.com/Netflix/eur…把eureka的源码导到idea上

从源码结构中可以看到eureka-server其实是一个web工程,来看下web.xml

<listener>
    <listener-class>com.netflix.eureka.EurekaBootStrap</listener-class>
  </listener>
复制代码

监听器会随着web应用的启动而启动,随web应用的停止而销毁。一般做一些初始化工作。

下面来看看这个EurekaBootStrap:

/**
     * Initializes Eureka, including syncing up with other Eureka peers and publishing the registry.
     *
     * @see
     * javax.servlet.ServletContextListener#contextInitialized(javax.servlet.ServletContextEvent)
     */
    @Override
    public void contextInitialized(ServletContextEvent event) {
        try {
            //初始化eureka环境
            initEurekaEnvironment();
            //初始化eureka上下文
            initEurekaServerContext();

            ServletContext sc = event.getServletContext();
            sc.setAttribute(EurekaServerContext.class.getName(), serverContext);
        } catch (Throwable e) {
            logger.error("Cannot bootstrap eureka server :", e);
            throw new RuntimeException("Cannot bootstrap eureka server :", e);
        }
    }
复制代码

启动的入口就是这个contextInitialized()方法了。

来看看initEurekaEnvironment()

protected void initEurekaEnvironment() throws Exception {
        logger.info("Setting the eureka configuration..");

        String dataCenter = ConfigurationManager.getConfigInstance().getString(EUREKA_DATACENTER);
        if (dataCenter == null) {
            logger.info("Eureka data center value eureka.datacenter is not set, defaulting to default");
            ConfigurationManager.getConfigInstance().setProperty(ARCHAIUS_DEPLOYMENT_DATACENTER, DEFAULT);
        } else {
            ConfigurationManager.getConfigInstance().setProperty(ARCHAIUS_DEPLOYMENT_DATACENTER, dataCenter);
        }
        String environment = ConfigurationManager.getConfigInstance().getString(EUREKA_ENVIRONMENT);
        if (environment == null) {
            ConfigurationManager.getConfigInstance().setProperty(ARCHAIUS_DEPLOYMENT_ENVIRONMENT, TEST);
            logger.info("Eureka environment value eureka.environment is not set, defaulting to test");
        }
    }
复制代码

主要创建了配置管理器ConfigurationManager,初始化了数据中心(默认default)和环境(默认Test)。

//用了double-check+volatile来实现实现线程安全的单例模式来创建ConfigurationManager
public static AbstractConfiguration getConfigInstance() {
        if (instance == null) {
            synchronized (ConfigurationManager.class) {
                if (instance == null) {
                    instance = getConfigInstance(Boolean.getBoolean(DynamicPropertyFactory.DISABLE_DEFAULT_CONFIG));
                }
            }
        }
        return instance;
    }
复制代码
private static AbstractConfiguration createDefaultConfigInstance() {
        ConcurrentCompositeConfiguration config = new ConcurrentCompositeConfiguration();
        try {
            DynamicURLConfiguration defaultURLConfig = new DynamicURLConfiguration();
            config.addConfiguration(defaultURLConfig, URL_CONFIG_NAME);
        } catch (Throwable e) {
            logger.warn("Failed to create default dynamic configuration", e);
        }
        if (!Boolean.getBoolean(DISABLE_DEFAULT_SYS_CONFIG)) {
            SystemConfiguration sysConfig = new SystemConfiguration();
            config.addConfiguration(sysConfig, SYS_CONFIG_NAME);
        }
        if (!Boolean.getBoolean(DISABLE_DEFAULT_ENV_CONFIG)) {
            EnvironmentConfiguration envConfig = new EnvironmentConfiguration();
            config.addConfiguration(envConfig, ENV_CONFIG_NAME);
        }
        ConcurrentCompositeConfiguration appOverrideConfig = new ConcurrentCompositeConfiguration();
        config.addConfiguration(appOverrideConfig, APPLICATION_PROPERTIES);
        config.setContainerConfigurationIndex(config.getIndexOfConfiguration(appOverrideConfig));
        return config;
    }
复制代码

ConfigurationManager初始化过程无非就是创建一个ConcurrentCompositeConfiguration实例,然后往里面加了一堆config,然后返回

总结: eureka-server初始化环境:
1.创建单例ConfigurationManager来管理eureka-server的配置信息,double-check+volatile单例模式。
2.初始化dataCenter,没配置的话,设default
3.初始化environment,没配置的话,设test

下面来看eureka-server初始化上下文:initEurekaServerContext()

protected void initEurekaServerContext() throws Exception {
        //加载eureka-server.properties配置文件,将配置项加载到ConfigurationManager中
        EurekaServerConfig eurekaServerConfig = new DefaultEurekaServerConfig();

        // For backward compatibility
        JsonXStream.getInstance().registerConverter(new V1AwareInstanceInfoConverter(), XStream.PRIORITY_VERY_HIGH);
        XmlXStream.getInstance().registerConverter(new V1AwareInstanceInfoConverter(), XStream.PRIORITY_VERY_HIGH);

        logger.info("Initializing the eureka client...");
        logger.info(eurekaServerConfig.getJsonCodecName());
        ServerCodecs serverCodecs = new DefaultServerCodecs(eurekaServerConfig);


        ApplicationInfoManager applicationInfoManager = null;

        //初始化eureka-server内部的eureka-client用来与其他eureka-server节点进行注册和通信
        if (eurekaClient == null) {
            EurekaInstanceConfig instanceConfig = isCloud(ConfigurationManager.getDeploymentContext())
                    ? new CloudInstanceConfig()
                    : new MyDataCenterInstanceConfig();

            applicationInfoManager = new ApplicationInfoManager(
                    instanceConfig, new EurekaConfigBasedInstanceInfoProvider(instanceConfig).get());

            EurekaClientConfig eurekaClientConfig = new DefaultEurekaClientConfig();
            eurekaClient = new DiscoveryClient(applicationInfoManager, eurekaClientConfig);
        } else {
            applicationInfoManager = eurekaClient.getApplicationInfoManager();
        }

        //处理注册相关事情
        //服务实例注册表
        PeerAwareInstanceRegistry registry;
        if (isAws(applicationInfoManager.getInfo())) {
            registry = new AwsInstanceRegistry(
                    eurekaServerConfig,
                    eurekaClient.getEurekaClientConfig(),
                    serverCodecs,
                    eurekaClient
            );
            awsBinder = new AwsBinderDelegate(eurekaServerConfig, eurekaClient.getEurekaClientConfig(), registry, applicationInfoManager);
            awsBinder.start();
        } else {
            registry = new PeerAwareInstanceRegistryImpl(
                    eurekaServerConfig,
                    eurekaClient.getEurekaClientConfig(),
                    serverCodecs,
                    eurekaClient
            );
        }

        //eureka-server集群
        PeerEurekaNodes peerEurekaNodes = getPeerEurekaNodes(
                registry,
                eurekaServerConfig,
                eurekaClient.getEurekaClientConfig(),
                serverCodecs,
                applicationInfoManager
        );

        //Eureka-server上下文构建
        serverContext = new DefaultEurekaServerContext(
                eurekaServerConfig,
                serverCodecs,
                registry,
                peerEurekaNodes,
                applicationInfoManager
        );
        //将serverContext放到holder中,可以从holder中获取serverContext
        EurekaServerContextHolder.initialize(serverContext);
        //更新集群信息
        serverContext.initialize();
        logger.info("Initialized server context");

        // Copy registry from neighboring eureka node
        //从相邻eureka-server节点同步注册信息
        int registryCount = registry.syncUp();
        registry.openForTraffic(applicationInfoManager, registryCount);

        // Register all monitoring statistics.
        //注册所有的监控统计
        EurekaMonitors.registerAllStats();
    }
复制代码

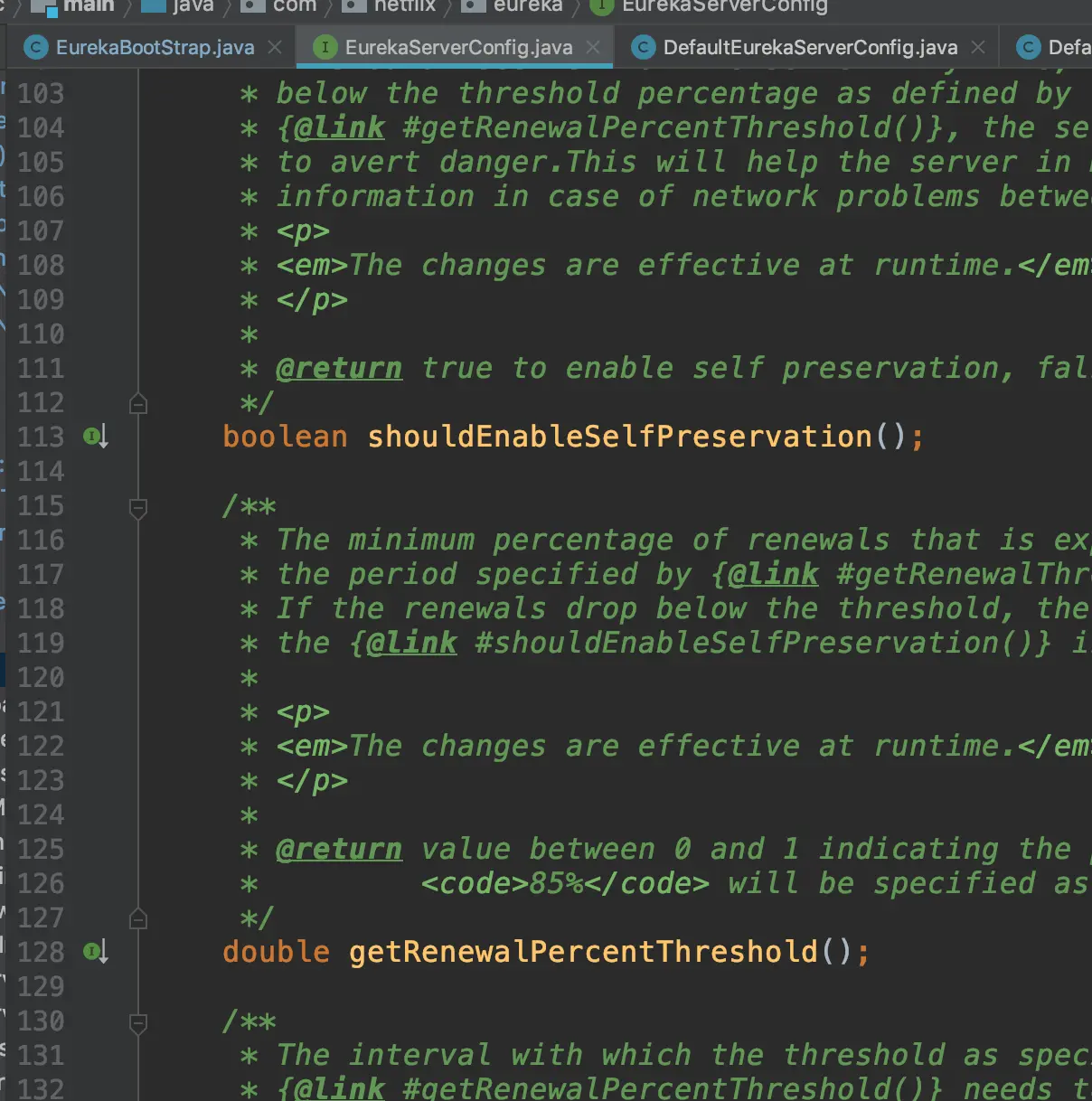

1.EurekaServerConfig eurekaServerConfig = new DefaultEurekaServerConfig(); 将eureka-server.properties文件的配置信息加载到ConfigurationManager中,并将配置信息通过EurekaServerConfig这个接口暴露出来。一般我们加载获取配置文件的信息,都会把信息放到Properties对象中去,然后通过prop.get("KEY")这种方式获取。这里eureka优雅的通过接口方法getXxx()方式来获取配置信息,值得学习

2.加载eureka-client.properties文件的配置信息到ConfigurationManager中,并将配置信息通过EurekaInstanceConfig这个接口暴露出来。

EurekaInstanceConfig instanceConfig = isCloud(ConfigurationManager.getDeploymentContext())
                    ? new CloudInstanceConfig()
                    : new MyDataCenterInstanceConfig();
复制代码

3.基于构造器模式构建出InstanceInfo(服务实例信息),eureka server同时也是一个eureka client,因为他可能要向其他的eureka server去进行注册,eureka server也就是一个Instance实例

builder.setNamespace(config.getNamespace())
                    .setInstanceId(instanceId)
                    .setAppName(config.getAppname())
                    .setAppGroupName(config.getAppGroupName())
                    .setDataCenterInfo(config.getDataCenterInfo())
                    .setIPAddr(config.getIpAddress())
                    .setHostName(defaultAddress)
                    .setPort(config.getNonSecurePort())
                    .enablePort(PortType.UNSECURE, config.isNonSecurePortEnabled())
                    .setSecurePort(config.getSecurePort())
                    .enablePort(PortType.SECURE, config.getSecurePortEnabled())
                    .setVIPAddress(config.getVirtualHostName())
                    .setSecureVIPAddress(config.getSecureVirtualHostName())
                    .setHomePageUrl(config.getHomePageUrlPath(), config.getHomePageUrl())
                    .setStatusPageUrl(config.getStatusPageUrlPath(), config.getStatusPageUrl())
                    .setASGName(config.getASGName())
                    .setHealthCheckUrls(config.getHealthCheckUrlPath(),
                            config.getHealthCheckUrl(), config.getSecureHealthCheckUrl());
复制代码

4.基于instanceConfig(实例配置)和instanceInfo(实例信息),创建了applicationInfoManager(服务实例管理器)

public ApplicationInfoManager(EurekaInstanceConfig config, InstanceInfo instanceInfo) {
        this(config, instanceInfo, null);
    }
applicationInfoManager = new ApplicationInfoManager(
                    instanceConfig, new EurekaConfigBasedInstanceInfoProvider(instanceConfig).get());
复制代码

下面来看看eureka client的初始化过程:
1.获取EurekaClientConfig,InstanceInfo,并保存
2.处理是否要拉取注册表和向其他实例注册,不需要的话就释放一些资源
3.创建支持调度的线程池,支持心跳的线程池,支持缓存刷新的线程池
4.创建EurekaTransport,用于eureka-server和eureka-client网络通信的组件
5.如果要拉取注册表,就拉取注册表
6.初始化调度任务:如果要拉取注册表就创建一个cacheRefreshTask,每隔一段时间(默认30s),更新缓存。如果要向eureka server注册的话,就创建一个heartbeatTask,每隔一段时间发送心跳。创建实例信息副本,创建实例状态监听器

eurekaClient = new DiscoveryClient(applicationInfoManager, eurekaClientConfig);
复制代码
@Inject
    DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
                    Provider<BackupRegistry> backupRegistryProvider, EndpointRandomizer endpointRandomizer) {
        if (args != null) {
            this.healthCheckHandlerProvider = args.healthCheckHandlerProvider;
            this.healthCheckCallbackProvider = args.healthCheckCallbackProvider;
            this.eventListeners.addAll(args.getEventListeners());
            this.preRegistrationHandler = args.preRegistrationHandler;
        } else {
            this.healthCheckCallbackProvider = null;
            this.healthCheckHandlerProvider = null;
            this.preRegistrationHandler = null;
        }

        this.applicationInfoManager = applicationInfoManager;
        InstanceInfo myInfo = applicationInfoManager.getInfo();

        clientConfig = config;
        staticClientConfig = clientConfig;
        transportConfig = config.getTransportConfig();
        instanceInfo = myInfo;
        if (myInfo != null) {
            //例如 orderService/001
            appPathIdentifier = instanceInfo.getAppName() + "/" + instanceInfo.getId();
        } else {
            logger.warn("Setting instanceInfo to a passed in null value");
        }

        this.backupRegistryProvider = backupRegistryProvider;
        this.endpointRandomizer = endpointRandomizer;
        this.urlRandomizer = new EndpointUtils.InstanceInfoBasedUrlRandomizer(instanceInfo);
        localRegionApps.set(new Applications());

        fetchRegistryGeneration = new AtomicLong(0);

        remoteRegionsToFetch = new AtomicReference<String>(clientConfig.fetchRegistryForRemoteRegions());
        remoteRegionsRef = new AtomicReference<>(remoteRegionsToFetch.get() == null ? null : remoteRegionsToFetch.get().split(","));

        if (config.shouldFetchRegistry()) {
            this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
        } else {
            this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
        }

        if (config.shouldRegisterWithEureka()) {
            this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
        } else {
            this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
        }

        logger.info("Initializing Eureka in region {}", clientConfig.getRegion());
        //如果不需要拉取注册表和向其他实例注册的话,就释放一些资源
        if (!config.shouldRegisterWithEureka() && !config.shouldFetchRegistry()) {
            logger.info("Client configured to neither register nor query for data.");
            scheduler = null;
            heartbeatExecutor = null;
            cacheRefreshExecutor = null;
            eurekaTransport = null;
            instanceRegionChecker = new InstanceRegionChecker(new PropertyBasedAzToRegionMapper(config), clientConfig.getRegion());

            // This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
            // to work with DI'd DiscoveryClient
            DiscoveryManager.getInstance().setDiscoveryClient(this);
            DiscoveryManager.getInstance().setEurekaClientConfig(config);

            initTimestampMs = System.currentTimeMillis();
            logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
                    initTimestampMs, this.getApplications().size());

            return;  // no need to setup up an network tasks and we are done
        }

        try {
            // default size of 2 - 1 each for heartbeat and cacheRefresh
            scheduler = Executors.newScheduledThreadPool(2,
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-%d")
                            .setDaemon(true)
                            .build());

            heartbeatExecutor = new ThreadPoolExecutor(
                    1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                    new SynchronousQueue<Runnable>(),
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
                            .setDaemon(true)
                            .build()
            );  // use direct handoff

            cacheRefreshExecutor = new ThreadPoolExecutor(
                    1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                    new SynchronousQueue<Runnable>(),
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
                            .setDaemon(true)
                            .build()
            );  // use direct handoff

            eurekaTransport = new EurekaTransport();
            scheduleServerEndpointTask(eurekaTransport, args);

            AzToRegionMapper azToRegionMapper;
            if (clientConfig.shouldUseDnsForFetchingServiceUrls()) {
                azToRegionMapper = new DNSBasedAzToRegionMapper(clientConfig);
            } else {
                azToRegionMapper = new PropertyBasedAzToRegionMapper(clientConfig);
            }
            if (null != remoteRegionsToFetch.get()) {
                azToRegionMapper.setRegionsToFetch(remoteRegionsToFetch.get().split(","));
            }
            instanceRegionChecker = new InstanceRegionChecker(azToRegionMapper, clientConfig.getRegion());
        } catch (Throwable e) {
            throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
        }
        //抓取注册表
        if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) {
            fetchRegistryFromBackup();
        }

        // call and execute the pre registration handler before all background tasks (inc registration) is started
        if (this.preRegistrationHandler != null) {
            this.preRegistrationHandler.beforeRegistration();
        }

        if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
            try {
                if (!register() ) {
                    throw new IllegalStateException("Registration error at startup. Invalid server response.");
                }
            } catch (Throwable th) {
                logger.error("Registration error at startup: {}", th.getMessage());
                throw new IllegalStateException(th);
            }
        }

        // finally, init the schedule tasks (e.g. cluster resolvers, heartbeat, instanceInfo replicator, fetch
        //初始化调度任务
        initScheduledTasks();

        try {
            Monitors.registerObject(this);
        } catch (Throwable e) {
            logger.warn("Cannot register timers", e);
        }

        // This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
        // to work with DI'd DiscoveryClient
        DiscoveryManager.getInstance().setDiscoveryClient(this);
        DiscoveryManager.getInstance().setEurekaClientConfig(config);

        initTimestampMs = System.currentTimeMillis();
        logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
                initTimestampMs, this.getApplications().size());
    }
复制代码

最后总结:
Eureka-server启动初始化步骤:
1.构建Eureka-server环境(dataCenter和environment)
2.构建Eureka-server上下文
2.1 加载eureka-server.properties配置
2.2 把自己当作一个服务实例,加载eureka-client.properties配置,构建InstanceInfo,基于InstanceInfo和EurekaInstanceConfig构建ApplicationManager
2.3 把自己当作一个eureka client,由eureka-client.properties的client配置和ApplicationManager构建EurekaClient(DiscoveryClient)
2.4 构建感知eureka-server集群的注册表 PeerAwareInstanceRegistry
2.5 构建eureka-server集群信息 PeerEurekaNodes
2.6 基于eureka server配置,注册表,eureka server集群,服务实例构建eureka server上下文 EurekaServerContext
2.7 EurekaServerContext初始化 更新eureka server集群信息和初始化注册表
2.8 从相邻节点同步注册表
2.9 注册监控

分类:
阅读
标签:
分类:
阅读
标签:
