前言
写这个系列文章的契机是由于我前期接触了一个混合开发的项目,当时有考虑RN
和flutter
, 但是迫于当时的一个项目周期以及对语言的熟练度,当时选择了前者。 在使用过程中也有碰到一些困惑和问题,希望在这里记录下来,也可以为后来准备使用这个框架的小伙伴铺垫一下,让你们少走一些弯路~
声明: 本系列是不定时更新,而且会分为教程、插件、常见错误集等等~
环境安装及配置
其实很多小伙伴在接触RN
的时候,都会因为它的环境配置而被劝退。 相比flutter
来说, RN
的环境配置要相对负责一些。好在官网现在的环境配置还是很详细的,我这里只对一些问题做一下单独的说明,并不会全盘抄写,大家还是要自行移步到RN
的官网。RN官网配置教程
- 个人比较推荐使用
Mac
来进行开发,windows
系统无法安装Xcode
导致无法调试IOS
终端,当然Expo
开发用户可以当我没说~ - 第二个建议: 不推荐使用国内一些改变源的形式来安装部分三方依赖,作为一个 coder,科学上网大家应该都是可以的~ 在科学上网的环境下,其实一些依赖还是很方便就可以下载下来的。
- 作为最大的一个坎,个人认为失败率也比较高的,可能就是
Android
里的Gradle
和IOS
的CocoaPods
。 他们都作为类似于我们npm
的一个存在来管理我们安卓和IOS
的一些三方包(当然他们的作用不止于此,但是我用到的也就这些,如果有说错的,请不要喷我,憋回去。), 这当中安装CocoaPods
的时候一定要保证有一个稳定的科学上网环境。 否则失败率高到让你绝望。 - 由于安卓的执行环境是需要
java
来加持的,所以在安装步骤中jdk
也是必要安装的。 官网中推荐使用homebrew
来安装brew cask install adoptopenjdk8
, 但是就我个人而言,我环境个人觉得很稳定,但是这个真的是失败率很高,所以我推荐去java
的官网去下载安装包来手动安装,效果是一样的,附赠传送门。 - 在首次使用
npx react-native init yourproject
的时候,cli
会根据你当时的环境给你一些提示, 比如你使用的是MacOS
,那么在初始化完毕之后,会检测你是否安装CocoaPods
并给出对应的提示,若未安装这过程中会有一段时间你的shell
会没有进度提示,这个时候不要着急,丢在一遍去看会动漫,煲会剧打会豆豆默默等他帮你安装完成即可~ 若时间过长还是没有动静,这个时候可以选择手动关闭,然后手动安装CocoaPods
, 命令sudo gem install cocoapods
。(多嘴一句,这里推荐大家使用0.60.x
的rn-cli
的版本,因为个人使用61
版本的时候pods
经常出问题,会很头疼,当然没有问题的可以略过)
以上为我个人在环境配置过程中遇到的一些问题,其他根据官网的教程进行安装和配置即可,只要拥有一个稳定的科学上网环境,基本一次性都可以安装成功。 如果碰到其他的问题,可以来我的issue
里提一下,大家一起解决。

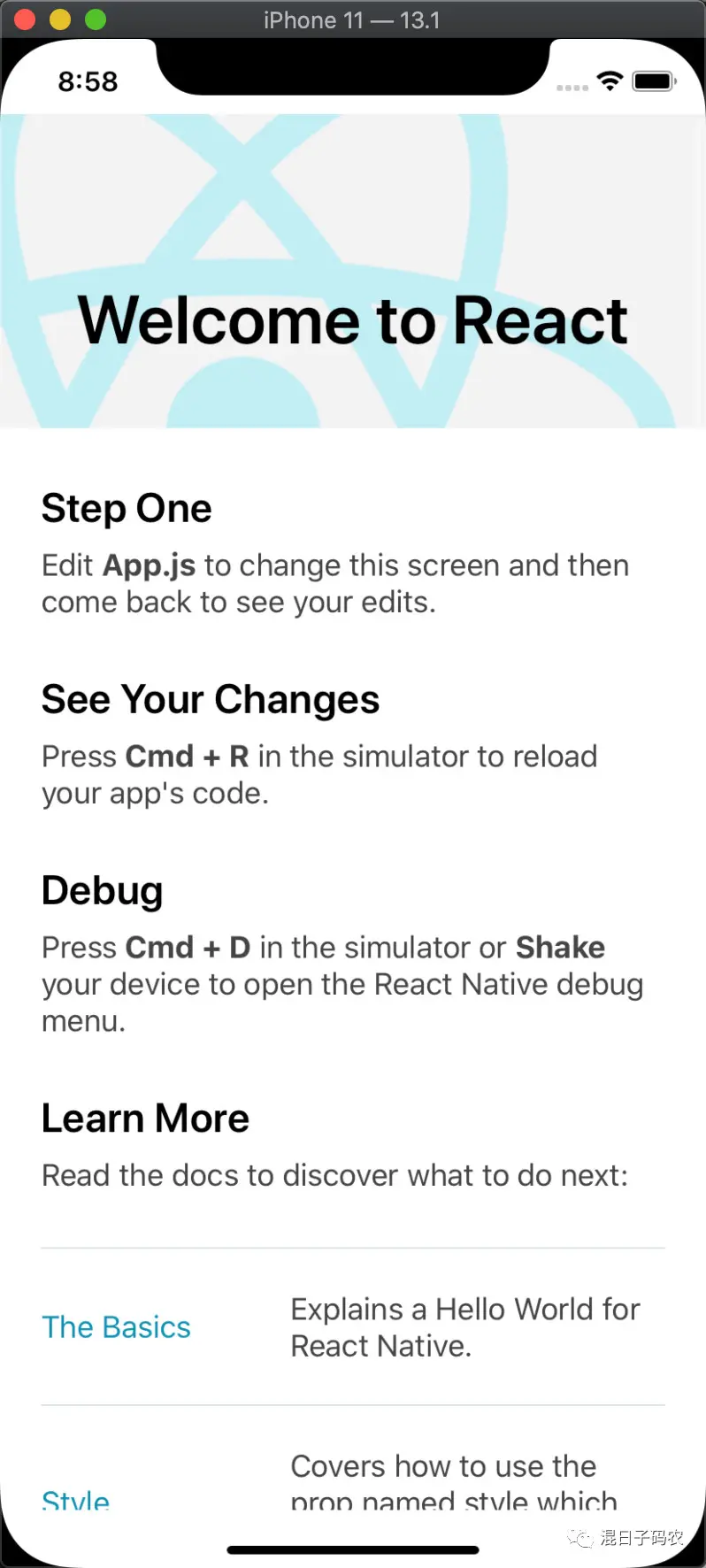

如果以上均顺利完成的话,那么以
IOS
为例, 首次启动之后为以下的样子
hello world
嘛~ 老生常谈,我们就先建立我们第一个hello world
当然, 目录规划每个人都有自己的一套规则和习惯,这里我只是作为普遍的规划方式来创建目录格式~
- 根目录建立
src -> pages -> helloWorld -> index.js && index.style.js
# index.js
import React from 'react'
import {
SafeAreaView,
Text
} from 'react-native'
import styles from './index.style'
export default () => (
<SafeAreaView style={ styles.flexContainer }>
<Text style={ styles.flexText }>Hello World</Text>
</SafeAreaView>
)
# 这里需要注意的是: rn里面的每个文本节点都必须使用Text组件来包裹起来
# index.style.js
import {
StyleSheet
} from 'react-native'
export default StyleSheet.create({
flexContainer: {
flex: 1,
alignContent: 'center',
justifyContent: 'center'
},
flexText: {
color: '#000000',
fontSize: 24,
fontWeight: 'bold',
textAlign: 'center'
}
})
# 在rn中,我们基本上使用的都是flex布局。但不是所有的属性都支持,在文章的最下方我会放一个所有属性支持的网址,大家可以在做的过程中参考。我也会在后面单独针对样式来写一篇教程。
- 页面制作完毕之后我们需要让他呈现在我们的界面上,这时,我们找到根目录中的
index.js
这个入口文件,更改我们的入口参数。
# index.js
/**
* @format
*/
import {AppRegistry} from 'react-native';
import App from './App';
+ import HelloWorld from './src/pages/helloWorld'
import {name as appName} from './app.json';
- AppRegistry.registerComponent(appName, () => App);
+ AppRegistry.registerComponent(appName, () => HelloWorld);
- 成品如下:
让页面动起来
我们知道,我们的业务场景是需要多个页面来回切换来丰富我们的 APP 的, 这样都写在一个页面中当然是远远不够的,我们知道在react
中我们可以使用react-router
, 当然react-native
也是可以使用这个库的,但是今天我们要使用的不是这个库,是官方推荐,也是大家用的最多的另一个路由管理的库——react-navigation
- 首先安装
react-navigation
依赖
yarn add react-navigation react-native-reanimated react-native-gesture-handler react-native-screens react-navigation-stack
- 安装之后, 进入
ios
文件夹,link
三方依赖
# ios
cd ios
pod install
# android
## android -> app -> build.gradle
implementation 'androidx.appcompat:appcompat:1.1.0-rc01'
implementation 'androidx.swiperefreshlayout:swiperefreshlayout:1.1.0-alpha02'
## android -> app -> src -> main -> MainActivity.java
package com.reactnativeexample;
import com.facebook.react.ReactActivity;
+ import com.facebook.react.ReactActivityDelegate;
+ import com.facebook.react.ReactRootView;
+ import com.swmansion.gesturehandler.react.RNGestureHandlerEnabledRootView;
public class MainActivity extends ReactActivity {
/**
* Returns the name of the main component registered from JavaScript.
* This is used to schedule rendering of the component.
*/
@Override
protected String getMainComponentName() {
return "ReactNativeExample";
}
+ @Override
+ protected ReactActivityDelegate createReactActivityDelegate() {
+ return new ReactActivityDelegate(this, getMainComponentName()) {
+ @Override
+ protected ReactRootView createRootView() {
+ return new RNGestureHandlerEnabledRootView(MainActivity.this);
+ }
+ };
+ }
}
yourproject -> src -> pages -> home
# index.js
import React, {
useCallback
} from 'react'
import {
SafeAreaView,
Text,
Button
} from 'react-native'
import styles from '../helloWorld/index.style'
export default ({
navigation
}) => {
const navigationTo = useCallback(() => {
navigation.navigate('User')
}, [])
return (
<SafeAreaView style={ styles.flexContainer }>
<Text style={ styles.flexText }>Home</Text>
<Button onPress={ navigationTo } title='go to user' />
</SafeAreaView>
)
}
yourproject -> src -> pages -> user
# index.js
import React from 'react'
import {
SafeAreaView,
Text
} from 'react-native'
import styles from '../helloWorld/index.style'
export default () => (
<SafeAreaView style={ styles.flexContainer }>
<Text style={ styles.flexText }>User</Text>
</SafeAreaView>
)
yourproject -> src -> router.js
# router.js
import React, {
useCallback
} from 'react'
import { createAppContainer } from 'react-navigation'
import { createStackNavigator } from 'react-navigation-stack'
import HomeScreen from './pages/home'
import UserScreen from './pages/user'
const AppNavigator = createStackNavigator(
{
Home: {
screen: HomeScreen
},
User: {
screen: UserScreen
}
},
{
initialRouteName: 'Home'
}
)
const AppContainer = createAppContainer(AppNavigator)
export default () => {
const onNavigationStateChange = useCallback((prevState, newState, action) => {
console.log(prevState, newState, action)
}, [])
return <AppContainer
onNavigationStateChange={ onNavigationStateChange }
/>
}
yourproject -> index.js
/**
* @format
*/
+ import 'react-native-gesture-handler'
import {AppRegistry} from 'react-native';
- import App from './App';
+ import AppContainer from './src/router'
import {name as appName} from './app.json';
+ AppRegistry.registerComponent(appName, () => AppContainer);

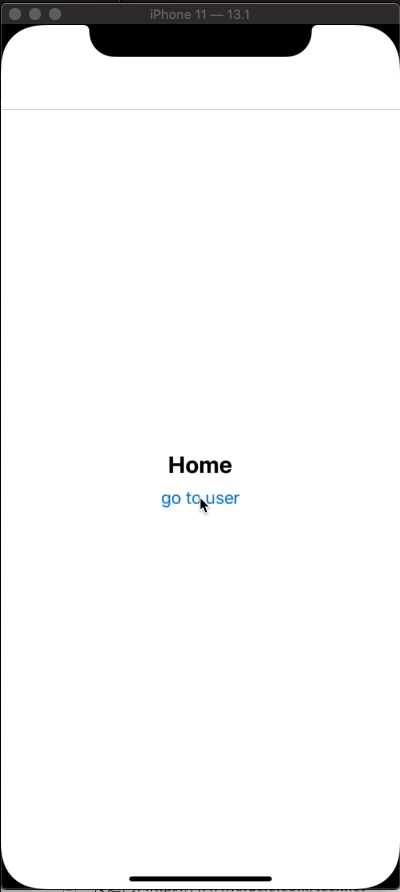

- 结果
小结
有些小伙伴会说, 你巴拉巴拉的贴了代码但是啥也不说, 怎么能好好地使用这个react-navigation
的库呢~
嘛~ 今天算是带大家初步的建立一个RN
的架子,其实根据这个架子,再加上大家的开发经验,就可以进行APP
的开发了。 当然, 我们还需要更多的路由配置, 更好的状态管理, 更好的资源管理, 优雅的网络请求, 三方库的使用等等~
那么敬请期待下一章《React-Native 从入门到放弃》 (二) ———— 路由篇
