Protocol Buffer (简称Protobuf) 是Google出品的性能优异、跨语言、跨平台的序列化库。
为了更好的硬件效率,计算机中的数字通常使用定长整形(fixed length intergers)表示。然而在遍地微服务的今天,需要一种更灵活的方式传输数字以节省带宽。Varint (Variable length integers)便是一种用于编码整形数字的方法,通过它可以灵活地调整整形数值所需要的空间大小。
Varint 编码
Protobuf 中的 Varint 根据整型大小进行不定长二进制编码,小于 128 ()的整型编码后占 1个字节,小于 16384 (
)的整型编码后占 2 个,依此类推,最多可以使用 10 个字节表示大于等于
的整型;其实现原理见下图:
编码后的每个字节,首位标识是否为尾部,后续 7 位用于记录原始数字的二进制位,举个栗子,299 在 int32 下的二进制是
00000000 00000000 00000001 00101011
编码后的结果为 10101011 00000010
,即每次传输可以节省 2 个字节。
由于 Varint 编码结果中每个字节仅有 7 个位是有效位(存储原始数据),对于小于 的 int32 或 int64 来说经 Varint 编码后可以起到压缩的效果。当然通常情况下小数字的使用远远大于大数字,因此 Varint 编码对于大部分场景都能起到压缩的效果。
Varint 编码实现如下:
const maxVarintBytes = 10 // maximum length of a varint
// EncodeVarint returns the varint encoding of x.
// This is the format for the
// int32, int64, uint32, uint64, bool, and enum
// protocol buffer types.
// Not used by the package itself, but helpful to clients
// wishing to use the same encoding.
func EncodeVarint(x uint64) []byte {
var buf [maxVarintBytes]byte
var n int
for n = 0; x > 127; n++ {
// 首位记 1, 写入原始数字从低位始的 7 个 bit
buf[n] = 0x80 | uint8(x&0x7F)
// 移走记录过的 7 位
x >>= 7
}
// 剩余不足 7 位的部分直接以 8 位形式存下来,故首位为 0
buf[n] = uint8(x)
n++
return buf[0:n]
}
复制代码
里边使用了 2 个魔数,看一下它们的二进制就能理解了,& 0x7f
取得 7 个 bit,| 0x80
将首位标记为 1。
0x80 => 0000000010000000
0x7f => 0000000001111111
复制代码

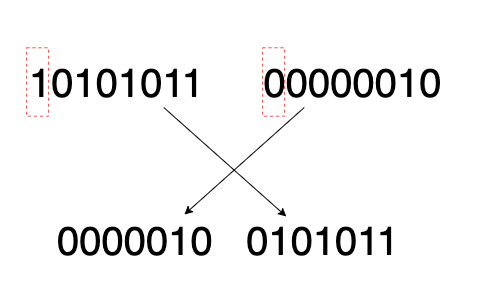

所以 Varint 的反序列化方式便是取每个字节的后 7 位逆序拼接,如下图(以 299 的编码结果举例):
源码如下:
// DecodeVarint reads a varint-encoded integer from the slice.
// It returns the integer and the number of bytes consumed, or
// zero if there is not enough.
// This is the format for the
// int32, int64, uint32, uint64, bool, and enum
// protocol buffer types.
func DecodeVarint(buf []byte) (x uint64, n int) {
for shift := uint(0); shift < 64; shift += 7 {
if n >= len(buf) {
return 0, 0
}
b := uint64(buf[n])
n++
// 弃首位取 7 位并加回 x
x |= (b & 0x7F) << shift
// 首位为 0
if (b & 0x80) == 0 {
return x, n
}
}
// The number is too large to represent in a 64-bit value.
return 0, 0
}
复制代码
这里有一个问题,EncodeVarint
与 DecodeVarint
处理的都是 uint64 类型,如果我们需要处理负数呢?看看直接将负数作为 uint64 进行编码会得到什么:
fmt.Println(EncodeVarint(uint64(-299)))
// output:
// [213 253 255 255 255 255 255 255 255 1]
复制代码
结果会得到 10 个字节的编码,因为 uint64(-299)
的值为 299 的补码,需要用 64 位表示!也就是最终会得到 varint 编码的最大长度,官方库中计算编码字节长度的源码如下:
// SizeVarint returns the varint encoding size of an integer.
func SizeVarint(x uint64) int {
switch {
case x < 1<<7:
return 1
case x < 1<<14:
return 2
case x < 1<<21:
return 3
case x < 1<<28:
return 4
case x < 1<<35:
return 5
case x < 1<<42:
return 6
case x < 1<<49:
return 7
case x < 1<<56:
return 8
case x < 1<<63:
return 9
}
return 10
}
复制代码
Zigzag
Zigzag 编码将有符号整型映射到无符号整型,如其名,编码后的值在正数与负数整型间摇摆,如下表:
Signed Original | Encoded As |
---|---|
0 | 0 |
-1 | 1 |
1 | 2 |
-2 | 3 |
2147483647 | 4294967294 |
-2147483648 | 4294967295 |
其实现如下:
func Zigzag64(x uint64) uint64 {
// 左移一位 XOR (-1 / 0 的 64 位补码)
return (x << 1) ^ uint64(int64(x) >> 63)
}
复制代码

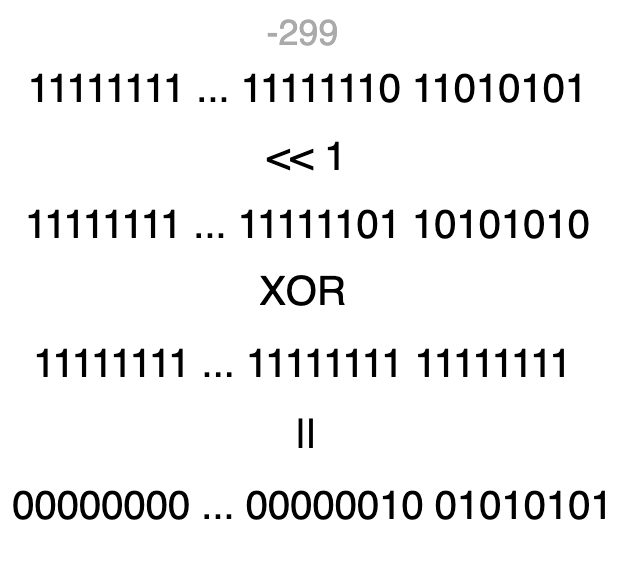

这里要注意的是若 x 为负数,XOR 左边为 -x 的补码左移一位。下图以 -299 为例,先计算 299 补码,再 XOR 符号(-1 / 0)的补码,结果为 597;若为正数,Zigzag 的结果为原数的 2 倍。
小结
在写这篇文章的时候顺便复习了一波基础知识,比如 Varint 编码负数结果为什么是 10 个字节,原因就是负数是以补码的形式存储的。所以大学里看似入门的概念却是实际编程中都会遇到的东西,路漫漫其修远兮~
update: 2020.01.22 修正错误描述
