一、摘要
1.文章目录
·摘要
-文章目录
-项目结构
.开始使用
-添加pom包
-配置文件编辑
-队列配置
-发送者类编辑
-接收者类编辑
-测试类编辑
-结果展示
·结果展示
-自定义对象的发送与接收
-Topic Exchange的使用
-Fanout Exchange的使用
·文章推荐
-一个源码解读
-一个视频教程

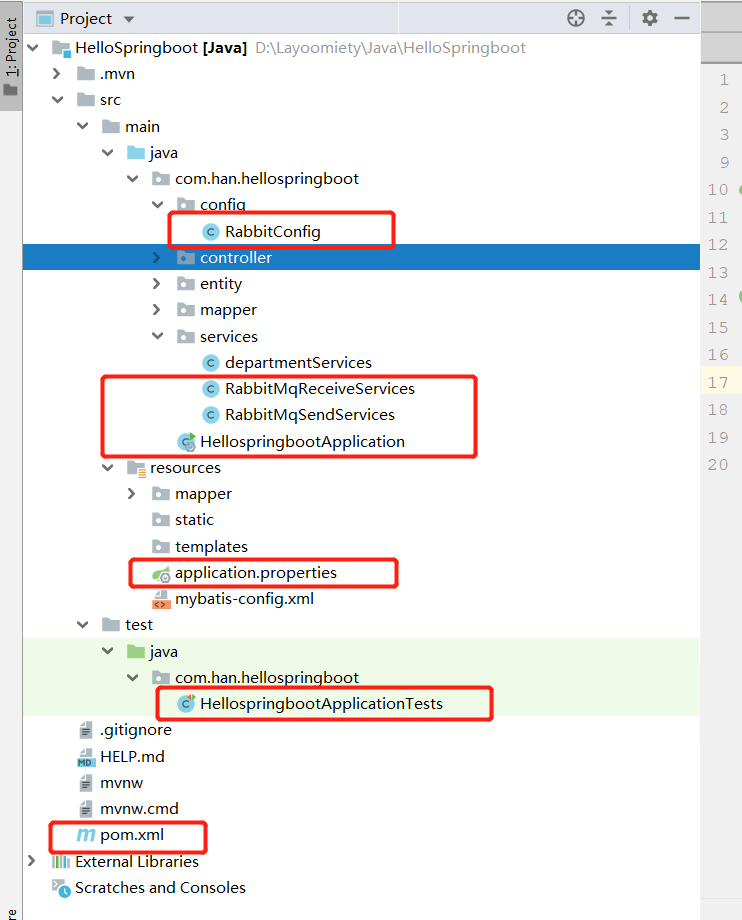

2.项目结构
图中圈出的为关键类
1.添加pom包，主要添加 1.添加pom包，主要添加
spring-boot-starter-amqp
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>

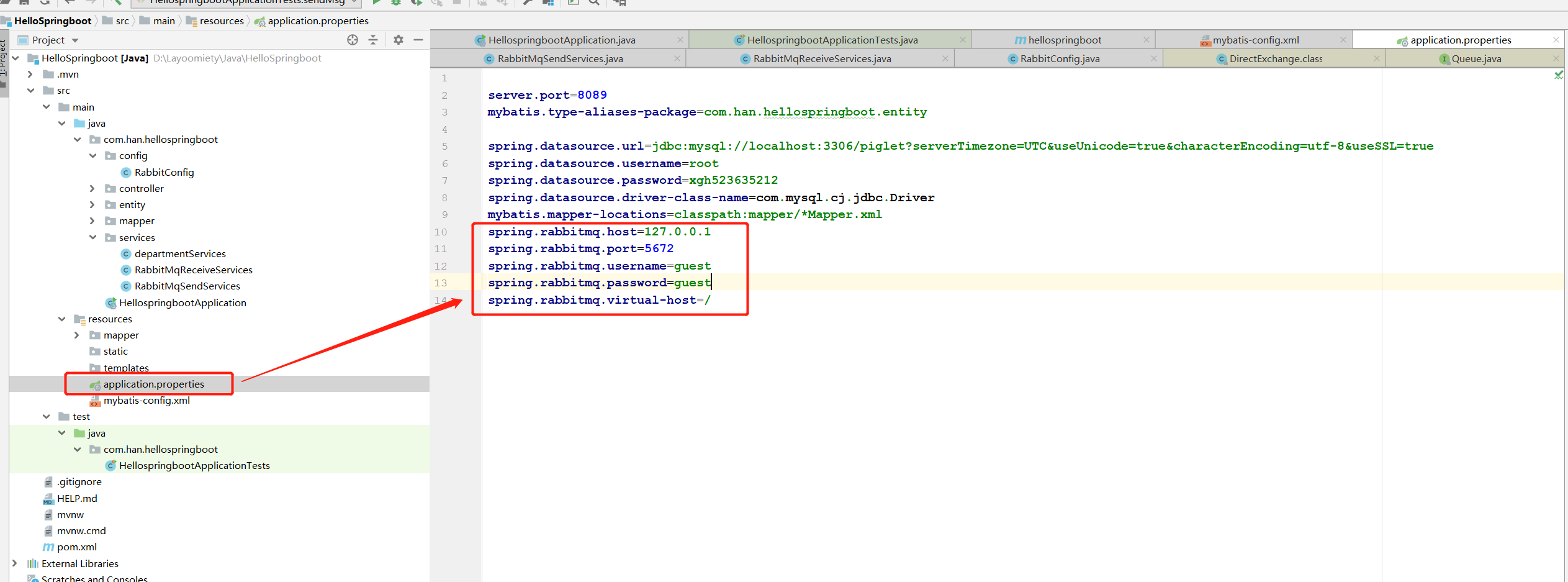

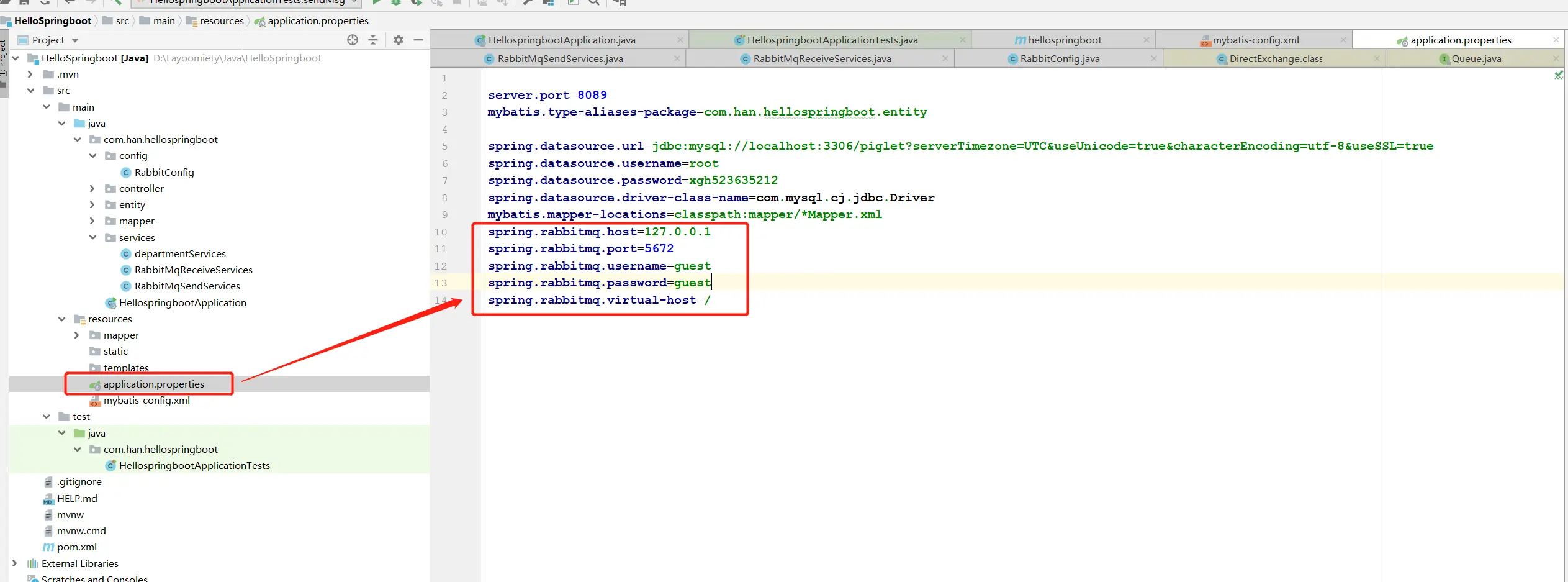

2.配置文件编辑，主要配置mq的地址、端口、用户名、密码以及路径
spring.rabbitmq.host=127.0.0.1
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest
spring.rabbitmq.virtual-host=/
如下图：

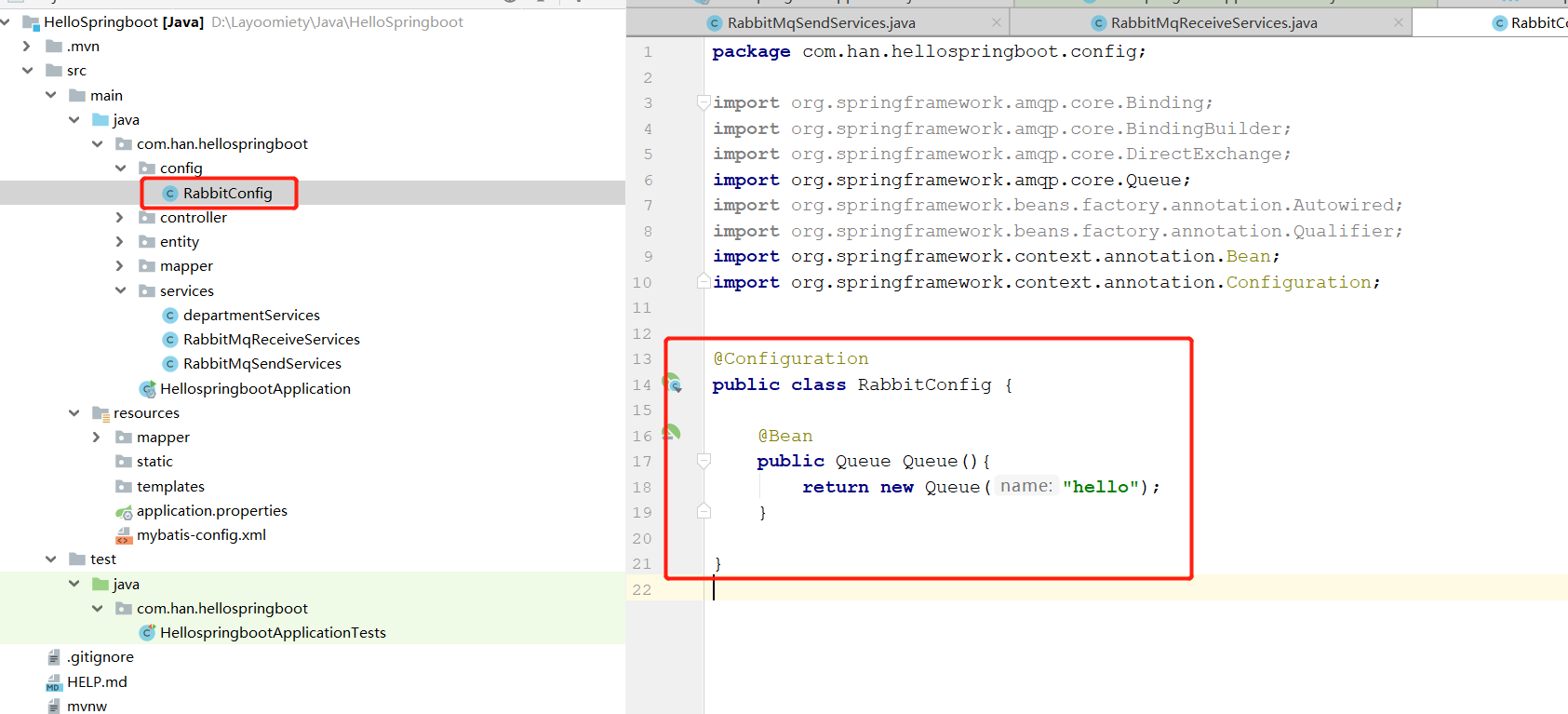

@Bean
public Queue Queue(){
//参数中可包含队列的属性以及持久化等设置，交换机同理
return new Queue("hello"); //这边使用默认交换机所以不需要进行声明以及绑定
}

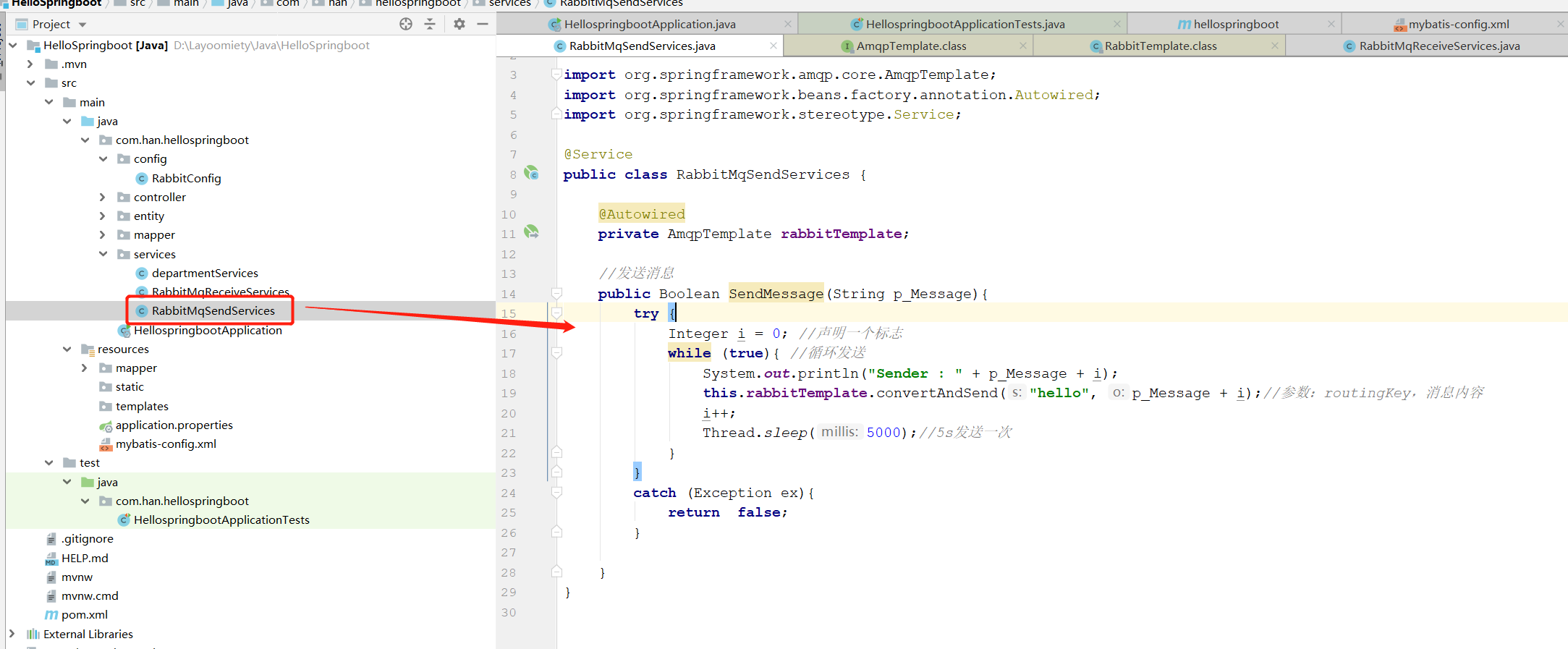

4.发送者
@Autowired
private AmqpTemplate rabbitTemplate;
//发送消息
public Boolean SendMessage(String p_Message){
try {
Integer i = 0; //声明一个标志
while (true){ //循环发送
System.out.println("Sender : " + p_Message + i);
this.rabbitTemplate.convertAndSend("hello", p_Message + i);//参数：routingKey，消息内容
i++;
Thread.sleep(5000);//5s发送一次
}
}
catch (Exception ex){
return false;
}
}
//这边需要注意，这里面的【hello】 是你需要监听的队列的名称

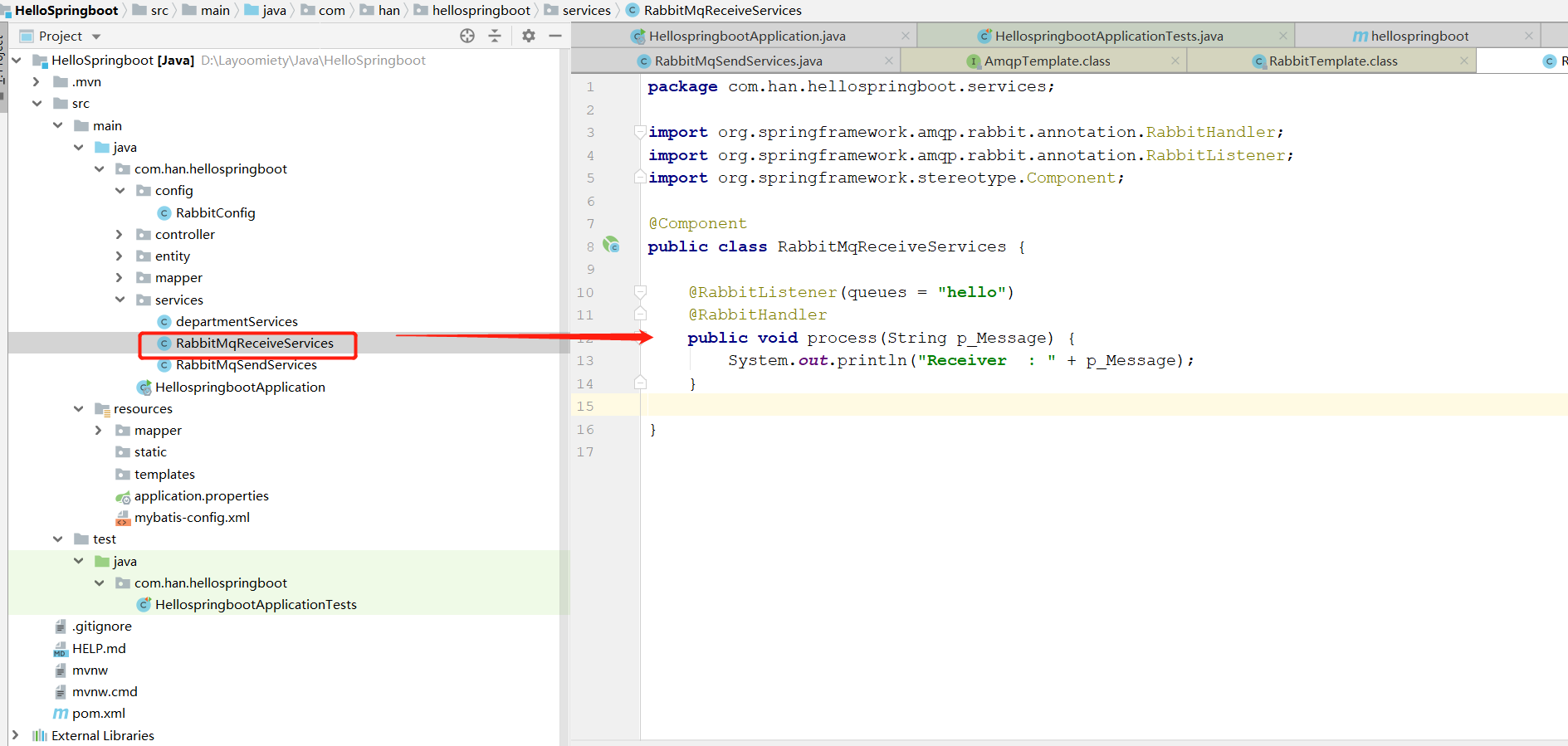

@RabbitListener(queues = "hello")
@RabbitHandler
public void process(String p_Message) {
System.out.println("Receiver : " + p_Message);
}

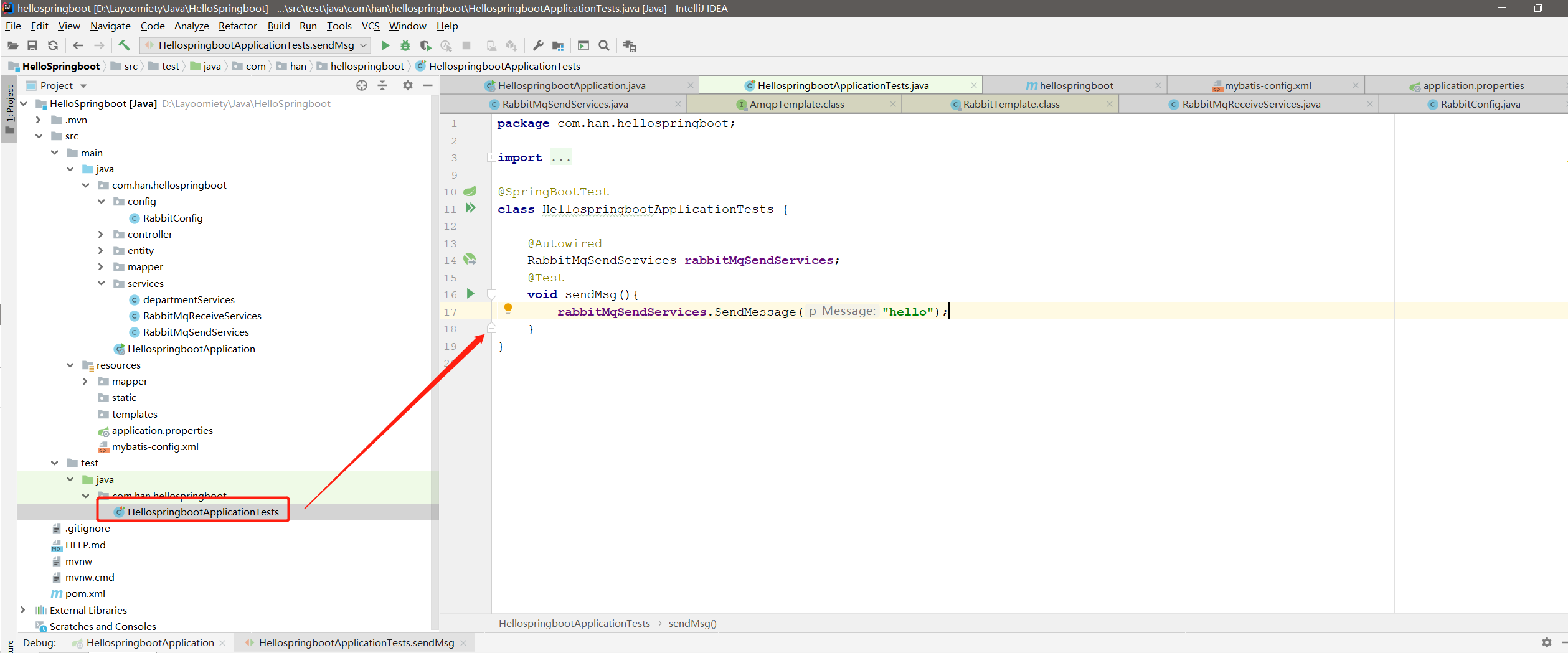

6.测试类
@Autowired
RabbitMqSendServices rabbitMqSendServices;
@Test
void sendMsg(){
rabbitMqSendServices.SendMessage("hello");//参数：需要发送的内容
}

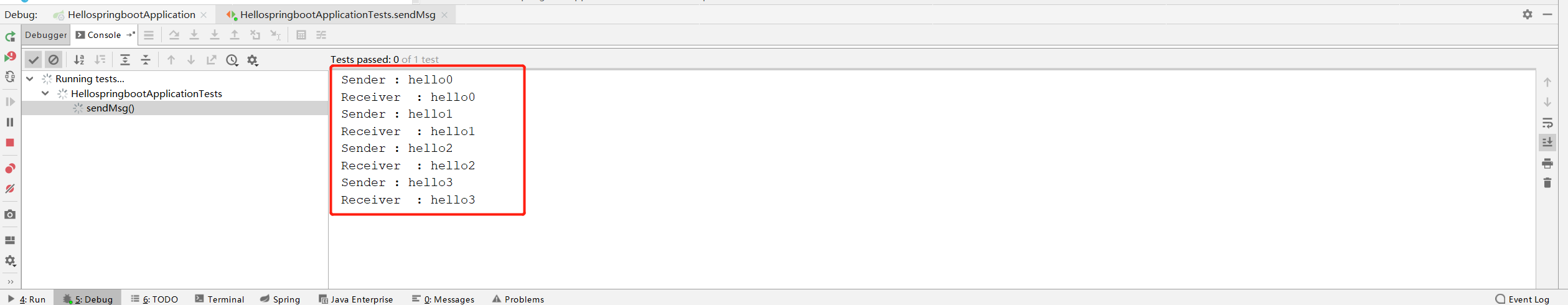

@RabbitListener(queues = "hello")，这里我刚开始学的时候看了网上的博客 都没有这个测试类很奇怪，也没说明，所以备注一下7.运行结果
1.自定义对象的发送与接收
//发送者
public Boolean SendMessage(String p_RoutingKey){
try {
Integer i = 0; //声明一个标志
while (true){ //循环发送
Department department = new Department();//声明对象
department.setName("han");
department.setId(i);
System.out.println("Sender : " + department);
this.rabbitTemplate.convertAndSend(p_RoutingKey,department);//参数：routingKey，消息内容
Thread.sleep(5000);//5s发送一次
i++;
}
}
catch (Exception ex){
return false;
}
}
//接收者
@RabbitListener(queues = "objectQueue")
public void obQueueProcess(Department p_Department) {
System.out.println("Receiver : " + p_Department.getName() + p_Department.getId());
}
//配置类中的定义
@Bean
public Queue ObQueue(){
return new Queue("objectQueue");
}
@Bean
public MessageConverter messageConverter(){ //声明一个Json转化器，这个很关键
return new Jackson2JsonMessageConverter();
}
//测试类
@Test
void sendObMsg(){
rabbitMqSendServices.SendMessage("objectQueue");
}
//实体对象类
public class Department {
private Integer id;
private String name;
public Integer getId(){
return id;
}
public String getName(){
return name;
}
public void setId(Integer id){
this.id = id;
}
public void setName(String name){
this.name = name;
}
}
2.Topic Exchange的使用
·配置文件定义
//定义队列名称
final static String topicQueueOne = "topic.queueOne";
final static String topicQueueTwo = "topic.queueTwo";
@Bean
public Queue queueTopicQueueOne(){
return new Queue(topicQueueOne);//参数：队列名称
}
@Bean
public Queue queueTopicQueueTwo(){
return new Queue(topicQueueTwo);
}
@Bean
TopicExchange topicExchange(){
return new TopicExchange("topicExchange_HanTest");//参数：交换机名称
}
//参数：队列，交换机，routingkey
@Bean
Binding bindingExchangeQueueOne(Queue queueTopicQueueOne, TopicExchange topicExchange){
return BindingBuilder.bind(queueTopicQueueOne).to(topicExchange).with("topic.message");
}
@Bean
Binding bindingExchangeQueueTwo(Queue queueTopicQueueTwo, TopicExchange topicExchange){
return BindingBuilder.bind(queueTopicQueueTwo).to(topicExchange).with("topic.#");
}
·发送者
//参数：交换机名称，routingkey，消息
public Boolean sendMessage(String p_ExchangeName,String p_RoutingKey,String p_Message){
try {
Integer i = 0; //声明一个标志
while (true){ //循环发送
String msg = p_Message + i;
System.out.println("Sender : " +msg);
rabbitTemplate.convertAndSend(p_ExchangeName,p_RoutingKey,msg);
i++;
Thread.sleep(5000);//5s发送一次
}
}
catch (Exception ex){
return false;
}
}
·接收者
@RabbitListener(queues = "topic.queueOne")
public void queueOneProcess(String p_Message){
System.out.println("Receiver One : " + p_Message);
}
@RabbitListener(queues = "topic.queueTwo")
public void queueTwoprocess(String p_Message){
System.out.println("Receiver Two : " + p_Message);
}
·测试类
@Test
void sendTopicMsg1(){
rabbitMqSendServices.sendMessage("topicExchange_HanTest","topic.message","salahei");
}
@Test
void sendTopicMsg2(){
rabbitMqSendServices.sendMessage("topicExchange_HanTest","topic.other","salahei");
}
3.Fanout Exchange的使用
·配置文件定义
//声明队列
@Bean
public Queue fanoutQueueOne(){
return new Queue("fanoutOne");
}
@Bean
public Queue fanoutQueueTwo(){
return new Queue("fanoutTwo");
}
@Bean
public Queue fanoutQueueThree(){
return new Queue("fanoutThree");
}
//声明交换机
@Bean
FanoutExchange fanoutExchange(){
return new FanoutExchange("fanoutExchange_HanTest");
}
//绑定队列
@Bean
Binding bindingExchangeOne(Queue fanoutQueueOne,FanoutExchange fanoutExchange){
return BindingBuilder.bind(fanoutQueueOne).to(fanoutExchange);
}
@Bean
Binding bindingExchangeTwo(Queue fanoutQueueTwo,FanoutExchange fanoutExchange){
return BindingBuilder.bind(fanoutQueueTwo).to(fanoutExchange);
}
@Bean
Binding bindingExchangeThree(Queue fanoutQueueThree,FanoutExchange fanoutExchange){
return BindingBuilder.bind(fanoutQueueThree).to(fanoutExchange);
}
·发送者
//参数：交换机名称，消息 -- //备注：fanout以及head类型的交换机是不要绑定routingkey的
public Boolean sendMessage(String p_ExchangeName,String p_Message){
try {
Integer i = 0; //声明一个标志
while (true){ //循环发送
String msg = p_Message + i;
System.out.println("Sender : " +msg);
rabbitTemplate.convertAndSend(p_ExchangeName,"",msg);
i++;
Thread.sleep(5000);//5s发送一次
}
}
catch (Exception ex){
return false;
}
}
·接收者
@RabbitListener(queues = "fanoutOne")
public void fanoutProcessOne(String p_Message){
System.out.println("Receiver : " + p_Message);
}
//同时监听多个队列
@RabbitListener(queues = {"fanoutTwo","fanoutThree"})
public void fanoutProcessThree(String p_Message){
System.out.println("Receiver : " + p_Message);
}
·测试类
@Test
void sendFanoutMsg(){
rabbitMqSendServices.sendMessage("fanoutExchange_HanTest","salahei");
}
@文章引用：
@RabbitListener实现过程的源码解读 -- 认为写的不错的一篇文章 from JinchaoLv
SpringBoot视频教程 -- 一个详细易懂的学习视频 from 代码基基
