prometheus grafana 搭建漂亮的监控系统(本例监控zookeeper集群)

2,850 阅读10分钟

1. 安装prometheus

prometheus.io/download/

Prometheus是由SoundCloud开发的开源监控报警系统和时序列数据库(TSDB)。Prometheus使用Go语言开发,官方构架图:



Prometheus的特点:

  • 多维度数据模型。
  • 灵活的查询语言。
  • 不依赖分布式存储,单个服务器节点是自主的。
  • 通过基于HTTP的pull方式采集时序数据。
  • 可以通过中间网关进行时序列数据推送。
  • 通过服务发现或者静态配置来发现目标服务对象。
  • 支持多种多样的图表和界面展示,比如Grafana等。

1.2 下载二制进包

https://github.com/prometheus/prometheus/releases/download/v2.14.0/prometheus-2.14.0.linux-amd64.tar.gz
tar xf prometheus-2.14.0.linux-amd64.tar.gz
mv prometheus-2.14.0.linux-amd64  prometheus

2.2 启动prometheus

prometheus 由go 编写而已,已经编译好。可直接在linux服务器上运行(也可以使用supervisor来管理启动和停止)

cd prometheus
nohup ./prometheus &

2.3  supervisor管理 prometheus 进程

2. 安装grafana

grafana.com/grafana/

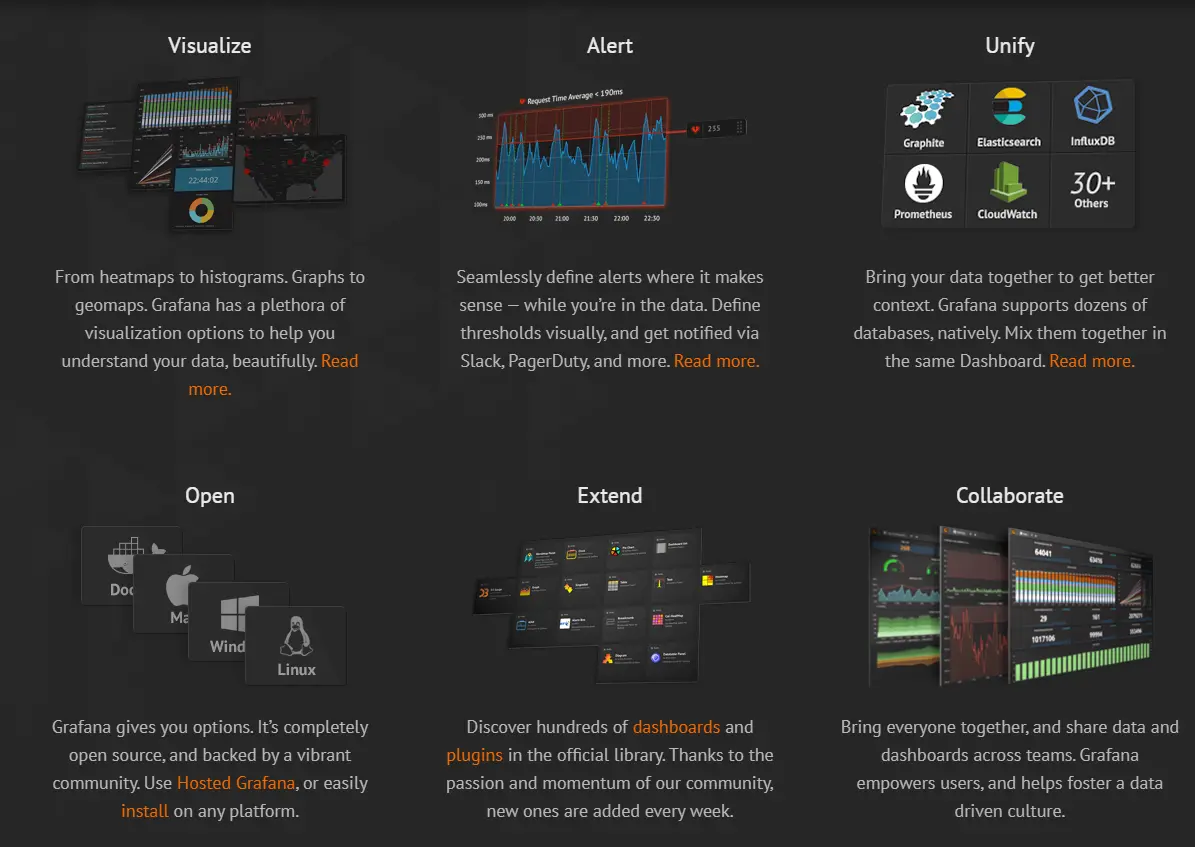

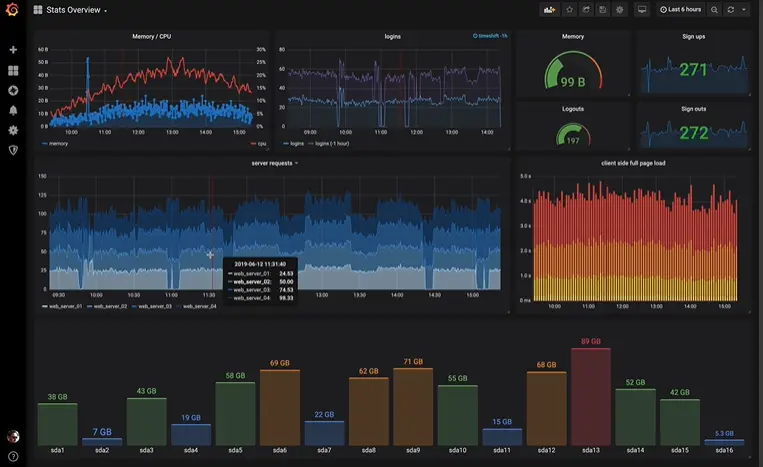

  Grafana是一个跨平台的开源的度量分析和可视化工具,可以通过将采集的数据查询然后可视化的展示,并及时通知。

官方简介图:



2.1 下载安装grafana

wget https://dl.grafana.com/oss/release/grafana-6.5.1-1.x86_64.rpm
yum localinstall grafana-6.5.1-1.x86_64.rpm

2.2 启动grafana

chkconfig grafana-server on             #设置开机启动
/etc/init.d/grafana-server start        #启动grafana

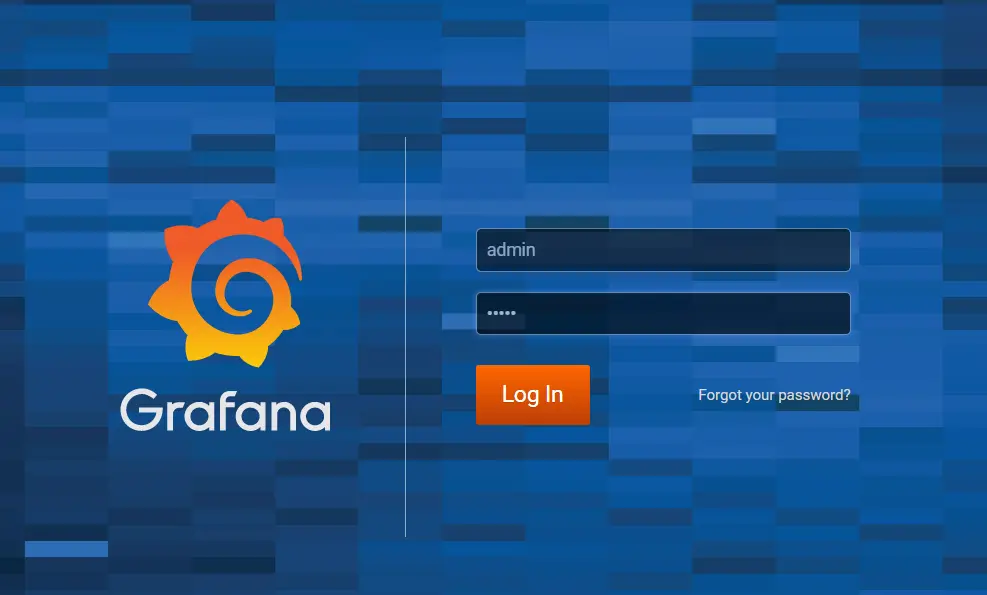

2.3 访问http://ip:3000 账密为: admin / admin


登陆之后需要重设密,建议改密码改复杂一点。特殊符号+大小写字母+数据。

后期也可以把https启用起来。

2.4 配置数据源,我们这里设置prometheus为数据源

 Configuration -> Data source -> Add data source

配置URL那一行,然后点击save & test 既可



3.  配置zookeeper监控

3.1 下载zookeeper监控export

wget https://github.com/carlpett/zookeeper_exporter/releases/download/v1.0.2/zookeeper_exporter
chmod +x zookeeper_export

3.2 启动zookeeper监控export

zookeeper_export放到zookeeper服务器,然后启动:

nohup ./zookeeper_export

3.3 配置prometheus 获取zookeeper监控数据

vim prometheus.yml

- job_name: zookeeper
    scrape_interval: 30s
    scrape_timeout:  30s
    metrics_path: "/metrics"
    static_configs:
    - targets:
      - zk1:9141
      - zk2:9141
      - zk3:9141
      labels:
        service: zookeeper

3.4 重启prometheus

因暂时没有配置 supervisor 管理prometheus进程, 这里先手动重启一下

停止:

kill `ps aux | grep prometheus | grep -v grep | awk '{print $2}'`

启动:

nohup ./prometheus &

4. grafana画图

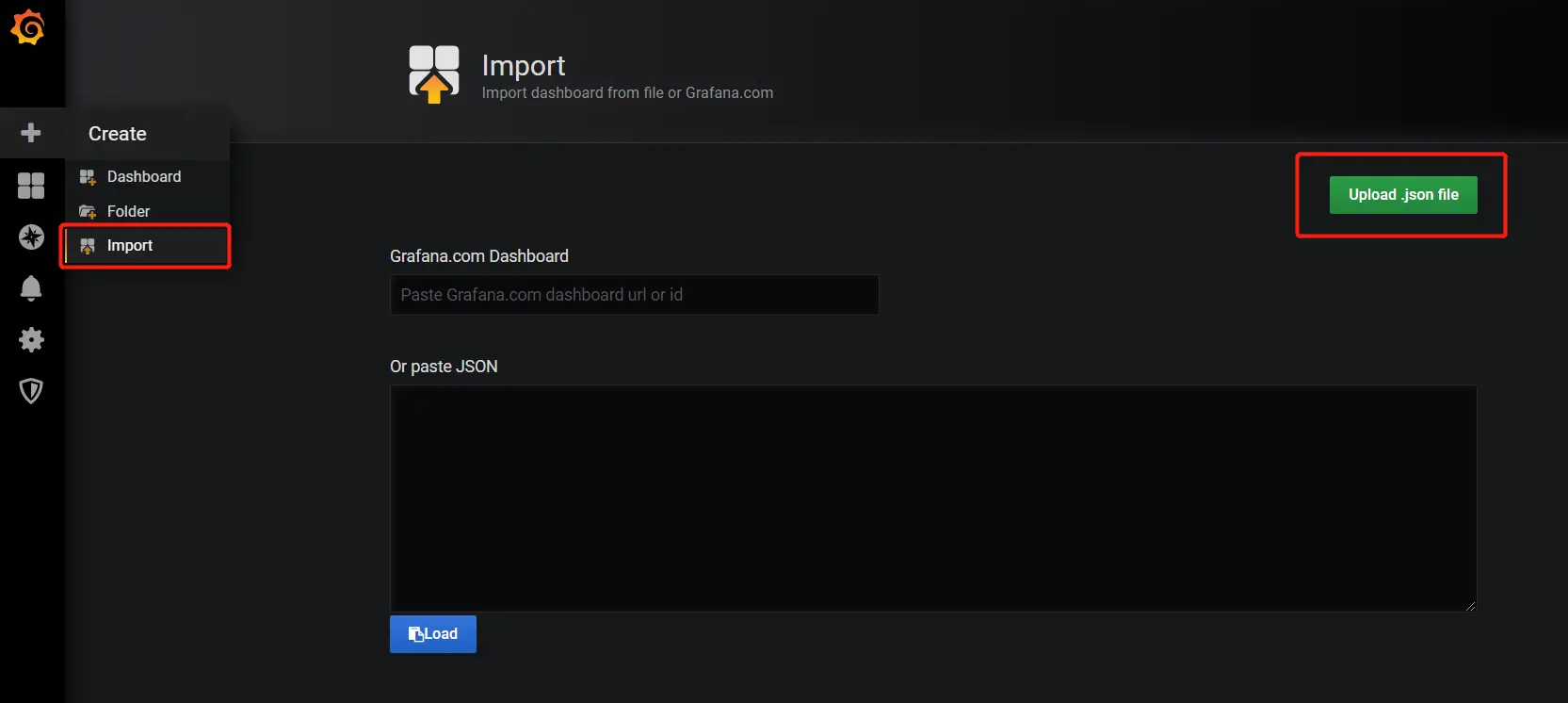

我这里已经把画好了。导入dashboard.json进入既可.


5. zookeeper dashboard 图表josn,请复制到文件,保存为dashboard.json既可,一定要json后缀:

{
