OkHttp是适用于Android,Kotlin和Java的HTTP客户端,且OkHttp4已用Kotlin重写。在Android中大多使用Retrofit配合Rxjava或者协程进行网络请求,而Retrofit也是基于OkHttp封装。

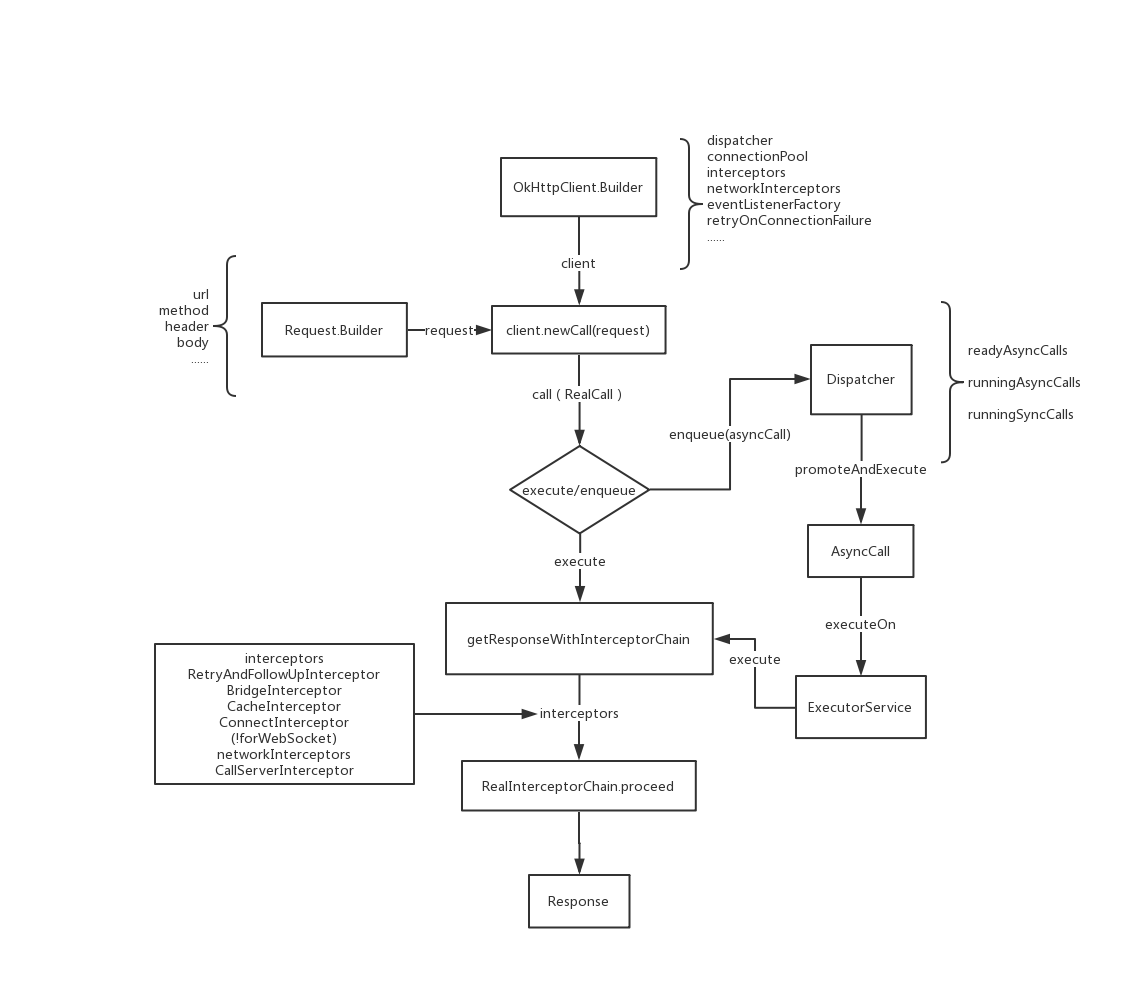

一、流程图
二、简单使用
- 添加依赖
implementation("com.squareup.okhttp3:okhttp:4.2.2")
- 同步请求(execute)
private val client = OkHttpClient()
val formBody = FormBody.Builder()
.add("search", "Jurassic Park")
.build()
val request = Request.Builder()
.url("https://en.wikipedia.org/w/index.php")
.post(formBody)
.build()
client.newCall(request).execute().use { response ->
if (!response.isSuccessful) throw IOException("Unexpected code $response")
println(response.body!!.string())
}
- 异步请求(enqueue)
private val client = OkHttpClient()
val request = Request.Builder()
.url("http://publicobject.com/helloworld.txt")
.build()
client.newCall(request).enqueue(object : Callback {
override fun onFailure(call: Call, e: IOException) {
e.printStackTrace()
}
override fun onResponse(call: Call, response: Response) {
response.use {
if (!response.isSuccessful) throw IOException("Unexpected code $response")
for ((name, value) in response.headers) {
println("$name: $value")
}
println(response.body!!.string())
}
}
})
三、源码简析
通过上面简单使用不难知道,OkHttp网络请求大致可以分为创建 构建client、构建request、执行请求几步。
构建对象
- OkHttpClient
OkHttpClient可以通过如下2种方式构建:
// 直接 new
val client = OkHttpClient()
// 建造者模式
val client = OkHttpClient.Builder().build()
构建出来的 client 包含以下属性,主要是调度器、链接池、拦截器等等
internal var dispatcher: Dispatcher = Dispatcher()
internal var connectionPool: ConnectionPool = ConnectionPool()
internal val interceptors: MutableList<Interceptor> = mutableListOf()
internal val networkInterceptors: MutableList<Interceptor> = mutableListOf()
internal var eventListenerFactory: EventListener.Factory = EventListener.NONE.asFactory()
internal var retryOnConnectionFailure = true
internal var authenticator: Authenticator = Authenticator.NONE
internal var followRedirects = true
internal var followSslRedirects = true
internal var cookieJar: CookieJar = CookieJar.NO_COOKIES
internal var cache: Cache? = null
internal var dns: Dns = Dns.SYSTEM
internal var proxy: Proxy? = null
internal var proxySelector: ProxySelector? = null
internal var proxyAuthenticator: Authenticator = Authenticator.NONE
internal var socketFactory: SocketFactory = SocketFactory.getDefault()
internal var sslSocketFactoryOrNull: SSLSocketFactory? = null
internal var x509TrustManagerOrNull: X509TrustManager? = null
internal var connectionSpecs: List<ConnectionSpec> = DEFAULT_CONNECTION_SPECS
internal var protocols: List<Protocol> = DEFAULT_PROTOCOLS
internal var hostnameVerifier: HostnameVerifier = OkHostnameVerifier
internal var certificatePinner: CertificatePinner = CertificatePinner.DEFAULT
internal var certificateChainCleaner: CertificateChainCleaner? = null
internal var callTimeout = 0
internal var connectTimeout = 10_000
internal var readTimeout = 10_000
internal var writeTimeout = 10_000
internal var pingInterval = 0
Dispatcher:
- 包含了2个异步双端队列和1个双端队列,异步 readyAsyncCalls(准备执行)、异步 runningAsyncCalls(执行中)、同步 runningSyncCalls(执行中)和一个线程池executorService。
- maxRequests 最大并发数64
- maxRequestsPerHost 单个HOST最大并发数5
- Request 通过Request.Builder构建请求信息,包括url、请求方式、请求头、body等等
val formBody = FormBody.Builder()
.add("search", "Jurassic Park")
.build()
val request = Request.Builder()
.url("https://en.wikipedia.org/w/index.php")
.post(formBody)
.build()
internal var url: HttpUrl? = null
internal var method: String
internal var headers: Headers.Builder
internal var body: RequestBody? = null
/** A mutable map of tags, or an immutable empty map if we don't have any. */
internal var tags: MutableMap<Class<*>, Any> = mutableMapOf()
请求流程
构建好client和request后,通过newCall方法得到Call对象,调用execute或enqueue发起网络请求。
/** Prepares the [request] to be executed at some point in the future. */
override fun newCall(request: Request): Call {
return RealCall.newRealCall(this, request, forWebSocket = false)
}
companion object {
fun newRealCall(
client: OkHttpClient,
originalRequest: Request,
forWebSocket: Boolean
): RealCall {
// Safely publish the Call instance to the EventListener.
return RealCall(client, originalRequest, forWebSocket).apply {
// 发射器
transmitter = Transmitter(client, this)
}
}
}
Transmitter: OkHttp的应用程序和网络层之间的桥梁。可以对call进行处理,也包含了事件监听和connect的一些操作。
execute流程
通过 client.newCall.execute 即可发起同步请求,此方法会返回 Response(响应结果)
- execute
override fun execute(): Response {
synchronized(this) {
// 检查是否在执行,在执行抛出 IllegalStateException
check(!executed) { "Already Executed" }
executed = true
}
transmitter.timeoutEnter()
transmitter.callStart()
try {
// 开始调度, 加入runningSyncCalls队列
client.dispatcher.executed(this)
// 通过拦截器链获取响应结果
return getResponseWithInterceptorChain()
} finally {
// 完成调度
client.dispatcher.finished(this)
}
}
- getResponseWithInterceptorChain
@Throws(IOException::class)
fun getResponseWithInterceptorChain(): Response {
// 把所有拦截器都添加到interceptors.
val interceptors = mutableListOf<Interceptor>()
// 自定义拦截器,所有请求
interceptors += client.interceptors
// 重试重定向拦截器:主要负责失败重连工作,根据状态码等判断是否重连
interceptors += RetryAndFollowUpInterceptor(client)
// 桥接拦截器:处理请求头信息,cookie、gzip等,构建真正的Request
interceptors += BridgeInterceptor(client.cookieJar)
// 缓存拦截器:有缓存且符合条件就是用缓存
interceptors += CacheInterceptor(client.cache)
// 连接服务拦截器:打开一个到目标服务器的connection并调用下一个拦截器
interceptors += ConnectInterceptor
if (!forWebSocket) {
// 非WebSocket请求,添加的自定义连接器
interceptors += client.networkInterceptors
}
// 调用服务器拦截器:发起真正的请求
interceptors += CallServerInterceptor(forWebSocket)
// 构建连接器链(责任链模式)
// 0 为开始执行的index
val chain = RealInterceptorChain(interceptors, transmitter, null, 0, originalRequest, this,
client.connectTimeoutMillis, client.readTimeoutMillis, client.writeTimeoutMillis)
var calledNoMoreExchanges = false
try {
// 执行拦截器链
val response = chain.proceed(originalRequest)
if (transmitter.isCanceled) {
response.closeQuietly()
throw IOException("Canceled")
}
return response
} catch (e: IOException) {
calledNoMoreExchanges = true
throw transmitter.noMoreExchanges(e) as Throwable
} finally {
if (!calledNoMoreExchanges) {
transmitter.noMoreExchanges(null)
}
}
}
- proceed
@Throws(IOException::class)
fun proceed(request: Request, transmitter: Transmitter, exchange: Exchange?): Response {
if (index >= interceptors.size) throw AssertionError()
calls++
// If we already have a stream, confirm that the incoming request will use it.
check(this.exchange == null || this.exchange.connection()!!.supportsUrl(request.url)) {
"network interceptor ${interceptors[index - 1]} must retain the same host and port"
}
// If we already have a stream, confirm that this is the only call to chain.proceed().
check(this.exchange == null || calls <= 1) {
"network interceptor ${interceptors[index - 1]} must call proceed() exactly once"
}
// Call the next interceptor in the chain.
// 调用链中的下一个拦截器 index + 1
val next = RealInterceptorChain(interceptors, transmitter, exchange,
index + 1, request, call, connectTimeout, readTimeout, writeTimeout)
val interceptor = interceptors[index]
// 拦截
@Suppress("USELESS_ELVIS")
val response = interceptor.intercept(next) ?: throw NullPointerException(
"interceptor $interceptor returned null")
// Confirm that the next interceptor made its required call to chain.proceed().
check(exchange == null || index + 1 >= interceptors.size || next.calls == 1) {
"network interceptor $interceptor must call proceed() exactly once"
}
check(response.body != null) { "interceptor $interceptor returned a response with no body" }
return response
}
可以看出execute流程还是挺简单的,就是加入Dispatcher的runningSyncCalls队列然后通过一系列拦截器操作得到Response,至此execute流程就分析完毕。
enqueue流程
通过 client.newCall.enqueue(callback) 即可发起异步请求,通过callback回调方法会返回结果。
- enqueue
override fun enqueue(responseCallback: Callback) {
// 检查是否在执行,在执行抛出 IllegalStateException
synchronized(this) {
check(!executed) { "Already Executed" }
executed = true
}
transmitter.callStart()
// 构建AsyncCall并调度入队
client.dispatcher.enqueue(AsyncCall(responseCallback))
}
- enqueue 传入AsyncCall放入readyAsyncCalls准备队列,执行下一步操作。
internal fun enqueue(call: AsyncCall) {
synchronized(this) {
// 加入异步等待队列
readyAsyncCalls.add(call)
// Mutate the AsyncCall so that it shares the AtomicInteger of an existing running call to
// the same host.
if (!call.get().forWebSocket) {
val existingCall = findExistingCallWithHost(call.host())
if (existingCall != null) call.reuseCallsPerHostFrom(existingCall)
}
}
// 实际推动和执行
promoteAndExecute()
}
- promoteAndExecute
/**
* Promotes eligible calls from [readyAsyncCalls] to [runningAsyncCalls] and runs them on the
* executor service. Must not be called with synchronization because executing calls can call
* into user code.
*
* @return true if the dispatcher is currently running calls.
*/
private fun promoteAndExecute(): Boolean {
this.assertThreadDoesntHoldLock()
// 可执行的call集合
val executableCalls = mutableListOf<AsyncCall>()
val isRunning: Boolean
synchronized(this) {
val i = readyAsyncCalls.iterator()
while (i.hasNext()) {
val asyncCall = i.next()
// 判断调度器中的2个最大限制
if (runningAsyncCalls.size >= this.maxRequests) break // Max capacity.
if (asyncCall.callsPerHost().get() >= this.maxRequestsPerHost) continue // Host max capacity.
i.remove()
asyncCall.callsPerHost().incrementAndGet()
executableCalls.add(asyncCall)
runningAsyncCalls.add(asyncCall)
}
isRunning = runningCallsCount() > 0
}
for (i in 0 until executableCalls.size) {
val asyncCall = executableCalls[i]
// 通过AsyncCall.executeOn执行
asyncCall.executeOn(executorService)
}
return isRunning
}
- AsyncCall AsyncCall 实现 Runnable,promoteAndExecute中调用 executeOn 执行 这个 call。
internal inner class AsyncCall(
private val responseCallback: Callback
) : Runnable {
@Volatile private var callsPerHost = AtomicInteger(0)
...
/**
* Attempt to enqueue this async call on [executorService]. This will attempt to clean up
* if the executor has been shut down by reporting the call as failed.
*/
fun executeOn(executorService: ExecutorService) {
client.dispatcher.assertThreadDoesntHoldLock()
var success = false
try {
// 线程池执行这个Runnable
executorService.execute(this)
success = true
} catch (e: RejectedExecutionException) {
val ioException = InterruptedIOException("executor rejected")
ioException.initCause(e)
transmitter.noMoreExchanges(ioException)
// 通过callback回调失败
responseCallback.onFailure(this@RealCall, ioException)
} finally {
if (!success) {
// 调度完成
client.dispatcher.finished(this) // This call is no longer running!
}
}
}
override fun run() {
threadName("OkHttp ${redactedUrl()}") {
var signalledCallback = false
transmitter.timeoutEnter()
try {
// 从此和同步请求一样,通过拦截器链获取响应结果
val response = getResponseWithInterceptorChain()
signalledCallback = true
// 通过callback回调成功
responseCallback.onResponse(this@RealCall, response)
} catch (e: IOException) {
if (signalledCallback) {
// Do not signal the callback twice!
Platform.get().log("Callback failure for ${toLoggableString()}", INFO, e)
} else {
// 通过callback回调失败
responseCallback.onFailure(this@RealCall, e)
}
} catch (t: Throwable) {
cancel()
if (!signalledCallback) {
val canceledException = IOException("canceled due to $t")
canceledException.addSuppressed(t)
// 通过callback回调失败
responseCallback.onFailure(this@RealCall, canceledException)
}
throw t
} finally {
// 调度完成
client.dispatcher.finished(this)
}
}
}
}
可以看出enqueue流程相比较,enqueue是转换为AysncCall,先加入Dispatcher的readyAsyncCalls队列,然后通过xx判断获取出可执行的call并放入runningAsyncCalls,然后通过线程池执行,最后通过一系列拦截器操作得到Response,至此enqueue流程就分析完毕。
拦截器
上面把 OkHttp 同步和异步请求的流程大致梳理了,然而我们并没有看到是怎么发起请求的,其实这一切都在interceptors之中。

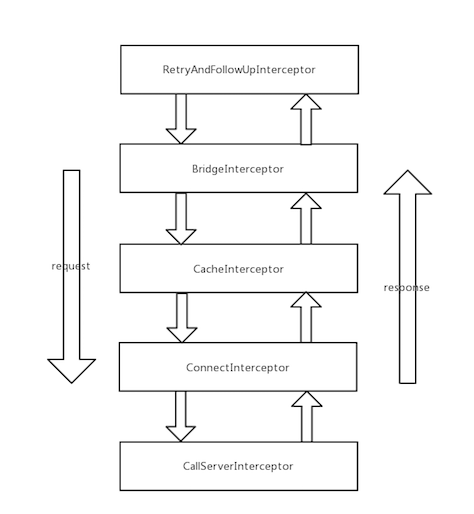

在getResponseWithInterceptorChain中我们看到interceptors 的添加顺序,可以知道先添加的先执行。如果没有networkInterceptors或者是WebSocket,基本最后执行的是自带的5个拦截器RetryAndFollowUpInterceptor、BridgeInterceptor、CacheInterceptor、ConnectInterceptor、CallServerInterceptor。
ConnectInterceptor
object ConnectInterceptor : Interceptor {
@Throws(IOException::class)
override fun intercept(chain: Interceptor.Chain): Response {
val realChain = chain as RealInterceptorChain
val request = realChain.request()
val transmitter = realChain.transmitter()
// We need the network to satisfy this request. Possibly for validating a conditional GET.
val doExtensiveHealthChecks = request.method != "GET"
// 通过Transmitter获取一个新的Exchange
val exchange = transmitter.newExchange(chain, doExtensiveHealthChecks)
// 执行proceed
return realChain.proceed(request, transmitter, exchange)
}
}
跟踪newExchange -> find -> findHealthyConnection -> findConnection 获取真实的RealConnection
/**
* Returns a connection to host a new stream. This prefers the existing connection if it exists,
* then the pool, finally building a new connection.
*/
@Throws(IOException::class)
private fun findConnection(
connectTimeout: Int,
readTimeout: Int,
writeTimeout: Int,
pingIntervalMillis: Int,
connectionRetryEnabled: Boolean
): RealConnection {
var foundPooledConnection = false
var result: RealConnection? = null
var selectedRoute: Route? = null
var releasedConnection: RealConnection?
val toClose: Socket?
synchronized(connectionPool) {
if (transmitter.isCanceled) throw IOException("Canceled")
hasStreamFailure = false // This is a fresh attempt.
releasedConnection = transmitter.connection
toClose = if (transmitter.connection != null && transmitter.connection!!.noNewExchanges) {
transmitter.releaseConnectionNoEvents()
} else {
null
}
if (transmitter.connection != null) {
// We had an already-allocated connection and it's good.
// 已经有一个分配好的connection,复用
result = transmitter.connection
releasedConnection = null
}
if (result == null) {
// Attempt to get a connection from the pool.
if (connectionPool.transmitterAcquirePooledConnection(address, transmitter, null, false)) {
foundPooledConnection = true
result = transmitter.connection
} else if (nextRouteToTry != null) {
selectedRoute = nextRouteToTry
nextRouteToTry = null
} else if (retryCurrentRoute()) {
selectedRoute = transmitter.connection!!.route()
}
}
}
toClose?.closeQuietly()
if (releasedConnection != null) {
eventListener.connectionReleased(call, releasedConnection!!)
}
if (foundPooledConnection) {
eventListener.connectionAcquired(call, result!!)
}
if (result != null) {
// If we found an already-allocated or pooled connection, we're done.
// connection 不为null, 直接返回
return result!!
}
// If we need a route selection, make one. This is a blocking operation.
var newRouteSelection = false
if (selectedRoute == null && (routeSelection == null || !routeSelection!!.hasNext())) {
newRouteSelection = true
routeSelection = routeSelector.next()
}
var routes: List<Route>? = null
synchronized(connectionPool) {
if (transmitter.isCanceled) throw IOException("Canceled")
if (newRouteSelection) {
// Now that we have a set of IP addresses, make another attempt at getting a connection from
// the pool. This could match due to connection coalescing.
routes = routeSelection!!.routes
if (connectionPool.transmitterAcquirePooledConnection(
address, transmitter, routes, false)) {
foundPooledConnection = true
result = transmitter.connection
}
}
if (!foundPooledConnection) {
if (selectedRoute == null) {
selectedRoute = routeSelection!!.next()
}
// Create a connection and assign it to this allocation immediately. This makes it possible
// for an asynchronous cancel() to interrupt the handshake we're about to do.
// 创建一个 RealConnection
result = RealConnection(connectionPool, selectedRoute!!)
connectingrouteSelection = result
}
}
// If we found a pooled connection on the 2nd time around, we're done.
if (foundPooledConnection) {
eventListener.connectionAcquired(call, result!!)
// 如果在routeSelection中找到了connection,直接返回
return result!!
}
// Do TCP + TLS handshakes. This is a blocking operation.
// 做 TCP + TLS 握手,这是一个阻塞操作
result!!.connect(
connectTimeout,
readTimeout,
writeTimeout,
pingIntervalMillis,
connectionRetryEnabled,
call,
eventListener
)
connectionPool.routeDatabase.connected(result!!.route())
var socket: Socket? = null
synchronized(connectionPool) {
connectingConnection = null
// Last attempt at connection coalescing, which only occurs if we attempted multiple
// concurrent connections to the same host.
if (connectionPool.transmitterAcquirePooledConnection(address, transmitter, routes, true)) {
// We lost the race! Close the connection we created and return the pooled connection.
result!!.noNewExchanges = true
socket = result!!.socket()
result = transmitter.connection
// It's possible for us to obtain a coalesced connection that is immediately unhealthy. In
// that case we will retry the route we just successfully connected with.
nextRouteToTry = selectedRoute
} else {
//放入连接池
connectionPool.put(result!!)
transmitter.acquireConnectionNoEvents(result!!)
}
}
socket?.closeQuietly()
eventListener.connectionAcquired(call, result!!)
return result!!
}
通过 result!!.connect -> Platform.get().connectSocket 根据平台发起Socket连接
/** Does all the work necessary to build a full HTTP or HTTPS connection on a raw socket. */
@Throws(IOException::class)
private fun connectSocket(
connectTimeout: Int,
readTimeout: Int,
call: Call,
eventListener: EventListener
) {
val proxy = route.proxy
val address = route.address
val rawSocket = when (proxy.type()) {
Proxy.Type.DIRECT, Proxy.Type.HTTP -> address.socketFactory.createSocket()!!
else -> Socket(proxy)
}
this.rawSocket = rawSocket
eventListener.connectStart(call, route.socketAddress, proxy)
rawSocket.soTimeout = readTimeout
try {

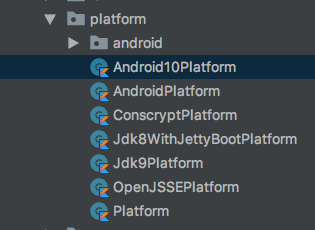

// 根据平台进行连接,下面附上相关平台图
Platform.get().connectSocket(rawSocket, route.socketAddress, connectTimeout)
} catch (e: ConnectException) {
throw ConnectException("Failed to connect to ${route.socketAddress}").apply {
initCause(e)
}
}
// The following try/catch block is a pseudo hacky way to get around a crash on Android 7.0
// More details:
// https://github.com/square/okhttp/issues/3245
// https://android-review.googlesource.com/#/c/271775/
try {
source = rawSocket.source().buffer()
sink = rawSocket.sink().buffer()
} catch (npe: NullPointerException) {
if (npe.message == NPE_THROW_WITH_NULL) {
throw IOException(npe)
}
}
}
至此 ConnectInterceptor 所做的连接操作完成,然后通过 ConnectInterceptor 发送真正的网络请求,构建Resposne.Builder对象,然后构建Response并返回。
个人理解拦截器处理是一个U型结构,一个接一个处理,然后返回给上一个上一个直到返回Response。大概就是下面这样:
四、总结
整个流程简单描述就是,首先获取OkHttpClient对象,通过newCall获取到真正的Call,然后根据需要发起同步或异步请求,然后通过getResponseWithInterceptorChain进行一系列的拦截器操作,获取到响应Response数据。
本人对比了OkHttp3.14和OkHttp4.2.2的流程相同,OkHttp简单流程分析就结束了!
