Docker之Harbor私服的搭建及使用

文章来源: 陶老师运维笔记-微信公众号

1. 介绍

虽然Docker官方提供了公共的镜像仓库，但是从安全和效率等方面考虑，部署我们私有环境内的Registry也是非常必要的。本文介绍Harbor私服搭建及使用。

Harbor是由VMware公司开源的企业级的Docker Registry管理项目，它包括权限管理(RBAC)、LDAP、日志审核、管理界面、自我注册、镜像复制和中文支持等功能。官方地址： github.com/goharbor/ha…

2. 环境准备

安装Harbor，需要提前安装docker，和docker-compose。

2.1 软件环境

软件	版本	备注
操作系统	centos7	-
docker	Docker version 18.06.1-ce	-
docker-compose	docker-compose version 1.24.1	-

2.2 硬件环境

略

3. Docker/DockerCompose安装

3.1 安装Docker

# yum 包更新
 $yum update
# 卸载旧版本 Docker
 $yum remove docker docker-common docker-selinux docker-engine
# 安装软件包
 $yum install -y yum-utils device-mapper-persistent-data lvm2
# 添加 Docker yum源
 $yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
# 安装 Docker
 $yum -y install docker-ce
# 启动 Docker
 $systemctl start docker
# 查看 Docker 版本号
 $docker --version

3.2 安装DockerCompose

# 安装 epel-release
 yum install epel-release
# 安装 python-pip
 yum install -y python-pip
# 安装 docker-compose
 pip install docker-compose
# 安装 git
 yum install git
# 查看 docker-compose 版本号
 docker-compose -version

4. Harbor安装

主要步骤: 1.下载installer; 2.配置 harbor.yml; 3.运行 install.sh 及 start Harbor;

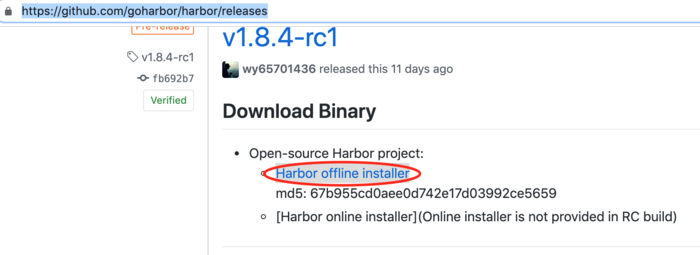

4.1 下载软件:

下载软件: github.com/goharbor/ha…

wget 'https://storage.googleapis.com/harbor-releases/release-1.8.0/harbor-offline-installer-v1.8.4-rc1.tgz' .

#解压
tar -zxvf harbor-offline-installer-v1.8.4-rc1.tgz

4.2 修改配置

下载下来之后解压缩，目录下会有harbor.conf，就是Harbor的配置文件了。

安装配置说明: github.com/goharbor/ha…
配置https支持: github.com/goharbor/ha…

修改hostname,harbor_admin_password，结果如下。

#harbor.yml
cat harbor.yml |grep -v '#' |grep -v '^$'
hostname: registry.test.myop.com
http:
  port: 80
harbor_admin_password: Harbor12345
database:
  password: root123
data_volume: /data1/harbor
clair:
  updaters_interval: 12
  http_proxy:
  https_proxy:
  no_proxy: 127.0.0.1,localhost,core,registry
jobservice:
  max_job_workers: 10
chart:
  absolute_url: disabled
log:
  level: info
  rotate_count: 50
  rotate_size: 200M
  location: /var/log/harbor
_version: 1.8.0

#修改docker-compose.yml, 把 ports改为5000.
vim docker-compose.yml,
   dns_search:
   ports:
      - 5000:5000

hostname 这里设置本机的registry.test.myop.com,harbor_admin_password web页面的密码。

4.3 执行安装

执行安装脚本。

#执行安装脚本
sh ./install.sh
[Step 0]: checking installation environment ...
Note: docker version: 18.06.1
Note: docker-compose version: 1.24.1

[Step 1]: loading Harbor images ...
b80136ee24a4: Loading layer [==================================================>]  34.25MB/34.25MB

[Step 2]: preparing environment ...
prepare base dir is set to /data1/software/harbor
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /secret/keys/secretkey
Generated certificate, key file: /secret/core/private_key.pem, cert file: /secret/registry/root.crt
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir


[Step 3]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating redis       ... done
Creating harbor-db   ... done
Creating registry    ... done
Creating registryctl ... done
Creating harbor-core ... done
Creating harbor-jobservice ... done
Creating harbor-portal     ... done
Creating nginx             ... done

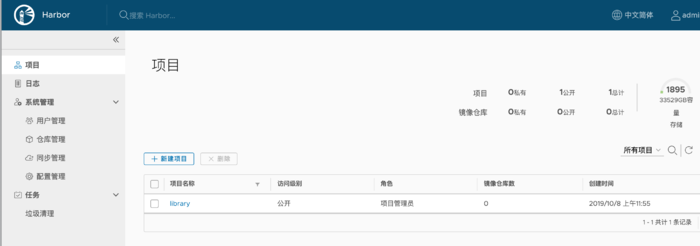

4.4 测试访问

安装完毕后可以测试访问页面： registry.test.myop.com 账号默认是admin，密码默认Harbor12345（就是你上班配置文件中配置的，如果没有改动的话就是这个）

5. Harbor运维

5.1 启停Harbor

如果想要停止,或者是服务器重启了,需要手动重启,在harbor的安装目录,里执行命令。

#Removing Harbor's containers while keeping the image data and Harbor's database files on the file system
$ sudo docker-compose down -v
$ vim harbor.yml
$ sudo prepare
$ sudo docker-compose up -d

5.2 重新安装

完全重新安装，可能想删除 Harbor's database and image data。(有风险!)

$ rm -r /data/database
$ rm -r /data/registry

修改安装配置: 安装说明： github.com/goharbor/ha…

5.3 修改端口

vim docker-compose.yml ,修改端口80为8888。

#vim docker-compose.yml
修改端口为
proxy:
    image: goharbor/nginx-photon:v1.7.5
    container_name: nginx
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
      - NET_BIND_SERVICE
    volumes:
      - ./common/config/nginx:/etc/nginx:z
    networks:
      - harbor
    dns_search: .
    ports:
      - 8888:80
      - 443:443
    depends_on:
      - postgresql
      - registry
      - core
      - portal
      - log

5.4 问题排查

docker-compose ps,然后可以登录到docker container中查问题。

cd /data1/harbor #harbor的安装目录
$docker-compose stop
$docker-compose start
$docker-compose ps
      Name                     Command                  State                 Ports
---------------------------------------------------------------------------------------------
harbor-core         /harbor/start.sh                 Up (healthy)
harbor-db           /entrypoint.sh postgres          Up (healthy)   5432/tcp
harbor-jobservice   /harbor/start.sh                 Up
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up (healthy)   80/tcp
nginx               nginx -g daemon off;             Up (healthy)   0.0.0.0:80->80/tcp
redis               docker-entrypoint.sh redis ...   Up             6379/tcp
registry            /entrypoint.sh /etc/regist ...   Up (healthy)   5000/tcp
registryctl         /harbor/start.sh                 Up (healthy)

5.5 Https配置

Harbor Https 配置: CentOS7 Harbor Https 配置 github.com/goharbor/ha…

Harbor是搭建完成了，在我们上传项目时可能会出现一些问题,在另外一个服务器(client)登录harbor,会出错!

$docker login  registry.test.myop.com
Error response from daemon: Get https://registry.test.myop.com/v2/: dial tcp registry.test.myop.com:443: connect: connection refused

这是因为docker1.3.2版本开始默认docker registry使用的是https，我们设置Harbor默认http方式，所以当执行用docker login、pull、push等命令操作非https的docker regsitry的时就会报错。

解决办法：

编辑harbor及client机器的docker配置文件

若系统是Centos7，可以在/etc/docker/daemon.json 修改。
如果系统是MacOS，则可以点击“Preference”里面的“Advanced”在“Insecure Registry”里加上harbor_ip，重启Docker客户端就可以了。

vim /etc/docker/daemon.json
{
 "insecure-registries": [
 "harbor_ip or harbor_domain"
 ]
}

在harbor那台服务器,在harbor的安装目录

#修改harbor机器配置上docker-compose.yml的port
vim docker-compose.yml
    dns_search:
    ports:
      - 5000:5000

3.重启或重装harbor

$docker-compose stop
$docker ps -a |grep harbor |awk '{print $1}'|xargs -I {}  docker rm  {}
#删除Removing Harbor's database and image data
$ rm -r /data1/database
$ rm -r /data1/registry
#重启docker-compose start
docker-compose start

#reload docker
systemctl daemon-reload
#docker ps |grep -v CONTAINER |awk '{print $1}'>docker_online.txt
#cat docker_online.txt  |while read line; do echo "$line"; docker start $line; done;
#systemctl start docker #服务会停止,使用reload较好。
systemctl reload docker
systemctl status docker.service -l

4.登录仓库

harbor机器测试登录

 docker login registry.test.myop.com
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

远程机器登录如果是远程登录的话，也会出现相同错误，处理如下。

vim /etc/docker/daemon.json
{
 "insecure-registries": [
 "harbor_ip or harbor_domain"
 ]
}

$systemctl daemon-reload
$docker ps
$systemctl reload docker
$systemctl  status docker.service -l

说明: 有些文章说https登录出错，需要修改docker.service如下。不过在本测试环境 Docker version 18.06.1，harbor-1.8.4下并不需要修改docker.service 。

 #vim /lib/systemd/system/docker.service
# 添加下面的配置。在本环境下不需要这样做docker 18.06.1
#ExecStart=/usr/bin/dockerd --insecure-registry=harbor_ip

6. Harbor使用

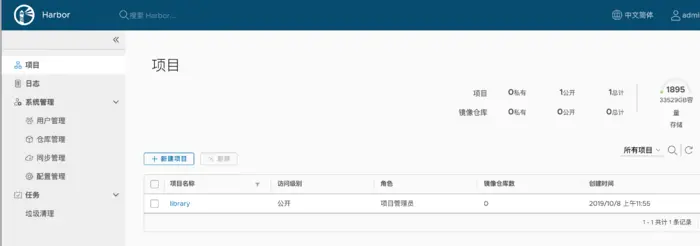

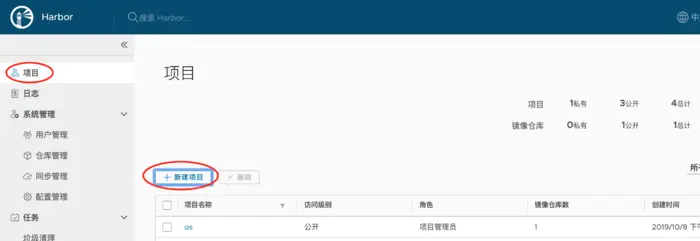

6.1 web界面

6.2 镜像pull/push

1、配置http镜像仓库可信任 vi /etc/docker/daemon.json {"insecure-registries":["registry.test.myop.com"]} systemctl restart docker 2、打标签 docker tag centos:6 registry.test.myop.com/library/centos:6 3、上传 docker push registry.test.myop.com/library/centos:6 4、下载 docker pull registry.test.myop.com/library/centos:6

示例：

#推送之前先登录Harbor
docker login docker login registry.test.myop.com
admin
Harbor12345
提示success登录成功

查看自己有哪些镜像;docker images
把需要上传到Harbor的镜像运行如下命令就可以了
#镜像打标签
docker tag 镜像名:标签 私服地址/仓库项目名/镜像名:标签

#推送到私服
docker push  私服地址/仓库项目名/镜像名：标签

#从私服拉取镜像
docker pull 私服地址/仓库项目名/镜像名：标签

7. Harbor权限

Harbor权限管理: blog.csdn.net/liumiaocn/a…

8. Harbor主从复制

blog.csdn.net/kozazyh/art…

blog.csdn.net/weixin_4348…
