Spring是如何完成AOP的

在spring中，我们使用@EnableAspectJAutoProxy注解代表着开启了aop，那么这个注解做了什么呢？

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {
	boolean proxyTargetClass() default false;
	boolean exposeProxy() default false;
}

打开源码我们发现，其实就是使用了@Import注解，导入了AspectJAutoProxyRegistrar类，而AspectJAutoProxyRegistrar作为ImportBeanDefinitionRegistrar的实现类，自然具备了向spring容器注册bd的能力。跟进代码我们会发现，它会注册AnnotationAwareAspectJAutoProxyCreator对应的一个bd到spring容器。

AbstractAutowireCapableBeanFactory#createBean

	protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
		if (logger.isDebugEnabled()) {
			logger.debug("Creating instance of bean '" + beanName + "'");
		}
		RootBeanDefinition mbdToUse = mbd;

		// Make sure bean class is actually resolved at this point, and
		// clone the bean definition in case of a dynamically resolved Class
		// which cannot be stored in the shared merged bean definition.
		Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
		if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
			mbdToUse = new RootBeanDefinition(mbd);
			mbdToUse.setBeanClass(resolvedClass);
		}

		// Prepare method overrides.
		try {
			mbdToUse.prepareMethodOverrides();
		}
		catch (BeanDefinitionValidationException ex) {
			throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
					beanName, "Validation of method overrides failed", ex);
		}

		try {
			// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
			if (bean != null) {
				return bean;
			}
		}
		catch (Throwable ex) {
			throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
					"BeanPostProcessor before instantiation of bean failed", ex);
		}

		Object beanInstance = doCreateBean(beanName, mbdToUse, args);
		if (logger.isDebugEnabled()) {
			logger.debug("Finished creating instance of bean '" + beanName + "'");
		}
		return beanInstance;
	}

首先是Object bean = resolveBeforeInstantiation(beanName, mbdToUse);方法，这个方法源码上注释了：给后置处理器一个机会返回一个代理代替目标实例。其实呀，这里是不会产生代理类出来的，因为bean还没创建出来呢，下面的Object beanInstance = doCreateBean(beanName, mbdToUse, args);代码才是创建bean实例的。那这里说是返回代理是干嘛呢？其实是在找切面。现在跟进这个方法去看看。

AbstractAutowireCapableBeanFactory#resolveBeforeInstantiation

	protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
		Object bean = null;
		if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
			// Make sure bean class is actually resolved at this point.
			if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
				Class<?> targetType = determineTargetType(beanName, mbd);
				if (targetType != null) {
					bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
					if (bean != null) {
						bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
					}
				}
			}
			mbd.beforeInstantiationResolved = (bean != null);
		}
		return bean;
	}

这里是先根据条件执行实例化前的后置处理器，那么符合条件的话就会去执行applyBeanPostProcessorsBeforeInstantiation方法

AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsBeforeInstantiation

	protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
		for (BeanPostProcessor bp : getBeanPostProcessors()) {
			if (bp instanceof InstantiationAwareBeanPostProcessor) {
				InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
				Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
				if (result != null) {
					return result;
				}
			}
		}
		return null;
	}

这里会执行InstantiationAwareBeanPostProcessor类型的postProcessBeforeInstantiation方法。这里我们直接看和代理相关的后置处理器的方法就行

AbstractAutoProxyCreator#postProcessBeforeInstantiation

	public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
		Object cacheKey = getCacheKey(beanClass, beanName);

		if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
			if (this.advisedBeans.containsKey(cacheKey)) {
				return null;
			}
			if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
				this.advisedBeans.put(cacheKey, Boolean.FALSE);
				return null;
			}
		}

		// Create proxy here if we have a custom TargetSource.
		// Suppresses unnecessary default instantiation of the target bean:
		// The TargetSource will handle target instances in a custom fashion.
		if (beanName != null) {
			TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
			if (targetSource != null) {
				this.targetSourcedBeans.add(beanName);
				Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
				Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
				this.proxyTypes.put(cacheKey, proxy.getClass());
				return proxy;
			}
		}

		return null;
	}

AspectJAwareAdvisorAutoProxyCreator#shouldSkip

	protected boolean shouldSkip(Class<?> beanClass, String beanName) {
		// TODO: Consider optimization by caching the list of the aspect names
		List<Advisor> candidateAdvisors = findCandidateAdvisors();
		for (Advisor advisor : candidateAdvisors) {
			if (advisor instanceof AspectJPointcutAdvisor) {
				if (((AbstractAspectJAdvice) advisor.getAdvice()).getAspectName().equals(beanName)) {
					return true;
				}
			}
		}
		return super.shouldSkip(beanClass, beanName);
	}

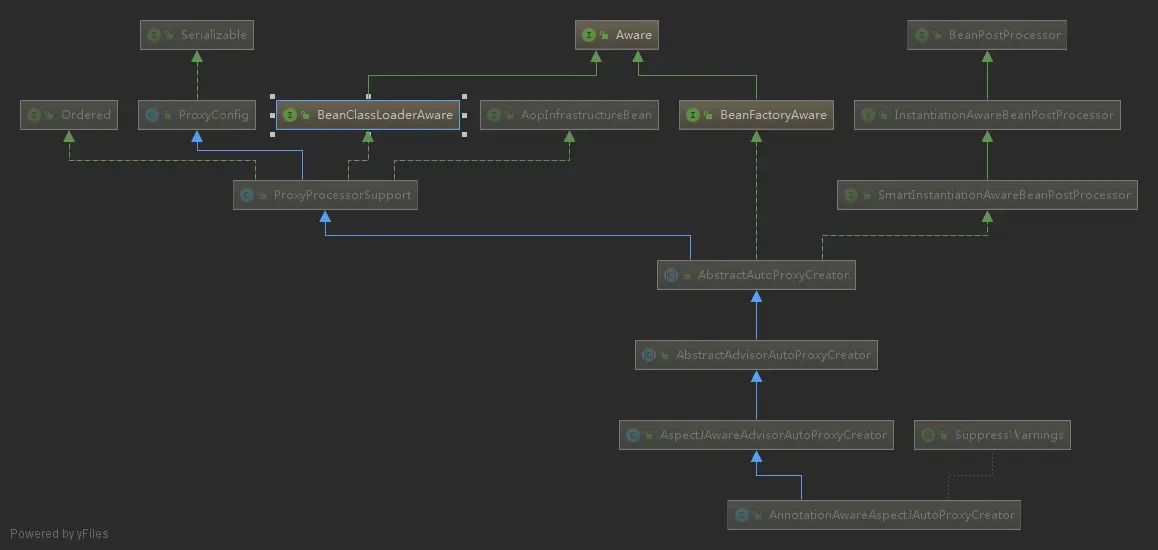

一开始我们不是说注册了AnnotationAwareAspectJAutoProxyCreator吗，在下面就派上用场了。

AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors

	protected List<Advisor> findCandidateAdvisors() {
		// Add all the Spring advisors found according to superclass rules.
		List<Advisor> advisors = super.findCandidateAdvisors();
		// Build Advisors for all AspectJ aspects in the bean factory.
		advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
		return advisors;
	}

通过buildAspectJAdvisors()就可以找出这个bean所使用的所有切面信息。 什么意思呢，比如说我们现在有一个UserService的类，在这个类里面我们使用到了自己定义的注解切面，比如说我们自己定义了一个加锁的注解@LockAnno，然后我们会自己定义一个切面LockHandler类吧，这个类是标注了@Aspect注解的，那么此时就能把LockHandler给拿到的。

到这里拿到了切面信息后，就执行一开始提到的Object beanInstance = doCreateBean(beanName, mbdToUse, args);去创建bean。 AbstractAutowireCapableBeanFactory#doCreateBean里面会执行这么一行代码（源码较长，这里就不贴代码了），

exposedObject = initializeBean(beanName, exposedObject, mbd);

这里呢，就是bean已经实例化好了然后去执行bean的后置处理器，执行完后置处理器后，暴露出来的才是我们真正使用的。

	protected Object initializeBean(final String beanName, final Object bean, RootBeanDefinition mbd) {
		if (System.getSecurityManager() != null) {
			AccessController.doPrivileged(new PrivilegedAction<Object>() {
				@Override
				public Object run() {
					invokeAwareMethods(beanName, bean);
					return null;
				}
			}, getAccessControlContext());
		}
		else {
			invokeAwareMethods(beanName, bean);
		}

		Object wrappedBean = bean;
		if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
		}

		try {
			invokeInitMethods(beanName, wrappedBean, mbd);
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					(mbd != null ? mbd.getResourceDescription() : null),
					beanName, "Invocation of init method failed", ex);
		}

		if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
		}
		return wrappedBean;
	}

这里先执行了后置处理器的applyBeanPostProcessorsBeforeInitialization方法，再执行初始化方法，然后再执行后置处理器的applyBeanPostProcessorsAfterInitialization，那么，我们的代理对象就是在applyBeanPostProcessorsAfterInitialization里完成的。

AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsAfterInitialization

	public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
			throws BeansException {

		Object result = existingBean;
		for (BeanPostProcessor beanProcessor : getBeanPostProcessors()) {
			result = beanProcessor.postProcessAfterInitialization(result, beanName);
			if (result == null) {
				return result;
			}
		}
		return result;
	}

这里会执行所有后置处理器的postProcessAfterInitialization方法，我们只关心AbstractAutoProxyCreator就行

AbstractAutoProxyCreator#postProcessAfterInitialization

	public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		if (bean != null) {
			Object cacheKey = getCacheKey(bean.getClass(), beanName);
			if (!this.earlyProxyReferences.contains(cacheKey)) {
				return wrapIfNecessary(bean, beanName, cacheKey);
			}
		}
		return bean;
	}

AbstractAutoProxyCreator#wrapIfNecessary

	protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// Create proxy if we have advice.
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		if (specificInterceptors != DO_NOT_PROXY) {
			this.advisedBeans.put(cacheKey, Boolean.TRUE);
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

这个方法里面就会创建代理对象返回，最终会调到下面的方法

DefaultAopProxyFactory#createAopProxy

	public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
		if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
			Class<?> targetClass = config.getTargetClass();
			if (targetClass == null) {
				throw new AopConfigException("TargetSource cannot determine target class: " +
						"Either an interface or a target is required for proxy creation.");
			}
			if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
				return new JdkDynamicAopProxy(config);
			}
			return new ObjenesisCglibAopProxy(config);
		}
		else {
			return new JdkDynamicAopProxy(config);
		}
	}
