websoket原理和实战
概述
项目包结构
两个包:
com.javasea.web.websocket.springb.websocket
使用实现WebSocketConfigurer
接口的方式实现
com.javasea.web.websocket.springb.websocket2
通过注解@ServerEndpoint
方式实现
场景引用
场景:页面需要实时显示被分配的任务,页面需要实时显示在线人数。
思考:像这样的消息功能怎么实现? 如果网页不刷新,服务端有新消息如何推送到浏览器?
解决方案,采用轮询的方式。即:通过js不断的请求服务器,查看是否有新数据,如果有,就获取到新数据。
这种解决方法是否存在问题呢?
当然是有的,如果服务端一直没有新的数据,那么js也是需要一直的轮询查询数据,这就是一种资源的浪费。
那么,有没有更好的解决方案? 有!那就是采用WebSocket技术来解决。
什么是WebSocket?
WebSocket 是HTML5一种新的协议。它实现了浏览器与服务器全双工通信(full-duplex)。一开始的握手需要借助HTTP请求完成。 WebSocket是真正实现了全双工通信的服务器向客户端推的互联网技术。 它是一种在单个TCP连接上进行全双工通讯协议。Websocket通信协议与2011年倍IETF定为标准RFC 6455,Websocket API被W3C定为标准。
什么叫做全双工和半双工?
比如对讲机,说话的时候就听不到对方说话,那么就是半双工。
我们打电话的时候说话的同时也能听到对方说话,就是全双工。
http与websocket的区别

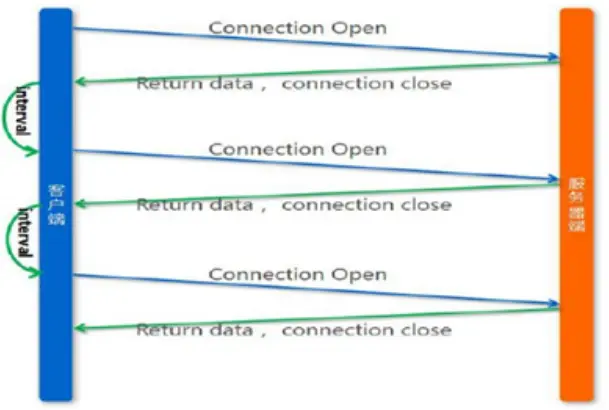

http协议是短连接,因为请求之后,都会关闭连接,下次重新请求数据,需要再次打开链接。

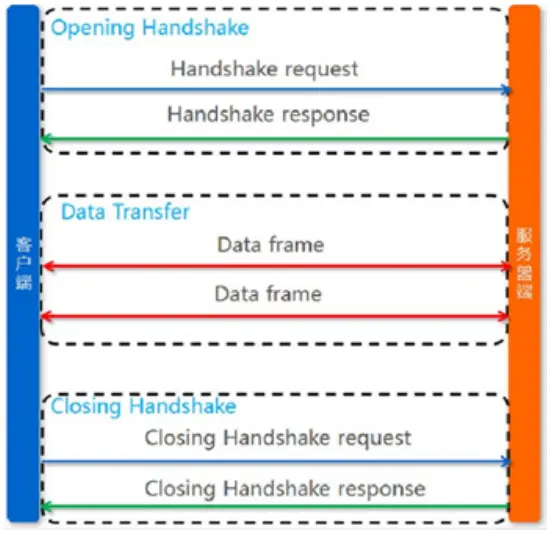

WebSocket协议是一种长链接,只需要通过一次请求来初始化链接,然后所有的请求和响应都是通过这个TCP链接进行通讯。

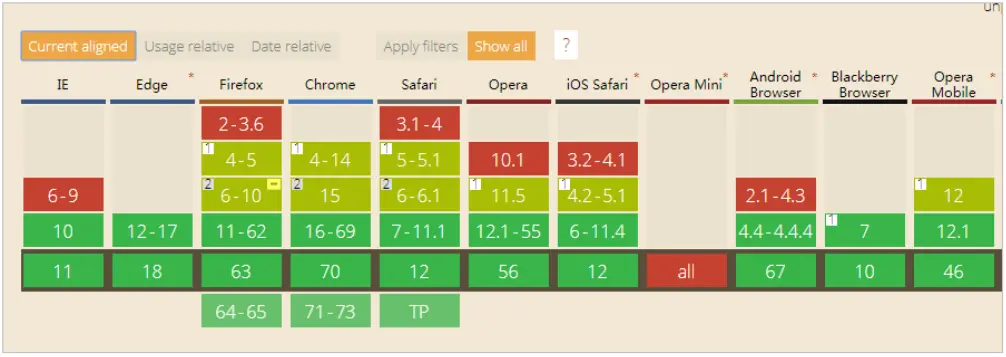

浏览器支持情况
服务器支持情况:Tomcat 7.0.47+以上才支持。
快速入门
创建项目
配置pom.xml
-
集成javaee
<dependency> <groupId>javax</groupId> <artifactId>javaee-api</artifactId> <version>7.0</version> <scope>provided</scope> </dependency>
-
配置tomcat插件
<plugin> <groupId>org.apache.tomcat.maven</groupId> <artifactId>tomcat7-maven-plugin</artifactId> <version>2.2</version> <configuration> <port>8082</port> <path>/</path> </configuration> </plugin>
之后
启动服务
只需要在maven中直接运行即可。
pom的详细配置如下:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.iee</groupId>
<artifactId>javasea-web-websoecket-quickstart</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<dependencies>
<!-- https://mvnrepository.com/artifact/javax/javaee-api -->
<dependency>
<groupId>javax</groupId>
<artifactId>javaee-api</artifactId>
<version>7.0</version>
<!--<scope>provided</scope>-->
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<!--maven编译插件, 指定jdk为1.8 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.7.0</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<!-- 使用jdk进行编译 -->
<fork>true</fork>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
<!-- 配置Tomcat插件 -->
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
<configuration>
<port>8082</port>
<path>/</path>
</configuration>
</plugin>
</plugins>
</build>
</project>
websocket的相关注解说明
-
@ServerEndpoint("/websocket/{uid}")
申明这是一个websocket服务 需要指定访问该服务的地址,在地址中可以指定参数,需要通过{}进行占位 -
@OnOpen
用法:public void onOpen(Session session, @PathParam("uid") String uid) throws IOException{} 该方法将在建立连接后执行,会传入session对象,就是客户端与服务端建立的长连接通道 通过@PathParam获取url申明中的参数 -
@OnClose
用法:public void onClose() {} 该方法是在连接关闭后执行 -
@OnMessage
用法:public void onMessage(String message, Session session) throws IOException {}客户端消息到来时调用,包含会话Session,根据消息的形式,如果是文本消息,传入String类型参数或者Reader,如果是二进制消息,传入byte[]类型参数或者InputStream。
message:发来的消息数据 session:会话对象(也是通道) 发送消息到客户端 用法:session.getBasicRemote().sendText("你好"); 通过session进行发送。
实现websocket服务
@ServerEndpoint("/websocket/{uid}")
public class MyWebSocket {
@OnOpen
public void onOpen(Session session, @PathParam("uid") String uid) throws
IOException {
// 连接成功
session.getBasicRemote().sendText(uid + ",你好,欢迎连接WebSocket!");
}
@OnClose
public void onClose() {
System.out.println(this + "关闭连接");
}
@OnMessage
public void onMessage(String message, Session session) throws IOException {
System.out.println("接收到消息:" + message);
session.getBasicRemote().sendText("消息已收到.");
}
@OnError
public void onError(Session session, Throwable error) {
System.out.println("发生错误");
error.printStackTrace();
}
}

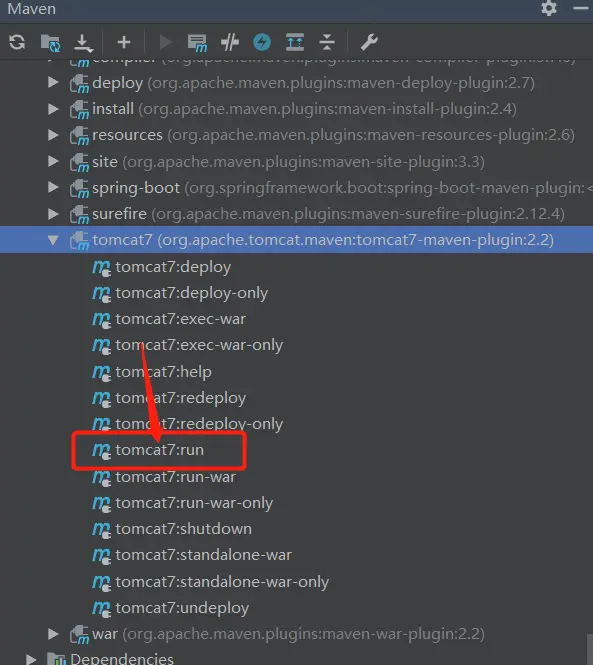

maven中启动tomcat:
mv tomcat7:run
也可以用上文中在IDE中直接启动。
测试
一共有三种测试方式,直接js脚本方式、chrome插件方式或者通过在线工具进行测试:
-
直接js脚本方式,直接用如下代码进行测试:
var socket; if(typeof(WebSocket) == "undefined") { console.log("您的浏览器不支持WebSocket"); }else{ console.log("您的浏览器支持WebSocket"); //实现化WebSocket对象,指定要连接的服务器地址与端口 建立连接 socket = new WebSocket("ws://localhost:8080/websocket2/22"); //打开事件 socket.onopen = function() { console.log("Socket 已打开"); //socket.send("这是来自客户端的消息" + location.href + new Date()); }; //获得消息事件 socket.onmessage = function(msg) { console.log(msg.data); //发现消息进入 开始处理前端触发逻辑 }; //关闭事件 socket.onclose = function() { console.log("Socket已关闭"); }; //发生了错误事件 socket.onerror = function() { alert("Socket发生了错误"); //此时可以尝试刷新页面 } //离开页面时,关闭socket //jquery1.8中已经被废弃,3.0中已经移除 // $(window).unload(function(){ // socket.close(); //}); }
浏览器随便打开一个网页,然后粘贴到console下,回车即可
-

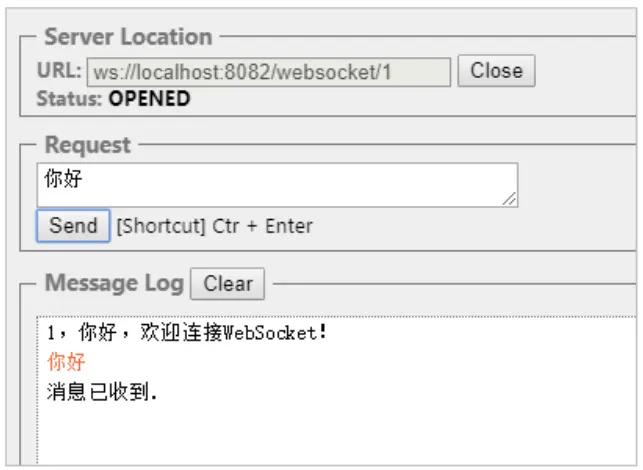

chrome插件方式,需要安装chrome插件,Simple WebSocket Client: chrome.google.com/webstore/de…
-

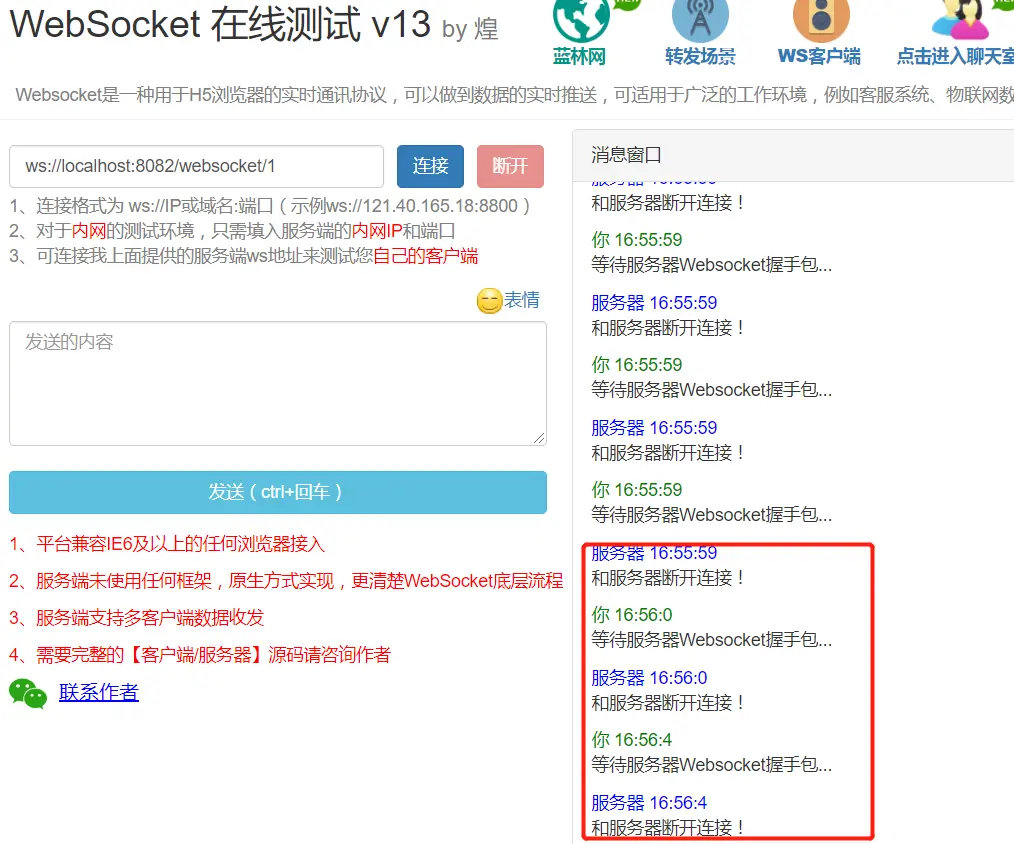

在线工具进行测试(推荐):www.websocket-test.com/
我一直测试失败,还没找到原因。下文整合springboot的测试成功。
编写js客户端

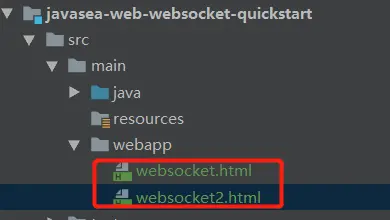

在webapp下编写两个html文件
websocket.html
内容如下
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>
<script>
const socket = new WebSocket("ws://localhost:8082/websocket/1");
// 连接建立时触发
socket.onopen = (ws) => {
console.log("建立连接!", ws);
};
// 客户端接收服务端数据时触发
socket.onmessage = (ws) => {
console.log("接收到消息 >> ", ws.data);
};
// 连接关闭时触发
socket.onclose = (ws) => {
console.log("连接已断开!", ws);
};
// 通信发生错误时触发
socket.onerror = (ws) => {
console.log("发送错误!", ws);
};
// 2秒后向服务端发送消息
setTimeout(() => {
// 使用连接发送数据
socket.send("发送一条消息试试");
}, 2000);
// 5秒后断开连接
setTimeout(() => {
// 关闭连接
socket.close();
}, 5000);
</script>
</body>
</html>
websocket2.html
内容如下
<!DOCTYPE HTML>
<html>
<head>
<meta charset="utf-8">
<title>菜鸟教程(runoob.com)</title>
<script type="text/javascript">
function WebSocketTest()
{
if ("WebSocket" in window)
{
alert("您的浏览器支持 WebSocket!");
// 打开一个 web socket
var ws = new WebSocket("ws://localhost:8082/websocket/1");
ws.onopen = function()
{
// Web Socket 已连接上,使用 send() 方法发送数据
ws.send("发送数据");
alert("数据发送中...");
};
ws.onmessage = function (evt)
{
var received_msg = evt.data;
alert("数据已接收...");
};
ws.onclose = function()
{
// 关闭 websocket
alert("连接已关闭...");
};
}
else
{
// 浏览器不支持 WebSocket
alert("您的浏览器不支持 WebSocket!");
}
}
</script>
</head>
<body>
<div id="sse">
<a href="javascript:WebSocketTest()">运行 WebSocket</a>
</div>
</body>
</html>
在浏览器请求http://localhost:8082/websocket2.html
emmm,失败的,还没找到原因,下文整合springboot,测试是成功的。
整合springboot
使用springboot内置tomcat时,就不需要引入javaee-api了,spring-boot已经包含了。
springboot的高级组件会自动引用基础的组件,像spring-boot-starter-websocket就引入了spring-boot-starter-web和spring-boot-starter,所以不要重复引入
springboot已经做了深度的集成和优化,注意是否添加了不需要的依赖、配置或声明。由于很多讲解组件使用的文章是和spring集成的,会有一些配置。在使用springboot时,由于springboot已经有了自己的配置,再这些配置有可能导致各种各样的异常。
pom.xml配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>javasea-web-websocket</artifactId>
<groupId>org.springframework.boot</groupId>
<version>2.1.5.RELEASE</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>javasea-web-websocket-springb</artifactId>
<dependencies>
<!-- https://mvnrepository.com/artifact/javax/javaee-api -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
</dependencies>
<build>
<plugins> <!-- java编译插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.7.0</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<!-- 使用jdk进行编译 -->
<fork>true</fork>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
</plugins>
</build>
</project>
springboot有两种方式实现websocket
- 通过注解
@ServerEndpoint
方式实现
webSocket核心是@ServerEndpoint
这个注解。这个注解是Javaee标准里的注解,tomcat7以上已经对其进行了实现,如果是用传统方法使用tomcat发布的项目,只要在pom文件中引入javaee标准即可使用。
快速入门中的例子就是通过@ServerEndpoint来实现的WebSocket服务,在整合springboot的时候需要额外配置Config类,创建一个ServerEndpointExporter();
@Configuration
public class WebSocketConfig {
@Bean
public ServerEndpointExporter serverEndpointExporter() {
return new ServerEndpointExporter();
}
}
-
使用实现
WebSocketConfigurer
接口的方式实现下文就是这种方式的实现
编写WebSocketHandler
在Spring中,处理消息的具体业务逻辑需要实现WebSocketHandler接口。
package com.javasea.web.websocket.springb.websocket;
import org.springframework.web.socket.CloseStatus;
import org.springframework.web.socket.TextMessage;
import org.springframework.web.socket.WebSocketSession;
import org.springframework.web.socket.handler.TextWebSocketHandler;
import java.io.IOException;
/**
* @Description 在Spring中,处理消息的具体业务逻辑需要实现WebSocketHandler接口。
* @Author longxiaonan@163.com
* @Date 16:50 2019/10/27 0027
**/
public class MyHandler extends TextWebSocketHandler {
@Override
public void handleTextMessage(WebSocketSession session, TextMessage message) throws IOException {
System.out.println("获取到消息 >> " + message.getPayload());
session.sendMessage(new TextMessage("消息已收到"));
if (message.getPayload().equals("10")) {
for (int i = 0; i < 10; i++) {
//回写消息到client
session.sendMessage(new TextMessage("消息 -> " + i));
try {
Thread.sleep(100);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
@Override
public void afterConnectionEstablished(WebSocketSession session) throws Exception {
session.sendMessage(new TextMessage("欢迎连接到ws服务"));
}
@Override
public void afterConnectionClosed(WebSocketSession session, CloseStatus status) throws Exception {
System.out.println("断开连接!");
}
}
编写配置类来实现WebSocket服务
package com.javasea.web.websocket.springb.websocket;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.WebSocketHandler;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.config.annotation.WebSocketConfigurer;
import org.springframework.web.socket.config.annotation.WebSocketHandlerRegistry;
@Configuration
@EnableWebSocket
public class WebSocketConfig implements WebSocketConfigurer {
@Override
public void registerWebSocketHandlers(WebSocketHandlerRegistry registry) {
registry.addHandler(myHandler(), "/ws").setAllowedOrigins("*");
}
@Bean
public WebSocketHandler myHandler() {
return new MyHandler();
}
}
编写启动类
package com.javasea.web.websocket.springb;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class APPlication {
public static void main(String[] args) {
SpringApplication.run(APPlication.class, args);
}
}
测试

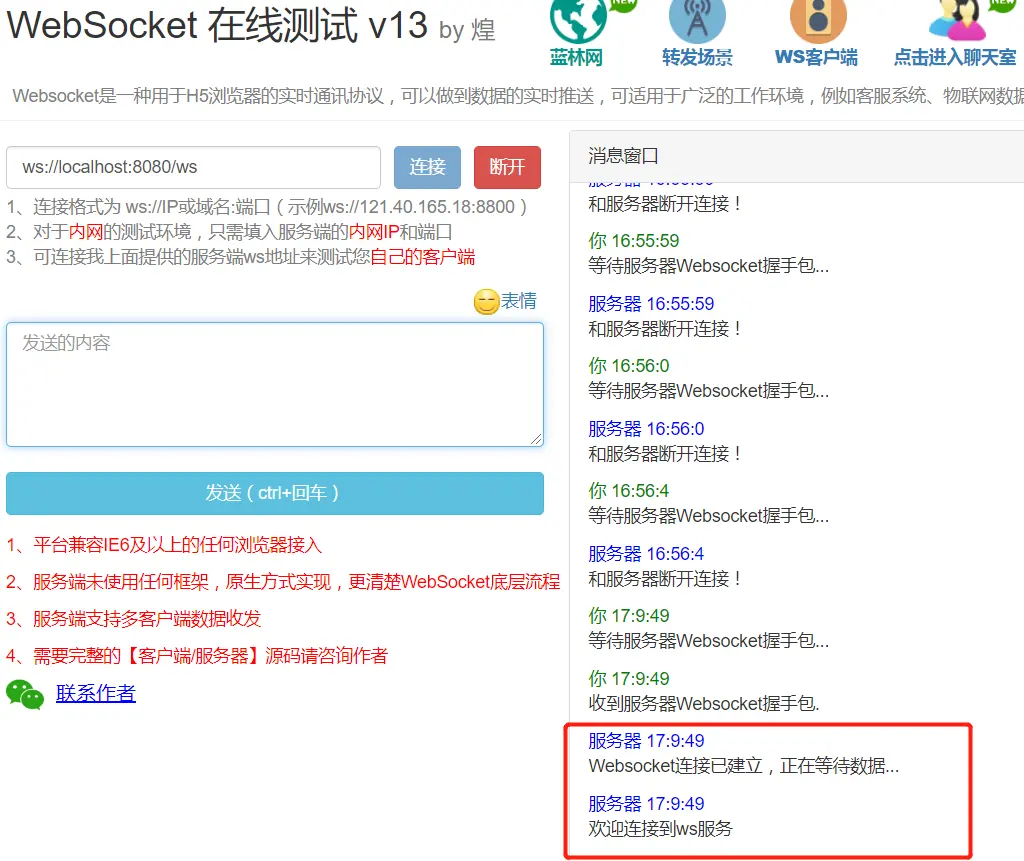

在线进行测试,url:ws://localhost:8080/ws
用上文的html页面也可以测试的,修改地址为
ws://localhost:8080/ws
然后在文件夹下直接用浏览器打开即可。
添加拦截器
package com.javasea.web.websocket.springb.websocket;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.socket.WebSocketHandler;
import org.springframework.web.socket.server.HandshakeInterceptor;
import java.util.Map;
@Component
public class MyHandshakeInterceptor implements HandshakeInterceptor {
/*** 握手之前,若返回false,则不建立链接 */
@Override
public boolean beforeHandshake(ServerHttpRequest request, ServerHttpResponse response, WebSocketHandler wsHandler, Map<String, Object> attributes) throws Exception { //将用户id放入socket处理器的会话(WebSocketSession)中
attributes.put("uid", 1001);
System.out.println("开始握手。。。。。。。");
return true;
}
@Override
public void afterHandshake(ServerHttpRequest request, ServerHttpResponse response, WebSocketHandler wsHandler, Exception exception) {
System.out.println("握手成功啦。。。。。。");
}
}
将拦截器添加到websocket服务中:
就是在上文的config中添加
addInterceptors(this.myHandshakeInterceptor);
。
package com.javasea.web.websocket.springb.websocket;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.WebSocketHandler;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.config.annotation.WebSocketConfigurer;
import org.springframework.web.socket.config.annotation.WebSocketHandlerRegistry;
@Configuration
@EnableWebSocket
public class WebSocketConfig implements WebSocketConfigurer {
@Autowired
private MyHandshakeInterceptor myHandshakeInterceptor;
@Override
public void registerWebSocketHandlers(WebSocketHandlerRegistry registry) {
registry.addHandler(myHandler(), "/ws").setAllowedOrigins("*").addInterceptors(this.myHandshakeInterceptor);
}
@Bean
public WebSocketHandler myHandler() {
return new MyHandler();
}
}
测试拦截器
在MyHandler
类afterConnectionEstablished
方法下输出获取到的uid
。
@Override
public void afterConnectionEstablished(WebSocketSession session) throws Exception {
System.out.println("uid =>" + session.getAttributes().get("uid"));
session.sendMessage(new TextMessage("欢迎连接到ws服务"));
}
连接websocket服务 ws://localhost:8080/ws
,console输出:
握手成功啦。。。。。。
uid =>1001
说明测试成功。
项目地址
github地址:github.com/longxiaonan…
