关于如何使用一些优秀的框架或者路由来编写Go REST微服务了已经有很多文章了，当我为我司寻找合适的服务构建方法时，我大量地阅读了它们。突然间我发现一个非常有趣的方法去构建HTTP/REST微服务，就是用Google开源的protobuf/gRPC框架。我确信已经有很多人听说过它，甚至有一部分人已经正在使用。但是我相信实际很少人有使用protobuf/gRPC框架来开发HTTP/REST微服务的经验。我只找到一篇文章(需要翻)在Medium上。

在此我并不打算重复它的内容。我希望通过一步步的引导让大家学会如何去开发一个简单的CRUD “To Do List”的微服务通过使用gPRC以及HTTP/REST的后端接口。我会演示如何编写测试用例以及加入中间件（请求ID以及日志记录与追踪）在服务当中。最后甚至还会提供一些例子讲述如何构建以及发布我们的微服务到Kubernetes上。


文章的划分

整个教程会分为4个部分：

  • Part1 是关于如何构建gRPC CRUD服务端以及客户端
  • Part2 是关于如何加入HTTP/REST接口到gRPC服务中
  • Part3 是关于如何加入一些中间件（例如日志记录以及跟踪）到HTTP/REST接口以及gRPC服务当中
  • Part4 是关于如何编写Kubernetes deployment的配置文件，加入health check以及如何构建与发布项目到Google Cloud的kubernetes集群上

前期准备

  • 本文并不是一个Go语言的基础教程，所以需要你已经拥有一定golang的编写经验
  • 你需要安装Go v1.11以上版本，我们将会使用到Go的第三方模块功能
  • 你需要有安装，配置以及使用SQL数据库的经验

API先行

这句话有什么意义？

  • API定义一定是与编程语言/通讯协议/网络传输无关的
  • API定义与API的逻辑实现一定是松耦合的
  • API版本化
  • 应该避免手动去同步API定义，API逻辑实现以及API文档三者的内容，我需要API逻辑实现的脚手架以及API的文档是根据API定义文件自动生成的

“To Do List”微服务

“To Do List”微服务允许去管理“To Do”列表，ToDo项包括以下字段/属性：

  • ID（unique integer identifier）
  • Title（text）
  • Description（text）
  • Reminder（timestamp）

ToDo服务包含典型的增删改查以及获取全部项方法。


创建gRPC CRUD服务

Step1: 创建API定义

Part1完整代码戳这里


开始之前我们先构建一个项目的骨架，这里又一个非常优秀的Go项目的脚手架模板

我是用的是Windows 10 x64运行环境，但是我想你将我接下来的cmd指令转换成MacOs/Linux BASH应该不是什么大问题


首先创建文件夹并初始化项目

mkdir go-grpc-http-rest-microservice-tutorial
cd go-grpc-http-rest-microservice-tutorial
go mod init github.com/<you>/go-grpc-http-rest-microservice-tutorial

在你的项目里面创建文件目录如下

mkdir -p api\proto\v1

这里的v1就是我们API的版本号

API版本化：通过将不同版本的API代码放到不同文件夹里面并以此命名是我的最佳实践


下一步就是在刚创建的v1文件夹里面创建todo-service.proto文件并加入ToDo服务的定义，我们先从Create方法写起：

syntax = "proto3";
package v1;

import "google/protobuf/timestamp.proto";

// Taks we have to do
message ToDo {
    // Unique integer identifier of the todo task
    int64 id = 1;
    // Title of the task
    string title = 2;
    // Detail description of the todo task
    string description = 3;
    // Date and time to remind the todo task
    google.protobuf.Timestamp reminder = 4;
}

// Request data to create new todo task
message CreateRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Task entity to add
    ToDo toDo = 2;
}

// Response that contains data for created todo task
message CreateResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // ID of created task
    int64 id = 2;
}

// Service to manage list of todo tasks
service ToDoService {
    // Create new todo task
    rpc Create(CreateRequest) returns (CreateResponse);
}

戳我查看Proto的编写语法

如你所见，API定义是跟编程语言，通讯协议以及网络传输无关的，这也是protobuf的一个重要标志

为了能编译proto文件我们需要安装一些工具和依赖

  • 下载proto编译器的二进制文件，戳这里
  • 解压安装包到任何目录，并在bin目录下加入环境环境变量

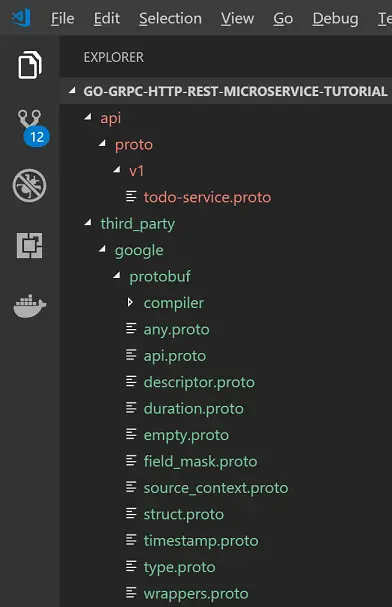

  • 创建third_party文件夹在go-grpc-http-rest-microservice-tutorial里面
  • 复制所有Proto编译器里面include文件夹里面的内容到third_party中
  • 为Proto编译器安装Go语言代码生成器插件
go get -u github.com/golang/protobuf/protoc-gen-go
  • 确保我们在go-grpc-http-rest-microservice-tutorial目录下运行
# Windows:
.\third_party\protoc-gen.cmd

# MasOS/Linux:
./third_party/protoc-gen.sh

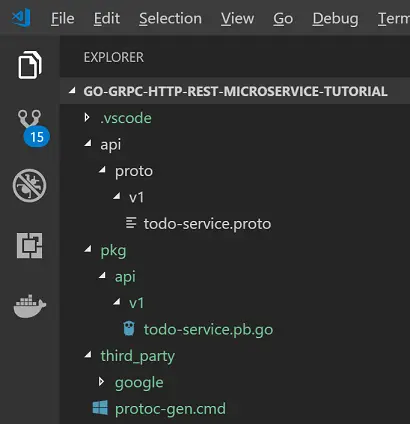

运行以后会创建一个名为todo-service.pb.go的文件在pkg/model/v1下


接下来让我们将剩下的方法驾到ToDo服务当中并编译

syntax = "proto3";
package v1;

import "google/protobuf/timestamp.proto";

// Taks we have to do
message ToDo {
    // Unique integer identifier of the todo task
    int64 id = 1;

    // Title of the task
    string title = 2;

    // Detail description of the todo task
    string description = 3;

    // Date and time to remind the todo task
    google.protobuf.Timestamp reminder = 4;
}

// Request data to create new todo task
message CreateRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Task entity to add
    ToDo toDo = 2;
}

// Contains data of created todo task
message CreateResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // ID of created task
    int64 id = 2;
}

// Request data to read todo task
message ReadRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Unique integer identifier of the todo task
    int64 id = 2;
}

// Contains todo task data specified in by ID request
message ReadResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Task entity read by ID
    ToDo toDo = 2;
}

// Request data to update todo task
message UpdateRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Task entity to update
    ToDo toDo = 2;
}

// Contains status of update operation
message UpdateResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Contains number of entities have beed updated
    // Equals 1 in case of succesfull update
    int64 updated = 2;
}

// Request data to delete todo task
message DeleteRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Unique integer identifier of the todo task to delete
    int64 id = 2;
}

// Contains status of delete operation
message DeleteResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // Contains number of entities have beed deleted
    // Equals 1 in case of succesfull delete
    int64 deleted = 2;
}

// Request data to read all todo task
message ReadAllRequest{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;
}

// Contains list of all todo tasks
message ReadAllResponse{
    // API versioning: it is my best practice to specify version explicitly
    string api = 1;

    // List of all todo tasks
    repeated ToDo toDos = 2;
}

// Service to manage list of todo tasks
service ToDoService {
    // Create new todo task
    rpc Create(CreateRequest) returns (CreateResponse);

    // Read todo task
    rpc Read(ReadRequest) returns (ReadResponse);

    // Update todo task
    rpc Update(UpdateRequest) returns (UpdateResponse);

    // Delete todo task
    rpc Delete(DeleteRequest) returns (DeleteResponse);

    // Read all todo tasks
    rpc ReadAll(ReadAllRequest) returns (ReadAllResponse);
}

再一次运行以下命令来更新Go的代码

# Windows:
.\third_party\protoc-gen.cmd

# MasOS/Linux:
./third_party/protoc-gen.sh

到此为止，API的定义就完成了


Step2: Go实现API逻辑

我是使用Google Cloud上的MySQL作为数据库来持久化做存储的。你可以使用其他你喜欢的SQL数据库。

创建ToDo table的MySQL脚本

CREATE TABLE `ToDo` (
  `ID` bigint(20) NOT NULL AUTO_INCREMENT,
  `Title` varchar(200) DEFAULT NULL,
  `Description` varchar(1024) DEFAULT NULL,
  `Reminder` timestamp NULL DEFAULT NULL,
  PRIMARY KEY (`ID`),
  UNIQUE KEY `ID_UNIQUE` (`ID`)
);

我会跳过如何安装配置SQL数据库以及创建数据表的步骤

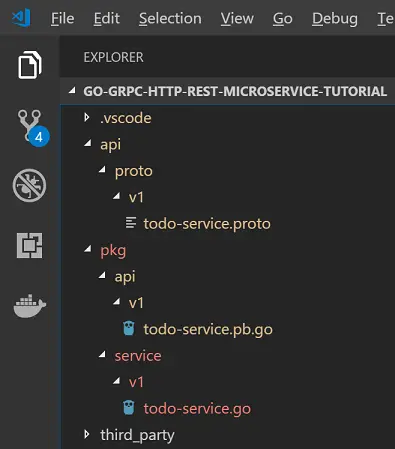

创建文件pkg/service/v1/todo-service.go以及下面的内容

package v1

import (
	"context"
	"database/sql"
	"fmt"
	"time"

	"github.com/golang/protobuf/ptypes"
	"google.golang.org/grpc/codes"
	"google.golang.org/grpc/status"

	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/api/v1"
)

const (
	// apiVersion is version of API is provided by server
	apiVersion = "v1"
)

// toDoServiceServer is implementation of v1.ToDoServiceServer proto interface
type toDoServiceServer struct {
	db *sql.DB
}

// NewToDoServiceServer creates ToDo service
func NewToDoServiceServer(db *sql.DB) v1.ToDoServiceServer {
	return &toDoServiceServer{db: db}
}

// checkAPI checks if the API version requested by client is supported by server
func (s *toDoServiceServer) checkAPI(api string) error {
	// API version is "" means use current version of the service
	if len(api) > 0 {
		if apiVersion != api {
			return status.Errorf(codes.Unimplemented,
				"unsupported API version: service implements API version '%s', but asked for '%s'", apiVersion, api)
		}
	}
	return nil
}

// connect returns SQL database connection from the pool
func (s *toDoServiceServer) connect(ctx context.Context) (*sql.Conn, error) {
	c, err := s.db.Conn(ctx)
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to connect to database-> "+err.Error())
	}
	return c, nil
}

// Create new todo task
func (s *toDoServiceServer) Create(ctx context.Context, req *v1.CreateRequest) (*v1.CreateResponse, error) {
	// check if the API version requested by client is supported by server
	if err := s.checkAPI(req.Api); err != nil {
		return nil, err
	}

	// get SQL connection from pool
	c, err := s.connect(ctx)
	if err != nil {
		return nil, err
	}
	defer c.Close()

	reminder, err := ptypes.Timestamp(req.ToDo.Reminder)
	if err != nil {
		return nil, status.Error(codes.InvalidArgument, "reminder field has invalid format-> "+err.Error())
	}

	// insert ToDo entity data
	res, err := c.ExecContext(ctx, "INSERT INTO ToDo(`Title`, `Description`, `Reminder`) VALUES(?, ?, ?)",
		req.ToDo.Title, req.ToDo.Description, reminder)
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to insert into ToDo-> "+err.Error())
	}

	// get ID of creates ToDo
	id, err := res.LastInsertId()
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to retrieve id for created ToDo-> "+err.Error())
	}

	return &v1.CreateResponse{
		Api: apiVersion,
		Id:  id,
	}, nil
}

// Read todo task
func (s *toDoServiceServer) Read(ctx context.Context, req *v1.ReadRequest) (*v1.ReadResponse, error) {
	// check if the API version requested by client is supported by server
	if err := s.checkAPI(req.Api); err != nil {
		return nil, err
	}

	// get SQL connection from pool
	c, err := s.connect(ctx)
	if err != nil {
		return nil, err
	}
	defer c.Close()

	// query ToDo by ID
	rows, err := c.QueryContext(ctx, "SELECT `ID`, `Title`, `Description`, `Reminder` FROM ToDo WHERE `ID`=?",
		req.Id)
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to select from ToDo-> "+err.Error())
	}
	defer rows.Close()

	if !rows.Next() {
		if err := rows.Err(); err != nil {
			return nil, status.Error(codes.Unknown, "failed to retrieve data from ToDo-> "+err.Error())
		}
		return nil, status.Error(codes.NotFound, fmt.Sprintf("ToDo with ID='%d' is not found",
			req.Id))
	}

	// get ToDo data
	var td v1.ToDo
	var reminder time.Time
	if err := rows.Scan(&td.Id, &td.Title, &td.Description, &reminder); err != nil {
		return nil, status.Error(codes.Unknown, "failed to retrieve field values from ToDo row-> "+err.Error())
	}
	td.Reminder, err = ptypes.TimestampProto(reminder)
	if err != nil {
		return nil, status.Error(codes.Unknown, "reminder field has invalid format-> "+err.Error())
	}

	if rows.Next() {
		return nil, status.Error(codes.Unknown, fmt.Sprintf("found multiple ToDo rows with ID='%d'",
			req.Id))
	}

	return &v1.ReadResponse{
		Api:  apiVersion,
		ToDo: &td,
	}, nil

}

// Update todo task
func (s *toDoServiceServer) Update(ctx context.Context, req *v1.UpdateRequest) (*v1.UpdateResponse, error) {
	// check if the API version requested by client is supported by server
	if err := s.checkAPI(req.Api); err != nil {
		return nil, err
	}

	// get SQL connection from pool
	c, err := s.connect(ctx)
	if err != nil {
		return nil, err
	}
	defer c.Close()

	reminder, err := ptypes.Timestamp(req.ToDo.Reminder)
	if err != nil {
		return nil, status.Error(codes.InvalidArgument, "reminder field has invalid format-> "+err.Error())
	}

	// update ToDo
	res, err := c.ExecContext(ctx, "UPDATE ToDo SET `Title`=?, `Description`=?, `Reminder`=? WHERE `ID`=?",
		req.ToDo.Title, req.ToDo.Description, reminder, req.ToDo.Id)
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to update ToDo-> "+err.Error())
	}

	rows, err := res.RowsAffected()
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to retrieve rows affected value-> "+err.Error())
	}

	if rows == 0 {
		return nil, status.Error(codes.NotFound, fmt.Sprintf("ToDo with ID='%d' is not found",
			req.ToDo.Id))
	}

	return &v1.UpdateResponse{
		Api:     apiVersion,
		Updated: rows,
	}, nil
}

// Delete todo task
func (s *toDoServiceServer) Delete(ctx context.Context, req *v1.DeleteRequest) (*v1.DeleteResponse, error) {
	// check if the API version requested by client is supported by server
	if err := s.checkAPI(req.Api); err != nil {
		return nil, err
	}

	// get SQL connection from pool
	c, err := s.connect(ctx)
	if err != nil {
		return nil, err
	}
	defer c.Close()

	// delete ToDo
	res, err := c.ExecContext(ctx, "DELETE FROM ToDo WHERE `ID`=?", req.Id)
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to delete ToDo-> "+err.Error())
	}

	rows, err := res.RowsAffected()
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to retrieve rows affected value-> "+err.Error())
	}

	if rows == 0 {
		return nil, status.Error(codes.NotFound, fmt.Sprintf("ToDo with ID='%d' is not found",
			req.Id))
	}

	return &v1.DeleteResponse{
		Api:     apiVersion,
		Deleted: rows,
	}, nil
}

// Read all todo tasks
func (s *toDoServiceServer) ReadAll(ctx context.Context, req *v1.ReadAllRequest) (*v1.ReadAllResponse, error) {
	// check if the API version requested by client is supported by server
	if err := s.checkAPI(req.Api); err != nil {
		return nil, err
	}

	// get SQL connection from pool
	c, err := s.connect(ctx)
	if err != nil {
		return nil, err
	}
	defer c.Close()

	// get ToDo list
	rows, err := c.QueryContext(ctx, "SELECT `ID`, `Title`, `Description`, `Reminder` FROM ToDo")
	if err != nil {
		return nil, status.Error(codes.Unknown, "failed to select from ToDo-> "+err.Error())
	}
	defer rows.Close()

	var reminder time.Time
	list := []*v1.ToDo{}
	for rows.Next() {
		td := new(v1.ToDo)
		if err := rows.Scan(&td.Id, &td.Title, &td.Description, &reminder); err != nil {
			return nil, status.Error(codes.Unknown, "failed to retrieve field values from ToDo row-> "+err.Error())
		}
		td.Reminder, err = ptypes.TimestampProto(reminder)
		if err != nil {
			return nil, status.Error(codes.Unknown, "reminder field has invalid format-> "+err.Error())
		}
		list = append(list, td)
	}

	if err := rows.Err(); err != nil {
		return nil, status.Error(codes.Unknown, "failed to retrieve data from ToDo-> "+err.Error())
	}

	return &v1.ReadAllResponse{
		Api:   apiVersion,
		ToDos: list,
	}, nil
}

为API逻辑实现创建文件pkg/service/v1/todo-service.go 最后文件目录如下


Step3:为API逻辑实现编写测试用例

不管我们开发什么都应该编写测试用例。这是强制遵守的规定。

这里有一个很棒的模拟库，用于测试SQL数据库的交互go-sqlmock.我将会使用它为我们的ToDo服务编写测试用例。

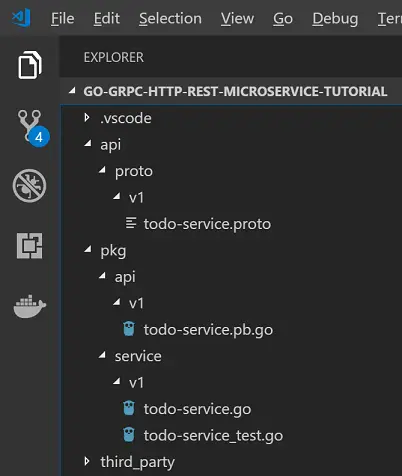

将这个文件放到pkg/service/v1目录下，当前项目文件结构如下


Step4:编写gRPC服务端

创建文件pkg/protocol/grpc/server.go并写入

package grpc

import (
	"context"
	"log"
	"net"
	"os"
	"os/signal"

	"google.golang.org/grpc"

	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/api/v1"
)

// RunServer runs gRPC service to publish ToDo service
func RunServer(ctx context.Context, v1API v1.ToDoServiceServer, port string) error {
	listen, err := net.Listen("tcp", ":"+port)
	if err != nil {
		return err
	}

	// register service
	server := grpc.NewServer()
	v1.RegisterToDoServiceServer(server, v1API)

	// graceful shutdown
	c := make(chan os.Signal, 1)
	signal.Notify(c, os.Interrupt)
	go func() {
		for range c {
			// sig is a ^C, handle it
			log.Println("shutting down gRPC server...")

			server.GracefulStop()

			<-ctx.Done()
		}
	}()

	// start gRPC server
	log.Println("starting gRPC server...")
	return server.Serve(listen)
}

RunServer函数负责注册ToDo服务以及启动gRPC服务

你需要给gPRC服务配置TLS，查看示例学习如何配置



接下来创建pkg/cmd/server/server.go以及对应内容

package cmd

import (
	"context"
	"database/sql"
	"flag"
	"fmt"

	// mysql driver
	_ "github.com/go-sql-driver/mysql"

	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/protocol/grpc"
	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/service/v1"
)

// Config is configuration for Server
type Config struct {
	// gRPC server start parameters section
	// gRPC is TCP port to listen by gRPC server
	GRPCPort string

	// DB Datastore parameters section
	// DatastoreDBHost is host of database
	DatastoreDBHost string
	// DatastoreDBUser is username to connect to database
	DatastoreDBUser string
	// DatastoreDBPassword password to connect to database
	DatastoreDBPassword string
	// DatastoreDBSchema is schema of database
	DatastoreDBSchema string
}

// RunServer runs gRPC server and HTTP gateway
func RunServer() error {
	ctx := context.Background()

	// get configuration
	var cfg Config
	flag.StringVar(&cfg.GRPCPort, "grpc-port", "", "gRPC port to bind")
	flag.StringVar(&cfg.DatastoreDBHost, "db-host", "", "Database host")
	flag.StringVar(&cfg.DatastoreDBUser, "db-user", "", "Database user")
	flag.StringVar(&cfg.DatastoreDBPassword, "db-password", "", "Database password")
	flag.StringVar(&cfg.DatastoreDBSchema, "db-schema", "", "Database schema")
	flag.Parse()

	if len(cfg.GRPCPort) == 0 {
		return fmt.Errorf("invalid TCP port for gRPC server: '%s'", cfg.GRPCPort)
	}

	// add MySQL driver specific parameter to parse date/time
	// Drop it for another database
	param := "parseTime=true"

	dsn := fmt.Sprintf("%s:%s@tcp(%s)/%s?%s",
		cfg.DatastoreDBUser,
		cfg.DatastoreDBPassword,
		cfg.DatastoreDBHost,
		cfg.DatastoreDBSchema,
		param)
	db, err := sql.Open("mysql", dsn)
	if err != nil {
		return fmt.Errorf("failed to open database: %v", err)
	}
	defer db.Close()

	v1API := v1.NewToDoServiceServer(db)

	return grpc.RunServer(ctx, v1API, cfg.GRPCPort)
}

RunServer函数负责读取命令行输入的参数，创建数据库连接，创建ToDo服务实例以及调用之前gPRC服务中的RunServer函数


最后创建以下文件cmd/server/main.go以及内容

package main

import (
	"fmt"
	"os"

	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/cmd"
)

func main() {
	if err := cmd.RunServer(); err != nil {
		fmt.Fprintf(os.Stderr, "%v\n", err)
		os.Exit(1)
	}
}

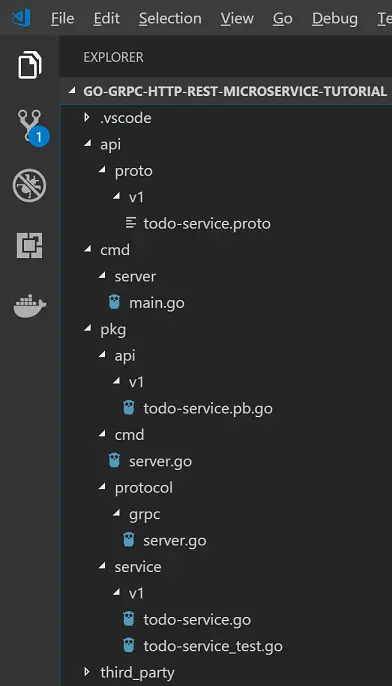

以上就是服务端所有的代码了，当前项目目录如下


Step5: 创建gRPC客户端

创建文件cmd/client-grpc/main.go以及以下内容

package main

import (
	"context"
	"flag"
	"log"
	"time"

	"github.com/golang/protobuf/ptypes"
	"google.golang.org/grpc"

	"github.com/amsokol/go-grpc-http-rest-microservice-tutorial/pkg/api/v1"
)

const (
	// apiVersion is version of API is provided by server
	apiVersion = "v1"
)

func main() {
	// get configuration
	address := flag.String("server", "", "gRPC server in format host:port")
	flag.Parse()

	// Set up a connection to the server.
	conn, err := grpc.Dial(*address, grpc.WithInsecure())
	if err != nil {
		log.Fatalf("did not connect: %v", err)
	}
	defer conn.Close()

	c := v1.NewToDoServiceClient(conn)

	ctx, cancel := context.WithTimeout(context.Background(), 5*time.Second)
	defer cancel()

	t := time.Now().In(time.UTC)
	reminder, _ := ptypes.TimestampProto(t)
	pfx := t.Format(time.RFC3339Nano)

	// Call Create
	req1 := v1.CreateRequest{
		Api: apiVersion,
		ToDo: &v1.ToDo{
			Title:       "title (" + pfx + ")",
			Description: "description (" + pfx + ")",
			Reminder:    reminder,
		},
	}
	res1, err := c.Create(ctx, &req1)
	if err != nil {
		log.Fatalf("Create failed: %v", err)
	}
	log.Printf("Create result: <%+v>\n\n", res1)

	id := res1.Id

	// Read
	req2 := v1.ReadRequest{
		Api: apiVersion,
		Id:  id,
	}
	res2, err := c.Read(ctx, &req2)
	if err != nil {
		log.Fatalf("Read failed: %v", err)
	}
	log.Printf("Read result: <%+v>\n\n", res2)

	// Update
	req3 := v1.UpdateRequest{
		Api: apiVersion,
		ToDo: &v1.ToDo{
			Id:          res2.ToDo.Id,
			Title:       res2.ToDo.Title,
			Description: res2.ToDo.Description + " + updated",
			Reminder:    res2.ToDo.Reminder,
		},
	}
	res3, err := c.Update(ctx, &req3)
	if err != nil {
		log.Fatalf("Update failed: %v", err)
	}
	log.Printf("Update result: <%+v>\n\n", res3)

	// Call ReadAll
	req4 := v1.ReadAllRequest{
		Api: apiVersion,
	}
	res4, err := c.ReadAll(ctx, &req4)
	if err != nil {
		log.Fatalf("ReadAll failed: %v", err)
	}
	log.Printf("ReadAll result: <%+v>\n\n", res4)

	// Delete
	req5 := v1.DeleteRequest{
		Api: apiVersion,
		Id:  id,
	}
	res5, err := c.Delete(ctx, &req5)
	if err != nil {
		log.Fatalf("Delete failed: %v", err)
	}
	log.Printf("Delete result: <%+v>\n\n", res5)
}

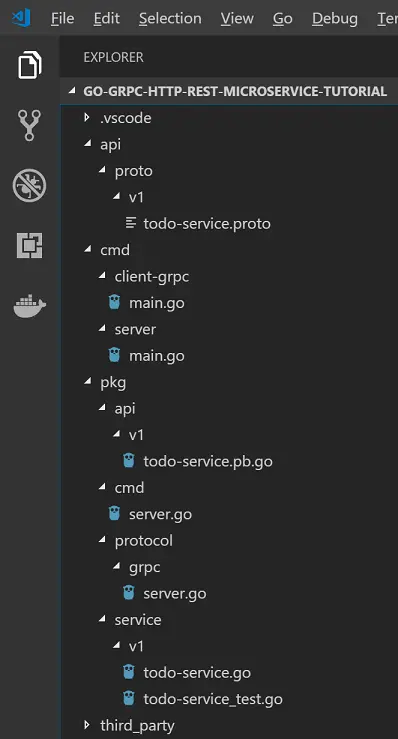

以上就是客户端所有代码，当前项目目录如下


Step6: 启动gRPC的客户端和服务端

最后一步骤是确保gPRC服务能跑起来

开启一个终端build以及run gRPC服务（将下面数据库连接的参数替代成你自己的数据库配置）

cd cmd/server
go build .
server.exe -grpc-port=9090 -db-host=<HOST>:3306 -db-user=<USER> -db-password=<PASSWORD> -db-schema=<SCHEMA>

如果能看到

2018/09/09 08:02:16 starting gRPC server...

证明我们的服务已经被启动起来了

打开另一个终端build和run gRPC客户端

cd cmd/client-grpc
go build .
client-grpc.exe -server=localhost:9090

如果能看到以下信息：

2018/09/09 09:16:01 Create result: <api:"v1" id:13 >
2018/09/09 09:16:01 Read result: <api:"v1" toDo:<id:13 title:"title (2018-09-09T06:16:01.5755011Z)" description:"description (2018-09-09T06:16:01.5755011Z)" reminder:<seconds:1536473762 > > >
2018/09/09 09:16:01 Update result: <api:"v1" updated:1 >
2018/09/09 09:16:01 ReadAll result: <api:"v1" toDos:<id:9 title:"title (2018-09-09T04:45:16.3693282Z)" description:"description (2018-09-09T04:45:16.3693282Z)" reminder:<seconds:1536468316 > > toDos:<id:10 title:"title (2018-09-09T04:46:00.7490565Z)" description:"description (2018-09-09T04:46:00.7490565Z)" reminder:<seconds:1536468362 > > toDos:<id:13 title:"title (2018-09-09T06:16:01.5755011Z)" description:"description (2018-09-09T06:16:01.5755011Z) + updated" reminder:<seconds:1536473762 > > >
2018/09/09 09:16:01 Delete result: <api:"v1" deleted:1 >

所有东西都正常运作了！



以上就是Part1的全部内容了，我们成功构建了gRPC的客户端以及服务端

Part1的源代码在此处

接下来 Part2是讲述如何在我们本章建立的gRPC服务上增加HTTP/REST接口，敬请期待。

感谢收看！🙏🙏🙏🙏

avatar
文章
阅读
粉丝

友情链接：
