IOS刘海屏H5 CSS适配

15,523 阅读3分钟

原文发自我的博客:柴犬工作室

在hybrid中,会遇到native把全屏交给webview的情况,在iphone刘海屏手机上就需要做刘海屏、底部小黑条适配了

safe area / 安全区域

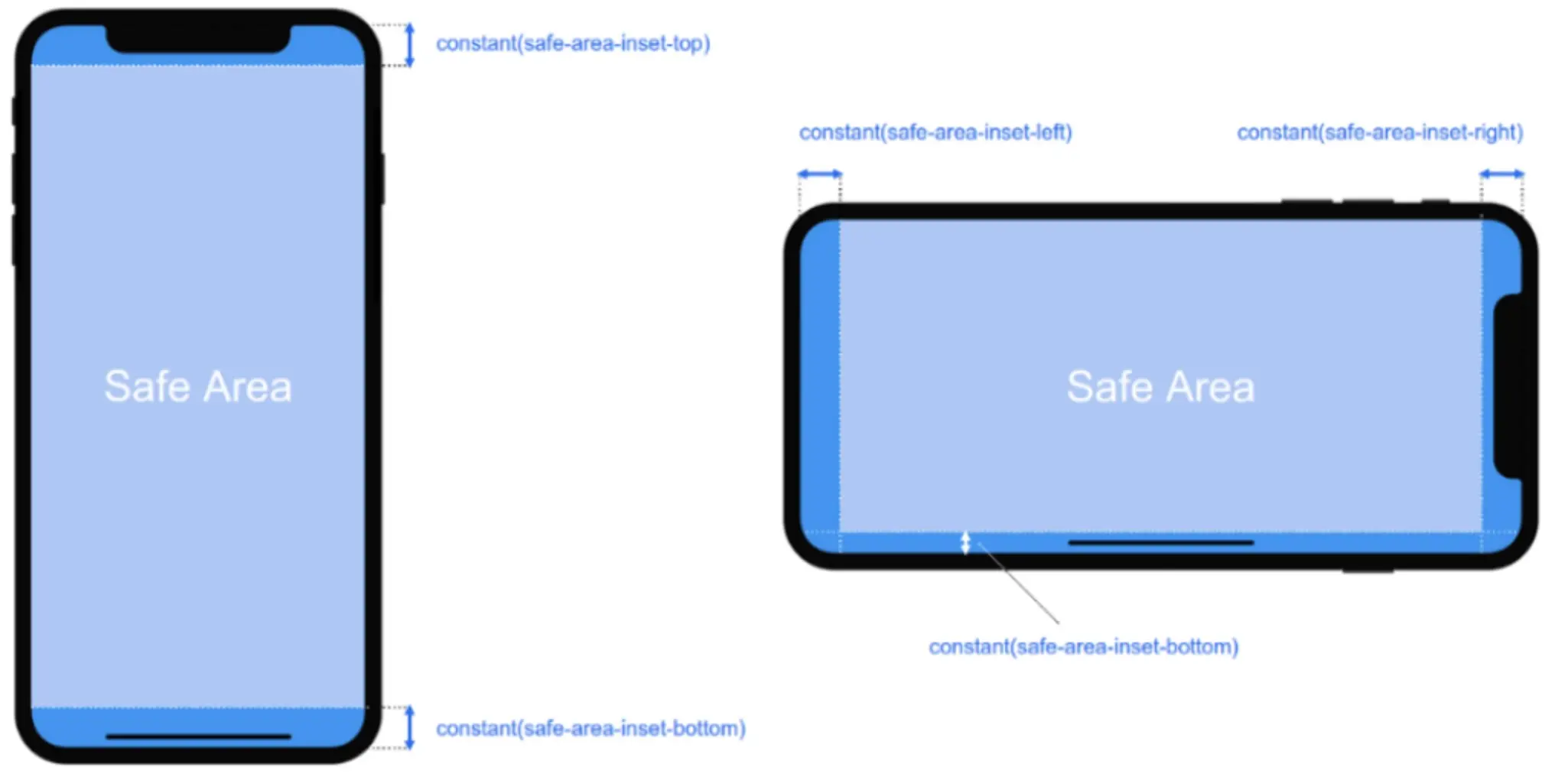

iphonex之后引入的新概念,安全区域指的是一个可视窗口范围,处于安全区域的内容不受圆角(corners)、齐刘海(sensor housing)、小黑条(Home Indicator)影响,如下图所示:


viewport-fit

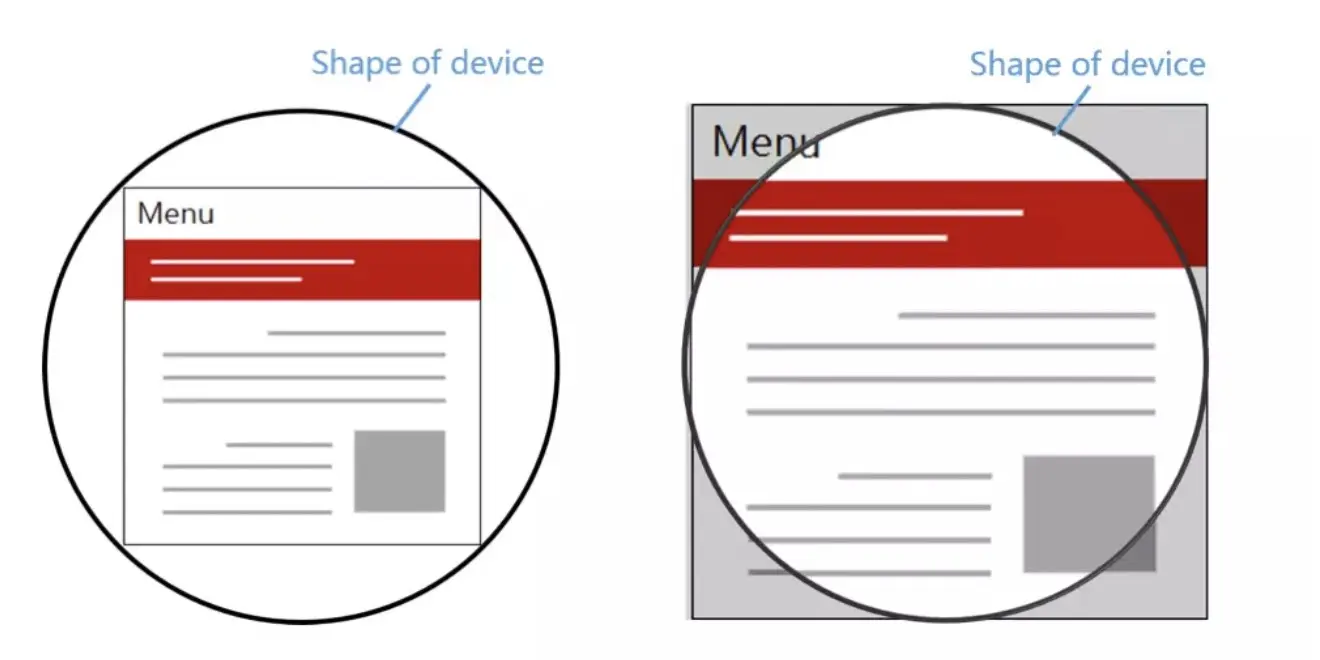

iOS11 新增特性,苹果公司为了适配 iPhoneX等刘海屏, 对现有 viewport meta 标签的一个扩展,用于设置网页在可视窗口的布局方式,可设置 三个值:

  • auto 默认
  • contain 可视窗口完全包含网页内容,左图
  • cover 网页内容完全覆盖可视窗口,即页面完全充满屏幕,右图。适配关键!


<meta name="viewport" content="viewport-fit=cover">

constant(safe-area-inset-*)函数

iOS11 新增特性,Webkit 的一个 CSS 函数,用于设获取安全区域与边界的距离,有四个预定义的变量(单位是px):

  • safe-area-inset-left:安全区域距离左边界距离,横屏时适配
  • safe-area-inset-right:安全区域距离右边界距离,横屏时适配
  • safe-area-inset-top:安全区域距离顶部边界距离,竖屏下刘海屏为44px,iphone6系列20px,竖屏刘海适配关键
  • safe-area-inset-bottom:安全区域距离底部边界距离,竖屏下为34px,竖屏小黑条适配关键

适配的核心是:通过 constant() 可以获取到非安全边距,再结合 padding 或 margin 来控制页面元素避开非安全区域。

Webkit在iOS11中新增CSS Functions: env( )替代constant( ),文档中推荐使用env( ),而 constant( ) 从Safari Techology Preview 41 和iOS11.2 Beta开始会被弃用。在不支持env( )的浏览器中,会自动忽略这一样式规则,不影响网页正常的渲染。为了达到最大兼容目的,我们可以 constant( ) 和 env( ) 同时使用。

padding-bottom: constant(safe-area-inset-bottom); /* iOS 11.0 */
padding-bottom: env(safe-area-inset-bottom); /* iOS 11.2 */

@supports隔离兼容模式

使用@supports查询机型是否支持 constant() / env()实现兼容代码隔离:

@supports ((height: constant(safe-area-inset-top)) or (height: env(safe-area-inset-top))) {
  body {
    /* 适配齐刘海*/
    padding-top: constant(safe-area-inset-top);

    /* 兼容 */
    /* padding-top: env(safe-area-inset-top); */

    /* padding-top: calc(40px(原来的bottom值) + constant(safe-area-inset-top)); */

    /* 适配底部黑条*/
    padding-bottom: constant(safe-area-inset-bottom);
  }
}

但是,实际需求个别安卓也会成功进入这个判断,因此加上-webkit-overflow-scrolling: touch的判断可以有效规避安卓机。

这种情况在chrome中无法模拟出来,需要真机

@supports ((height: constant(safe-area-inset-top)) or (height: env(safe-area-inset-top))) and (-webkit-overflow-scrolling: touch) {}

精确到机型做适配

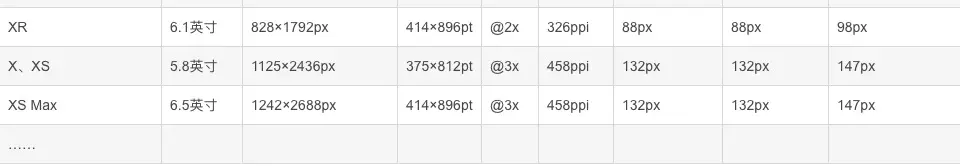

通过宽高、像素比来判断机型,也可以做具体适配:

这种情况在chrome中可以模拟出来


/* iphone x / xs / 11 pro*/
@media only screen and (device-width: 375px) and (device-height: 812px) and (-webkit-device-pixel-ratio: 3) {

}
/* iphone xr / 11 */
@media only screen and (device-width: 414px) and (device-height: 896px) and (-webkit-device-pixel-ratio: 2) {

}
/* iphone xs max / 11 pro max */
@media only screen and (device-width: 414px) and (device-height: 896px) and (-webkit-device-pixel-ratio: 3) {

}

当然可以使用scss/less等等,写机型判断的全局变量,使用时直接使用变量

//scss
// iphone x/xs/11 pro
$device-x: "screen and (device-width: 375px) and (device-height: 812px) and (-webkit-device-pixel-ratio: 3)";
// iphone xr/11
$device-xr: "screen and (device-width: 414px) and (device-height: 896px) and (-webkit-device-pixel-ratio: 2)";
// iphone x/xs/11pro max
$device-xmax: "screen and (device-width: 414px) and (device-height: 896px) and (-webkit-device-pixel-ratio: 3)";
@media #{unquote($device-x)},
       #{unquote($device-xr)},
       #{unquote($device-xmax)} {
        //  do something
       }

等iphone12......
