1、用Echarts的type为graph类型画图,优点:拖拽不用重新定点划线,有自带的连线关系,缺点:连线的样式及特效不能很好呈现
1//注意this.viewData是从后台获取的数据
mounted () {
2
const that = this
3
this.$nextTick(() => {
4
let myChart = echarts.init(document.getElementById(this.scaleLine_id))
5
var home = "image:///img/bussiness.png"; //业务
6
var error_home = "image:///img/error-bussiness.png"; //故障业务
7
var windows = "image:///img/windows.png"; //windows主机
8
var error_windows = "image:///img/error-windows"; //故障windows
9
var linux = "image:///img/linux.png"; //linux
10
var error_linux = "image:///img/error-linux.png"; //故障linux
11
var cluster0 = "image:///img/cluster_0.png"; //web服务器
12
var error_cluster0 = "image:///img/error-cluster_0.png"; //故障web服务器
13
var cluster1 = "image:///img/cluster_1.png"; //数据库
14
var error_cluster1 = "image:///img/error-cluster_1.png"; //故障数据库
15
var cluster2 = "image:///img/cluster_2.png"; //消息队列
16
var error_cluster2 = "image:///img/error-cluster_2.png"; //故障消息队列
17
var cluster3 = "image:///img/cluster_3.png"; //缓存
18
var error_cluster3 = "image:///img/error-cluster_3.png"; //故障缓存
19
var cluster4 = "image:///img/cluster_4.png"; //文件系统
20
var error_cluster4 = "image:///img/error-cluster_4.png"; //故障文件系统
21
let labelOne = {//文字1省级市级五区
22
normal: {
23
position: "bottom",
24
distance:0, //离图标多远
25
show: true,
26
textStyle: {
27
fontSize: 15,
28
color:'#00eaff',
29
fontFamily:'microsoftYaHei'
30
},
31
}
32
};
33
let lineColorOne = new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
34
offset: 0,
35
color: '#58B3CC'
36
}, {
37
offset: 1,
38
color: '#F58158'
39
}])
40
let viewData = this.viewData
41
let data = []
42
var symbolSize = 20;
43
// console.log(viewData)
44
//处理数据格式
45
for(let i = 0;i<viewData.element.length;i++){
46
data.push(viewData.element[i].value)
47
if(viewData.element[i].type === 20){
48
if(viewData.element[i].status === 1){
49
viewData.element[i].symbol = home
50
viewData.element[i].symbolSize = 40
51
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
52
viewData.element[i].draggable = 'true'
53
viewData.element[i].fixed = 'true'
54
viewData.element[i].label = labelOne
55
}else{
56
viewData.element[i].symbol = error_home
57
viewData.element[i].symbolSize = 40
58
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
59
viewData.element[i].draggable = 'true'
60
viewData.element[i].fixed = 'true'
61
viewData.element[i].label = labelOne
62
63
}
64
}else if(viewData.element[i].type === 10){
65
if(viewData.element[i].status === 1){
66
viewData.element[i].symbol = windows
67
viewData.element[i].symbolSize = 40
68
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
69
viewData.element[i].draggable = 'false'
70
viewData.element[i].fixed = 'true'
71
viewData.element[i].label = labelOne
72
}else{
73
viewData.element[i].symbol = error_windows
74
viewData.element[i].symbolSize = 40
75
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
76
viewData.element[i].draggable = 'false'
77
viewData.element[i].fixed = 'true'
78
viewData.element[i].label = labelOne
79
80
}
81
82
}else if(viewData.element[i].type === 11){
83
if(viewData.element[i].status === 1){
84
viewData.element[i].symbol = linux
85
viewData.element[i].symbolSize = 40
86
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
87
viewData.element[i].draggable = 'false'
88
viewData.element[i].fixed = 'true'
89
viewData.element[i].label = labelOne
90
}else{
91
viewData.element[i].symbol = error_linux
92
viewData.element[i].symbolSize = 40
93
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
94
viewData.element[i].draggable = 'false'
95
viewData.element[i].fixed = 'true'
96
viewData.element[i].label = labelOne
97
98
}
99
100
}else if(viewData.element[i].type === 0){
101
if(viewData.element[i].status === 1){
102
viewData.element[i].symbol = cluster0
103
viewData.element[i].symbolSize = 40
104
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
105
viewData.element[i].draggable = 'false'
106
viewData.element[i].fixed = 'true'
107
viewData.element[i].label = labelOne
108
}else{
109
viewData.element[i].symbol = error_cluster0
110
viewData.element[i].symbolSize = 40
111
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
112
viewData.element[i].draggable = 'false'
113
viewData.element[i].fixed = 'true'
114
viewData.element[i].label = labelOne
115
116
}
117
118
}else if(viewData.element[i].type === 1) {
119
if(viewData.element[i].status === 1){
120
viewData.element[i].symbol = cluster1
121
viewData.element[i].symbolSize = 40
122
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
123
viewData.element[i].draggable = 'false'
124
viewData.element[i].fixed = 'true'
125
viewData.element[i].label = labelOne
126
}else{
127
viewData.element[i].symbol = error_cluster1
128
viewData.element[i].symbolSize = 40
129
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
130
viewData.element[i].draggable = 'false'
131
viewData.element[i].fixed = 'true'
132
viewData.element[i].label = labelOne
133
134
}
135
136
}else if(viewData.element[i].type === 2) {
137
if(viewData.element[i].status === 1){
138
viewData.element[i].symbol = cluster2
139
viewData.element[i].symbolSize = 40
140
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
141
viewData.element[i].draggable = 'false'
142
viewData.element[i].fixed = 'true'
143
viewData.element[i].label = labelOne
144
}else{
145
viewData.element[i].symbol = error_cluster2
146
viewData.element[i].symbolSize = 40
147
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
148
viewData.element[i].draggable = 'false'
149
viewData.element[i].fixed = 'true'
150
viewData.element[i].label = labelOne
151
152
}
153
154
}else if(viewData.element[i].type === 3) {
155
if(viewData.element[i].status === 1){
156
viewData.element[i].symbol = cluster3
157
viewData.element[i].symbolSize = 40
158
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
159
viewData.element[i].draggable = 'false'
160
viewData.element[i].fixed = 'true'
161
viewData.element[i].label = labelOne
162
}else{
163
viewData.element[i].symbol = error_cluster3
164
viewData.element[i].symbolSize = 40
165
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
166
viewData.element[i].draggable = 'false'
167
viewData.element[i].fixed = 'true'
168
viewData.element[i].label = labelOne
169
170
}
171
172
}else if(viewData.element[i].type === 4){
173
if(viewData.element[i].status === 1){
174
viewData.element[i].symbol = cluster4
175
viewData.element[i].symbolSize = 40
176
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
177
viewData.element[i].draggable = 'false'
178
viewData.element[i].fixed = 'true'
179
viewData.element[i].label = labelOne
180
}else{
181
viewData.element[i].symbol = error_cluster4
182
viewData.element[i].symbolSize = 40
183
viewData.element[i].itemStyle = {"normal":{"color":"#F58158"}}
184
viewData.element[i].draggable = 'false'
185
viewData.element[i].fixed = 'true'
186
viewData.element[i].label = labelOne
187
188
}
189
190
}
191
}
192
var linkss = viewData.line.map((item,i)=>{
193
return {
194
source:item.fromName.id,
195
target:item.toName.id,
196
197
}
198
})
199
console.log(linkss)
200
const option = {
201
grid: {
202
left: '6%',
203
top: '1%',
204
bottom:'5%',
205
},
206
textStyle: {
207
color: '#f00',
208
fontSize: 16,
209
fontWeight: 600,
210
},
211
// tooltip: {
212
// // 表示不使用默认的『显示』『隐藏』触发规则。
213
// triggerOn: 'none',
214
// formatter: function (params) {
215
// return 'X: ' + params.data[0].toFixed(2) + '<br>Y: ' + params.data[1].toFixed(2);
216
// }
217
// },
218
backgroundColor:"#013954",
219
// backgroundColor:"#fff",
220
animationDuration: 1500,
221
animationEasingUpdate: 'quinticInOut',
222
xAxis: {
223
show: false,
224
type: 'value',
225
axisLine: {onZero: false}
226
},
227
yAxis: {
228
show: false,
229
type: 'value',
230
axisLine: {onZero: false}
231
},
232
series: [
233
{
234
id:'a',
235
type: 'graph',
236
coordinateSystem: 'cartesian2d',
237
legendHoverLink: false,
238
hoverAnimation: true,
239
nodeScaleRatio: false,
240
roam: false,
241
color: {
242
type: 'linear',
243
x: 0,
244
y: 0,
245
x2: 0,
246
y2: 1,
247
colorStops: [{
248
offset: 0, color: 'red' // 0% 处的颜色
249
}, {
250
offset: 1, color: 'blue' // 100% 处的颜色
251
}],
252
global: false // 缺省为 false
253
},
254
edges:linkss,
255
data: viewData.element,
256
},
257
]
258
};
259
//折线点原本并没有拖拽功能,需要我们为它加上:使用 graphic 组件,在每个点上面,覆盖一个隐藏的可拖拽的圆点
260
myChart.setOption(option,true);
261
// onPointDragging(0)//初始化
262
console.log(myChart.getOption())
263
myChart.setOption({
264
graphic: echarts.util.map(data, function (dataItem, dataIndex) {
265
return {
266
// 'circle' 表示这个 graphic element 的类型是圆点。
267
type: 'circle',
268
shape: {
269
// 圆点的半径。
270
r: symbolSize
271
},
272
position: myChart.convertToPixel('grid', dataItem),
273
invisible: true,
274
// 这个属性让圆点可以被拖拽。
275
draggable: true,
276
// 把 z 值设得比较大,表示这个圆点在最上方,能覆盖住已有的折线图的圆点。
277
z: 100,
278
ondrag: echarts.util.curry(onPointDragging, dataIndex),
279
// 在 mouseover 的时候显示,在 mouseout 的时候隐藏。
280
onmousemove: echarts.util.curry(showTooltip, dataIndex),
281
onmouseout: echarts.util.curry(hideTooltip, dataIndex),
282
};
283
})
284
});
285
// 此函数中会根据拖拽后的新位置,改变 data 中的值,并用新的 data 值,重绘折线图,从而使折线图同步于被拖拽的隐藏圆点。
286
function onPointDragging(dataIndex) {
287
// 这里的 data 就是本文最初的代码块中声明的 data,在这里会被更新。
288
// 这里的 this 就是被拖拽的圆点。this.position 就是圆点当前的位置。
289
data[dataIndex] = myChart.convertFromPixel('grid', this.position);
290
let initIndex = that.viewData.element[dataIndex].value
291
viewData.element[dataIndex].value = data[dataIndex]
292
console.log( that, data[dataIndex])
293
//元素位置改变后重新划线
294
// for(let i = 0;i < viewData.line.length;i ++){
295
// if(viewData.line[i].fromName === viewData.element[dataIndex].id){
296
// viewData.line[i].coords[0] = data[dataIndex]
297
// }else if(viewData.line[i].toName === viewData.element[dataIndex].id){
298
// viewData.line[i].coords[1] = data[dataIndex]
299
// }
300
// }
301
// 用更新后的 data,重绘折线图。
302
myChart.setOption(option);
303
}
304
function showTooltip(dataIndex) {
305
myChart.dispatchAction({
306
type: 'showTip',
307
seriesIndex: 0,
308
dataIndex: dataIndex
309
});
310
}
311
function hideTooltip(dataIndex) {
312
myChart.dispatchAction({
313
type: 'hideTip'
314
});
315
}
316
// 最后,为了使 dom 尺寸改变时,图中的元素能自适应得变化
317
window.addEventListener('resize', function () {
318
// 对每个拖拽圆点重新计算位置,并用 setOption 更新。
319
myChart.setOption({
320
graphic: echarts.util.map(data, function (item, dataIndex) {
321
return {
322
position: myChart.convertToPixel('grid', item)
323
};
324
})
325
});
326
});
327
//监听点击事件
328
myChart.on('click', function (params) {
329
console.log(params)
330
if(params.seriesType === "graph"){
331
that.$emit('selectAsset',params.data.id)
332
}
333
//TODO
334
335
});
336
// //添加右件菜单
337
// myChart.on("mousedown",function(e){
338
// if(e.event.event.button===2){
339
// //e中有当前节点信息
340
// showMenu(e,[
341
// {
342
// "name": "菜单1",
343
// "fn": function() {
344
// alert("触发-菜单1" + e.data);
345
// console.log(e);
346
// }
347
// }, {
348
// "name": "菜单2",
349
// "fn": function() {
350
// alert("触发-菜单2" + e.data);
351
// }
352
// }
353
// ]);
354
// }
355
// })
356
//
357
// var style_ul = "padding:0px;margin:0px;border: 1px solid #ccc;background-color: #fff;position: absolute;left: 0px;top: 0px;z-index: 2;display: none;";
358
// var style_li = "list-style:none;padding: 5px; cursor: pointer; padding: 5px 20px;margin:0px;";
359
// var style_li_hover = style_li + "background-color: #00A0E9; color: #fff;";
360
//
361
// //右键菜单容器
362
// var menubox = $("<div class='echartboxMenu' style='" + style_ul + "'><div style='text-align:center;background:#ccc'></div><ul style='margin:0px;padding:0px;'></ul></div>")
363
// .appendTo($(document.body));
364
//
365
// //移除浏览器右键菜单
366
// myChart.getDom().oncontextmenu = menubox[0].oncontextmenu = function(){
367
// return false;
368
// }
369
//
370
// //点击其他位置隐藏菜单
371
// $(document).click(function() {
372
// menubox.hide()
373
// });
374
//
375
// //显示菜单
376
// var showMenu = function(e,menus){
377
// $("div", menubox).text(e.name);
378
// var menulistbox = $("ul", menubox).empty();
379
// $(menus).each(function(i, item) {
380
// var li = $("<li style='" + style_li + "'>" + item.name + "</li>")
381
// .mouseenter(function() {
382
// $(this).attr("style", style_li_hover);
383
// })
384
// .mouseleave(function() {
385
// $(this).attr("style", style_li);
386
// })
387
// .click(function() {
388
// item["fn"].call(this);
389
// menubox.hide();
390
// });
391
// menulistbox.append(li);
392
// });
393
// menubox.css({
394
// "left": event.x,
395
// "top": event.y
396
// }).show();
397
// }
398
/*窗口自适应,关键代码*/
setTimeout(function (){
window.onresize = function () {
myChart.resize();
}
},200)
// window.addEventListener('resize', function () {
// myChart.resize();
// });
})
},
复制代码
5. 饼图(pie)⾼级 环形图
6. 饼图(pie)⾼级嵌套环形图
7. 散点图(scatter)⾼级 提示信息及坐标轴的⾃定义
8. ⽓泡图(bubble)详解

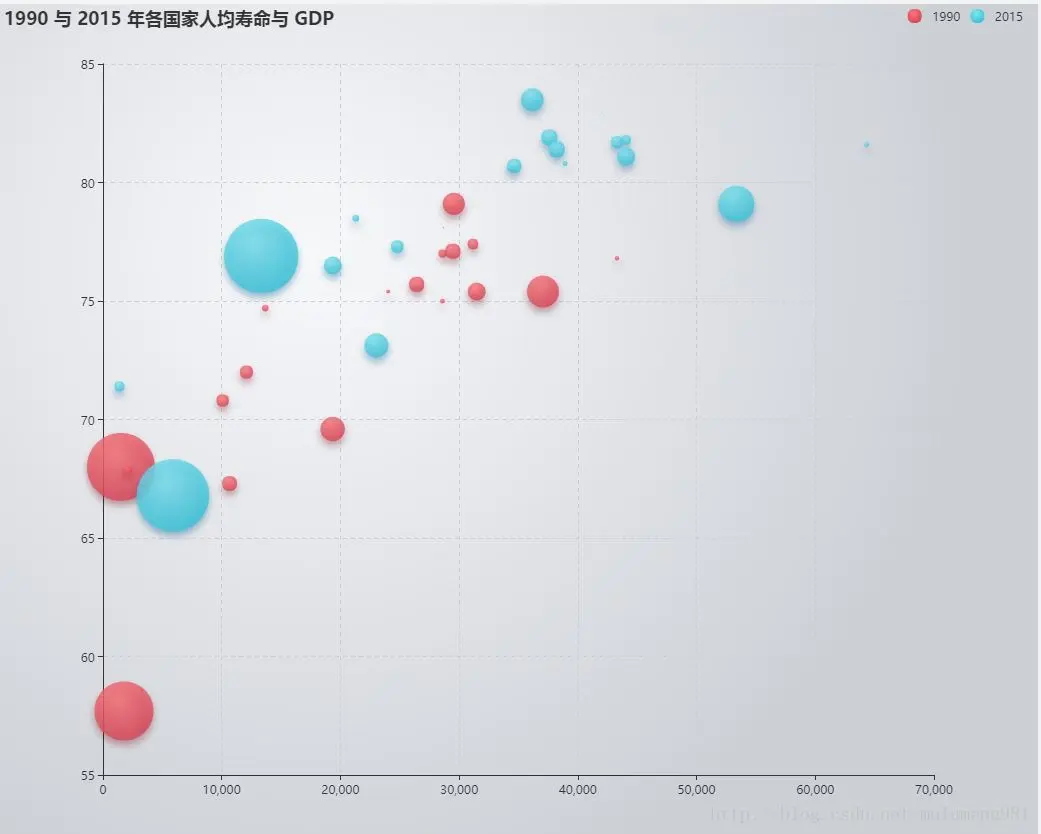

echarts本身是有气泡图的,官方气泡图的特点是每个气泡的位置是基于坐标轴进行定位,如图1和2所示。但是本文所介绍的气泡图并不是官方所介绍的气泡图,而是一类区别于官方的图表类型,这种图表类型通常采用d3.js插件实现,如图3所示。从图1、图2、图3可以看出两种气泡图的展示,各有其特点。图1和图2,虽然是基于坐标轴,但气泡图之间容易叠加在一起。图3所示的气泡图则没有这个缺点,气泡之间互相相邻,彼此之间各不侵犯。众多周知,d3.js主要是svg技术实现的图表插件,而Echarts则主要是基于canvas画布技术实现的。两者之间虽然互相没有关联,但实现的算法确是可以参考和借鉴的。
实现思路:
通过研究d3.js气泡图的代码构建过程,我发现其实现的核心主要在于计算每一个气泡的x、y、r,这三个跟气泡生成相关的属性值,只要把这三个属性值求出来了,那么问题自然就可以解决了。然后采用Echarts插件配置项中的graphic接口,添加circle和text类型元素,就可以渲染成一个个气泡。
具体实现:
(1)求解每一个气泡的x、y、r属性。这个工作很麻烦,涉及的算法,也挺复杂的。通过研究d3.js,我发现其求解每一个气泡的属性代码就有500多行。主要是思路是,首先构建一个所有气泡的根气泡(这个根气泡会包含所有的子气泡,但不会在页面上渲染出来,它主要作用是定位和布局),接着求解每一个气泡的x、y、r的值,特别指出的是每一个气泡的半径r,是通过其值得开根号求出的,最后根据根气泡的信息和渲染区域大小再判断是否要缩放气泡(即缩放x、y、半径r)。具体的求解代码如下所示,其中有两个重要的函数echarts.util.pack和echarts.util.hierarchy,这两个接口是求解气泡属性的关键,具体的实现源码,我已从d3.js插件里面将其独立出来了。
/**
* 获取气泡图的根气泡和各气泡的属性:颜色、坐标位置(x,y)、半径(r)
* @param {Function} data: 初始化数据
* @param {Function} pack: 布局函数
* @return {Array} 气泡信息集合
*/
function processBubbleData(data, container) {
var width = container.style.width.replace('px', '');
var height = container.style.height.replace('px', '');
//初始化气泡图显示的布局(主要是宽度和高度)
var pack = echarts.util.pack()
.size([width, height])
.padding(1);
var index = 0;
var color = ["#1f77b4", "#aec7e8", "#ff7f0e", "#ffbb78", "#2ca02c", "#98df8a", "#d62728", "#ff9896", "#9467bd", "#c5b0d5",
"#8c564b", "#c49c94", "#e377c2", "#f7b6d2", "#7f7f7f", "#c7c7c7", "#bcbd22", "#dbdb8d", "#17becf", "#9edae5"];
var root = echarts.util.hierarchy({children: data})
.sum(function(d) { return d.value; })
.each(function(d){
d.color = color[index % 20];
index++;
return d.color;
});
return pack(root).leaves();
}
复制代码
(2)使用Echarts插件渲染气泡图。 众所周知,Echarts插件的配置主要是option的配置,而气泡图的配置主要是option中graphic接口的配置。而本文在设计中将一个气泡和其相关的文本看成一个集合。如下所示是具体实现源码。
/**
* 绘制Echarts图表
* @param {Object} container: dom实例
*/
function drawChart(chart, bubbleData) {
var option = {
tooltip: {
show: true,
triggerOn: 'none',
formatter: function (params) {
return '<span style="border-radius: 6px;width: 12px;height: 12px;display: inline-block;background-color:' + params.color +'"></span>' + ' ' + params.data.name + ': ' + params.data.value;
}
},
graphic: getCircleOption(bubbleData, chart),
series: []
};
chart.setOption(option);
}
/**
* 获取气泡的graphic配置项
* @param {Array} processData: 气泡的属性信息集合
* @param {Object} chart: echarts实例
* @return {Array} 配置项集合
*/
function getCircleOption(processData, chart) {
return echarts.util.map(processData, function (item, dataIndex) {
return {
type: 'group',
id: 'circleGroup' + dataIndex,
bounding: 'raw',
color: item.color,
data: item.data,
children: getChildOption(item, dataIndex, chart),
onmousemove: function (event) {
showTooltip.call(this, event, chart);
},
onmouseout: function (event) {
hideTooltip.call(this, event, chart);
}
};
});
}
/**
* 得到各个气泡和文本节点配置信息
* @param {Object} item: 气泡的属性信息
* @dataIndex {Number} dataIndex: 气泡的序号
* @param {Object} chart: echarts实例
* @return {Array} children: 配置项集合
*/
function getChildOption(item, dataIndex, chart) {
var children = [];
children.push({
id: 'circle' + dataIndex,
type: 'circle',
shape: {
cx: item.x,
cy: item.y,
r: item.r
},
name: 'mainElem',
style: {
fill: item.color
},
eventData: {
id: 'circle' + dataIndex
},
onclick: bindClickEvent
});
children.push({
type: 'text',
style: {
fill: '#fff',
text: item.data.name,
x: item.x - item.r / 4,
y: item.y
},
value: item.value
});
return children;
/**
* 气泡绑定click事件
*/
function bindClickEvent() {
var circle = new echarts.graphic.Circle({
shape: this.shape,
style: {
stroke: 'green',
fill: null,
lineWidth: 2
}
});
this.parent.add(circle);
chart.addClickElem(circle);
}
}
复制代码
(3)配置每一个气泡的提示框 Echarts是有提示框组件的,叫tooltip,显示和隐藏的时候调用的接口都是dispatchAction,只是传递的参数不一样而已。
**显示提示框。**
有下面两种使用方式。
1 指定在相对容器的位置处显示提示框,如果指定的位置无法显示则无效。
dispatchAction({
type: 'showTip',
// 屏幕上的 x 坐标
x: number,
// 屏幕上的 y 坐标
y: number,
// 本次显示 tooltip 的位置。只在本次 action 中生效。
// 缺省则使用 option 中定义的 tooltip 位置。
position: Array.<number>|string|Function
})
2 指定数据图形,根据 tooltip 的配置项显示提示框。
dispatchAction({
type: 'showTip',
// 系列的 index,在 tooltip 的 trigger 为 axis 的时候可选。
seriesIndex?: number,
// 数据的 index,如果不指定也可以通过 name 属性根据名称指定数据
dataIndex?: number,
// 可选,数据名称,在有 dataIndex 的时候忽略
name?: string,
// 本次显示 tooltip 的位置。只在本次 action 中生效。
// 缺省则使用 option 中定义的 tooltip 位置。
position: Array.<number>|string|Function,
})
**隐藏提示框。**
dispatchAction({
type: 'hideTip'
})
复制代码
针对本文的情况,主要采用的是显示的第一个接口,由于本文没有采用配置项中的series属性,故采用显示框的第一种方法,如下代码所示。特别注意的是formatterParams参数的配置,一定要有,不然就无法显示出提示框。
/**
* 利用dispatchAction函数显示每个气泡信息
*@param {Object} event
*@param {Object} chart: echarts instance
*/
function showTooltip(event, chart) {
chart.dispatchAction({
type: 'showTip',
// 屏幕上的 x 坐标
x: event.offsetX,
// 屏幕上的 y 坐标
y: event.offsetY,
tooltip: {
formatterParams: {
color: this.color,
data: this.data
}
}
});
//显示气泡的边界条纹
this.childOfName('mainElem').setStyle({
stroke: 'green',
lineWidth: 2
});
}
/**
* 隐藏提示框
*@param {Object} event
*@param {Object} chart: echarts instance
*/
function hideTooltip(event, chart) {
chart.dispatchAction({
type: 'hideTip'
});
this.childOfName('mainElem').setStyle({
stroke: null
});
}
复制代码
(4)绑定有利于用户操作的事件,如点击气泡图,气泡边缘变绿色等。
/**
* 图表添加事件处理函数
* @param {Object} chart: echarts实例
*/
function bindChartEvent(chart) {
//点击气泡后的回调
chart.addClickElem = function (elem) {
if (this.currentElem !== elem && this.currentElem != null) {
this.currentElem.parent.remove(this.currentElem);
}
this.currentElem = elem;
};
//点击canvas中非气泡部分
chart._zr.on('click', function (params) {
if(params.target == null) {
if (chart.currentElem != null) {
chart.currentElem.parent.remove(chart.currentElem);
chart.currentElem = null;
}
}
});
//点击页面中非canvas部分
document.onclick = function (event) {
if (event.toElement.tagName != 'CANVAS') {
if (chart.currentElem != null) {
chart.currentElem.parent.remove(chart.currentElem);
chart.currentElem = null;
}
}
};
}
复制代码
总结: 以上就是气泡图实现的主要代码,难点主要是气泡属性信息的计算,这一块主要采用的是d3.js的算法,本人主要是作为一个代码的搬运工,将其从d3.js中独立出来,并嵌入到Echarts中。
require(['bubbleUtil'],function(bubbleUtil){
var data = [
{"name":"黄瓜", "value":12345},
{"name":"猕猴桃", "value":7345},
{"name":"红提", "value":1345},
{"name":"枣子", "value":2345},
{"name":"火龙果", "value":345},
{"name":"葡萄", "value":14534},
{"name":"橘子", "value":9435} ,
{"name":"柚子", "value":134} ,
{"name":"桃子", "value":6346} ,
{"name":"西红柿", "value":634} ,
{"name":"梨子", "value":6346} ,
{"name":"苹果", "value":3644} ,
{"name":"香蕉", "value":2346} ,
{"name":"小明", "value":3869} ,
{"name":"小米", "value":6534} ,
{"name":"大米", "value":45} ,
{"name":"玉米", "value":8345}
];
bubbleUtil(data, document.getElementById('container'));
});
