仿QQ侧滑删除,你还在苦于找轮子吗

618 阅读2分钟

客服:“xxx,退货的按钮在哪啊,我怎么找不到啊?”我:“像Android 手机QQ一样侧滑就出来了。。。”。类似这样的对话重复上演了N次

没错,今天我要介绍的是和QQ一样的侧滑删除类似的操作,SwipeMenuLayout登场~~

最早收到的要实现Item侧滑删除的需求是在一个餐饮项目,当时刚入坑没多久,还以为SDK就有现成的API,毕竟像QQ这种超级App都用的这么骚了。于是一顿搜索之后,失望了,这尼玛是IOS上的效果啊。Android上实现了这种效果的App都是自定义View的

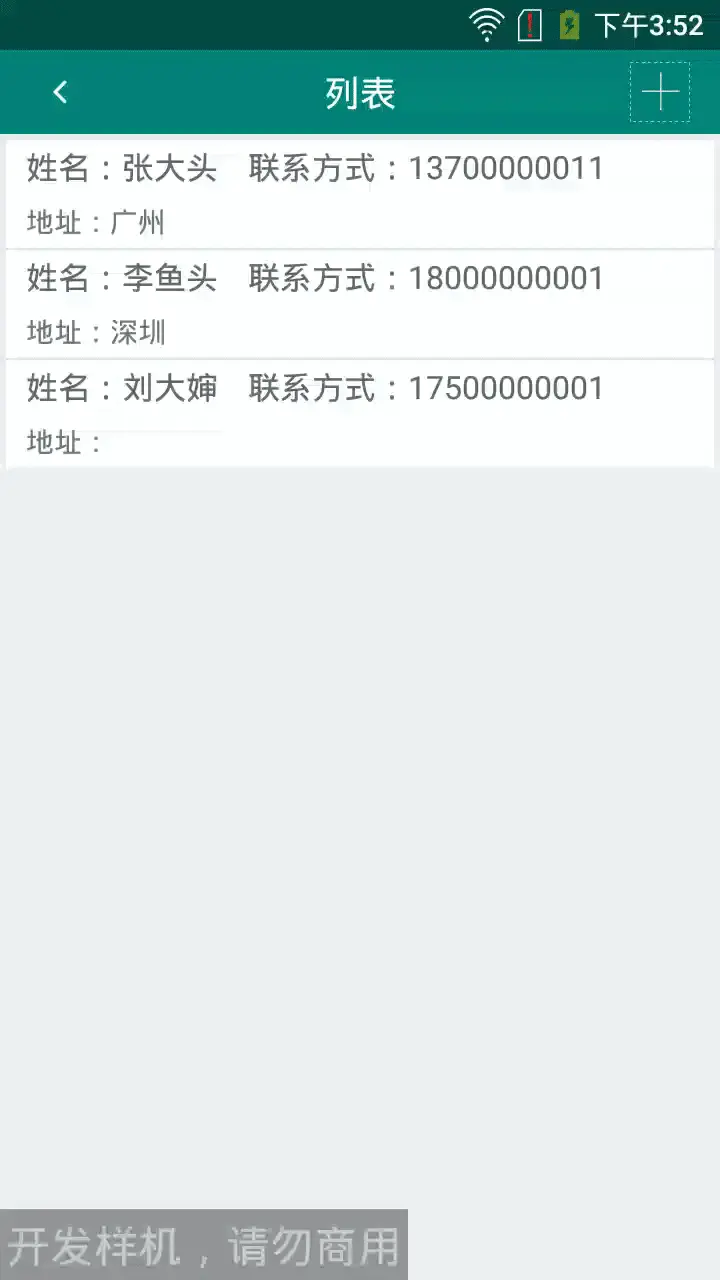

当时小白的自己心血来潮想着自己写个试试,一阵捣鼓下来结果弄了个四不像。最后还是尴尬的打开了GayHub,找了很多都是基于ListView或RecyclerView自定义的,这种感觉入侵性太强,所以都放弃了。最后找到了今天的主角SwipeMenuLayout,先看效果图

用法非常简单,当成普通的ViewGroup使用即可,首先我们先引到自己的项目,可以在app module的gralde引入

dependencies {
 implementation 'com.github.mcxtzhang:SwipeDelMenuLayout:V1.3.0'
}

也可以直接下载整个lib,这样的好处的是方便自己修改。其实只有一个类,还有就是style了

开始写布局,item很简单,一个content和两个按钮

<?xml version="1.0" encoding="utf-8"?>
<com.one.hope.widget.SwipeMenuLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:clickable="true"
    android:focusable="true">

    <LinearLayout
        android:id="@+id/ll_content"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="#fff"
        android:orientation="vertical"
        android:paddingStart="10dp"
        android:paddingEnd="10dp">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="27dp"
            android:orientation="horizontal">

            <TextView
                android:id="@+id/tv_name"
                style="@style/add_text"
                tools:text="姓名" />

            <TextView
                android:id="@+id/tv_phone"
                style="@style/add_text"
                android:layout_weight="2"
                tools:text="联系方式" />
        </LinearLayout>

        <TextView
            android:id="@+id/tv_address"
            android:layout_width="match_parent"
            android:layout_height="27dp"
            android:gravity="center_vertical"
            tools:text="地址" />

    </LinearLayout>

    <Button
        android:id="@+id/btnUpdate"
        android:layout_width="60dp"
        android:layout_height="match_parent"
        android:background="@color/colorPrimary"
        android:text="修改"
        android:textColor="@android:color/white" />

    <Button
        android:id="@+id/btnDelete"
        android:layout_width="60dp"
        android:layout_height="match_parent"
        android:background="#ff4a57"
        android:text="删除"
        android:textColor="@android:color/white" />
</com.one.hope.widget.SwipeMenuLayout>

然后编写Activity,列表我选了RecyclerView,当然也可以用ListView(这就是SwipeMenuLayout的强大之处,0耦合)。Adapter使用的是BaseRecyclerViewAdapterHelper

此篇章旨在介绍有这个么强大又好用的东西,具体使用介绍和实现原理可以看作者的分析《侧滑删除菜单 SwipeMenuLayout》
