JSI小试牛刀——Native同步调用JS代码

4,304 阅读3分钟

上一篇有说到在有了JSI之后,JS和Native同时持有一个HostObject,那么JS和Native之间就有了同步调用的基础条件。

JS同步调用Native

实际上,在现在的RN(以0.59版本为例)中,已经实现了JS向Native代码的同步调用,在iOS中,可以通过宏RCT_EXPORT_BLOCKING_SYNCHRONOUS_METHOD来实现。

@implementation ConfigManager

RCT_EXPORT_MODULE();

RCT_EXPORT_BLOCKING_SYNCHRONOUS_METHOD(getApiUrl)
{
	return API_URL;
}

@end

JS中的调用为

import { NativeModules } from 'react-native';

const apiUrl = NativeModules.ConfigManager.getApiUrl();

下面我们看一看RN是怎么实现的,首先通过查看Native端的宏定义和源码,可以追溯到

runtime_->global().setProperty(
  *runtime_,
  "nativeCallSyncHook",
  Function::createFromHostFunction(
      *runtime_,
      PropNameID::forAscii(*runtime_, "nativeCallSyncHook"),
      1,
      [this](
          jsi::Runtime&,
          const jsi::Value&,
          const jsi::Value* args,
          size_t count) { return nativeCallSyncHook(args, count); }));

然后查看JS中相应的调用为

function  genMethod(moduleID:  number, methodID:  number, type:  MethodType) {
  if (type  ===  'promise') {
    ...
  } else  if (type  ===  'sync') {
    fn = function(...args:  Array<any>) {
      ...
      return global.nativeCallSyncHook(moduleID, methodID, args);
    };
  }
  ...
}

其实就是通过JSI,创建了nativeCallSyncHook这个HostObject,实现了JS向Native的同步调用。

Native同步调用JS

有了JSI,我们就可以完成Native向JS的同步调用,现在让我们尝试着实现上一篇中说到的ScrollView的onScroll的同步任务。

既然JS向Native的同步调用是通过nativeCallSyncHook实现的,我们就来实现一个jsCallSyncHook吧,从Native线程(包括主线程)能同步调用JS的runtime中的方法。

功能代码

我们想要实现的是,滑动ScrollView,将其offset传到JS端进行业务逻辑处理,然后同步更新当前页面的一个Label的text。更新Native页面的代码为:

int Test::runTest(Runtime& runtime, const Value& vl) {
    // testView是包含UILabel和UIScrollView的UIView,lb即当前的UILabel
    lb.text = [NSString stringWithUTF8String:vl.toString(runtime).utf8(runtime).c_str()];
    [testView setNeedsLayout];
    return 0;
}

导出HostObject到JS

需要实现两个方法,第一个install()是导出全局属性nativeTest到JS的Runtime。

void TestBinding::install(Runtime &runtime, std::shared_ptr<TestBinding> testBinding) {
    auto testModuleName = "nativeTest";
    auto object = Object::createFromHostObject(runtime, testBinding);
    runtime.global().setProperty(runtime, testModuleName,
                                 std::move(object));
}

第二个是转出全局属性的方法runTest

Value TestBinding::get(Runtime &runtime, const PropNameID &name) {
    auto methodName = name.utf8(runtime);

    if (methodName == "runTest") {
        return Function::createFromHostFunction(runtime, name, 0, [&test](Runtime& runtime,
                                                                          const Value &thisValue,
                                                                          const Value *arguments,
                                                                          size_t count) -> Value {
            return test.runTest(runtime, *arguments);
        });
    }

    return Value::undefined();
}

然后需要在合适的地方(比如视图组件init的时候)进行binding,也就是调用下install()

auto test = std::make_unique<Test>();
std::shared_ptr<TestBinding> testBinding_ = std::make_shared<TestBinding>(std::move(test));
TestBinding::install(runtime, testBinding_);

我们在onScroll的时候调用JS的Runtime重的jsCallSyncHook全局对象,将ScrollView的offset值传过去。

- (void)scrollViewDidScroll:(UIScrollView *)scrollView {
    Runtime* runtime = (Runtime *)self.bridge.runtime;
    runtime->global().getPropertyAsFunction(*runtime, "jsCallSyncHook").call(*runtime, scrollView.contentOffset.y);
}

在JS代码里定义jsCallSyncHook这个全局对象,接收Native传过来的offset值,进行业务逻辑处理(这里仅是加了几个字,但是可以更复杂),然后调用之前已经绑定的nativeTest这个HostObject的runTest方法,继续完成同步调用。

global.jsCallSyncHook = function changeTxt(s) {
	global.nativeTest.runTest('现在的offset是'+s);
};

这里可能会遇到Native代码编译不过的问题,请在Build Setting中设置Clang的C++编译版本为C++11以上

最终效果

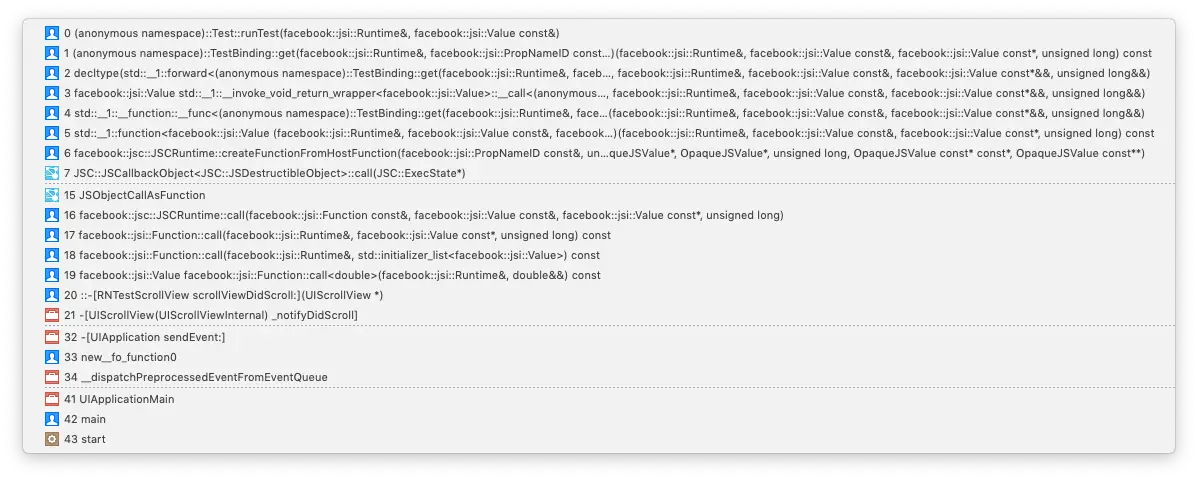

我们在Native的runTest处打上断点看一下调用堆栈

JSI-sync-call

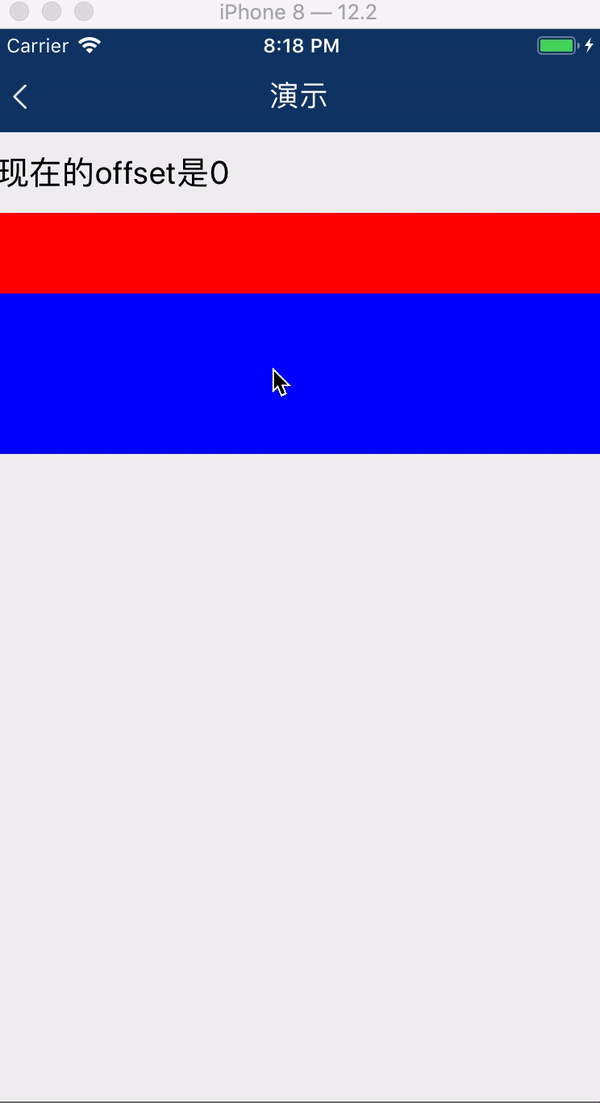

可以看到在主线程经过了Native->JS->Native的同步调用过程,大功告成。下面是模拟器里的效果


Note

本篇只是JSI的简单尝试,代码均为测试代码,如果想充分利用JSI的强大功能,请静候RN后续的TurboModules和Fabric。

Reference

medium.com/@christian.…

github.com/ericlewis/r…

til.hashrocket.com/posts/hxfbn…
