前言：在你上线项目的时候，出现一个小的代码bug，或者遇到节假日时需要有节假日活动，增加用户体验了。除了重新打包发布之外，此时热更新，热修复技术应运而生。虽然google是严令禁用包括苹果。但是在android方面却风生水起。
网上很多文章都写的非常好，但是比较古老。你会发现，你项目根本生成不了补丁apk。这也是这篇文章踩过了很多坑以后，才决定写。所以这篇文章不会介绍的非常细，直接上干货。建议先了解，推荐文章（这篇文章思路和步骤都是对的，以及对Tinker的介绍，唯一的缺点是生成不了补丁apk）：热修复——Tinker的集成与使用

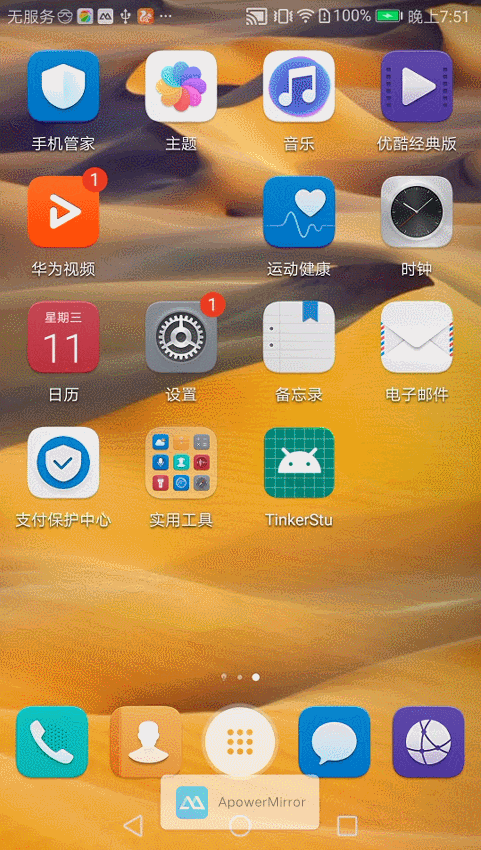

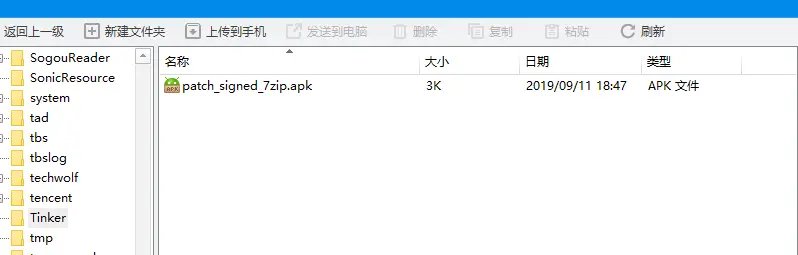

先看看我们的实现效果吧（我这里没有做任何操作，就是提前把补丁包放在sd卡里，然后在允许权限的时候让Tinker去加载补丁包。重所周知，Tinker不是立即生效，要重进app才生效）
一、Tinker框架依赖
对于热更新，热修复技术。听上去非常高大上，且看一些文字也非常高端，让人触不可及。本篇博客直接带你使用，并跑通你的项目。（如果从来没了解过的可以去了解下大致原理，类加载，dex,elemnt数组插入等概念）
项目build.gradle添加
dependencies {
...
classpath "com.tencent.tinker:tinker-patch-gradle-plugin:1.9.14"
}
app的build.gradle，这里比较复杂了，而且Tinker需要用到multidex，我们一步一步来，添加依赖：
...
api("com.tencent.tinker:tinker-android-lib:1.9.14") { changing = true }
// Maven local cannot handle transist dependencies.
implementation("com.tencent.tinker:tinker-android-loader:1.9.14") { changing = true }
annotationProcessor("com.tencent.tinker:tinker-android-anno:1.9.14") { changing = true }
compileOnly("com.tencent.tinker:tinker-android-anno:1.9.14") { changing = true }
implementation "com.android.support:multidex:1.0.1"
在android标签上加上
android {
...
dexOptions {
//支持大型项目
jumboMode = true
}
}
在defaultConfig标签上加上
defaultConfig {
...
multiDexEnabled true
}
这些做完以后，把下面这一大串一大串拷贝到你app的build.gradle的最下方，请相信你的眼睛
def bakPath = file("${buildDir}/bakApk/")
/**

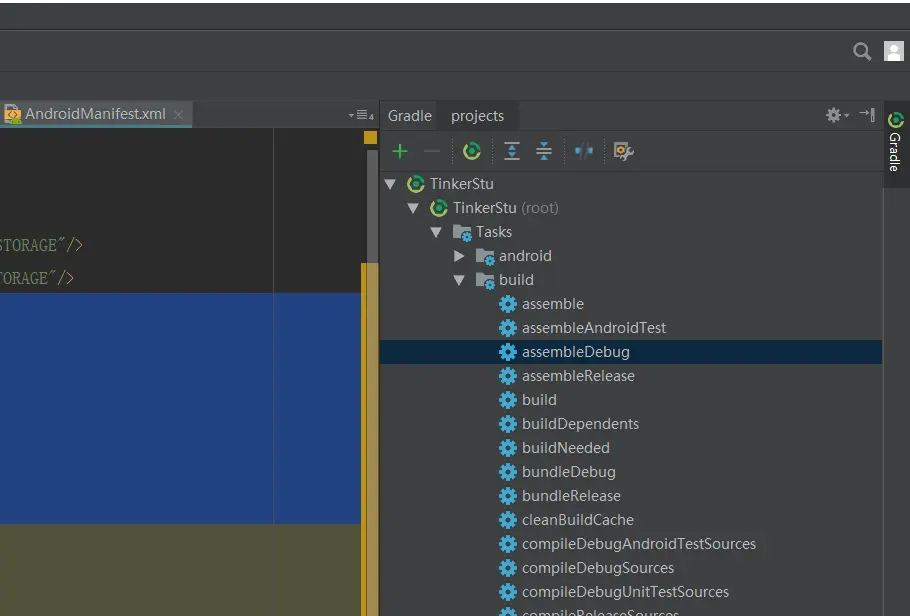

* you can use assembleRelease to build you base apk
* use tinkerPatchRelease -POLD_APK= -PAPPLY_MAPPING= -PAPPLY_RESOURCE= to build patch
* add apk from the build/bakApk
*/
ext {
// 是否使用Tinker(当你的项目处于开发调试阶段时，可以改为false)
tinkerEnabled = true
// 基础包文件路径（名字这里写死为old-app.apk。用于比较新旧app以生成补丁包，不管是debug还是release编译）
tinkerOldApkPath = "${bakPath}/old-app.apk"
// 基础包的mapping.txt文件路径（用于辅助混淆补丁包的生成，一般在生成release版app时会使用到混淆，所以这个mapping.txt文件一般只是用于release安装包补丁的生成）
tinkerApplyMappingPath = "${bakPath}/old-app-mapping.txt"
// 基础包的R.txt文件路径（如果你的安装包中资源文件有改动，则需要使用该R.txt文件来辅助生成补丁包）
tinkerApplyResourcePath = "${bakPath}/old-app-R.txt"
//only use for build all flavor, if not, just ignore this field
tinkerBuildFlavorDirectory = "${bakPath}/flavor"
}
def getOldApkPath() {
return hasProperty("OLD_APK") ? OLD_APK : ext.tinkerOldApkPath
}
def getApplyMappingPath() {
return hasProperty("APPLY_MAPPING") ? APPLY_MAPPING : ext.tinkerApplyMappingPath
}
def getApplyResourceMappingPath() {
return hasProperty("APPLY_RESOURCE") ? APPLY_RESOURCE : ext.tinkerApplyResourcePath
}
def getTinkerIdValue() {
return hasProperty("TINKER_ID") ? TINKER_ID : android.defaultConfig.versionName
}
def buildWithTinker() {
return hasProperty("TINKER_ENABLE") ? Boolean.parseBoolean(TINKER_ENABLE) : ext.tinkerEnabled
}
def getTinkerBuildFlavorDirectory() {
return ext.tinkerBuildFlavorDirectory
}
if (buildWithTinker()) {
apply plugin: 'com.tencent.tinker.patch'
tinkerPatch {
/**
* necessary，default 'null'
* the old apk path, use to diff with the new apk to build
* add apk from the build/bakApk
*/
oldApk = getOldApkPath()
/**
* optional，default 'false'
* there are some cases we may get some warnings
* if ignoreWarning is true, we would just assert the patch process
* case 1: minSdkVersion is below 14, but you are using dexMode with raw.
* it must be crash when load.
* case 2: newly added Android Component in AndroidManifest.xml,
* it must be crash when load.
* case 3: loader classes in dex.loader{} are not keep in the main dex,
* it must be let tinker not work.
* case 4: loader classes in dex.loader{} changes,
* loader classes is ues to load patch dex. it is useless to change them.
* it won't crash, but these changes can't effect. you may ignore it
* case 5: resources.arsc has changed, but we don't use applyResourceMapping to build
*/
ignoreWarning = false
/**
* optional，default 'true'
* whether sign the patch file
* if not, you must do yourself. otherwise it can't check success during the patch loading
* we will use the sign config with your build type
*/
useSign = true
/**
* optional，default 'true'
* whether use tinker to build
*/
tinkerEnable = buildWithTinker()
/**
* Warning, applyMapping will affect the normal android build!
*/
buildConfig {
/**
* optional，default 'null'
* if we use tinkerPatch to build the patch apk, you'd better to apply the old
* apk mapping file if minifyEnabled is enable!
* Warning:
* you must be careful that it will affect the normal assemble build!
*/
applyMapping = getApplyMappingPath()
/**
* optional，default 'null'
* It is nice to keep the resource id from R.txt file to reduce java changes
*/
applyResourceMapping = getApplyResourceMappingPath()
/**
* necessary，default 'null'
* because we don't want to check the base apk with md5 in the runtime(it is slow)
* tinkerId is use to identify the unique base apk when the patch is tried to apply.
* we can use git rev, svn rev or simply versionCode.
* we will gen the tinkerId in your manifest automatic
*/
tinkerId = getTinkerIdValue()
/**
* if keepDexApply is true, class in which dex refer to the old apk.
* open this can reduce the dex diff file size.
*/
keepDexApply = false
/**
* optional, default 'false'
* Whether tinker should treat the base apk as the one being protected by app
* protection tools.
* If this attribute is true, the generated patch package will contain a
* dex including all changed classes instead of any dexdiff patch-info files.
*/
isProtectedApp = false
/**
* optional, default 'false'
* Whether tinker should support component hotplug (add new component dynamically).
* If this attribute is true, the component added in new apk will be available after
* patch is successfully loaded. Otherwise an error would be announced when generating patch
* on compile-time.
*
* <b>Notice that currently this feature is incubating and only support NON-EXPORTED Activity</b>
*/
supportHotplugComponent = false
}
dex {
/**
* optional，default 'jar'
* only can be 'raw' or 'jar'. for raw, we would keep its original format
* for jar, we would repack dexes with zip format.
* if you want to support below 14, you must use jar
* or you want to save rom or check quicker, you can use raw mode also
*/
dexMode = "jar"
/**
* necessary，default '[]'
* what dexes in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
*/
pattern = ["classes*.dex",
"assets/secondary-dex-?.jar"]
/**
* necessary，default '[]'
* Warning, it is very very important, loader classes can't change with patch.
* thus, they will be removed from patch dexes.
* you must put the following class into main dex.
* Simply, you should add your own application {@code tinker.sample.android.SampleApplication}
* own tinkerLoader, and the classes you use in them
*
*/
// loader = [
// //use sample, let BaseBuildInfo unchangeable with tinker
// "tinker.sample.android.app.BaseBuildInfo"
// ]
}
lib {
/**
* optional，default '[]'
* what library in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
* for library in assets, we would just recover them in the patch directory
* you can get them in TinkerLoadResult with Tinker
*/
pattern = ["lib/*/*.so"]
}
res {
/**
* optional，default '[]'
* what resource in apk are expected to deal with tinkerPatch
* it support * or ? pattern.
* you must include all your resources in apk here,
* otherwise, they won't repack in the new apk resources.
*/
pattern = ["res/*", "assets/*", "resources.arsc", "AndroidManifest.xml"]
/**
* optional，default '[]'
* the resource file exclude patterns, ignore add, delete or modify resource change
* it support * or ? pattern.
* Warning, we can only use for files no relative with resources.arsc
*/
ignoreChange = ["assets/sample_meta.txt"]
/**
* default 100kb
* for modify resource, if it is larger than 'largeModSize'
* we would like to use bsdiff algorithm to reduce patch file size
*/
largeModSize = 100
}
packageConfig {
/**
* optional，default 'TINKER_ID, TINKER_ID_VALUE' 'NEW_TINKER_ID, NEW_TINKER_ID_VALUE'
* package meta file gen. path is assets/package_meta.txt in patch file
* you can use securityCheck.getPackageProperties() in your ownPackageCheck method
* or TinkerLoadResult.getPackageConfigByName
* we will get the TINKER_ID from the old apk manifest for you automatic,
* other config files (such as patchMessage below)is not necessary
*/
configField("patchMessage", "tinker is sample to use")
/**
* just a sample case, you can use such as sdkVersion, brand, channel...
* you can parse it in the SamplePatchListener.
* Then you can use patch conditional!
*/
configField("platform", "all")
/**
* patch version via packageConfig
*/
configField("patchVersion", "1.0")
}
//or you can add config filed outside, or get meta value from old apk
//project.tinkerPatch.packageConfig.configField("test1", project.tinkerPatch.packageConfig.getMetaDataFromOldApk("Test"))
//project.tinkerPatch.packageConfig.configField("test2", "sample")
/**
* if you don't use zipArtifact or path, we just use 7za to try
*/
sevenZip {
/**
* optional，default '7za'
* the 7zip artifact path, it will use the right 7za with your platform
*/
zipArtifact = "com.tencent.mm:SevenZip:1.1.10"
/**
* optional，default '7za'
* you can specify the 7za path yourself, it will overwrite the zipArtifact value
*/
// path = "/usr/local/bin/7za"
}
}
List<String> flavors = new ArrayList<>();
project.android.productFlavors.each { flavor ->
flavors.add(flavor.name)
}
boolean hasFlavors = flavors.size() > 0
def date = new Date().format("MMdd-HH-mm-ss")
/**

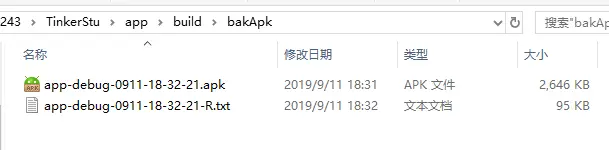

* bak apk and mapping
*/
android.applicationVariants.all { variant ->
/**
* task type, you want to bak
*/
def taskName = variant.name
tasks.all {
if ("assemble${taskName.capitalize()}".equalsIgnoreCase(it.name)) {
it.doLast {
copy {
def fileNamePrefix = "${project.name}-${variant.baseName}"
def newFileNamePrefix = hasFlavors ? "${fileNamePrefix}" : "${fileNamePrefix}-${date}"
def destPath = hasFlavors ? file("${bakPath}/${project.name}-${date}/${variant.flavorName}") : bakPath
if (variant.metaClass.hasProperty(variant, 'packageApplicationProvider')) {
def packageAndroidArtifact = variant.packageApplicationProvider.get()
if (packageAndroidArtifact != null) {
try {
from new File(packageAndroidArtifact.outputDirectory.getAsFile().get(), variant.outputs.first().apkData.outputFileName)
} catch (Exception e) {
from new File(packageAndroidArtifact.outputDirectory, variant.outputs.first().apkData.outputFileName)
}
} else {
from variant.outputs.first().mainOutputFile.outputFile
}
} else {
from variant.outputs.first().outputFile
}
into destPath
rename { String fileName ->
fileName.replace("${fileNamePrefix}.apk", "${newFileNamePrefix}.apk")
}
from "${buildDir}/outputs/mapping/${variant.dirName}/mapping.txt"
into destPath
rename { String fileName ->
fileName.replace("mapping.txt", "${newFileNamePrefix}-mapping.txt")
}
from "${buildDir}/intermediates/symbols/${variant.dirName}/R.txt"
from "${buildDir}/intermediates/symbol_list/${variant.dirName}/R.txt"
from "${buildDir}/intermediates/runtime_symbol_list/${variant.dirName}/R.txt"
into destPath
rename { String fileName ->
fileName.replace("R.txt", "${newFileNamePrefix}-R.txt")
}
}
}
}
}
}
project.afterEvaluate {
//sample use for build all flavor for one time
if (hasFlavors) {
task(tinkerPatchAllFlavorRelease) {

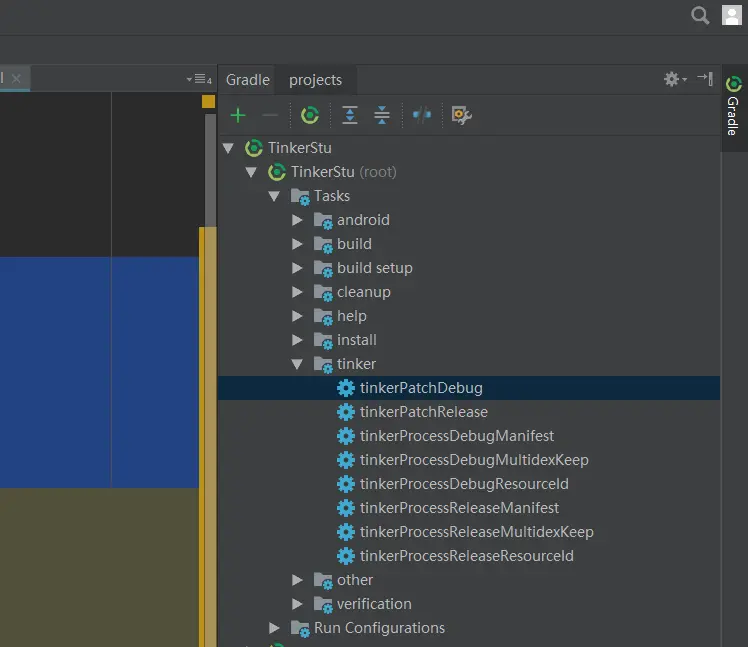

group = 'tinker'
def originOldPath = getTinkerBuildFlavorDirectory()
for (String flavor : flavors) {
def tinkerTask = tasks.getByName("tinkerPatch${flavor.capitalize()}Release")
dependsOn tinkerTask
def preAssembleTask = tasks.getByName("process${flavor.capitalize()}ReleaseManifest")
preAssembleTask.doFirst {
String flavorName = preAssembleTask.name.substring(7, 8).toLowerCase() + preAssembleTask.name.substring(8, preAssembleTask.name.length() - 15)
project.tinkerPatch.oldApk = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release.apk"
project.tinkerPatch.buildConfig.applyMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release-mapping.txt"
project.tinkerPatch.buildConfig.applyResourceMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-release-R.txt"
}
}
}
task(tinkerPatchAllFlavorDebug) {
group = 'tinker'
def originOldPath = getTinkerBuildFlavorDirectory()
for (String flavor : flavors) {
def tinkerTask = tasks.getByName("tinkerPatch${flavor.capitalize()}Debug")
dependsOn tinkerTask
def preAssembleTask = tasks.getByName("process${flavor.capitalize()}DebugManifest")
preAssembleTask.doFirst {
String flavorName = preAssembleTask.name.substring(7, 8).toLowerCase() + preAssembleTask.name.substring(8, preAssembleTask.name.length() - 13)
project.tinkerPatch.oldApk = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug.apk"
project.tinkerPatch.buildConfig.applyMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug-mapping.txt"
project.tinkerPatch.buildConfig.applyResourceMapping = "${originOldPath}/${flavorName}/${project.name}-${flavorName}-debug-R.txt"
}
}
}
}
}
}
task sortPublicTxt() {
doLast {
File originalFile = project.file("public.txt")
File sortedFile = project.file("public_sort.txt")
List<String> sortedLines = new ArrayList<>()
originalFile.eachLine {
sortedLines.add(it)
}
Collections.sort(sortedLines)
sortedFile.delete()
sortedLines.each {
sortedFile.append("${it}\n")
}
}
}
二、初始化Tinker

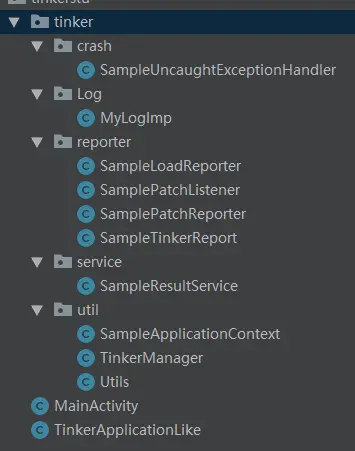

首先打开我的项目，把tinker包拷贝到你项目里。tinker包如下：
在Application注册下Tinker
这个TinkerApplicationLike只是Tinker框架内部用的，他注解方式会帮我们生成@DefaultLifeCycle(application = "com.lihang.tinkerstu.MyApplication"的 application。这里是包名点类名。生成以后，在清单文件的name里一定要加上。
@SuppressWarnings("unused")
@DefaultLifeCycle(application = "com.lihang.tinkerstu.MyApplication",// application类名。只能用字符串，这个MyApplication文件是不存在的，但可以在AndroidManifest.xml的application标签上使用（name）
flags = ShareConstants.TINKER_ENABLE_ALL,// tinkerFlags
loaderClass = "com.tencent.tinker.loader.TinkerLoader",//loaderClassName, 我们这里使用默认即可!（可不写）
loadVerifyFlag = false)//tinkerLoadVerifyFlag
public class TinkerApplicationLike extends DefaultApplicationLike {
private static final String TAG = "Tinker.SampleApplicationLike";
public TinkerApplicationLike(Application application, int tinkerFlags, boolean tinkerLoadVerifyFlag,
long applicationStartElapsedTime, long applicationStartMillisTime, Intent tinkerResultIntent) {
super(application, tinkerFlags, tinkerLoadVerifyFlag, applicationStartElapsedTime, applicationStartMillisTime, tinkerResultIntent);
}
/**
* install multiDex before install tinker
* so we don't need to put the tinker lib classes in the main dex
*
* @param base
*/
@TargetApi(Build.VERSION_CODES.ICE_CREAM_SANDWICH)
@Override
public void onBaseContextAttached(Context base) {
super.onBaseContextAttached(base);
//you must install multiDex whatever tinker is installed!
MultiDex.install(base);
SampleApplicationContext.application = getApplication();
SampleApplicationContext.context = getApplication();
TinkerManager.setTinkerApplicationLike(this);
TinkerManager.initFastCrashProtect();
//should set before tinker is installed
TinkerManager.setUpgradeRetryEnable(true);
//optional set logIml, or you can use default debug log
TinkerInstaller.setLogIml(new MyLogImp());
//installTinker after load multiDex
//or you can put com.tencent.tinker.** to main dex
TinkerManager.installTinker(this);
Tinker tinker = Tinker.with(getApplication());
// 可以将之前自定义的Application中onCreate()方法所执行的操作搬到这里...
}
@TargetApi(Build.VERSION_CODES.ICE_CREAM_SANDWICH)
public void registerActivityLifecycleCallbacks(Application.ActivityLifecycleCallbacks callback) {
getApplication().registerActivityLifecycleCallbacks(callback);
}
}
清单文件里application里写上我们的application。注解生成的MyApplication,因为是注解生成，你不build下肯定是报红的，记得build
<application
...
android:name="com.lihang.tinkerstu.MyApplication"
>
...
</application>
清单文件里注册下服务
其实这个服务可以不要，他这里坐的操作只是个回调，告诉你成功与失败。我不在清单文件里注册页照样成功
<service
android:name=".tinker.service.SampleResultService"
android:permission="android.permission.BIND_JOB_SERVICE"
android:exported="false"/>
三、测试，激动人心的时候。
我们先模拟一个线上的apk，我们打包下。弹出一个“我是小二郎” （这里需要存储和读取权限，因为其实质是打包成补丁apk,放在你手机内存里，然后Tinker去读取，通过补丁apk知道要修改的类，然后插入到emlent数组里，由于类加的双亲机制，同一个类只会读取一次，其实这个时候bug类还在apk内）。
首先是Activity里的代码：
public class MainActivity extends AppCompatActivity {
private RxPermissions rxPermissions;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// patch_signed_7zip.apk
String path = "/sdcard/Tinker/";
File dir = new File(path);
if (!dir.exists()) {
dir.mkdirs();
}
File file = new File(path, "patch_signed_7zip.apk");
if (file.exists()) {
if (file.length() > 0) {
TinkerInstaller.onReceiveUpgradePatch(MainActivity.this, file.getAbsolutePath());
}
}
findViewById(R.id.btn).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(MainActivity.this, "我是小二郎", Toast.LENGTH_SHORT).show();
}
});
}
}
3.1、模拟生成线上有bug的apk。
按下如，点击 assembleDebug
等待一段时间后，点开你的项目，来到app\build\bakApk文件下如下；把app-debug-0911-18-32-21.apk的名称改成old-app.apk。这个old-app.apk。就是我们的原app。装到手机上，点击按钮就会弹出“我是小二郎”。
3.2、修改我们的toast内容，把 “我是小二郎” 改成 “我是热修复技术！！” 。之后，如图点击 tinkerPatchDebug

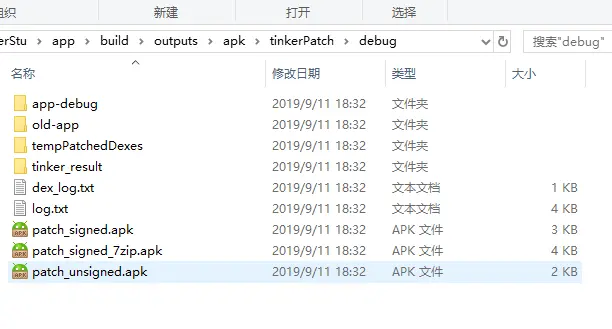

等待一段时间后来到我们的app\build\outputs\apk\tinkerPatch\debug。这里有3个apk：
- patch_signed.apk 签名补丁包
- patch_signed_7zip.apk 签名并用7Z压缩的补丁包
- patch_unsigned.apk 未签名的补丁包
这里我们用patch_signed_7zip.apk
4、模拟放置补丁包
在模拟放补丁包之前，我们先看看Tinker是怎么装补丁和卸载补丁的
请求打补丁
TinkerInstaller.onReceiveUpgradePatch(context, 补丁包的本地路径);
卸载补丁
Tinker.with(getApplicationContext()).cleanPatch();// 卸载所有的补丁
Tinker.with(getApplicationContext()).cleanPatchByVersion(版本号)// 卸载指定版本的补丁
回到主题！还记得我们的main里的代码吗：
//这个是我为放补丁包创建的文件夹
String path = "/sdcard/Tinker/";
File dir = new File(path);
if (!dir.exists()) {
dir.mkdirs();
}
//patch_signed_7zip.apk为我们要打的补丁包
File file = new File(path, "patch_signed_7zip.apk");
if (file.exists()) {
if (file.length() > 0) {
Log.e("我就想看看路径", file.getAbsolutePath());
TinkerInstaller.onReceiveUpgradePatch(MainActivity.this, file.getAbsolutePath());
}
}
然后通过手机助手，或者别的途径把我们的patch_signed_7zip.apk拷贝到/sdcard/Tinker/文件夹里如：
做完一上步骤，恭喜你，搞定了。！因为Tinker不是即时的。所以需要退出关闭apk，重新进。那么再次点击按钮的时候会弹出 “我是热修复技术！！”
5、Bugly让热修复变得如此简单
我这里简单说下我的理解把。这个补丁包你可以通过你们后端去下载。但是肯定要做好版本管理。不可能2.0的版本还去打1.0的补丁包。但是Tinker官方有个Bugly后台，继承进去以后，就相当于这一步，微信官方帮你做了。！！！
