前言

抽丝剥茧RecyclerView系列文章的目的在于帮助Android开发者提高对RecyclerView的认知,本文是整个系列的第二篇。

前文回顾

第一篇:《抽丝剥茧RecyclerView - 化整为零》

LayoutManagerRecyclerView中的重要一环,使用LayoutManager就跟玩捏脸蛋的游戏一样,即使好看的五官(好看的子View)都具备了,也不一定能捏出漂亮的脸蛋,好在RecyclerView为我们提供了默认的模板:LinearLayoutManagerGridLayoutManagerStaggeredGridLayoutManager

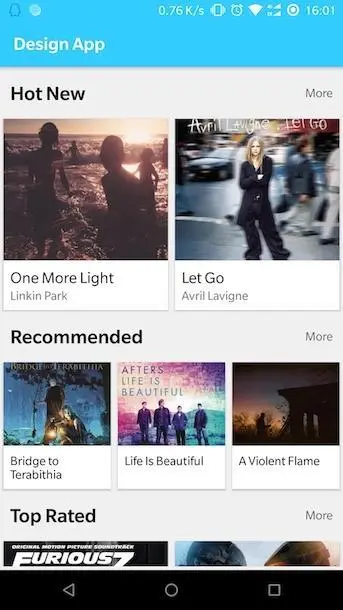

说来惭愧,如果不是看了GridLayoutManager的源码,我还真不知道GridLayoutManager竟然可以这么使用,图片来自网络:

GridLayoutManager

不过呢,今天我们讲解的源码不是来自GridLayoutManager,而是线性布局LinearLayoutManagerGridLayoutManager也是继承自LinearLayoutManager),分析完源码,我还将给大家带来实战,完成以下的效果:

TwoSideLayoutManager
时间轴的效果来自TimeLine,自己稍微处理了一下,现在开始进入正题。

代码地址github.com/mCyp/Orient…

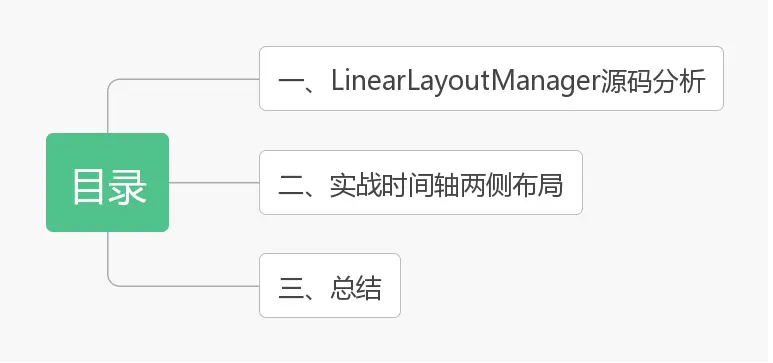

目录

目录

一、源码分析

本着认真负责的精神,我把RecyclerView中用到LayoutManager的地方大致看了一遍,发现其负责的主要业务:

  • 回收和复用子View(当然,这会交给Recyler处理)。
  • 测量和布局子View。
  • 关于滑动的处理。

回收和复用子View显然不是LayoutManager实际完成的,不过,子View的新增和删除都是LayoutManager通知的,除此以外,滑动处理的本质还是对子View进行管理,所以,本文要讨论的只有测量和布局子View的。

测量和布局子View发生在RecyclerView三大工作流程,又...又回到了最初的起点?这是我们在上篇讨论过的,如果不涉及到LayoutManager的知识,我们将一笔带过即可。

1. 自动测量机制

RecyclerView#onMeasure方法中,LayoutManager是否支持自动测量会走不同的流程:

protected void onMeasure(int widthSpec, int heightSpec) {
	// ...
	if (mLayout.isAutoMeasureEnabled()) {
		final int widthMode = MeasureSpec.getMode(widthSpec);
		final int heightMode = MeasureSpec.getMode(heightSpec);
		// 未复写的情况下默认调用RecyclerView#defaultOnMeasure方法
		mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
		final Boolean measureSpecModeIsExactly =
		                    widthMode == MeasureSpec.EXACTLY && heightMode == MeasureSpec.EXACTLY;
      	        // 长和宽的MeasureSpec都为EXACTLY的情况下会return
		if (measureSpecModeIsExactly || mAdapter == null) {
			return;
		}
		if (mState.mLayoutStep == State.STEP_START) {
			dispatchLayoutStep1();
		}
		// 1. 计算宽度和长度等
		mLayout.setMeasureSpecs(widthSpec, heightSpec);
		mState.mIsMeasuring = true;
      	        // 2. 布局子View
		dispatchLayoutStep2();
		// 3. 测量子View的宽和高,并再次测量父布局
		mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
		if (mLayout.shouldMeasureTwice()) {
		// 再走一遍1,2,3
		}
	} else {
		// ...
		mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
		// ....
	}
}

从代码上来看,使用自动测量机制需要具备:

  1. RecyclerView布局的长和宽的SpecMode不能是MeasureSpec.EXACTLY(大概率指的是布局中RecyclerView长或宽中有WrapContent)。
  2. RecyclerView设置的LayoutMangerisAutoMeasureEnabled返回为true

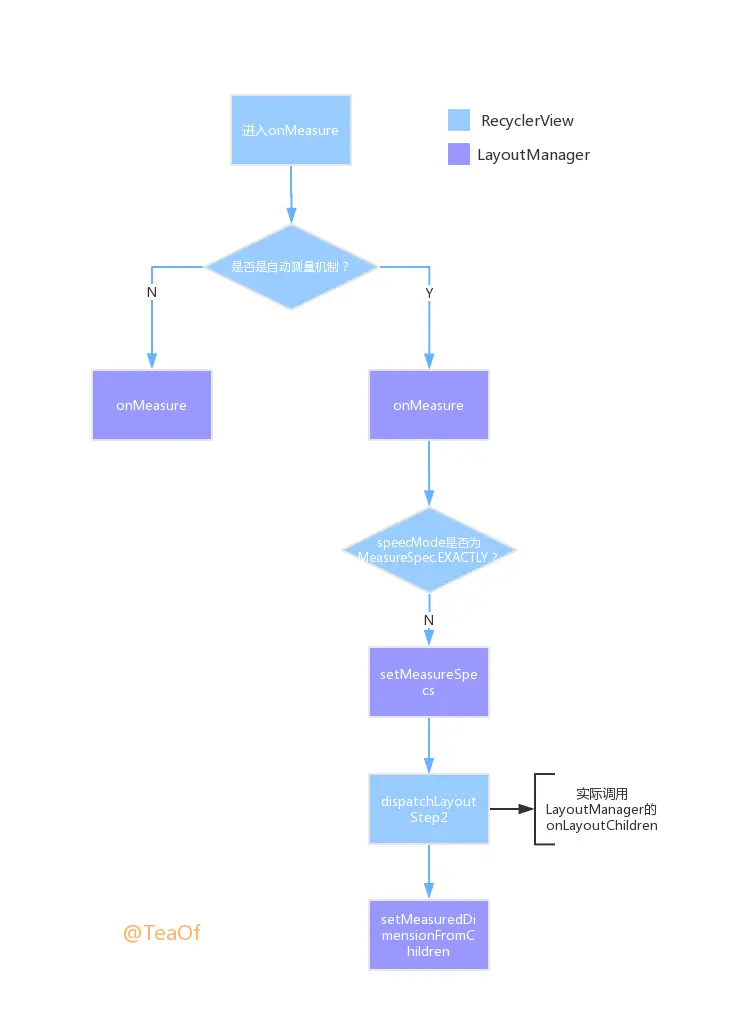

当设置自动测量机制的时候,我们的流程如下:

自动测量机制
从上图可以看出,是否使用自动测量机制带来的差距还是挺明显的,使用自动测量机制需要经历那么多流程,反正都要使用LayoutManager#onMeasure方法,还不如不使用测量机制呢!

显然,这种想法是不对的,因为官方是这么说的,如果不使用自动测量机制,需要在自定义LayoutManager过程中复写LayoutManager#onMeasure方法,所以呢,这个方法应该是包括自动测量机制的全部过程,包括:测量父布局-布置子View-重新测量子View-重新测量父布局,而使用自动测量机制是不需要复写这个方法的,该方法默认测量父布局。

需要提及的是,我们平时使用的三大LayoutManager都开启了自动测量机制。

2. onLayoutChildren

即使RecyclerViewonMeasure方法中逃过了布局子View,那么在onLayout中也不可避免,在上一篇博客中,我们了解到RecyclerView通过LayoutManager#onLayoutChildren方法实现给子View布局,我们以LinearLayoutManager为例,看看其中的奥秘。

在正式开始之前,我们先看看LinearLayoutManager中几个重要的类:

重要的类 解释
LinearLayoutManager 这个大家都懂,线性布局。
AnchorInfo 绘制子View的时候,记录其位置、偏移量、方向等基础信息。
LayoutChunkResult 加载子View结果情况的记录,比如已经填充的子View的数量。
LayoutState 当前加载的状态记录,比如当前绘制的偏移量,屏幕还剩余多少空间等

直接看最重要的LinearLayoutManager#onLayoutChildren,代码被我一删再删后如下:

public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
	//... 省略的代码为:数据为0的情况下移除所有的子View,将子View加入到缓存
	// 第一步:初始化LayoutState 配置LayoutState参数
	ensureLayoutState();
	mLayoutState.mRecycle = false;
	// ...
	// 第二步:寻找焦点子View
	final View focused = getFocusedChild();
	// ...
	// 第三步:移除界面中已经存在的子View,并放入缓存
	detachAndScrapAttachedViews(recycler);
	if (mAnchorInfo.mLayoutFromEnd) {
		// ...
	} else {
	// 第四步:更新LayoutSatete,填充子View
      	// 填充也分为两步:1.从锚点处向结束方向填充 2.从锚点处向开始方向填充

		// fill towards end 往结束方向填充子View
		// 更新LayoutState
		updateLayoutStateToFillEnd(mAnchorInfo);
		fill(recycler, mLayoutState, state, false);
		//...
		// fill towards start 往开始方向填充子View
		// 更新LayoutState等信息
		updateLayoutStateToFillStart(mAnchorInfo);
		fill(recycler, mLayoutState, state, false);
		if (mLayoutState.mAvailable > 0) {
			// 如果还有剩余空间
			updateLayoutStateToFillEnd(lastElement, endOffset);
			fill(recycler, mLayoutState, state, false);
			// ...
		}
	}
	// ...
	// 第五步:整理一些参数,以及做一下结束处理
  	// 不是预布局的状态下结束给子View布局,否则,重置锚点信息
	if (!state.isPreLayout()) {
		mOrientationHelper.onLayoutComplete();
	} else {
		mAnchorInfo.reset();
	}
	//...
}

整个onLayoutChildren可以分为如下五个过程:

  • 第一步:创建LayoutState
  • 第二步:获取焦点子View
  • 第三步:移除视图中已经存在的View,回收ViewHolder
  • 第四步:填充子View
  • 第五步:填充结束后的处理
2.1 第一步、第二步

第一步是创建LayoutState,第二步是获取屏幕中的焦点子View,代码比较简单,感兴趣的同学们可以自己查询。

2.2 第三步

在填充子View前,如果当前已经存在子View并将继续存在的时候,会先从屏幕中暂时移除,将ViewHolder暂存在Recycler的一级缓存mAttachedScrap中:

/**
 * Temporarily detach and scrap all currently attached child views. Views will be scrapped
 * into the given Recycler. The Recycler may prefer to reuse scrap views before
 * other views that were previously recycled.
 *
 * @param recycler Recycler to scrap views into
 */
public void detachAndScrapAttachedViews(Recycler recycler) {
	final int childCount = getChildCount();
	for (int i = childCount - 1; i >= 0; i--) {
		final View v = getChildAt(i);
		scrapOrRecycleView(recycler, i, v);
	}
}

private void scrapOrRecycleView(Recycler recycler, int index, View view) {
	final ViewHolder viewHolder = getChildViewHolderint(view);
	if (viewHolder.shouldIgnore()) {
		return;
	}
	if (viewHolder.isInvalid() && !viewHolder.isRemoved()
	                    && !mRecyclerView.mAdapter.hasStableIds()) {
      	// 无效的ViewHolder会被添加进RecyclerPool
		removeViewAt(index);
		recycler.recycleViewHolderInternal(viewHolder);
	} else {
      	// 添加进一级缓存
		detachViewAt(index);
		recycler.scrapView(view);
		mRecyclerView.mViewInfoStore.onViewDetached(viewHolder);
	}
}

上面的英文注释其实就是我开始所说的,暂时保存被detachViewHolder,至于Recycler如何保存,我们在上一篇博客中已经讨论过,这里不再赘述。

2.3 第四步

最复杂的就是子View的填充过程,回到LinearLayoutManager#onLayoutChildren方法,我们假设mAnchorInfo.mLayoutFromEndfalse,那么LinearLayoutManager会先从锚点处往下填充,直至填满,往下填充前,会先更新LayoutState

private void updateLayoutStateToFillEnd(AnchorInfo anchorInfo) {
	updateLayoutStateToFillEnd(anchorInfo.mPosition, anchorInfo.mCoordinate);
}

private void updateLayoutStateToFillEnd(int itemPosition, int offset) {
  	// mAvailable:可以填充的距离
	mLayoutState.mAvailable = mOrientationHelper.getEndAfterPadding() - offset;
  	// 填充方向
	mLayoutState.mItemDirection = mShouldReverseLayout ? LayoutState.ITEM_DIRECTION_HEAD :
	                LayoutState.ITEM_DIRECTION_TAIL;
  	// 当前位置
	mLayoutState.mCurrentPosition = itemPosition;
	mLayoutState.mLayoutDirection = LayoutState.LAYOUT_END;
  	// 当前位置的偏移量
	mLayoutState.mOffset = offset;
	mLayoutState.mScrollingOffset = LayoutState.SCROLLING_OFFSET_NaN;
}

更新完LayoutState以后,就是子View的真实填充过程LinearLayoutManager#fill

int fill(RecyclerView.Recycler recycler, LayoutState layoutState,
            RecyclerView.State state, Boolean stopOnFocusable) {
	// 获取可以使用的空间
	final int start = layoutState.mAvailable;
	if (layoutState.mScrollingOffset != LayoutState.SCROLLING_OFFSET_NaN) {
		// ...
      	// 滑动发生时回收ViewHolder
		recycleByLayoutState(recycler, layoutState);
	}
	int remainingSpace = layoutState.mAvailable + layoutState.mExtra;
	LayoutChunkResult layoutChunkResult = mLayoutChunkResult;
  	// 核心加载过程
	while ((layoutState.mInfinite || remainingSpace > 0) && layoutState.hasMore(state)) {
		//...
		layoutChunk(recycler, state, layoutState, layoutChunkResult);
		//... 省略的是:加载一个ViewHolder之后处理状态信息
	}
	// 返回消费的空间
	return start - layoutState.mAvailable;
}

最核心的就是while循环里面的LinearLayoutManager#layoutChunk,最后来看一下该方法如何实现的:

void layoutChunk(RecyclerView.Recycler recycler, RecyclerView.State state,
            LayoutState layoutState, LayoutChunkResult result) {
	// 利用缓存策略获取 与Recycler相关
	View view = layoutState.next(recycler);
	// 添加或者删除 最后会通知父布局新增或者移除子View
	if (layoutState.mScrapList == null) {
		if (mShouldReverseLayout == (layoutState.mLayoutDirection
				                    == LayoutState.LAYOUT_START)) {
			addView(view);
		} else {
			addView(view, 0);
		}
	} else {
		if (mShouldReverseLayout == (layoutState.mLayoutDirection
				                    == LayoutState.LAYOUT_START)) {
			addDisappearingView(view);
		} else {
			addDisappearingView(view, 0);
		}
	}
	// 测量子View
	measureChildWithMargins(view, 0, 0);
  	// 布局子View
	layoutDecoratedWithMargins(view, left, top, right, bottom);
	// ... 设置LayoutChunkResult参数
}

首先,View view = layoutState.next(recycler);就是我们在上一节中讨论利用缓存Recycler去获取ViewHolder,接着获取ViewHolder中绑定的子View,给它添加进父布局RecyclerView,然后给子View测量一下宽高,最后,有了宽高信息,给它放置到具体的位置就完事了,过程清晰明了。

回到上个方法LinearLayoutManager#fill,在While循环并且有数据的情况下,不断的将子View填充至RecyclerView中,直至该方向填满。

再回到一开始的LinearLayoutManager#onLayoutChildren方法,除了调用了我们第四步一开始介绍的LinearLayoutManager#updateLayoutStateToFillEnd,还调用了LinearLayoutManager#updateLayoutStateToFillStart,所以从整体上来看,它是先填充锚点至结束的方向,再填充锚点至开始的方向(不绝对),如果用一图表示,我觉得可以是这样:

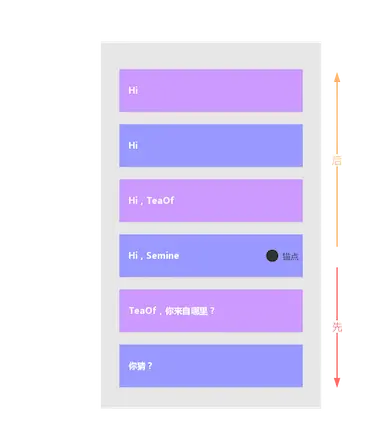

填充逻辑
先从锚点向下填充,再从锚点向上填充,不过,也有可能是先向上,再向下,由一些参数决定。

第五步

第五步就是对之前的子View的填充结果做一些处理,不做过多介绍。

二、实战

看了VivianTimeLine,你可能会这么吐槽,人家的库借助StaggeredGridLayoutManager就可以实现时间轴,为何还要多此一举,使用我的TwoSideLayoutManager(我给实现的布局方式起名叫TwoSideLayoutManager)呢?因为使用瀑布流StaggeredGridLayoutManager想要在时间轴上实现子View平均分布的效果还是比较困难的,但是,使用TwoSideLayoutManager实现起来就简单多了。

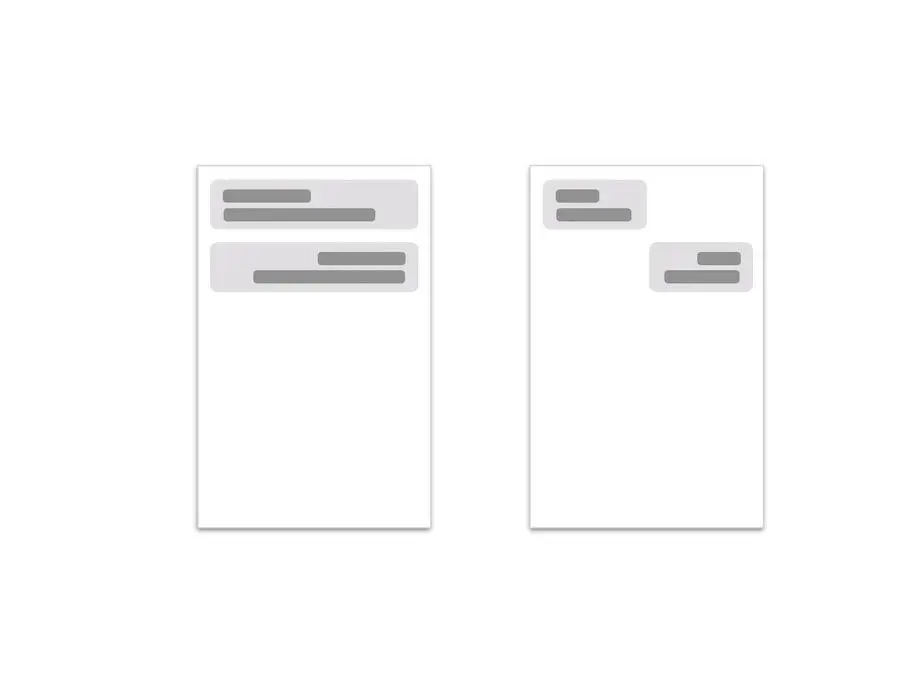

那么我们如何实现RecyclerView的两侧布局呢?一张图来打开思路:

实现思路
显然,TwoSideLayoutManager的布局实现可以利用LinearLayoutManager的实现方式,仅需要修改添加子View以后的测量逻辑和布局逻辑即可。

上面我们提到过,添加子View,给子View测量,布局都在LinearLayoutManager#layoutChunk中实现,那我们完全可以照搬LinearLayoutManager的填充逻辑,稍微改几处代码,限于篇幅,我们就看一下核心方法TwoSideLayoutManager#layoutChunk

private void layoutChunk(RecyclerView.Recycler recycler, RecyclerView.State state,
                             LayoutState layoutState, LayoutChunkResult result) {
	View view = layoutState.next(recycler);
	if (view == null) {
		// 没有更多的数据用来生成子View
		result.mFinished = true;
		return;
	}
	RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) view.getLayoutParams();
	// 添加进RecyclerView
	if (layoutState.mLayoutDirection != LayoutState.LAYOUT_START) {
		addView(view);
	} else {
		addView(view, 0);
	}
	// 第一遍测量子View
	measureChild(view);
	// 布局子View
	layoutChild(view, result, params, layoutState, state);
	// Consume the available space if the view is not removed OR changed
	if (params.isItemRemoved() || params.isItemChanged()) {
		result.mIgnoreConsumed = true;
	}
	result.mFocusable = view.hasFocusable();
}

整体逻辑在注释中已经写得很清楚了,挨个看一下主要方法。

1. measureChild

测量子View

private void measureChild(View view) {
	final RecyclerView.LayoutParams lp = (RecyclerView.LayoutParams) view.getLayoutParams();
	int verticalUsed = lp.bottomMargin + lp.topMargin;
	int horizontalUsed = lp.leftMargin + lp.rightMargin;
  	// 设置测量的长度为可用空间的一半
	final int availableSpace = (getWidth() - (getPaddingLeft() + getPaddingRight())) / 2;
	int widthSpec = getChildMeasureSpec(availableSpace, View.MeasureSpec.EXACTLY
	                , horizontalUsed, lp.width, true);
	int heightSpec = getChildMeasureSpec(mOrientationHelper.getTotalSpace(), getHeightMode(),
	                verticalUsed, lp.height, true);
	measureChildWithDecorationsAndMargin(view, widthSpec, heightSpec, false);
}

高度的使用方式跟LinearLayoutManager一样,宽度控制在屏幕可用空间的一半。

2. layoutChild

布局子View

private void layoutChild(View view, LayoutChunkResult result
            , RecyclerView.LayoutParams params, LayoutState layoutState, RecyclerView.State state) {
	final int size = mOrientationHelper.getDecoratedMeasurement(view);
	final RecyclerView.LayoutParams lp = (RecyclerView.LayoutParams) view.getLayoutParams();
	result.mConsumed = size;
	int left, top, right, bottom;
	int num = params.getViewAdapterPosition() % 2;
	// 根据位置 奇偶位来进行布局
	// 如果起始位置为左侧,那么偶数位为左侧,奇数位为右侧
	if (isLayoutRTL()) {
		if (num == mStartSide) {
			right = (getWidth() - getPaddingRight()) / 2;
			left = right - mOrientationHelper.getDecoratedMeasurementInOther(view);
		} else {
			right = getWidth() - getPaddingRight();
			left = right - mOrientationHelper.getDecoratedMeasurementInOther(view) - (getWidth() - getPaddingRight()) / 2;
		}
	} else {
		if (num == mStartSide) {
			left = getPaddingLeft();
			right = left + mOrientationHelper.getDecoratedMeasurementInOther(view);
		} else {
			left = getPaddingLeft() + (getWidth() - getPaddingRight()) / 2;
			right = left + mOrientationHelper.getDecoratedMeasurementInOther(view);
		}
	}
	if (layoutState.mLayoutDirection == LayoutState.LAYOUT_START) {
		bottom = layoutState.mOffset;
		top = layoutState.mOffset - result.mConsumed;
	} else {
		top = layoutState.mOffset;
		bottom = layoutState.mOffset + result.mConsumed;
		if (mLayoutState.mCurrentPosition == state.getItemCount() && lastViewOffset != 0) {
			lp.setMargins(lp.leftMargin, lp.topMargin, lp.rightMargin, lp.bottomMargin + lastViewOffset);
			view.setLayoutParams(lp);
			bottom += lastViewOffset;
		}
	}
	layoutDecoratedWithMargins(view, left, top, right, bottom);
}

public void layoutDecoratedWithMargins(@NonNull View child, int left, int top, ![总结.png](https://upload-images.jianshu.io/upload_images/9271486-9440574ea525a11a.png?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240)
int right, int bottom) {
	RecyclerView.LayoutParams lp = (RecyclerView.LayoutParams)child.getLayoutParams();
	Rect insets = lp.mDecorInsets;
	child.layout(left + insets.left + lp.leftMargin, top + insets.top + lp.topMargin, right - insets.right - lp.rightMargin, bottom - insets.bottom - lp.bottomMargin);
}

给子View测量完宽高之后,根据奇偶位初始设置的一侧mStartSide布局子View。如果需要显示时间轴的结束节点,那么需要在创建TwoSideLayoutManager对象的时候设置lastViewOffset,预留最后位置的空间,不过,需要注意的是,如果设置了时间轴的结束节点,那么,最后一个子View最好还是不要回收,不然,最后一个子View回收给其他数据使用的时候还得处理Margin。只要在回收的时候稍稍处理就行了,具体的代码不再贴出了。

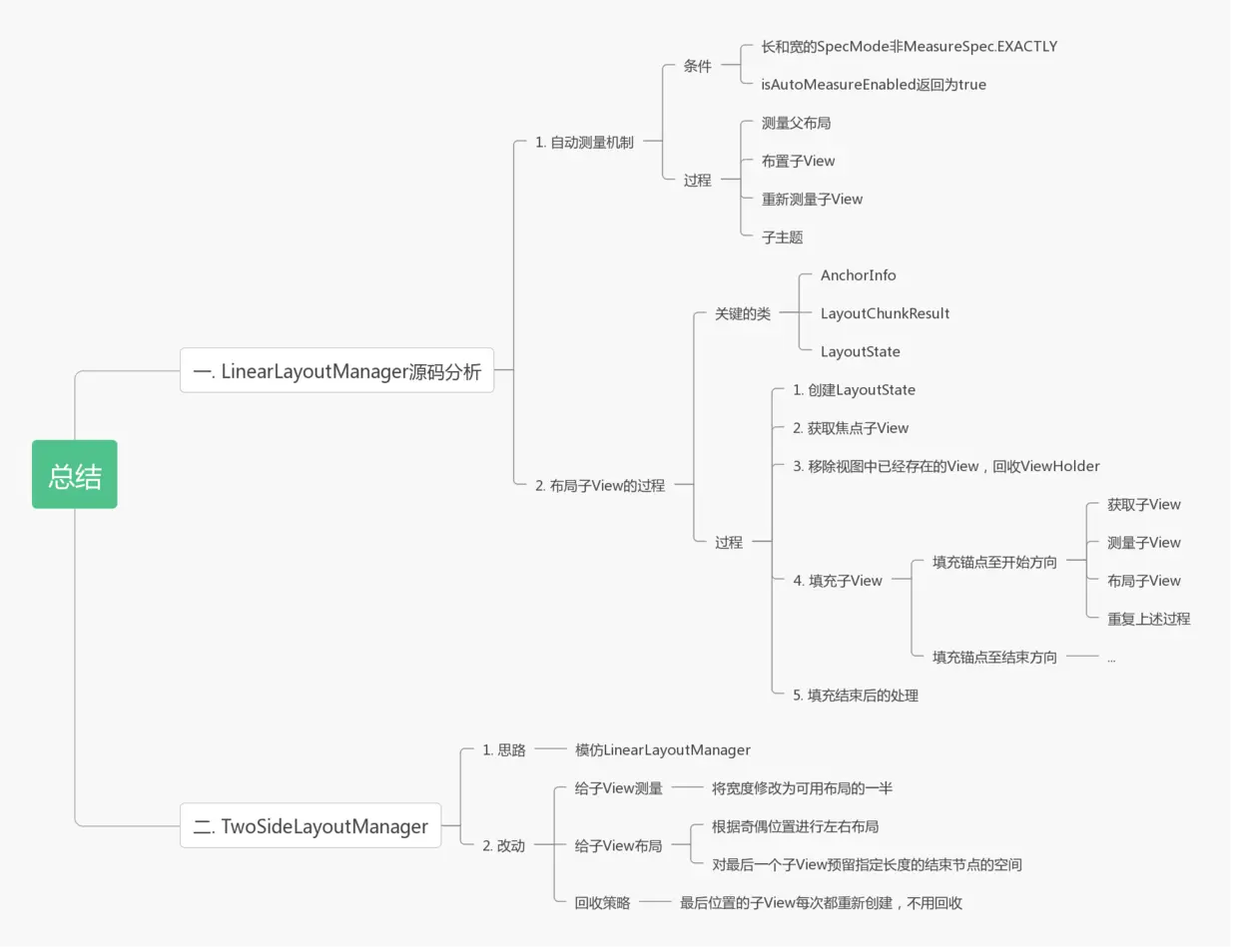

三、总结

总结
写这个布局花的时间还挺多的,说明自己需要提升的地方还很多,有的时候代码虽然能看懂,自己却不一定能写出来,下周需要提升效率,保证每周产出。本人水平有限,难免有误,欢迎指出哟。
