【目标检测算法实现系列】Keras实现Faster R-CNN算法(一)

1,681 阅读16分钟

之前,我们介绍了Fatser R-CNN模型,在接下来的几篇文章,将通过Keras框架来完整实现Fatser R-CNN模型。数据集我们采用经典的VOC数据集。

这篇文章我们主要看下相关数据的准备工作,具体流程如下:

一、VOC数据集解析

VOC数据集的下载,,因为官网下载太慢,文章末尾处有提供百度网盘下载

下载解压后的文件目录如下:

对于目标检测任务,只需要用到Annotations,ImageSets,JPEGImages这三个目录。

1. Annotations:存放相关标注信息,每一张图片对应一个xml文件,具体xml内容如下:

<annotation>
  <folder>VOC2012</folder>
  <filename>2007_000033.jpg</filename>
  <source>
    <database>The VOC2007 Database</database>
    <annotation>PASCAL VOC2007</annotation>
    <image>flickr</image>
  </source>
  <size>
    <width>500</width>
    <height>366</height>
    <depth>3</depth>
  </size>
  <segmented>1</segmented>
  <object>
    <name>aeroplane</name>
    <pose>Unspecified</pose>
    <truncated>0</truncated>
    <difficult>0</difficult>
    <bndbox>
      <xmin>9</xmin>
      <ymin>107</ymin>
      <xmax>499</xmax>
      <ymax>263</ymax>
    </bndbox>
  </object>
  <object>
    <name>aeroplane</name>
    <pose>Left</pose>
    <truncated>0</truncated>
    <difficult>0</difficult>
    <bndbox>
      <xmin>421</xmin>
      <ymin>200</ymin>
      <xmax>482</xmax>
      <ymax>226</ymax>
    </bndbox>
  </object>
</annotation>

2. ImageSets:我们只会用到ImageSets\Main下train.txt , val.txt, test.txt这三个文件,里面存储对应训练集,验证集,测试集的图片名称,文件格式如下:


3. JPEGImages:存储所有的图片数据

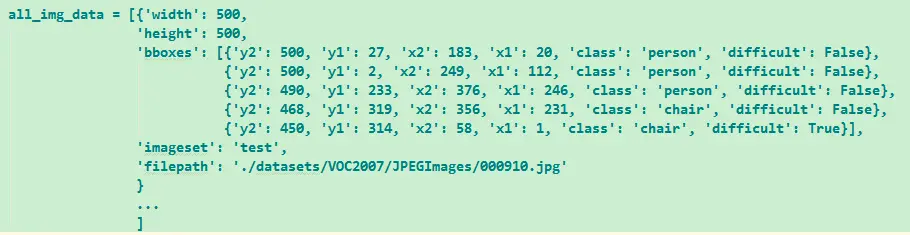

我们需要将下载来的VOC数据集解析成如下格式

具体代码实现如下

import os
import xml.etree.ElementTree as ET
from tqdm import tqdm
import pprint


def get_data(input_path):
    '''

    :param input_path:  voc数据目录
    :return:
      image_data:解析后的数据集 list列表
      classes_count:一个字典数据结构,key为对应类别名称,value对应为类别所对应的样本(标注框)个数
      classes_mapping:一个字典数据结构,key为对应类别名称,value为对应类别的一个标识index
    '''
    image_data = []
    classes_count = {}  #一个字典,key为对应类别名称,value对应为类别所对应的样本(标注框)个数
    classes_mapping = {} #一个字典数据结构,key为对应类别名称,value为对应类别的一个标识index

    data_paths = os.path.join(input_path, "VOC2012")
    print(data_paths)

    annota_path = os.path.join(data_paths, "Annotations")  # 数据标注目录
    imgs_path = os.path.join(data_paths, "JPEGImages")  # 图片目录

    imgsets_path_train = os.path.join(data_paths, 'ImageSets', 'Main', 'train.txt')
    imgsets_path_val = os.path.join(data_paths, 'ImageSets', 'Main', 'val.txt')
    imgsets_path_test = os.path.join(data_paths, 'ImageSets', 'Main', 'test.txt')
    train_files = []  # 训练集图片名称集合
    val_files = []  # 验证集图片名称集合
    test_files = []  # 测试集图片名称集合

    with open(imgsets_path_train) as f:
        for line in f:
            # strip() 默认去掉字符串头尾的空格和换行符
            train_files.append(line.strip() + '.jpg')

    with open(imgsets_path_val) as f:
        for line in f:
            val_files.append(line.strip() + '.jpg')

    # test-set not included in pascal VOC 2012
    if os.path.isfile(imgsets_path_test):
        with open(imgsets_path_test) as f:
            for line in f:
                test_files.append(line.strip() + '.jpg')

    # 获得所有的标注文件路径,保存到annota_path_list列表中
    annota_path_list = [os.path.join(annota_path, s) for s in os.listdir(annota_path)]
    index = 0

    # Tqdm 是一个快速,可扩展的Python进度条,
    # 可以在 Python 长循环中添加一个进度提示信息,用户只需要封装任意的迭代器 tqdm(iterator)
    annota_path_list = tqdm(annota_path_list)

    for annota_path in annota_path_list:
        exist_flag = False
        index += 1
        annota_path_list.set_description("Processing %s" % annota_path.split(os.sep)[-1])

        # 开始解析对应xml数据标注文件
        et = ET.parse(annota_path)
        element = et.getroot()
        element_objs = element.findall("object")  # 获取所有的object子元素
        element_filename = element.find("filename").text  # 对应图片名称
        element_width = int(element.find("size").find("width").text)  # 对应图片尺寸
        element_height = int(element.find("size").find("height").text)  # 对应图片尺寸

        if (len(element_objs) > 0):
            annotation_data = {"filepath": os.path.join(imgs_path, element_filename),
                               "width": element_width,
                               "height": element_height,
                               "image_id": index,
                               "bboxes": []}  # bboxes 用来存放对应标注框的相关位置
        if element_filename in train_files:
            annotation_data["imageset"] = "train"
            exist_flag = True
        if element_filename in val_files:
            annotation_data["imageset"] = "val"
            exist_flag = True
        if len(test_files) > 0:
            if element_filename in test_files:
                annotation_data["imageset"] = "test"
                exist_flag = True

        if not exist_flag:
            continue

        for element_obj in element_objs:  # 遍历一个xml标注文件中的所有标注框
            classes_name = element_obj.find("name").text  # 获取当前标注框的类别名称
            if classes_name in classes_count:  # classes_count 存储类别以及对应类别的标注框个数
                classes_count[classes_name] += 1
            else:
                classes_count[classes_name] = 1

            if classes_name not in classes_mapping:
                classes_mapping[classes_name] = len(classes_mapping)

            obj_bbox = element_obj.find("bndbox")
            x1 = int(round(float(obj_bbox.find("xmin").text)))
            y1 = int(round(float(obj_bbox.find("ymin").text)))
            x2 = int(round(float(obj_bbox.find("xmax").text)))
            y2 = int(round(float(obj_bbox.find("ymax").text)))

            difficulty = int(element_obj.find("difficult").text) == 1
            annotation_data["bboxes"].append({"class": classes_name,
                                              "x1": x1, "x2": x2, "y1": y1, "y2": y2,
                                              "difficult": difficulty})
        image_data.append(annotation_data)

    return image_data, classes_count, classes_mapping

二、数据增强

随机将数据进行翻转,旋转,代码如下:

def augment(img_data, config, augment = True):
    '''
    用来进行数据增强
    :param img_data:  原始数据
    :param config:   相关配置参数
    :param augment:
    :return:  增强后的数据集
    '''
    assert 'filepath' in img_data
    assert 'bboxes' in img_data
    assert 'width' in img_data
    assert 'height' in img_data

    img_data_aug = copy.deepcopy(img_data)

    img = cv2.imread(img_data_aug["filepath"])  #读取原始图片
    if augment:
        rows, cols = img.shape[:2]  #获取图像尺寸

        if config.use_horizontal_flips and np.random.randint(0,2) == 0:
            img = cv2.flip(img, 1)  #水平翻转

            for bbox in img_data_aug["bboxes"]:  #重新更新每个标注框横坐标的值
                x1 = bbox["x1"]
                x2 = bbox["x2"]
                bbox["x1"] = cols - x2
                bbox["x2"] = cols - x1

        if config.use_vertical_flips and np.random.randint(0,2) == 0:
            img = cv2.flip(img, 0)  #竖直翻转

            for bbox in img_data_aug["bboxes"]:  #重新更新每个标注框横坐标的值
                y1 = bbox["y1"]
                y2 = bbox["y2"]
                bbox["y1"] = rows - y2
                bbox["y2"] = rows - y1


        if config.rot_90:
            angle = np.random.choice([0,90,180,270],1)[0]
            print("angle==",angle)
            if angle == 270:   #旋转270度
                img = np.transpose(img, (1,0,2))
                img = cv2.flip(img, 0)
            elif angle == 180:  #旋转180度
                img = cv2.flip(img, -1)
            elif angle == 90:   #旋转90度
                img = np.transpose(img, (1,0,2))
                img = cv2.flip(img, 1)
            elif angle == 0:
                pass

            # 重新更新每个标注框横坐标的值
            for bbox in img_data_aug['bboxes']:
                x1 = bbox['x1']
                x2 = bbox['x2']
                y1 = bbox['y1']
                y2 = bbox['y2']
                if angle == 270:
                    bbox['x1'] = y1
                    bbox['x2'] = y2
                    bbox['y1'] = cols - x2
                    bbox['y2'] = cols - x1
                elif angle == 180:
                    bbox['x2'] = cols - x1
                    bbox['x1'] = cols - x2
                    bbox['y2'] = rows - y1
                    bbox['y1'] = rows - y2
                elif angle == 90:
                    bbox['x1'] = rows - y2
                    bbox['x2'] = rows - y1
                    bbox['y1'] = x1
                    bbox['y2'] = x2
                elif angle == 0:
                    pass
    img_data_aug['width'] = img.shape[1]
    img_data_aug['height'] = img.shape[0]
    return img_data_aug, img

对于某个样本,原始图片以及标注框如下:

经过增强后的图片以及标注框如下所示:



三、 为RPN网络准备训练数据

我们还需要将数据格式转化为RPN网络可以直接训练的格式,生成所有的anchors。

首先,实现一个计算IOU的方法,代码如下:

#计算两个框之前的并集
def union(au, bu, area_intersection):
    # au和bu的格式为: (x1,y1,x2,y2)
    # area_intersection为 au 和 bu 两个框的交集
    area_a = (au[2] - au[0]) * (au[3] - au[1])
    area_b = (bu[2] - bu[0]) * (bu[3] - bu[1])
    area_union = area_a + area_b - area_intersection
    return area_union
​
#计算两个框之前的交集
def intersection(ai, bi):
    # ai和bi的格式为: (x1,y1,x2,y2)
    x = max(ai[0], bi[0])
    y = max(ai[1], bi[1])
    w = min(ai[2], bi[2]) - x
    h = min(ai[3], bi[3]) - y
    if w < 0 or h < 0:
        return 0
    return w*h
​
​
# 计算两个框的iou值
def iou(a, b):
    # a和b的格式为: (x1,y1,x2,y2)if a[0] >= a[2] or a[1] >= a[3] or b[0] >= b[2] or b[1] >= b[3]:
        return 0.0
​
    area_i = intersection(a, b)  #计算交集
    area_u = union(a, b, area_i)  #计算并集return float(area_i) / float(area_u + 1e-6)   #交并比

接下来,我们看下如果针对每一张图片构造所有anchor,并为RPN网络准备训练数据。

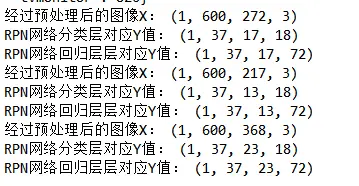

通过之前的Faster RCNN介绍,我们知道RPN网络有两个输出,一个是检测框分类层输出,输出的通道个数为2*k(如果使用sigmoid分类的话,那就是k个),另一个为检测框回归层输出,输出的通道个数为4*k。所以,我们也需要先对我们的数据标签做对应处理。具体代码如下:

def getdata_for_rpn(config, img_data, width, heigth, resized_width, resized_height):
    '''
        用于提取RPN网络训练集,也就是产生各种anchors以及anchors对应与ground truth的修正参数
        :param C:   配置信息
        :param img_data:  原始数据
        :param width:    缩放前图片的宽
        :param heigth:   缩放前图片的高
        :param resized_width:  缩放后图片的宽
        :param resized_height:  缩放后图片的高
        :param img_length_calc_function:  获取经过base Net后提取出来的featur map图像尺寸,
                                          对于VGG16来说,就是在原始图像尺寸上除以16
        :return:
    '''
    downscale = float(config.rpn_stride)   #原始图像到feature map之间的缩放映射关系
    anchor_sizes = config.anchor_box_scales   #anchor 三种尺寸
    anchor_ratios = config.anchor_box_ratios  # anchor 三种宽高比
    num_anchors = len(anchor_sizes) * len(anchor_ratios)  # 每一个滑动窗口所对应的anchor个数,也就是论文中的k值

    #计算出经过base Net后提取出来的featurmap图像尺寸
    output_width = int(resized_width / 16)
    output_height = int(resized_height / 16)

    # (36,36,9),用来存放RPN网络,训练样本最后分类层输出时的y值,
    # 最后一维9代表对于每个像素点对应9个anchor,值为0或1(正样本或负样本)
    y_rpn_overlap = np.zeros((output_height, output_width, num_anchors))

    #(36,36,9),用来存放对于每个anchor,是否是有效的样本,值为0或者1(无效样本,有效样本)
    # 因为对于iou在0.3到0.7之间的样本,是直接丢弃 ,不参与训练的
    # 另外,只是在一张图片中随机采样256个anchor,其他的也不参与训练
    y_is_box_valid = np.zeros((output_height, output_width, num_anchors))

    # (36,36,9*4),用来存放RPN网络,针对一张图片,最后回归层的标签Y值
    y_rpn_regr = np.zeros((output_height, output_width, num_anchors * 4))

    #获取一张训练图片的真实标注框个数,也就是含有的待检测的目标个数
    num_bboxes = len(img_data['bboxes'])

    # 用来存储每个bbox(真实标注框)所对应的anchor个数
    num_anchors_for_bbox = np.zeros(num_bboxes).astype(int)

    # 用来存储每个bbox(真实标注框)所对应的最优anchor在feature map中的位置信息,以及大小信息
    # [jy, ix, anchor_ratio_idx, anchor_size_idx]
    best_anchor_for_bbox = -1 * np.ones((num_bboxes, 4)).astype(int)

    # 每个bbox(真实标注框)与所有anchor 的最优IOU值
    best_iou_for_bbox = np.zeros(num_bboxes).astype(np.float32)

    # 用来存储每个bbox(真实标注框)所对应的最优anchor的坐标值
    best_x_for_bbox = np.zeros((num_bboxes, 4)).astype(int)

    # 用来存储每个bbox(真实标注框)与所对应的最优anchor之间的4个平移缩放参数,用于回归预测
    best_dx_for_bbox = np.zeros((num_bboxes, 4)).astype(np.float32)

    gta = np.zeros((num_bboxes, 4))  # 用来存放经过缩放后的标注框
    # 因为之前图片进行了缩放,所以需要将对应的标注框做对应调整
    for bbox_num, bbox in enumerate(img_data["bboxes"]):
        gta[bbox_num, 0] = bbox["x1"] * (resized_width / float(width))
        gta[bbox_num, 1] = bbox["x2"] * (resized_width / float(width))
        gta[bbox_num, 2] = bbox["y1"] * (resized_height / float(heigth))
        gta[bbox_num, 3] = bbox["y2"] * (resized_height / float(heigth))


    #遍历feature map上的每一个像素点
    for ix in range(output_width):
        for iy in range(output_height):
            #在feature map的每一个像素点上,遍历对应不同大小,不同长宽比的k(9)个anchor
            for anchor_size_index in range(len(anchor_sizes)):
                for anchor_ratio_index in range(len(anchor_ratios)):
                    anchor_x = anchor_sizes[anchor_size_index] * anchor_ratios[anchor_ratio_index][0]
                    anchor_y = anchor_sizes[anchor_size_index] * anchor_ratios[anchor_ratio_index][1]

                    # 获得当前anchor在原图上的X坐标位置
                    # downscale * (ix + 0.5)即为当前anchor在原始图片上的中心点X坐标
                    # downscale * (ix + 0.5) - anchor_x / 2 即为当前anchor左上点X坐标
                    # downscale * (ix + 0.5) + anchor_x / 2 即为当前anchor右下点X坐标
                    x1_anc = downscale * (ix + 0.5) - anchor_x / 2
                    x2_anc = downscale * (ix + 0.5) + anchor_x / 2
                    # 去掉那些跨过图像边界的框
                    if x1_anc<0 or x2_anc > resized_width:
                        continue

                    # 获得当前anchor在原图上的Y坐标位置
                    # downscale * (jy + 0.5)即为当前anchor在原始图片上的中心点Y坐标
                    # downscale * (jy + 0.5) - anchor_y / 2 即为当前anchor左上点Y坐标
                    # downscale * (jy + 0.5) + anchor_y / 2 即为当前anchor右下点Y坐标
                    y1_anc = downscale * (iy + 0.5) - anchor_y / 2
                    y2_anc = downscale * (iy + 0.5) + anchor_y / 2
                    # 去掉那些跨过图像边界的框
                    if y1_anc < 0 or y2_anc > resized_height:
                        continue

                    # 用来存放当前anchor类别是前景(正样本)还是背景(负样本)
                    bbox_type = "neg"
                    # best_iou_for_loc 是用来存储当前anchor针对于所有真实标注框的一个最优iou
                    # 需要与前面的best_iou_for_bbox 每个真实标注框 针对于所有 anchor 的最优iou是不一样的。
                    best_iou_for_loc = 0.0

                    #遍历所有真实标注框,也就是所有ground truth
                    for bbox_num in range(num_bboxes):
                        # 计算当前anchor与当前真实标注框的iou值
                        curr_iou = iou([gta[bbox_num, 0], gta[bbox_num, 2], gta[bbox_num, 1], gta[bbox_num, 3]],
                                       [x1_anc, y1_anc, x2_anc, y2_anc])

                        #根据iou值,判断当前anchor是否为正样本。
                        # 如果是,则计算此anchor(正样本)到ground - truth(真实检测框)的对应4个平移缩放参数。
                        # 判断一个anchor是否为正样本的两个条件为:
                        # 1.与ground - truth(真实检测框)IOU最高的anchor
                        # 2.与任意ground - truth(真实检测框)的IOU大于0.7 的anchor
                        if curr_iou > best_iou_for_bbox[bbox_num] or curr_iou > config.rpn_max_overlap:
                            # cx,cy: ground-truth(真实检测框)的中心点坐标
                            cx = (gta[bbox_num, 0] + gta[bbox_num, 1]) / 2.0
                            cy = (gta[bbox_num, 2] + gta[bbox_num, 3]) / 2.0
                            # cxa,cya: 当前anchor的中心点坐标
                            cxa = (x1_anc + x2_anc) / 2.0
                            cya = (y1_anc + y2_anc) / 2.0

                            # (tx, ty, tw, th)即为此anchor(正样本)到ground-truth(真实检测框)的对应4个平移缩放参数
                            tx = (cx - cxa) / (x2_anc - x1_anc)
                            ty = (cy - cya) / (y2_anc - y1_anc)
                            tw = np.log((gta[bbox_num, 1] - gta[bbox_num, 0]) / (x2_anc - x1_anc))
                            th = np.log((gta[bbox_num, 3] - gta[bbox_num, 2]) / (y2_anc - y1_anc))

                        if img_data["bboxes"][bbox_num]["class"] != "bg":
                            #针对于当前ground - truth(真实检测框),如果当前anchor与之的iou最大,则重新更新相关存储的best值
                            if curr_iou > best_iou_for_bbox[bbox_num]:
                                best_anchor_for_bbox[bbox_num] = [iy, ix, anchor_ratio_index, anchor_size_index]
                                best_iou_for_bbox[bbox_num] = curr_iou
                                best_x_for_bbox[bbox_num,:] = [x1_anc, x2_anc, y1_anc, y2_anc]
                                best_dx_for_bbox[bbox_num,:] = [tx, ty, tw, th]

                            #对于iou大于0.7的,则,无论是否是最优的,直接认为是正样本
                            if curr_iou > config.rpn_max_overlap:
                                bbox_type = "pos"
                                num_anchors_for_bbox[bbox_num] +=1
                                if curr_iou > best_iou_for_loc:
                                    best_iou_for_loc = curr_iou
                                    best_regr = (tx, ty, tw, th)#当前anchor与和它有最优iou的那个ground-truth(真实检测框)之间的对应4个平移参数
                            # iou值大于0.3,小于0.7的的,即不是正样本,也不是负样本
                            if config.rpn_min_overlap < curr_iou < config.rpn_max_overlap:
                                if bbox_type != 'pos':
                                    bbox_type = 'neutral'
                    if bbox_type == "neg":
                        test_index = anchor_size_index * len(anchor_ratios) + anchor_ratio_index
                        y_is_box_valid[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 1
                        y_rpn_overlap[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 0
                    elif bbox_type == "neutral":
                        y_is_box_valid[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 0
                        y_rpn_overlap[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 0
                    elif bbox_type == "pos":
                        y_is_box_valid[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 1
                        y_rpn_overlap[iy, ix, anchor_size_index * len(anchor_ratios) + anchor_ratio_index] = 1
                        start = 4 * (anchor_size_index * len(anchor_ratios) + anchor_ratio_index)
                        y_rpn_regr[iy, ix, start:start+4] = best_regr

    # 经过上面,我们只是挑选出了 与任意ground - truth(真实检测框)的IOU大于0.7 的anchor为正样本。
    # 但是如果某个ground - truth(真实检测框) 没有与它iou值大于0.7的anchor呢?
    # 这个时候需要用到第一个条件 与ground - truth(真实检测框)IOU最高的anchor
    # 我们需要确保每一个真实标注框都有至少一个对应的正样本(anchor)
    for idx in range(num_anchors_for_bbox.shape[0]):#遍历所有真实标注框,也就是所有ground truth
        if num_anchors_for_bbox[idx] == 0:  #如果当前真实标注框没有所对应的anchor
            if best_anchor_for_bbox[idx, 0] == -1: #如果当前真实标注框没有与任何anchor都无交集,也就是说iou都等于0,则直接忽略掉
                continue
            y_is_box_valid[best_anchor_for_bbox[idx, 0], best_anchor_for_bbox[idx, 1],
                           best_anchor_for_bbox[idx, 3] * len(anchor_ratios) + best_anchor_for_bbox[idx,2]] = 1
            y_rpn_overlap[best_anchor_for_bbox[idx, 0], best_anchor_for_bbox[idx, 1],
                           best_anchor_for_bbox[idx, 3] * len(anchor_ratios) + best_anchor_for_bbox[idx, 2]] = 1
            start = 4 * (best_anchor_for_bbox[idx, 3] * len(anchor_ratios) + best_anchor_for_bbox[idx, 2])
            y_rpn_regr[best_anchor_for_bbox[idx, 0], best_anchor_for_bbox[idx, 1], start:start+4] \
                = best_dx_for_bbox[idx, :]

    #增加一维,(样本个数)
    y_rpn_overlap = np.expand_dims(y_rpn_overlap, axis=0)
    y_is_box_valid = np.expand_dims(y_is_box_valid, axis=0)
    y_rpn_regr = np.expand_dims(y_rpn_regr, axis=0)


    '''
    a = np.array([[0,1,0],
                 [1,0,1]])
    b = np.array([[1,1,0],
                 [0,1,1]])
    print(np.logical_and(a, b))
    # [[False  True False]
    #  [False False  True]]
    print(np.where(np.logical_and(a, b)))
    #(array([0, 1], dtype=int64), array([1, 2], dtype=int64))
    '''
    #np.asarray(condition).nonzero()
    #pos_locs 正样本对应的三个维度的下标
    pos_locs = np.where(np.logical_and(y_rpn_overlap[0, :, :, :] == 1, y_is_box_valid[0, :, :, :] == 1))
    #neg_locs 负样本对应的三个维度的下标
    neg_locs = np.where(np.logical_and(y_rpn_overlap[0, :, :, :] == 0, y_is_box_valid[0, :, :, :] == 1))

    num_pos = len(pos_locs[0])  #正样本个数

    # 随机采样256个样本作为一个mini-batch,并且最多保持正负样本比例1:1,如果正样本个数不够,用负样本填充
    mini_batch = 256
    if len(pos_locs[0]) > mini_batch / 2:  #判断正样本个数是否多于128,如果是,则从所有正样本中随机采用128个
        # 注意这块,是从所有正例的下标中留下128个,选取出其他剩余的,将对应的y_is_box_valid设置为0,
        # 也就是说选取出来的正例样本就是丢弃的, 不进行训练的样本,剩余的128个即为实际的正例样本
        val_locs = random.sample(range(num_pos), num_pos - mini_batch / 2)
        y_is_box_valid[0, pos_locs[0][val_locs], pos_locs[1][val_locs], pos_locs[2][val_locs]] = 0

        num_pos = mini_batch / 2

    # 正样本选取完毕后,开始选取负例样本,同样的思路,随机选取出不需要的负样本,将对应的y_is_box_valid设置为0,
    # 剩余的正好和正样本组合成 256个样本
    if len(neg_locs[0]) + num_pos > mini_batch:
        #(mini_batch-num_pos) : 需要的负例样本数
        #len(neg_locs[0]) - (mini_batch-num_pos):不需要的负例样本数
        val_locs = random.sample(range(len(neg_locs[0])), len(neg_locs[0]) - (mini_batch-num_pos))
        y_is_box_valid[0, neg_locs[0][val_locs], neg_locs[1][val_locs], neg_locs[2][val_locs]] = 0

    #将y_is_box_valid 与 y_rpn_overlap连接到一块
    y_rpn_cls = np.concatenate([y_is_box_valid, y_rpn_overlap], axis=3)

    #对于回归损失来说,只是针对正样本进行计算的,负样本和不参与训练的其他样本都需要过滤掉,不参与训练
    #所以这块需要将y_rpn_overlap 和 y_rpn_regr拼接起来作为RPN网络回归层的真实Y值,方便后续计算损失函数
    y_rpn_regr = np.concatenate([np.repeat(y_rpn_overlap, 4, axis=3), y_rpn_regr], axis=3)


    return np.copy(y_rpn_cls), np.copy(y_rpn_regr)

我们构建一个迭代器来方便在训练时,实时生成对应训练数据

def get_anchor_data_gt(img_datas, class_count, C, mode="train"):
    '''
    生成用于RPN网络训练数据集的迭代器
    :param img_data:  原始数据,list,每个元素都是一个字典类型,存放着每张图片的相关信息
    all_img_data[0] = {'width': 500,
                       'height': 500,
                       'bboxes': [{'y2': 500, 'y1': 27, 'x2': 183, 'x1': 20, 'class': 'person', 'difficult': False},
                                  {'y2': 500, 'y1': 2, 'x2': 249, 'x1': 112, 'class': 'person', 'difficult': False},
                                  {'y2': 490, 'y1': 233, 'x2': 376, 'x1': 246, 'class': 'person', 'difficult': False},
                                  {'y2': 468, 'y1': 319, 'x2': 356, 'x1': 231, 'class': 'chair', 'difficult': False},
                                  {'y2': 450, 'y1': 314, 'x2': 58, 'x1': 1, 'class': 'chair', 'difficult': True}], 'imageset': 'test',
                        'filepath': './datasets/VOC2007/JPEGImages/000910.jpg'}
    :param class_count:  数据集中各个类别的样本个数,字典型
    :param C:            相关配置参数
    :param mode:
    :return: 返回一个数据迭代器
    '''
    while True:
        if mode == "train":
            #打乱数据集
            random.shuffle(img_datas)

        for img_data in img_datas:
            try:
                #数据增强
                if mode == "train":
                    img_data_aug, x_img = data_augment.augment(img_data, C, augment=True)
                else:
                    img_data_aug, x_img = data_augment.augment(img_data, C, augment=False)

                #确保图像尺寸不发生改变
                (width, height) = (img_data_aug['width'], img_data_aug['height'])
                (rows, cols, _) = x_img.shape
                assert cols == width
                assert rows == height

                #将图像的短边缩放到600尺寸
                (resized_width, resized_height) = get_new_img_size(width, height, C.im_size)
                x_img = cv2.resize(x_img, (resized_width, resized_height), interpolation=cv2.INTER_CUBIC)

                x_img = cv2.cvtColor(x_img, cv2.COLOR_BGR2RGB)
                x_img = x_img.astype(np.float32)
                x_img[:, :, 0] -= C.img_channel_mean[0]
                x_img[:, :, 1] -= C.img_channel_mean[1]
                x_img[:, :, 2] -= C.img_channel_mean[2]
                x_img /= C.img_scaling_factor
                x_img = np.expand_dims(x_img, axis=0)

                y_rpn_cls, y_rpn_regr = getdata_for_rpn(C, img_data_aug, width, height, resized_width, resized_height)

                y_rpn_regr[:,:, :, y_rpn_regr.shape[1] // 2:] *= C.std_scaling

                yield  np.copy(x_img), [np.copy(y_rpn_cls), np.copy(y_rpn_regr)], img_data_aug
            except Exception as e:
                print(e)
                continue

测试下看看:

image_data, classes_count, classes_mapping = voc_data_parser.get_data("data")
train_imgs = [s for s in image_data if s['imageset'] == 'train']   #训练集
val_imgs = [s for s in image_data if s['imageset'] == 'val']  #验证集
test_imgs = [s for s in image_data if s['imageset'] == 'test'] #测试集
data_gen_train = data_generators.get_anchor_data_gt(train_imgs[:3], classes_count, config)
for i in range(3):
    X, Y, img_data = next(data_gen_train)
    print("经过预处理后的图像X:",X.shape)
    print("RPN网络分类层对应Y值:",Y[0].shape)
    print("RPN网络回归层层对应Y值:",Y[1].shape)

结果如下:

这块需要注意,RPN网络的分类层,因为是二分类,后面我们直接用sigmoid分类,对于sigmoid分类来说,因为每个feature map像素点中对应9个anchor, 最终的输出通道数应该为1*k也就是9,为什么这块是18呢?

因为我们并不是所有anchor都参与训练的,首先,对于一部分anchor,根据Fatster R-CNN中根据IOU的判断标准,一部分anchor既不属于正样本,也不属于负样本,直接舍弃,另外,对应选出来的正负样本中,最终也只是选取出256个anchor作为实际参与训练的样本。所以,对于每一个anchor,我们都需要一个标记来判断当前anchor是否参与训练。

对于回归层的Y值最后的通道数,正常情况下,应该为36,这块为何是72呢,因为,之前我们在说faster RCNN原理时,关于RPN网络的损失函数,对于回归损失来说,只是针对正样本进行计算的,负样本和不参与训练的其他样本都需要过滤掉,不参与训练,所有这块需要在原本36的基础上对应加上每一个是否是正样本的标记,所有最终为72.

数据准备好之后,下次我们来构造Faster RCNN网络模型。

未完待续....


相关本章完整代码以及VOC2102数据集百度网盘下载,请关注我自己的公众号 AI计算机视觉工坊,回复【代码】和【数据集】获取。本公众号不定期推送机器学习,深度学习,计算机视觉等相关文章,欢迎大家和我一起学习,交流。
