Echarts官网上说，ECharts，一个使用 JavaScript 实现的开源可视化库，可以流畅的运行在 PC 和移动设备上，兼容当前绝大部分浏览器（IE8/9/10/11，Chrome，Firefox，Safari等），底层依赖轻量级的矢量图形库 ZRender，提供直观，交互丰富，可高度个性化定制的数据可视化图表。
ECharts 提供了常规的折线图、柱状图、散点图、饼图、K线图，用于统计的盒形图，用于地理数据可视化的地图、热力图、线图，用于关系数据可视化的关系图、treemap、旭日图，多维数据可视化的平行坐标，还有用于 BI 的漏斗图，仪表盘，并且支持图与图之间的混搭。
除了已经内置的包含了丰富功能的图表，ECharts 还提供了自定义系列，只需要传入一个renderItem函数，就可以从数据映射到任何你想要的图形，更棒的是这些都还能和已有的交互组件结合使用而不需要操心其它事情。
Echarts官网上提供的实例几乎满足实际开发需求，有时未免有些特殊的需求，还好Echarts官网上提供丰富的开发文档。通过仔细阅读文档终究会想到解决方法。
今天主要总结一下关于Echarts可视化组件开发中的富文本，官方文档对富文本的解释如下：
原先 echarts 中的文本标签，只能对整块统一进行样式设置，并且仅仅支持颜色和字体的设置，从而导致不易于制作表达能力更强的文字描述信息。
echarts v3.7 以后，支持了富文本标签，能够：
- 定制文本块整体的样式（如背景、边框、阴影等）、位置、旋转等。
- 对文本块中个别片段定义样式（如颜色、字体、高宽、背景、阴影等）、对齐方式等。
- 在文本中使用图片做小图标或者背景。
- 特定组合以上的规则，可以做出简单表格、分割线等效果。
开始下面的介绍之前，先说明一下下面会使用的两个名词的含义：
- 文本块（Text Block）：文本标签块整体。
- 文本片段（Text Fregment）：文本标签块中的部分文本。
文本样式相关的配置项
echarts 提供了丰富的文本标签配置项，包括：
- 字体基本样式设置：
fontStyle、fontWeight、fontSize、fontFamily。 - 文字颜色：
color。 - 文字描边：
textBorderColor、textBorderWidth。 - 文字阴影：
textShadowColor、textShadowBlur、textShadowOffsetX、textShadowOffsetY。 - 文本块或文本片段大小：
lineHeight、width、height、padding。 - 文本块或文本片段的对齐：
align、verticalAlign。 - 文本块或文本片段的边框、背景（颜色或图片）：
backgroundColor、borderColor、borderWidth、borderRadius。 - 文本块或文本片段的阴影：
shadowColor、shadowBlur、shadowOffsetX、shadowOffsetY。 - 文本块的位置和旋转：
position、distance、rotate。
可以在各处的 rich 属性中定义文本片段样式。例如 series-bar.label.rich
例如：
label: {
// 在文本中，可以对部分文本采用 rich 中定义样式。
// 这里需要在文本中使用标记符号：
// `{styleName|text content text content}` 标记样式名。
// 注意，换行仍是使用 '\n'。
formatter: [
'{a|这段文本采用样式a}',
'{b|这段文本采用样式b}这段用默认样式{x|这段用样式x}'
].join('\n'),
// 这里是文本块的样式设置：
color: '#333',
fontSize: 5,
fontFamily: 'Arial',
borderWidth: 3,
backgroundColor: '#984455',
padding: [3, 10, 10, 5],
lineHeight: 20,
// rich 里是文本片段的样式设置：
rich: {
a: {
color: 'red',
lineHeight: 10
},
b: {
backgroundColor: {
image: 'xxx/xxx.jpg'
},
height: 40
},
x: {
fontSize: 18,
fontFamily: 'Microsoft YaHei',
borderColor: '#449933',
borderRadius: 4
},
...
}
}注意：如果不定义
rich，不能指定文字块的width和height。

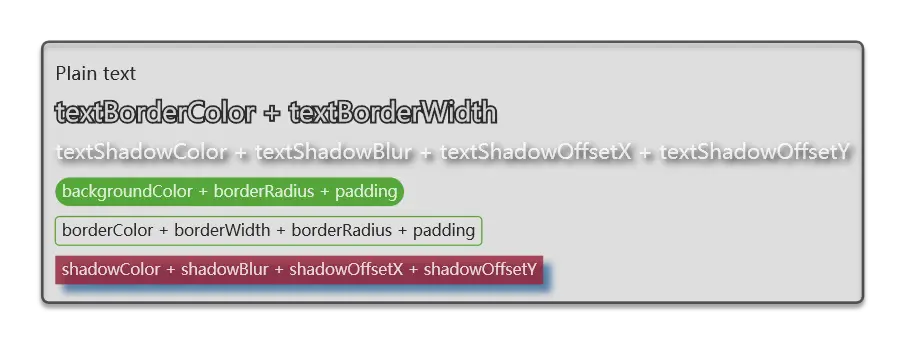

文本、文本框、文本片段的基本样式和装饰
每个文本可以设置基本的字体样式：fontStyle、fontWeight、fontSize、fontFamily。
可以设置文字的颜色 color 和边框的颜色 textBorderColor、textBorderWidth。
文本框可以设置边框和背景的样式：borderColor、borderWidth、backgroundColor、padding。
文本片段也可以设置边框和背景的样式：borderColor、borderWidth、backgroundColor、padding。
例如：
标签的位置
对于折线图、柱状图、散点图等，均可以使用 label 来设置标签。标签的相对于图形元素的位置，一般使用 label.position、label.distance 来配置。
例如：
注意：
position在不同的图中可取值有所不同。distance并不是在每个图中都支持。详情请参见 option 文档。
标签的旋转
某些图中，为了能有足够长的空间来显示标签，需要对标签进行旋转。例如：
这种场景下，可以结合 align 和 verticalAlign 来调整标签位置。
注意，逻辑是，先使用 align 和 verticalAlign 定位，再旋转。

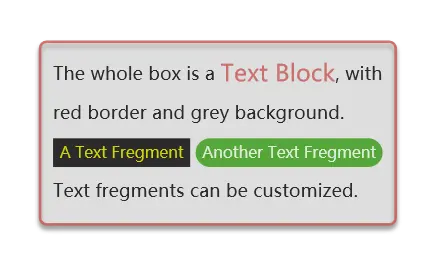

文本片段的排版和对齐
关于排版方式，每个文本片段，可以想象成 CSS 中的 inline-block，在文档流中按行放置。
每个文本片段的内容盒尺寸（content box size），默认是根据文字大小决定的。但是，也可以设置 width、height 来强制指定，虽然一般不会这么做（参见下文）。文本片段的边框盒尺寸（border box size），由上述本身尺寸，加上文本片段的 padding 来得到。
只有 '\n' 是换行符，能导致换行。
一行内，会有多个文本片段。每行的实际高度，由 lineHeight 最大的文本片段决定。文本片段的 lineHeight 可直接在 rich 中指定，也可以在 rich 的父层级中统一指定而采用到 rich 的所有项中，如果都不指定，则取文本片段的边框盒尺寸（border box size）。
在一行的 lineHeight 被决定后，一行内，文本片段的竖直位置，由文本片段的 verticalAlign 来指定（这里和 CSS 中的规则稍有不同）：
'bottom'：文本片段的盒的底边贴住行底。'top'：文本片段的盒的顶边贴住行顶。'middle'：居行中。
文本块的宽度，可以直接由文本块的 width 指定，否则，由最长的行决定。宽度决定后，在一行中进行文本片段的放置。文本片段的 align 决定了文本片段在行中的水平位置：
- 首先，从左向右连续紧靠放置
align为'left'的文本片段盒。 - 然后，从右向左连续紧靠放置
align为'right'的文本片段盒。 - 最后，剩余的没处理的文本片段盒，紧贴着，在中间剩余的区域中居中放置。
关于文字在文本片段盒中的位置：
- 如果
align为'center'，则文字在文本片段盒中是居中的。 - 如果
align为'left'，则文字在文本片段盒中是居左的。 - 如果
align为'right'，则文字在文本片段盒中是居右的。
例如：
特殊效果：图标、分割线、标题块、简单表格
看下面的例子：
文本片段的 backgroundColor 可以指定为图片后，就可以在文本中使用图标了：
rich: {
Sunny: {
// 这样设定 backgroundColor 就可以是图片了。
backgroundColor: {
image: './data/asset/img/weather/sunny_128.png'
},
// 可以只指定图片的高度，从而图片的宽度根据图片的长宽比自动得到。
height: 30
}
}分割线实际是用 border 实现的：
rich: {
hr: {
borderColor: '#777',
// 这里把 width 设置为 '100%'，表示分割线的长度充满文本块。
// 注意，这里是文本块内容盒（content box）的 100%，而不包含 padding。
// 虽然这和 CSS 相关的定义有所不同，但是在这类场景中更加方便。
width: '100%',
borderWidth: 0.5,
height: 0
}
}标题块是使用 backgroundColor 实现的：
// 标题文字居左
formatter: '{titleBg|Left Title}',
rich: {
titleBg: {
backgroundColor: '#000',
height: 30,
borderRadius: [5, 5, 0, 0],
padding: [0, 10, 0, 10],
width: '100%',
color: '#eee'
}
}
// 标题文字居中。
// 这个实现有些 tricky，但是，能够不引入更复杂的排版规则而实现这个效果。
formatter: '{tc|Center Title}{titleBg|}',
rich: {
titleBg: {
align: 'right',
backgroundColor: '#000',
height: 30,
borderRadius: [5, 5, 0, 0],
padding: [0, 10, 0, 10],
width: '100%',
color: '#eee'
}
}下面直接贴上实例代码和GitHub连接Demo1 对echarts的title使用富文本，对其格式化01（这个title是固定的）效果图：
1 <!DOCTYPE html>
2 <html>
3
4 <head>
5 <meta charset="utf-8">
6 <title>ECharts</title>
7 <!-- 引入 echarts.js -->
8 <script src="https://cdnjs.cloudflare.com/ajax/libs/echarts/4.1.0/echarts-en.common.js"></script>
9 </head>
10
11
12
13
14
15 <bod>
16 <!-- 为ECharts准备一个具备大小（宽高）的Dom -->
17 <div id="main" style="width: 900px;height:600px;"></div>
18 <script type="text/javascript">
19 // 基于准备好的dom，初始化echarts实例
20 var myChart = echarts.init(document.getElementById('main'));
21
22
23
24
25
26 // 指定图表的配置项和数据
27 var data = [2220, 1682, 2791, 3000, 4090, 3230, 2910];
28 var xdata = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat'];
29 var option = {
30 color: ['#3398DB'],
31 tooltip: {
32 trigger: 'axis',
33 },
34 grid: {
35 top: '10%',
36 containLabel: true
37 },
38 title: {
39 /* text: 'subtextStyle.rich使用', */
40 subtext: '{a|名称：}{b|供水统计}',
41 left: 'center',
42 textStyle: {
43 fontSize: 20
44 },
45 subtextStyle: {
46 rich: {
47 a: { //开头和结尾的文字样式
48 color: 'gray',
49 fontSize: 18
50 },
51 b: {
52 /* backgroundColor: 'pink', */ //无法设置渐变色
53 color: 'green',
54 padding: [3, 8],
55 fontSize: 16,
56 fontWeight: 600,
57 /* borderColor: '#0b4d9d',
58 borderWidth: 1, */
59 }
60 }
61 }
62 },
63 xAxis: [{
64 type: 'category',
65 data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'],
66 axisTick: {
67 alignWithLabel: true
68 }
69 }],
70 yAxis: [{
71 type: 'value'
72 }],
73 series: [{
74 name: '直接访问',
75 type: 'bar',
76 barWidth: '60%',
77 data: [10, 52, 200, 334, 390, 330, 220]
78 }]
79 };
80 // 使用刚指定的配置项和数据显示图表。
81 myChart.setOption(option);
82 </script>
83 </body>
84
85
86
87
88
89 </html>
01（这个title是动态的）
效果图：
1 <!DOCTYPE html>
2 <html>
3
4
5
6
7 <head>
8 <meta charset="utf-8">
9 <title>ECharts</title>
10 <!-- 引入 echarts.js -->
11 <script src="https://cdnjs.cloudflare.com/ajax/libs/echarts/4.1.0/echarts-en.common.js"></script>
12 </head>
13
14
15
16
17
18 <bod>
19 <!-- 为ECharts准备一个具备大小（宽高）的Dom -->
20 <div id="main" style="width: 900px;height:600px;"></div>
21 <script type="text/javascript">
22 // 基于准备好的dom，初始化echarts实例
23 var myChart = echarts.init(document.getElementById('main'));
24 var timename = "时间"
25 var time = "18:08:08"
26 // 指定图表的配置项和数据
27 var data = [2220, 1682, 2791, 3000, 4090, 3230, 2910];
28 var xdata = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat'];
29 var option = {
30 color: ['#3398DB'],
31 tooltip: {
32 trigger: 'axis',
33 },
34 grid: {
35 top: '10%',
36 containLabel: true
37 },
38 title: {
39 subtext: "{" + "a" + "|" + timename + "}" + "{" + "b" + "|" + time + "}",
40 left: 'center',
41 textStyle: {
42 fontSize: 20
43 },
44 subtextStyle: {
45 rich: {
46 a: { //开头和结尾的文字样式
47 color: 'gray',
48 fontSize: 18
49 },
50 b: {
51 color: 'green',
52 padding: [3, 8],
53 fontSize: 16,
54 fontWeight: 600,
55 }
56 }
57 }
58 },
59 xAxis: [{
60 type: 'category',
61 data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'],
62 axisTick: {
63 alignWithLabel: true
64 }
65 }],
66 yAxis: [{
67 type: 'value'
68 }],
69 series: [{
70 name: '直接访问',
71 type: 'bar',
72 barWidth: '60%',
73 data: [10, 52, 200, 334, 390, 330, 220]
74 }]
75 };
76 // 使用刚指定的配置项和数据显示图表。
77 myChart.setOption(option);
78 </script>
79 </body>
80
81
82
83
84
85 </html>demo2 在vue使用echarts,修改
tooltip
效果图：

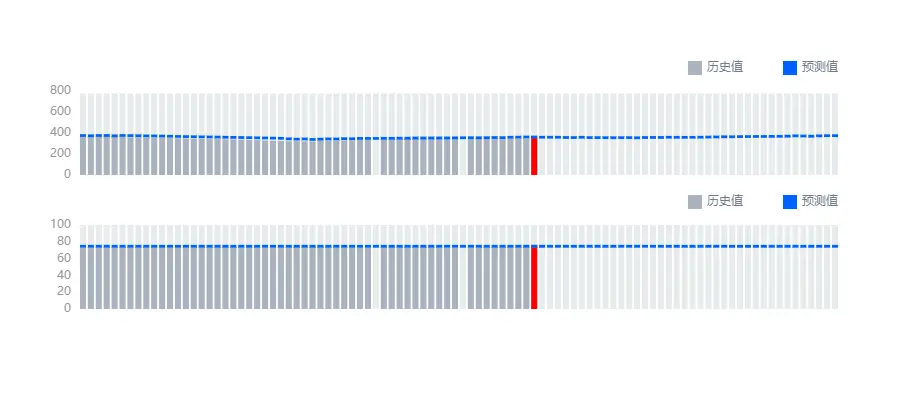

代码《01》
