simple-react-draggable 简单可拖拽的react组件

simple-react-draggable

简单的可拖拽的react组件, 不依赖任何第三方的库项目地址

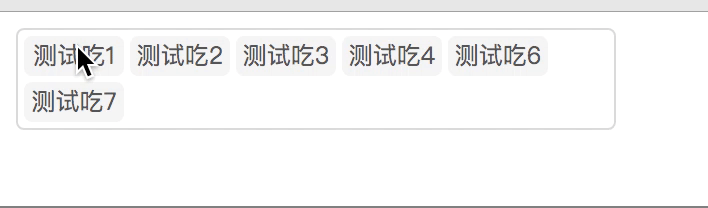

example(demo)

结合antd Select折中的支持排序方案(理想的情况重构Select中Tag组件)

解决什么问题?

来源于运营同学的需求;
在用antd的select组件时, mode:multiple时, 选中的tag不能排序; 有时需要对选中数据执行调整顺序时, 需要删掉数据,然后在添加数据;

Usage

npm/cnpm i simple-react-draggable

Props

Attribute	Description	Type	Accepted Values	Default
list	data	Array	[{id,name}]	[]
option	config	{}
className	container style	css string	any
itemClassName	each item style	css string	any
onMove	listener	function	callback

example

  import Draggable from 'simple-react-draggable';
  const list = [{
    id: 1,
    name: '测试1'
  },{
    id: 2,
    name: '测试2'
  },{
    id: 3,
    name: '测试3'
  },{
    id: 4,
    name: '测试4'
  },{
    id: 5,
    name: '测试6'
  },{
    id: 7,
    name: '测试7'
  }];

  <Draggable list={list}/>

参数说明

配置:

option: (可选)

offsetX: item的左右间隔距离
offsetY: item的上下间隔距离
width: item的宽度
height: item的高度
defaultOption:

    const defaultOption = {
        width: 50,
        height: 20,
        offsetX: 3,
        offsetY: 3
    };

itemClassName: (可选)

移动项的className
移动项默认的样式

    .draggable-item {
      background: #f3f3f3;
      border-radius: 4px;
      overflow: hidden;
      cursor: default;
      font-size: 12px;
      color: rgba(0,0,0,0.65);
      text-align: center;
    }

className: (可选)

容器的样式
容器的样式

.wrapper {
  background: #fff;
  border-radius: 4px;
  border: 1px solid #d9d9d9;
  box-sizing: border-box;
  padding: 0;
  margin: 0;
}

list: 需要排序的数据
- type: [{id,name}]
onMove: 把移动后的数据返回
- type: callback
- return: [{id, name}]

实现的思路

总的思路: 找到要移动的数据的index和目标位置的元素的index, but how?

每一个item元素bind onDragStart监听事件; 并记录每个元素的index(代码为position); 这一步获取移动数据的index

 list.forEach((item,index) => {
   items.push(
     <div key={item.id}
       onDragStart = {(event) => this.onDragStart(event, index)}
       draggable
       style={{marginTop: offsetY, marginLeft: offsetX, width, height, lineHeight: height+'px'}}
       className={itemCls}
     >
       {item.name}
     </div>
   );
 })

 // onDragStart 记录index
  event.dataTransfer.setData("position", position);

获取目标位置元素的index: 容器中监听onDrop事件, 使用onDragOver防止事件冒泡; onDrap事件实现:

 onDrop = (event) => {
     let {list} = this.state,
         position = event.dataTransfer.getData("position"),
         targetIndex = this.calculateTargetIndex(event.target),
         removeItem;
     let {onMove} = this.props;
     if(targetIndex !== -1){
         removeItem = list.splice(position, 1)[0];
         list.splice(targetIndex, 0, removeItem);
         this.setState({list});
         onMove && onMove(list)
     }
 }

在React计算元素的物理位置

1).计算拖拽容器的x,y,以及每一行能显示多少移动元素

 calculateDragContainer(){
     let { option: {offsetX, width} } = this.state;
     let c = ReactDOM.findDOMNode(this.refs.draggableContainer).getBoundingClientRect(),
         col = parseInt((c.width - offsetX) / (width + offsetX));
     return {
     x: c.x,
     y: c.y,
     col
     }
 }

2). 计算item元素的x,y

    calculateDragItem(target){
        var t = ReactDOM.findDOMNode(target).getBoundingClientRect();
        return {x: t.x, y: t.y}
    }

3). 计算每一个list中的i数据的行列值

calculateIndexRowCol(i, maxCol) { // index row col
    let row, col;
    row = Math.ceil(i / maxCol);
    col = i % maxCol;
    if(col === 0) {
    col = maxCol;
    }
    return {row, col};
}

4). 计算目标位置的list元素的index

calculateTargetIndex(target){// 获取目标元素的index
    let { list, option: {width, height, offsetX, offsetY} } = this.state,
        c = this.calculateDragContainer(),
        t = this.calculateDragItem(target),
        targetIndex = -1,targetX,targetY, i,
        len = list.length;
    if(t.x !== c.x && list.length > 0){ // 鼠标落在目标item上
    for(i = 1; i <= len; ++i){
        let {row, col} = this.calculateIndexRowCol(i, c.col);
            targetX = ((col - 1) * width + col * offsetX) + c.x;
            targetY = ((row - 1) * height + row * offsetY) + c.y;
        if(targetX === t.x && targetY === t.y){
        targetIndex = i - 1;
        break;
        }
    }
    }
    return targetIndex;
}
