这里是iOS 下WebRTC音视频通话开发的第二篇,在这一篇会利用一个局域网内音视频通话的例子介绍WebRTC中常用的API。

如果你下载并编译完成之后,会看到一个iOS 版的WebRTC Demo。 但是那个demo涉及到外网的通讯需要翻墙,而且还有对信令消息的封装理解起来非常的困难。

我将要写的这个demo去掉了STUN服务器、TURN服务器配置,以及信令的包装,基本上是用WebRTC进行音视频通话的最精简主干了,非常容易理解。

准备

因为这个Demo用到了我之前写的另外两个工程:

一个XMPP聊天的Demo

音视频通话的UI效果视图

如果你对在本地搭建OpenFire服务以及开发一个基于XMPP的聊天小程序感兴趣 教程在这里:

XMPP系列(一):OpenFire环境搭建

XMPP系列(二)----用户注册和用户登录功能

XMPP系列(三)---获取好友列表、添加好友

XMPP系列(四)---发送和接收文字消息,获取历史消息功能

XMPP系列(五)---文件传输

所以只需要下载上面两个工程,然后把一些控件合并下,然后配置好你的XMPP服务器的IP和端口号,就可以继续做音视频功能的开发了。

开始着手开发

首先,把WebRTC的静态库加进项目之后,需要添加相应的系统依赖库:

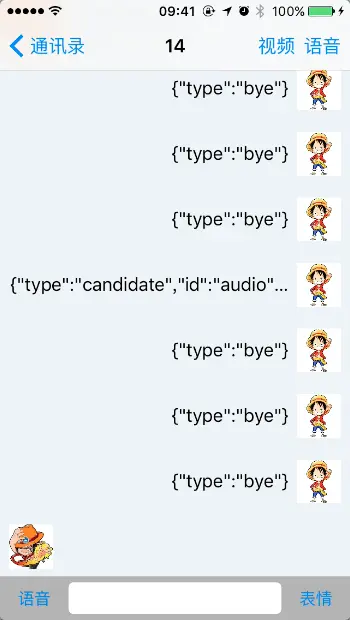

然后,我在聊天介绍导航栏上加了两个按钮【视频】【语音】(主要是太懒,不想在输入框做更多功能)。如下图:

再然后,为视频按钮添加点击事件,在这个点击事件里需要做几件事:

  • 1、弹出一个拨打的界面。
  • 2、播放拨打视频通话的声音。
  • 3、做WebRTC的配置。
- (void)videoAction
{
    NSLog(@"%s",__func__);
    [self startCommunication:YES];
}

- (void)startCommunication:(BOOL)isVideo
{
    WebRTCClient *client = [WebRTCClient sharedInstance];
    [client startEngine];
    client.myJID = [HLIMCenter sharedInstance].xmppStream.myJID.full;
    client.remoteJID = self.chatJID.full;

    [client showRTCViewByRemoteName:self.chatJID.full isVideo:isVideo isCaller:YES];

}

所有与WebRTC相关的操作都先封装在WebRTCClient内,然后再根据功能做拆分,后面你可以拆分到不同的类里。

下面开始介绍WebRTC的相关配置:

- (void)startEngine
{
  //如果你需要安全一点,用到SSL验证,那就加上这句话。
    [RTCPeerConnectionFactory initializeSSL];

    //set RTCPeerConnection's constraints
    self.peerConnectionFactory = [[RTCPeerConnectionFactory alloc] init];
    NSArray *mandatoryConstraints = @[[[RTCPair alloc] initWithKey:@"OfferToReceiveAudio" value:@"true"],
                                      [[RTCPair alloc] initWithKey:@"OfferToReceiveVideo" value:@"true"]
                                      ];
    NSArray *optionalConstraints = @[[[RTCPair alloc] initWithKey:@"DtlsSrtpKeyAgreement" value:@"false"]];
    self.pcConstraints = [[RTCMediaConstraints alloc] initWithMandatoryConstraints:mandatoryConstraints optionalConstraints:optionalConstraints];

    //set SDP's Constraints in order to (offer/answer)
    NSArray *sdpMandatoryConstraints = @[[[RTCPair alloc] initWithKey:@"OfferToReceiveAudio" value:@"true"],
                                         [[RTCPair alloc] initWithKey:@"OfferToReceiveVideo" value:@"true"]
                                         ];
    self.sdpConstraints = [[RTCMediaConstraints alloc] initWithMandatoryConstraints:sdpMandatoryConstraints optionalConstraints:nil];

    //set RTCVideoSource's(localVideoSource) constraints
    self.videoConstraints = [[RTCMediaConstraints alloc] initWithMandatoryConstraints:nil optionalConstraints:nil];
}

上面的三个约束,只有pcConstraints是必须的,其他的都不是必须的。这些约束主要是控制音视频的采集,以及PeerConnection的设置。

其他RTC相关的配置是在显示拨打界面后做的操作:

- (void)showRTCViewByRemoteName:(NSString *)remoteName isVideo:(BOOL)isVideo isCaller:(BOOL)isCaller
{
    // 1.显示视图
    self.rtcView = [[RTCView alloc] initWithIsVideo:isVideo isCallee:!isCaller];
    self.rtcView.nickName = remoteName;
    self.rtcView.connectText = @"等待对方接听";
    self.rtcView.netTipText = @"网络状况良好";
    [self.rtcView show];

    // 2.播放声音
    NSURL *audioURL;
    if (isCaller) {
        audioURL = [[NSBundle mainBundle] URLForResource:@"AVChat_waitingForAnswer.mp3" withExtension:nil];
    } else {
        audioURL = [[NSBundle mainBundle] URLForResource:@"AVChat_incoming.mp3" withExtension:nil];
    }
    _audioPlayer = [[AVAudioPlayer alloc] initWithContentsOfURL:audioURL error:nil];
    _audioPlayer.numberOfLoops = -1;
    [_audioPlayer prepareToPlay];
    [_audioPlayer play];

    // 3.拨打时,禁止黑屏
    [UIApplication sharedApplication].idleTimerDisabled = YES;

    // 4.监听系统电话
    [self listenSystemCall];

    // 5.做RTC必要设置
    if (isCaller) {
        [self initRTCSetting];
        // 如果是发起者,创建一个offer信令
        [self.peerConnection createOfferWithDelegate:self constraints:self.sdpConstraints];
    } else {
        // 如果是接收者,就要处理信令信息,创建一个answer,但是设置和创建answer应该在点击接听后才开始
        NSLog(@"如果是接收者,就要处理信令信息");
        self.rtcView.connectText = isVideo ? @"视频通话":@"语音通话";
    }
}

上面的注释已经很明白了。主要内容在[initRTCSetting]中。

  • 1.已ICE服务器地址、pc约束、代理作为参数创建RTCPeerConnection对象。
self.peerConnection = [self.peerConnectionFactory peerConnectionWithICEServers:_ICEServers constraints:self.pcConstraints delegate:self];
  • 2.创建本地多媒体流
RTCMediaStream *mediaStream = [self.peerConnectionFactory mediaStreamWithLabel:@"ARDAMS"];
  • 3.为多媒体流添加音频轨迹
RTCAudioTrack *localAudioTrack = [self.peerConnectionFactory audioTrackWithID:@"ARDAMSa0"];
 [mediaStream addAudioTrack:localAudioTrack];

音频的采集,已经封装在peerConnectionFactory工厂内。

  • 4.为多媒体流添加视频轨迹
RTCAVFoundationVideoSource *source = [[RTCAVFoundationVideoSource alloc] initWithFactory:self.peerConnectionFactory constraints:self.videoConstraints];
RTCVideoTrack *localVideoTrack = [[RTCVideoTrack alloc] initWithFactory:self.peerConnectionFactory source:source trackId:@"AVAMSv0"];
 [mediaStream addVideoTrack:localVideoTrack];

随着WebRTC的更新,API也被替换了很多,现在视频的采集多了一个新的类RTCAVFoundationVideoSource

  • 5.为视频流添加渲染视图
    RTCEAGLVideoView *localVideoView = [[RTCEAGLVideoView alloc] initWithFrame:self.rtcView.ownImageView.bounds];
    localVideoView.transform = CGAffineTransformMakeScale(-1, 1);
    localVideoView.delegate = self;
    [self.rtcView.ownImageView addSubview:localVideoView];
    self.localVideoView = localVideoView;
    // 添加渲染视图
    [self.localVideoTrack addRenderer:self.localVideoView];

RTCEAGLVideoView也是新增的一个视图类,我们可以直接将这个视图添加到某个视图上。

  • 6.将多媒体流绑定到peerConnection上
[self.peerConnection addStream:mediaStream];

至此发起方的RTC 设置完毕,只用在创建一个Offer,然后将Offer发送给对方。

  • 7.创建Offer
[self.peerConnection createOfferWithDelegate:self constraints:self.sdpConstraints];
  • 8.在createSession的回调里,为peerConnection设置localDescription,并发送信令给对方—(其实在setSession的代理方法中发送信令更合适,但是那样就得保存sdp,所以这里偷了个懒)。
 - (void)peerConnection:(RTCPeerConnection *)peerConnection
didCreateSessionDescription:(RTCSessionDescription *)sdp
                 error:(NSError *)error
{
    if (error) {
        NSLog(@"创建SessionDescription 失败");
#warning 这里创建 创建SessionDescription 失败
    } else {
        NSLog(@"创建SessionDescription 成功");
        // 这里将SessionDescription转换成H264的sdp,因为默认的是V8格式的视频。
        RTCSessionDescription *sdpH264 = [self descriptionWithDescription:sdp videoFormat:@"H264"];
        [self.peerConnection setLocalDescriptionWithDelegate:self sessionDescription:sdpH264];
        NSDictionary *jsonDict = @{ @"type" : sdp.type, @"sdp" : sdp.description };
        NSData *jsonData = [NSJSONSerialization dataWithJSONObject:jsonDict options:0 error:nil];
        NSString *jsonStr = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];
        // 将offer信令消息通过XMPP发送给对方
        [[HLIMClient shareClient] sendSignalingMessage:jsonStr toUser:self.remoteJID];
    }
}
  • 9.等待对方返回Answer信令消息,当接听后,发送Answer信令消息回来后,将其设置为peerConnection的RemoteDescription即可。然后RTC在处理完成后就开始像对方发送多媒体流啦。

补充:

RTCPeerConnection有很多个回调,他们分别是在不同的时机触发


在为peerConnection添加RTCMediaStream之后就会触发下面这个代理方法:

- (void)peerConnectionOnRenegotiationNeeded:(RTCPeerConnection *)peerConnection

设置完LocalDescription之后,ICE框架才会开始去进行流数据传输,才会触发下面这几个方法

 - (void)peerConnection:(RTCPeerConnection *)peerConnection
 signalingStateChanged:(RTCSignalingState)stateChanged

 - (void)peerConnection:(RTCPeerConnection *)peerConnection
   iceGatheringChanged:(RTCICEGatheringState)newState

 - (void)peerConnection:(RTCPeerConnection *)peerConnection
  iceConnectionChanged:(RTCICEConnectionState)newState

其中各种不同的状态的枚举值含义,在这篇文中里有英文解释:中间部分有各种枚举值的解释 而搜索到ICECandidate之后,会回调:

- (void)peerConnection:(RTCPeerConnection *)peerConnection
       gotICECandidate:(RTCICECandidate *)candidate

我们需要在上面这个回调中,将候选信息发送给对方,然后对方讲接收到的候选添加到peerConnection中。关于Candidate,是对本端网络通信能力的一种描述。对于UDP/STUN协议,Candidate仅包含IP及端口信息,对于TURN,包含TURN server的IP,端口,以及用户名密码等。Candidate由本端代码生成,生成后通过信令发送给对端。对端会在本端所有的candidate中选择一个最好的建立与本端的连接。

完整代码:

- (void)peerConnection:(RTCPeerConnection *)peerConnection
       gotICECandidate:(RTCICECandidate *)candidate
{
    if (self.HaveSentCandidate) {
        return;
    }
    NSLog(@"新的 Ice candidate 被发现.");

    NSDictionary *jsonDict = @{@"type":@"candidate",
                               @"label":[NSNumber numberWithInteger:candidate.sdpMLineIndex],
                               @"id":candidate.sdpMid,
                               @"sdp":candidate.sdp
                               };
    NSData *jsonData = [NSJSONSerialization dataWithJSONObject:jsonDict options:0 error:nil];
    if (jsonData.length > 0) {
        NSString *jsonStr = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];
        [[HLIMClient shareClient] sendSignalingMessage:jsonStr toUser:self.remoteJID];
        self.HaveSentCandidate = YES;
    }
}

接收方

接收方在收到发起方通过XMPP发送过来的信令(可能会有Offer信令,Candidate信令,bye信令)后,先将其保存到数组中,同时展示音视频通话界面,并播放声音。

这里需要注意:要将收到的Offer信令消息插入到第一个,Offer信令消息必须先处理。

当点击接听按钮时,初始化RTC的设置,即上面的[initRTCSetting]方法。然后处理之前保存的信令消息。

- (void)acceptAction
{
    [self.audioPlayer stop];

    [self initRTCSetting];

    for (NSDictionary *dict in self.messages) {
        [self processMessageDict:dict];
    }

    [self.messages removeAllObjects];
}

如何处理之前的信令消息呢?

处理Offer信令消息:

将收到的Offer信令设置为peerConnection的RemoteDescription,并创建一个Answer信令发送给对方。

处理Candidate信令消息

将收到的信令消息包装成RTCICECandidate对象,然后添加到peerConnection上。 具体代码:

- (void)processMessageDict:(NSDictionary *)dict
{
    NSString *type = dict[@"type"];
    if ([type isEqualToString:@"offer"]) {
        RTCSessionDescription *remoteSdp = [[RTCSessionDescription alloc] initWithType:type sdp:dict[@"sdp"]];

        [self.peerConnection setRemoteDescriptionWithDelegate:self sessionDescription:remoteSdp];

        [self.peerConnection createAnswerWithDelegate:self constraints:self.sdpConstraints];
    } else if ([type isEqualToString:@"answer"]) {
        RTCSessionDescription *remoteSdp = [[RTCSessionDescription alloc] initWithType:type sdp:dict[@"sdp"]];

        [self.peerConnection setRemoteDescriptionWithDelegate:self sessionDescription:remoteSdp];

    } else if ([type isEqualToString:@"candidate"]) {
        NSString *mid = [dict objectForKey:@"id"];
        NSNumber *sdpLineIndex = [dict objectForKey:@"label"];
        NSString *sdp = [dict objectForKey:@"sdp"];
        RTCICECandidate *candidate = [[RTCICECandidate alloc] initWithMid:mid index:sdpLineIndex.intValue sdp:sdp];

        [self.peerConnection addICECandidate:candidate];
    } else if ([type isEqualToString:@"bye"]) {

        if (self.rtcView) {
            NSData *jsonData = [NSJSONSerialization dataWithJSONObject:dict options:0 error:nil];
            NSString *jsonStr = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];
            if (jsonStr.length > 0) {
                [[HLIMClient shareClient] sendSignalingMessage:jsonStr toUser:self.remoteJID];
            }

            [self.rtcView dismiss];

            [self cleanCache];
        }
    }
}

需要注意的是因为没有用到ICE穿墙,所以必须在同一个路由器下,否则可能无法进行点对点传输多媒体流。至此,局域网内音视频通话的小程序就完成了。

示例工程地址:局域网内WebRTC音视频通话

Demo中用到的WebRTC静态库已放到:百度网盘

Have Fun!
