HashMap源码解析

437 阅读14分钟

HashMap又称为散列表,是我们日常工作中使用最频繁的一个数据结构之一。它可以通过一个映射函数把key值经过计算直接映射到value的位置。 最简单的映射函数就是取余。假定表的大小为M,那任意数N放入M中的方法就是把N放到N % M的位置处,这样我们想要N的值的时候只要直接去N % M处去取就好了。当然上面的例子我们忽略了冲突情况,就像N % M和(N + M) % M会被映射到同一个位置,这就叫哈希冲突。映射函数和冲突处理是衡量一个散列表性能的最基本条件。 接下来我们就来看一下JDK中关于HashMap的实现

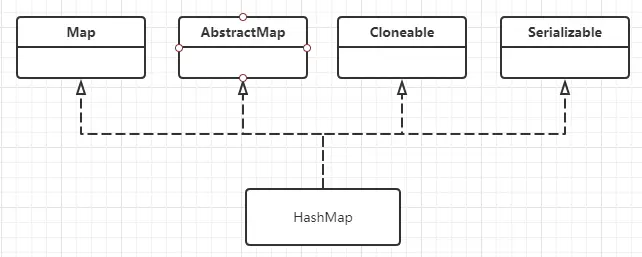

类图

图片标题

HashMap中常量

  • DEFAULT_INITIAL_CAPACITY:默认容量大小,值为16
  • MAXIMUM_CAPACITY:最大容量,值为1073741824
  • DEFAULT_LOAD_FACTOR:默认负载因子,值为0.75
  • TREEIFY_THRESHOLD:链表转成红黑树的阈值,值为8
  • UNTREEIFY_THRESHOLD:红黑树转成链表的阈值,值为6
  • MIN_TREEIFY_CAPACITY:这个值和TREEIFY_THRESHOLD是相关的,链表转成数需要两个条件,第一个是链表长度大于等于TREEIFY_THRESHOLD(8),第二个就是HashMap总容量要大于4 * TREEIFY_THRESHOLD

HashMap中的变量

  • table: 保存数据的数组,所有的put都会对应到table的一个下标
  • size: HashMap的大小
  • threshold和loadFactor:这两个是相互关联的,这里还需要一个capacity字段,这三个的关系是threshould = capacity * loadFactor。注意capacity和上面的size的区别,capacity是表示table的大小,size表示HashMap的大小。loadFactor叫做负载因子,默认情况下是0.75,threshould不知道翻译成什么,暂且称为阈值吧。假设没有冲突的情况下,当size超过阈值时,表示table已经有75%的位置被占用了,之后发生冲突的概率很大,所以就会触发扩容操作,增大table大小,减少冲突概率。

HashMap的创建

HashMap有四种构造方法,我们分别来看下

    public HashMap() {
        this.loadFactor = DEFAULT_LOAD_FACTOR; // all other fields defaulted
    }

第一种,也是默认构造方法,只是把负载因子参数设置为默认值

    public HashMap(int initialCapacity) {
        this(initialCapacity, DEFAULT_LOAD_FACTOR);
    }

    public HashMap(int initialCapacity, float loadFactor) {
        if (initialCapacity < 0)
            throw new IllegalArgumentException("Illegal initial capacity: " +
                                               initialCapacity);
        if (initialCapacity > MAXIMUM_CAPACITY)
            initialCapacity = MAXIMUM_CAPACITY;
        if (loadFactor <= 0 || Float.isNaN(loadFactor))
            throw new IllegalArgumentException("Illegal load factor: " +
                                               loadFactor);
        this.loadFactor = loadFactor;
        this.threshold = tableSizeFor(initialCapacity);
    }

第二种传入初始容量的构造方法最后也调用了第三种构造方法,所以我们直接看第三种构造方法,这个方法先是对初始容量initialCapacity和负载因子loadFactor做了合法性校验,然后就是赋值了,这里有个很有趣的方法tableSizeFor,它可以接收一个参数,并返回大于这个参数的最小的2的幂,它的实现如下

    static final int tableSizeFor(int cap) {
        int n = cap - 1;
        n |= n >>> 1;
        n |= n >>> 2;
        n |= n >>> 4;
        n |= n >>> 8;
        n |= n >>> 16;
        return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
    }

当时我刚看到这个方法的时候也是一脸懵逼的,如果不是有注释,我都不知道这个方法是要做什么的,不过用几个数实际验算后就发现了其中的奥秘了。首先我们要观察下2的幂都有什么规律。

2               // 00000000000000000000000000000010
4               // 00000000000000000000000000000100
8               // 00000000000000000000000000001000
16              // 00000000000000000000000000010000
32              // 00000000000000000000000000100000
64              // 00000000000000000000000001000000
128             // 00000000000000000000000010000000
256             // 00000000000000000000000100000000
1073741824      // 01000000000000000000000000000000
1073741823      // 00111111111111111111111111111111

很容易发现它们的二进制只有一位是1,其余都是0。以64(1000000)为例,当传入参数为33(100001)到64(1000000)的时候,tableSizeFor方法都应该返回64,而tableSizeFor方法的第一步就是cap-1。我们看一下63(111111)和32(100000)有什么相同点呢?就是它们的最高位都是1。接下来我们看一下后面的五步位移的作用。

  • : 表示无符号右移,最高位补0

  • |:按位或

为了更好的表示,我们以最大值1073741824一步一步的看下过程

n = 1073741824      // 01000000000000000000000000000000
n >>> 1             // 00100000000000000000000000000000
n |= n >>> 1        // 01100000000000000000000000000000
n >>> 2             // 00011000000000000000000000000000
n |= n >>> 2        // 01111000000000000000000000000000
n >>> 4             // 00000111100000000000000000000000
n |= n >>> 4        // 01111111100000000000000000000000
n >>> 8             // 00000000011111111000000000000000
n |= n >>> 8        // 01111111111111111000000000000000
n >>> 16            // 00000000000000000111111111111111
n |= n >>> 16       // 01111111111111111111111111111111

懂了吗?只要最高位是1,这些位移操作就可以把最高位之后的全部填充为1。这时候再加1就可以得到2的幂了。

    public HashMap(Map<? extends K, ? extends V> m) {
        this.loadFactor = DEFAULT_LOAD_FACTOR;
        putMapEntries(m, false);
    }

这是最后一种构造方法,以一个Map为构造参数,它先初始化了负载因子参数,然后putMapEntries把参数中的Map中的数据复制过来

    final void putMapEntries(Map<? extends K, ? extends V> m, boolean evict) {
        int s = m.size();
        if (s > 0) {
            if (table == null) { // pre-size
                float ft = ((float)s / loadFactor) + 1.0F;
                int t = ((ft < (float)MAXIMUM_CAPACITY) ?
                         (int)ft : MAXIMUM_CAPACITY);
                if (t > threshold)
                    threshold = tableSizeFor(t);
            }
            else if (s > threshold)
                resize();
            for (Map.Entry<? extends K, ? extends V> e : m.entrySet()) {
                K key = e.getKey();
                V value = e.getValue();
                putVal(hash(key), key, value, false, evict);
            }
        }
    }
  1. 先获取参数中Map的长度s
  2. 如果长度s大于0且当前Map还没初始化,就通过s计算出阈值
  3. 如果当前Map已经初始化了并且长度s大于当前阈值,就触发resize调整大小
  4. 遍历参数Map逐一拷贝

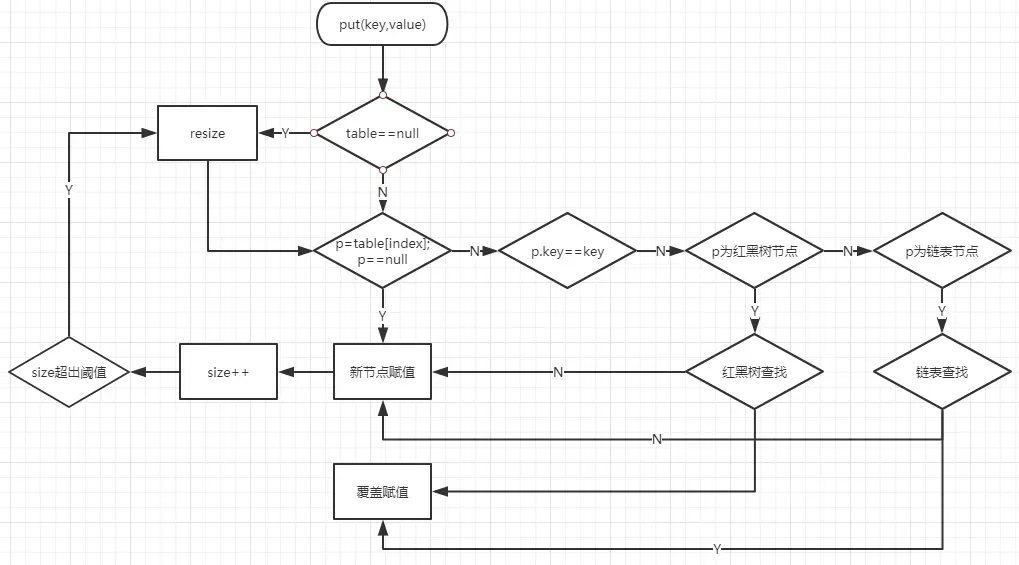

HashMap的put流程

图片标题

上面是一张HashMap的put操作的流程图,下面我们就从源码分析一下

    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

这里对key值做了hash操作,我们看一下HashMap中的hash方法

    /**
     * Computes key.hashCode() and spreads (XORs) higher bits of hash
     * to lower.  Because the table uses power-of-two masking, sets of
     * hashes that vary only in bits above the current mask will
     * always collide. (Among known examples are sets of Float keys
     * holding consecutive whole numbers in small tables.)  So we
     * apply a transform that spreads the impact of higher bits
     * downward. There is a tradeoff between speed, utility, and
     * quality of bit-spreading. Because many common sets of hashes
     * are already reasonably distributed (so don't benefit from
     * spreading), and because we use trees to handle large sets of
     * collisions in bins, we just XOR some shifted bits in the
     * cheapest possible way to reduce systematic lossage, as well as
     * to incorporate impact of the highest bits that would otherwise
     * never be used in index calculations because of table bounds.
     */
    static final int hash(Object key) {
        int h;
        return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
    }

这个函数的作用很简单,就是使key的hashcode高16位不变,低16位和高16位做了一次异或运算,然后设计者用了很长的一段注释来解释为什么这么做。要解释这个问题,就需要知道HashMap是如何计算数组下标的

 (n - 1) & hash

在结合我们之前学的HashMap的容量是2的幂,那(n - 1) & hash实际生效的就是hash值的前log(n)位。但是一个好的hash算法为了使所有位都参与运算以保证随机性。所以作者综合考虑速度,作用,质量选择了把高16bit和低16bit异或了一下。下面我们看下putVal方法的实现

    final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
                   boolean evict) {
        Node<K,V>[] tab; Node<K,V> p; int n, i;
        // 如果tab为null就调用resize创建
        if ((tab = table) == null || (n = tab.length) == 0)
            n = (tab = resize()).length;
        // 计算index,如果index处值为null表示没有冲突,直接赋值
        if ((p = tab[i = (n - 1) & hash]) == null)
            tab[i] = newNode(hash, key, value, null);
        else {
            Node<K,V> e; K k;
            // index处有值,且index处的值的key与put的值的key完全相同
            if (p.hash == hash &&
                ((k = p.key) == key || (key != null && key.equals(k))))
                e = p;
            // index处为红黑树
            else if (p instanceof TreeNode)
                e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
            // index处为链表
            else {
                for (int binCount = 0; ; ++binCount) {
                    if ((e = p.next) == null) {
                        p.next = newNode(hash, key, value, null);
                        if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
                            treeifyBin(tab, hash);
                        break;
                    }
                    if (e.hash == hash &&
                        ((k = e.key) == key || (key != null && key.equals(k))))
                        break;
                    p = e;
                }
            }
            // 如果e不为null,表示map中存在同样key的值,需要覆盖赋值
            if (e != null) { // existing mapping for key
                V oldValue = e.value;
                if (!onlyIfAbsent || oldValue == null)
                    e.value = value;
                afterNodeAccess(e);
                return oldValue;
            }
        }
        ++modCount;
        if (++size > threshold)
            resize();
        afterNodeInsertion(evict);
        return null;
    }

  1. 首先判断table是否为null,如果为null触发resize
  2. 计算当前key对应的index,如果当前index的节点为null,直接创建新节点赋值。
  3. 当前index的节点不为null,比较index节点的key与put节点的key是否相同,如果相同就覆盖赋值
  4. 能到这一步说明已经发生了碰撞,判断index节点是否是红黑树节点,如果是,在红黑树中查找put节点,如果能找到就是覆盖赋值,找不到新建节点赋值
  5. 在链表中查找put节点,如果能找到就是覆盖赋值,找不到新建节点赋值。如果链表的大小超过TREEIFY_THRESHOLD-1,则将链表转换成红黑树
  6. 如果是新建节点赋值,HashMap的size要加1,同时判断是否超过阈值,超过就进行resize

在上面的表述中,我们提到了红黑树,这是一个复杂的数据结构,而且红黑树也不是本篇的重点,我们只需知道红黑树和平衡二叉树类似,但是它的查找,插入,删除节点操作在最坏情况下也是对数级别的。

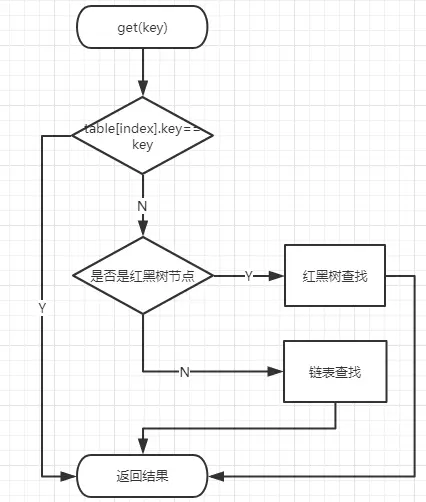

HashMap的get流程

图片标题

get流程相对put就简单很多了

    public V get(Object key) {
        Node<K,V> e;
        return (e = getNode(hash(key), key)) == null ? null : e.value;
    }

先对key做hash运算,再调用getNode方法

    final Node<K,V> getNode(int hash, Object key) {
        Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
        if ((tab = table) != null && (n = tab.length) > 0 &&
            (first = tab[(n - 1) & hash]) != null) {
            if (first.hash == hash && // always check first node
                ((k = first.key) == key || (key != null && key.equals(k))))
                return first;
            if ((e = first.next) != null) {
                if (first instanceof TreeNode)
                    return ((TreeNode<K,V>)first).getTreeNode(hash, key);
                do {
                    if (e.hash == hash &&
                        ((k = e.key) == key || (key != null && key.equals(k))))
                        return e;
                } while ((e = e.next) != null);
            }
        }
        return null;
    }
  1. 对table做合法性校验,不通过直接返回null
  2. first为index处的第一个节点,先判断first与参数key是否相同,相同就直接返回first
  3. 如果first是红黑树节点,就在红黑树中查找
  4. 如果first是链表节点,就在链表查找
  5. 都没找到返回null

HashMap的resize流程

resize流程可以拆成两个子流程,第一个是对数组的扩容,第二个是把原数组的值映射到新数组。由于resize代码较长,我们分开来分析,先看下扩容的代码

        Node<K,V>[] oldTab = table;
        int oldCap = (oldTab == null) ? 0 : oldTab.length;
        int oldThr = threshold;
        int newCap, newThr = 0;
        // 扩容
        if (oldCap > 0) {
            // 超出或等于最大容量就不再扩容了
            if (oldCap >= MAXIMUM_CAPACITY) {
                threshold = Integer.MAX_VALUE;
                return oldTab;
            }
            // 小于最大容量时,容量翻倍
            else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
                     oldCap >= DEFAULT_INITIAL_CAPACITY)
                newThr = oldThr << 1; // double threshold
        }
        // 调用带初始容量构造函数
        else if (oldThr > 0) // initial capacity was placed in threshold
            newCap = oldThr;
        // 调用无参构造函数
        else {               // zero initial threshold signifies using defaults
            newCap = DEFAULT_INITIAL_CAPACITY;
            newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);
        }
        if (newThr == 0) {
            float ft = (float)newCap * loadFactor;
            newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
                      (int)ft : Integer.MAX_VALUE);
        }
        threshold = newThr;
        @SuppressWarnings({"rawtypes","unchecked"})
            Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
        table = newTab;

这里分三种情况

  • 如果调用了无参构造函数,新容量newCap和newThr都是取默认值,分别是16和12
  • 如果调用了带初始容量的构造函数,newCap=tableSizeFor(initialCapacity),newThr=newCap*loadFactor
  • 如果table数组已经初始化过了,就判断之前的oldCap是否大于最大值,大于最大值就不再扩容了,否则newCap=oldCap*2

扩容完成后还需要把老的数组中的数据映射过来

        if (oldTab != null) {
            for (int j = 0; j < oldCap; ++j) {
                Node<K,V> e;
                if ((e = oldTab[j]) != null) {
                    oldTab[j] = null;
                    // 只有一个节点就直接映射
                    if (e.next == null)
                        newTab[e.hash & (newCap - 1)] = e;
                    // 红黑树
                    else if (e instanceof TreeNode)
                        ((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
                    // 链表
                    else { // preserve order
                        Node<K,V> loHead = null, loTail = null;
                        Node<K,V> hiHead = null, hiTail = null;
                        Node<K,V> next;
                        do {
                            next = e.next;
                            // 新增的那一位是0
                            if ((e.hash & oldCap) == 0) {
                                if (loTail == null)
                                    loHead = e;
                                else
                                    loTail.next = e;
                                loTail = e;
                            }
                            // 新增的那一位是1
                            else {
                                if (hiTail == null)
                                    hiHead = e;
                                else
                                    hiTail.next = e;
                                hiTail = e;
                            }
                        } while ((e = next) != null);
                        // 保持原位
                        if (loTail != null) {
                            loTail.next = null;
                            newTab[j] = loHead;
                        }
                        // 移到原位 + oldCap处
                        if (hiTail != null) {
                            hiTail.next = null;
                            newTab[j + oldCap] = hiHead;
                        }
                    }
                }
            }
        }

在分析映射源码之前我们还需要搞清楚一个问题,那就是一个节点在老的数据中的index和在的新的数据中的index有什么区别?即(oldCap - 1) & hash和(newCap - 1) & hash这两个值之间的关系。我们在之前讲过(oldCap - 1) & hash实际上就是hash值的前log(oldCap)位,而newCap = oldCap * 2,所以(newCap - 1) & hash表示的是hash值的前log(oldCap) + 1位。由此我们得出newIndex的值可以分两种情况

  • 新增的那一位是0,则newIndex = oldIndex
  • 新增的那一位是1,则newIndex = oldIndex + oldCap

HashMap每个位置相当于一个桶,桶里可能有一个元素,也可能多个。桶的结构为链表的我们称为链表桶,桶的结构为红黑树的我们称之为红黑树桶,下面我们可以看下这个映射过程

  1. 循环遍历老的数组,判断当前桶里的元素个数,如果桶里元素只有一个,直接映射到新数组的对应位置就可以了。
  2. 如果桶里元素大于1个且是链表桶,新建两个链表low和high。
  3. 如果新增的那一位是0,表示要保持原位,放入low链表中
  4. 如果新增的那一位是1,表示需要移动到原位+oldCap位置中,放入high表中
  5. 如果是红黑树桶就调用split方法,这个方法和链表的方式一样把原来的一颗红黑树拆成两颗low和high
  6. 红黑树的拆分过程中,如果拆出来的红黑树节点个数小于等于6个,就把树改成链表形式
