1.前言
博主最近在开发过程中,遇到这样一个小小的需求:

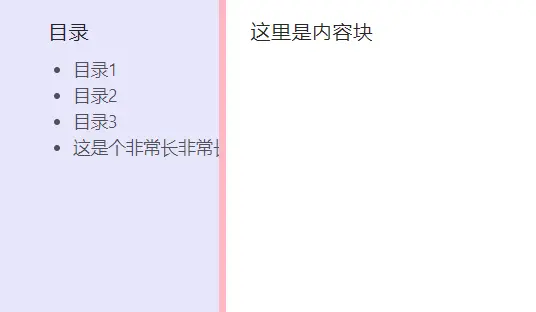

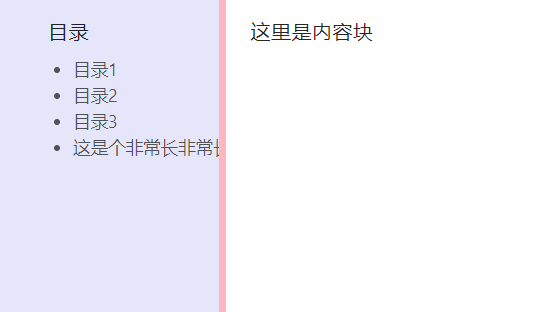

左边面板部分支持拖拽功能,可以让用户可以看到完整的目录。
Tips:vscode编辑器资源管理器部分也支持拖拽功能,与边界拖拽功能类似。
2.思考
实现拖拽可以用以下两种方案:
(1)借助于html5中新增拖放相关的api
大致思路:
设置元素可拖放(draggable
)=> ondragstart
设定拖放的数据类型和值 => ondragover
设置在何处放置数据 => ondrop
将元素拖放到目的地
其中关于鼠标移动距离的计算可以借用event.clientX
获取。
(2)借助于插件来实现
博主去github上一顿找,找到一个还不错的插件react-draggable,npm链接。
Tips:
react-draggable
的拖拽通过CSS
中的transform: translate(x, y)
来实现目标元素的移动。
3.react-draggable使用
(1)安装react-draggable
$ npm install react-draggable --save
(2)引用
import Draggable from 'react-draggable';
(3)常用props
allowAnyClick: boolean // 默认false,设为true非左键可实现点击拖拽
axis: string // 'x':x轴方向拖拽、'y':y轴方向拖拽、'none':禁止拖拽
bounds: { left: number, top: number, right: number, bottom: number } | string
// 限定移动的边界,接受值:
//(1)'parent':在移动元素的offsetParent范围内
//(2)一个选择器,在指定的Dom节点内
//(3){ left: number, top: number, right: number, bottom: number }对象,限定每个方向可以移动的距离
cancel:制定给一个选择器组织drag初始化,例如'.body'
defaultClassName:string // 拖拽ui类名,默认'react-draggable'
drfaultClassNameDragging:string // 正在拖拽ui类名,默认'eact-draggable-dragging'
defaultClassNameDragged:string //拖拽后的类名,默认'react-draggable-dragged'
defaultPosition:{ x: number, y: number } // 起始x和y的位置
disabled:boolean // true禁止拖拽任何元素
grid:[number, number] // 正在拖拽的网格范围
handle:string // 初始拖拽的的选择器'.handle'
offsetParent:HTMLElement // 拖拽的offsetParent
onMouseDown: (e: MouseEvent) => void // 鼠标按下的回调
onStart: DraggableEventHandler // 开始拖拽的回调
onDrag:DraggableEventHandler // 拖拽时的回调
onStop:DraggableEventHandler // 拖拽结束的回调
position: {x: number, y: number} // 控制元素的位置
positionOffset: {x: number | string, y: number | string} // 相对于起始位置的偏移
scale:number // 定义拖拽元素的缩放
(4)Example
class App extends React.Component {
eventLogger = (e: MouseEvent, data: Object) => {
console.log('Event: ', e);
console.log('Data: ', data);
};
render() {
return (
<Draggable
axis="x"
handle=".handle"
defaultPosition={{x: 0, y: 0}}
position={null}
grid={[25, 25]}
scale={1}
onStart={this.handleStart}
onDrag={this.handleDrag}
onStop={this.handleStop}>
<div>
<div className="handle">Drag from here</div>
<div>This readme is really dragging on...</div>
</div>
</Draggable>
);
}
}
4.实现
4.1思路
(1)左右box最好采用flex
布局,左边box初始width
设为Npx
,右边box width为calc(100% - Npx)
。
(2)在左边box内部设置一个拖拽的边界(drag-box),宽度为5px
,background-color
设为transparent
,cursor
设为col-resiz

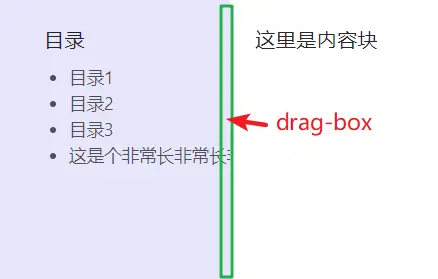

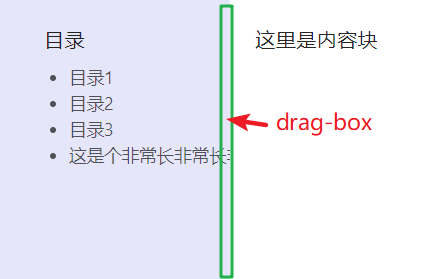

,如下图绿色部分所示:
background-color
为可见色,同时更新左右box的width
即可,拖拽结束drag-box background-color
重置为transparent
。
4.2代码实现
代码中引用了styled-components
,这是一款是针对React写的一套css in js
框架,简单来讲就是在js
中写css
,可以轻易实现组件css
模块化,类似于vue
组件中给style
添加了scoped
属性。
想要学习styled-components
的小伙伴可以查看链接。
import React, { Component } from 'react';
import Draggable from 'react-draggable';
import styled from 'styled-components';
// 容器
const Container = styled.div`
display: flex;
justify-content: flex-start;
`;
// 左边内容部分
const LeftContent = styled.div`
position: relative;
width: ${props => props.width}px;
height: 100vh;
padding: 20px;
background-color: #E6E6FA;
overflow: hidden;
flex-grow:1;
`;
// 拖拽部分
const DraggableBox = styled.div`
position: absolute;
left: ${props => props.left}px;
top: 0;
width: 5px;
height: 100vh;
background-color: ${props => props.background};
cursor: col-resize;
z-index: 1000;
`;
// 右边内容部分
const RightContent = styled.div`
width: calc(100% - ${props => props.leftBoxWidth}px);
height: 100vh;
padding: 20px;
background-color: #FFF;
flex-grow:1;
z-index: 100;
`;
const Li = styled.li`
white-space: nowrap;
`;
class DraggableExp extends Component {
state = {
initialLeftBoxWidth: 150, // 左边区块初始宽度
leftBoxWidth: 150, // 左边区块初始宽度
leftBoxMinWidth: 100, // 左边区块最小宽度
leftBoxMaxWidth: 300, // 左边区块最大宽度
dragBoxBackground: 'transparent' // 拖拽盒子的背景色
}
// 拖动时设置拖动box背景色,同时更新左右box的宽度
onDrag = (ev, ui) => {
const { initialLeftBoxWidth } = this.state;
const newLeftBoxWidth = ui.x + initialLeftBoxWidth;
this.setState({
leftBoxWidth: newLeftBoxWidth,
dragBoxBackground: '#FFB6C1'
});
};
// 拖拽结束,重置drag-box的背景色
onDragStop = () => {
this.setState({
dragBoxBackground: 'transparent'
});
};
render() {
const { initialLeftBoxWidth,
leftBoxWidth,
leftBoxMinWidth,
leftBoxMaxWidth,
dragBoxBackground } = this.state;
return (
<Container>
<LeftContent width={leftBoxWidth}>
<h3 style={{paddingLeft: 20}}>目录</h3>
<ul>
<Li>目录1</Li>
<Li>目录2</Li>
<Li>目录3</Li>
<Li>这是个非常长非常长非常长的目录</Li>
</ul>
<Draggable
axis="x"
defaultPosition={{ x: 0, y: 0 }}
bounds={{ left: leftBoxMinWidth - initialLeftBoxWidth, right: leftBoxMaxWidth - initialLeftBoxWidth }}
onDrag={this.onDrag}
onStop={this.onDragStop}>
<DraggableBox
left={initialLeftBoxWidth - 5}
background={dragBoxBackground} />
</Draggable>
</LeftContent>
<RightContent leftBoxWidth={leftBoxWidth}>
<h3>这里是内容块</h3>
</RightContent>
</Container>
)
}
}
export default DraggableExp;

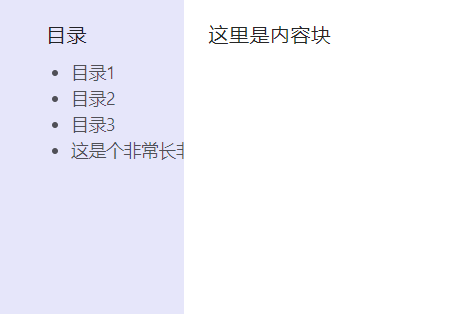

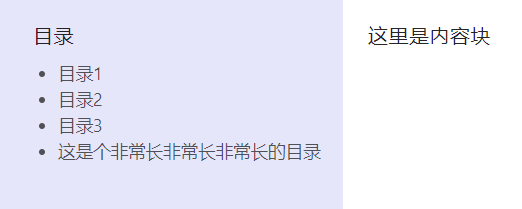

4.3实现效果

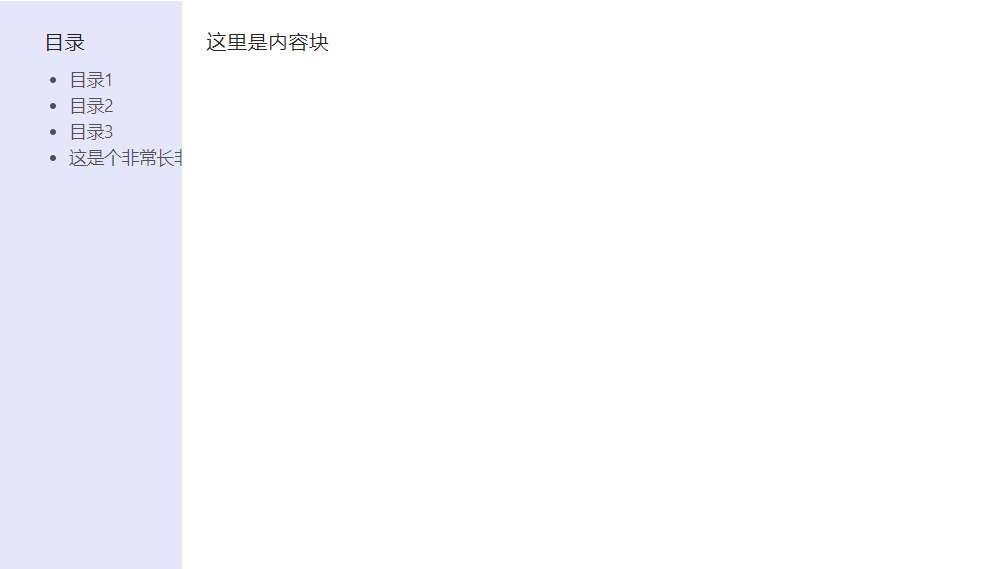

起始状态:
以上就是博主借用react-draggable实现边界拖拽的小功能,感兴趣的小伙伴可以自己动手尝试一下。
(觉得不错的小伙伴可以给文章点个赞,码字不易,灰常感谢^_^)
